◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-42 - ASH TRAY ▶
7-42 — ASH TRAY (#81771) — 15 parça

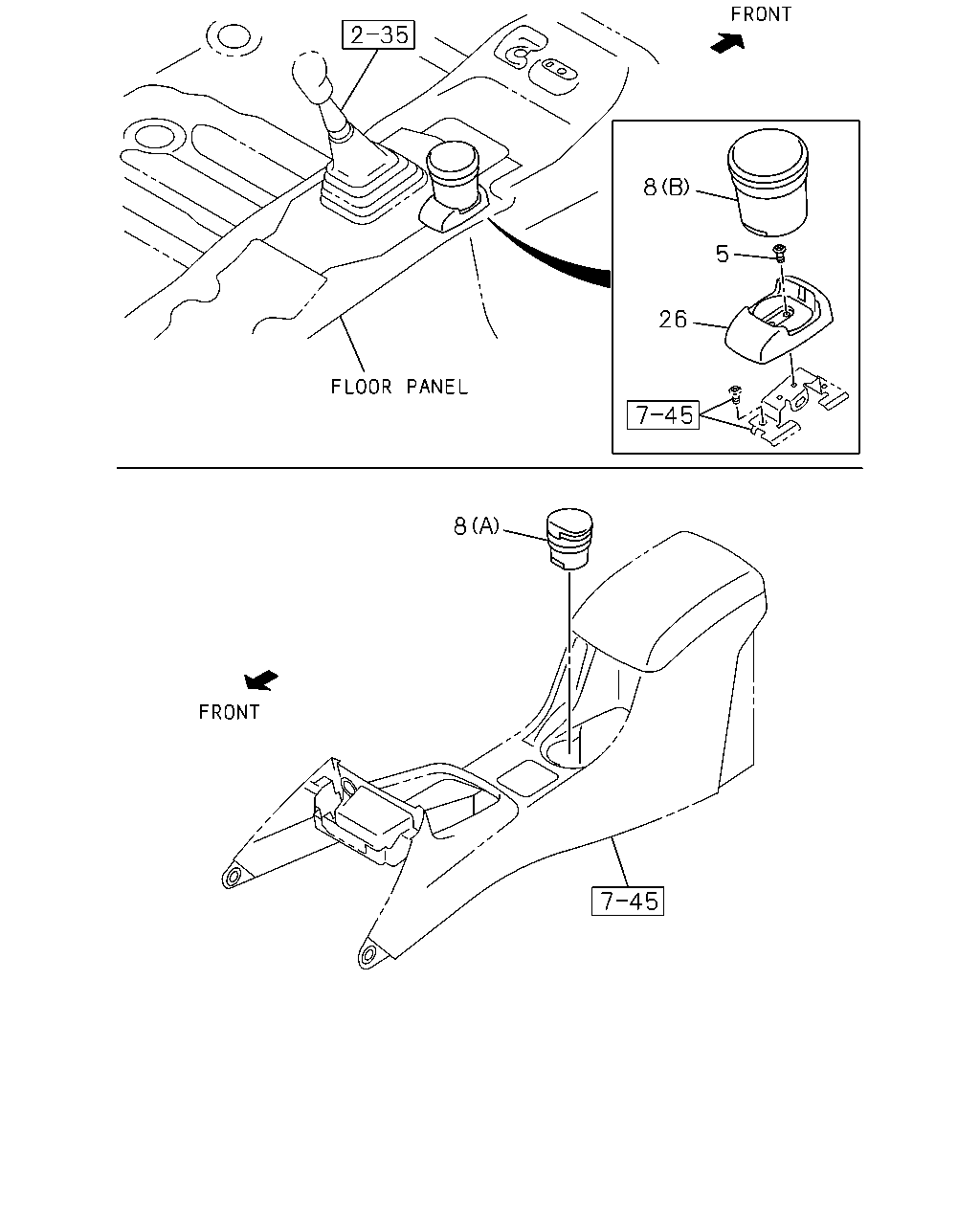

çizim 147260
8 26 5 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 SCREW; BRKT,ASH TRAY
M5X14 TAPPING THA 		8-98184-363-0 02 1 1110-1301 ●
5 SCREW; BRKT,ASH TRAY
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M5X14 TAPPING THA 		8-98184-363-0 02 1 1302- ●
5 SCREW; BRKT,ASH TRAY
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> M5X14 TAPPING THA 		8-98184-363-0 02 1 1302- ●
8 TRAY ASM; ASH
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONTSEAT BUCKET STANDARD<A50> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) BLACK THA 		8-97416-811-1 01 1 1109-1109 ●
8 TRAY ASM; ASH
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONTSEAT BUCKET STANDARD<A50> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) BLACK THA 		8-97416-811-1 01 1 1109-1109 ●
8 TRAY ASM; ASH
INTERIOR COLOR DARK GRAY<117> EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) BLACK THA 		8-97416-634-2 01 1 1110-1211 ● ●
8 TRAY ASM; ASH
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) BLACK THA 		8-97416-634-2 01 1 1110-1211 ●
8 TRAY ASM; ASH
(B) BLACK THA 		8-97416-634-2 01 1 1110-1211 ●
8 TRAY ASM; ASH
(B) BLACK THA 		8-97416-634-2 01 1 1212-1301 ●
8 TRAY ASM; ASH
INTERIOR COLOR DARK GRAY<117> EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) BLACK THA 		8-97416-634-2 01 1 1212-1301 ●
8 TRAY ASM; ASH
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> (B) BLACK THA 		8-97416-634-2 01 1 1302- ●
8 TRAY ASM; ASH
INTERIOR COLOR DARK GRAY<117> EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) BLACK THA 		8-97416-634-2 01 1 1302- ●
26 HOUSING; ASH TRAY
BLACK THA 		8-97416-632-3 01 1 1110-1301 ●
26 HOUSING; ASH TRAY
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> BLACK THA 		8-97416-632-3 01 1 1302- ●
26 HOUSING; ASH TRAY
INTERIOR COLOR DARK GRAY<117> EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97416-632-3 01 1 1302- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
