Sayfa 7-40 - Isuzu EPC

7-40 — INSTRUMENT PANEL AND BOX (#81770) — 332 parça

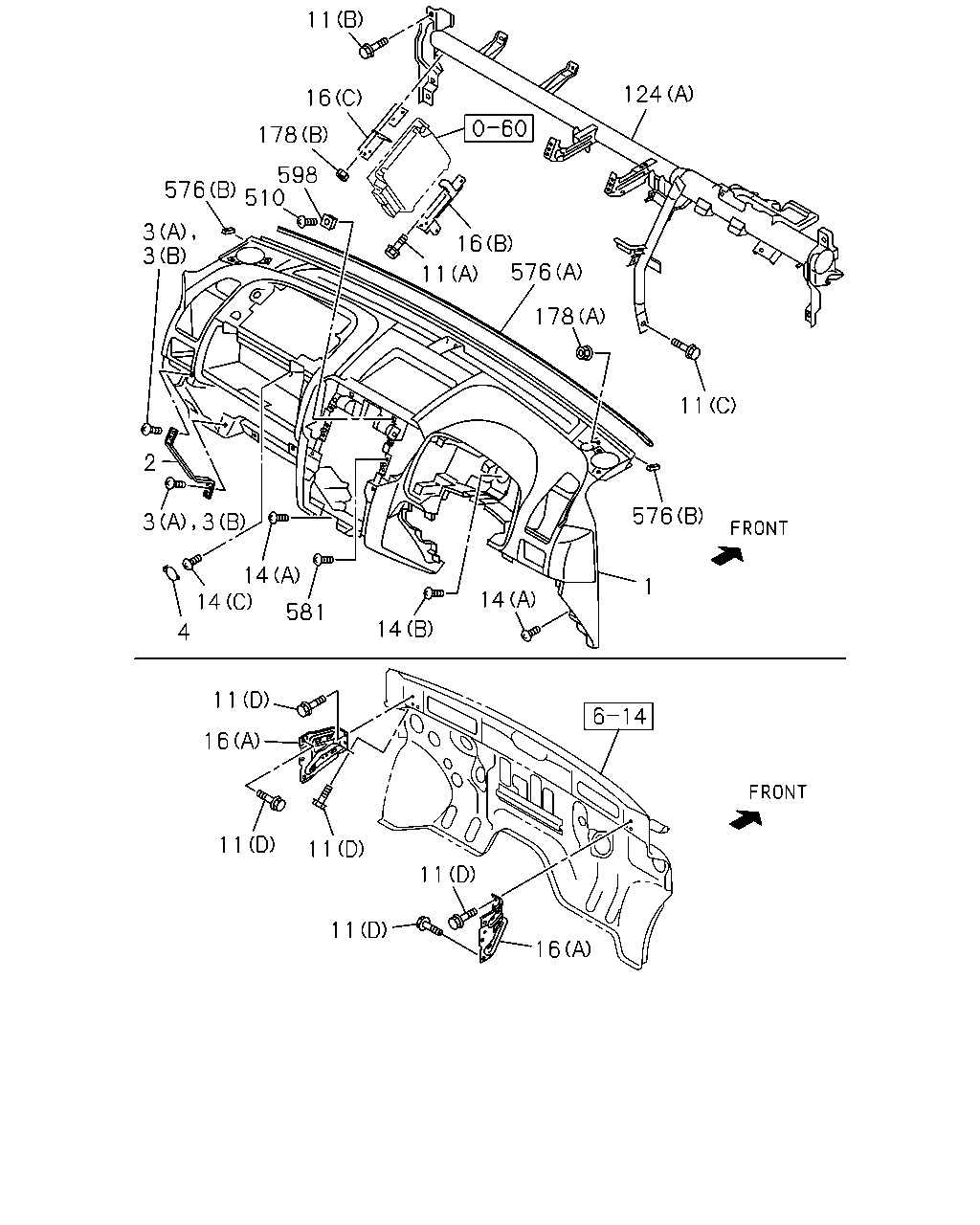

16 11 11 11 11 16 11 4 3 2 3 3 576 178 510 598 16 11 11 16 178 11 124 576 576 14 1 14 581 14 14 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	PANEL; INST INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> BLACK THA	8-97423-070-0	01	1	1109-1109	●
1	PANEL; INST BLACK THA	8-97423-070-0	01	1	1109-1109		●
1	PANEL; INST BLACK THA	8-97423-070-0	01	1	1110-	●	●	●	●	●
2	REINFORCEMENT; INST PNL,LWR THA	8-98232-644-1	01	1	1212-	●	●	●	●	●
3	SCREW; BINDER HD (A) M5X16 THA	8-98197-847-0	02	1	1309-	●	●	●	●	●
3	SCREW; BINDER HD INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) M5X16 THA	8-98197-847-0	33	1	1110-1211				●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) M5X16 THA	8-98197-847-0	33	1	1110-1211					●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) M5X16 THA	8-98197-847-0	33	1	1212-1308				●	●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (B) M5X16 THA	8-98246-739-0	31	1	1309-				●	●
3	SCREW; BINDER HD INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> AIR BAG DRIVER & PASSENGER DELETE<AK6> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) M5X16 THA	8-98197-847-0	37	1	1110-1211				●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE<AK6> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) M5X16 THA	8-98197-847-0	37	1	1110-1211					●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE<AK6> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) M5X16 THA	8-98197-847-0	37	1	1212-1308				●	●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE<AK6> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (B) M5X16 THA	8-98246-739-0	35	1	1309-				●	●
3	SCREW; BINDER HD INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> AIR BAG DRIVER & PASSENGER<AK5> (A) M5X16 THA	8-98197-847-0	34	1	1109-1109	●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER<AK5> (A) M5X16 THA	8-98197-847-0	34	1	1109-1109		●
3	SCREW; BINDER HD INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> AIR BAG DRIVER & PASSENGER<AK5> (A) M5X16 THA	8-98197-847-0	34	1	1110-1211	●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER<AK5> (A) M5X16 THA	8-98197-847-0	34	1	1110-1211		●
3	SCREW; BINDER HD INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> AIR BAG DRIVER & PASSENGER<AK5> COOLER W/FRESH AIR<C65> (A) M5X16 THA	8-98197-847-0	34	1	1110-1211				●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER<AK5> COOLER W/FRESH AIR<C65> (A) M5X16 THA	8-98197-847-0	34	1	1110-1211					●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER<AK5> (A) M5X16 THA	8-98197-847-0	34	1	1212-1308	●	●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER<AK5> COOLER W/FRESH AIR<C65> (A) M5X16 THA	8-98197-847-0	34	1	1212-1308				●	●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER<AK5> (B) M5X16 THA	8-98246-739-0	32	1	1309-	●	●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER<AK5> COOLER W/FRESH AIR<C65> (B) M5X16 THA	8-98246-739-0	32	1	1309-				●	●
3	SCREW; BINDER HD INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) M5X16 THA	8-98197-847-0	38	1	1109-1109	●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) M5X16 THA	8-98197-847-0	38	1	1109-1109		●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) M5X16 THA	8-98197-847-0	38	1	1110-1211	●	●
3	SCREW; BINDER HD COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (A) M5X16 THA	8-98197-847-0	38	1	1110-1211			●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE<AK6> COOLER W/FRESH AIR<C65> (A) M5X16 THA	8-98197-847-0	38	1	1110-1211				●	●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) M5X16 THA	8-98197-847-0	38	1	1212-1308	●	●
3	SCREW; BINDER HD COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (A) M5X16 THA	8-98197-847-0	38	1	1212-1308			●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE<AK6> COOLER W/FRESH AIR<C65> (A) M5X16 THA	8-98197-847-0	38	1	1212-1308				●	●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) M5X16 THA	8-98246-739-0	36	1	1309-	●	●
3	SCREW; BINDER HD COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (B) M5X16 THA	8-98246-739-0	36	1	1309-			●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE<AK6> COOLER W/FRESH AIR<C65> (B) M5X16 THA	8-98246-739-0	36	1	1309-				●	●
4	COVER; INST PNL BLACK THA	8-97416-610-0	01	1	1109-1109	●	●
4	COVER; INST PNL BLACK THA	8-97416-610-0	01	1	1110-	●	●	●	●	●
11	BOLT; INST PNL (A) M6X20 FLANGE THA	0-28650-620-0	01	1	1109-1109	●	●
11	BOLT; INST PNL (A) M6X20 FLANGE THA	0-28650-620-0	01	1	1110-	●	●	●	●	●
11	BOLT; INST PNL (B) M8X25 FLANGE THA	0-28450-825-0	04	1	1109-1109	●	●
11	BOLT; INST PNL (B) M8X25 FLANGE THA	0-28450-825-0	04	1	1110-	●	●	●	●	●
11	BOLT; INST PNL (C) M6X30 W/LK&PL WASHER THA	8-98057-965-0	01	1	1109-1109	●	●
11	BOLT; INST PNL (C) M6X30 W/LK&PL WASHER THA	8-98057-965-0	01	1	1110-	●	●	●	●	●
11	BOLT; INST PNL (D) M8X32.5 W/PL WASHER THA	8-98136-077-0	12	1	1109-1109	●	●
11	BOLT; INST PNL (D) M8X32.5 W/PL WASHER THA	8-98136-077-0	12	1	1110-	●	●	●	●	●
14	SCREW; INST PNL (A) M5X16 THA	8-98167-220-0	03	1	1109-1109	●	●
14	SCREW; INST PNL (A) M5X16 THA	8-98167-220-0	03	1	1110-	●	●	●	●	●
14	SCREW; INST PNL (A) M5X16 THA	8-98167-220-0	04	1	1109-1109	●	●
14	SCREW; INST PNL (A) M5X16 THA	8-98167-220-0	04	1	1110-	●	●	●	●	●
14	SCREW; INST PNL (B) M5X16 TAPPING THA	8-98167-449-0	06	1	1109-1109	●	●
14	SCREW; INST PNL (B) M5X16 TAPPING THA	8-98167-449-0	06	1	1110-	●	●	●	●	●
14	SCREW; INST PNL (C) M5X14 TAPPING THA	8-98184-363-0	01	1	1109-1109	●	●
14	SCREW; INST PNL (C) M5X14 TAPPING THA	8-98184-363-0	01	1	1110-	●	●	●	●	●
16	BRACKET; INST PNL (A) THA	8-98104-144-2	01	1	1109-1109	●	●
16	BRACKET; INST PNL (A) THA	8-98104-144-3	01	1	1110-	●	●	●	●	●
16	BRACKET; INST PNL (A) THA	8-98108-670-2	01	1	1109-1109	●	●
16	BRACKET; INST PNL (A) THA	8-98108-670-2	01	1	1110-	●	●	●	●	●
16	BRACKET; INST PNL (B) THA	8-98119-431-2	01	1	1109-1109	●	●
16	BRACKET; INST PNL (B) THA	8-98119-431-2	01	1	1110-	●	●	●	●	●
16	BRACKET; INST PNL (C) THA	8-98119-428-1	01	1	1109-1109	●	●
16	BRACKET; INST PNL (C) THA	8-98119-428-2	01	1	1110-	●	●	●	●	●
124	REINFORCEMENT; INST PNL,UPR (B) THA	8-98232-645-0	01	1	1212-	●	●	●	●	●
124	REINFORCEMENT; INST PNL,UPR AIR BAG DRIVER & PASSENGER<AK5> (A) THA	8-98064-644-4	01	1	1109-1109	●	●
124	REINFORCEMENT; INST PNL,UPR AIR BAG DRIVER & PASSENGER<AK5> (A) THA	8-98064-644-4	01	1	1110-	●	●		●	●
124	REINFORCEMENT; INST PNL,UPR AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) THA	8-98064-646-4	01	1	1109-1109	●	●
124	REINFORCEMENT; INST PNL,UPR AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) THA	8-98064-646-4	01	1	1110-	●	●		●	●
124	REINFORCEMENT; INST PNL,UPR (A) THA	8-98064-646-4	01	1	1110-			●
178	NUT; INST PANEL (A) M6 FLANGE IMA	8-98055-704-0	03	1	1109-1109	●	●
178	NUT; INST PANEL (A) M6 FLANGE IMA	8-98055-704-0	03	1	1110-	●	●	●	●	●
178	NUT; INST PANEL (B) M6 FLANGE THA	0-91180-106-0	02	1	1109-1109	●	●
178	NUT; INST PANEL (B) M6 FLANGE THA	0-91180-106-0	02	1	1110-	●	●	●	●	●
510	SCREW; CENTER CLUSTER M5X16 TAPPING THA	8-98167-449-0	02	1	1109-1109	●	●
510	SCREW; CENTER CLUSTER M5X16 TAPPING THA	8-98167-449-0	02	1	1110-	●	●	●	●	●
576	CUSHION (A) THA	8-98232-668-0	01	1	1212-	●	●	●	●	●
576	CUSHION (B) THA	8-98232-669-0	02	1	1212-	●	●	●	●	●
581	SCREW RADIO AM/FM W/CD,W/CLOCK<U1C> M5X16 TAPPING THA	8-98167-449-0	02	1	1109-1109	●	●
581	SCREW RADIO AM/FM W/CD,W/CLOCK<U1C> M5X16 TAPPING THA	8-98167-449-0	02	1	1110-	●	●		●
581	SCREW M5X16 TAPPING THA	8-98167-449-0	02	1	1110-			●
598	GROMMET; SCREW INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> THA	8-98164-685-0	15	1	1109-1109	●
598	GROMMET; SCREW THA	8-98164-685-0	15	1	1109-1109		●
598	GROMMET; SCREW THA	8-98164-685-0	15	1	1110-1211	●	●	●	●	●
598	GROMMET; SCREW THA	8-98164-685-0	15	1	1212-	●	●	●	●	●

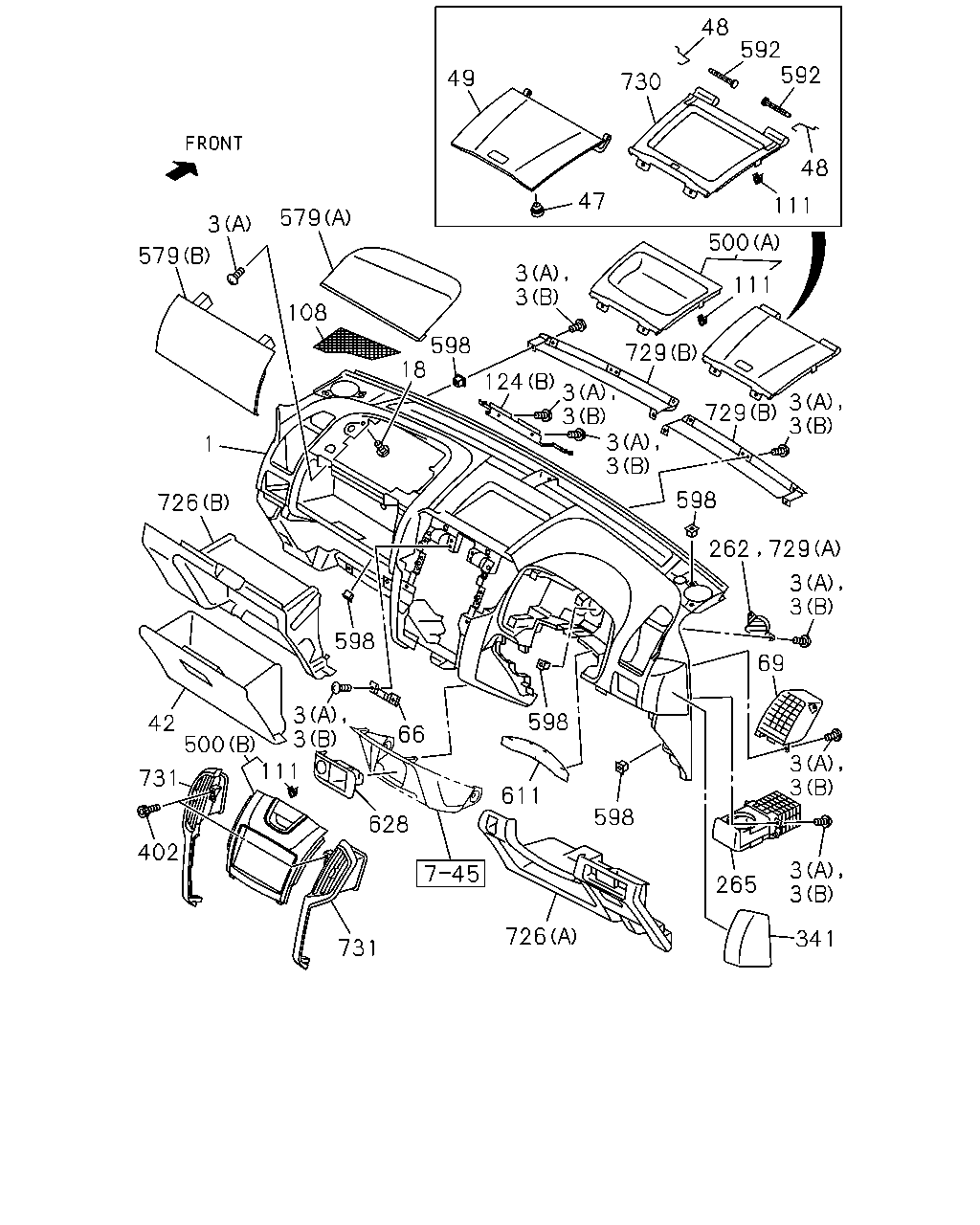

111 48 592 592 48 730 49 47 341 3 265 3 3 3 69 3 729 262 3 3 3 111 500 729 598 3 3 3 3 124 598 18 108 579 3 579 726 1 42 731 402 500 111 3 3 628 731 726 611 598 598 598 66 3 3 729

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	PANEL; INST INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> BLACK THA	8-97423-070-0	01	1	1109-1109	●
1	PANEL; INST BLACK THA	8-97423-070-0	01	1	1109-1109		●
1	PANEL; INST BLACK THA	8-97423-070-0	01	1	1110-	●	●	●	●	●
3	SCREW; BINDER HD (A) M5X16 THA	8-98197-847-0	02	1	1309-	●	●	●	●	●
3	SCREW; BINDER HD INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) M5X16 THA	8-98197-847-0	33	1	1110-1211				●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) M5X16 THA	8-98197-847-0	33	1	1110-1211					●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) M5X16 THA	8-98197-847-0	33	1	1212-1308				●	●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (B) M5X16 THA	8-98246-739-0	31	1	1309-				●	●
3	SCREW; BINDER HD INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> AIR BAG DRIVER & PASSENGER DELETE<AK6> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) M5X16 THA	8-98197-847-0	37	1	1110-1211				●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE<AK6> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) M5X16 THA	8-98197-847-0	37	1	1110-1211					●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE<AK6> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) M5X16 THA	8-98197-847-0	37	1	1212-1308				●	●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE<AK6> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (B) M5X16 THA	8-98246-739-0	35	1	1309-				●	●
3	SCREW; BINDER HD INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> AIR BAG DRIVER & PASSENGER<AK5> (A) M5X16 THA	8-98197-847-0	34	1	1109-1109	●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER<AK5> (A) M5X16 THA	8-98197-847-0	34	1	1109-1109		●
3	SCREW; BINDER HD INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> AIR BAG DRIVER & PASSENGER<AK5> (A) M5X16 THA	8-98197-847-0	34	1	1110-1211	●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER<AK5> (A) M5X16 THA	8-98197-847-0	34	1	1110-1211		●
3	SCREW; BINDER HD INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> AIR BAG DRIVER & PASSENGER<AK5> COOLER W/FRESH AIR<C65> (A) M5X16 THA	8-98197-847-0	34	1	1110-1211				●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER<AK5> COOLER W/FRESH AIR<C65> (A) M5X16 THA	8-98197-847-0	34	1	1110-1211					●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER<AK5> (A) M5X16 THA	8-98197-847-0	34	1	1212-1308	●	●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER<AK5> COOLER W/FRESH AIR<C65> (A) M5X16 THA	8-98197-847-0	34	1	1212-1308				●	●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER<AK5> (B) M5X16 THA	8-98246-739-0	32	1	1309-	●	●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER<AK5> COOLER W/FRESH AIR<C65> (B) M5X16 THA	8-98246-739-0	32	1	1309-				●	●
3	SCREW; BINDER HD INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) M5X16 THA	8-98197-847-0	38	1	1109-1109	●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) M5X16 THA	8-98197-847-0	38	1	1109-1109		●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) M5X16 THA	8-98197-847-0	38	1	1110-1211	●	●
3	SCREW; BINDER HD COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (A) M5X16 THA	8-98197-847-0	38	1	1110-1211			●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE<AK6> COOLER W/FRESH AIR<C65> (A) M5X16 THA	8-98197-847-0	38	1	1110-1211				●	●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) M5X16 THA	8-98197-847-0	38	1	1212-1308	●	●
3	SCREW; BINDER HD COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (A) M5X16 THA	8-98197-847-0	38	1	1212-1308			●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE<AK6> COOLER W/FRESH AIR<C65> (A) M5X16 THA	8-98197-847-0	38	1	1212-1308				●	●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) M5X16 THA	8-98246-739-0	36	1	1309-	●	●
3	SCREW; BINDER HD COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (B) M5X16 THA	8-98246-739-0	36	1	1309-			●
3	SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE<AK6> COOLER W/FRESH AIR<C65> (B) M5X16 THA	8-98246-739-0	36	1	1309-				●	●
18	BOLT; BRKT AIR BAG DRIVER & PASSENGER<AK5> M8X40 FLANGE THA	0-28650-840-0	02	1	1109-1109	●	●
18	BOLT; BRKT AIR BAG DRIVER & PASSENGER<AK5> M8X40 FLANGE THA	0-28650-840-0	02	1	1110-	●	●		●	●
42	BOX; GLOVE,INST PNL INTERIOR COLOR DARK GRAY<117> BLACK THA	8-97416-629-2	01	1	1109-1109	●
42	BOX; GLOVE,INST PNL BLACK THA	8-97416-629-2	01	1	1109-1109		●
42	BOX; GLOVE,INST PNL INTERIOR COLOR DARK GRAY<117> BLACK THA	8-97416-629-2	01	1	1110-1211	●			●
42	BOX; GLOVE,INST PNL BLACK THA	8-97416-629-2	01	1	1110-1211		●	●		●
42	BOX; GLOVE,INST PNL INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA	8-97416-631-2	01	1	1212-	●			●
42	BOX; GLOVE,INST PNL BLACK THA	8-97416-631-2	01	1	1212-		●	●		●
42	BOX; GLOVE,INST PNL INTERIOR COLOR BEIGE<120> BEIGE THA	8-97416-630-2	01	1	1109-1109	●
42	BOX; GLOVE,INST PNL INTERIOR COLOR BEIGE<120> BEIGE THA	8-97416-630-2	01	1	1110-1211	●			●
42	BOX; GLOVE,INST PNL INTERIOR COLOR BEIGE<120> BEIGE THA	8-97425-102-2	01	1	1212-	●			●
47	STOPPER; GLOVE BOX LID INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> THA	8-98194-179-1	03	1	1109-1109	●
47	STOPPER; GLOVE BOX LID INTERIOR CUSTOM<RBD> THA	8-98194-179-1	03	1	1109-1109		●
47	STOPPER; GLOVE BOX LID INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> THA	8-98194-179-1	03	1	1110-1211	●			●
47	STOPPER; GLOVE BOX LID INTERIOR CUSTOM<RBD> THA	8-98194-179-1	03	1	1110-1211		●
47	STOPPER; GLOVE BOX LID THA	8-98194-179-1	03	1	1110-1211					●
47	STOPPER; GLOVE BOX LID INTERIOR CUSTOM<RBD> THA	8-98194-179-1	03	1	1212-	●	●		●
47	STOPPER; GLOVE BOX LID THA	8-98194-179-1	03	1	1212-					●
48	SPRING; GLOVE BOX LID INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> THA	8-98194-177-1	01	1	1109-1109	●
48	SPRING; GLOVE BOX LID INTERIOR CUSTOM<RBD> THA	8-98194-177-1	01	1	1109-1109		●
48	SPRING; GLOVE BOX LID INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> THA	8-98194-177-1	01	1	1110-1211	●			●
48	SPRING; GLOVE BOX LID INTERIOR CUSTOM<RBD> THA	8-98194-177-1	01	1	1110-1211		●
48	SPRING; GLOVE BOX LID THA	8-98194-177-1	01	1	1110-1211					●
48	SPRING; GLOVE BOX LID INTERIOR CUSTOM<RBD> THA	8-98194-177-1	01	1	1212-1411	●	●		●
48	SPRING; GLOVE BOX LID THA	8-98194-177-1	01	1	1212-1411					●
48	SPRING; GLOVE BOX LID INTERIOR CUSTOM<RBD> THA	8-98298-678-0	01	1	1412-	●	●		●
48	SPRING; GLOVE BOX LID THA	8-98298-678-0	01	1	1412-					●
48	SPRING; GLOVE BOX LID INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> THA	8-98194-178-1	01	1	1109-1109	●
48	SPRING; GLOVE BOX LID INTERIOR CUSTOM<RBD> THA	8-98194-178-1	01	1	1109-1109		●
48	SPRING; GLOVE BOX LID INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> THA	8-98194-178-1	01	1	1110-1211	●			●
48	SPRING; GLOVE BOX LID INTERIOR CUSTOM<RBD> THA	8-98194-178-1	01	1	1110-1211		●
48	SPRING; GLOVE BOX LID THA	8-98194-178-1	01	1	1110-1211					●
48	SPRING; GLOVE BOX LID INTERIOR CUSTOM<RBD> THA	8-98194-178-1	01	1	1212-1411	●	●		●
48	SPRING; GLOVE BOX LID THA	8-98194-178-1	01	1	1212-1411					●
48	SPRING; GLOVE BOX LID INTERIOR CUSTOM<RBD> THA	8-98298-679-0	01	1	1412-	●	●		●
48	SPRING; GLOVE BOX LID THA	8-98298-679-0	01	1	1412-					●
49	LID; GLOVE BOX INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> BLACK THA	8-97423-320-1	01	1	1109-1109	●
49	LID; GLOVE BOX INTERIOR CUSTOM<RBD> BLACK THA	8-97423-320-1	01	1	1109-1109		●
49	LID; GLOVE BOX INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> BLACK THA	8-97423-320-1	01	1	1110-1211	●			●
49	LID; GLOVE BOX INTERIOR CUSTOM<RBD> BLACK THA	8-97423-320-1	01	1	1110-1211		●
49	LID; GLOVE BOX BLACK THA	8-97423-320-1	01	1	1110-1211					●
49	LID; GLOVE BOX INTERIOR CUSTOM<RBD> BLACK THA	8-97423-320-1	01	1	1212-	●	●		●
49	LID; GLOVE BOX BLACK THA	8-97423-320-1	01	1	1212-					●
66	REINFORCEMENT; INST PANEL INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> THA	8-98187-112-0	01	1	1109-1109	●
66	REINFORCEMENT; INST PANEL THA	8-98187-112-0	01	1	1109-1109		●
66	REINFORCEMENT; INST PANEL THA	8-98187-112-0	01	1	1110-1211	●	●	●	●	●
66	REINFORCEMENT; INST PANEL THA	8-98187-112-0	01	1	1212-1402	●	●	●	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> BLACK THA	8-97423-071-1	01	1	1109-1109	●
69	GRILLE; SIDE,AIR OUTLET BLACK THA	8-97423-071-1	01	1	1109-1109		●
69	GRILLE; SIDE,AIR OUTLET BLACK THA	8-97423-071-2	01	1	1110-1211	●	●	●	●	●
69	GRILLE; SIDE,AIR OUTLET BLACK THA	8-97423-071-2	01	1	1212-	●	●	●	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> BLACK THA	8-97423-072-1	01	1	1109-1109	●
69	GRILLE; SIDE,AIR OUTLET BLACK THA	8-97423-072-1	01	1	1109-1109		●
69	GRILLE; SIDE,AIR OUTLET BLACK THA	8-97423-072-2	01	1	1110-1211	●	●	●	●	●
69	GRILLE; SIDE,AIR OUTLET BLACK THA	8-97423-072-2	01	1	1212-	●	●	●	●	●
108	GRILLE; INST PNL INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> BLACK THA	8-97416-627-2	01	1	1109-1109	●
108	GRILLE; INST PNL REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> BLACK THA	8-97416-627-2	01	1	1109-1109		●
108	GRILLE; INST PNL INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> BLACK THA	8-97416-627-2	01	1	1110-1211	●			●
108	GRILLE; INST PNL REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> BLACK THA	8-97416-627-2	01	1	1110-1211		●			●
108	GRILLE; INST PNL REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> BLACK THA	8-97416-627-2	01	1	1212-	●	●		●	●
108	GRILLE; INST PNL BLACK THA	8-97416-626-2	01	1	1109-1109	●	●
108	GRILLE; INST PNL BLACK THA	8-97416-626-2	01	1	1110-	●	●	●	●	●
108	GRILLE; INST PNL INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> BLACK THA	8-97416-625-2	01	1	1109-1109	●
108	GRILLE; INST PNL EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> BLACK THA	8-97416-625-2	01	1	1109-1109		●
108	GRILLE; INST PNL INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> BLACK THA	8-97416-625-2	01	1	1110-1211	●			●
108	GRILLE; INST PNL EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> BLACK THA	8-97416-625-2	01	1	1110-1211		●			●
108	GRILLE; INST PNL BLACK THA	8-97416-625-2	01	1	1110-1211			●
108	GRILLE; INST PNL EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> BLACK THA	8-97416-625-2	01	1	1212-	●	●		●	●
108	GRILLE; INST PNL BLACK THA	8-97416-625-2	01	1	1212-			●
111	CLIP; CLUSTER PANEL,GRILLE RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA	8-98164-677-0	04	1	1110-1211	●	●	●	●
111	CLIP; CLUSTER PANEL,GRILLE RADIO DELETE<UL5> THA	8-98164-677-0	04	1	1110-1211					●
111	CLIP; CLUSTER PANEL,GRILLE RADIO AM/FM W/CD,W/CLOCK<U1C> THA	8-98164-677-0	04	1	1212-	●	●		●
111	CLIP; CLUSTER PANEL,GRILLE RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA	8-98164-677-0	04	1	1212-			●
111	CLIP; CLUSTER PANEL,GRILLE THA	8-98164-677-0	02	1	1109-1109	●	●
111	CLIP; CLUSTER PANEL,GRILLE THA	8-98164-677-0	02	1	1110-	●	●	●	●	●
124	REINFORCEMENT; INST PNL,UPR (B) THA	8-98232-645-0	01	1	1212-	●	●	●	●	●
124	REINFORCEMENT; INST PNL,UPR AIR BAG DRIVER & PASSENGER<AK5> (A) THA	8-98064-644-4	01	1	1109-1109	●	●
124	REINFORCEMENT; INST PNL,UPR AIR BAG DRIVER & PASSENGER<AK5> (A) THA	8-98064-644-4	01	1	1110-	●	●		●	●
124	REINFORCEMENT; INST PNL,UPR AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) THA	8-98064-646-4	01	1	1109-1109	●	●
124	REINFORCEMENT; INST PNL,UPR AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) THA	8-98064-646-4	01	1	1110-	●	●		●	●
124	REINFORCEMENT; INST PNL,UPR (A) THA	8-98064-646-4	01	1	1110-			●
262	GRILLE; DEFROSTER INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> BLACK THA	8-97423-076-0	01	1	1110-1211				●
262	GRILLE; DEFROSTER AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> BLACK THA	8-97423-076-0	01	1	1110-1211					●
262	GRILLE; DEFROSTER AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> BLACK THA	8-97423-076-0	01	1	1212-				●	●
262	GRILLE; DEFROSTER INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> BLACK THA	8-97423-077-0	01	1	1110-1211				●
262	GRILLE; DEFROSTER AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> BLACK THA	8-97423-077-0	01	1	1110-1211					●
262	GRILLE; DEFROSTER AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> BLACK THA	8-97423-077-0	01	1	1212-				●	●
265	HOLDER; CUP INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> BLACK THA	8-97423-073-0	01	1	1109-1109	●
265	HOLDER; CUP BLACK THA	8-97423-073-0	01	1	1109-1109		●
265	HOLDER; CUP BLACK THA	8-97423-073-0	01	1	1110-1211	●	●	●	●	●
265	HOLDER; CUP BLACK THA	8-97423-073-0	01	1	1212-	●	●	●	●	●
265	HOLDER; CUP INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> BLACK THA	8-97423-074-0	01	1	1109-1109	●
265	HOLDER; CUP BLACK THA	8-97423-074-0	01	1	1109-1109		●
265	HOLDER; CUP BLACK THA	8-97423-074-0	01	1	1110-1211	●	●	●	●	●
265	HOLDER; CUP BLACK THA	8-97423-074-0	01	1	1212-	●	●	●	●	●
341	LID; FUSE BOX BLACK THA	8-97416-611-3	01	1	1109-1109	●	●
341	LID; FUSE BOX BLACK THA	8-97416-611-3	01	1	1110-	●	●	●	●	●
341	LID; FUSE BOX BLACK THA	8-97416-612-3	01	1	1109-1109	●	●
341	LID; FUSE BOX BLACK THA	8-97416-612-3	01	1	1110-	●	●	●	●	●
402	SCREW; VENT GRILLE,INST M5X16 TAPPING THA	8-98167-449-0	02	1	1109-1109	●	●
402	SCREW; VENT GRILLE,INST M5X16 TAPPING THA	8-98167-449-0	02	1	1110-1211	●	●	●	●	●
402	SCREW; VENT GRILLE,INST M5X16 TAPPING THA	8-98167-449-0	02	1	1212-	●	●	●	●	●
500	CLUSTER; INST CENTER INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (A) BLACK THA	8-97416-622-4	01	1	1109-1109	●
500	CLUSTER; INST CENTER INTERIOR DELUXE<RBB> (A) BLACK THA	8-97416-622-4	01	1	1109-1109		●
500	CLUSTER; INST CENTER INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (A) BLACK THA	8-97416-622-4	01	1	1110-	●			●
500	CLUSTER; INST CENTER INTERIOR DELUXE<RBB> (A) BLACK THA	8-97416-622-4	01	1	1110-		●
500	CLUSTER; INST CENTER INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> (A) BLACK THA	8-97416-622-4	01	1	1110-			●
500	CLUSTER; INST CENTER INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> (B) BLACK THA	8-97416-624-2	01	1	1109-1109	●
500	CLUSTER; INST CENTER RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> (B) BLACK THA	8-97416-624-2	01	1	1109-1109		●
500	CLUSTER; INST CENTER INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> (B) BLACK THA	8-97416-624-2	01	1	1110-1211	●			●
500	CLUSTER; INST CENTER RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> (B) BLACK THA	8-97416-624-2	01	1	1110-1211		●	●
500	CLUSTER; INST CENTER RADIO DELETE<UL5> (B) BLACK THA	8-97416-624-2	01	1	1110-1211					●
500	CLUSTER; INST CENTER RADIO AM/FM W/CD,W/CLOCK<U1C> (B) BLACK THA	8-97416-624-2	01	1	1212-	●	●		●
500	CLUSTER; INST CENTER RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> (B) BLACK THA	8-97416-624-2	01	1	1212-			●
579	COVER; INST PNL INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) BLACK THA	8-97423-078-0	01	1	1109-1109	●
579	COVER; INST PNL AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) BLACK THA	8-97423-078-0	01	1	1109-1109		●
579	COVER; INST PNL AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) BLACK THA	8-97423-078-0	01	1	1110-	●	●		●	●
579	COVER; INST PNL (A) BLACK THA	8-97423-078-0	01	1	1110-			●
579	COVER; INST PNL INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (B) BLACK THA	8-97423-075-3	01	1	1109-1109	●
579	COVER; INST PNL (B) BLACK THA	8-97423-075-3	01	1	1109-1109		●
579	COVER; INST PNL (B) BLACK THA	8-97423-075-3	01	1	1110-1211	●	●	●	●	●
579	COVER; INST PNL (B) BLACK THA	8-97423-075-4	01	1	1212-	●	●	●	●	●
592	HINGE; LID INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> THA	8-98194-176-1	02	1	1109-1109	●
592	HINGE; LID INTERIOR CUSTOM<RBD> THA	8-98194-176-1	02	1	1109-1109		●
592	HINGE; LID INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> THA	8-98194-176-1	02	1	1110-1211	●			●
592	HINGE; LID INTERIOR CUSTOM<RBD> THA	8-98194-176-1	02	1	1110-1211		●
592	HINGE; LID THA	8-98194-176-1	02	1	1110-1211					●
592	HINGE; LID INTERIOR CUSTOM<RBD> THA	8-98194-176-1	02	1	1212-	●	●		●
592	HINGE; LID THA	8-98194-176-1	02	1	1212-					●
598	GROMMET; SCREW INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> THA	8-98164-685-0	15	1	1109-1109	●
598	GROMMET; SCREW THA	8-98164-685-0	15	1	1109-1109		●
598	GROMMET; SCREW THA	8-98164-685-0	15	1	1110-1211	●	●	●	●	●
598	GROMMET; SCREW THA	8-98164-685-0	15	1	1212-	●	●	●	●	●
611	SHEET INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> THA	8-98187-119-0	01	1	1109-1109	●
611	SHEET THA	8-98187-119-0	01	1	1109-1109		●
611	SHEET THA	8-98187-119-0	01	1	1110-1211	●	●	●	●	●
611	SHEET THA	8-98187-119-0	01	1	1212-	●	●	●	●	●
628	BEZEL; INST LWR BLACK THA	8-97416-618-2	01	1	1110-			●
726	PANEL; INST LW INTERIOR COLOR BEIGE<120> (B) BEIGE THA	8-97416-636-4	01	1	1109-1109	●
726	PANEL; INST LW INTERIOR COLOR BEIGE<120> (B) BEIGE THA	8-97416-636-4	01	1	1110-	●			●
726	PANEL; INST LW INTERIOR COLOR DARK GRAY<117> (B) BLACK THA	8-97416-635-4	01	1	1109-1109	●
726	PANEL; INST LW (B) BLACK THA	8-97416-635-4	01	1	1109-1109		●
726	PANEL; INST LW INTERIOR COLOR DARK GRAY<117> (B) BLACK THA	8-97416-635-4	01	1	1110-1211	●			●
726	PANEL; INST LW (B) BLACK THA	8-97416-635-4	01	1	1110-1211		●	●		●
726	PANEL; INST LW INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) BLACK THA	8-97416-635-4	01	1	1212-	●			●
726	PANEL; INST LW (B) BLACK THA	8-97416-635-4	01	1	1212-		●	●		●
726	PANEL; INST LW INTERIOR COLOR DARK GRAY<117> (A) BLACK THA	8-97416-615-5	01	1	1109-1109	●
726	PANEL; INST LW (A) BLACK THA	8-97416-615-5	01	1	1109-1109		●
726	PANEL; INST LW INTERIOR COLOR DARK GRAY<117> (A) BLACK THA	8-97416-615-5	01	1	1110-1211	●			●
726	PANEL; INST LW (A) BLACK THA	8-97416-615-5	01	1	1110-1211		●			●
726	PANEL; INST LW REAR BODY DBL WALL CTR PULL<E63> (A) BLACK THA	8-97416-615-5	01	1	1110-1211			●
726	PANEL; INST LW INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA	8-97416-615-5	01	1	1212-	●			●
726	PANEL; INST LW (A) BLACK THA	8-97416-615-5	01	1	1212-		●			●
726	PANEL; INST LW REAR BODY DBL WALL CTR PULL<E63> (A) BLACK THA	8-97416-615-5	01	1	1212-			●
726	PANEL; INST LW INTERIOR COLOR BEIGE<120> (A) BEIGE THA	8-97416-616-5	01	1	1109-1109	●
726	PANEL; INST LW INTERIOR COLOR BEIGE<120> (A) BEIGE THA	8-97416-616-5	01	1	1110-	●			●
726	PANEL; INST LW REAR BODY DELETE<8HH> (A) BLACK THA	8-97423-423-0	01	1	1110-			●
729	COVER; GRILLE INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (A) BLACK THA	8-97423-079-0	01	1	1109-1109	●
729	COVER; GRILLE (A) BLACK THA	8-97423-079-0	01	1	1109-1109		●
729	COVER; GRILLE (A) BLACK THA	8-97423-079-0	01	1	1110-1211	●	●
729	COVER; GRILLE COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (A) BLACK THA	8-97423-079-0	01	1	1110-1211			●
729	COVER; GRILLE COOLER W/FRESH AIR<C65> (A) BLACK THA	8-97423-079-0	01	1	1110-1211				●	●
729	COVER; GRILLE (A) BLACK THA	8-97423-079-0	01	1	1212-	●	●
729	COVER; GRILLE COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (A) BLACK THA	8-97423-079-0	01	1	1212-			●
729	COVER; GRILLE COOLER W/FRESH AIR<C65> (A) BLACK THA	8-97423-079-0	01	1	1212-				●	●
729	COVER; GRILLE INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (A) BLACK THA	8-97423-080-0	01	1	1109-1109	●
729	COVER; GRILLE (A) BLACK THA	8-97423-080-0	01	1	1109-1109		●
729	COVER; GRILLE (A) BLACK THA	8-97423-080-0	01	1	1110-1211	●	●
729	COVER; GRILLE COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (A) BLACK THA	8-97423-080-0	01	1	1110-1211			●
729	COVER; GRILLE COOLER W/FRESH AIR<C65> (A) BLACK THA	8-97423-080-0	01	1	1110-1211				●	●
729	COVER; GRILLE (A) BLACK THA	8-97423-080-0	01	1	1212-	●	●
729	COVER; GRILLE COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (A) BLACK THA	8-97423-080-0	01	1	1212-			●
729	COVER; GRILLE COOLER W/FRESH AIR<C65> (A) BLACK THA	8-97423-080-0	01	1	1212-				●	●
729	COVER; GRILLE INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (B) BLACK THA	8-97423-081-0	01	1	1109-1109	●
729	COVER; GRILLE (B) BLACK THA	8-97423-081-0	01	1	1109-1109		●
729	COVER; GRILLE (B) BLACK THA	8-97423-081-0	01	1	1110-1211	●	●
729	COVER; GRILLE COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (B) BLACK THA	8-97423-081-0	01	1	1110-1211			●
729	COVER; GRILLE COOLER W/FRESH AIR<C65> (B) BLACK THA	8-97423-081-0	01	1	1110-1211				●	●
729	COVER; GRILLE (B) BLACK THA	8-97423-081-0	01	1	1212-	●	●
729	COVER; GRILLE COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (B) BLACK THA	8-97423-081-0	01	1	1212-			●
729	COVER; GRILLE COOLER W/FRESH AIR<C65> (B) BLACK THA	8-97423-081-0	01	1	1212-				●	●
729	COVER; GRILLE INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (B) BLACK THA	8-97423-082-0	01	1	1109-1109	●
729	COVER; GRILLE (B) BLACK THA	8-97423-082-0	01	1	1109-1109		●
729	COVER; GRILLE (B) BLACK THA	8-97423-082-0	01	1	1110-1211	●	●
729	COVER; GRILLE COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (B) BLACK THA	8-97423-082-0	01	1	1110-1211			●
729	COVER; GRILLE COOLER W/FRESH AIR<C65> (B) BLACK THA	8-97423-082-0	01	1	1110-1211				●	●
729	COVER; GRILLE (B) BLACK THA	8-97423-082-0	01	1	1212-	●	●
729	COVER; GRILLE COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (B) BLACK THA	8-97423-082-0	01	1	1212-			●
729	COVER; GRILLE COOLER W/FRESH AIR<C65> (B) BLACK THA	8-97423-082-0	01	1	1212-				●	●
730	BEZEL; LID INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> BLACK THA	8-97423-319-0	01	1	1109-1109	●
730	BEZEL; LID INTERIOR CUSTOM<RBD> BLACK THA	8-97423-319-0	01	1	1109-1109		●
730	BEZEL; LID INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> BLACK THA	8-97423-319-0	01	1	1110-1211	●			●
730	BEZEL; LID INTERIOR CUSTOM<RBD> BLACK THA	8-97423-319-0	01	1	1110-1211		●
730	BEZEL; LID BLACK THA	8-97423-319-0	01	1	1110-1211					●
730	BEZEL; LID INTERIOR CUSTOM<RBD> BLACK THA	8-97423-319-0	01	1	1212-	●	●		●
730	BEZEL; LID BLACK THA	8-97423-319-0	01	1	1212-					●
731	GRILLE; VENTILATOR INTERIOR CUSTOM<RBD> INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA	8-97423-920-4	01	1	1212-	●			●
731	GRILLE; VENTILATOR INTERIOR CUSTOM<RBD> INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA	8-97423-921-4	01	1	1212-	●			●
731	GRILLE; VENTILATOR INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> BLACK THA	8-97416-639-4	01	1	1109-1109	●
731	GRILLE; VENTILATOR INTERIOR DELUXE<RBB> BLACK THA	8-97416-639-4	01	1	1109-1109		●
731	GRILLE; VENTILATOR INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> BLACK THA	8-97416-639-4	01	1	1110-	●			●
731	GRILLE; VENTILATOR INTERIOR DELUXE<RBB> BLACK THA	8-97416-639-4	01	1	1110-		●
731	GRILLE; VENTILATOR INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> BLACK THA	8-97416-639-4	01	1	1110-			●
731	GRILLE; VENTILATOR INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> BLACK THA	8-97416-640-4	01	1	1109-1109	●
731	GRILLE; VENTILATOR INTERIOR DELUXE<RBB> BLACK THA	8-97416-640-4	01	1	1109-1109		●
731	GRILLE; VENTILATOR INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> BLACK THA	8-97416-640-4	01	1	1110-	●			●
731	GRILLE; VENTILATOR INTERIOR DELUXE<RBB> BLACK THA	8-97416-640-4	01	1	1110-		●
731	GRILLE; VENTILATOR INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> BLACK THA	8-97416-640-4	01	1	1110-			●
731	GRILLE; VENTILATOR INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> SILVER THA	8-97416-637-4	01	1	1109-1109	●
731	GRILLE; VENTILATOR INTERIOR CUSTOM<RBD> SILVER THA	8-97416-637-4	01	1	1109-1109		●
731	GRILLE; VENTILATOR INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> SILVER THA	8-97416-637-4	01	1	1110-	●			●
731	GRILLE; VENTILATOR INTERIOR CUSTOM<RBD> SILVER THA	8-97416-637-4	01	1	1110-		●
731	GRILLE; VENTILATOR SILVER THA	8-97416-637-4	01	1	1110-					●
731	GRILLE; VENTILATOR INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> SILVER THA	8-97416-638-4	01	1	1109-1109	●
731	GRILLE; VENTILATOR INTERIOR CUSTOM<RBD> SILVER THA	8-97416-638-4	01	1	1109-1109		●
731	GRILLE; VENTILATOR INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> SILVER THA	8-97416-638-4	01	1	1110-	●			●
731	GRILLE; VENTILATOR INTERIOR CUSTOM<RBD> SILVER THA	8-97416-638-4	01	1	1110-		●
731	GRILLE; VENTILATOR SILVER THA	8-97416-638-4	01	1	1110-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
