Sayfa 7-30 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶

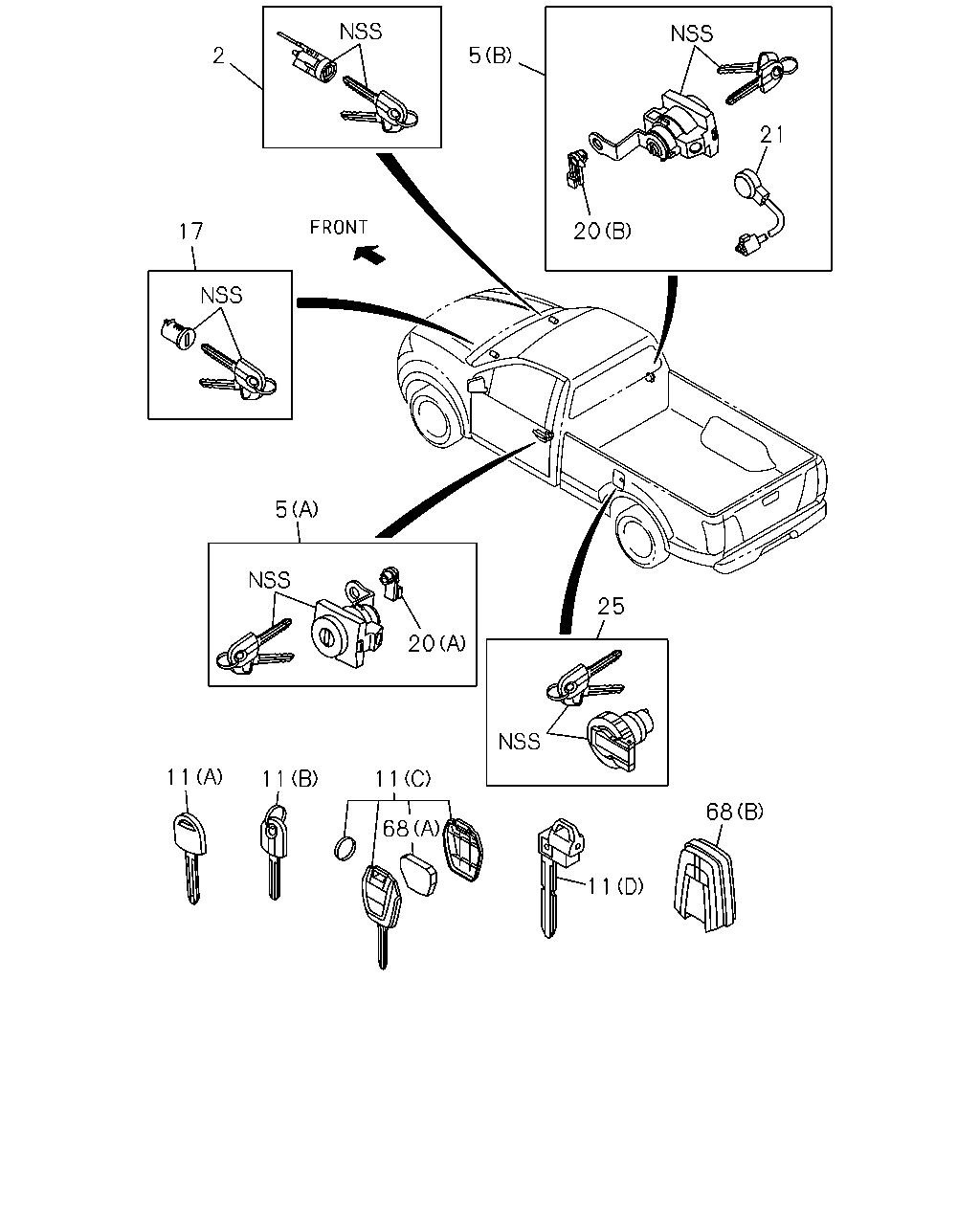

7-30 — LOCK CYLINDER SET (#81769) — 108 parça

2 17 5 20 21 5 20 25 68 11 68 11 11 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	BARREL ASM; W/KEY,STRG LOCK REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> THA	8-98274-647-0	01	1	1412-	●	●	●	●
2	BARREL ASM; W/KEY,STRG LOCK IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTECONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA	8-98274-646-0	01	1	1412-	●	●	●
2	BARREL ASM; W/KEY,STRG LOCK REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA	8-98193-734-0	01	1	1109-1109	●		●
2	BARREL ASM; W/KEY,STRG LOCK REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA	8-98193-734-0	01	1	1110-1411	●	●	●
2	BARREL ASM; W/KEY,STRG LOCK THA	8-98193-734-0	01	1	1110-1411				●
2	BARREL ASM; W/KEY,STRG LOCK REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA	8-98193-734-0	01	1	1412-	●		●	●
2	BARREL ASM; W/KEY,STRG LOCK EXC. REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH B CM<AP5>,IMMOBILIZER SYSTEM<7KC> THA	8-98193-733-0	01	1	1109-1109	●		●
2	BARREL ASM; W/KEY,STRG LOCK EXC. REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH B CM<AP5>,IMMOBILIZER SYSTEM<7KC> THA	8-98193-733-0	01	1	1110-1211	●	●	●
2	BARREL ASM; W/KEY,STRG LOCK THA	8-98193-733-0	01	1	1110-1211					●
2	BARREL ASM; W/KEY,STRG LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTECONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA	8-98193-733-0	01	1	1212-1411	●	●	●	●
2	BARREL ASM; W/KEY,STRG LOCK THA	8-98193-733-0	01	1	1212-1411					●
2	BARREL ASM; W/KEY,STRG LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTECONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,IMM OBILIZER SYSTEM<7KC> THA	8-98193-733-0	01	1	1412-	●		●
2	BARREL ASM; W/KEY,STRG LOCK THA	8-98193-733-0	01	1	1412-					●
5	CYLINDER ASM; DOOR LOCK IMMOBILIZER SYSTEM<7KC> (B) THA	8-98274-649-0	01	1	1412-	●	●	●	●
5	CYLINDER ASM; DOOR LOCK IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTECONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) THA	8-98274-650-0	01	1	1412-	●	●	●
5	CYLINDER ASM; DOOR LOCK EXC. IMMOBILIZER SYSTEM<7KC> (B) THA	8-98193-736-0	01	1	1109-1109	●		●
5	CYLINDER ASM; DOOR LOCK REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> (B) THA	8-98193-736-0	01	1	1109-1109	●		●
5	CYLINDER ASM; DOOR LOCK EXC. IMMOBILIZER SYSTEM<7KC> (B) THA	8-98193-736-0	01	1	1110-1211	●	●	●
5	CYLINDER ASM; DOOR LOCK REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> (B) THA	8-98193-736-0	01	1	1110-1211	●	●	●
5	CYLINDER ASM; DOOR LOCK (B) THA	8-98193-736-0	01	1	1110-1211				●	●
5	CYLINDER ASM; DOOR LOCK (B) THA	8-98193-736-0	01	1	1212-1411	●	●	●	●	●
5	CYLINDER ASM; DOOR LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC> (B) THA	8-98193-736-0	01	1	1412-	●		●	●
5	CYLINDER ASM; DOOR LOCK (B) THA	8-98193-736-0	01	1	1412-					●
5	CYLINDER ASM; DOOR LOCK EXC. REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH B CM<AP5>,IMMOBILIZER SYSTEM<7KC> (A) THA	8-98193-737-0	01	1	1109-1109	●		●
5	CYLINDER ASM; DOOR LOCK EXC. REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH B CM<AP5>,IMMOBILIZER SYSTEM<7KC> (A) THA	8-98193-737-0	01	1	1110-1211	●	●	●
5	CYLINDER ASM; DOOR LOCK (A) THA	8-98193-737-0	01	1	1110-1211					●
5	CYLINDER ASM; DOOR LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTECONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) THA	8-98193-737-0	01	1	1212-1411	●	●	●	●
5	CYLINDER ASM; DOOR LOCK (A) THA	8-98193-737-0	01	1	1212-1411					●
5	CYLINDER ASM; DOOR LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTECONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,IMM OBILIZER SYSTEM<7KC> (A) THA	8-98193-737-0	01	1	1412-	●		●
5	CYLINDER ASM; DOOR LOCK (A) THA	8-98193-737-0	01	1	1412-					●
11	KEY; BLANK REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER THA	8-98274-338-0	AR	1	1412-	●	●	●	●
11	KEY; BLANK IMMOBILIZER SYSTEM<7KC> (B) IMMOBILIZER THA	8-98274-332-0	AR	1	1412-	●	●	●	●
11	KEY; BLANK EXC. REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH B CM<AP5>,IMMOBILIZER SYSTEM<7KC> (A) THA	8-97350-352-0	AR	1	1109-1109	●		●
11	KEY; BLANK EXC. REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH B CM<AP5>,IMMOBILIZER SYSTEM<7KC> (A) THA	8-97350-352-0	AR	1	1110-1211	●	●	●
11	KEY; BLANK (A) THA	8-97350-352-0	AR	1	1110-1211					●
11	KEY; BLANK EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) THA	8-97350-352-0	AR	1	1212-	●	●
11	KEY; BLANK (A) THA	8-97350-352-0	AR	1	1212-			●	●	●
11	KEY; BLANK EXC. IMMOBILIZER SYSTEM<7KC> (B) IMMOBILIZER THA	8-98007-939-1	AR	1	1109-1109	●		●
11	KEY; BLANK REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> (B) IMMOBILIZER THA	8-98007-939-1	AR	1	1109-1109	●		●
11	KEY; BLANK EXC. IMMOBILIZER SYSTEM<7KC> (B) IMMOBILIZER THA	8-98007-939-1	AR	1	1110-1211	●	●	●
11	KEY; BLANK REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> (B) IMMOBILIZER THA	8-98007-939-1	AR	1	1110-1211	●	●	●
11	KEY; BLANK (B) IMMOBILIZER THA	8-98007-939-1	AR	1	1110-1211				●	●
11	KEY; BLANK (B) IMMOBILIZER THA	8-98007-939-1	AR	1	1212-1411	●	●	●	●	●
11	KEY; BLANK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC> (B) IMMOBILIZER THA	8-98007-939-1	AR	1	1412-	●		●	●
11	KEY; BLANK (B) IMMOBILIZER THA	8-98007-939-1	AR	1	1412-					●
11	KEY; BLANK REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER THA	8-98136-339-1	AR	1	1109-1109	●		●
11	KEY; BLANK REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER THA	8-98136-339-1	AR	1	1110-1411	●	●	●
11	KEY; BLANK (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER THA	8-98136-339-1	AR	1	1110-1411				●
11	KEY; BLANK REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. IMMOBILIZER SYSTEM<7KC> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER THA	8-98136-339-1	AR	1	1412-	●		●	●
11	KEY; BLANK PASSIVE ENTRY AND START SYSTEM<AP3> IMMOBILIZER SYSTEM<7KC> (D) THA	8-98140-637-0	AR	1	1212-1411	●	●
11	KEY; BLANK PASSIVE ENTRY AND START SYSTEM<AP3> IMMOBILIZER SYSTEM<7KC> (D) THA	8-98274-340-0	AR	1	1412-	●	●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK EXC. IMMOBILIZER SYSTEM<7KC> THA	8-98193-735-0	01	1	1109-1109	●		●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> THA	8-98193-735-0	01	1	1109-1109	●		●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK EXC. IMMOBILIZER SYSTEM<7KC> THA	8-98193-735-0	01	1	1110-1211	●	●	●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> THA	8-98193-735-0	01	1	1110-1211	●	●	●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK THA	8-98193-735-0	01	1	1110-1211				●	●
20	SNAP; DOOR LOCK CYL EXC. IMMOBILIZER SYSTEM<7KC> (B) WHITE THA	8-97350-044-0	01	1	1109-1109	●		●
20	SNAP; DOOR LOCK CYL REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> (B) WHITE THA	8-97350-044-0	01	1	1109-1109	●		●
20	SNAP; DOOR LOCK CYL EXC. IMMOBILIZER SYSTEM<7KC> (B) WHITE THA	8-97350-044-0	01	1	1110-1211	●	●	●
20	SNAP; DOOR LOCK CYL REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> (B) WHITE THA	8-97350-044-0	01	1	1110-1211	●	●	●
20	SNAP; DOOR LOCK CYL (B) WHITE THA	8-97350-044-0	01	1	1110-1211				●	●
20	SNAP; DOOR LOCK CYL (B) WHITE THA	8-97350-044-0	01	1	1212-	●	●	●	●	●
20	SNAP; DOOR LOCK CYL EXC. REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH B CM<AP5>,IMMOBILIZER SYSTEM<7KC> (A) YELLOW THA	8-97350-043-0	01	1	1109-1109	●		●
20	SNAP; DOOR LOCK CYL EXC. REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH B CM<AP5>,IMMOBILIZER SYSTEM<7KC> (A) YELLOW THA	8-97350-043-0	01	1	1110-1211	●	●	●
20	SNAP; DOOR LOCK CYL (A) YELLOW THA	8-97350-043-0	01	1	1110-1211					●
20	SNAP; DOOR LOCK CYL EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTECONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) YELLOW THA	8-97350-043-0	01	1	1212-	●	●	●	●
20	SNAP; DOOR LOCK CYL (A) YELLOW THA	8-97350-043-0	01	1	1212-					●
21	SWITCH ASM; DOOR LOCK CYL REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA	8-98162-756-0	01	1	1109-1109	●		●
21	SWITCH ASM; DOOR LOCK CYL REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA	8-98162-756-0	01	1	1110-1211	●	●	●
21	SWITCH ASM; DOOR LOCK CYL EXC. IMMOBILIZER SYSTEM<7KC> THA	8-98162-756-0	01	1	1110-1211				●
25	CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05> THA	8-98060-587-0	01	1	1110-					●
68	TRANSMITTER; DOOR LOCK PASSIVE ENTRY AND START SYSTEM<AP3> (B) THA	8-98076-334-1	02	1	1212-	●	●
68	TRANSMITTER; DOOR LOCK REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) THA	8-98102-844-1	01	1	1109-1109	●		●
68	TRANSMITTER; DOOR LOCK REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) THA	8-98102-844-1	01	1	1110-	●	●	●
68	TRANSMITTER; DOOR LOCK (A) THA	8-98102-844-1	01	1	1110-				●

1 21 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E

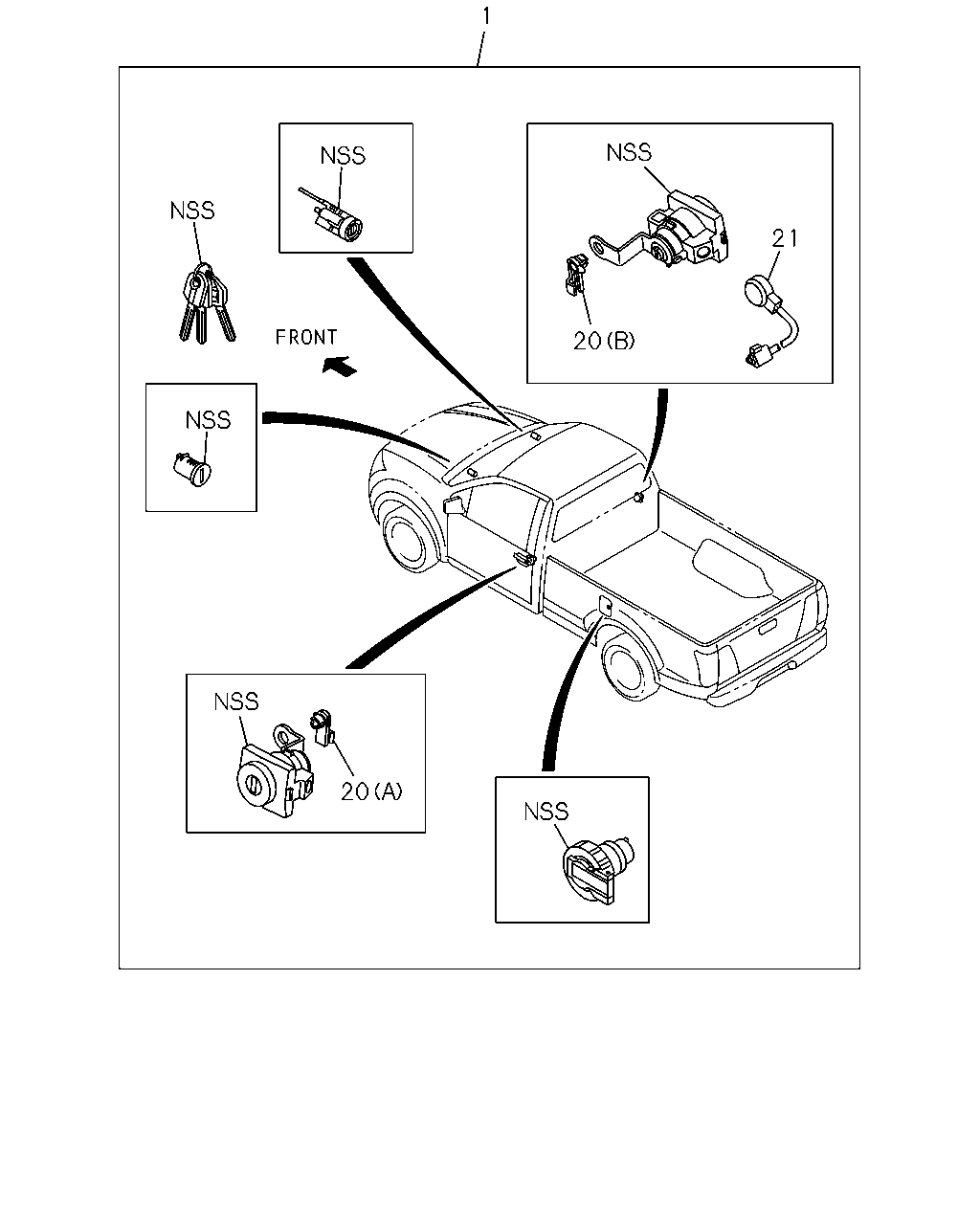

1	CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> THA	8-98232-310-0	01	1	1212-1411	●	●	●	●
1	CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> THA	8-98274-613-0	01	1	1412-	●	●	●	●
1	CYLINDER SET; CAR LOCK IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTECONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA	8-98232-312-0	01	1	1212-1411	●	●	●
1	CYLINDER SET; CAR LOCK IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTECONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA	8-98274-615-0	01	1	1412-	●	●	●
1	CYLINDER SET; CAR LOCK IMMOBILIZER SYSTEM<7KC> THA	8-98103-833-0	01	1	1109-1109	●		●
1	CYLINDER SET; CAR LOCK IMMOBILIZER SYSTEM<7KC> THA	8-98103-833-0	01	1	1110-1211	●	●	●	●
1	CYLINDER SET; CAR LOCK PASSIVE ENTRY AND START SYSTEM<AP3> IMMOBILIZER SYSTEM<7KC> THA	8-98232-309-0	01	1	1212-1411	●	●
1	CYLINDER SET; CAR LOCK PASSIVE ENTRY AND START SYSTEM<AP3> IMMOBILIZER SYSTEM<7KC> THA	8-98274-612-0	01	1	1412-	●	●
1	CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA	8-98103-074-0	01	1	1109-1109	●		●
1	CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA	8-98103-074-0	01	1	1110-1211	●	●	●
1	CYLINDER SET; CAR LOCK EXC. IMMOBILIZER SYSTEM<7KC> THA	8-98103-074-0	01	1	1110-1211				●
1	CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA	8-98232-306-0	01	1	1212-	●		●	●
1	CYLINDER SET; CAR LOCK EXC. REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH B CM<AP5>,IMMOBILIZER SYSTEM<7KC> THA	8-98103-063-0	01	1	1109-1109	●		●
1	CYLINDER SET; CAR LOCK EXC. REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH B CM<AP5>,IMMOBILIZER SYSTEM<7KC> THA	8-98103-063-0	01	1	1110-1211	●	●	●
1	CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP W/LOCK<N05> THA	8-98103-063-0	01	1	1110-1211					●
1	CYLINDER SET; CAR LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTECONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,IMM OBILIZER SYSTEM<7KC> THA	8-98232-308-0	01	1	1212-	●	●	●
1	CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP W/LOCK<N05> THA	8-98232-308-0	01	1	1212-					●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> THA	8-98103-064-0	01	1	1110-1211					●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> THA	8-98232-307-0	01	1	1212-					●
20	SNAP; DOOR LOCK CYL EXC. IMMOBILIZER SYSTEM<7KC> (B) WHITE THA	8-97350-044-0	01	1	1109-1109	●		●
20	SNAP; DOOR LOCK CYL REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> (B) WHITE THA	8-97350-044-0	01	1	1109-1109	●		●
20	SNAP; DOOR LOCK CYL EXC. IMMOBILIZER SYSTEM<7KC> (B) WHITE THA	8-97350-044-0	01	1	1110-1211	●	●	●
20	SNAP; DOOR LOCK CYL REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> (B) WHITE THA	8-97350-044-0	01	1	1110-1211	●	●	●
20	SNAP; DOOR LOCK CYL (B) WHITE THA	8-97350-044-0	01	1	1110-1211				●	●
20	SNAP; DOOR LOCK CYL (B) WHITE THA	8-97350-044-0	01	1	1212-	●	●	●	●	●
20	SNAP; DOOR LOCK CYL EXC. REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH B CM<AP5>,IMMOBILIZER SYSTEM<7KC> (A) YELLOW THA	8-97350-043-0	01	1	1109-1109	●		●
20	SNAP; DOOR LOCK CYL EXC. REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH B CM<AP5>,IMMOBILIZER SYSTEM<7KC> (A) YELLOW THA	8-97350-043-0	01	1	1110-1211	●	●	●
20	SNAP; DOOR LOCK CYL (A) YELLOW THA	8-97350-043-0	01	1	1110-1211					●
20	SNAP; DOOR LOCK CYL EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTECONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) YELLOW THA	8-97350-043-0	01	1	1212-	●	●	●	●
20	SNAP; DOOR LOCK CYL (A) YELLOW THA	8-97350-043-0	01	1	1212-					●
21	SWITCH ASM; DOOR LOCK CYL REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA	8-98162-756-0	01	1	1109-1109	●		●
21	SWITCH ASM; DOOR LOCK CYL REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA	8-98162-756-0	01	1	1110-1211	●	●	●
21	SWITCH ASM; DOOR LOCK CYL EXC. IMMOBILIZER SYSTEM<7KC> THA	8-98162-756-0	01	1	1110-1211				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
