◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#81767) — 37 parça

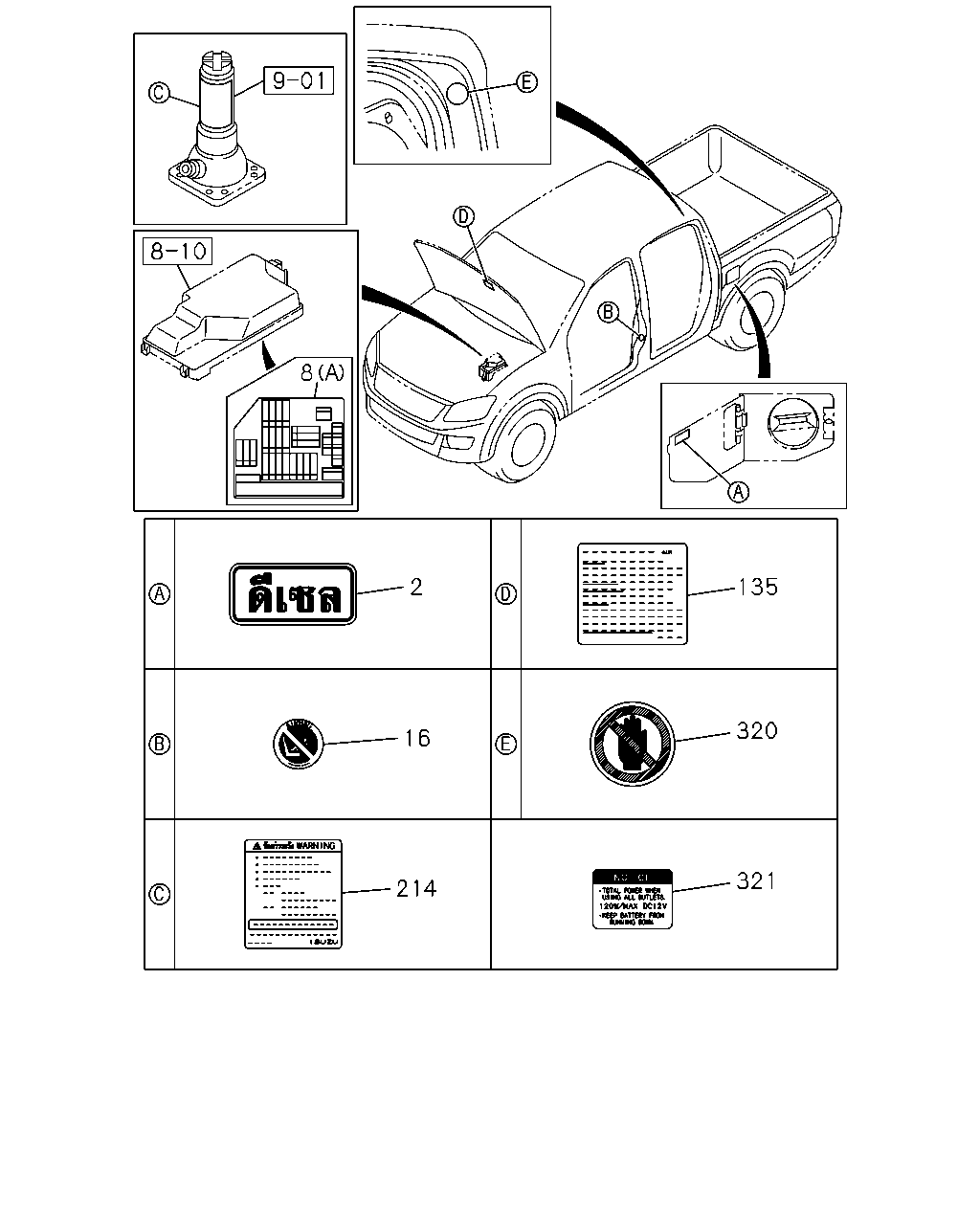

çizim 147240
321 320 135 2 16 214 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 LABEL; FUEL CAUTION
THA 		8-97944-098-0 01 1 1109-1109 ● ●
2 LABEL; FUEL CAUTION
THA 		8-97944-098-0 01 1 1110- ● ● ● ●
2 LABEL; FUEL CAUTION
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97944-098-0 01 1 1110- ●
8 LABEL; FUSE
(A) THA 		8-98166-841-2 01 1 1109-1109 ● ●
8 LABEL; FUSE
(A) THA 		8-98166-841-2 01 1 1110- ● ● ● ● ●
8 LABEL; FUSE
(B) THA 		8-98167-403-2 01 1 1109-1109 ● ●
8 LABEL; FUSE
(B) THA 		8-98167-403-2 01 1 1110-1211 ● ● ● ● ●
8 LABEL; FUSE
(B) THA 		8-98213-357-0 01 1 1212- ● ● ● ● ●
16 PLATE; CAUTION,SIR
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-97378-569-0 01 1 1109-1109 ● ●
16 PLATE; CAUTION,SIR
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-97378-569-0 01 1 1110- ● ● ● ●
135 PLATE; CAUTION,ENGINE
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> THA 		8-98199-210-0 01 1 1109-1109 ● ●
135 PLATE; CAUTION,ENGINE
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> THA 		8-98199-210-0 01 1 1110- ● ● ● ● ●
135 PLATE; CAUTION,ENGINE
4JJ1-TCX ENG<LS0> THA 		8-98199-209-0 01 1 1109-1109 ● ●
135 PLATE; CAUTION,ENGINE
4JJ1-TCX ENG<LS0> THA 		8-98199-209-0 01 1 1110- ● ● ● ●
214 LABEL; JACK
THA 		8-97942-649-0 01 1 1109-1109 ● ●
214 LABEL; JACK
THA 		8-97942-649-0 01 1 1110- ● ● ● ● ●
320 LABEL; WARNING,DOOR
THA 		8-98183-175-0 01 1 1109-1501 ● ●
320 LABEL; WARNING,DOOR
THA 		8-98302-861-0 02 1 1502- ● ●
320 LABEL; WARNING,DOOR
THA 		8-98183-176-0 01 1 1109-1501 ● ●
321 LABEL; WARNING,POWER
THA 		8-98183-494-1 01 1 1109-1109 ● ●
321 LABEL; WARNING,POWER
THA 		8-98183-494-1 01 1 1110- ● ● ● ●
321 LABEL; WARNING,POWER
ACCESSORY SOCKET FRT CONSOLE<KC5> THA 		8-98183-494-1 01 1 1110- ●

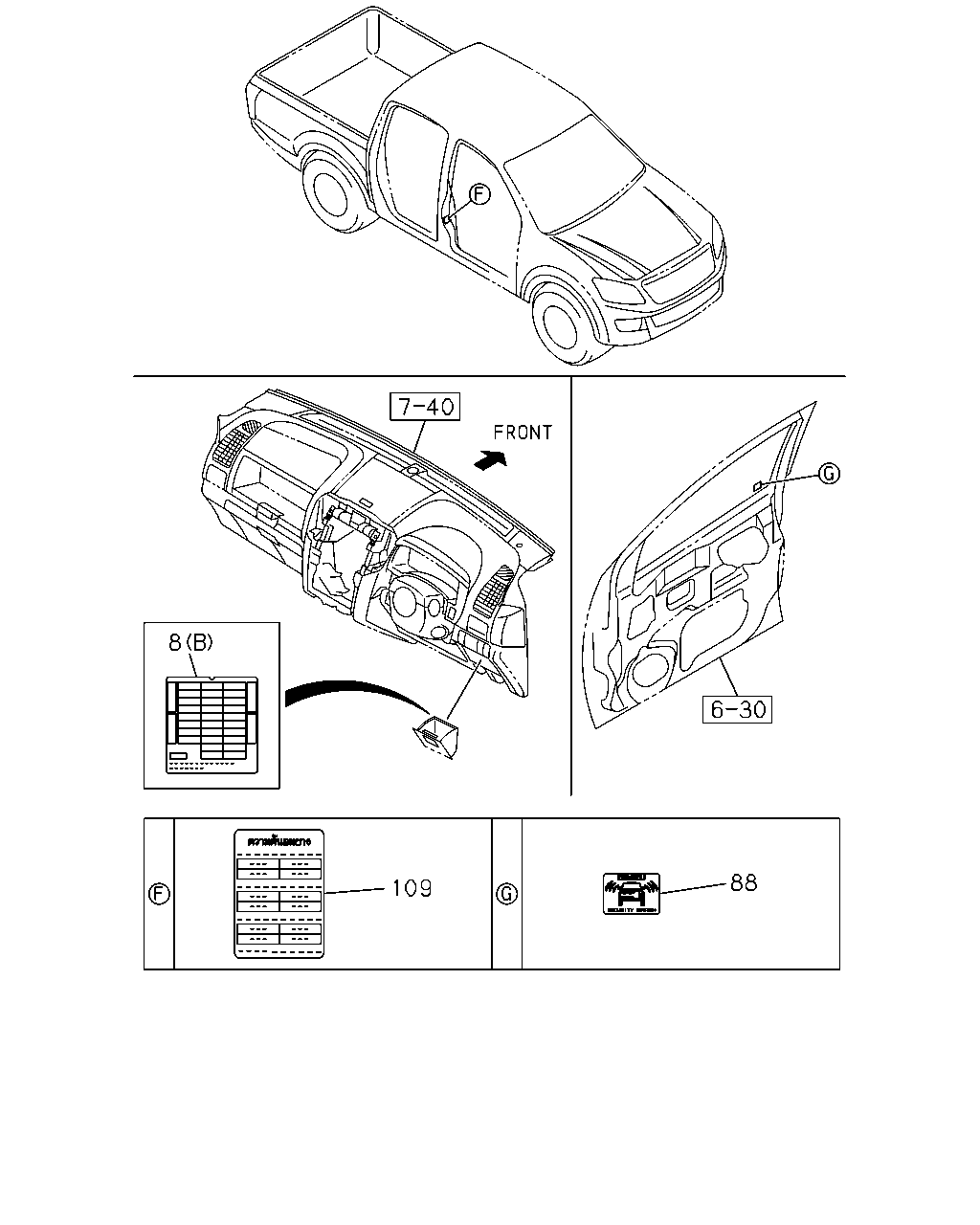

çizim 147261
8 109 88
BalonParca AdiParca NoAdetTipApplied Date A B C D E
8 LABEL; FUSE
(A) THA 		8-98166-841-2 01 1 1109-1109 ● ●
8 LABEL; FUSE
(A) THA 		8-98166-841-2 01 1 1110- ● ● ● ● ●
8 LABEL; FUSE
(B) THA 		8-98167-403-2 01 1 1109-1109 ● ●
8 LABEL; FUSE
(B) THA 		8-98167-403-2 01 1 1110-1211 ● ● ● ● ●
8 LABEL; FUSE
(B) THA 		8-98213-357-0 01 1 1212- ● ● ● ● ●
88 LABEL; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98141-993-2 02 1 1109-1109 ● ●
88 LABEL; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98141-993-2 02 1 1110- ● ● ● ●
109 PLATE; CAUTION,TIRE PLACARD
HIGH RIDE SUSPENSION<7YC> THA 		8-98100-753-1 01 1 1109- ●
109 PLATE; CAUTION,TIRE PLACARD
THA 		8-98100-753-1 01 1 1109- ●
109 PLATE; CAUTION,TIRE PLACARD
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98100-748-0 01 1 1109-1109 ●
109 PLATE; CAUTION,TIRE PLACARD
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98100-748-0 01 1 1110- ●
109 PLATE; CAUTION,TIRE PLACARD
THA 		8-98100-748-0 01 1 1110- ●
109 PLATE; CAUTION,TIRE PLACARD
HIGH RIDE SUSPENSION<7YC> THA 		8-98100-754-0 01 1 1110- ●
109 PLATE; CAUTION,TIRE PLACARD
THA 		8-98100-754-0 01 1 1110- ●
109 PLATE; CAUTION,TIRE PLACARD
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98100-749-0 01 1 1110- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
