◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#81765) — 21 parça

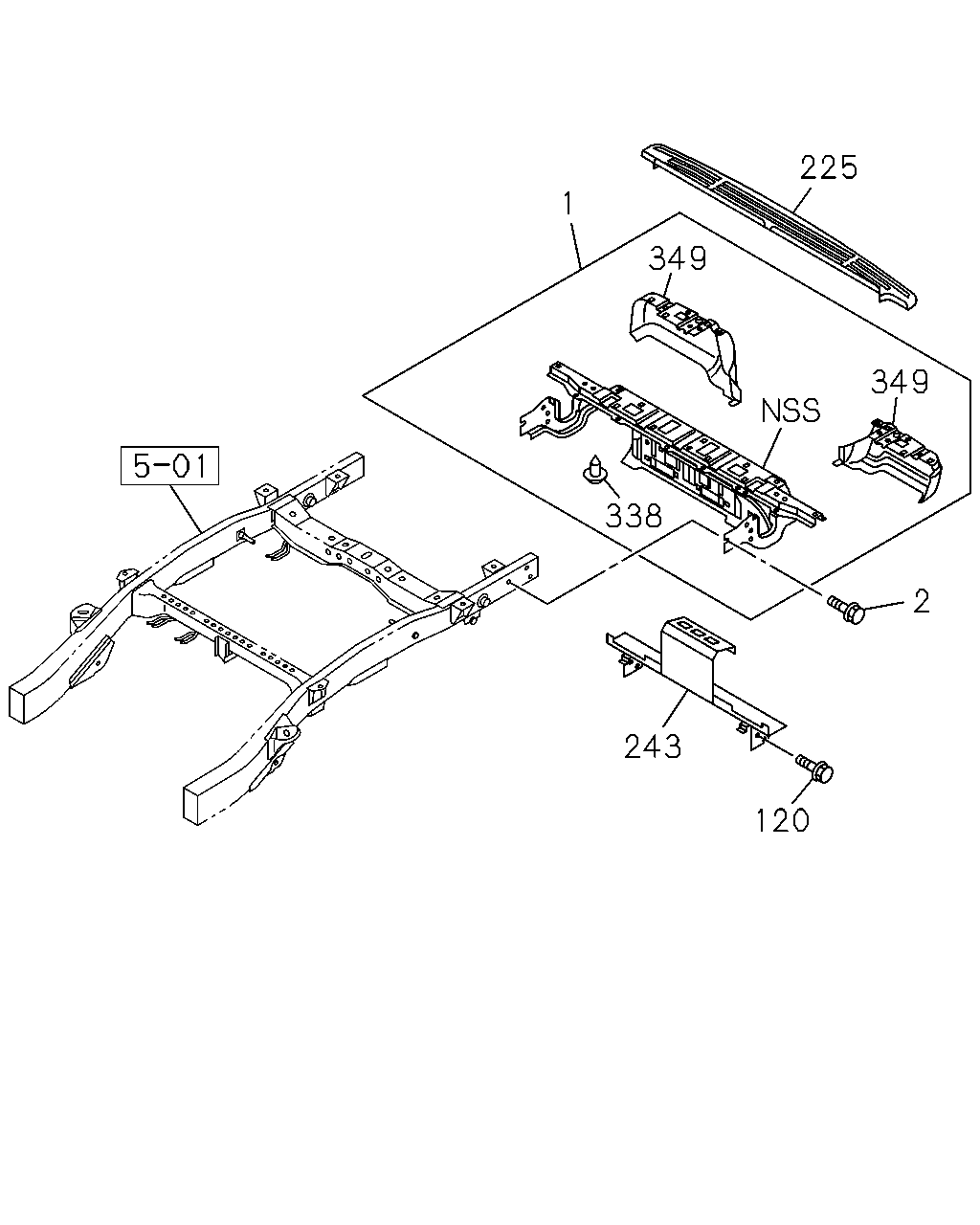

çizim 147316
120 2 243 338 349 349 1 225
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 BUMPER; RR
REAR STEP BUMPER CHROME<V42> PLATED THA 		8-98153-274-4 01 1 1109-1109 ● ●
1 BUMPER; RR
REAR STEP BUMPER CHROME<V42> PLATED THA 		8-98153-274-4 01 1 1110- ● ● ● ●
1 BUMPER; RR
REAR STEP BUMPER PAINTED<V43> PRIMER THA 		8-98223-491-0 01 1 1109-1109 ●
1 BUMPER; RR
REAR STEP BUMPER PAINTED<V43> PRIMER THA 		8-98223-491-0 01 1 1110- ● ●
2 BOLT; BACK BAR
REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> M12X30 THA 		8-98062-142-0 06 1 1109-1109 ●
2 BOLT; BACK BAR
REAR STEP BUMPER CHROME<V42> M12X30 THA 		8-98062-142-0 06 1 1109-1109 ●
2 BOLT; BACK BAR
REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> M12X30 THA 		8-98062-142-0 06 1 1110- ● ●
2 BOLT; BACK BAR
REAR STEP BUMPER CHROME<V42> M12X30 THA 		8-98062-142-0 06 1 1110- ●
2 BOLT; BACK BAR
M12X30 THA 		8-98062-142-0 06 1 1110- ●
120 BOLT
REAR BODY DELETE<8HH> M12X30 FLANGE THA 		0-28661-230-0 02 1 1110- ●
225 PAD; STEP,RR BUMPER
REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA 		8-98102-359-2 01 1 1109-1109 ●
225 PAD; STEP,RR BUMPER
REAR STEP BUMPER CHROME<V42> THA 		8-98102-359-2 01 1 1109-1109 ●
225 PAD; STEP,RR BUMPER
REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA 		8-98102-359-2 01 1 1110- ● ●
225 PAD; STEP,RR BUMPER
REAR STEP BUMPER CHROME<V42> THA 		8-98102-359-2 01 1 1110- ●
225 PAD; STEP,RR BUMPER
THA 		8-98102-359-2 01 1 1110- ●
243 BRACKET
REAR BODY DELETE<8HH> THA 		8-98202-598-1 01 1 1110- ●
338 PIN; PUSH
REAR STEP BUMPER PAINTED<V43> THA 		8-97352-595-0 02 1 1308- ● ●
349 SHELL; RR BUMPER
REAR STEP BUMPER CHROME<V42> THA 		8-98238-273-0 01 1 1309- ● ● ●
349 SHELL; RR BUMPER
THA 		8-98238-273-0 01 1 1309- ●
349 SHELL; RR BUMPER
REAR STEP BUMPER CHROME<V42> THA 		8-98238-274-0 01 1 1309- ● ● ●
349 SHELL; RR BUMPER
THA 		8-98238-274-0 01 1 1309- ●
