Isuzu WW
▶
PICKUP
▶
TFR
▶
51373 - TFR/TFS(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-84 - BACK TRIM
▶

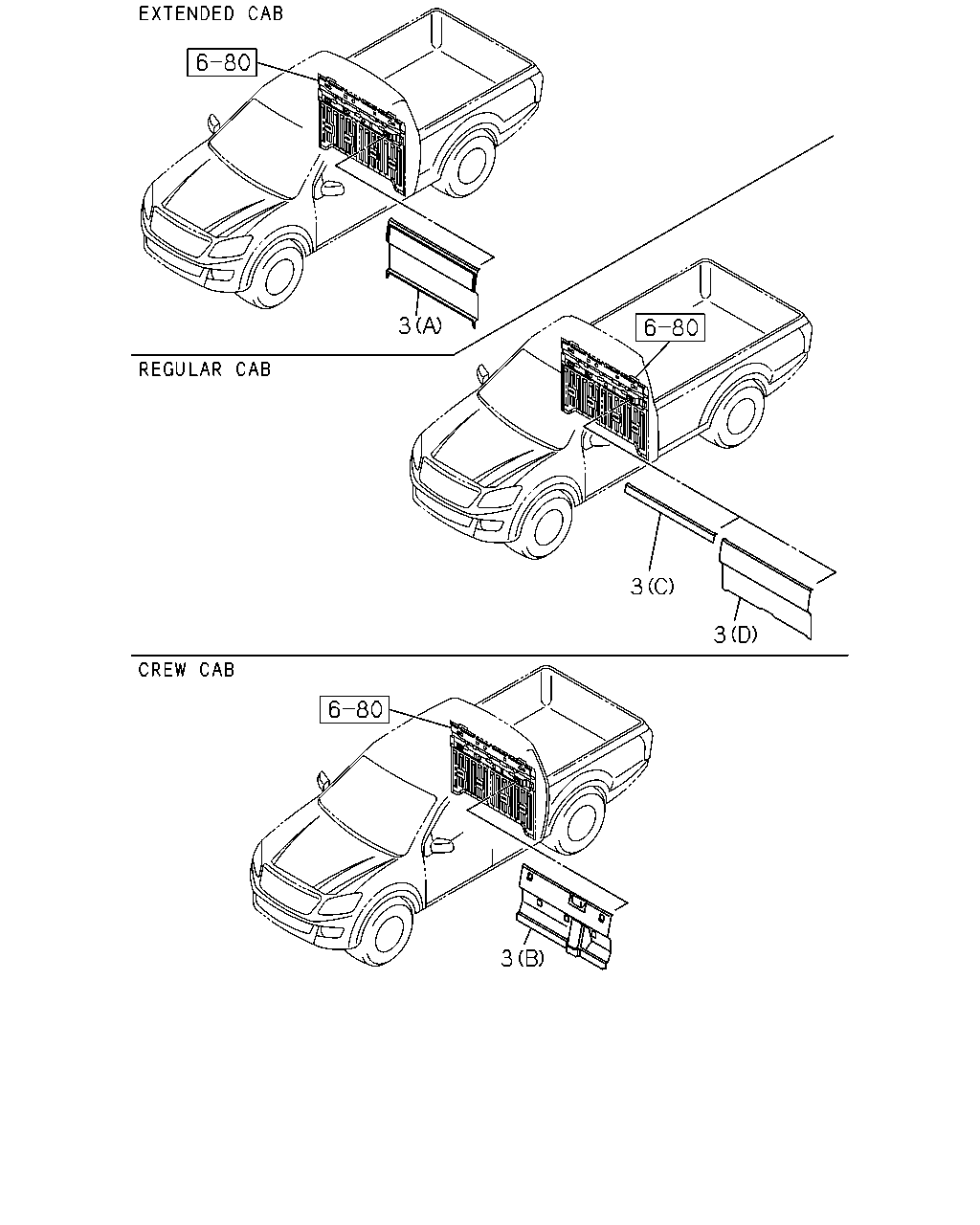

6-84 — BACK TRIM
(#81763) — 15 parça
Tümü
A - TFB5CF
B - TFS5CF
C - TFB5SF
D - TFB5WF
E - TFS5WF
3
3
3
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
3
TRIM; FULL,BACK UPR
INTERIOR COLOR DARK GRAY<117> (A) LIGHT GRAY THA
8-97421-710-4
01
1
1109-1211
●
3
TRIM; FULL,BACK UPR
(A) LIGHT GRAY THA
8-97421-710-4
01
1
1109-1211
●
3
TRIM; FULL,BACK UPR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) LIGHT GRAY THA
8-97421-710-5
01
1
1212-1310
●
3
TRIM; FULL,BACK UPR
(A) LIGHT GRAY THA
8-97421-710-5
01
1
1212-1310
●
3
TRIM; FULL,BACK UPR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) LIGHT GRAY THA
8-97428-389-0
01
1
1311-
●
3
TRIM; FULL,BACK UPR
(A) LIGHT GRAY THA
8-97428-389-0
01
1
1311-
●
3
TRIM; FULL,BACK UPR
INTERIOR COLOR BEIGE<120> (A) BEIGE THA
8-97416-719-5
01
1
1109-1310
●
3
TRIM; FULL,BACK UPR
INTERIOR COLOR BEIGE<120> (A) BEIGE THA
8-97428-388-0
01
1
1311-
●
3
TRIM; FULL,BACK UPR
INTERIOR BASIC<RBA> (C) BLACK THA
8-97417-124-1
01
1
1110-
●
3
TRIM; FULL,BACK UPR
INTERIOR DELUXE<RBB> (D) BLACK THA
8-97417-122-3
01
1
1110-
●
3
TRIM; FULL,BACK UPR
INTERIOR COLOR DARK GRAY<117> (B) BLACK THA
8-97416-973-3
01
1
1110-1211
●
3
TRIM; FULL,BACK UPR
(B) BLACK THA
8-97416-973-3
01
1
1110-1211
●
3
TRIM; FULL,BACK UPR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) BLACK THA
8-97416-973-3
01
1
1212-
●
3
TRIM; FULL,BACK UPR
(B) BLACK THA
8-97416-973-3
01
1
1212-
●
3
TRIM; FULL,BACK UPR
INTERIOR COLOR BEIGE<120> (B) BEIGE THA
8-97416-974-3
01
1
1110-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
