4-50 — FRONT SUSPENSION (#8176) — 194 parça

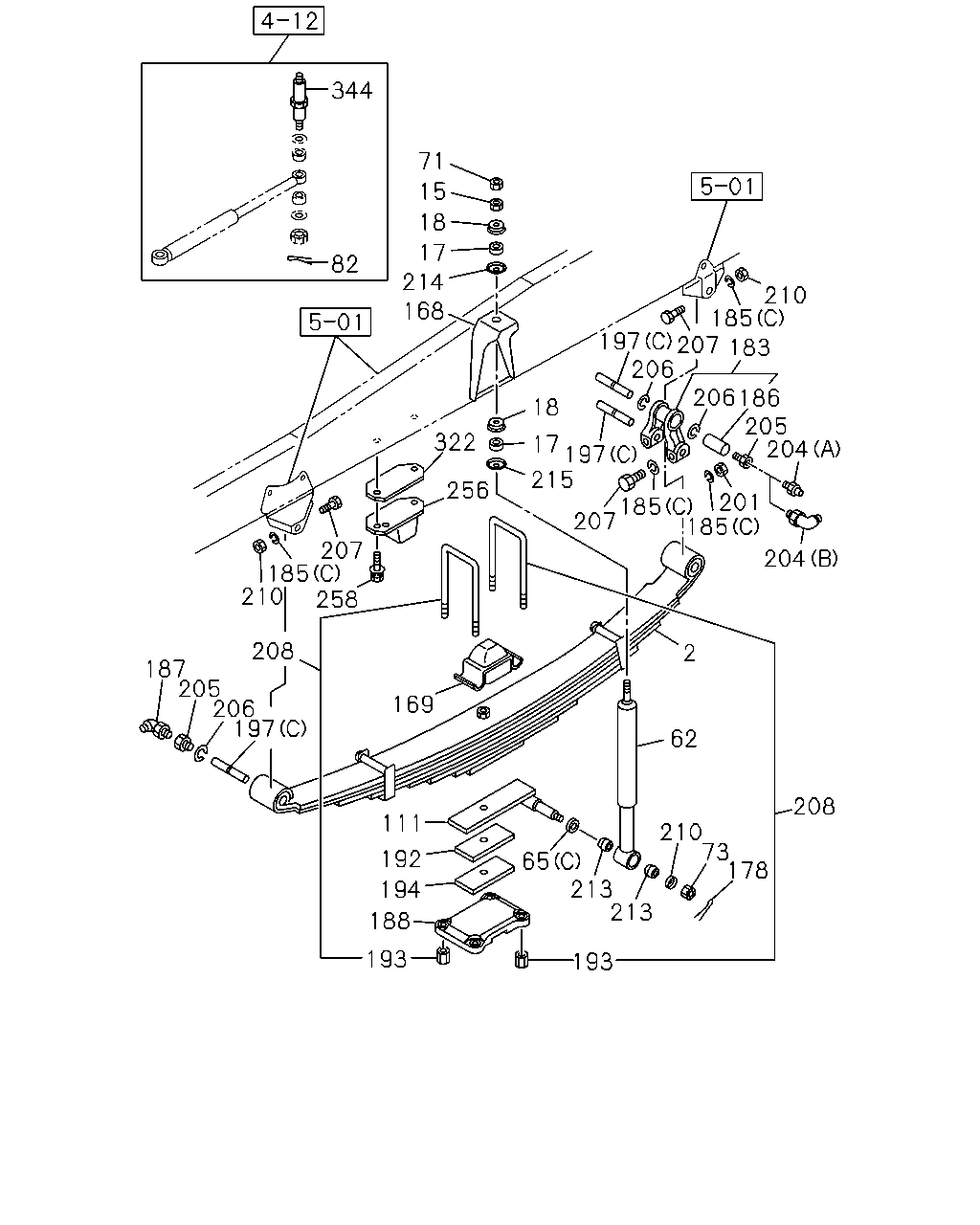

çizim 79008
344 71 15 18 17 82 214 168 210 185 197 207 206 205 204 183 18 322 17 197 215 256 185 201 207 185 207 185 210 258 204 208 2 187 205 206 197 169 62 208 111 210 73 178 192 65 213 213 194 188 193 193 206 186
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3 LEAF 		8-97383-538-0 02 1 0406- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 9 LEAF 		1-51130-473-0 02 1 0005- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> 9 LEAF 		1-51130-443-0 02 1 0005-0210 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 5 LEAF 		1-51130-773-0 02 1 0211-0405 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT TAPER LEAF SUSPENSION<SAR> 5 LEAF 		1-51130-773-0 02 1 0406- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY<F60> 8 LEAF 		1-51130-415-0 02 1 0005-0210 ● ●
15 NUT; S/ABS,UPR
M12 		1-09400-006-0 02 1 0005-0910 ● ●
15 NUT; S/ABS,UPR
M12 		8-98010-412-0 02 1 0911- ● ●
15 NUT; S/ABS,UPR
M10 		0-91110-510-0 02 1 0601- ● ●
17 BUSHING; RUBBER,S/ABS 9-51631-050-0 04 1 0005- ● ●
18 WASHER; CENTERING,S/ABS 1-51631-006-0 02 1 0005- ● ●
18 WASHER; CENTERING,S/ABS
ID=16.8 		1-51631-022-0 04 1 0005- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-039-2 02 1 0005- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-3 02 1 0005- ● ●
65 WASHER; S/ABS
(B) ID=12.5 		1-09503-171-0 02 1 0005- ● ●
65 WASHER; S/ABS
(A) 		1-51631-005-0 04 1 0005- ● ●
65 WASHER; S/ABS
(C) ID=23 		1-51631-019-0 02 1 0005- ● ●
71 NUT; LK,S/ABS,UPR
M12 		1-09400-006-0 02 1 0005-0910 ● ●
71 NUT; LK,S/ABS,UPR
M12 		8-98010-412-0 02 1 0911- ● ●
71 NUT; LK,S/ABS,UPR
M10 		0-91111-510-0 02 1 0601- ● ●
73 NUT; BRKT,SHOCK
M12 		9-99110-512-0 02 1 0005-0512 ● ●
73 NUT; BRKT,SHOCK
M12 		0-91110-512-0 02 1 0601- ● ●
73 NUT; BRKT,SHOCK
M16 SLOTTED 		9-99116-416-0 02 1 0005-0605 ● ●
73 NUT; BRKT,SHOCK
M16 SLOTTED 		0-91116-516-0 02 1 0606-1204 ● ●
73 NUT; BRKT,SHOCK
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ●
82 PIN; SPLIT,FRT S/ABS
OD=2.8 L=25 		9-08113-025-0 01 1 0005- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-671-1 01 1 0005- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-670-1 01 1 0005- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-744-0 01 1 0005- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-743-0 01 1 0005- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-307-1 02 1 0005-0210 ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-307-1 02 1 0211- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 0005- ● ●
169 PAD; U BOLT,FRT SPR 1-51172-106-0 02 1 0005- ● ●
178 PIN; SPLIT,S/ABS
OD=3.7 L=25 		9-08114-025-0 02 1 0005-0606 ● ●
178 PIN; SPLIT,S/ABS
OD=3.7 L=25 		0-81124-025-0 02 1 0607- ● ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 0005- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0005- ● ●
185 WASHER; LK,PIN
(A) ID=25.5 		1-09503-011-0 04 1 0005-0910 ● ●
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 0911- ● ●
185 WASHER; LK,PIN
(B) ID=23 		1-51169-003-0 02 1 0005-0910 ● ●
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 0911- ● ●
185 WASHER; LK,PIN
(C) ID=12.2 		9-09150-612-0 12 1 0005-0603 ● ●
185 WASHER; LK,PIN
(C) ID=12.2 		0-91510-612-0 12 1 0604- ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 0005-0902 ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 0903- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 0005-0512 ● ● ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51173-007-2 02 1 0005- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51173-038-0 02 1 0005- ● ●
192 PIECE; DIST 1-51177-218-1 01 1 0005- ● ●
192 PIECE; DIST 1-51177-219-0 01 1 0005- ● ●
192 PIECE; DIST 9-51377-038-0 01 1 0005- ● ●
193 NUT; U BOLT
M16 		1-09440-028-1 08 1 0005-0503 ● ●
193 NUT; U BOLT
M16 		8-94107-767-0 08 1 0504-0706 ● ●
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 0707- ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0005-0512 ● ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601-1206 ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ● ●
194 PIECE; DIST,AXLE CASE SIDE
FRONT SPRING HEAVY DUTY<F60> 		1-51377-177-0 02 1 0005-0210 ● ●
194 PIECE; DIST,AXLE CASE SIDE 1-51377-177-0 02 1 0211-0405 ● ●
194 PIECE; DIST,AXLE CASE SIDE
EXC. FRT TAPER LEAF SUSPENSION<SAR> 		1-51377-177-0 02 1 0406- ● ●
197 PIN; FRT SPR,FRT
(A) 		1-51161-004-3 02 1 0005-0911 ● ●
197 PIN; FRT SPR,FRT
(A) 		8-98060-335-0 02 1 0912- ● ●
197 PIN; FRT SPR,FRT
(B) 		1-51161-005-3 04 1 0005-0911 ● ●
197 PIN; FRT SPR,FRT
(B) 		8-98060-333-0 04 1 0912- ● ●
197 PIN; FRT SPR,FRT
(C) 		1-51161-031-0 06 1 0005- ● ●
201 NUT; PIN LK
M22 		9-09111-522-0 06 1 0005-0512 ● ●
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 0601- ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0005-0512 ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0601- ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		9-09031-010-0 04 1 0005-0210 ● ● ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		9-09031-010-0 02 1 0211-0512 ● ● ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ● ● ● ●
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 		9-09031-210-0 02 1 0211-0512 ● ● ● ●
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ● ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 0005- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0005- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0005- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 0005-0512 ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0601- ● ●
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> L=380 		1-87870-332-1 04 1 0406-0512 ● ●
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> L=380 		1-87870-488-1 04 1 0601- ● ●
208 U-BOLT SET; FRT SPRING
L=273 		1-87870-295-0 02 1 0005-0503 ● ●
208 U-BOLT SET; FRT SPRING
L=273 		1-87870-450-1 02 1 0504- ● ●
208 U-BOLT SET; FRT SPRING
FRONT SPRING HEAVY DUTY<F60> L=400 		1-87870-356-1 04 1 0005-0210 ● ●
208 U-BOLT SET; FRT SPRING
L=400 		1-87870-356-1 04 1 0211-0405 ● ●
208 U-BOLT SET; FRT SPRING
EXC. FRT TAPER LEAF SUSPENSION<SAR> L=400 		1-87870-356-2 04 1 0406-1206 ● ●
208 U-BOLT SET; FRT SPRING
EXC. FRT TAPER LEAF SUSPENSION<SAR> L=400 		1-87870-503-0 04 1 1207- ● ●
208 U-BOLT SET; FRT SPRING
EXC. FRONT SPRING HEAVY DUTY<F60> L=380 		1-87870-332-1 04 1 0005-0210 ● ●
210 WASHER; S/ABS,OUTER
ID=17 		9-09164-516-0 02 1 0005- ● ●
210 WASHER; S/ABS,OUTER
ID=17 		1-51631-020-0 02 1 0005- ● ●
213 BUSHING; RUBBER,LWR 1-51631-009-1 04 1 0005- ● ●
214 WASHER; S/ABS,UPR,INNER
ID=14.5 		9-51631-051-0 02 1 0005- ● ●
215 WASHER; S/ABS,UPR,OUTER
ID=14.5 		9-51631-051-0 02 1 0005- ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-019-0 02 1 0005- ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-009-2 01 1 0005- ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-008-2 01 1 0005- ● ●
258 BOLT; CUSHION,WIND UP
M8X35 FLANGE 		0-28080-835-0 04 1 0005-0512 ● ●
258 BOLT; CUSHION,WIND UP
M8X35 FLANGE 		0-28050-835-0 04 1 0601- ● ●
322 PLUG; RUBBER 1-51174-017-1 02 1 0005- ● ●
344 PIN; FRT S/ABS 9-43219-034-0 01 1 0005- ● ●

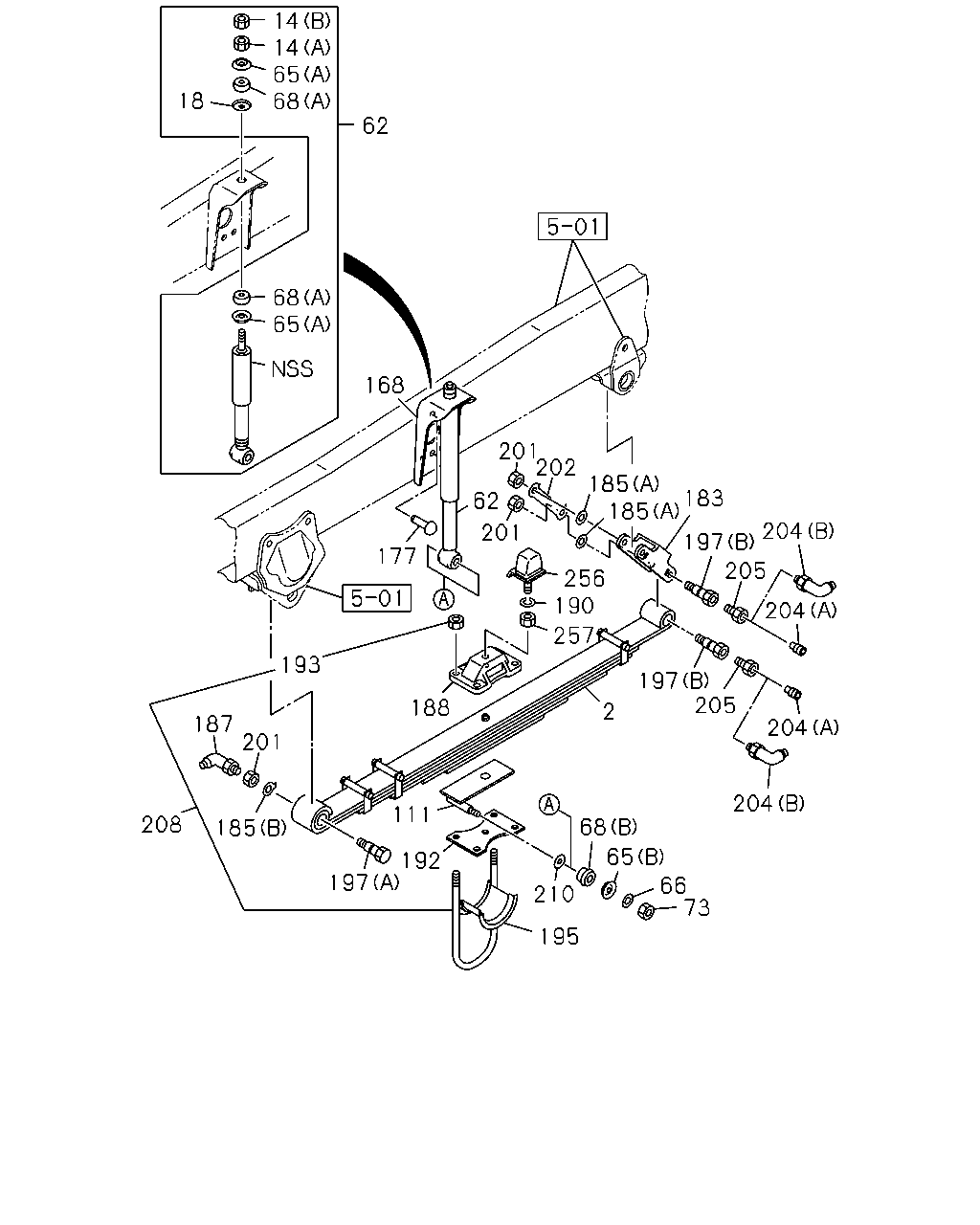

çizim 103222
