◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#81759) — 26 parça

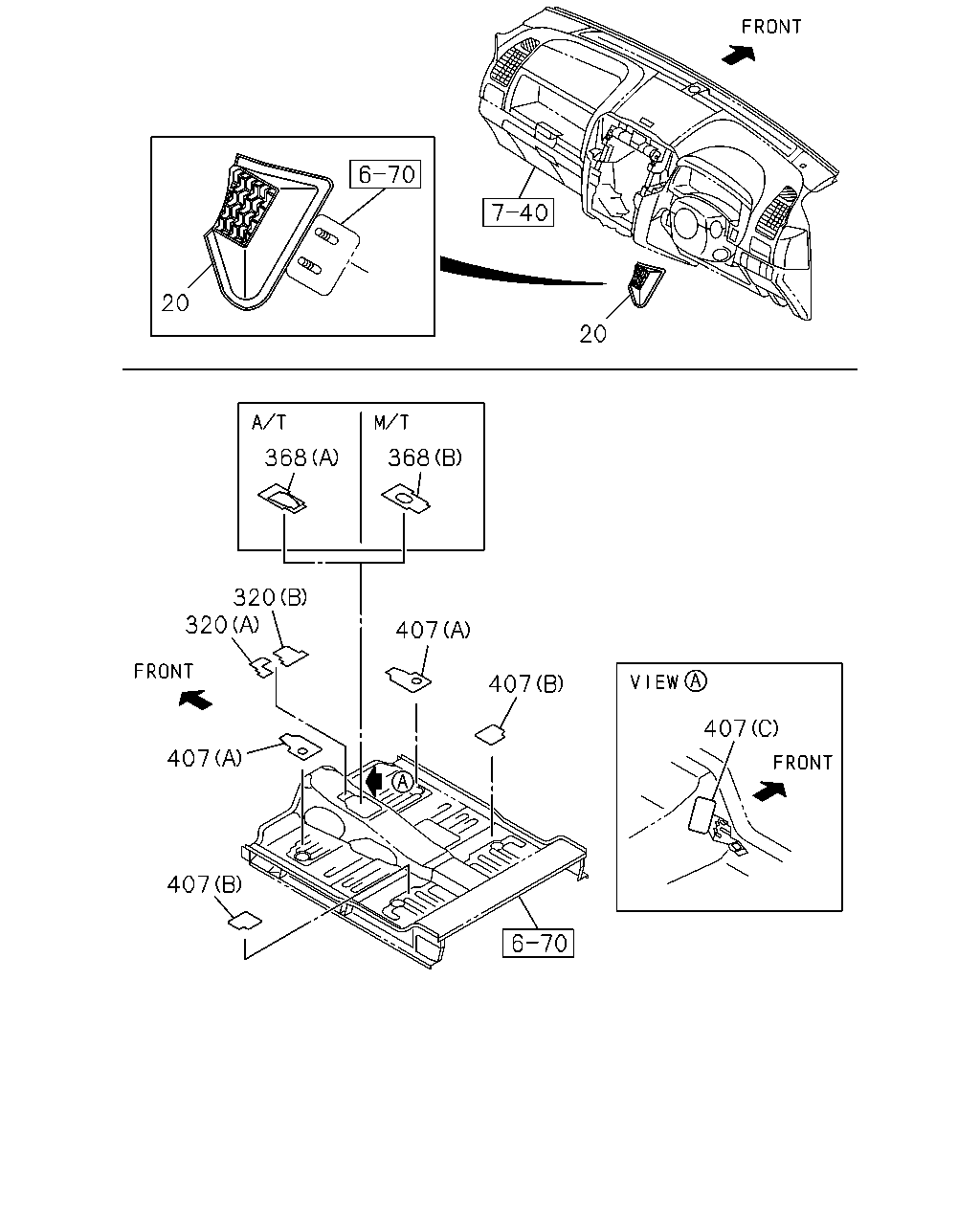

çizim 147250
368 368 320 320 407 407 407 407 20 20 407
BalonParca AdiParca NoAdetTipApplied Date A B C D E
20 REST; FOOT
THA 		8-98064-439-2 01 1 1109-1109 ● ●
20 REST; FOOT
THA 		8-98064-439-2 01 1 1110- ● ● ● ●
20 REST; FOOT
DRIVER SIDE FOOT REST<7NU> THA 		8-98064-439-2 01 1 1110- ●
320 INSULATOR; FLOOR,FRT
AIR BAG DRIVER & PASSENGER<AK5> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) THA 		8-98166-704-0 01 1 1109-1109 ● ●
320 INSULATOR; FLOOR,FRT
AIR BAG DRIVER & PASSENGER<AK5> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) THA 		8-98166-704-0 01 1 1110- ● ● ●
320 INSULATOR; FLOOR,FRT
AIR BAG DRIVER & PASSENGER<AK5> (A) THA 		8-98166-704-0 01 1 1110- ●
320 INSULATOR; FLOOR,FRT
AIR BAG DRIVER & PASSENGER DELETE<AK6> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) THA 		8-98166-705-0 01 1 1109-1109 ● ●
320 INSULATOR; FLOOR,FRT
AIR BAG DRIVER & PASSENGER DELETE<AK6> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) THA 		8-98166-705-0 01 1 1110- ● ● ●
320 INSULATOR; FLOOR,FRT
AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) THA 		8-98166-705-0 01 1 1110- ●
368 INSULATOR; FLOOR,RR
A/T 5 SPEED-AISIN<MA1> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) THA 		8-98166-707-0 01 1 1109-1109 ●
368 INSULATOR; FLOOR,RR
A/T 5 SPEED-AISIN<MA1> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) THA 		8-98166-707-0 01 1 1110-1211 ● ●
368 INSULATOR; FLOOR,RR
A/T 5 SPEED-AISIN<MA1> (A) THA 		8-98166-707-0 01 1 1110-1211 ●
368 INSULATOR; FLOOR,RR
A/T 5 SPEED-AISIN<MA1> (A) THA 		8-98166-707-0 01 1 1212- ● ●
368 INSULATOR; FLOOR,RR
A/T 5 SPEED-AISIN<MA1> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) THA 		8-98166-707-0 01 1 1212- ●
368 INSULATOR; FLOOR,RR
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) THA 		8-98166-706-0 01 1 1109-1109 ● ●
368 INSULATOR; FLOOR,RR
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) THA 		8-98166-706-0 01 1 1110-1211 ● ● ●
368 INSULATOR; FLOOR,RR
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (B) THA 		8-98166-706-0 01 1 1110-1211 ●
368 INSULATOR; FLOOR,RR
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (B) THA 		8-98166-706-0 01 1 1212- ● ● ●
368 INSULATOR; FLOOR,RR
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) THA 		8-98166-706-0 01 1 1212- ●
407 DEADENER; FLOOR PANEL
(A) THA 		8-98103-655-1 02 1 1109-1109 ● ●
407 DEADENER; FLOOR PANEL
(A) THA 		8-98103-655-1 02 1 1110- ● ● ● ●
407 DEADENER; FLOOR PANEL
(B) THA 		8-98155-918-0 02 1 1109-1109 ● ●
407 DEADENER; FLOOR PANEL
(B) THA 		8-98155-918-0 02 1 1110- ● ● ● ●
407 DEADENER; FLOOR PANEL
(C) THA 		8-98165-147-0 01 1 1109-1109 ● ●
407 DEADENER; FLOOR PANEL
(C) THA 		8-98165-147-0 01 1 1110- ● ● ● ●
407 DEADENER; FLOOR PANEL
DRIVER SIDE FOOT REST<7NU> (C) THA 		8-98165-147-0 01 1 1110- ●
