◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#81758) — 53 parça

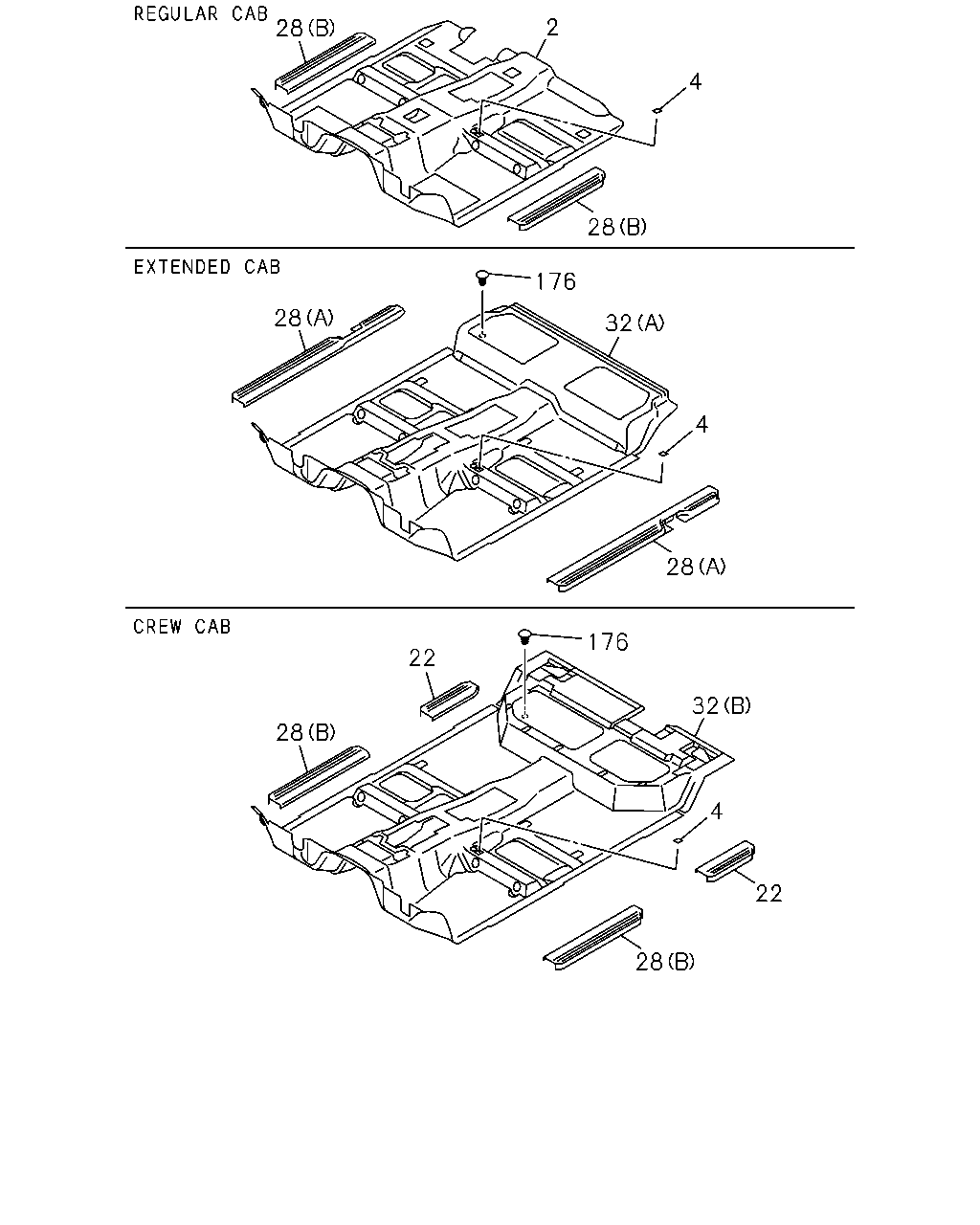

çizim 147264
2 4 28 28 32 4 28 176 28 28 22 176 32 4 22 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 MAT; FLOOR
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> DRIVER SIDE FOOT REST<7NU> BLACK THA 		8-97417-109-7 01 1 1110- ●
2 MAT; FLOOR
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> EXC. DRIVER SIDE FOOT REST<7NU> BLACK THA 		8-97417-108-6 01 1 1110- ●
4 INSULATOR; FRT
THA 		8-98185-968-0 04 1 1109-1109 ● ●
4 INSULATOR; FRT
THA 		8-98185-968-0 04 1 1110- ● ● ● ● ●
22 PLATE; SILL,RR
INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-948-5 01 1 1110-1211 ●
22 PLATE; SILL,RR
BLACK THA 		8-97416-948-5 01 1 1110-1211 ●
22 PLATE; SILL,RR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97416-948-5 01 1 1212- ●
22 PLATE; SILL,RR
BLACK THA 		8-97416-948-5 01 1 1212- ●
22 PLATE; SILL,RR
INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-950-5 01 1 1110-1211 ●
22 PLATE; SILL,RR
BLACK THA 		8-97416-950-5 01 1 1110-1211 ●
22 PLATE; SILL,RR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97416-950-5 01 1 1212- ●
22 PLATE; SILL,RR
BLACK THA 		8-97416-950-5 01 1 1212- ●
22 PLATE; SILL,RR
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-949-5 01 1 1110- ●
22 PLATE; SILL,RR
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-951-5 01 1 1110- ●
28 PLATE; SILL,FRT
INTERIOR COLOR DARK GRAY<117> (A) BLACK THA 		8-97416-669-2 01 1 1109-1211 ●
28 PLATE; SILL,FRT
(A) BLACK THA 		8-97416-669-2 01 1 1109-1211 ●
28 PLATE; SILL,FRT
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA 		8-97416-669-2 01 1 1212- ●
28 PLATE; SILL,FRT
(A) BLACK THA 		8-97416-669-2 01 1 1212- ●
28 PLATE; SILL,FRT
INTERIOR COLOR DARK GRAY<117> (A) BLACK THA 		8-97416-671-2 01 1 1109-1211 ●
28 PLATE; SILL,FRT
(A) BLACK THA 		8-97416-671-2 01 1 1109-1211 ●
28 PLATE; SILL,FRT
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA 		8-97416-671-2 01 1 1212- ●
28 PLATE; SILL,FRT
(A) BLACK THA 		8-97416-671-2 01 1 1212- ●
28 PLATE; SILL,FRT
INTERIOR COLOR BEIGE<120> (A) BEIGE THA 		8-97416-670-2 01 1 1109- ●
28 PLATE; SILL,FRT
INTERIOR COLOR BEIGE<120> (A) BEIGE THA 		8-97416-672-2 01 1 1109- ●
28 PLATE; SILL,FRT
(B) BLACK THA 		8-97416-944-3 01 1 1110-1211 ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR DARK GRAY<117> (B) BLACK THA 		8-97416-944-3 01 1 1110-1211 ●
28 PLATE; SILL,FRT
(B) BLACK THA 		8-97416-944-3 01 1 1212- ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) BLACK THA 		8-97416-944-3 01 1 1212- ●
28 PLATE; SILL,FRT
(B) BLACK THA 		8-97416-946-3 01 1 1110-1211 ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR DARK GRAY<117> (B) BLACK THA 		8-97416-946-3 01 1 1110-1211 ●
28 PLATE; SILL,FRT
(B) BLACK THA 		8-97416-946-3 01 1 1212- ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) BLACK THA 		8-97416-946-3 01 1 1212- ●
28 PLATE; SILL,FRT
INTERIOR COLOR BEIGE<120> (B) BEIGE THA 		8-97416-945-3 01 1 1110- ●
28 PLATE; SILL,FRT
INTERIOR COLOR BEIGE<120> (B) BEIGE THA 		8-97416-947-3 01 1 1110- ●
32 CARPET; FLOOR
INTERIOR COLOR DARK GRAY<117> (A) BLACK THA 		8-97422-837-8 01 1 1109-1211 ●
32 CARPET; FLOOR
(A) BLACK THA 		8-97422-837-8 01 1 1109-1211 ●
32 CARPET; FLOOR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA 		8-97422-837-8 01 1 1212- ●
32 CARPET; FLOOR
(A) BLACK THA 		8-97422-837-8 01 1 1212- ●
32 CARPET; FLOOR
INTERIOR COLOR BEIGE<120> (A) BEIGE THA 		8-97422-838-8 01 1 1109- ●
32 CARPET; FLOOR
INTERIOR COLOR DARK GRAY<117> (B) BLACK THA 		8-97422-848-6 01 1 1110-1211 ●
32 CARPET; FLOOR
(B) BLACK THA 		8-97422-848-6 01 1 1110-1211 ●
32 CARPET; FLOOR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) BLACK THA 		8-97422-848-6 01 1 1212- ●
32 CARPET; FLOOR
(B) BLACK THA 		8-97422-848-6 01 1 1212- ●
32 CARPET; FLOOR
INTERIOR COLOR BEIGE<120> (B) BEIGE THA 		8-97422-849-6 01 1 1110- ●
176 RETAINER; CARPET
INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-667-0 10 1 1109-1109 ●
176 RETAINER; CARPET
BLACK THA 		8-97416-667-0 10 1 1109-1109 ●
176 RETAINER; CARPET
INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-667-0 10 1 1110-1211 ● ●
176 RETAINER; CARPET
BLACK THA 		8-97416-667-0 10 1 1110-1211 ● ●
176 RETAINER; CARPET
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97416-667-0 10 1 1212- ● ●
176 RETAINER; CARPET
BLACK THA 		8-97416-667-0 10 1 1212- ● ●
176 RETAINER; CARPET
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-668-0 10 1 1109-1109 ●
176 RETAINER; CARPET
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-668-0 10 1 1110- ● ●
176 RETAINER; CARPET
BLACK THA 		8-97416-667-0 02 1 1110- ●
