◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#81757) — 126 parça

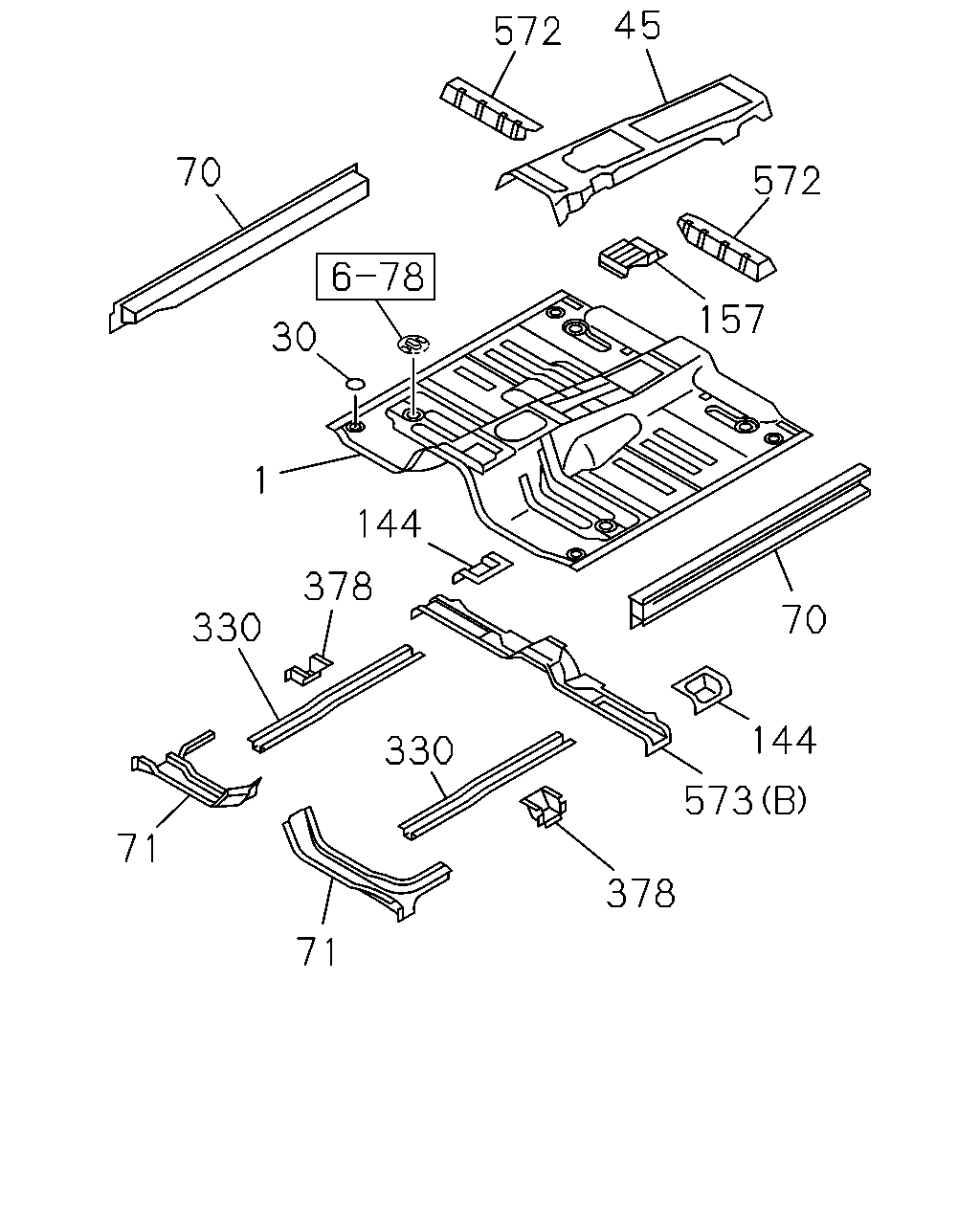

çizim 147251
70 572 30 1 330 71 71 330 378 144 70 573 144 378 157 572 45
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PANEL; FLOOR
THA 		8-98101-040-6 01 1 1109- ● ●
1 PANEL; FLOOR
THA 		8-98103-921-7 01 1 1110- ●
1 PANEL; FLOOR
THA 		8-98104-004-4 01 1 1110-1306 ● ●
1 PANEL; FLOOR
THA 		8-98199-516-0 01 1 1307- ● ●
30 GROMMET; CAB MTG RAIL
OD=60 T=9.8 THA 		8-94107-654-0 04 1 1109-1109 ● ●
30 GROMMET; CAB MTG RAIL
OD=60 T=9.8 THA 		8-94107-654-0 04 1 1110-1211 ● ● ●
30 GROMMET; CAB MTG RAIL
OD=59 T=9 THA 		8-98202-803-0 04 1 1212- ● ● ●
30 GROMMET; CAB MTG RAIL
OD=60 T=9.8 THA 		8-94107-654-0 06 1 1110-1211 ● ●
30 GROMMET; CAB MTG RAIL
OD=59 T=9 THA 		8-98202-803-0 06 1 1212- ● ●
45 REINFORCEMENT; TUNNEL,FRT
THA 		8-98101-035-7 01 1 1109-1109 ● ●
45 REINFORCEMENT; TUNNEL,FRT
THA 		8-98101-035-8 01 1 1110- ● ● ● ●
45 REINFORCEMENT; TUNNEL,FRT
DRIVER SIDE FOOT REST<7NU> THA 		8-98104-022-7 01 1 1110- ●
45 REINFORCEMENT; TUNNEL,FRT
EXC. DRIVER SIDE FOOT REST<7NU> THA 		8-98104-200-5 01 1 1110- ●
70 PANEL; ROCKER INNER
THA 		8-98162-993-2 01 1 1109- ● ●
70 PANEL; ROCKER INNER
THA 		8-98162-997-2 01 1 1109- ● ●
70 PANEL; ROCKER INNER
THA 		8-98103-893-3 01 1 1110- ●
70 PANEL; ROCKER INNER
THA 		8-98103-907-3 01 1 1110- ●
70 PANEL; ROCKER INNER
THA 		8-98103-894-3 01 1 1110- ● ●
70 PANEL; ROCKER INNER
THA 		8-98103-912-3 01 1 1110- ● ●
71 BRACKET; CAB MTG,CENTER
THA 		8-98101-984-5 01 1 1109-1109 ● ●
71 BRACKET; CAB MTG,CENTER
THA 		8-98101-984-5 01 1 1110- ● ● ● ● ●
71 BRACKET; CAB MTG,CENTER
THA 		8-98101-985-5 01 1 1109-1109 ● ●
71 BRACKET; CAB MTG,CENTER
THA 		8-98101-985-8 01 1 1110- ● ● ● ● ●
144 BRACKET; MTG,RR
THA 		8-98100-940-3 01 1 1110- ●
144 BRACKET; MTG,RR
THA 		8-98104-737-4 01 1 1110- ●
144 BRACKET; MTG,RR
THA 		8-98100-940-3 02 1 1110- ● ●
157 BRACKET; TOOL BOX LID
THA 		8-98115-434-6 01 1 1110- ●
157 BRACKET; TOOL BOX LID
THA 		8-98115-430-5 01 1 1110- ● ●
330 REINFORCEMENT; FLOOR
THA 		8-98100-938-0 02 1 1109-1109 ● ●
330 REINFORCEMENT; FLOOR
THA 		8-98100-938-0 02 1 1110- ● ● ● ● ●
378 GASSET; LWR
THA 		8-98101-037-0 02 1 1109-1109 ● ●
378 GASSET; LWR
THA 		8-98101-037-0 02 1 1110- ● ● ● ● ●
572 SILL; FLOOR,FRT
THA 		8-98101-019-3 01 1 1109-1109 ● ●
572 SILL; FLOOR,FRT
THA 		8-98101-019-3 01 1 1110- ● ● ● ● ●
572 SILL; FLOOR,FRT
THA 		8-98101-020-3 01 1 1109-1109 ● ●
572 SILL; FLOOR,FRT
THA 		8-98101-020-3 01 1 1110- ● ● ● ● ●
573 SILL; FLOOR,RR
(A) THA 		8-98101-960-4 01 1 1109- ● ●
573 SILL; FLOOR,RR
(B) THA 		8-98151-571-1 01 1 1109-1109 ● ●
573 SILL; FLOOR,RR
(B) THA 		8-98151-571-2 01 1 1110- ● ● ● ●
573 SILL; FLOOR,RR
(B) THA 		8-98103-925-4 01 1 1110- ●
573 SILL; FLOOR,RR
(C) THA 		8-98104-056-3 01 1 1110- ● ●

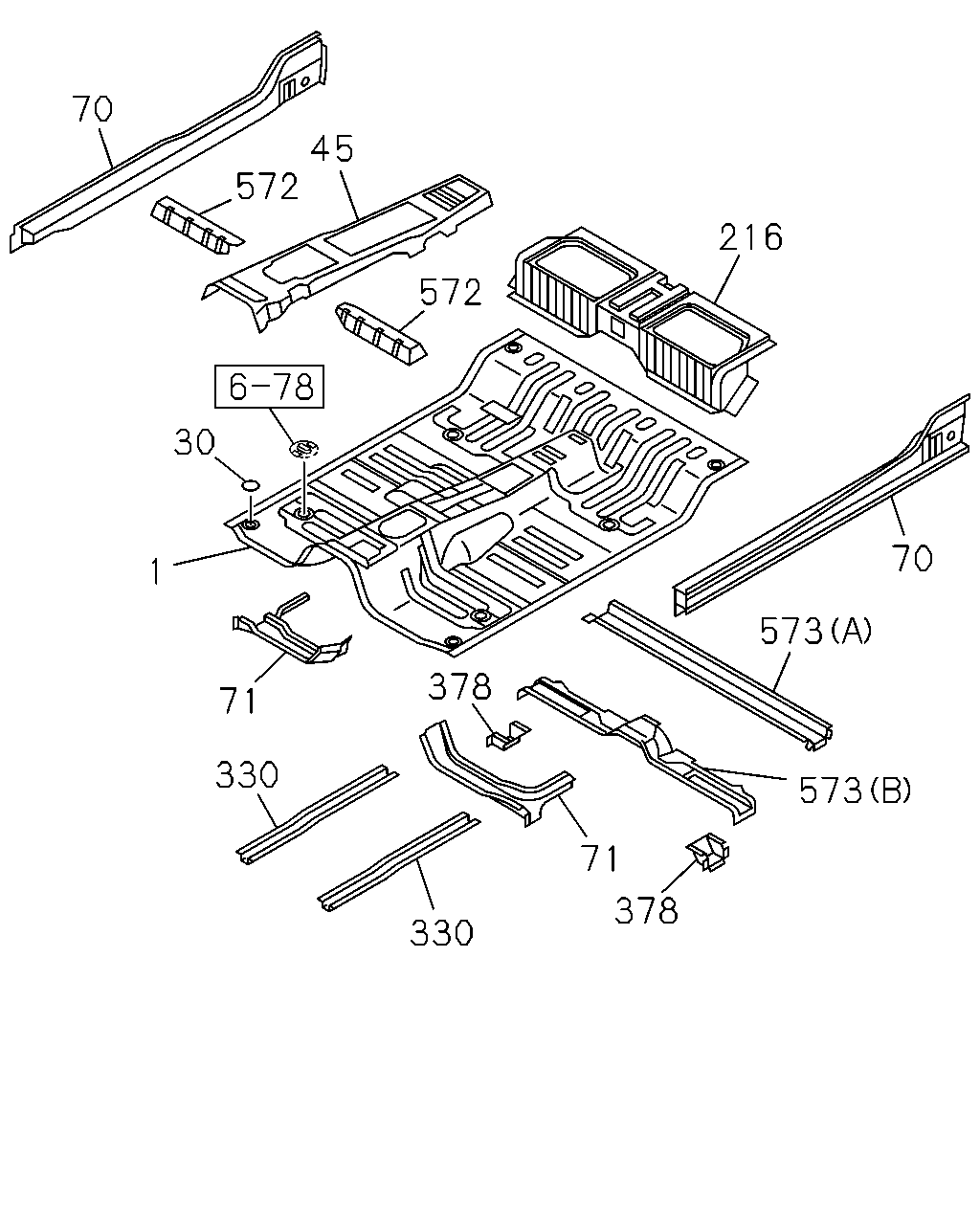

çizim 147258
70 45 572 572 216 30 1 71 330 330 378 573 573 70 378 71
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PANEL; FLOOR
THA 		8-98101-040-6 01 1 1109- ● ●
1 PANEL; FLOOR
THA 		8-98103-921-7 01 1 1110- ●
1 PANEL; FLOOR
THA 		8-98104-004-4 01 1 1110-1306 ● ●
1 PANEL; FLOOR
THA 		8-98199-516-0 01 1 1307- ● ●
30 GROMMET; CAB MTG RAIL
OD=60 T=9.8 THA 		8-94107-654-0 04 1 1109-1109 ● ●
30 GROMMET; CAB MTG RAIL
OD=60 T=9.8 THA 		8-94107-654-0 04 1 1110-1211 ● ● ●
30 GROMMET; CAB MTG RAIL
OD=59 T=9 THA 		8-98202-803-0 04 1 1212- ● ● ●
30 GROMMET; CAB MTG RAIL
OD=60 T=9.8 THA 		8-94107-654-0 06 1 1110-1211 ● ●
30 GROMMET; CAB MTG RAIL
OD=59 T=9 THA 		8-98202-803-0 06 1 1212- ● ●
45 REINFORCEMENT; TUNNEL,FRT
THA 		8-98101-035-7 01 1 1109-1109 ● ●
45 REINFORCEMENT; TUNNEL,FRT
THA 		8-98101-035-8 01 1 1110- ● ● ● ●
45 REINFORCEMENT; TUNNEL,FRT
DRIVER SIDE FOOT REST<7NU> THA 		8-98104-022-7 01 1 1110- ●
45 REINFORCEMENT; TUNNEL,FRT
EXC. DRIVER SIDE FOOT REST<7NU> THA 		8-98104-200-5 01 1 1110- ●
70 PANEL; ROCKER INNER
THA 		8-98162-993-2 01 1 1109- ● ●
70 PANEL; ROCKER INNER
THA 		8-98162-997-2 01 1 1109- ● ●
70 PANEL; ROCKER INNER
THA 		8-98103-893-3 01 1 1110- ●
70 PANEL; ROCKER INNER
THA 		8-98103-907-3 01 1 1110- ●
70 PANEL; ROCKER INNER
THA 		8-98103-894-3 01 1 1110- ● ●
70 PANEL; ROCKER INNER
THA 		8-98103-912-3 01 1 1110- ● ●
71 BRACKET; CAB MTG,CENTER
THA 		8-98101-984-5 01 1 1109-1109 ● ●
71 BRACKET; CAB MTG,CENTER
THA 		8-98101-984-5 01 1 1110- ● ● ● ● ●
71 BRACKET; CAB MTG,CENTER
THA 		8-98101-985-5 01 1 1109-1109 ● ●
71 BRACKET; CAB MTG,CENTER
THA 		8-98101-985-8 01 1 1110- ● ● ● ● ●
216 PANEL; SEAT RISER
THA 		8-98101-953-8 01 1 1109- ● ●
216 PANEL; SEAT RISER
THA 		8-98116-648-4 01 1 1110- ● ●
330 REINFORCEMENT; FLOOR
THA 		8-98100-938-0 02 1 1109-1109 ● ●
330 REINFORCEMENT; FLOOR
THA 		8-98100-938-0 02 1 1110- ● ● ● ● ●
378 GASSET; LWR
THA 		8-98101-037-0 02 1 1109-1109 ● ●
378 GASSET; LWR
THA 		8-98101-037-0 02 1 1110- ● ● ● ● ●
572 SILL; FLOOR,FRT
THA 		8-98101-019-3 01 1 1109-1109 ● ●
572 SILL; FLOOR,FRT
THA 		8-98101-019-3 01 1 1110- ● ● ● ● ●
572 SILL; FLOOR,FRT
THA 		8-98101-020-3 01 1 1109-1109 ● ●
572 SILL; FLOOR,FRT
THA 		8-98101-020-3 01 1 1110- ● ● ● ● ●
573 SILL; FLOOR,RR
(A) THA 		8-98101-960-4 01 1 1109- ● ●
573 SILL; FLOOR,RR
(B) THA 		8-98151-571-1 01 1 1109-1109 ● ●
573 SILL; FLOOR,RR
(B) THA 		8-98151-571-2 01 1 1110- ● ● ● ●
573 SILL; FLOOR,RR
(B) THA 		8-98103-925-4 01 1 1110- ●
573 SILL; FLOOR,RR
(C) THA 		8-98104-056-3 01 1 1110- ● ●

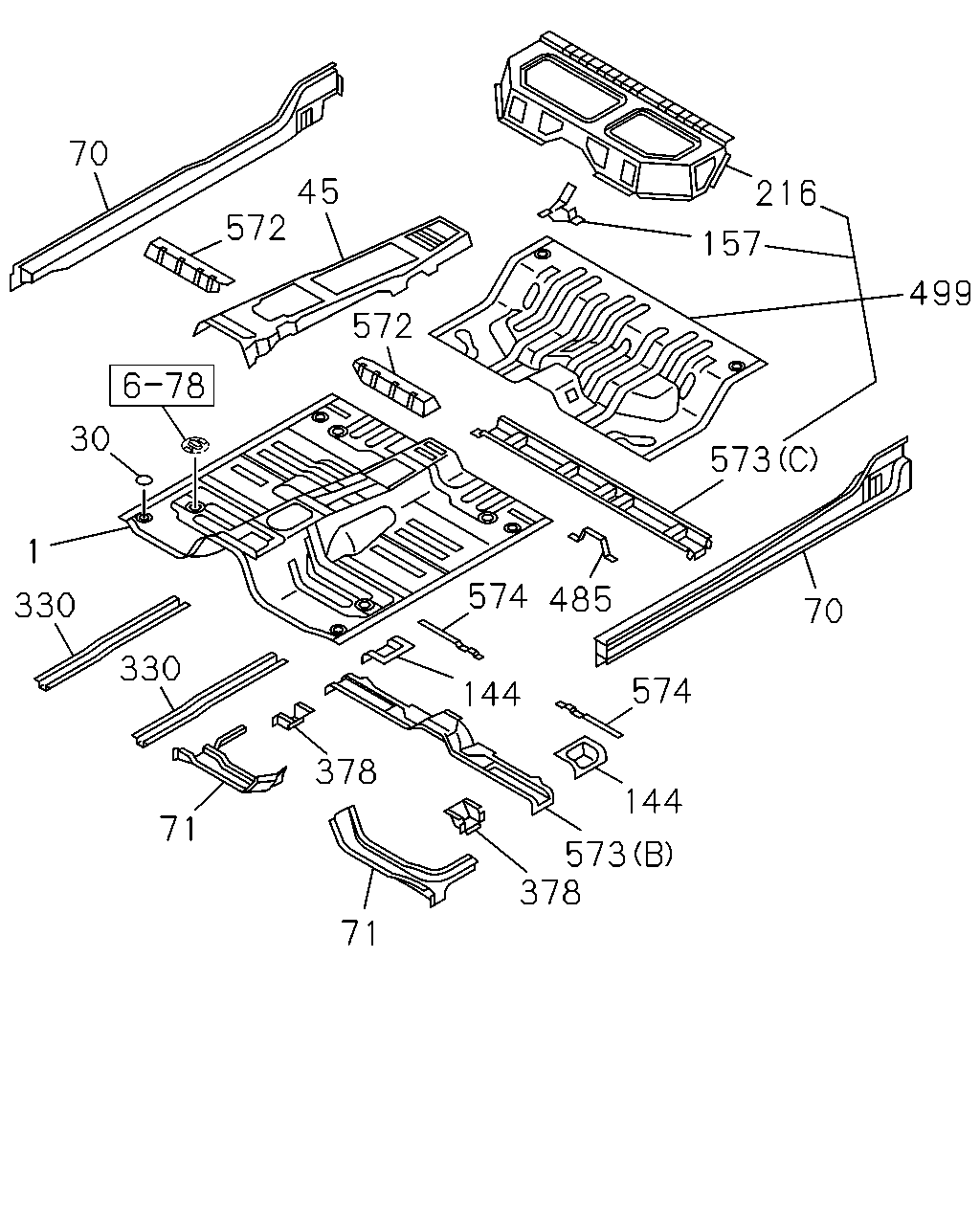

çizim 147263
70 45 572 572 216 499 157 573 70 574 485 574 144 144 573 378 71 71 330 330 30 1 378
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PANEL; FLOOR
THA 		8-98101-040-6 01 1 1109- ● ●
1 PANEL; FLOOR
THA 		8-98103-921-7 01 1 1110- ●
1 PANEL; FLOOR
THA 		8-98104-004-4 01 1 1110-1306 ● ●
1 PANEL; FLOOR
THA 		8-98199-516-0 01 1 1307- ● ●
30 GROMMET; CAB MTG RAIL
OD=60 T=9.8 THA 		8-94107-654-0 04 1 1109-1109 ● ●
30 GROMMET; CAB MTG RAIL
OD=60 T=9.8 THA 		8-94107-654-0 04 1 1110-1211 ● ● ●
30 GROMMET; CAB MTG RAIL
OD=59 T=9 THA 		8-98202-803-0 04 1 1212- ● ● ●
30 GROMMET; CAB MTG RAIL
OD=60 T=9.8 THA 		8-94107-654-0 06 1 1110-1211 ● ●
30 GROMMET; CAB MTG RAIL
OD=59 T=9 THA 		8-98202-803-0 06 1 1212- ● ●
45 REINFORCEMENT; TUNNEL,FRT
THA 		8-98101-035-7 01 1 1109-1109 ● ●
45 REINFORCEMENT; TUNNEL,FRT
THA 		8-98101-035-8 01 1 1110- ● ● ● ●
45 REINFORCEMENT; TUNNEL,FRT
DRIVER SIDE FOOT REST<7NU> THA 		8-98104-022-7 01 1 1110- ●
45 REINFORCEMENT; TUNNEL,FRT
EXC. DRIVER SIDE FOOT REST<7NU> THA 		8-98104-200-5 01 1 1110- ●
70 PANEL; ROCKER INNER
THA 		8-98162-993-2 01 1 1109- ● ●
70 PANEL; ROCKER INNER
THA 		8-98162-997-2 01 1 1109- ● ●
70 PANEL; ROCKER INNER
THA 		8-98103-893-3 01 1 1110- ●
70 PANEL; ROCKER INNER
THA 		8-98103-907-3 01 1 1110- ●
70 PANEL; ROCKER INNER
THA 		8-98103-894-3 01 1 1110- ● ●
70 PANEL; ROCKER INNER
THA 		8-98103-912-3 01 1 1110- ● ●
71 BRACKET; CAB MTG,CENTER
THA 		8-98101-984-5 01 1 1109-1109 ● ●
71 BRACKET; CAB MTG,CENTER
THA 		8-98101-984-5 01 1 1110- ● ● ● ● ●
71 BRACKET; CAB MTG,CENTER
THA 		8-98101-985-5 01 1 1109-1109 ● ●
71 BRACKET; CAB MTG,CENTER
THA 		8-98101-985-8 01 1 1110- ● ● ● ● ●
144 BRACKET; MTG,RR
THA 		8-98100-940-3 01 1 1110- ●
144 BRACKET; MTG,RR
THA 		8-98104-737-4 01 1 1110- ●
144 BRACKET; MTG,RR
THA 		8-98100-940-3 02 1 1110- ● ●
157 BRACKET; TOOL BOX LID
THA 		8-98115-434-6 01 1 1110- ●
157 BRACKET; TOOL BOX LID
THA 		8-98115-430-5 01 1 1110- ● ●
216 PANEL; SEAT RISER
THA 		8-98101-953-8 01 1 1109- ● ●
216 PANEL; SEAT RISER
THA 		8-98116-648-4 01 1 1110- ● ●
330 REINFORCEMENT; FLOOR
THA 		8-98100-938-0 02 1 1109-1109 ● ●
330 REINFORCEMENT; FLOOR
THA 		8-98100-938-0 02 1 1110- ● ● ● ● ●
378 GASSET; LWR
THA 		8-98101-037-0 02 1 1109-1109 ● ●
378 GASSET; LWR
THA 		8-98101-037-0 02 1 1110- ● ● ● ● ●
485 SEAL; TAPE TYPE
THA 		8-94336-915-0 01 1 1110- ● ●
499 PANEL; FLOOR,RR
THA 		8-98116-646-9 01 1 1110-1506 ● ●
499 PANEL; FLOOR,RR
THA 		8-98322-482-0 01 1 1507- ● ●
572 SILL; FLOOR,FRT
THA 		8-98101-019-3 01 1 1109-1109 ● ●
572 SILL; FLOOR,FRT
THA 		8-98101-019-3 01 1 1110- ● ● ● ● ●
572 SILL; FLOOR,FRT
THA 		8-98101-020-3 01 1 1109-1109 ● ●
572 SILL; FLOOR,FRT
THA 		8-98101-020-3 01 1 1110- ● ● ● ● ●
573 SILL; FLOOR,RR
(A) THA 		8-98101-960-4 01 1 1109- ● ●
573 SILL; FLOOR,RR
(B) THA 		8-98151-571-1 01 1 1109-1109 ● ●
573 SILL; FLOOR,RR
(B) THA 		8-98151-571-2 01 1 1110- ● ● ● ●
573 SILL; FLOOR,RR
(B) THA 		8-98103-925-4 01 1 1110- ●
573 SILL; FLOOR,RR
(C) THA 		8-98104-056-3 01 1 1110- ● ●
574 TAPE; ADHESIVE
THA 		8-98178-885-0 02 1 1110- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
