◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#81755) — 79 parça

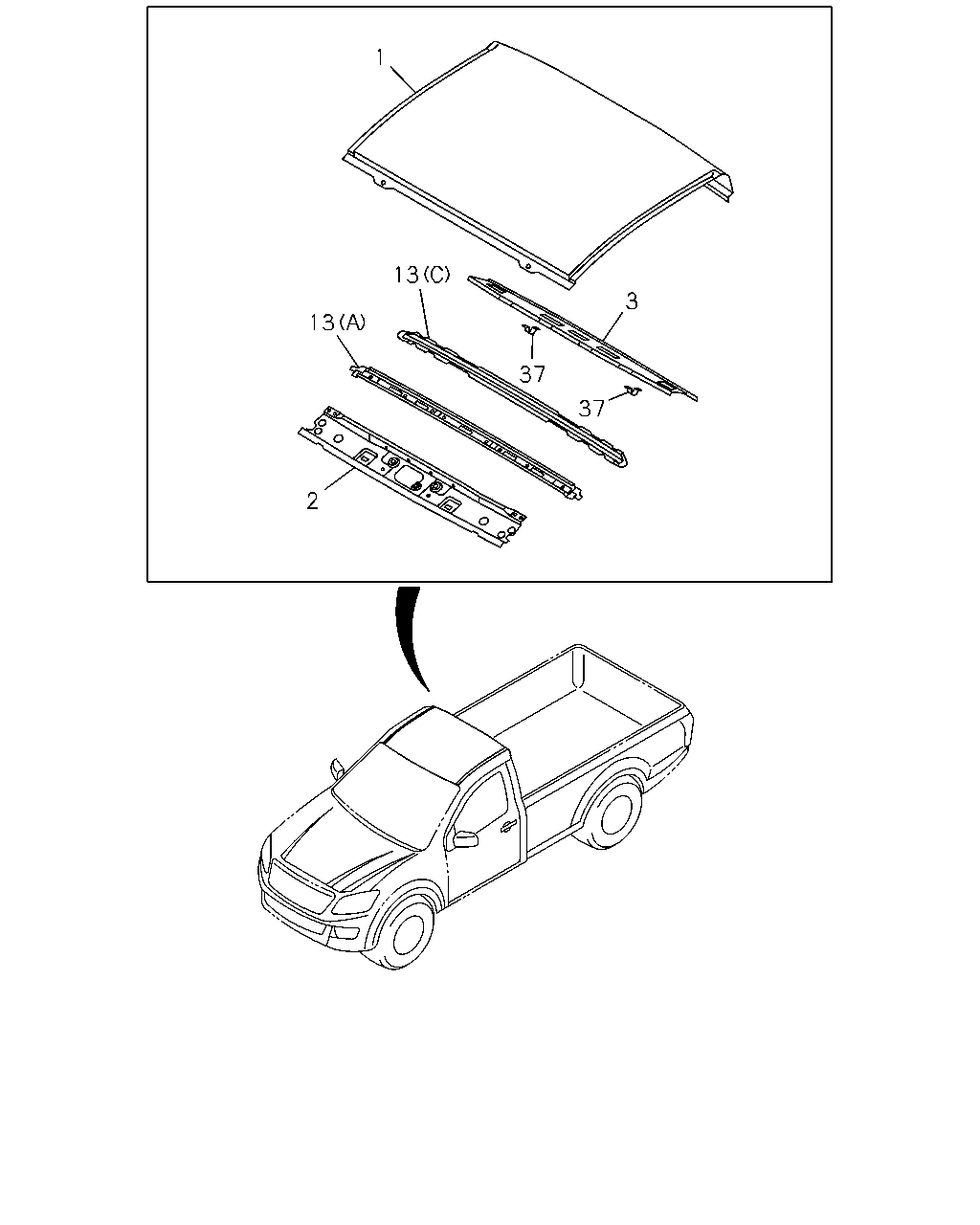

çizim 147230
1 3 37 37 13 13 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PANEL; ROOF
HEADER CONSOLE<DK6> THA 		8-98103-954-2 01 1 1109-1211 ● ●
1 PANEL; ROOF
HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> THA 		8-98103-954-3 01 1 1212- ● ●
1 PANEL; ROOF
HEADER CONSOLE<DK6> EXC. ROOF RADIO ANTENNA<U71> THA 		8-98209-323-1 01 1 1212- ● ●
1 PANEL; ROOF
EXC. HEADER CONSOLE<DK6> THA 		8-98103-953-2 01 1 1109-1211 ● ●
1 PANEL; ROOF
EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> THA 		8-98103-953-3 01 1 1212- ● ●
1 PANEL; ROOF
THA 		8-98103-950-3 01 1 1110- ●
1 PANEL; ROOF
INTERIOR DELUXE<RBB> THA 		8-98103-957-3 01 1 1110-1211 ●
1 PANEL; ROOF
EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> THA 		8-98103-957-3 01 1 1212- ●
1 PANEL; ROOF
INTERIOR CUSTOM<RBD> THA 		8-98103-960-3 01 1 1110-1211 ●
1 PANEL; ROOF
THA 		8-98103-960-3 01 1 1110-1211 ●
1 PANEL; ROOF
HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> THA 		8-98103-960-3 01 1 1212- ●
1 PANEL; ROOF
ROOF RADIO ANTENNA<U71> THA 		8-98103-960-3 01 1 1212- ●
1 PANEL; ROOF
HEADER CONSOLE<DK6> EXC. ROOF RADIO ANTENNA<U71> THA 		8-98209-324-0 01 1 1212- ●
1 PANEL; ROOF
EXC. ROOF RADIO ANTENNA<U71> THA 		8-98209-324-0 01 1 1212- ●
2 PANEL; ROOF,CENTER
THA 		8-98103-964-5 01 1 1109-1109 ● ●
2 PANEL; ROOF,CENTER
THA 		8-98103-964-5 01 1 1110- ● ● ● ● ●
3 PANEL; ROOF,RR
THA 		8-98103-999-2 01 1 1109-1109 ● ●
3 PANEL; ROOF,RR
THA 		8-98103-999-3 01 1 1110- ● ● ● ● ●
13 PANEL; ROOF SUPPORT
(A) THA 		8-98103-963-1 01 1 1109-1109 ● ●
13 PANEL; ROOF SUPPORT
(A) THA 		8-98103-963-1 01 1 1110- ● ● ● ● ●
13 PANEL; ROOF SUPPORT
(C) THA 		8-98150-942-0 01 1 1110- ●
13 PANEL; ROOF SUPPORT
(B) THA 		8-98103-982-0 01 1 1110- ● ●
37 BRACKET; TRIM,ROOF BACK
THA 		8-98103-996-0 02 1 1110- ● ● ●

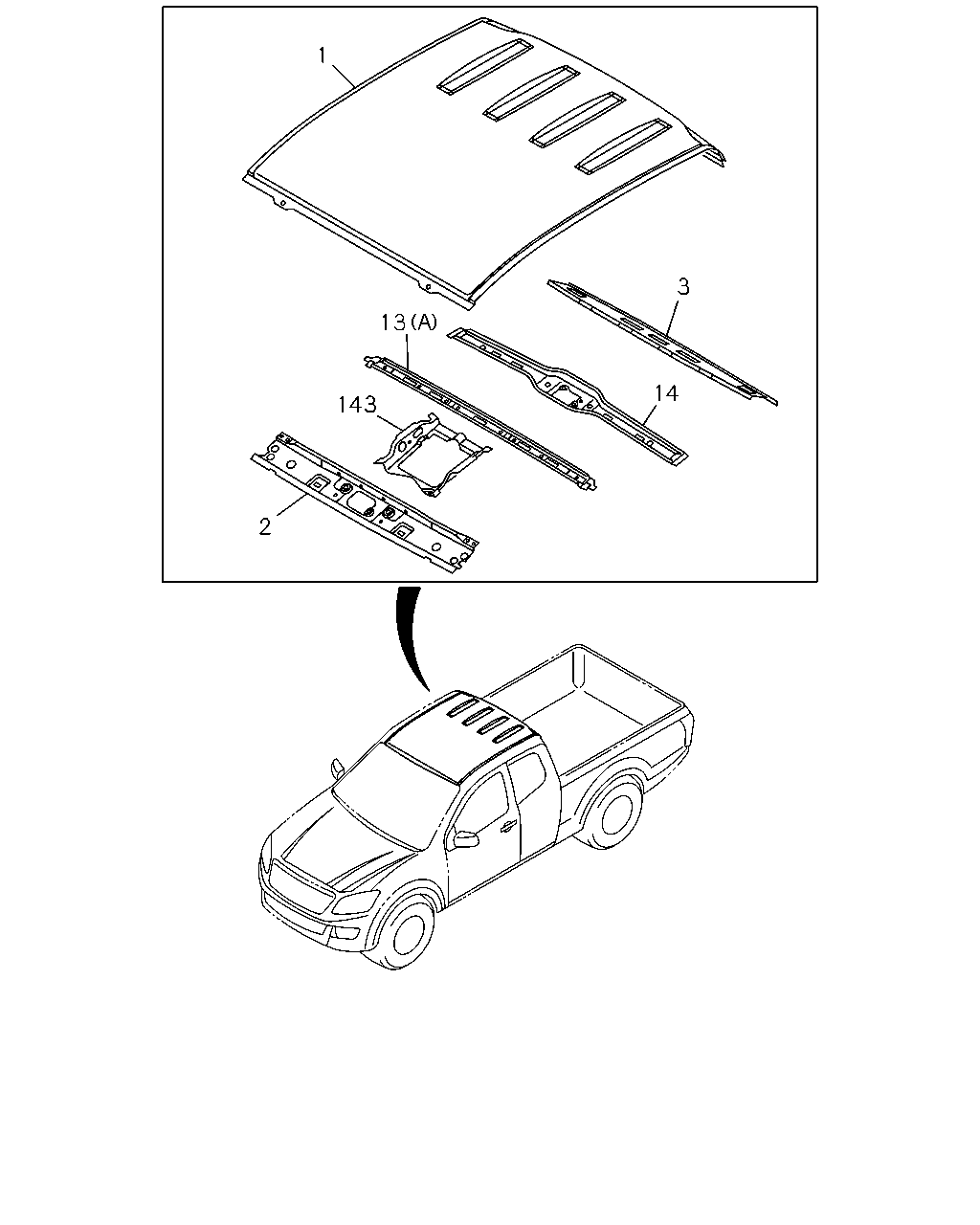

çizim 147237
1 13 3 14 143 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PANEL; ROOF
HEADER CONSOLE<DK6> THA 		8-98103-954-2 01 1 1109-1211 ● ●
1 PANEL; ROOF
HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> THA 		8-98103-954-3 01 1 1212- ● ●
1 PANEL; ROOF
HEADER CONSOLE<DK6> EXC. ROOF RADIO ANTENNA<U71> THA 		8-98209-323-1 01 1 1212- ● ●
1 PANEL; ROOF
EXC. HEADER CONSOLE<DK6> THA 		8-98103-953-2 01 1 1109-1211 ● ●
1 PANEL; ROOF
EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> THA 		8-98103-953-3 01 1 1212- ● ●
1 PANEL; ROOF
THA 		8-98103-950-3 01 1 1110- ●
1 PANEL; ROOF
INTERIOR DELUXE<RBB> THA 		8-98103-957-3 01 1 1110-1211 ●
1 PANEL; ROOF
EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> THA 		8-98103-957-3 01 1 1212- ●
1 PANEL; ROOF
INTERIOR CUSTOM<RBD> THA 		8-98103-960-3 01 1 1110-1211 ●
1 PANEL; ROOF
THA 		8-98103-960-3 01 1 1110-1211 ●
1 PANEL; ROOF
HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> THA 		8-98103-960-3 01 1 1212- ●
1 PANEL; ROOF
ROOF RADIO ANTENNA<U71> THA 		8-98103-960-3 01 1 1212- ●
1 PANEL; ROOF
HEADER CONSOLE<DK6> EXC. ROOF RADIO ANTENNA<U71> THA 		8-98209-324-0 01 1 1212- ●
1 PANEL; ROOF
EXC. ROOF RADIO ANTENNA<U71> THA 		8-98209-324-0 01 1 1212- ●
2 PANEL; ROOF,CENTER
THA 		8-98103-964-5 01 1 1109-1109 ● ●
2 PANEL; ROOF,CENTER
THA 		8-98103-964-5 01 1 1110- ● ● ● ● ●
3 PANEL; ROOF,RR
THA 		8-98103-999-2 01 1 1109-1109 ● ●
3 PANEL; ROOF,RR
THA 		8-98103-999-3 01 1 1110- ● ● ● ● ●
13 PANEL; ROOF SUPPORT
(A) THA 		8-98103-963-1 01 1 1109-1109 ● ●
13 PANEL; ROOF SUPPORT
(A) THA 		8-98103-963-1 01 1 1110- ● ● ● ● ●
13 PANEL; ROOF SUPPORT
(C) THA 		8-98150-942-0 01 1 1110- ●
13 PANEL; ROOF SUPPORT
(B) THA 		8-98103-982-0 01 1 1110- ● ●
14 SUPPORT; ROOF
THA 		8-98163-386-1 01 1 1109- ● ●
14 SUPPORT; ROOF
THA 		8-98163-387-1 01 1 1110- ● ●
143 BRACKET; CONSOLE
HEADER CONSOLE<DK6> THA 		8-98103-962-1 01 1 1109-1109 ● ●
143 BRACKET; CONSOLE
HEADER CONSOLE<DK6> THA 		8-98103-962-1 01 1 1110- ● ● ●
143 BRACKET; CONSOLE
THA 		8-98103-962-1 01 1 1110- ●

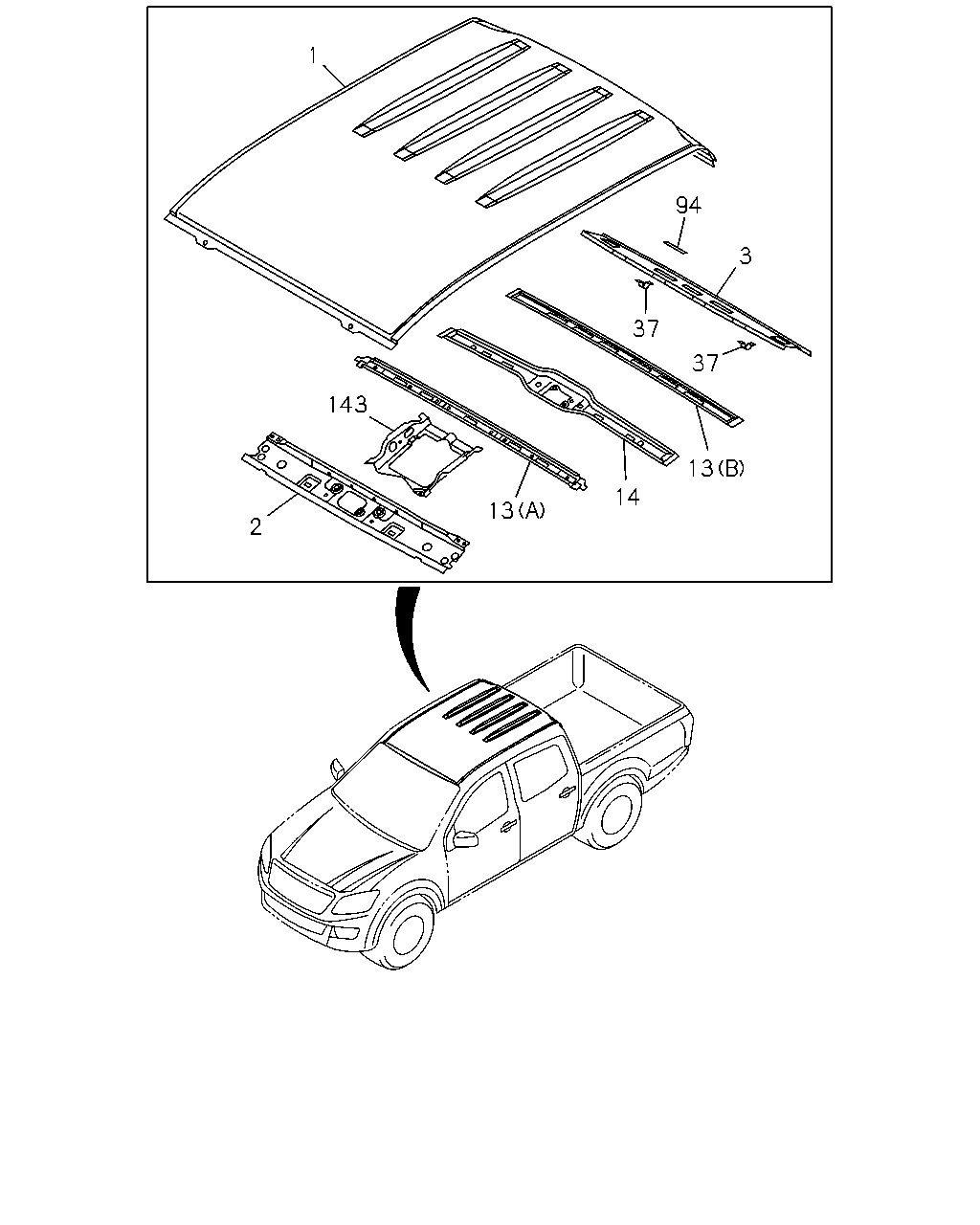

çizim 147241
94 3 37 37 1 143 13 14 13 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PANEL; ROOF
HEADER CONSOLE<DK6> THA 		8-98103-954-2 01 1 1109-1211 ● ●
1 PANEL; ROOF
HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> THA 		8-98103-954-3 01 1 1212- ● ●
1 PANEL; ROOF
HEADER CONSOLE<DK6> EXC. ROOF RADIO ANTENNA<U71> THA 		8-98209-323-1 01 1 1212- ● ●
1 PANEL; ROOF
EXC. HEADER CONSOLE<DK6> THA 		8-98103-953-2 01 1 1109-1211 ● ●
1 PANEL; ROOF
EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> THA 		8-98103-953-3 01 1 1212- ● ●
1 PANEL; ROOF
THA 		8-98103-950-3 01 1 1110- ●
1 PANEL; ROOF
INTERIOR DELUXE<RBB> THA 		8-98103-957-3 01 1 1110-1211 ●
1 PANEL; ROOF
EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> THA 		8-98103-957-3 01 1 1212- ●
1 PANEL; ROOF
INTERIOR CUSTOM<RBD> THA 		8-98103-960-3 01 1 1110-1211 ●
1 PANEL; ROOF
THA 		8-98103-960-3 01 1 1110-1211 ●
1 PANEL; ROOF
HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> THA 		8-98103-960-3 01 1 1212- ●
1 PANEL; ROOF
ROOF RADIO ANTENNA<U71> THA 		8-98103-960-3 01 1 1212- ●
1 PANEL; ROOF
HEADER CONSOLE<DK6> EXC. ROOF RADIO ANTENNA<U71> THA 		8-98209-324-0 01 1 1212- ●
1 PANEL; ROOF
EXC. ROOF RADIO ANTENNA<U71> THA 		8-98209-324-0 01 1 1212- ●
2 PANEL; ROOF,CENTER
THA 		8-98103-964-5 01 1 1109-1109 ● ●
2 PANEL; ROOF,CENTER
THA 		8-98103-964-5 01 1 1110- ● ● ● ● ●
3 PANEL; ROOF,RR
THA 		8-98103-999-2 01 1 1109-1109 ● ●
3 PANEL; ROOF,RR
THA 		8-98103-999-3 01 1 1110- ● ● ● ● ●
13 PANEL; ROOF SUPPORT
(A) THA 		8-98103-963-1 01 1 1109-1109 ● ●
13 PANEL; ROOF SUPPORT
(A) THA 		8-98103-963-1 01 1 1110- ● ● ● ● ●
13 PANEL; ROOF SUPPORT
(C) THA 		8-98150-942-0 01 1 1110- ●
13 PANEL; ROOF SUPPORT
(B) THA 		8-98103-982-0 01 1 1110- ● ●
14 SUPPORT; ROOF
THA 		8-98163-386-1 01 1 1109- ● ●
14 SUPPORT; ROOF
THA 		8-98163-387-1 01 1 1110- ● ●
37 BRACKET; TRIM,ROOF BACK
THA 		8-98103-996-0 02 1 1110- ● ● ●
94 SEAL; REINFORCEMENT
THA 		8-98201-900-0 01 1 1110- ● ●
143 BRACKET; CONSOLE
HEADER CONSOLE<DK6> THA 		8-98103-962-1 01 1 1109-1109 ● ●
143 BRACKET; CONSOLE
HEADER CONSOLE<DK6> THA 		8-98103-962-1 01 1 1110- ● ● ●
143 BRACKET; CONSOLE
THA 		8-98103-962-1 01 1 1110- ●
