Sayfa 6-52 - Isuzu EPC

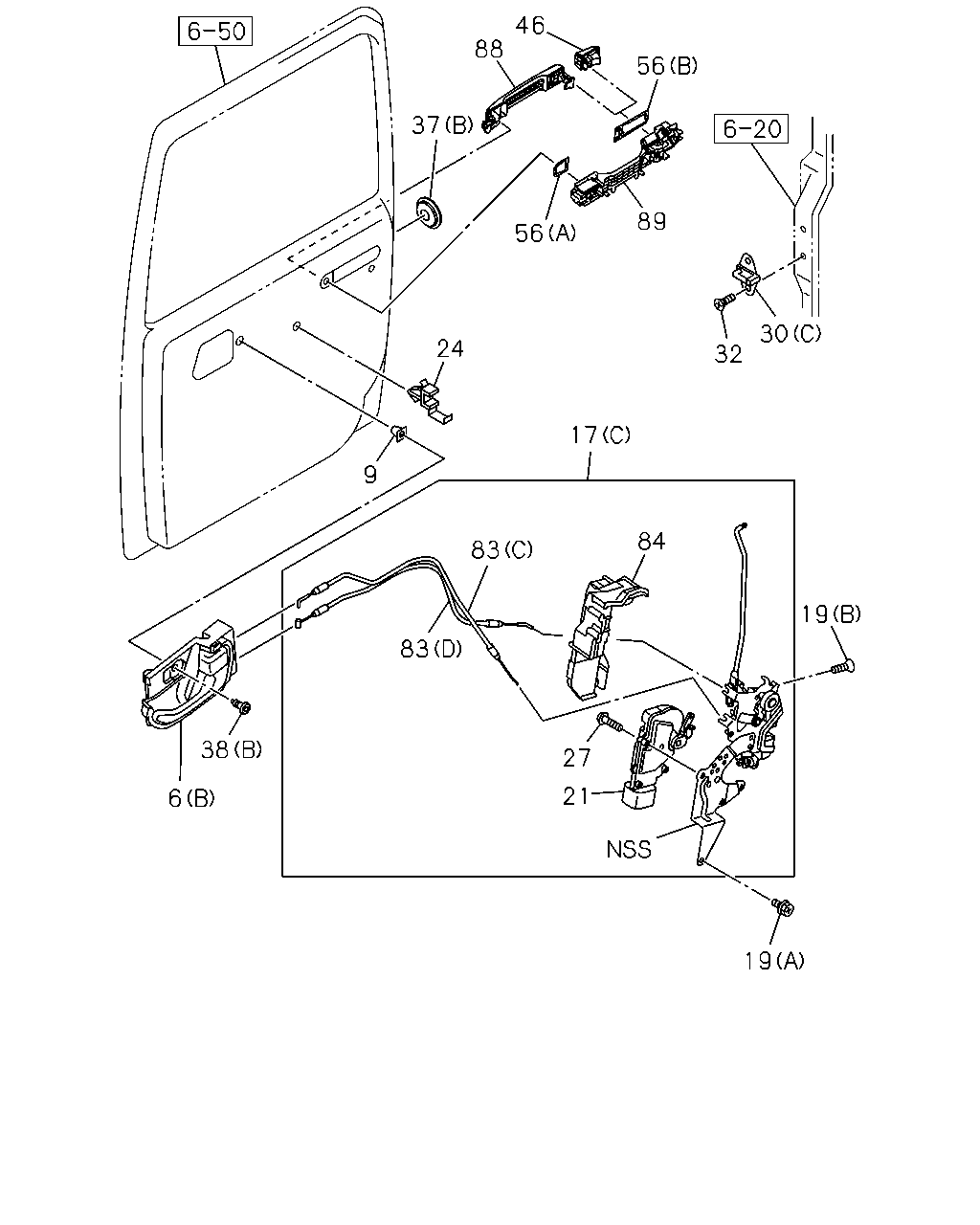

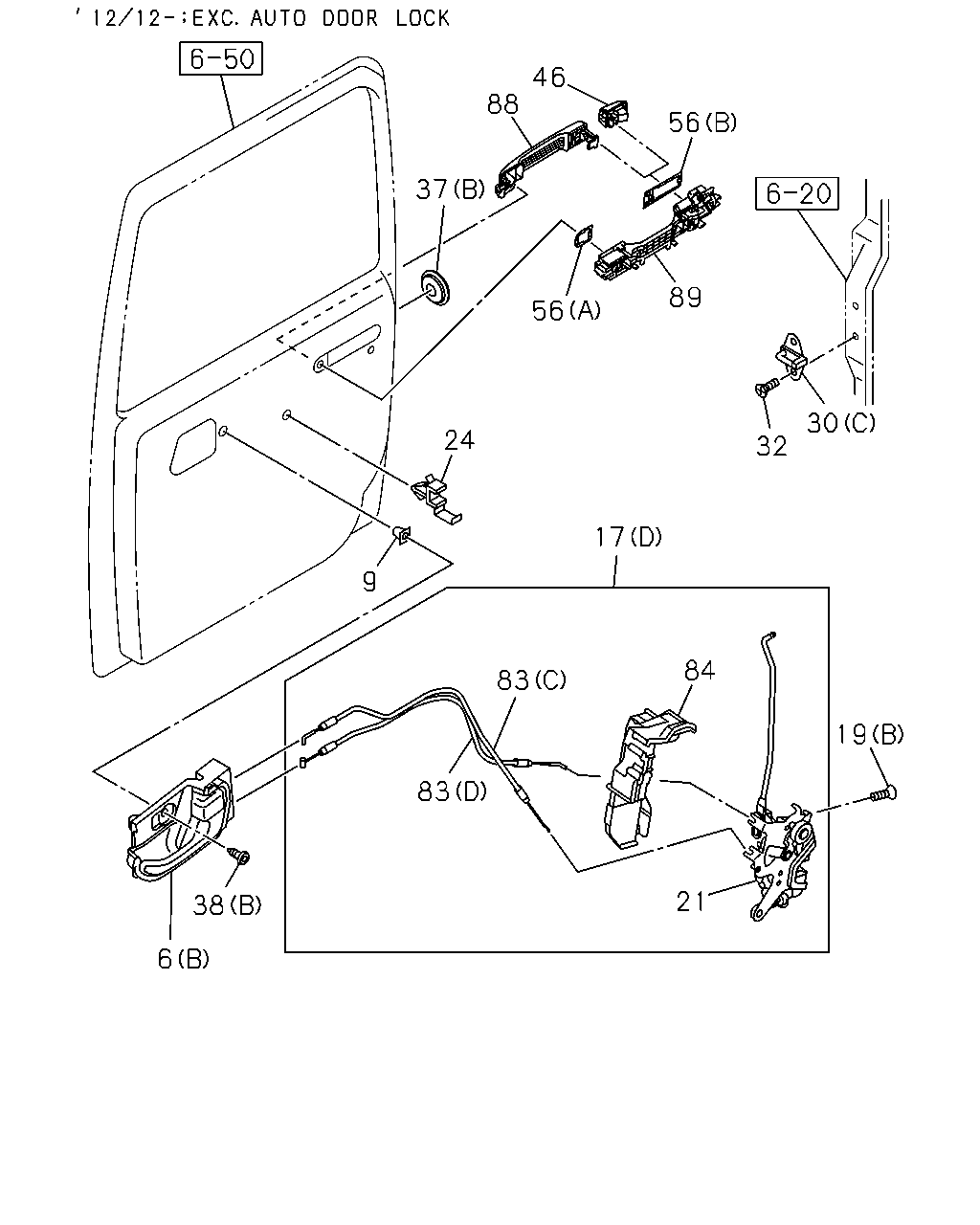

6-52 — REAR DOOR LOCK AND HANDLE (#81753) — 275 parça

19 21 19 27 83 83 84 38 6 9 17 24 56 37 88 46 56 89 30 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR COLOR DARK GRAY<117> (A) BLACK THA	8-97421-775-3	01	1	1109-1211	●
6	BEZEL; INSIDE HANDLE,DOOR LOCK (A) BLACK THA	8-97421-775-3	01	1	1109-1211		●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA	8-97421-775-4	01	1	1212-	●
6	BEZEL; INSIDE HANDLE,DOOR LOCK (A) BLACK THA	8-97421-775-4	01	1	1212-		●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR COLOR DARK GRAY<117> (A) BLACK THA	8-97421-777-3	01	1	1109-1211	●
6	BEZEL; INSIDE HANDLE,DOOR LOCK (A) BLACK THA	8-97421-777-3	01	1	1109-1211		●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA	8-97421-777-4	01	1	1212-	●
6	BEZEL; INSIDE HANDLE,DOOR LOCK (A) BLACK THA	8-97421-777-4	01	1	1212-		●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR COLOR BEIGE<120> (A) BEIGE THA	8-97421-776-4	01	1	1109-	●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR COLOR BEIGE<120> (A) BEIGE THA	8-97421-778-4	01	1	1109-	●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117> (B) BLACK THA	8-97416-726-4	01	1	1110-			●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117> (B) BLACK THA	8-97416-728-4	01	1	1110-			●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR DELUXE<RBB> INTERIOR COLOR BEIGE<120> (B) BEIGE THA	8-97416-727-4	01	1	1110-			●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR DELUXE<RBB> INTERIOR COLOR BEIGE<120> (B) BEIGE THA	8-97416-729-4	01	1	1110-			●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117> (B) BLACK THA	8-97416-730-3	01	1	1110-1211			●
6	BEZEL; INSIDE HANDLE,DOOR LOCK (B) BLACK THA	8-97416-730-3	01	1	1110-1211				●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) BLACK THA	8-97416-730-3	01	1	1212-			●
6	BEZEL; INSIDE HANDLE,DOOR LOCK (B) BLACK THA	8-97416-730-3	01	1	1212-				●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117> (B) BLACK THA	8-97416-732-3	01	1	1110-1211			●
6	BEZEL; INSIDE HANDLE,DOOR LOCK (B) BLACK THA	8-97416-732-3	01	1	1110-1211				●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) BLACK THA	8-97416-732-3	01	1	1212-			●
6	BEZEL; INSIDE HANDLE,DOOR LOCK (B) BLACK THA	8-97416-732-3	01	1	1212-				●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR CUSTOM<RBD> INTERIOR COLOR BEIGE<120> (B) BEIGE THA	8-97416-731-3	01	1	1110-			●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR CUSTOM<RBD> INTERIOR COLOR BEIGE<120> (B) BEIGE THA	8-97416-733-3	01	1	1110-			●
9	GROMMET; SCREW,INSIDE HANDLE THA	8-94152-494-0	02	1	1110-			●	●
17	LOCK; DOOR,RR DOOR (A) THA	8-98103-157-5	01	1	1109-	●	●
17	LOCK; DOOR,RR DOOR (A) THA	8-98103-158-5	01	1	1109-	●	●
17	LOCK; DOOR,RR DOOR (B) THA	8-98103-159-5	01	1	1109-	●	●
17	LOCK; DOOR,RR DOOR (B) THA	8-98103-160-5	01	1	1109-	●	●
17	LOCK; DOOR,RR DOOR REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) THA	8-98103-988-0	01	1	1110-1211			●	●
17	LOCK; DOOR,RR DOOR REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) THA	8-98231-778-1	01	1	1212-			●	●
17	LOCK; DOOR,RR DOOR REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) THA	8-98103-989-0	01	1	1110-1211			●	●
17	LOCK; DOOR,RR DOOR REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) THA	8-98231-779-1	01	1	1212-			●	●
17	LOCK; DOOR,RR DOOR EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) THA	8-98103-986-0	01	1	1110-1211			●	●
17	LOCK; DOOR,RR DOOR EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) THA	8-98231-776-1	01	1	1212-			●	●
17	LOCK; DOOR,RR DOOR EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) THA	8-98103-987-0	01	1	1110-1211			●	●
17	LOCK; DOOR,RR DOOR EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) THA	8-98231-777-1	01	1	1212-			●	●
19	BOLT; RR DOOR LOCK (C) M6X16 THA	8-98165-451-0	06	1	1109-	●	●
19	BOLT; RR DOOR LOCK (B) SCREW M6X14.5 THA	8-98004-342-0	06	1	1109-1109	●	●
19	BOLT; RR DOOR LOCK (B) SCREW M6X14.5 THA	8-98004-342-0	06	1	1110-	●	●	●	●
19	BOLT; RR DOOR LOCK (A) M6X8 FLANGE THA	8-98048-996-0	02	1	1110-			●	●
21	ACTUATOR; RR DOOR LOCK REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-97351-083-0	01	1	1110-1502			●	●
21	ACTUATOR; RR DOOR LOCK REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98292-020-0	01	1	1503-			●	●
21	ACTUATOR; RR DOOR LOCK REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-97351-084-0	01	1	1110-1502			●	●
21	ACTUATOR; RR DOOR LOCK REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98292-019-0	01	1	1503-			●	●
21	ACTUATOR; RR DOOR LOCK EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-97351-081-0	01	1	1110-1502			●	●
21	ACTUATOR; RR DOOR LOCK EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98292-018-0	01	1	1503-			●	●
21	ACTUATOR; RR DOOR LOCK EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-97351-082-0	01	1	1110-1502			●	●
21	ACTUATOR; RR DOOR LOCK EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98292-017-0	01	1	1503-			●	●
24	ANTIRATTLER; DOOR INSIDE HANDLE THA	8-97251-932-0	02	1	1110-			●	●
27	SCREW; RR DOOR LOCK THA	8-97349-997-0	04	1	1110-			●	●
30	STRIKER; RR DOOR (A) THA	8-98103-162-3	01	1	1109-	●	●
30	STRIKER; RR DOOR (A) THA	8-98103-163-3	01	1	1109-	●	●
30	STRIKER; RR DOOR (B) THA	8-98103-164-3	01	1	1109-	●	●
30	STRIKER; RR DOOR (B) THA	8-98103-165-3	01	1	1109-	●	●
30	STRIKER; RR DOOR (C) THA	8-98012-203-0	02	1	1110-1211			●	●
30	STRIKER; RR DOOR (C) THA	8-98012-203-0	02	1	1212-			●	●
32	SCREW; DOOR STRIKER M8X35 THA	8-98049-360-0	08	1	1109-	●	●
32	SCREW; DOOR STRIKER M8X35 THA	8-98049-360-0	04	1	1110-			●	●
37	GROMMET; RR DOOR (A) THA	8-98180-489-3	02	1	1109-1205	●	●
37	GROMMET; RR DOOR (A) THA	8-98212-205-0	02	1	1206-	●	●
37	GROMMET; RR DOOR (B) OD=26 THA	8-94141-484-0	02	1	1110-1211			●	●
37	GROMMET; RR DOOR (B) OD=26 THA	8-94141-484-0	02	1	1212-			●	●
38	SCREW; INSIDE LEVER,RR DOOR LK (A) M6X16 FLANGE THA	0-28650-616-0	06	1	1109-	●	●
38	SCREW; INSIDE LEVER,RR DOOR LK (B) M5X14 TAPPING THA	8-98184-363-0	02	1	1110-			●	●
46	COVER; OUTSIDE HANDLE HANDLE O/S DOOR CHROME<E20> PLATED THA	8-98176-465-1	02	1	1110-			●
46	COVER; OUTSIDE HANDLE PLATED THA	8-98176-465-1	02	1	1110-				●
46	COVER; OUTSIDE HANDLE BODY COLOR NEBULA GRAY MICA<520> HANDLE O/S DOOR BODY COLOR<D75> DARK GRAY THA	8-97422-457-1	02	1	1110-			●
46	COVER; OUTSIDE HANDLE BODY COLOR NAUTILUS BLUE MICA<521> HANDLE O/S DOOR BODY COLOR<D75> DARK BLUE THA	8-97422-452-1	02	1	1110-			●
46	COVER; OUTSIDE HANDLE BODY COLOR COSMIC BLACK MICA<523> HANDLE O/S DOOR BODY COLOR<D75> BLACK THA	8-97422-454-1	02	1	1110-			●
46	COVER; OUTSIDE HANDLE BODY COLOR SPLASH WHITE<527> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA	8-97422-463-1	02	1	1110-			●
46	COVER; OUTSIDE HANDLE BODY COLOR GARNET RED MICA<528> HANDLE O/S DOOR BODY COLOR<D75> DARK RED THA	8-97422-458-1	02	1	1110-			●
46	COVER; OUTSIDE HANDLE BODY COLOR TITANIUM SILVER MET<529> HANDLE O/S DOOR BODY COLOR<D75> SILVER THA	8-97422-456-1	02	1	1110-			●
46	COVER; OUTSIDE HANDLE BODY COLOR MINERAL GRAY MET<530> HANDLE O/S DOOR BODY COLOR<D75> GRAY THA	8-97422-455-1	02	1	1110-			●
46	COVER; OUTSIDE HANDLE BODY COLOR SILKY WHITE PEARL<531> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA	8-97422-464-1	02	1	1110-			●
46	COVER; OUTSIDE HANDLE BODY COLOR ASH BEIGE MET<541> HANDLE O/S DOOR BODY COLOR<D75> LIGHT BEIGE THA	8-97422-460-1	02	1	1110-			●
46	COVER; OUTSIDE HANDLE EXC. HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/SDOOR CHROME<E20> BLACK THA	8-98176-463-1	02	1	1110-			●
56	GASKET; HANDLE,RR DOOR (A) THA	8-98176-466-0	02	1	1110-			●	●
56	GASKET; HANDLE,RR DOOR (B) THA	8-98176-467-2	02	1	1110-			●	●
83	CABLE ASM; LOCK CONTROL (A) THA	8-98193-861-0	01	1	1109-	●	●
83	CABLE ASM; LOCK CONTROL (A) THA	8-98193-862-0	01	1	1109-	●	●
83	CABLE ASM; LOCK CONTROL (B) THA	8-98193-863-0	02	1	1109-	●	●
83	CABLE ASM; LOCK CONTROL (C) THA	8-98193-717-0	01	1	1110-			●	●
83	CABLE ASM; LOCK CONTROL (C) THA	8-98193-715-0	01	1	1110-			●	●
83	CABLE ASM; LOCK CONTROL (D) THA	8-98193-716-0	02	1	1110-			●	●
84	COVER; DOOR LOCK THA	8-97351-079-0	01	1	1110-			●	●
84	COVER; DOOR LOCK THA	8-97351-080-0	01	1	1110-			●	●
88	GRIP; RR DOOR HANDLE O/S DOOR CHROME<E20> PLATED THA	8-98176-458-0	02	1	1110-			●
88	GRIP; RR DOOR PLATED THA	8-98176-458-0	02	1	1110-				●
88	GRIP; RR DOOR BODY COLOR NEBULA GRAY MICA<520> HANDLE O/S DOOR BODY COLOR<D75> DARK GRAY THA	8-97422-430-0	02	1	1110-			●
88	GRIP; RR DOOR BODY COLOR NAUTILUS BLUE MICA<521> HANDLE O/S DOOR BODY COLOR<D75> DARK BLUE THA	8-97422-425-0	02	1	1110-			●
88	GRIP; RR DOOR BODY COLOR COSMIC BLACK MICA<523> HANDLE O/S DOOR BODY COLOR<D75> BLACK THA	8-97422-427-0	02	1	1110-			●
88	GRIP; RR DOOR BODY COLOR SPLASH WHITE<527> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA	8-97422-436-0	02	1	1110-			●
88	GRIP; RR DOOR BODY COLOR GARNET RED MICA<528> HANDLE O/S DOOR BODY COLOR<D75> DARK RED THA	8-97422-431-0	02	1	1110-			●
88	GRIP; RR DOOR BODY COLOR TITANIUM SILVER MET<529> HANDLE O/S DOOR BODY COLOR<D75> SILVER THA	8-97422-429-0	02	1	1110-			●
88	GRIP; RR DOOR BODY COLOR MINERAL GRAY MET<530> HANDLE O/S DOOR BODY COLOR<D75> GRAY THA	8-97422-428-0	02	1	1110-			●
88	GRIP; RR DOOR BODY COLOR SILKY WHITE PEARL<531> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA	8-97422-437-0	02	1	1110-			●
88	GRIP; RR DOOR BODY COLOR ASH BEIGE MET<541> HANDLE O/S DOOR BODY COLOR<D75> LIGHT BEIGE THA	8-97422-433-0	02	1	1110-			●
88	GRIP; RR DOOR EXC. HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/SDOOR CHROME<E20> THA	8-98176-456-0	02	1	1110-			●
89	BRACKET; GRIP,DOOR THA	8-98176-472-4	01	1	1110-			●	●
89	BRACKET; GRIP,DOOR THA	8-98176-473-4	01	1	1110-			●	●

46 88 37 56 89 56 17 32 30 24 9 83 83 84 19 21 38 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR COLOR DARK GRAY<117> (A) BLACK THA	8-97421-775-3	01	1	1109-1211	●
6	BEZEL; INSIDE HANDLE,DOOR LOCK (A) BLACK THA	8-97421-775-3	01	1	1109-1211		●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA	8-97421-775-4	01	1	1212-	●
6	BEZEL; INSIDE HANDLE,DOOR LOCK (A) BLACK THA	8-97421-775-4	01	1	1212-		●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR COLOR DARK GRAY<117> (A) BLACK THA	8-97421-777-3	01	1	1109-1211	●
6	BEZEL; INSIDE HANDLE,DOOR LOCK (A) BLACK THA	8-97421-777-3	01	1	1109-1211		●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA	8-97421-777-4	01	1	1212-	●
6	BEZEL; INSIDE HANDLE,DOOR LOCK (A) BLACK THA	8-97421-777-4	01	1	1212-		●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR COLOR BEIGE<120> (A) BEIGE THA	8-97421-776-4	01	1	1109-	●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR COLOR BEIGE<120> (A) BEIGE THA	8-97421-778-4	01	1	1109-	●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117> (B) BLACK THA	8-97416-726-4	01	1	1110-			●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117> (B) BLACK THA	8-97416-728-4	01	1	1110-			●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR DELUXE<RBB> INTERIOR COLOR BEIGE<120> (B) BEIGE THA	8-97416-727-4	01	1	1110-			●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR DELUXE<RBB> INTERIOR COLOR BEIGE<120> (B) BEIGE THA	8-97416-729-4	01	1	1110-			●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117> (B) BLACK THA	8-97416-730-3	01	1	1110-1211			●
6	BEZEL; INSIDE HANDLE,DOOR LOCK (B) BLACK THA	8-97416-730-3	01	1	1110-1211				●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) BLACK THA	8-97416-730-3	01	1	1212-			●
6	BEZEL; INSIDE HANDLE,DOOR LOCK (B) BLACK THA	8-97416-730-3	01	1	1212-				●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117> (B) BLACK THA	8-97416-732-3	01	1	1110-1211			●
6	BEZEL; INSIDE HANDLE,DOOR LOCK (B) BLACK THA	8-97416-732-3	01	1	1110-1211				●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) BLACK THA	8-97416-732-3	01	1	1212-			●
6	BEZEL; INSIDE HANDLE,DOOR LOCK (B) BLACK THA	8-97416-732-3	01	1	1212-				●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR CUSTOM<RBD> INTERIOR COLOR BEIGE<120> (B) BEIGE THA	8-97416-731-3	01	1	1110-			●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR CUSTOM<RBD> INTERIOR COLOR BEIGE<120> (B) BEIGE THA	8-97416-733-3	01	1	1110-			●
9	GROMMET; SCREW,INSIDE HANDLE THA	8-94152-494-0	02	1	1110-			●	●
17	LOCK; DOOR,RR DOOR (A) THA	8-98103-157-5	01	1	1109-	●	●
17	LOCK; DOOR,RR DOOR (A) THA	8-98103-158-5	01	1	1109-	●	●
17	LOCK; DOOR,RR DOOR (B) THA	8-98103-159-5	01	1	1109-	●	●
17	LOCK; DOOR,RR DOOR (B) THA	8-98103-160-5	01	1	1109-	●	●
17	LOCK; DOOR,RR DOOR REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) THA	8-98103-988-0	01	1	1110-1211			●	●
17	LOCK; DOOR,RR DOOR REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) THA	8-98231-778-1	01	1	1212-			●	●
17	LOCK; DOOR,RR DOOR REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) THA	8-98103-989-0	01	1	1110-1211			●	●
17	LOCK; DOOR,RR DOOR REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) THA	8-98231-779-1	01	1	1212-			●	●
17	LOCK; DOOR,RR DOOR EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) THA	8-98103-986-0	01	1	1110-1211			●	●
17	LOCK; DOOR,RR DOOR EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) THA	8-98231-776-1	01	1	1212-			●	●
17	LOCK; DOOR,RR DOOR EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) THA	8-98103-987-0	01	1	1110-1211			●	●
17	LOCK; DOOR,RR DOOR EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) THA	8-98231-777-1	01	1	1212-			●	●
19	BOLT; RR DOOR LOCK (C) M6X16 THA	8-98165-451-0	06	1	1109-	●	●
19	BOLT; RR DOOR LOCK (B) SCREW M6X14.5 THA	8-98004-342-0	06	1	1109-1109	●	●
19	BOLT; RR DOOR LOCK (B) SCREW M6X14.5 THA	8-98004-342-0	06	1	1110-	●	●	●	●
19	BOLT; RR DOOR LOCK (A) M6X8 FLANGE THA	8-98048-996-0	02	1	1110-			●	●
21	ACTUATOR; RR DOOR LOCK REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-97351-083-0	01	1	1110-1502			●	●
21	ACTUATOR; RR DOOR LOCK REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98292-020-0	01	1	1503-			●	●
21	ACTUATOR; RR DOOR LOCK REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-97351-084-0	01	1	1110-1502			●	●
21	ACTUATOR; RR DOOR LOCK REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98292-019-0	01	1	1503-			●	●
21	ACTUATOR; RR DOOR LOCK EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-97351-081-0	01	1	1110-1502			●	●
21	ACTUATOR; RR DOOR LOCK EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98292-018-0	01	1	1503-			●	●
21	ACTUATOR; RR DOOR LOCK EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-97351-082-0	01	1	1110-1502			●	●
21	ACTUATOR; RR DOOR LOCK EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98292-017-0	01	1	1503-			●	●
24	ANTIRATTLER; DOOR INSIDE HANDLE THA	8-97251-932-0	02	1	1110-			●	●
30	STRIKER; RR DOOR (A) THA	8-98103-162-3	01	1	1109-	●	●
30	STRIKER; RR DOOR (A) THA	8-98103-163-3	01	1	1109-	●	●
30	STRIKER; RR DOOR (B) THA	8-98103-164-3	01	1	1109-	●	●
30	STRIKER; RR DOOR (B) THA	8-98103-165-3	01	1	1109-	●	●
30	STRIKER; RR DOOR (C) THA	8-98012-203-0	02	1	1110-1211			●	●
30	STRIKER; RR DOOR (C) THA	8-98012-203-0	02	1	1212-			●	●
32	SCREW; DOOR STRIKER M8X35 THA	8-98049-360-0	08	1	1109-	●	●
32	SCREW; DOOR STRIKER M8X35 THA	8-98049-360-0	04	1	1110-			●	●
37	GROMMET; RR DOOR (A) THA	8-98180-489-3	02	1	1109-1205	●	●
37	GROMMET; RR DOOR (A) THA	8-98212-205-0	02	1	1206-	●	●
37	GROMMET; RR DOOR (B) OD=26 THA	8-94141-484-0	02	1	1110-1211			●	●
37	GROMMET; RR DOOR (B) OD=26 THA	8-94141-484-0	02	1	1212-			●	●
38	SCREW; INSIDE LEVER,RR DOOR LK (A) M6X16 FLANGE THA	0-28650-616-0	06	1	1109-	●	●
38	SCREW; INSIDE LEVER,RR DOOR LK (B) M5X14 TAPPING THA	8-98184-363-0	02	1	1110-			●	●
46	COVER; OUTSIDE HANDLE HANDLE O/S DOOR CHROME<E20> PLATED THA	8-98176-465-1	02	1	1110-			●
46	COVER; OUTSIDE HANDLE PLATED THA	8-98176-465-1	02	1	1110-				●
46	COVER; OUTSIDE HANDLE BODY COLOR NEBULA GRAY MICA<520> HANDLE O/S DOOR BODY COLOR<D75> DARK GRAY THA	8-97422-457-1	02	1	1110-			●
46	COVER; OUTSIDE HANDLE BODY COLOR NAUTILUS BLUE MICA<521> HANDLE O/S DOOR BODY COLOR<D75> DARK BLUE THA	8-97422-452-1	02	1	1110-			●
46	COVER; OUTSIDE HANDLE BODY COLOR COSMIC BLACK MICA<523> HANDLE O/S DOOR BODY COLOR<D75> BLACK THA	8-97422-454-1	02	1	1110-			●
46	COVER; OUTSIDE HANDLE BODY COLOR SPLASH WHITE<527> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA	8-97422-463-1	02	1	1110-			●
46	COVER; OUTSIDE HANDLE BODY COLOR GARNET RED MICA<528> HANDLE O/S DOOR BODY COLOR<D75> DARK RED THA	8-97422-458-1	02	1	1110-			●
46	COVER; OUTSIDE HANDLE BODY COLOR TITANIUM SILVER MET<529> HANDLE O/S DOOR BODY COLOR<D75> SILVER THA	8-97422-456-1	02	1	1110-			●
46	COVER; OUTSIDE HANDLE BODY COLOR MINERAL GRAY MET<530> HANDLE O/S DOOR BODY COLOR<D75> GRAY THA	8-97422-455-1	02	1	1110-			●
46	COVER; OUTSIDE HANDLE BODY COLOR SILKY WHITE PEARL<531> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA	8-97422-464-1	02	1	1110-			●
46	COVER; OUTSIDE HANDLE BODY COLOR ASH BEIGE MET<541> HANDLE O/S DOOR BODY COLOR<D75> LIGHT BEIGE THA	8-97422-460-1	02	1	1110-			●
46	COVER; OUTSIDE HANDLE EXC. HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/SDOOR CHROME<E20> BLACK THA	8-98176-463-1	02	1	1110-			●
56	GASKET; HANDLE,RR DOOR (A) THA	8-98176-466-0	02	1	1110-			●	●
56	GASKET; HANDLE,RR DOOR (B) THA	8-98176-467-2	02	1	1110-			●	●
83	CABLE ASM; LOCK CONTROL (A) THA	8-98193-861-0	01	1	1109-	●	●
83	CABLE ASM; LOCK CONTROL (A) THA	8-98193-862-0	01	1	1109-	●	●
83	CABLE ASM; LOCK CONTROL (B) THA	8-98193-863-0	02	1	1109-	●	●
83	CABLE ASM; LOCK CONTROL (C) THA	8-98193-717-0	01	1	1110-			●	●
83	CABLE ASM; LOCK CONTROL (C) THA	8-98193-715-0	01	1	1110-			●	●
83	CABLE ASM; LOCK CONTROL (D) THA	8-98193-716-0	02	1	1110-			●	●
84	COVER; DOOR LOCK THA	8-97351-079-0	01	1	1110-			●	●
84	COVER; DOOR LOCK THA	8-97351-080-0	01	1	1110-			●	●
88	GRIP; RR DOOR HANDLE O/S DOOR CHROME<E20> PLATED THA	8-98176-458-0	02	1	1110-			●
88	GRIP; RR DOOR PLATED THA	8-98176-458-0	02	1	1110-				●
88	GRIP; RR DOOR BODY COLOR NEBULA GRAY MICA<520> HANDLE O/S DOOR BODY COLOR<D75> DARK GRAY THA	8-97422-430-0	02	1	1110-			●
88	GRIP; RR DOOR BODY COLOR NAUTILUS BLUE MICA<521> HANDLE O/S DOOR BODY COLOR<D75> DARK BLUE THA	8-97422-425-0	02	1	1110-			●
88	GRIP; RR DOOR BODY COLOR COSMIC BLACK MICA<523> HANDLE O/S DOOR BODY COLOR<D75> BLACK THA	8-97422-427-0	02	1	1110-			●
88	GRIP; RR DOOR BODY COLOR SPLASH WHITE<527> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA	8-97422-436-0	02	1	1110-			●
88	GRIP; RR DOOR BODY COLOR GARNET RED MICA<528> HANDLE O/S DOOR BODY COLOR<D75> DARK RED THA	8-97422-431-0	02	1	1110-			●
88	GRIP; RR DOOR BODY COLOR TITANIUM SILVER MET<529> HANDLE O/S DOOR BODY COLOR<D75> SILVER THA	8-97422-429-0	02	1	1110-			●
88	GRIP; RR DOOR BODY COLOR MINERAL GRAY MET<530> HANDLE O/S DOOR BODY COLOR<D75> GRAY THA	8-97422-428-0	02	1	1110-			●
88	GRIP; RR DOOR BODY COLOR SILKY WHITE PEARL<531> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA	8-97422-437-0	02	1	1110-			●
88	GRIP; RR DOOR BODY COLOR ASH BEIGE MET<541> HANDLE O/S DOOR BODY COLOR<D75> LIGHT BEIGE THA	8-97422-433-0	02	1	1110-			●
88	GRIP; RR DOOR EXC. HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/SDOOR CHROME<E20> THA	8-98176-456-0	02	1	1110-			●
89	BRACKET; GRIP,DOOR THA	8-98176-472-4	01	1	1110-			●	●
89	BRACKET; GRIP,DOOR THA	8-98176-473-4	01	1	1110-			●	●

19 19 17 83 38 37 48 17 83 19 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR COLOR DARK GRAY<117> (A) BLACK THA	8-97421-775-3	01	1	1109-1211	●
6	BEZEL; INSIDE HANDLE,DOOR LOCK (A) BLACK THA	8-97421-775-3	01	1	1109-1211		●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA	8-97421-775-4	01	1	1212-	●
6	BEZEL; INSIDE HANDLE,DOOR LOCK (A) BLACK THA	8-97421-775-4	01	1	1212-		●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR COLOR DARK GRAY<117> (A) BLACK THA	8-97421-777-3	01	1	1109-1211	●
6	BEZEL; INSIDE HANDLE,DOOR LOCK (A) BLACK THA	8-97421-777-3	01	1	1109-1211		●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA	8-97421-777-4	01	1	1212-	●
6	BEZEL; INSIDE HANDLE,DOOR LOCK (A) BLACK THA	8-97421-777-4	01	1	1212-		●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR COLOR BEIGE<120> (A) BEIGE THA	8-97421-776-4	01	1	1109-	●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR COLOR BEIGE<120> (A) BEIGE THA	8-97421-778-4	01	1	1109-	●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117> (B) BLACK THA	8-97416-726-4	01	1	1110-			●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117> (B) BLACK THA	8-97416-728-4	01	1	1110-			●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR DELUXE<RBB> INTERIOR COLOR BEIGE<120> (B) BEIGE THA	8-97416-727-4	01	1	1110-			●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR DELUXE<RBB> INTERIOR COLOR BEIGE<120> (B) BEIGE THA	8-97416-729-4	01	1	1110-			●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117> (B) BLACK THA	8-97416-730-3	01	1	1110-1211			●
6	BEZEL; INSIDE HANDLE,DOOR LOCK (B) BLACK THA	8-97416-730-3	01	1	1110-1211				●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) BLACK THA	8-97416-730-3	01	1	1212-			●
6	BEZEL; INSIDE HANDLE,DOOR LOCK (B) BLACK THA	8-97416-730-3	01	1	1212-				●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117> (B) BLACK THA	8-97416-732-3	01	1	1110-1211			●
6	BEZEL; INSIDE HANDLE,DOOR LOCK (B) BLACK THA	8-97416-732-3	01	1	1110-1211				●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) BLACK THA	8-97416-732-3	01	1	1212-			●
6	BEZEL; INSIDE HANDLE,DOOR LOCK (B) BLACK THA	8-97416-732-3	01	1	1212-				●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR CUSTOM<RBD> INTERIOR COLOR BEIGE<120> (B) BEIGE THA	8-97416-731-3	01	1	1110-			●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR CUSTOM<RBD> INTERIOR COLOR BEIGE<120> (B) BEIGE THA	8-97416-733-3	01	1	1110-			●
17	LOCK; DOOR,RR DOOR (A) THA	8-98103-157-5	01	1	1109-	●	●
17	LOCK; DOOR,RR DOOR (A) THA	8-98103-158-5	01	1	1109-	●	●
17	LOCK; DOOR,RR DOOR (B) THA	8-98103-159-5	01	1	1109-	●	●
17	LOCK; DOOR,RR DOOR (B) THA	8-98103-160-5	01	1	1109-	●	●
17	LOCK; DOOR,RR DOOR REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) THA	8-98103-988-0	01	1	1110-1211			●	●
17	LOCK; DOOR,RR DOOR REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) THA	8-98231-778-1	01	1	1212-			●	●
17	LOCK; DOOR,RR DOOR REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) THA	8-98103-989-0	01	1	1110-1211			●	●
17	LOCK; DOOR,RR DOOR REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) THA	8-98231-779-1	01	1	1212-			●	●
17	LOCK; DOOR,RR DOOR EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) THA	8-98103-986-0	01	1	1110-1211			●	●
17	LOCK; DOOR,RR DOOR EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) THA	8-98231-776-1	01	1	1212-			●	●
17	LOCK; DOOR,RR DOOR EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) THA	8-98103-987-0	01	1	1110-1211			●	●
17	LOCK; DOOR,RR DOOR EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) THA	8-98231-777-1	01	1	1212-			●	●
19	BOLT; RR DOOR LOCK (C) M6X16 THA	8-98165-451-0	06	1	1109-	●	●
19	BOLT; RR DOOR LOCK (B) SCREW M6X14.5 THA	8-98004-342-0	06	1	1109-1109	●	●
19	BOLT; RR DOOR LOCK (B) SCREW M6X14.5 THA	8-98004-342-0	06	1	1110-	●	●	●	●
19	BOLT; RR DOOR LOCK (A) M6X8 FLANGE THA	8-98048-996-0	02	1	1110-			●	●
37	GROMMET; RR DOOR (A) THA	8-98180-489-3	02	1	1109-1205	●	●
37	GROMMET; RR DOOR (A) THA	8-98212-205-0	02	1	1206-	●	●
37	GROMMET; RR DOOR (B) OD=26 THA	8-94141-484-0	02	1	1110-1211			●	●
37	GROMMET; RR DOOR (B) OD=26 THA	8-94141-484-0	02	1	1212-			●	●
38	SCREW; INSIDE LEVER,RR DOOR LK (A) M6X16 FLANGE THA	0-28650-616-0	06	1	1109-	●	●
38	SCREW; INSIDE LEVER,RR DOOR LK (B) M5X14 TAPPING THA	8-98184-363-0	02	1	1110-			●	●
48	COVER; INSIDE HANDLE,RR DOOR INTERIOR COLOR DARK GRAY<117> BLACK THA	8-97421-217-2	02	1	1109-1211	●
48	COVER; INSIDE HANDLE,RR DOOR BLACK THA	8-97421-217-2	02	1	1109-1211		●
48	COVER; INSIDE HANDLE,RR DOOR INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA	8-97421-217-2	02	1	1212-	●
48	COVER; INSIDE HANDLE,RR DOOR BLACK THA	8-97421-217-2	02	1	1212-		●
48	COVER; INSIDE HANDLE,RR DOOR INTERIOR COLOR BEIGE<120> BEIGE THA	8-97421-218-2	02	1	1109-	●
83	CABLE ASM; LOCK CONTROL (A) THA	8-98193-861-0	01	1	1109-	●	●
83	CABLE ASM; LOCK CONTROL (A) THA	8-98193-862-0	01	1	1109-	●	●
83	CABLE ASM; LOCK CONTROL (B) THA	8-98193-863-0	02	1	1109-	●	●
83	CABLE ASM; LOCK CONTROL (C) THA	8-98193-717-0	01	1	1110-			●	●
83	CABLE ASM; LOCK CONTROL (C) THA	8-98193-715-0	01	1	1110-			●	●
83	CABLE ASM; LOCK CONTROL (D) THA	8-98193-716-0	02	1	1110-			●	●

30 32 30 32 87 87 87 87 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
30	STRIKER; RR DOOR (A) THA	8-98103-162-3	01	1	1109-	●	●
30	STRIKER; RR DOOR (A) THA	8-98103-163-3	01	1	1109-	●	●
30	STRIKER; RR DOOR (B) THA	8-98103-164-3	01	1	1109-	●	●
30	STRIKER; RR DOOR (B) THA	8-98103-165-3	01	1	1109-	●	●
30	STRIKER; RR DOOR (C) THA	8-98012-203-0	02	1	1110-1211			●	●
30	STRIKER; RR DOOR (C) THA	8-98012-203-0	02	1	1212-			●	●
32	SCREW; DOOR STRIKER M8X35 THA	8-98049-360-0	08	1	1109-	●	●
32	SCREW; DOOR STRIKER M8X35 THA	8-98049-360-0	04	1	1110-			●	●
87	SPACER; STRIKER (A) T=2.0 THA	8-98180-586-0	02	1	1109-	●	●
87	SPACER; STRIKER (B) T=2.0 THA	8-98214-625-0	AR	1	1109-1211	●	●
87	SPACER; STRIKER (B) T=2.0 THA	8-98214-625-0	AR	1	1212-	●	●
87	SPACER; STRIKER (C) T=1.0 THA	8-98214-626-0	AR	1	1109-1211	●	●
87	SPACER; STRIKER (C) T=1.0 THA	8-98214-626-0	AR	1	1212-	●	●
87	SPACER; STRIKER (D) T=2.0 THA	8-98215-417-0	AR	1	1109-1211	●	●
87	SPACER; STRIKER (D) T=2.0 THA	8-98215-417-0	AR	1	1212-	●	●
87	SPACER; STRIKER (E) T=1.0 THA	8-98215-418-0	AR	1	1109-1211	●	●
87	SPACER; STRIKER (E) T=1.0 THA	8-98215-418-0	AR	1	1212-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
