6-47 — MUD GUARD AND INSULATOR (#81750) — 140 parça

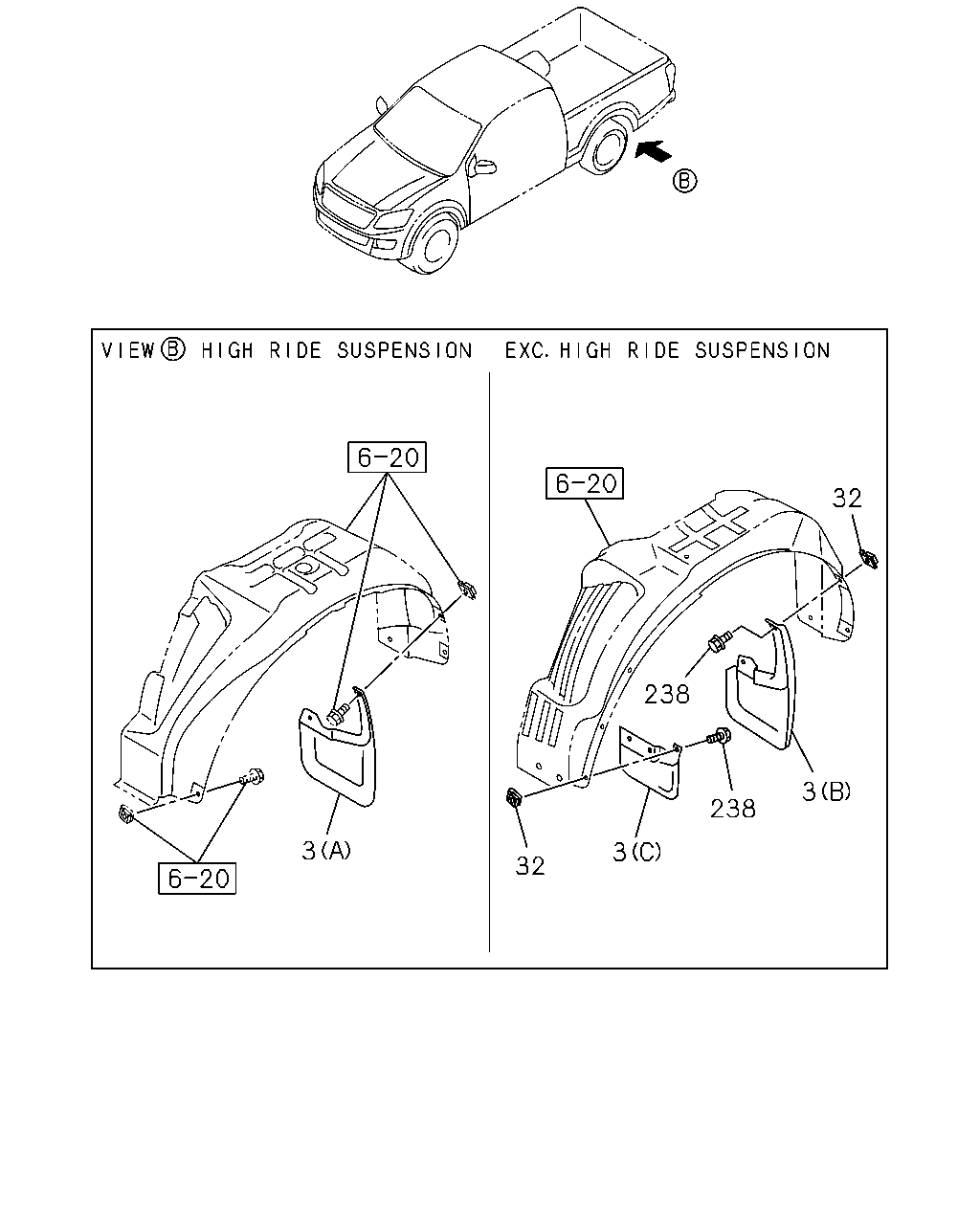

çizim 147221
32 238 3 238 3 3 32
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 GUARD; MUD,RR
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98077-276-1 01 1 1109-1109 ●
3 GUARD; MUD,RR
(A) THA 		8-98077-276-1 01 1 1109-1109 ●
3 GUARD; MUD,RR
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98077-276-1 01 1 1110-1211 ● ●
3 GUARD; MUD,RR
(A) THA 		8-98077-276-1 01 1 1110-1211 ● ●
3 GUARD; MUD,RR
FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION<7YC> EXC. SALES PACKAGE SPORTY<XK0> (A) THA 		8-98077-276-1 01 1 1212- ●
3 GUARD; MUD,RR
(A) THA 		8-98077-276-1 01 1 1212- ● ●
3 GUARD; MUD,RR
HIGH RIDE SUSPENSION<7YC> EXC. SALES PACKAGE SPORTY<XK0> (A) THA 		8-98077-276-1 01 1 1212- ●
3 GUARD; MUD,RR
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98077-279-1 01 1 1109-1109 ●
3 GUARD; MUD,RR
(A) THA 		8-98077-279-1 01 1 1109-1109 ●
3 GUARD; MUD,RR
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98077-279-1 01 1 1110-1211 ● ●
3 GUARD; MUD,RR
(A) THA 		8-98077-279-1 01 1 1110-1211 ● ●
3 GUARD; MUD,RR
FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION<7YC> EXC. SALES PACKAGE SPORTY<XK0> (A) THA 		8-98077-279-1 01 1 1212- ●
3 GUARD; MUD,RR
(A) THA 		8-98077-279-1 01 1 1212- ● ●
3 GUARD; MUD,RR
HIGH RIDE SUSPENSION<7YC> EXC. SALES PACKAGE SPORTY<XK0> (A) THA 		8-98077-279-1 01 1 1212- ●
3 GUARD; MUD,RR
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98119-330-2 01 1 1109-1109 ●
3 GUARD; MUD,RR
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98119-330-2 01 1 1110-1211 ● ●
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98119-330-2 01 1 1110-1211 ●
3 GUARD; MUD,RR
FORMED MUD FLAP FRT & RR<Q8H> EXC. SALES PACKAGE SPORTY<XK0>,HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98119-330-2 01 1 1212- ●
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98119-330-2 01 1 1212- ●
3 GUARD; MUD,RR
EXC. SALES PACKAGE SPORTY<XK0>,HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98119-330-2 01 1 1212- ●
3 GUARD; MUD,RR
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98119-331-2 01 1 1109-1109 ●
3 GUARD; MUD,RR
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98119-331-2 01 1 1110-1211 ● ●
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98119-331-2 01 1 1110-1211 ●
3 GUARD; MUD,RR
FORMED MUD FLAP FRT & RR<Q8H> EXC. SALES PACKAGE SPORTY<XK0>,HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98119-331-2 01 1 1212- ●
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98119-331-2 01 1 1212- ●
3 GUARD; MUD,RR
EXC. SALES PACKAGE SPORTY<XK0>,HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98119-331-2 01 1 1212- ●
3 GUARD; MUD,RR
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98077-281-2 01 1 1109-1109 ●
3 GUARD; MUD,RR
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98077-281-2 01 1 1110- ● ●
3 GUARD; MUD,RR
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98077-282-2 01 1 1109-1109 ●
3 GUARD; MUD,RR
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98077-282-2 01 1 1110- ● ●
32 NUT; MUD GUARD
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97125-519-0 06 1 1109-1109 ●
32 NUT; MUD GUARD
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97125-519-0 06 1 1110- ● ●
238 SCREW; MUD GUARD
EXC. HIGH RIDE SUSPENSION<7YC> M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 06 1 1109-1109 ●
238 SCREW; MUD GUARD
EXC. HIGH RIDE SUSPENSION<7YC> M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 06 1 1110- ● ●

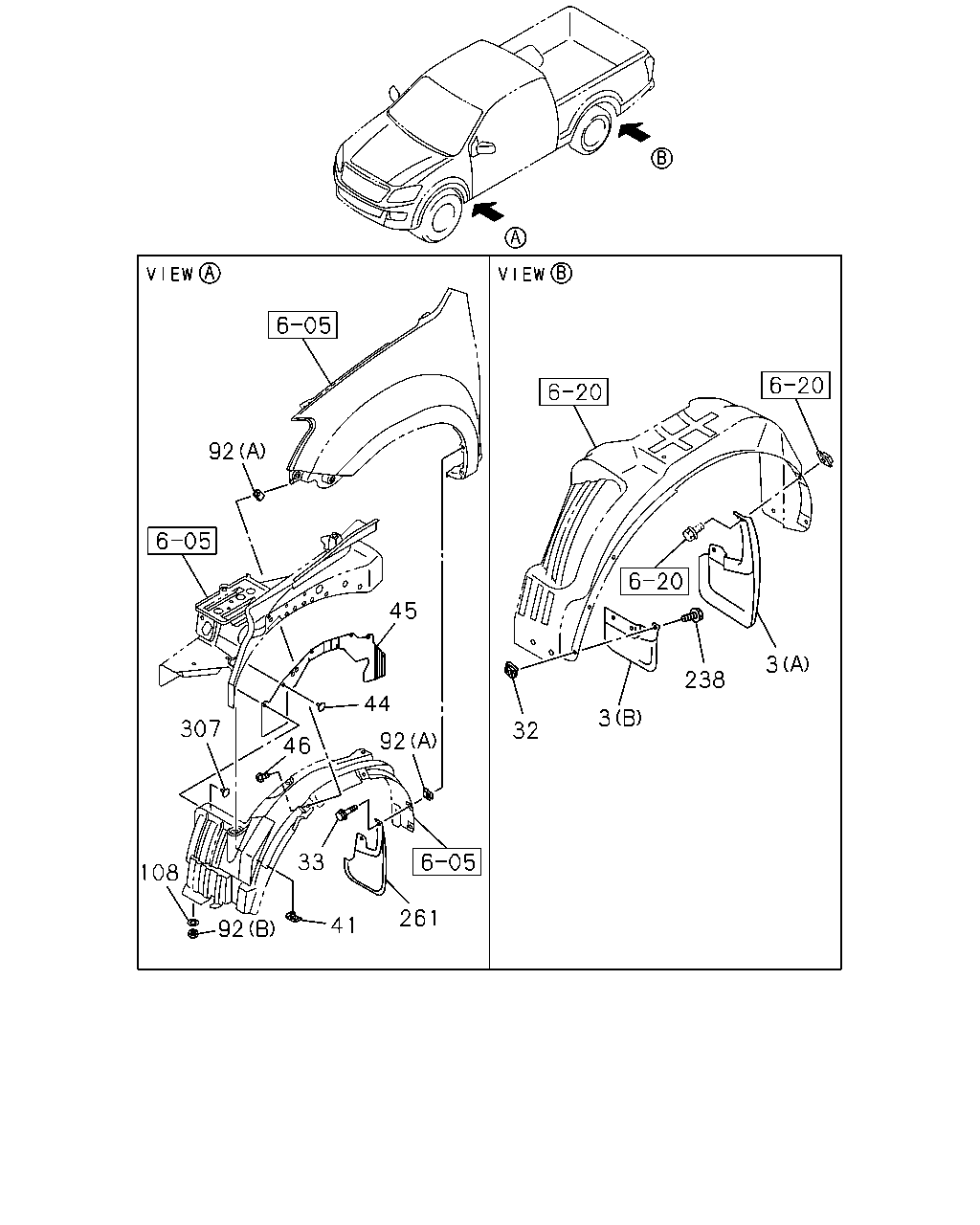

çizim 147224
92 45 307 46 44 92 33 108 92 41 261 32 3 238 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 GUARD; MUD,RR
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98077-276-1 01 1 1109-1109 ●
3 GUARD; MUD,RR
(A) THA 		8-98077-276-1 01 1 1109-1109 ●
3 GUARD; MUD,RR
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98077-276-1 01 1 1110-1211 ● ●
3 GUARD; MUD,RR
(A) THA 		8-98077-276-1 01 1 1110-1211 ● ●
3 GUARD; MUD,RR
FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION<7YC> EXC. SALES PACKAGE SPORTY<XK0> (A) THA 		8-98077-276-1 01 1 1212- ●
3 GUARD; MUD,RR
(A) THA 		8-98077-276-1 01 1 1212- ● ●
3 GUARD; MUD,RR
HIGH RIDE SUSPENSION<7YC> EXC. SALES PACKAGE SPORTY<XK0> (A) THA 		8-98077-276-1 01 1 1212- ●
3 GUARD; MUD,RR
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98077-279-1 01 1 1109-1109 ●
3 GUARD; MUD,RR
(A) THA 		8-98077-279-1 01 1 1109-1109 ●
3 GUARD; MUD,RR
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98077-279-1 01 1 1110-1211 ● ●
3 GUARD; MUD,RR
(A) THA 		8-98077-279-1 01 1 1110-1211 ● ●
3 GUARD; MUD,RR
FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION<7YC> EXC. SALES PACKAGE SPORTY<XK0> (A) THA 		8-98077-279-1 01 1 1212- ●
3 GUARD; MUD,RR
(A) THA 		8-98077-279-1 01 1 1212- ● ●
3 GUARD; MUD,RR
HIGH RIDE SUSPENSION<7YC> EXC. SALES PACKAGE SPORTY<XK0> (A) THA 		8-98077-279-1 01 1 1212- ●
3 GUARD; MUD,RR
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98119-330-2 01 1 1109-1109 ●
3 GUARD; MUD,RR
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98119-330-2 01 1 1110-1211 ● ●
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98119-330-2 01 1 1110-1211 ●
3 GUARD; MUD,RR
FORMED MUD FLAP FRT & RR<Q8H> EXC. SALES PACKAGE SPORTY<XK0>,HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98119-330-2 01 1 1212- ●
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98119-330-2 01 1 1212- ●
3 GUARD; MUD,RR
EXC. SALES PACKAGE SPORTY<XK0>,HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98119-330-2 01 1 1212- ●
3 GUARD; MUD,RR
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98119-331-2 01 1 1109-1109 ●
3 GUARD; MUD,RR
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98119-331-2 01 1 1110-1211 ● ●
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98119-331-2 01 1 1110-1211 ●
3 GUARD; MUD,RR
FORMED MUD FLAP FRT & RR<Q8H> EXC. SALES PACKAGE SPORTY<XK0>,HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98119-331-2 01 1 1212- ●
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98119-331-2 01 1 1212- ●
3 GUARD; MUD,RR
EXC. SALES PACKAGE SPORTY<XK0>,HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98119-331-2 01 1 1212- ●
3 GUARD; MUD,RR
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98077-281-2 01 1 1109-1109 ●
3 GUARD; MUD,RR
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98077-281-2 01 1 1110- ● ●
3 GUARD; MUD,RR
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98077-282-2 01 1 1109-1109 ●
3 GUARD; MUD,RR
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98077-282-2 01 1 1110- ● ●
32 NUT; MUD GUARD
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97125-519-0 06 1 1109-1109 ●
32 NUT; MUD GUARD
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97125-519-0 06 1 1110- ● ●
33 BOLT; MUD COVER
M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 06 1 1109-1109 ● ●
33 BOLT; MUD COVER
M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 06 1 1110-1211 ● ● ● ● ●
33 BOLT; MUD COVER
FORMED MUD FLAP FRT & RR<Q8H> M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 06 1 1212- ●
33 BOLT; MUD COVER
M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 06 1 1212- ● ● ● ●
41 RIVET; INNER LINER
EXC. FORMED MUD FLAP FRT & RR<Q8H> THA 		8-94221-150-0 06 1 1212- ●
41 RIVET; INNER LINER
THA 		8-94221-150-0 12 1 1109-1109 ● ●
41 RIVET; INNER LINER
THA 		8-94221-150-0 12 1 1110-1207 ● ● ● ● ●
41 RIVET; INNER LINER
THA 		8-94221-150-0 10 1 1208- ● ● ● ● ●
44 CLIP; ANCHOR
OD=22 L=10.7 THA 		8-94215-211-0 10 1 1109-1109 ● ●
44 CLIP; ANCHOR
OD=22 L=10.7 THA 		8-94215-211-0 10 1 1110-1211 ● ● ● ● ●
44 CLIP; ANCHOR
OD=22 L=10.7 THA 		8-94215-211-0 10 1 1212- ● ● ● ● ●
45 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION<7YC> THA 		8-98077-268-1 01 1 1109-1109 ●
45 COVER; MUD,FENDER SKIRT
THA 		8-98077-268-1 01 1 1109-1109 ●
45 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION<7YC> THA 		8-98077-268-1 01 1 1110- ● ●
45 COVER; MUD,FENDER SKIRT
THA 		8-98077-268-1 01 1 1110- ● ●
45 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION<7YC> THA 		8-98077-270-0 01 1 1109-1109 ●
45 COVER; MUD,FENDER SKIRT
THA 		8-98077-270-0 01 1 1109-1109 ●
45 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION<7YC> THA 		8-98077-270-0 01 1 1110- ● ●
45 COVER; MUD,FENDER SKIRT
THA 		8-98077-270-0 01 1 1110- ● ●
45 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98077-267-1 01 1 1109-1109 ●
45 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98077-267-1 01 1 1110- ● ●
45 COVER; MUD,FENDER SKIRT
THA 		8-98077-267-1 01 1 1110- ●
45 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98077-269-0 01 1 1109-1109 ●
45 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98077-269-0 01 1 1110- ● ●
45 COVER; MUD,FENDER SKIRT
THA 		8-98077-269-0 01 1 1110- ●
46 SCREW; INNER LINER
M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 04 1 1109-1109 ● ●
46 SCREW; INNER LINER
M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 04 1 1110- ● ● ● ● ●
92 NUT; MUD COVER
(A) THA 		8-97125-519-0 06 1 1109-1109 ● ●
92 NUT; MUD COVER
(A) THA 		8-97125-519-0 06 1 1110-1211 ● ● ● ● ●
92 NUT; MUD COVER
FORMED MUD FLAP FRT & RR<Q8H> (A) THA 		8-97125-519-0 06 1 1212- ●
92 NUT; MUD COVER
(A) THA 		8-97125-519-0 06 1 1212- ● ● ● ●
92 NUT; MUD COVER
(A) THA 		8-97125-519-0 04 1 1109-1109 ● ●
92 NUT; MUD COVER
(A) THA 		8-97125-519-0 04 1 1110- ● ● ● ● ●
92 NUT; MUD COVER
(B) M6 CAP NUT THA 		8-98049-850-0 02 1 1109-1109 ● ●
92 NUT; MUD COVER
(B) M6 CAP NUT THA 		8-98049-850-0 02 1 1110- ● ● ● ● ●
108 WASHER; PL,PANEL TO FRAME
ID=6.5 OD=18 T=1.6 THA 		8-98049-851-0 02 1 1109-1109 ● ●
108 WASHER; PL,PANEL TO FRAME
ID=6.5 OD=18 T=1.6 THA 		8-98049-851-0 02 1 1110- ● ● ● ● ●
238 SCREW; MUD GUARD
EXC. HIGH RIDE SUSPENSION<7YC> M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 06 1 1109-1109 ●
238 SCREW; MUD GUARD
EXC. HIGH RIDE SUSPENSION<7YC> M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 06 1 1110- ● ●
261 RUBBER; FRT,MUD GUARD
HIGH RIDE SUSPENSION<7YC> THA 		8-98077-272-0 01 1 1109-1109 ●
261 RUBBER; FRT,MUD GUARD
THA 		8-98077-272-0 01 1 1109-1109 ●
261 RUBBER; FRT,MUD GUARD
HIGH RIDE SUSPENSION<7YC> THA 		8-98077-272-0 01 1 1110-1211 ● ●
261 RUBBER; FRT,MUD GUARD
THA 		8-98077-272-0 01 1 1110-1211 ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION<7YC> THA 		8-98077-272-0 01 1 1212- ●
261 RUBBER; FRT,MUD GUARD
THA 		8-98077-272-0 01 1 1212- ● ●
261 RUBBER; FRT,MUD GUARD
HIGH RIDE SUSPENSION<7YC> THA 		8-98077-272-0 01 1 1212- ●
261 RUBBER; FRT,MUD GUARD
HIGH RIDE SUSPENSION<7YC> THA 		8-98077-274-0 01 1 1109-1109 ●
261 RUBBER; FRT,MUD GUARD
THA 		8-98077-274-0 01 1 1109-1109 ●
261 RUBBER; FRT,MUD GUARD
HIGH RIDE SUSPENSION<7YC> THA 		8-98077-274-0 01 1 1110-1211 ● ●
261 RUBBER; FRT,MUD GUARD
THA 		8-98077-274-0 01 1 1110-1211 ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION<7YC> THA 		8-98077-274-0 01 1 1212- ●
261 RUBBER; FRT,MUD GUARD
THA 		8-98077-274-0 01 1 1212- ● ●
261 RUBBER; FRT,MUD GUARD
HIGH RIDE SUSPENSION<7YC> THA 		8-98077-274-0 01 1 1212- ●
261 RUBBER; FRT,MUD GUARD
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98119-229-0 01 1 1109-1109 ●
261 RUBBER; FRT,MUD GUARD
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98119-229-0 01 1 1110-1211 ● ●
261 RUBBER; FRT,MUD GUARD
THA 		8-98119-229-0 01 1 1110-1211 ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> EXC. SALES PACKAGE SPORTY<XK0>,HIGH RIDE SUSPENSION<7YC> THA 		8-98119-229-0 01 1 1212-1505 ●
261 RUBBER; FRT,MUD GUARD
THA 		8-98119-229-0 01 1 1212-1505 ●
261 RUBBER; FRT,MUD GUARD
EXC. SALES PACKAGE SPORTY<XK0>,HIGH RIDE SUSPENSION<7YC> THA 		8-98119-229-0 01 1 1212-1505 ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98119-229-0 01 1 1506- ●
261 RUBBER; FRT,MUD GUARD
THA 		8-98119-229-0 01 1 1506- ●
261 RUBBER; FRT,MUD GUARD
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98119-229-0 01 1 1506- ●
261 RUBBER; FRT,MUD GUARD
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98119-230-0 01 1 1109-1109 ●
261 RUBBER; FRT,MUD GUARD
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98119-230-0 01 1 1110-1211 ● ●
261 RUBBER; FRT,MUD GUARD
THA 		8-98119-230-0 01 1 1110-1211 ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> EXC. SALES PACKAGE SPORTY<XK0>,HIGH RIDE SUSPENSION<7YC> THA 		8-98119-230-0 01 1 1212-1505 ●
261 RUBBER; FRT,MUD GUARD
THA 		8-98119-230-0 01 1 1212-1505 ●
261 RUBBER; FRT,MUD GUARD
EXC. SALES PACKAGE SPORTY<XK0>,HIGH RIDE SUSPENSION<7YC> THA 		8-98119-230-0 01 1 1212-1505 ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98119-230-0 01 1 1506- ●
261 RUBBER; FRT,MUD GUARD
THA 		8-98119-230-0 01 1 1506- ●
261 RUBBER; FRT,MUD GUARD
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98119-230-0 01 1 1506- ●
307 RETAINER
THA 		8-98050-462-0 02 1 1109-1109 ● ●
307 RETAINER
THA 		8-98050-462-0 02 1 1110-1211 ● ● ● ● ●
307 RETAINER
THA 		8-98050-462-0 02 1 1212- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
