6-43 — SIDE TRIM (#81748) — 352 parça

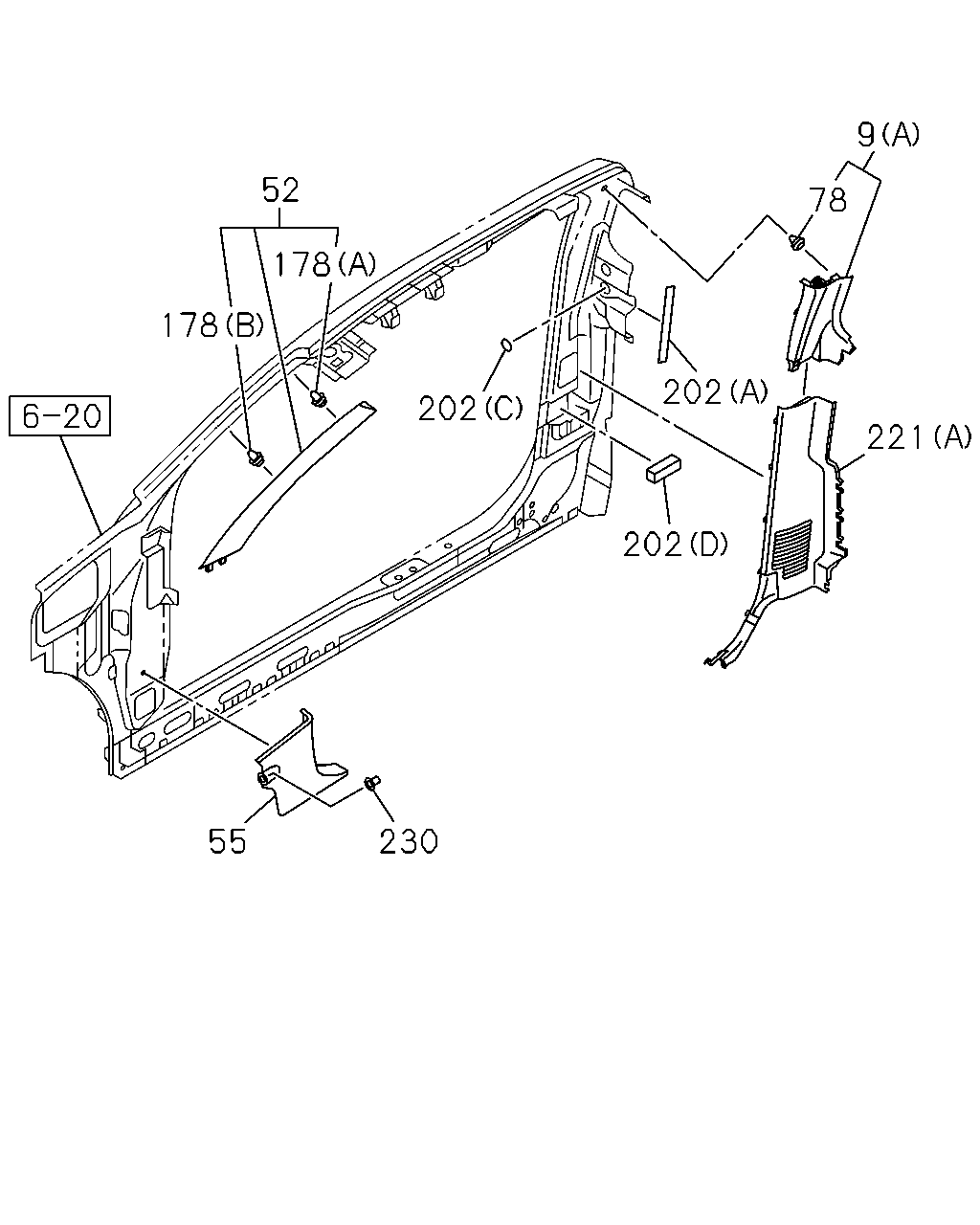

çizim 147217
9 78 221 202 202 202 230 55 178 52 178
BalonParca AdiParca NoAdetTipApplied Date A B C D E
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR DARK GRAY<117> (A) BLACK THA 		8-97416-711-2 01 1 1109-1211 ●
9 TRIM; SIDE PANEL,UPR
(A) BLACK THA 		8-97416-711-2 01 1 1109-1211 ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA 		8-97416-711-2 01 1 1212- ●
9 TRIM; SIDE PANEL,UPR
(A) BLACK THA 		8-97416-711-2 01 1 1212- ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR DARK GRAY<117> (A) BLACK THA 		8-97416-713-2 01 1 1109-1211 ●
9 TRIM; SIDE PANEL,UPR
(A) BLACK THA 		8-97416-713-2 01 1 1109-1211 ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA 		8-97416-713-2 01 1 1212- ●
9 TRIM; SIDE PANEL,UPR
(A) BLACK THA 		8-97416-713-2 01 1 1212- ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR BEIGE<120> (A) BEIGE THA 		8-97416-712-2 01 1 1109- ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR BEIGE<120> (A) BEIGE THA 		8-97416-714-2 01 1 1109- ●
9 TRIM; SIDE PANEL,UPR
(B) BLACK THA 		8-97417-118-1 01 1 1110- ●
9 TRIM; SIDE PANEL,UPR
(B) BLACK THA 		8-97417-120-1 01 1 1110- ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR DARK GRAY<117> (C) BLACK THA 		8-97416-969-0 01 1 1110-1211 ●
9 TRIM; SIDE PANEL,UPR
(C) BLACK THA 		8-97416-969-0 01 1 1110-1211 ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (C) BLACK THA 		8-97416-969-0 01 1 1212- ●
9 TRIM; SIDE PANEL,UPR
(C) BLACK THA 		8-97416-969-0 01 1 1212- ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR DARK GRAY<117> (C) BLACK THA 		8-97416-971-0 01 1 1110-1211 ●
9 TRIM; SIDE PANEL,UPR
(C) BLACK THA 		8-97416-971-0 01 1 1110-1211 ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (C) BLACK THA 		8-97416-971-0 01 1 1212- ●
9 TRIM; SIDE PANEL,UPR
(C) BLACK THA 		8-97416-971-0 01 1 1212- ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR BEIGE<120> (C) BEIGE THA 		8-97416-970-0 01 1 1110- ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR BEIGE<120> (C) BEIGE THA 		8-97416-972-0 01 1 1110- ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY<154> HIGH RIDE SUSPENSION<7YC> BLACK THA 		8-97423-925-2 01 1 1212- ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY<154> HIGH RIDE SUSPENSION<7YC> BLACK THA 		8-97423-945-2 01 1 1212- ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY<154> EXC. HIGH RIDE SUSPENSION<7YC> BLACK THA 		8-97423-923-2 01 1 1212- ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY<154> EXC. HIGH RIDE SUSPENSION<7YC> BLACK THA 		8-97423-924-2 01 1 1212- ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY<117> HIGH RIDE SUSPENSION<7YC> GRAY THA 		8-97416-679-2 01 1 1109-1109 ●
52 COVER; TRIM,FRT PILLAR
GRAY THA 		8-97416-679-2 01 1 1109-1109 ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY<117> HIGH RIDE SUSPENSION<7YC> GRAY THA 		8-97416-679-2 01 1 1110- ● ●
52 COVER; TRIM,FRT PILLAR
GRAY THA 		8-97416-679-2 01 1 1110- ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY<117> HIGH RIDE SUSPENSION<7YC> GRAY THA 		8-97416-680-2 01 1 1109-1109 ●
52 COVER; TRIM,FRT PILLAR
GRAY THA 		8-97416-680-2 01 1 1109-1109 ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY<117> HIGH RIDE SUSPENSION<7YC> GRAY THA 		8-97416-680-2 01 1 1110- ● ●
52 COVER; TRIM,FRT PILLAR
GRAY THA 		8-97416-680-2 01 1 1110- ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> EXC. HIGH RIDE SUSPENSION<7YC> GRAY THA 		8-97416-677-2 01 1 1109-1109 ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> EXC. HIGH RIDE SUSPENSION<7YC> GRAY THA 		8-97416-677-2 01 1 1110- ● ●
52 COVER; TRIM,FRT PILLAR
GRAY THA 		8-97416-677-2 01 1 1110- ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> EXC. HIGH RIDE SUSPENSION<7YC> GRAY THA 		8-97416-678-2 01 1 1109-1109 ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> EXC. HIGH RIDE SUSPENSION<7YC> GRAY THA 		8-97416-678-2 01 1 1110- ● ●
52 COVER; TRIM,FRT PILLAR
GRAY THA 		8-97416-678-2 01 1 1110- ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-673-3 01 1 1109-1109 ●
55 PAD; TRIM,DASH SIDE
BLACK THA 		8-97416-673-3 01 1 1109-1109 ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-673-3 01 1 1110-1211 ● ●
55 PAD; TRIM,DASH SIDE
BLACK THA 		8-97416-673-3 01 1 1110-1211 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97416-673-3 01 1 1212- ● ●
55 PAD; TRIM,DASH SIDE
BLACK THA 		8-97416-673-3 01 1 1212- ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-675-3 01 1 1109-1109 ●
55 PAD; TRIM,DASH SIDE
BLACK THA 		8-97416-675-3 01 1 1109-1109 ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-675-3 01 1 1110-1203 ● ●
55 PAD; TRIM,DASH SIDE
BLACK THA 		8-97416-675-3 01 1 1110-1203 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97424-004-0 01 1 1204-1211 ● ●
55 PAD; TRIM,DASH SIDE
BLACK THA 		8-97424-004-0 01 1 1204-1211 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97424-004-0 01 1 1212- ● ●
55 PAD; TRIM,DASH SIDE
BLACK THA 		8-97424-004-0 01 1 1212- ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-674-3 01 1 1109-1109 ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-674-3 01 1 1110- ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-676-3 01 1 1109-1109 ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-676-3 01 1 1110-1203 ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97424-005-0 01 1 1204- ● ●
78 CLIP; TRIM PAD,SIDE PANEL
THA 		8-97351-983-0 04 1 1109-1109 ● ●
78 CLIP; TRIM PAD,SIDE PANEL
THA 		8-97351-983-0 04 1 1110- ● ● ● ●
78 CLIP; TRIM PAD,SIDE PANEL
THA 		8-97351-983-0 08 1 1110- ●
78 CLIP; TRIM PAD,SIDE PANEL
THA 		8-97351-983-0 06 1 1110- ● ●
178 CLIP; TRIM COVER
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98166-326-0 02 1 1212- ● ● ● ● ●
178 CLIP; TRIM COVER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98166-326-0 02 1 1212- ● ●
178 CLIP; TRIM COVER
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98139-052-0 02 1 1212- ● ● ●
202 SEAL; CENTER PILLAR
(C) OD=52 BLACK THA 		1-76798-041-0 02 1 1109- ● ●
202 SEAL; CENTER PILLAR
(D) THA 		8-97362-561-0 10 1 1109- ● ●
202 SEAL; CENTER PILLAR
(A) THA 		8-98179-381-2 02 1 1109-1109 ● ●
202 SEAL; CENTER PILLAR
(A) THA 		8-98179-381-3 02 1 1110- ● ● ● ● ●
202 SEAL; CENTER PILLAR
(D) THA 		8-97362-561-0 02 1 1110- ●
202 SEAL; CENTER PILLAR
(E) THA 		8-97350-306-0 02 1 1110- ● ● ●
202 SEAL; CENTER PILLAR
(C) OD=25 BLACK THA 		1-76798-019-0 02 1 1110- ● ●
202 SEAL; CENTER PILLAR
(D) THA 		8-97362-561-0 06 1 1110- ● ●
202 SEAL; CENTER PILLAR
(B) THA 		8-97362-563-0 02 1 1110-1401 ● ●
202 SEAL; CENTER PILLAR
(B) THA 		8-98269-733-0 02 1 1402- ● ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR DARK GRAY<117> (A) BLACK THA 		8-97416-703-1 01 1 1109-1211 ●
221 TRIM; SIDE PANEL,LOWER
(A) BLACK THA 		8-97416-703-1 01 1 1109-1211 ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA 		8-97416-703-1 01 1 1212-1310 ●
221 TRIM; SIDE PANEL,LOWER
(A) BLACK THA 		8-97416-703-1 01 1 1212-1310 ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA 		8-97428-384-0 01 1 1311- ●
221 TRIM; SIDE PANEL,LOWER
(A) BLACK THA 		8-97428-384-0 01 1 1311- ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR DARK GRAY<117> (A) BLACK THA 		8-97416-705-1 01 1 1109-1211 ●
221 TRIM; SIDE PANEL,LOWER
(A) BLACK THA 		8-97416-705-1 01 1 1109-1211 ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA 		8-97416-705-1 01 1 1212-1310 ●
221 TRIM; SIDE PANEL,LOWER
(A) BLACK THA 		8-97416-705-1 01 1 1212-1310 ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA 		8-97428-386-0 01 1 1311- ●
221 TRIM; SIDE PANEL,LOWER
(A) BLACK THA 		8-97428-386-0 01 1 1311- ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR BEIGE<120> (A) BEIGE THA 		8-97416-704-1 01 1 1109-1310 ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR BEIGE<120> (A) BEIGE THA 		8-97428-385-0 01 1 1311- ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR BEIGE<120> (A) BEIGE THA 		8-97416-706-1 01 1 1109-1310 ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR BEIGE<120> (A) BEIGE THA 		8-97428-387-0 01 1 1311- ●
221 TRIM; SIDE PANEL,LOWER
(B) BLACK THA 		8-97417-114-3 01 1 1110- ●
221 TRIM; SIDE PANEL,LOWER
(B) BLACK THA 		8-97417-116-3 01 1 1110- ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR DARK GRAY<117> (C) BLACK THA 		8-97416-965-1 01 1 1110-1211 ●
221 TRIM; SIDE PANEL,LOWER
(C) BLACK THA 		8-97416-965-1 01 1 1110-1211 ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (C) BLACK THA 		8-97416-965-1 01 1 1212- ●
221 TRIM; SIDE PANEL,LOWER
(C) BLACK THA 		8-97416-965-1 01 1 1212- ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR DARK GRAY<117> (C) BLACK THA 		8-97416-967-1 01 1 1110-1211 ●
221 TRIM; SIDE PANEL,LOWER
(C) BLACK THA 		8-97416-967-1 01 1 1110-1211 ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (C) BLACK THA 		8-97416-967-1 01 1 1212- ●
221 TRIM; SIDE PANEL,LOWER
(C) BLACK THA 		8-97416-967-1 01 1 1212- ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR BEIGE<120> (C) BEIGE THA 		8-97416-966-1 01 1 1110- ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR BEIGE<120> (C) BEIGE THA 		8-97416-968-1 01 1 1110- ●
230 RETAINER; TRIM
INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-808-0 02 1 1109-1109 ●
230 RETAINER; TRIM
BLACK THA 		8-97416-808-0 02 1 1109-1109 ●
230 RETAINER; TRIM
INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-808-0 02 1 1110-1211 ● ●
230 RETAINER; TRIM
BLACK THA 		8-97416-808-0 02 1 1110-1211 ● ● ●
230 RETAINER; TRIM
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97416-808-0 02 1 1212- ● ●
230 RETAINER; TRIM
BLACK THA 		8-97416-808-0 02 1 1212- ● ● ●
230 RETAINER; TRIM
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-809-0 02 1 1109-1109 ●
230 RETAINER; TRIM
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-809-0 02 1 1110- ● ●

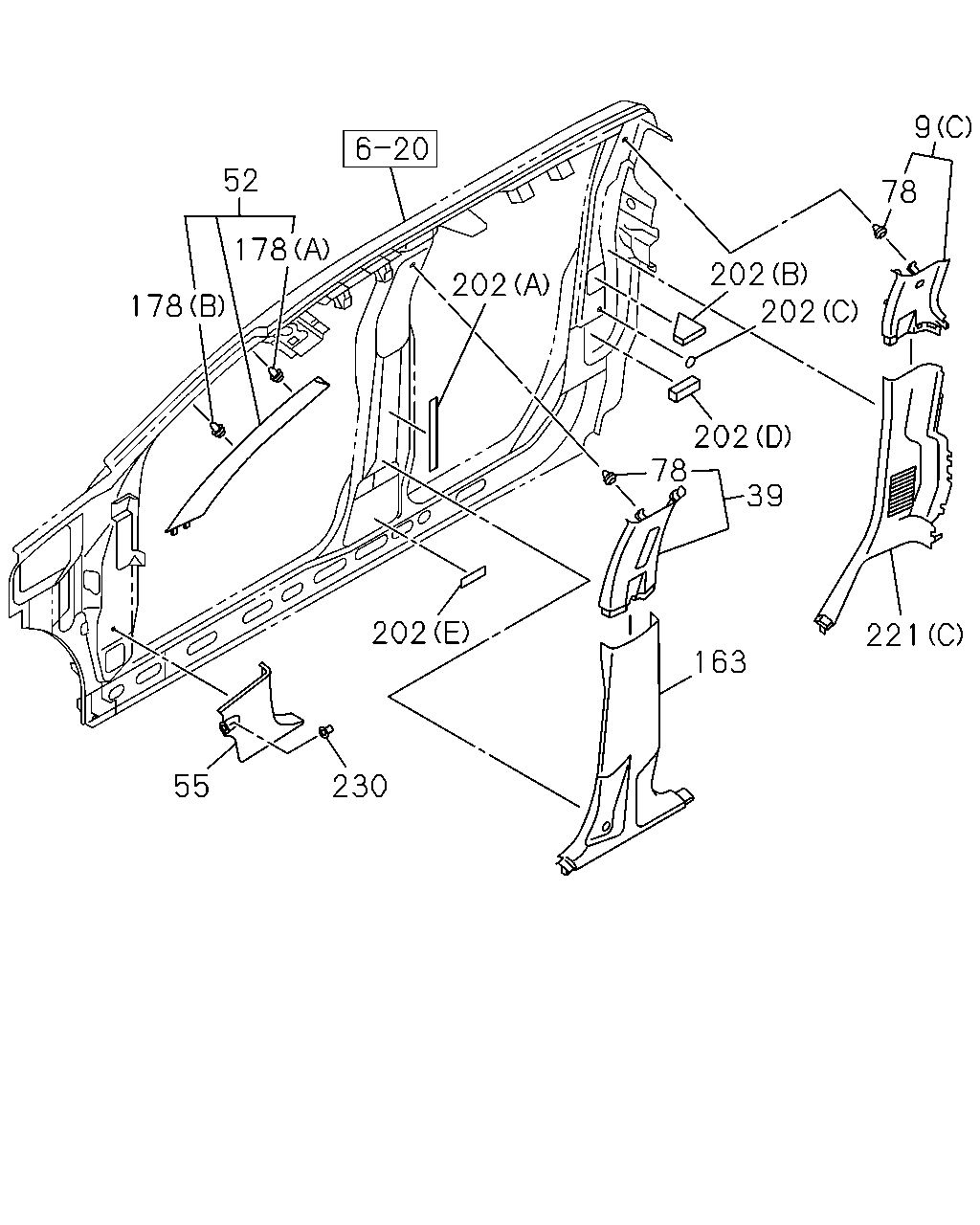

çizim 147228
52 178 202 230 55 163 221 39 78 202 202 202 202 78 9 178
BalonParca AdiParca NoAdetTipApplied Date A B C D E
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR DARK GRAY<117> (A) BLACK THA 		8-97416-711-2 01 1 1109-1211 ●
9 TRIM; SIDE PANEL,UPR
(A) BLACK THA 		8-97416-711-2 01 1 1109-1211 ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA 		8-97416-711-2 01 1 1212- ●
9 TRIM; SIDE PANEL,UPR
(A) BLACK THA 		8-97416-711-2 01 1 1212- ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR DARK GRAY<117> (A) BLACK THA 		8-97416-713-2 01 1 1109-1211 ●
9 TRIM; SIDE PANEL,UPR
(A) BLACK THA 		8-97416-713-2 01 1 1109-1211 ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA 		8-97416-713-2 01 1 1212- ●
9 TRIM; SIDE PANEL,UPR
(A) BLACK THA 		8-97416-713-2 01 1 1212- ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR BEIGE<120> (A) BEIGE THA 		8-97416-712-2 01 1 1109- ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR BEIGE<120> (A) BEIGE THA 		8-97416-714-2 01 1 1109- ●
9 TRIM; SIDE PANEL,UPR
(B) BLACK THA 		8-97417-118-1 01 1 1110- ●
9 TRIM; SIDE PANEL,UPR
(B) BLACK THA 		8-97417-120-1 01 1 1110- ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR DARK GRAY<117> (C) BLACK THA 		8-97416-969-0 01 1 1110-1211 ●
9 TRIM; SIDE PANEL,UPR
(C) BLACK THA 		8-97416-969-0 01 1 1110-1211 ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (C) BLACK THA 		8-97416-969-0 01 1 1212- ●
9 TRIM; SIDE PANEL,UPR
(C) BLACK THA 		8-97416-969-0 01 1 1212- ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR DARK GRAY<117> (C) BLACK THA 		8-97416-971-0 01 1 1110-1211 ●
9 TRIM; SIDE PANEL,UPR
(C) BLACK THA 		8-97416-971-0 01 1 1110-1211 ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (C) BLACK THA 		8-97416-971-0 01 1 1212- ●
9 TRIM; SIDE PANEL,UPR
(C) BLACK THA 		8-97416-971-0 01 1 1212- ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR BEIGE<120> (C) BEIGE THA 		8-97416-970-0 01 1 1110- ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR BEIGE<120> (C) BEIGE THA 		8-97416-972-0 01 1 1110- ●
39 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97423-935-2 01 1 1212- ●
39 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97423-936-2 01 1 1212- ●
39 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> GRAY THA 		8-97416-959-2 01 1 1110- ●
39 COVER; TRIM,CENTER PILLAR
GRAY THA 		8-97416-959-2 01 1 1110- ●
39 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> GRAY THA 		8-97416-960-2 01 1 1110- ●
39 COVER; TRIM,CENTER PILLAR
GRAY THA 		8-97416-960-2 01 1 1110- ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY<154> HIGH RIDE SUSPENSION<7YC> BLACK THA 		8-97423-925-2 01 1 1212- ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY<154> HIGH RIDE SUSPENSION<7YC> BLACK THA 		8-97423-945-2 01 1 1212- ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY<154> EXC. HIGH RIDE SUSPENSION<7YC> BLACK THA 		8-97423-923-2 01 1 1212- ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY<154> EXC. HIGH RIDE SUSPENSION<7YC> BLACK THA 		8-97423-924-2 01 1 1212- ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY<117> HIGH RIDE SUSPENSION<7YC> GRAY THA 		8-97416-679-2 01 1 1109-1109 ●
52 COVER; TRIM,FRT PILLAR
GRAY THA 		8-97416-679-2 01 1 1109-1109 ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY<117> HIGH RIDE SUSPENSION<7YC> GRAY THA 		8-97416-679-2 01 1 1110- ● ●
52 COVER; TRIM,FRT PILLAR
GRAY THA 		8-97416-679-2 01 1 1110- ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY<117> HIGH RIDE SUSPENSION<7YC> GRAY THA 		8-97416-680-2 01 1 1109-1109 ●
52 COVER; TRIM,FRT PILLAR
GRAY THA 		8-97416-680-2 01 1 1109-1109 ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY<117> HIGH RIDE SUSPENSION<7YC> GRAY THA 		8-97416-680-2 01 1 1110- ● ●
52 COVER; TRIM,FRT PILLAR
GRAY THA 		8-97416-680-2 01 1 1110- ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> EXC. HIGH RIDE SUSPENSION<7YC> GRAY THA 		8-97416-677-2 01 1 1109-1109 ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> EXC. HIGH RIDE SUSPENSION<7YC> GRAY THA 		8-97416-677-2 01 1 1110- ● ●
52 COVER; TRIM,FRT PILLAR
GRAY THA 		8-97416-677-2 01 1 1110- ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> EXC. HIGH RIDE SUSPENSION<7YC> GRAY THA 		8-97416-678-2 01 1 1109-1109 ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> EXC. HIGH RIDE SUSPENSION<7YC> GRAY THA 		8-97416-678-2 01 1 1110- ● ●
52 COVER; TRIM,FRT PILLAR
GRAY THA 		8-97416-678-2 01 1 1110- ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-673-3 01 1 1109-1109 ●
55 PAD; TRIM,DASH SIDE
BLACK THA 		8-97416-673-3 01 1 1109-1109 ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-673-3 01 1 1110-1211 ● ●
55 PAD; TRIM,DASH SIDE
BLACK THA 		8-97416-673-3 01 1 1110-1211 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97416-673-3 01 1 1212- ● ●
55 PAD; TRIM,DASH SIDE
BLACK THA 		8-97416-673-3 01 1 1212- ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-675-3 01 1 1109-1109 ●
55 PAD; TRIM,DASH SIDE
BLACK THA 		8-97416-675-3 01 1 1109-1109 ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-675-3 01 1 1110-1203 ● ●
55 PAD; TRIM,DASH SIDE
BLACK THA 		8-97416-675-3 01 1 1110-1203 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97424-004-0 01 1 1204-1211 ● ●
55 PAD; TRIM,DASH SIDE
BLACK THA 		8-97424-004-0 01 1 1204-1211 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97424-004-0 01 1 1212- ● ●
55 PAD; TRIM,DASH SIDE
BLACK THA 		8-97424-004-0 01 1 1212- ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-674-3 01 1 1109-1109 ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-674-3 01 1 1110- ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-676-3 01 1 1109-1109 ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-676-3 01 1 1110-1203 ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97424-005-0 01 1 1204- ● ●
78 CLIP; TRIM PAD,SIDE PANEL
THA 		8-97351-983-0 04 1 1109-1109 ● ●
78 CLIP; TRIM PAD,SIDE PANEL
THA 		8-97351-983-0 04 1 1110- ● ● ● ●
78 CLIP; TRIM PAD,SIDE PANEL
THA 		8-97351-983-0 08 1 1110- ●
78 CLIP; TRIM PAD,SIDE PANEL
THA 		8-97351-983-0 06 1 1110- ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-961-4 01 1 1110-1211 ●
163 COVER; TRIM,CENTER PILLAR,LWR
BLACK THA 		8-97416-961-4 01 1 1110-1211 ●
163 COVER; TRIM,CENTER PILLAR,LWR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97416-961-4 01 1 1212- ●
163 COVER; TRIM,CENTER PILLAR,LWR
BLACK THA 		8-97416-961-4 01 1 1212- ●
163 COVER; TRIM,CENTER PILLAR,LWR
INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-963-4 01 1 1110-1211 ●
163 COVER; TRIM,CENTER PILLAR,LWR
BLACK THA 		8-97416-963-4 01 1 1110-1211 ●
163 COVER; TRIM,CENTER PILLAR,LWR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97416-963-4 01 1 1212- ●
163 COVER; TRIM,CENTER PILLAR,LWR
BLACK THA 		8-97416-963-4 01 1 1212- ●
163 COVER; TRIM,CENTER PILLAR,LWR
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-962-4 01 1 1110- ●
163 COVER; TRIM,CENTER PILLAR,LWR
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-964-4 01 1 1110- ●
178 CLIP; TRIM COVER
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98166-326-0 02 1 1212- ● ● ● ● ●
178 CLIP; TRIM COVER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98166-326-0 02 1 1212- ● ●
178 CLIP; TRIM COVER
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98139-052-0 02 1 1212- ● ● ●
202 SEAL; CENTER PILLAR
(C) OD=52 BLACK THA 		1-76798-041-0 02 1 1109- ● ●
202 SEAL; CENTER PILLAR
(D) THA 		8-97362-561-0 10 1 1109- ● ●
202 SEAL; CENTER PILLAR
(A) THA 		8-98179-381-2 02 1 1109-1109 ● ●
202 SEAL; CENTER PILLAR
(A) THA 		8-98179-381-3 02 1 1110- ● ● ● ● ●
202 SEAL; CENTER PILLAR
(D) THA 		8-97362-561-0 02 1 1110- ●
202 SEAL; CENTER PILLAR
(E) THA 		8-97350-306-0 02 1 1110- ● ● ●
202 SEAL; CENTER PILLAR
(C) OD=25 BLACK THA 		1-76798-019-0 02 1 1110- ● ●
202 SEAL; CENTER PILLAR
(D) THA 		8-97362-561-0 06 1 1110- ● ●
202 SEAL; CENTER PILLAR
(B) THA 		8-97362-563-0 02 1 1110-1401 ● ●
202 SEAL; CENTER PILLAR
(B) THA 		8-98269-733-0 02 1 1402- ● ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR DARK GRAY<117> (A) BLACK THA 		8-97416-703-1 01 1 1109-1211 ●
221 TRIM; SIDE PANEL,LOWER
(A) BLACK THA 		8-97416-703-1 01 1 1109-1211 ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA 		8-97416-703-1 01 1 1212-1310 ●
221 TRIM; SIDE PANEL,LOWER
(A) BLACK THA 		8-97416-703-1 01 1 1212-1310 ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA 		8-97428-384-0 01 1 1311- ●
221 TRIM; SIDE PANEL,LOWER
(A) BLACK THA 		8-97428-384-0 01 1 1311- ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR DARK GRAY<117> (A) BLACK THA 		8-97416-705-1 01 1 1109-1211 ●
221 TRIM; SIDE PANEL,LOWER
(A) BLACK THA 		8-97416-705-1 01 1 1109-1211 ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA 		8-97416-705-1 01 1 1212-1310 ●
221 TRIM; SIDE PANEL,LOWER
(A) BLACK THA 		8-97416-705-1 01 1 1212-1310 ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA 		8-97428-386-0 01 1 1311- ●
221 TRIM; SIDE PANEL,LOWER
(A) BLACK THA 		8-97428-386-0 01 1 1311- ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR BEIGE<120> (A) BEIGE THA 		8-97416-704-1 01 1 1109-1310 ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR BEIGE<120> (A) BEIGE THA 		8-97428-385-0 01 1 1311- ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR BEIGE<120> (A) BEIGE THA 		8-97416-706-1 01 1 1109-1310 ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR BEIGE<120> (A) BEIGE THA 		8-97428-387-0 01 1 1311- ●
221 TRIM; SIDE PANEL,LOWER
(B) BLACK THA 		8-97417-114-3 01 1 1110- ●
221 TRIM; SIDE PANEL,LOWER
(B) BLACK THA 		8-97417-116-3 01 1 1110- ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR DARK GRAY<117> (C) BLACK THA 		8-97416-965-1 01 1 1110-1211 ●
221 TRIM; SIDE PANEL,LOWER
(C) BLACK THA 		8-97416-965-1 01 1 1110-1211 ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (C) BLACK THA 		8-97416-965-1 01 1 1212- ●
221 TRIM; SIDE PANEL,LOWER
(C) BLACK THA 		8-97416-965-1 01 1 1212- ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR DARK GRAY<117> (C) BLACK THA 		8-97416-967-1 01 1 1110-1211 ●
221 TRIM; SIDE PANEL,LOWER
(C) BLACK THA 		8-97416-967-1 01 1 1110-1211 ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (C) BLACK THA 		8-97416-967-1 01 1 1212- ●
221 TRIM; SIDE PANEL,LOWER
(C) BLACK THA 		8-97416-967-1 01 1 1212- ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR BEIGE<120> (C) BEIGE THA 		8-97416-966-1 01 1 1110- ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR BEIGE<120> (C) BEIGE THA 		8-97416-968-1 01 1 1110- ●
230 RETAINER; TRIM
INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-808-0 02 1 1109-1109 ●
230 RETAINER; TRIM
BLACK THA 		8-97416-808-0 02 1 1109-1109 ●
230 RETAINER; TRIM
INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-808-0 02 1 1110-1211 ● ●
230 RETAINER; TRIM
BLACK THA 		8-97416-808-0 02 1 1110-1211 ● ● ●
230 RETAINER; TRIM
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97416-808-0 02 1 1212- ● ●
230 RETAINER; TRIM
BLACK THA 		8-97416-808-0 02 1 1212- ● ● ●
230 RETAINER; TRIM
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-809-0 02 1 1109-1109 ●
230 RETAINER; TRIM
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-809-0 02 1 1110- ● ●

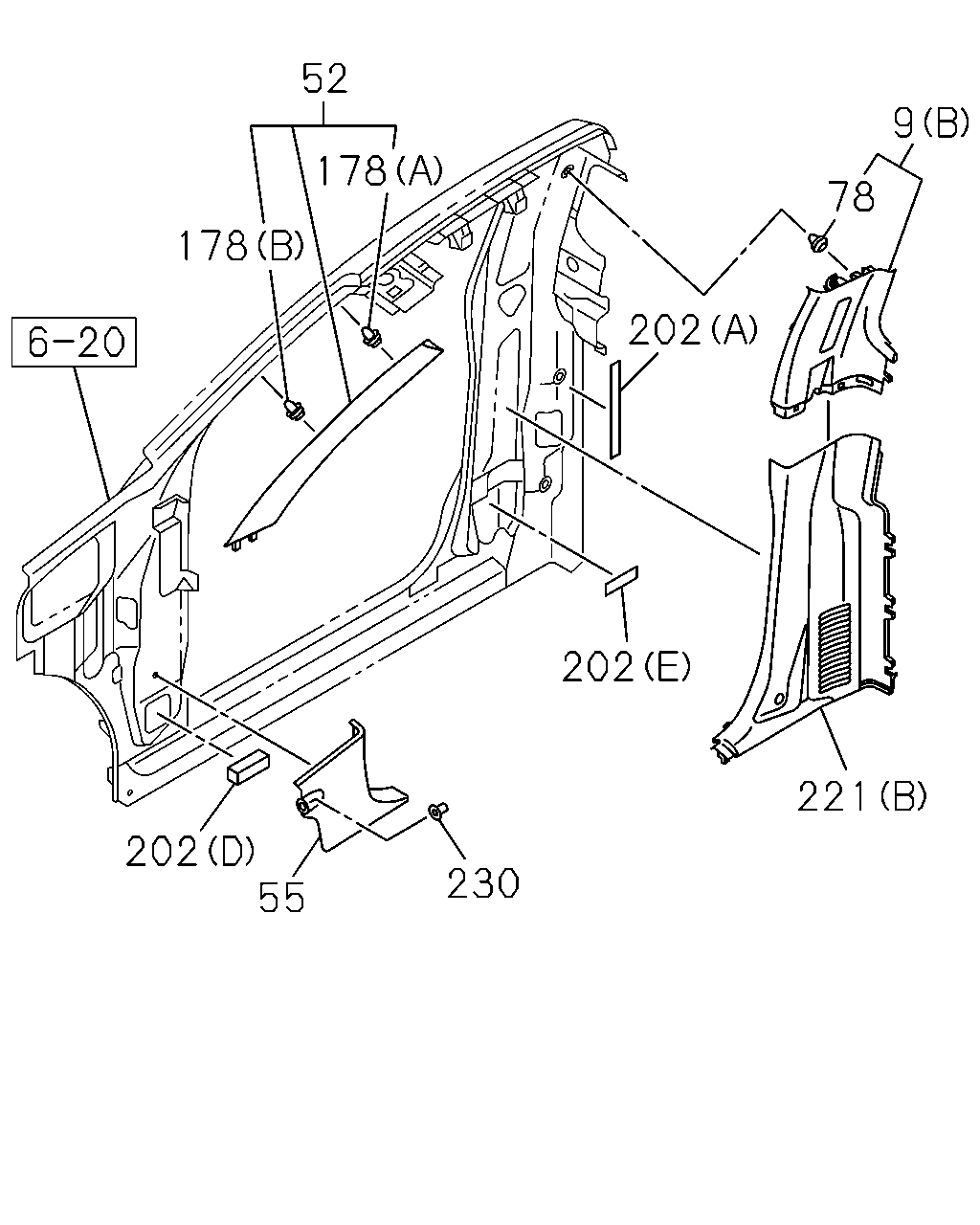

çizim 147238
9 78 202 202 221 230 55 202 178 52 178
BalonParca AdiParca NoAdetTipApplied Date A B C D E
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR DARK GRAY<117> (A) BLACK THA 		8-97416-711-2 01 1 1109-1211 ●
9 TRIM; SIDE PANEL,UPR
(A) BLACK THA 		8-97416-711-2 01 1 1109-1211 ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA 		8-97416-711-2 01 1 1212- ●
9 TRIM; SIDE PANEL,UPR
(A) BLACK THA 		8-97416-711-2 01 1 1212- ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR DARK GRAY<117> (A) BLACK THA 		8-97416-713-2 01 1 1109-1211 ●
9 TRIM; SIDE PANEL,UPR
(A) BLACK THA 		8-97416-713-2 01 1 1109-1211 ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA 		8-97416-713-2 01 1 1212- ●
9 TRIM; SIDE PANEL,UPR
(A) BLACK THA 		8-97416-713-2 01 1 1212- ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR BEIGE<120> (A) BEIGE THA 		8-97416-712-2 01 1 1109- ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR BEIGE<120> (A) BEIGE THA 		8-97416-714-2 01 1 1109- ●
9 TRIM; SIDE PANEL,UPR
(B) BLACK THA 		8-97417-118-1 01 1 1110- ●
9 TRIM; SIDE PANEL,UPR
(B) BLACK THA 		8-97417-120-1 01 1 1110- ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR DARK GRAY<117> (C) BLACK THA 		8-97416-969-0 01 1 1110-1211 ●
9 TRIM; SIDE PANEL,UPR
(C) BLACK THA 		8-97416-969-0 01 1 1110-1211 ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (C) BLACK THA 		8-97416-969-0 01 1 1212- ●
9 TRIM; SIDE PANEL,UPR
(C) BLACK THA 		8-97416-969-0 01 1 1212- ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR DARK GRAY<117> (C) BLACK THA 		8-97416-971-0 01 1 1110-1211 ●
9 TRIM; SIDE PANEL,UPR
(C) BLACK THA 		8-97416-971-0 01 1 1110-1211 ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (C) BLACK THA 		8-97416-971-0 01 1 1212- ●
9 TRIM; SIDE PANEL,UPR
(C) BLACK THA 		8-97416-971-0 01 1 1212- ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR BEIGE<120> (C) BEIGE THA 		8-97416-970-0 01 1 1110- ●
9 TRIM; SIDE PANEL,UPR
INTERIOR COLOR BEIGE<120> (C) BEIGE THA 		8-97416-972-0 01 1 1110- ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY<154> HIGH RIDE SUSPENSION<7YC> BLACK THA 		8-97423-925-2 01 1 1212- ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY<154> HIGH RIDE SUSPENSION<7YC> BLACK THA 		8-97423-945-2 01 1 1212- ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY<154> EXC. HIGH RIDE SUSPENSION<7YC> BLACK THA 		8-97423-923-2 01 1 1212- ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY<154> EXC. HIGH RIDE SUSPENSION<7YC> BLACK THA 		8-97423-924-2 01 1 1212- ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY<117> HIGH RIDE SUSPENSION<7YC> GRAY THA 		8-97416-679-2 01 1 1109-1109 ●
52 COVER; TRIM,FRT PILLAR
GRAY THA 		8-97416-679-2 01 1 1109-1109 ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY<117> HIGH RIDE SUSPENSION<7YC> GRAY THA 		8-97416-679-2 01 1 1110- ● ●
52 COVER; TRIM,FRT PILLAR
GRAY THA 		8-97416-679-2 01 1 1110- ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY<117> HIGH RIDE SUSPENSION<7YC> GRAY THA 		8-97416-680-2 01 1 1109-1109 ●
52 COVER; TRIM,FRT PILLAR
GRAY THA 		8-97416-680-2 01 1 1109-1109 ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY<117> HIGH RIDE SUSPENSION<7YC> GRAY THA 		8-97416-680-2 01 1 1110- ● ●
52 COVER; TRIM,FRT PILLAR
GRAY THA 		8-97416-680-2 01 1 1110- ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> EXC. HIGH RIDE SUSPENSION<7YC> GRAY THA 		8-97416-677-2 01 1 1109-1109 ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> EXC. HIGH RIDE SUSPENSION<7YC> GRAY THA 		8-97416-677-2 01 1 1110- ● ●
52 COVER; TRIM,FRT PILLAR
GRAY THA 		8-97416-677-2 01 1 1110- ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> EXC. HIGH RIDE SUSPENSION<7YC> GRAY THA 		8-97416-678-2 01 1 1109-1109 ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> EXC. HIGH RIDE SUSPENSION<7YC> GRAY THA 		8-97416-678-2 01 1 1110- ● ●
52 COVER; TRIM,FRT PILLAR
GRAY THA 		8-97416-678-2 01 1 1110- ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-673-3 01 1 1109-1109 ●
55 PAD; TRIM,DASH SIDE
BLACK THA 		8-97416-673-3 01 1 1109-1109 ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-673-3 01 1 1110-1211 ● ●
55 PAD; TRIM,DASH SIDE
BLACK THA 		8-97416-673-3 01 1 1110-1211 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97416-673-3 01 1 1212- ● ●
55 PAD; TRIM,DASH SIDE
BLACK THA 		8-97416-673-3 01 1 1212- ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-675-3 01 1 1109-1109 ●
55 PAD; TRIM,DASH SIDE
BLACK THA 		8-97416-675-3 01 1 1109-1109 ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-675-3 01 1 1110-1203 ● ●
55 PAD; TRIM,DASH SIDE
BLACK THA 		8-97416-675-3 01 1 1110-1203 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97424-004-0 01 1 1204-1211 ● ●
55 PAD; TRIM,DASH SIDE
BLACK THA 		8-97424-004-0 01 1 1204-1211 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97424-004-0 01 1 1212- ● ●
55 PAD; TRIM,DASH SIDE
BLACK THA 		8-97424-004-0 01 1 1212- ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-674-3 01 1 1109-1109 ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-674-3 01 1 1110- ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-676-3 01 1 1109-1109 ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-676-3 01 1 1110-1203 ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97424-005-0 01 1 1204- ● ●
78 CLIP; TRIM PAD,SIDE PANEL
THA 		8-97351-983-0 04 1 1109-1109 ● ●
78 CLIP; TRIM PAD,SIDE PANEL
THA 		8-97351-983-0 04 1 1110- ● ● ● ●
78 CLIP; TRIM PAD,SIDE PANEL
THA 		8-97351-983-0 08 1 1110- ●
78 CLIP; TRIM PAD,SIDE PANEL
THA 		8-97351-983-0 06 1 1110- ● ●
178 CLIP; TRIM COVER
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98166-326-0 02 1 1212- ● ● ● ● ●
178 CLIP; TRIM COVER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98166-326-0 02 1 1212- ● ●
178 CLIP; TRIM COVER
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98139-052-0 02 1 1212- ● ● ●
202 SEAL; CENTER PILLAR
(C) OD=52 BLACK THA 		1-76798-041-0 02 1 1109- ● ●
202 SEAL; CENTER PILLAR
(D) THA 		8-97362-561-0 10 1 1109- ● ●
202 SEAL; CENTER PILLAR
(A) THA 		8-98179-381-2 02 1 1109-1109 ● ●
202 SEAL; CENTER PILLAR
(A) THA 		8-98179-381-3 02 1 1110- ● ● ● ● ●
202 SEAL; CENTER PILLAR
(D) THA 		8-97362-561-0 02 1 1110- ●
202 SEAL; CENTER PILLAR
(E) THA 		8-97350-306-0 02 1 1110- ● ● ●
202 SEAL; CENTER PILLAR
(C) OD=25 BLACK THA 		1-76798-019-0 02 1 1110- ● ●
202 SEAL; CENTER PILLAR
(D) THA 		8-97362-561-0 06 1 1110- ● ●
202 SEAL; CENTER PILLAR
(B) THA 		8-97362-563-0 02 1 1110-1401 ● ●
202 SEAL; CENTER PILLAR
(B) THA 		8-98269-733-0 02 1 1402- ● ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR DARK GRAY<117> (A) BLACK THA 		8-97416-703-1 01 1 1109-1211 ●
221 TRIM; SIDE PANEL,LOWER
(A) BLACK THA 		8-97416-703-1 01 1 1109-1211 ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA 		8-97416-703-1 01 1 1212-1310 ●
221 TRIM; SIDE PANEL,LOWER
(A) BLACK THA 		8-97416-703-1 01 1 1212-1310 ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA 		8-97428-384-0 01 1 1311- ●
221 TRIM; SIDE PANEL,LOWER
(A) BLACK THA 		8-97428-384-0 01 1 1311- ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR DARK GRAY<117> (A) BLACK THA 		8-97416-705-1 01 1 1109-1211 ●
221 TRIM; SIDE PANEL,LOWER
(A) BLACK THA 		8-97416-705-1 01 1 1109-1211 ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA 		8-97416-705-1 01 1 1212-1310 ●
221 TRIM; SIDE PANEL,LOWER
(A) BLACK THA 		8-97416-705-1 01 1 1212-1310 ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA 		8-97428-386-0 01 1 1311- ●
221 TRIM; SIDE PANEL,LOWER
(A) BLACK THA 		8-97428-386-0 01 1 1311- ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR BEIGE<120> (A) BEIGE THA 		8-97416-704-1 01 1 1109-1310 ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR BEIGE<120> (A) BEIGE THA 		8-97428-385-0 01 1 1311- ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR BEIGE<120> (A) BEIGE THA 		8-97416-706-1 01 1 1109-1310 ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR BEIGE<120> (A) BEIGE THA 		8-97428-387-0 01 1 1311- ●
221 TRIM; SIDE PANEL,LOWER
(B) BLACK THA 		8-97417-114-3 01 1 1110- ●
221 TRIM; SIDE PANEL,LOWER
(B) BLACK THA 		8-97417-116-3 01 1 1110- ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR DARK GRAY<117> (C) BLACK THA 		8-97416-965-1 01 1 1110-1211 ●
221 TRIM; SIDE PANEL,LOWER
(C) BLACK THA 		8-97416-965-1 01 1 1110-1211 ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (C) BLACK THA 		8-97416-965-1 01 1 1212- ●
221 TRIM; SIDE PANEL,LOWER
(C) BLACK THA 		8-97416-965-1 01 1 1212- ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR DARK GRAY<117> (C) BLACK THA 		8-97416-967-1 01 1 1110-1211 ●
221 TRIM; SIDE PANEL,LOWER
(C) BLACK THA 		8-97416-967-1 01 1 1110-1211 ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (C) BLACK THA 		8-97416-967-1 01 1 1212- ●
221 TRIM; SIDE PANEL,LOWER
(C) BLACK THA 		8-97416-967-1 01 1 1212- ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR BEIGE<120> (C) BEIGE THA 		8-97416-966-1 01 1 1110- ●
221 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR BEIGE<120> (C) BEIGE THA 		8-97416-968-1 01 1 1110- ●
230 RETAINER; TRIM
INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-808-0 02 1 1109-1109 ●
230 RETAINER; TRIM
BLACK THA 		8-97416-808-0 02 1 1109-1109 ●
230 RETAINER; TRIM
INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-808-0 02 1 1110-1211 ● ●
230 RETAINER; TRIM
BLACK THA 		8-97416-808-0 02 1 1110-1211 ● ● ●
230 RETAINER; TRIM
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97416-808-0 02 1 1212- ● ●
230 RETAINER; TRIM
BLACK THA 		8-97416-808-0 02 1 1212- ● ● ●
230 RETAINER; TRIM
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-809-0 02 1 1109-1109 ●
230 RETAINER; TRIM
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-809-0 02 1 1110- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
