◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#81745) — 99 parça

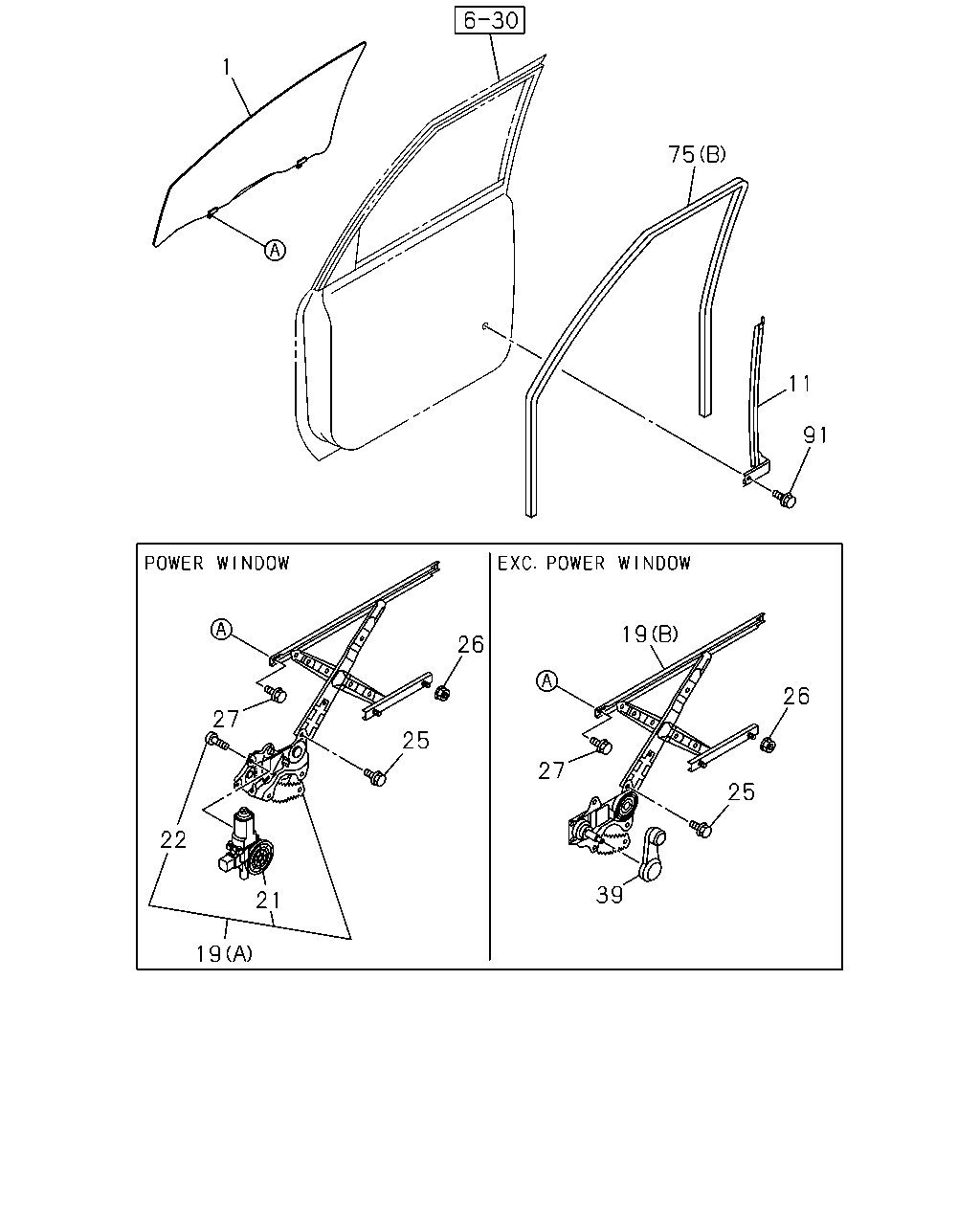

çizim 147216
19 21 22 27 25 26 27 19 26 25 39 91 11 75 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 GLASS; FRT DOOR
THA 		8-98073-843-2 01 1 1109-1109 ● ●
1 GLASS; FRT DOOR
THA 		8-98073-843-2 01 1 1110- ● ● ● ● ●
1 GLASS; FRT DOOR
THA 		8-98073-844-2 01 1 1109-1109 ● ●
1 GLASS; FRT DOOR
THA 		8-98073-844-2 01 1 1110- ● ● ● ● ●
11 RAIL; RR GUIDE,FRT DOOR
PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98100-794-6 01 1 1212- ● ●
11 RAIL; RR GUIDE,FRT DOOR
THA 		8-98100-792-5 01 1 1109-1109 ● ●
11 RAIL; RR GUIDE,FRT DOOR
THA 		8-98100-792-5 01 1 1110-1211 ● ● ● ● ●
11 RAIL; RR GUIDE,FRT DOOR
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98100-792-5 01 1 1212-1305 ● ●
11 RAIL; RR GUIDE,FRT DOOR
THA 		8-98100-792-5 01 1 1212-1305 ● ● ●
11 RAIL; RR GUIDE,FRT DOOR
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA 		8-98100-792-5 01 1 1306- ● ● ●
11 RAIL; RR GUIDE,FRT DOOR
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTECONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,REM OTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98100-792-5 01 1 1306- ● ●
11 RAIL; RR GUIDE,FRT DOOR
EXC. REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH B CM<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98100-792-5 01 1 1306- ●
11 RAIL; RR GUIDE,FRT DOOR
THA 		8-98100-792-5 01 1 1306- ● ●
11 RAIL; RR GUIDE,FRT DOOR
THA 		8-98100-793-5 01 1 1109-1109 ● ●
11 RAIL; RR GUIDE,FRT DOOR
THA 		8-98100-793-5 01 1 1110- ● ● ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW SAFETY DOOR<ABZ> (A) THA 		8-98093-555-1 01 1 1109-1109 ● ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW SAFETY DOOR<ABZ> (A) THA 		8-98093-555-1 01 1 1110- ● ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> (A) THA 		8-98093-554-1 01 1 1109-1109 ● ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> (A) THA 		8-98093-554-1 01 1 1110- ● ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW<A31> (A) THA 		8-98093-554-1 01 1 1110- ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW<A31> (A) THA 		8-98093-553-1 01 1 1109-1109 ● ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW<A31> (A) THA 		8-98093-553-1 01 1 1110- ● ● ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> (B) THA 		8-98093-551-1 01 1 1109-1109 ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> (B) THA 		8-98093-551-1 01 1 1110- ● ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A31> (B) THA 		8-98093-551-1 01 1 1110- ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> (B) THA 		8-98093-552-1 01 1 1109-1109 ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> (B) THA 		8-98093-552-1 01 1 1110- ● ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A31> (B) THA 		8-98093-552-1 01 1 1110- ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW SAFETY DOOR<ABZ> THA 		8-98160-725-0 01 1 1110- ● ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> THA 		8-98160-724-0 01 1 1110- ● ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A31> THA 		8-98160-724-0 01 1 1110- ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A31> THA 		8-98160-723-0 01 1 1110- ● ● ● ● ●
22 SCREW; POWER WINDOW MOTOR
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> THA 		8-98195-236-0 03 1 1110- ● ● ● ●
22 SCREW; POWER WINDOW MOTOR
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> THA 		8-98195-236-0 03 1 1110- ● ● ● ●
22 SCREW; POWER WINDOW MOTOR
POWER WINDOW<A31> THA 		8-98195-236-0 03 1 1110- ●
22 SCREW; POWER WINDOW MOTOR
POWER WINDOW<A31> THA 		8-98195-236-0 03 1 1110- ●
25 BOLT; WINDOW REG
M6X10 FLANGE THA 		8-98188-381-0 06 1 1109-1109 ● ●
25 BOLT; WINDOW REG
M6X10 FLANGE THA 		8-98188-381-0 06 1 1110-1211 ● ● ● ● ●
25 BOLT; WINDOW REG
M6X10 FLANGE THA 		8-98188-381-0 06 1 1212- ● ● ● ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE THA 		8-98049-362-0 04 1 1109-1109 ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE THA 		8-98049-362-0 04 1 1110-1211 ● ● ● ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE THA 		8-98049-362-0 04 1 1212- ● ● ● ● ●
27 BOLT; GLASS FIX
M6X10 FLANGE THA 		8-98188-381-0 04 1 1109-1109 ● ●
27 BOLT; GLASS FIX
M6X10 FLANGE THA 		8-98188-381-0 04 1 1110-1211 ● ● ● ● ●
27 BOLT; GLASS FIX
M6X10 FLANGE THA 		8-98188-381-0 04 1 1212- ● ● ● ● ●
39 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR DARK GRAY<117> EXC. POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> BLACK THA 		8-97416-724-0 02 1 1109-1109 ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> BLACK THA 		8-97416-724-0 02 1 1109-1109 ●
39 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR DARK GRAY<117> EXC. POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> BLACK THA 		8-97416-724-0 02 1 1110- ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> BLACK THA 		8-97416-724-0 02 1 1110- ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A31> BLACK THA 		8-97416-724-0 02 1 1110- ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98101-047-8 01 1 1109-1401 ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98271-455-0 01 1 1402-1405 ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98282-672-0 01 1 1406- ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98101-048-8 01 1 1109-1401 ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98271-456-0 01 1 1402-1405 ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98282-673-0 01 1 1406- ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98052-193-4 01 1 1110-1401 ● ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98271-453-0 01 1 1402-1405 ● ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98282-670-1 01 1 1406- ● ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98052-194-4 01 1 1110-1401 ● ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98271-454-0 01 1 1402-1405 ● ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98282-671-1 01 1 1406- ● ● ●
75 WEATHERSTRIP; FRT DOOR
(B) THA 		8-98052-199-9 01 1 1109-1109 ● ●
75 WEATHERSTRIP; FRT DOOR
(B) THA 		8-98052-199-9 01 1 1110- ● ● ● ● ●
75 WEATHERSTRIP; FRT DOOR
(B) THA 		8-98052-200-9 01 1 1109-1109 ● ●
75 WEATHERSTRIP; FRT DOOR
(B) THA 		8-98052-200-9 01 1 1110- ● ● ● ● ●
75 WEATHERSTRIP; FRT DOOR
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> (C) THA 		8-98120-713-0 01 1 1109- ● ●
75 WEATHERSTRIP; FRT DOOR
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> (C) THA 		8-98120-714-0 01 1 1109- ● ●
75 WEATHERSTRIP; FRT DOOR
(C) THA 		8-98165-107-0 01 1 1110- ● ●
75 WEATHERSTRIP; FRT DOOR
(C) THA 		8-98165-108-0 01 1 1110- ● ●
91 BOLT; GUIDE RAIL TO DOOR
M6X8 FLANGE THA 		8-98048-996-0 02 1 1109-1109 ● ●
91 BOLT; GUIDE RAIL TO DOOR
M6X8 FLANGE THA 		8-98048-996-0 02 1 1110- ● ● ● ● ●

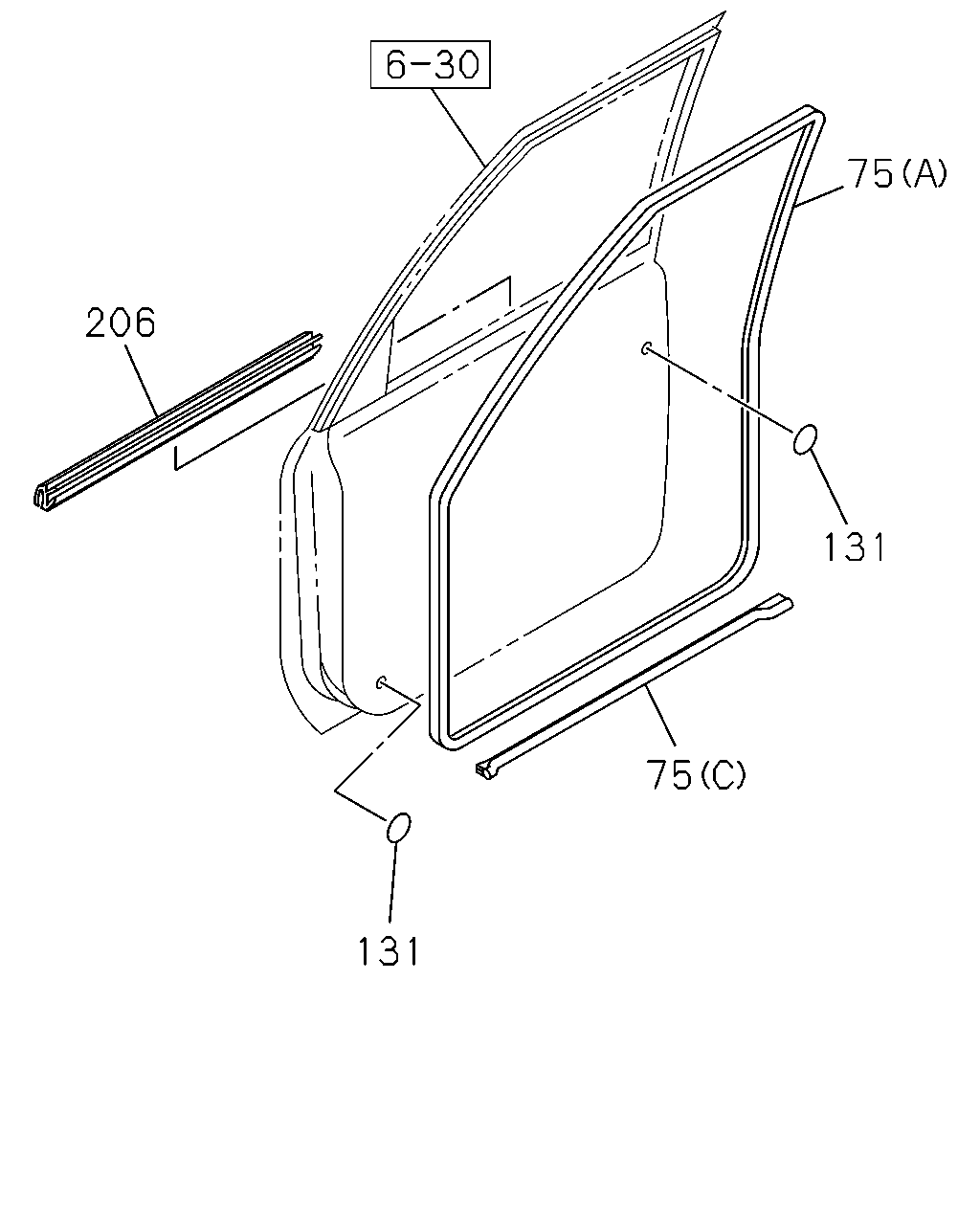

çizim 147225
131 75 131 75 206
BalonParca AdiParca NoAdetTipApplied Date A B C D E
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98101-047-8 01 1 1109-1401 ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98271-455-0 01 1 1402-1405 ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98282-672-0 01 1 1406- ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98101-048-8 01 1 1109-1401 ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98271-456-0 01 1 1402-1405 ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98282-673-0 01 1 1406- ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98052-193-4 01 1 1110-1401 ● ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98271-453-0 01 1 1402-1405 ● ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98282-670-1 01 1 1406- ● ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98052-194-4 01 1 1110-1401 ● ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98271-454-0 01 1 1402-1405 ● ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98282-671-1 01 1 1406- ● ● ●
75 WEATHERSTRIP; FRT DOOR
(B) THA 		8-98052-199-9 01 1 1109-1109 ● ●
75 WEATHERSTRIP; FRT DOOR
(B) THA 		8-98052-199-9 01 1 1110- ● ● ● ● ●
75 WEATHERSTRIP; FRT DOOR
(B) THA 		8-98052-200-9 01 1 1109-1109 ● ●
75 WEATHERSTRIP; FRT DOOR
(B) THA 		8-98052-200-9 01 1 1110- ● ● ● ● ●
75 WEATHERSTRIP; FRT DOOR
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> (C) THA 		8-98120-713-0 01 1 1109- ● ●
75 WEATHERSTRIP; FRT DOOR
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> (C) THA 		8-98120-714-0 01 1 1109- ● ●
75 WEATHERSTRIP; FRT DOOR
(C) THA 		8-98165-107-0 01 1 1110- ● ●
75 WEATHERSTRIP; FRT DOOR
(C) THA 		8-98165-108-0 01 1 1110- ● ●
131 SEAL; FRT DOOR
OD=25 BLACK THA 		1-76798-019-0 04 1 1109-1109 ● ●
131 SEAL; FRT DOOR
OD=25 BLACK THA 		1-76798-019-0 04 1 1110-1211 ● ● ● ● ●
131 SEAL; FRT DOOR
OD=25 BLACK THA 		1-76798-019-0 04 1 1212- ● ● ● ● ●
206 WEATHERSTRIP; FRT DOOR GLASS
THA 		8-98052-197-2 01 1 1109-1109 ● ●
206 WEATHERSTRIP; FRT DOOR GLASS
THA 		8-98052-197-2 01 1 1110- ● ● ● ● ●
206 WEATHERSTRIP; FRT DOOR GLASS
THA 		8-98052-198-2 01 1 1109-1109 ● ●
206 WEATHERSTRIP; FRT DOOR GLASS
THA 		8-98052-198-2 01 1 1110- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
