6-30 — FRONT DOOR AND HINGE (#81744) — 41 parça

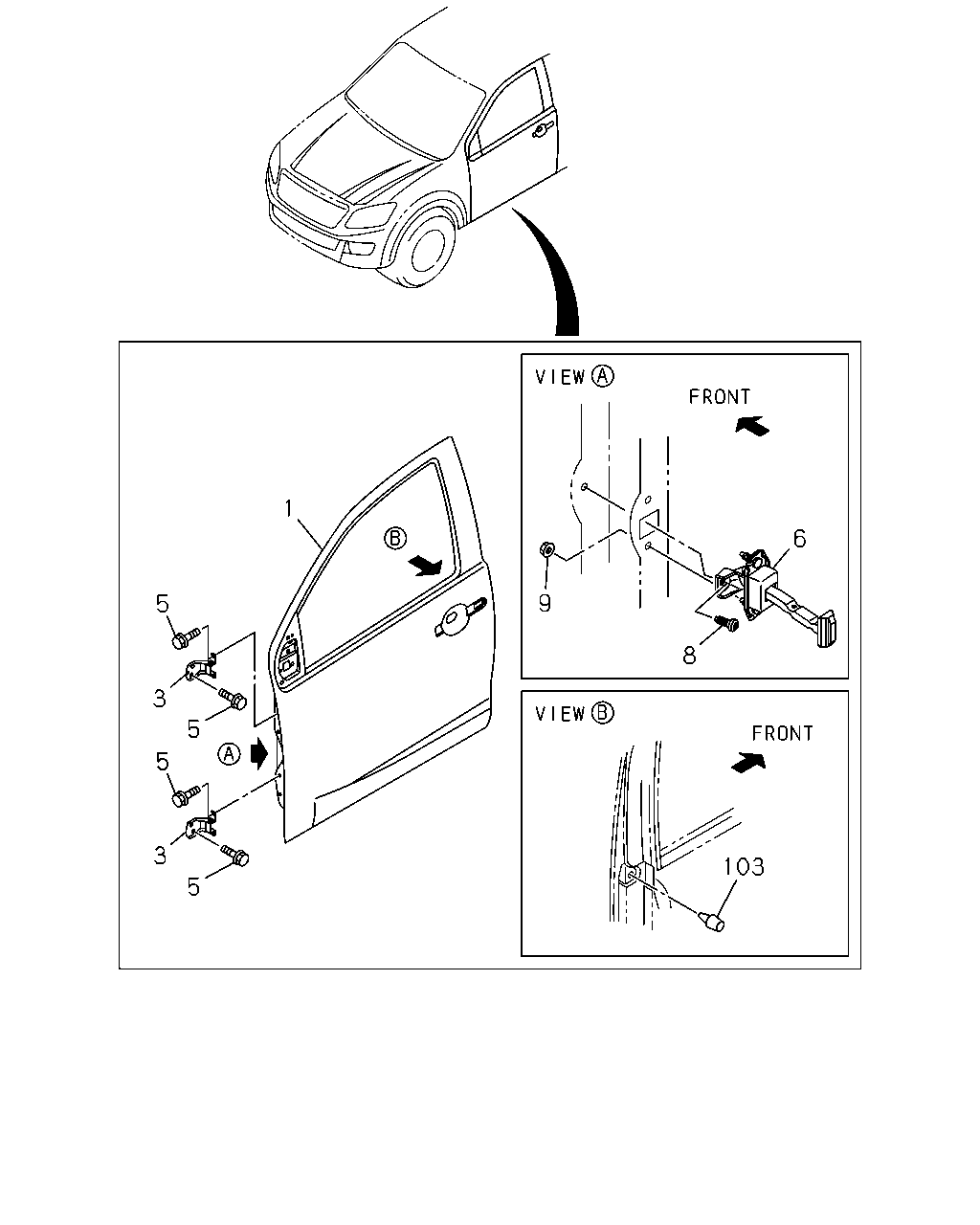

çizim 147202
1 5 3 5 5 3 5 9 8 6 103
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 DOOR ASM; FRT,WO/TRIM
THA 		8-98162-202-2 01 1 1110-1503 ●
1 DOOR ASM; FRT,WO/TRIM
THA 		8-98268-843-0 01 1 1504- ●
1 DOOR ASM; FRT,WO/TRIM
THA 		8-98162-203-2 01 1 1110-1503 ●
1 DOOR ASM; FRT,WO/TRIM
THA 		8-98268-842-0 01 1 1504- ●
1 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> THA 		8-98162-198-1 01 1 1109-1109 ● ●
1 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> THA 		8-98162-198-2 01 1 1110-1503 ● ● ●
1 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> THA 		8-98268-847-0 01 1 1504- ● ● ●
1 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> THA 		8-98162-199-1 01 1 1109-1109 ● ●
1 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> THA 		8-98162-199-2 01 1 1110-1503 ● ● ●
1 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> THA 		8-98268-846-0 01 1 1504- ● ● ●
1 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> THA 		8-98162-200-1 01 1 1109-1109 ● ●
1 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> THA 		8-98162-200-1 01 1 1110-1211 ● ● ●
1 DOOR ASM; FRT,WO/TRIM
THA 		8-98162-200-1 01 1 1110-1211 ●
1 DOOR ASM; FRT,WO/TRIM
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-98162-200-2 01 1 1212-1503 ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-98268-845-0 01 1 1504- ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> THA 		8-98162-201-1 01 1 1109-1109 ● ●
1 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> THA 		8-98162-201-1 01 1 1110-1211 ● ● ●
1 DOOR ASM; FRT,WO/TRIM
THA 		8-98162-201-1 01 1 1110-1211 ●
1 DOOR ASM; FRT,WO/TRIM
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-98162-201-2 01 1 1212-1503 ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-98268-844-0 01 1 1504- ● ● ● ●
3 HINGE; DOOR FRT
UPR RH & LWR LH THA 		8-98105-296-0 02 1 1109-1109 ● ●
3 HINGE; DOOR FRT
UPR RH & LWR LH THA 		8-98105-296-0 02 1 1110- ● ● ● ● ●
3 HINGE; DOOR FRT
LWR RH & UPR LH THA 		8-98105-297-0 02 1 1109-1109 ● ●
3 HINGE; DOOR FRT
LWR RH & UPR LH THA 		8-98105-297-0 02 1 1110- ● ● ● ● ●
5 BOLT; HINGE
M8X23 FLANGE THA 		8-98005-842-0 08 1 1109-1109 ● ●
5 BOLT; HINGE
M8X23 FLANGE THA 		8-98005-842-0 08 1 1109-1109 ● ●
5 BOLT; HINGE
M8X23 FLANGE THA 		8-98005-842-0 08 1 1110- ● ● ● ● ●
5 BOLT; HINGE
M8X23 FLANGE THA 		8-98005-842-0 08 1 1110- ● ● ● ● ●
6 ARM; CHECK,FRT DOOR
THA 		8-98103-030-5 02 1 1109-1109 ● ●
6 ARM; CHECK,FRT DOOR
THA 		8-98103-030-5 02 1 1110- ● ● ● ● ●
8 BOLT; CHECK ARM
M8X23 THA 		8-98062-206-0 02 1 1109-1109 ● ●
8 BOLT; CHECK ARM
M8X23 THA 		8-98062-206-0 02 1 1110-1110 ● ● ● ● ●
8 BOLT; CHECK ARM
M8X23 THA 		8-98166-694-0 02 1 1111-1211 ● ● ● ● ●
8 BOLT; CHECK ARM
M8X23 THA 		8-98166-694-0 02 1 1212- ● ● ● ● ●
9 NUT; CHECK ARM
M6 FLANGE THA 		8-98049-362-0 04 1 1109-1109 ● ●
9 NUT; CHECK ARM
M6 FLANGE THA 		8-98049-362-0 04 1 1110-1211 ● ● ● ● ●
9 NUT; CHECK ARM
M6 FLANGE THA 		8-98049-362-0 04 1 1212- ● ● ● ● ●
103 PROTECTOR; FRT DOOR
THA 		8-98202-864-0 04 1 1109-1109 ● ●
103 PROTECTOR; FRT DOOR
THA 		8-98202-864-0 04 1 1110- ● ● ● ● ●

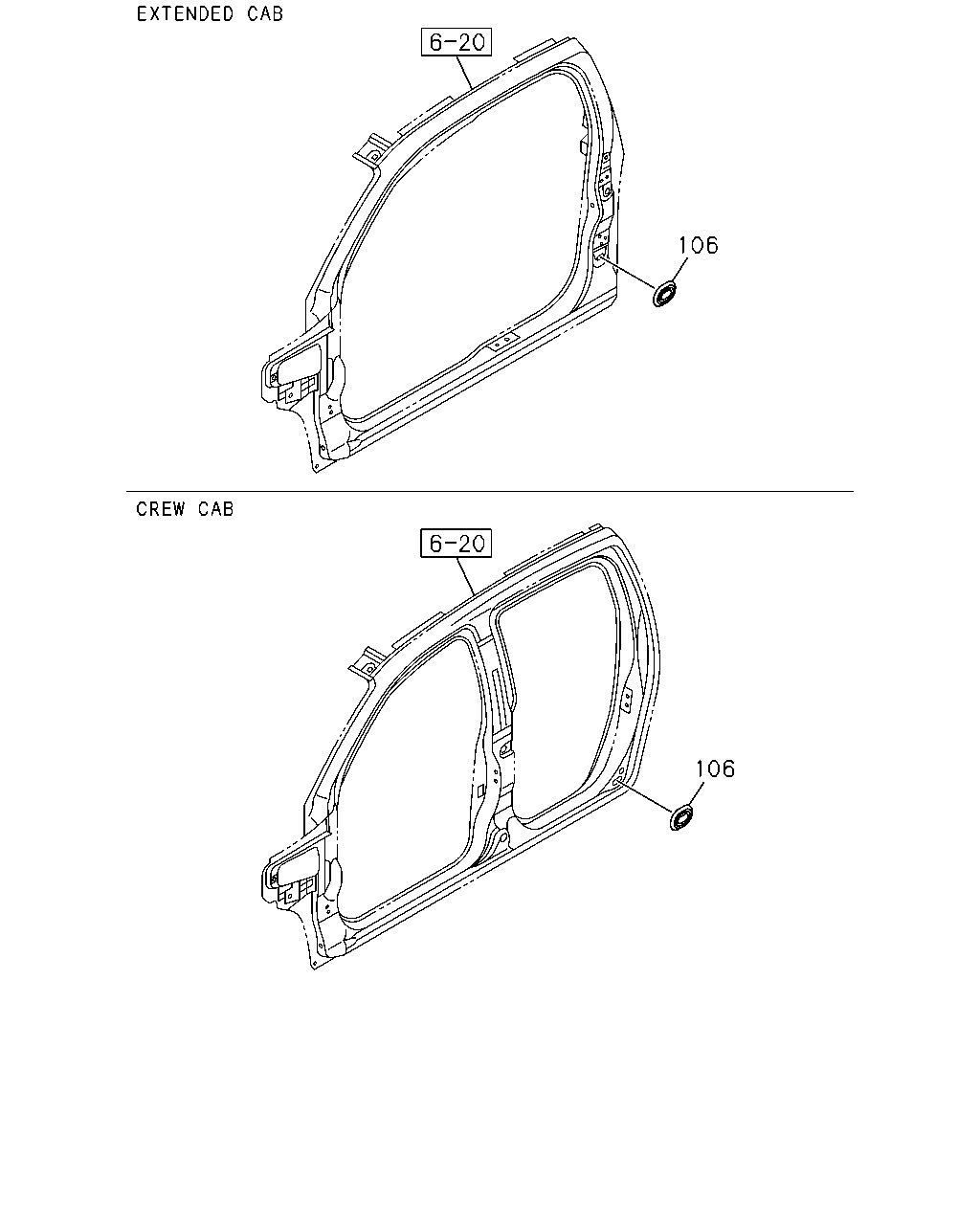

çizim 147211
106 106
BalonParca AdiParca NoAdetTipApplied Date A B C D E
106 GROMMET; PROTECTOR
THA 		8-94279-724-0 02 1 1109-1109 ● ●
106 GROMMET; PROTECTOR
THA 		8-94279-724-0 02 1 1110- ● ● ● ●
