Sayfa 6-20 - Isuzu EPC

6-20 — SIDE PANEL AND STEP (#81743) — 329 parça

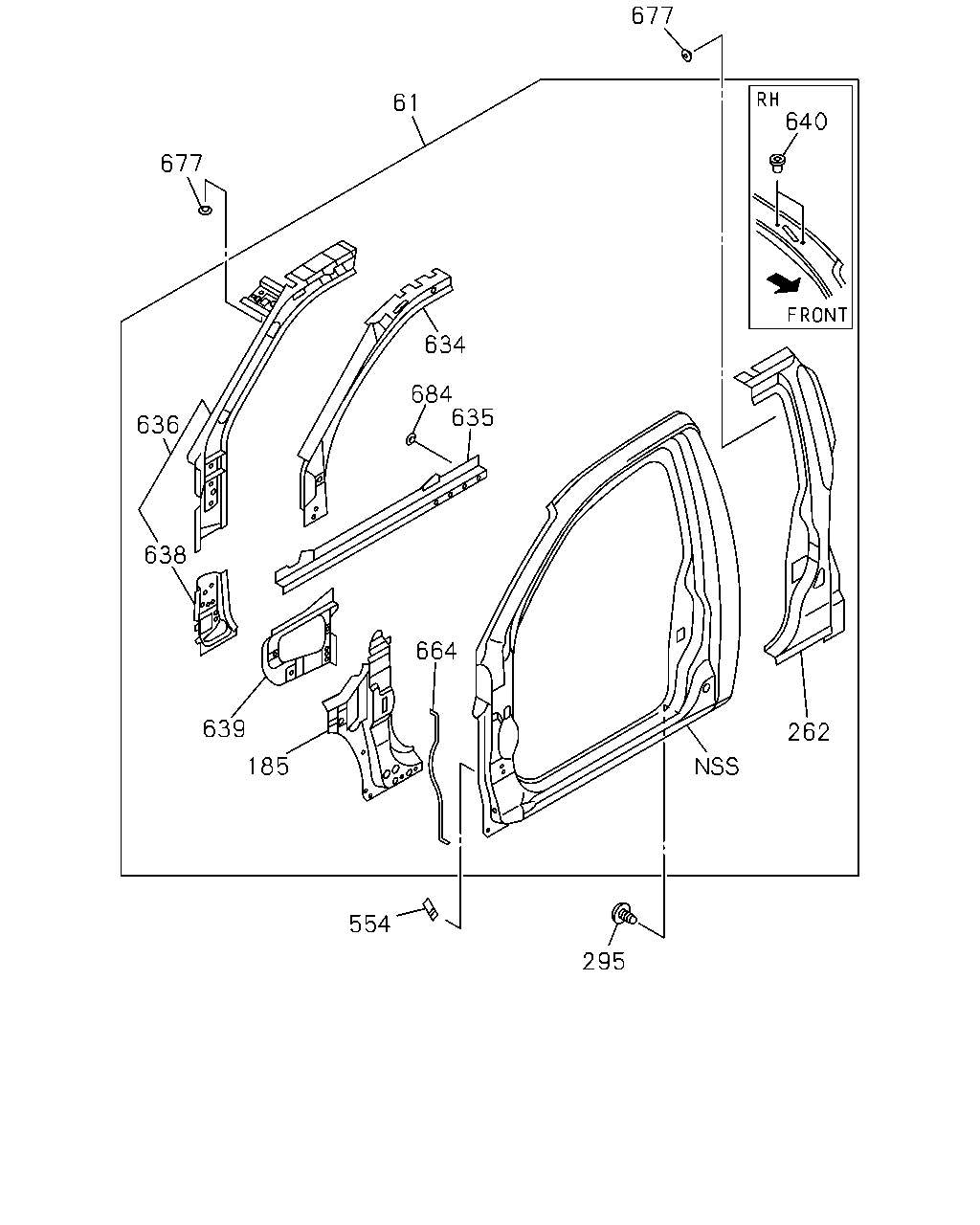

677 61 677 640 634 684 636 638 639 185 664 635 554 295 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
61	PANEL; SIDE OUTER THA	8-98103-246-5	01	1	1109-	●	●
61	PANEL; SIDE OUTER ROOF RADIO ANTENNA<U71> THA	8-98103-240-2	01	1	1109-1211	●	●
61	PANEL; SIDE OUTER ROOF RADIO ANTENNA<U71> THA	8-98103-240-5	01	1	1212-	●	●
61	PANEL; SIDE OUTER RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. ROOF RADIO ANTENNA<U71> THA	8-98103-240-5	01	1	1212-	●	●
61	PANEL; SIDE OUTER EXC. ROOF RADIO ANTENNA<U71> THA	8-98103-243-2	01	1	1109-1211	●	●
61	PANEL; SIDE OUTER RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO DELETE<UL5>,RADIO AM/FM STEREO,CD,MP3,DVD, CLOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. ROOF RADIO ANTENNA<U71> THA	8-98103-243-5	01	1	1212-	●	●
61	PANEL; SIDE OUTER THA	8-98160-817-5	01	1	1110-			●
61	PANEL; SIDE OUTER THA	8-98160-830-5	01	1	1110-			●
61	PANEL; SIDE OUTER INTERIOR DELUXE<RBB> THA	8-98160-819-1	01	1	1110-1211				●
61	PANEL; SIDE OUTER INTERIOR DELUXE<RBB> RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA	8-98160-819-6	01	1	1212-				●
61	PANEL; SIDE OUTER INTERIOR DELUXE<RBB> THA	8-98160-831-6	01	1	1110-				●
61	PANEL; SIDE OUTER INTERIOR CUSTOM<RBD> THA	8-98160-824-6	01	1	1110-				●
61	PANEL; SIDE OUTER THA	8-98160-824-6	01	1	1110-					●
61	PANEL; SIDE OUTER INTERIOR CUSTOM<RBD> THA	8-98160-832-6	01	1	1110-				●
61	PANEL; SIDE OUTER THA	8-98160-832-6	01	1	1110-					●
185	REINFORCEMENT; SIDE INNER LWR THA	8-98104-094-2	01	1	1109-1109	●	●
185	REINFORCEMENT; SIDE INNER LWR THA	8-98104-094-2	01	1	1110-	●	●	●	●	●
185	REINFORCEMENT; SIDE INNER LWR THA	8-98104-095-2	01	1	1109-1109	●	●
185	REINFORCEMENT; SIDE INNER LWR THA	8-98104-095-2	01	1	1110-	●	●	●	●	●
262	PANEL; PILLAR THA	8-98104-375-9	01	1	1110-1408			●
262	PANEL; PILLAR THA	8-98269-897-0	01	1	1409-			●
262	PANEL; PILLAR THA	8-98192-993-1	01	1	1110-			●
295	CLIP; BODY SIDE STEP EXC. SIDE STEP FIXED ON BODY<6TC> OD=18 THA	8-94269-290-0	06	1	1109-1109	●	●
295	CLIP; BODY SIDE STEP EXC. SIDE STEP FIXED ON BODY<6TC> OD=18 THA	8-94269-290-0	06	1	1110-	●	●		●
295	CLIP; BODY SIDE STEP OD=18 THA	8-94269-290-0	04	1	1110-			●
554	SEAL; INNER BODY 115X25 THA	8-98178-886-0	02	1	1109-1109	●	●
554	SEAL; INNER BODY 115X25 THA	8-98178-886-0	02	1	1110-	●	●	●	●	●
634	REINFORCEMENT; BODY SIDE INNER THA	8-98104-071-1	01	1	1109-1109	●	●
634	REINFORCEMENT; BODY SIDE INNER THA	8-98104-071-2	01	1	1110-	●	●	●	●	●
634	REINFORCEMENT; BODY SIDE INNER THA	8-98104-072-1	01	1	1109-1109	●	●
634	REINFORCEMENT; BODY SIDE INNER THA	8-98104-072-2	01	1	1110-	●	●	●	●	●
635	REINFORCEMENT; ROCKER THA	8-98161-098-1	01	1	1109-	●	●
635	REINFORCEMENT; ROCKER THA	8-98161-099-1	01	1	1109-	●	●
635	REINFORCEMENT; ROCKER THA	8-98161-043-1	01	1	1110-			●
635	REINFORCEMENT; ROCKER THA	8-98161-047-1	01	1	1110-			●
635	REINFORCEMENT; ROCKER THA	8-98161-050-2	01	1	1110-				●	●
635	REINFORCEMENT; ROCKER THA	8-98161-051-2	01	1	1110-				●	●
636	PANEL; FRONT PILLAR INNER THA	8-98161-087-4	01	1	1109-1109	●	●
636	PANEL; FRONT PILLAR INNER THA	8-98161-087-7	01	1	1110-	●	●	●	●	●
636	PANEL; FRONT PILLAR INNER THA	8-98161-090-4	01	1	1109-1109	●	●
636	PANEL; FRONT PILLAR INNER THA	8-98161-090-7	01	1	1110-	●	●	●	●	●
638	PANEL; DASH SIDE INNER THA	8-98104-640-3	01	1	1109-1109	●	●
638	PANEL; DASH SIDE INNER THA	8-98104-640-5	01	1	1110-	●	●	●	●	●
638	PANEL; DASH SIDE INNER THA	8-98104-641-3	01	1	1109-1109	●	●
638	PANEL; DASH SIDE INNER THA	8-98104-641-5	01	1	1110-	●	●	●	●	●
639	REINFORCEMENT; COWL SIDE THA	8-98104-055-0	01	1	1109-1109	●	●
639	REINFORCEMENT; COWL SIDE THA	8-98104-055-0	01	1	1110-	●	●	●	●	●
639	REINFORCEMENT; COWL SIDE THA	8-98185-421-0	01	1	1109-1109	●	●
639	REINFORCEMENT; COWL SIDE THA	8-98185-421-0	01	1	1110-	●	●	●	●	●
640	POP NUT EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT THA	8-97249-574-0	02	1	1109-1109	●	●
640	POP NUT EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT THA	8-97249-574-0	02	1	1110-	●	●		●
640	POP NUT M5 POP NUT THA	8-97249-574-0	02	1	1110-			●
664	SEAL; TAPE THA	8-98193-408-0	01	1	1109-1109	●	●
664	SEAL; TAPE THA	8-98193-408-0	01	1	1109-1109	●	●
664	SEAL; TAPE THA	8-98193-408-0	01	1	1110-	●	●	●	●	●
664	SEAL; TAPE THA	8-98193-408-0	01	1	1110-	●	●	●	●	●
677	RIVET; PANEL THA	8-98057-864-0	16	1	1109-1109	●	●
677	RIVET; PANEL THA	8-98057-864-0	16	1	1110-	●	●	●	●	●
684	FASTENER THA	8-98057-864-0	07	1	1110-			●
684	FASTENER THA	8-98057-864-0	07	1	1110-			●
684	FASTENER THA	8-98057-864-0	10	1	1110-				●	●
684	FASTENER THA	8-98057-864-0	10	1	1110-				●	●
684	FASTENER THA	8-98057-864-0	11	1	1109-	●	●
684	FASTENER THA	8-98057-864-0	11	1	1109-	●	●

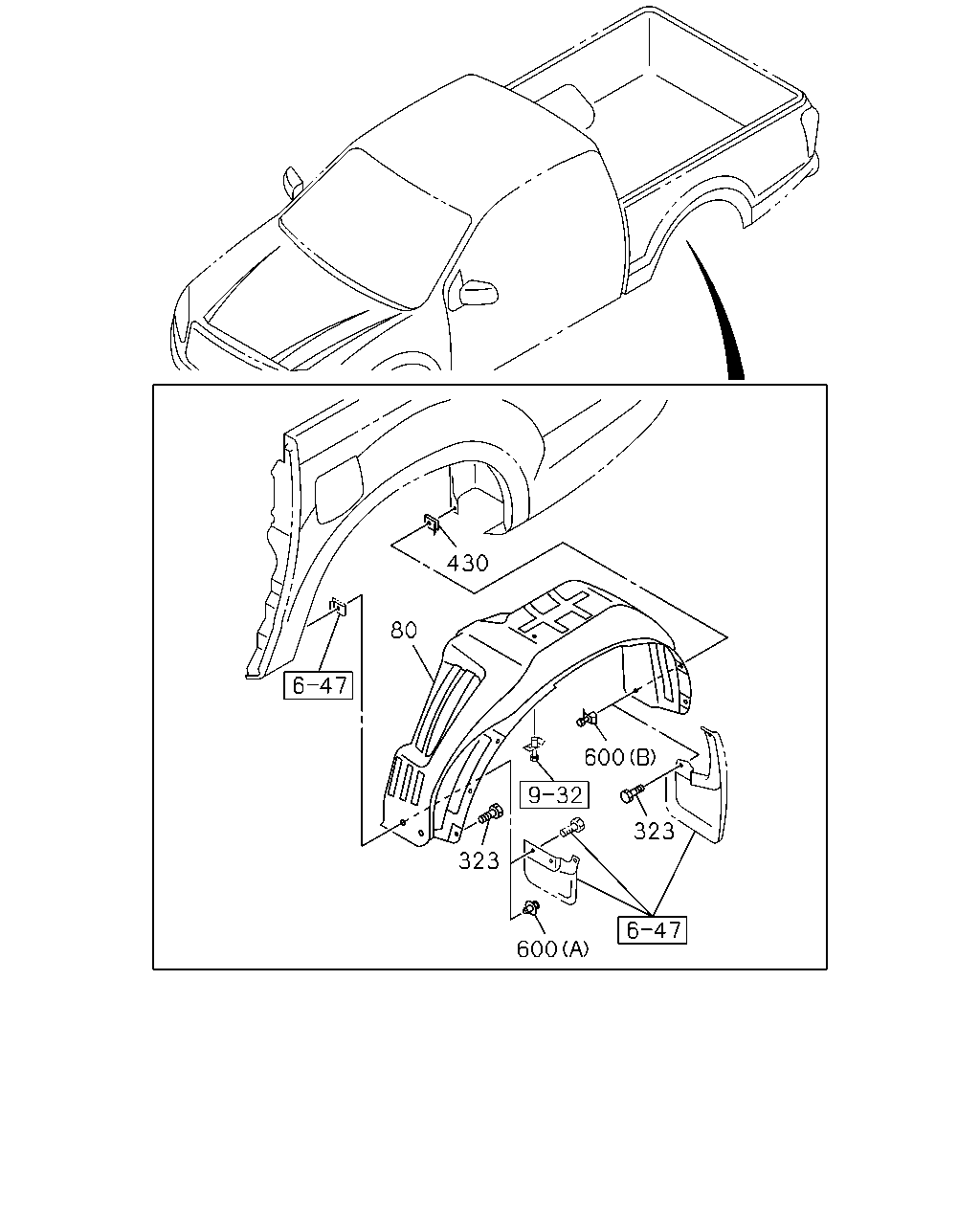

430 80 600 323 600 323

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
80	PANEL; WHEEL HOUSE,INNER HIGH RIDE SUSPENSION<7YC> THA	8-98148-032-4	01	1	1109-1109	●
80	PANEL; WHEEL HOUSE,INNER THA	8-98148-032-4	01	1	1109-1109		●
80	PANEL; WHEEL HOUSE,INNER HIGH RIDE SUSPENSION<7YC> THA	8-98148-032-4	01	1	1110-	●			●
80	PANEL; WHEEL HOUSE,INNER THA	8-98148-032-4	01	1	1110-		●			●
80	PANEL; WHEEL HOUSE,INNER HIGH RIDE SUSPENSION<7YC> THA	8-98148-034-4	01	1	1109-1109	●
80	PANEL; WHEEL HOUSE,INNER THA	8-98148-034-4	01	1	1109-1109		●
80	PANEL; WHEEL HOUSE,INNER HIGH RIDE SUSPENSION<7YC> THA	8-98148-034-4	01	1	1110-	●			●
80	PANEL; WHEEL HOUSE,INNER THA	8-98148-034-4	01	1	1110-		●			●
80	PANEL; WHEEL HOUSE,INNER EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98148-027-2	01	1	1109-1109	●
80	PANEL; WHEEL HOUSE,INNER EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98148-027-2	01	1	1110-	●			●
80	PANEL; WHEEL HOUSE,INNER REAR BODY DBL WALL CTR PULL<E63> THA	8-98148-027-2	01	1	1110-			●
80	PANEL; WHEEL HOUSE,INNER EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98148-028-2	01	1	1109-1109	●
80	PANEL; WHEEL HOUSE,INNER EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98148-028-2	01	1	1110-	●			●
80	PANEL; WHEEL HOUSE,INNER REAR BODY DBL WALL CTR PULL<E63> THA	8-98148-028-2	01	1	1110-			●
323	SCREW; SET M6X20 TAPPING W/PL WASHER THA	8-98167-444-0	06	1	1109-1109	●	●
323	SCREW; SET M6X20 TAPPING W/PL WASHER THA	8-98167-444-0	06	1	1110-1211	●	●		●	●
323	SCREW; SET REAR BODY DBL WALL CTR PULL<E63> M6X20 TAPPING W/PL WASHER THA	8-98167-444-0	06	1	1110-1211			●
323	SCREW; SET FORMED MUD FLAP FRT & RR<Q8H> M6X20 TAPPING W/PL WASHER THA	8-98167-444-0	06	1	1212-1408	●
323	SCREW; SET M6X20 TAPPING W/PL WASHER THA	8-98167-444-0	06	1	1212-1408		●		●	●
323	SCREW; SET REAR BODY DBL WALL CTR PULL<E63> M6X20 TAPPING W/PL WASHER THA	8-98167-444-0	06	1	1212-1408			●
323	SCREW; SET FORMED MUD FLAP FRT & RR<Q8H> EXC. SALES PACKAGE SPORTY<XK0> M6X20 TAPPING W/PL WASHER THA	8-98167-444-0	06	1	1409-	●
323	SCREW; SET M6X20 TAPPING W/PL WASHER THA	8-98167-444-0	06	1	1409-		●			●
323	SCREW; SET REAR BODY DBL WALL CTR PULL<E63> M6X20 TAPPING W/PL WASHER THA	8-98167-444-0	06	1	1409-			●
323	SCREW; SET EXC. SALES PACKAGE SPORTY<XK0> M6X20 TAPPING W/PL WASHER THA	8-98167-444-0	06	1	1409-				●
323	SCREW; SET HIGH RIDE SUSPENSION<7YC> M6X20 TAPPING W/PL WASHER THA	8-98167-444-0	02	1	1109-1109	●
323	SCREW; SET M6X20 TAPPING W/PL WASHER THA	8-98167-444-0	02	1	1109-1109		●
323	SCREW; SET HIGH RIDE SUSPENSION<7YC> M6X20 TAPPING W/PL WASHER THA	8-98167-444-0	02	1	1110-	●			●
323	SCREW; SET M6X20 TAPPING W/PL WASHER THA	8-98167-444-0	02	1	1110-		●			●
430	NUT; PANEL THA	8-97125-519-0	06	1	1109-1109	●	●
430	NUT; PANEL THA	8-97125-519-0	06	1	1110-1211	●	●		●	●
430	NUT; PANEL REAR BODY DBL WALL CTR PULL<E63> THA	8-97125-519-0	06	1	1110-1211			●
430	NUT; PANEL FORMED MUD FLAP FRT & RR<Q8H> THA	8-97125-519-0	06	1	1212-1408	●
430	NUT; PANEL THA	8-97125-519-0	06	1	1212-1408		●		●	●
430	NUT; PANEL REAR BODY DBL WALL CTR PULL<E63> THA	8-97125-519-0	06	1	1212-1408			●
430	NUT; PANEL FORMED MUD FLAP FRT & RR<Q8H> EXC. SALES PACKAGE SPORTY<XK0> THA	8-97125-519-0	06	1	1409-	●
430	NUT; PANEL THA	8-97125-519-0	06	1	1409-		●			●
430	NUT; PANEL REAR BODY DBL WALL CTR PULL<E63> THA	8-97125-519-0	06	1	1409-			●
430	NUT; PANEL EXC. SALES PACKAGE SPORTY<XK0> THA	8-97125-519-0	06	1	1409-				●
430	NUT; PANEL HIGH RIDE SUSPENSION<7YC> THA	8-97125-519-0	02	1	1109-1109	●
430	NUT; PANEL THA	8-97125-519-0	02	1	1109-1109		●
430	NUT; PANEL HIGH RIDE SUSPENSION<7YC> THA	8-97125-519-0	02	1	1110-	●			●
430	NUT; PANEL THA	8-97125-519-0	02	1	1110-		●			●
600	RIVET; EXTENSION HIGH RIDE SUSPENSION<7YC> (A) THA	8-98186-355-0	04	1	1109-1109	●
600	RIVET; EXTENSION (A) THA	8-98186-355-0	04	1	1109-1109		●
600	RIVET; EXTENSION HIGH RIDE SUSPENSION<7YC> (A) THA	8-98186-355-0	04	1	1110-	●			●
600	RIVET; EXTENSION (A) THA	8-98186-355-0	04	1	1110-		●			●
600	RIVET; EXTENSION REAR BODY DBL WALL CTR PULL<E63> (A) THA	8-98186-355-0	04	1	1110-			●
600	RIVET; EXTENSION REAR BODY DBL WALL CTR PULL<E63> (B) THA	8-94221-150-0	02	1	1110-			●
600	RIVET; EXTENSION EXC. FORMED MUD FLAP FRT & RR<Q8H> (B) THA	8-94221-150-0	06	1	1212-1408	●
600	RIVET; EXTENSION SALES PACKAGE SPORTY<XK0> (B) THA	8-94221-150-0	06	1	1409-	●			●
600	RIVET; EXTENSION EXC. FORMED MUD FLAP FRT & RR<Q8H>,SALES PACKAGE SPORTY<XK0> (B) THA	8-94221-150-0	06	1	1409-	●

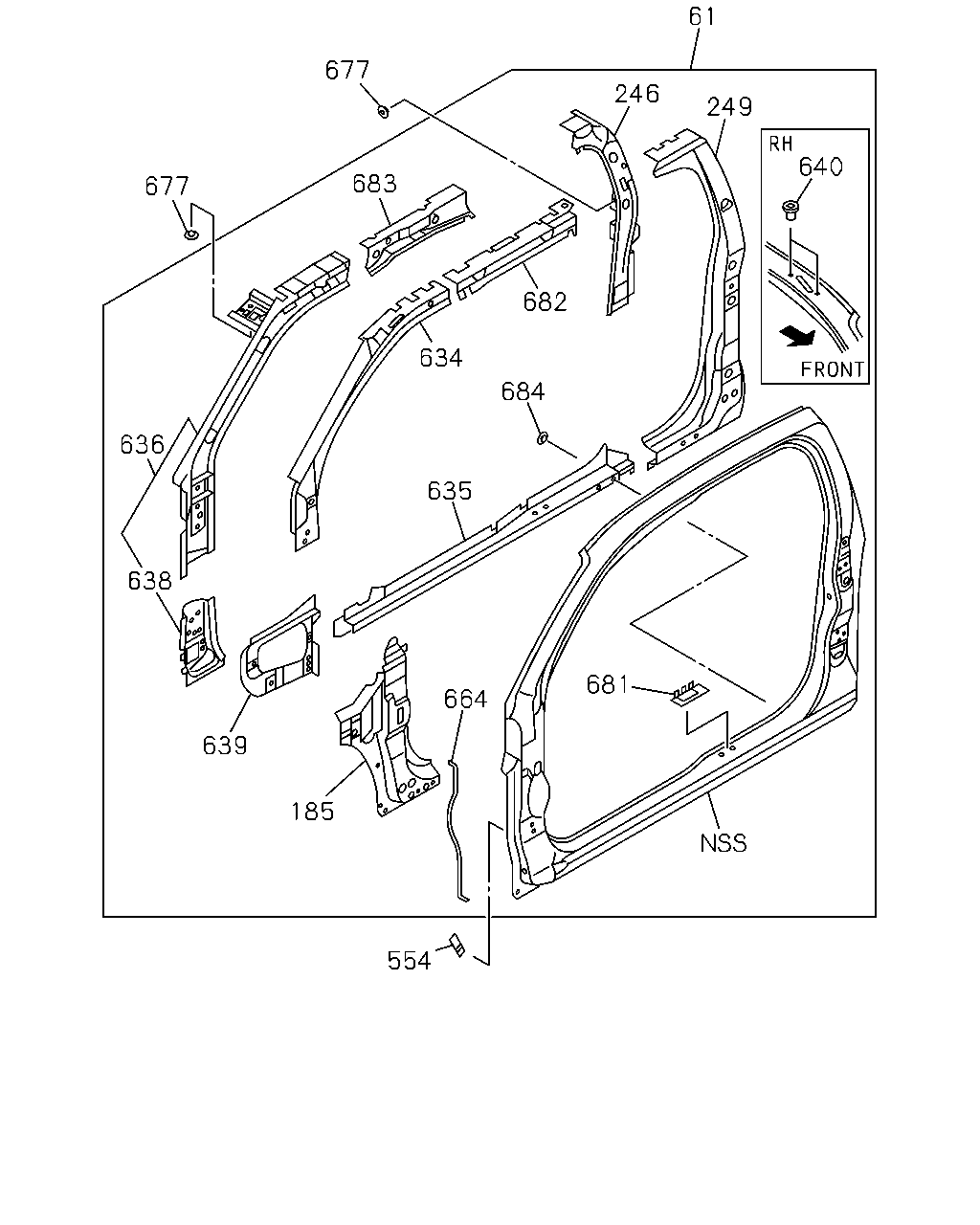

677 677 61 246 640 249 682 634 635 684 636 638 639 185 554 664 681 683

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
61	PANEL; SIDE OUTER THA	8-98103-246-5	01	1	1109-	●	●
61	PANEL; SIDE OUTER ROOF RADIO ANTENNA<U71> THA	8-98103-240-2	01	1	1109-1211	●	●
61	PANEL; SIDE OUTER ROOF RADIO ANTENNA<U71> THA	8-98103-240-5	01	1	1212-	●	●
61	PANEL; SIDE OUTER RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. ROOF RADIO ANTENNA<U71> THA	8-98103-240-5	01	1	1212-	●	●
61	PANEL; SIDE OUTER EXC. ROOF RADIO ANTENNA<U71> THA	8-98103-243-2	01	1	1109-1211	●	●
61	PANEL; SIDE OUTER RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO DELETE<UL5>,RADIO AM/FM STEREO,CD,MP3,DVD, CLOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. ROOF RADIO ANTENNA<U71> THA	8-98103-243-5	01	1	1212-	●	●
61	PANEL; SIDE OUTER THA	8-98160-817-5	01	1	1110-			●
61	PANEL; SIDE OUTER THA	8-98160-830-5	01	1	1110-			●
61	PANEL; SIDE OUTER INTERIOR DELUXE<RBB> THA	8-98160-819-1	01	1	1110-1211				●
61	PANEL; SIDE OUTER INTERIOR DELUXE<RBB> RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA	8-98160-819-6	01	1	1212-				●
61	PANEL; SIDE OUTER INTERIOR DELUXE<RBB> THA	8-98160-831-6	01	1	1110-				●
61	PANEL; SIDE OUTER INTERIOR CUSTOM<RBD> THA	8-98160-824-6	01	1	1110-				●
61	PANEL; SIDE OUTER THA	8-98160-824-6	01	1	1110-					●
61	PANEL; SIDE OUTER INTERIOR CUSTOM<RBD> THA	8-98160-832-6	01	1	1110-				●
61	PANEL; SIDE OUTER THA	8-98160-832-6	01	1	1110-					●
185	REINFORCEMENT; SIDE INNER LWR THA	8-98104-094-2	01	1	1109-1109	●	●
185	REINFORCEMENT; SIDE INNER LWR THA	8-98104-094-2	01	1	1110-	●	●	●	●	●
185	REINFORCEMENT; SIDE INNER LWR THA	8-98104-095-2	01	1	1109-1109	●	●
185	REINFORCEMENT; SIDE INNER LWR THA	8-98104-095-2	01	1	1110-	●	●	●	●	●
246	PANEL; RR PILLAR,INNER THA	8-98104-450-5	01	1	1109-	●	●
246	PANEL; RR PILLAR,INNER THA	8-98104-452-5	01	1	1109-	●	●
249	REINFORCEMENT; RR PILLAR THA	8-98104-218-5	01	1	1109-	●	●
249	REINFORCEMENT; RR PILLAR THA	8-98104-221-5	01	1	1109-	●	●
554	SEAL; INNER BODY 115X25 THA	8-98178-886-0	02	1	1109-1109	●	●
554	SEAL; INNER BODY 115X25 THA	8-98178-886-0	02	1	1110-	●	●	●	●	●
634	REINFORCEMENT; BODY SIDE INNER THA	8-98104-071-1	01	1	1109-1109	●	●
634	REINFORCEMENT; BODY SIDE INNER THA	8-98104-071-2	01	1	1110-	●	●	●	●	●
634	REINFORCEMENT; BODY SIDE INNER THA	8-98104-072-1	01	1	1109-1109	●	●
634	REINFORCEMENT; BODY SIDE INNER THA	8-98104-072-2	01	1	1110-	●	●	●	●	●
635	REINFORCEMENT; ROCKER THA	8-98161-098-1	01	1	1109-	●	●
635	REINFORCEMENT; ROCKER THA	8-98161-099-1	01	1	1109-	●	●
635	REINFORCEMENT; ROCKER THA	8-98161-043-1	01	1	1110-			●
635	REINFORCEMENT; ROCKER THA	8-98161-047-1	01	1	1110-			●
635	REINFORCEMENT; ROCKER THA	8-98161-050-2	01	1	1110-				●	●
635	REINFORCEMENT; ROCKER THA	8-98161-051-2	01	1	1110-				●	●
636	PANEL; FRONT PILLAR INNER THA	8-98161-087-4	01	1	1109-1109	●	●
636	PANEL; FRONT PILLAR INNER THA	8-98161-087-7	01	1	1110-	●	●	●	●	●
636	PANEL; FRONT PILLAR INNER THA	8-98161-090-4	01	1	1109-1109	●	●
636	PANEL; FRONT PILLAR INNER THA	8-98161-090-7	01	1	1110-	●	●	●	●	●
638	PANEL; DASH SIDE INNER THA	8-98104-640-3	01	1	1109-1109	●	●
638	PANEL; DASH SIDE INNER THA	8-98104-640-5	01	1	1110-	●	●	●	●	●
638	PANEL; DASH SIDE INNER THA	8-98104-641-3	01	1	1109-1109	●	●
638	PANEL; DASH SIDE INNER THA	8-98104-641-5	01	1	1110-	●	●	●	●	●
639	REINFORCEMENT; COWL SIDE THA	8-98104-055-0	01	1	1109-1109	●	●
639	REINFORCEMENT; COWL SIDE THA	8-98104-055-0	01	1	1110-	●	●	●	●	●
639	REINFORCEMENT; COWL SIDE THA	8-98185-421-0	01	1	1109-1109	●	●
639	REINFORCEMENT; COWL SIDE THA	8-98185-421-0	01	1	1110-	●	●	●	●	●
640	POP NUT EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT THA	8-97249-574-0	02	1	1109-1109	●	●
640	POP NUT EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT THA	8-97249-574-0	02	1	1110-	●	●		●
640	POP NUT M5 POP NUT THA	8-97249-574-0	02	1	1110-			●
664	SEAL; TAPE THA	8-98193-408-0	01	1	1109-1109	●	●
664	SEAL; TAPE THA	8-98193-408-0	01	1	1109-1109	●	●
664	SEAL; TAPE THA	8-98193-408-0	01	1	1110-	●	●	●	●	●
664	SEAL; TAPE THA	8-98193-408-0	01	1	1110-	●	●	●	●	●
677	RIVET; PANEL THA	8-98057-864-0	16	1	1109-1109	●	●
677	RIVET; PANEL THA	8-98057-864-0	16	1	1110-	●	●	●	●	●
681	REINFORCEMENT; STRIKER THA	8-98104-040-0	01	1	1109-	●	●
681	REINFORCEMENT; STRIKER THA	8-98104-041-0	01	1	1109-	●	●
682	REINFORCEMENT; ROOF SIDE THA	8-98104-559-2	01	1	1109-	●	●
682	REINFORCEMENT; ROOF SIDE THA	8-98104-563-2	01	1	1109-	●	●
683	PANEL; HEADER THA	8-98161-106-2	01	1	1109-	●	●
683	PANEL; HEADER THA	8-98161-108-2	01	1	1109-	●	●
683	PANEL; HEADER INTERIOR DELUXE<RBB> THA	8-98161-122-1	01	1	1110-1211				●
683	PANEL; HEADER INTERIOR DELUXE<RBB> RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA	8-98161-122-2	01	1	1212-				●
683	PANEL; HEADER INTERIOR DELUXE<RBB> THA	8-98161-126-2	01	1	1110-				●
683	PANEL; HEADER INTERIOR CUSTOM<RBD> THA	8-98161-123-2	01	1	1110-				●
683	PANEL; HEADER THA	8-98161-123-2	01	1	1110-					●
683	PANEL; HEADER INTERIOR CUSTOM<RBD> THA	8-98161-127-2	01	1	1110-				●
683	PANEL; HEADER THA	8-98161-127-2	01	1	1110-					●
684	FASTENER THA	8-98057-864-0	07	1	1110-			●
684	FASTENER THA	8-98057-864-0	07	1	1110-			●
684	FASTENER THA	8-98057-864-0	10	1	1110-				●	●
684	FASTENER THA	8-98057-864-0	10	1	1110-				●	●
684	FASTENER THA	8-98057-864-0	11	1	1109-	●	●
684	FASTENER THA	8-98057-864-0	11	1	1109-	●	●

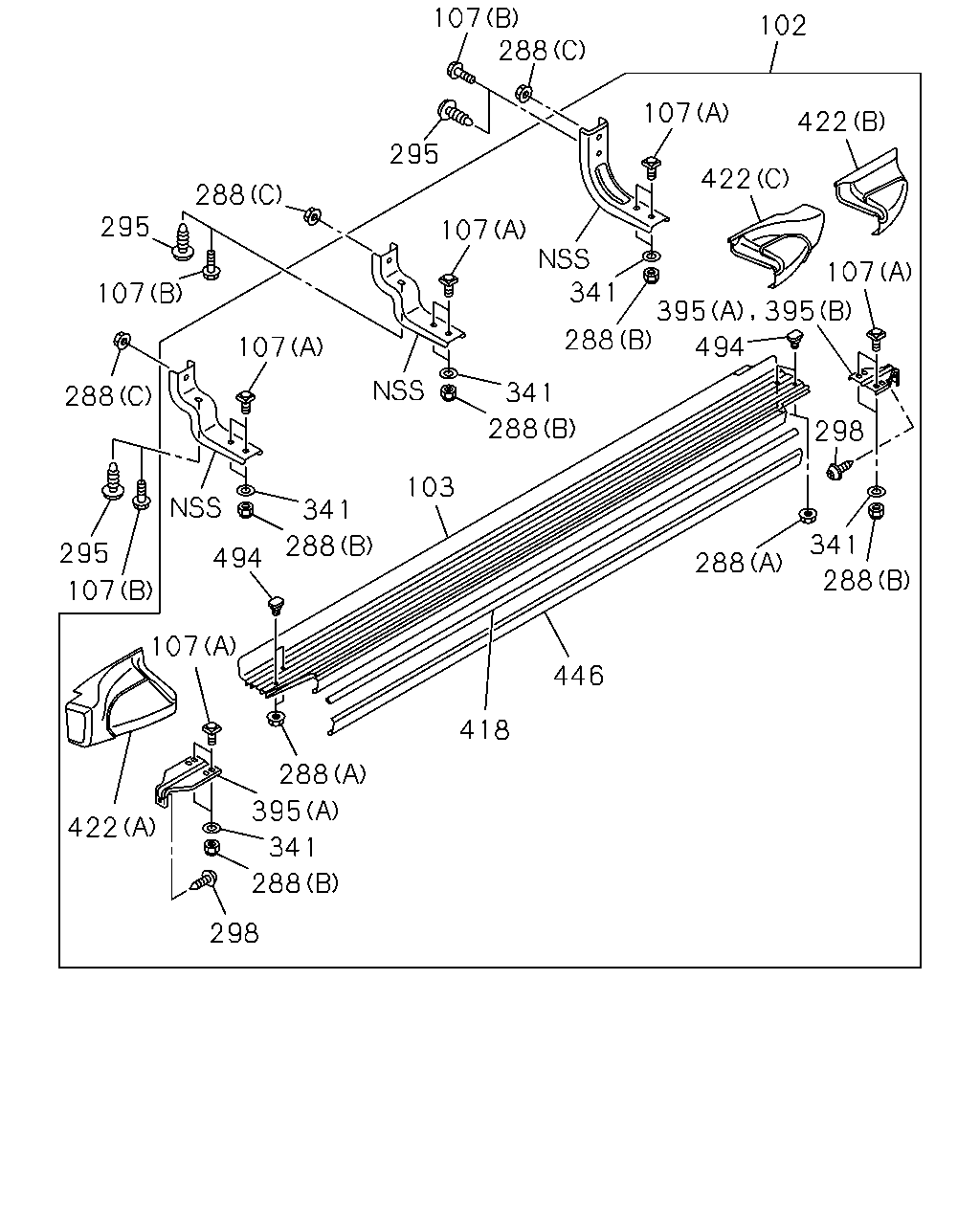

107 295 288 288 295 107 288 295 107 102 422 422 107 341 107 395 395 288 107 341 494 298 341 288 288 446 418 288 103 341 288 288 395 341 288 298 422 107 494 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
102	STEP; BODY SIDE SIDE STEP FIXED ON BODY<6TC> SILVER THA	8-98101-301-4	01	1	1109-1211	●	●
102	STEP; BODY SIDE SIDE STEP FIXED ON BODY<6TC> ISUZU UNIQUE PARTS PKG<8MT> EXC. SALES PACKAGE SPORTY<XK0> SILVER THA	8-98101-301-4	01	1	1212-	●	●
102	STEP; BODY SIDE BODY COLOR NEBULA GRAY MICA<520>,BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>,BODY COLOR GARNET RED MICA<528>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BODY COLOR SILKY WHITE PEARL<531>,BODY COLOR HIGHWAY YELLOW<536>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> ISUZU UNIQUE PARTS PKG<8MT> SILVER THA	8-98101-301-4	01	1	1212-	●	●
102	STEP; BODY SIDE SIDE STEP FIXED ON BODY<6TC> SILVER THA	8-98101-302-4	01	1	1109-1211	●	●
102	STEP; BODY SIDE SIDE STEP FIXED ON BODY<6TC> ISUZU UNIQUE PARTS PKG<8MT> EXC. SALES PACKAGE SPORTY<XK0> SILVER THA	8-98101-302-4	01	1	1212-	●	●
102	STEP; BODY SIDE BODY COLOR NEBULA GRAY MICA<520>,BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>,BODY COLOR GARNET RED MICA<528>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BODY COLOR SILKY WHITE PEARL<531>,BODY COLOR HIGHWAY YELLOW<536>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> ISUZU UNIQUE PARTS PKG<8MT> SILVER THA	8-98101-302-4	01	1	1212-	●	●
102	STEP; BODY SIDE SIDE STEP FIXED ON BODY<6TC> SILVER THA	8-98101-321-4	01	1	1110-1211				●
102	STEP; BODY SIDE SILVER THA	8-98101-321-4	01	1	1110-1211					●
102	STEP; BODY SIDE SIDE STEP FIXED ON BODY<6TC> ISUZU UNIQUE PARTS PKG<8MT> EXC. SALES PACKAGE SPORTY<XK0> SILVER THA	8-98101-321-4	01	1	1212-				●	●
102	STEP; BODY SIDE BODY COLOR NEBULA GRAY MICA<520>,BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>,BODY COLOR GARNET RED MICA<528>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BODY COLOR SILKY WHITE PEARL<531>,BODY COLOR HIGHWAY YELLOW<536>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> ISUZU UNIQUE PARTS PKG<8MT> SILVER THA	8-98101-321-4	01	1	1212-				●	●
102	STEP; BODY SIDE SIDE STEP FIXED ON BODY<6TC> SILVER THA	8-98101-322-4	01	1	1110-1211				●
102	STEP; BODY SIDE SILVER THA	8-98101-322-4	01	1	1110-1211					●
102	STEP; BODY SIDE SIDE STEP FIXED ON BODY<6TC> ISUZU UNIQUE PARTS PKG<8MT> EXC. SALES PACKAGE SPORTY<XK0> SILVER THA	8-98101-322-4	01	1	1212-				●	●
102	STEP; BODY SIDE BODY COLOR NEBULA GRAY MICA<520>,BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>,BODY COLOR GARNET RED MICA<528>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BODY COLOR SILKY WHITE PEARL<531>,BODY COLOR HIGHWAY YELLOW<536>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> ISUZU UNIQUE PARTS PKG<8MT> SILVER THA	8-98101-322-4	01	1	1212-				●	●
102	STEP; BODY SIDE BODY COLOR COSMIC BLACK MICA<523> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> ISUZU UNIQUE PARTS PKG<8MT> DARK GRAY THA	8-97423-993-4	01	1	1212-	●
102	STEP; BODY SIDE BODY COLOR COSMIC BLACK MICA<523> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> ISUZU UNIQUE PARTS PKG<8MT> DARK GRAY THA	8-97423-994-4	01	1	1212-	●
102	STEP; BODY SIDE BODY COLOR COSMIC BLACK MICA<523> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> ISUZU UNIQUE PARTS PKG<8MT> DARK GRAY THA	8-97423-995-4	01	1	1212-				●
102	STEP; BODY SIDE BODY COLOR COSMIC BLACK MICA<523> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> ISUZU UNIQUE PARTS PKG<8MT> DARK GRAY THA	8-97423-996-4	01	1	1212-				●
103	PLATE; STEP SIDE STEP FIXED ON BODY<6TC> THA	8-98292-970-0	01	1	1409-	●	●
103	PLATE; STEP SIDE STEP FIXED ON BODY<6TC> THA	8-98292-971-0	01	1	1409-	●	●
103	PLATE; STEP SIDE STEP FIXED ON BODY<6TC> THA	8-98292-968-0	01	1	1409-				●
103	PLATE; STEP THA	8-98292-968-0	01	1	1409-					●
103	PLATE; STEP SIDE STEP FIXED ON BODY<6TC> THA	8-98292-969-0	01	1	1409-				●
103	PLATE; STEP THA	8-98292-969-0	01	1	1409-					●
107	BOLT; SIDE STEP SIDE STEP FIXED ON BODY<6TC> (A) THA	8-98251-460-0	20	1	1409-	●	●		●
107	BOLT; SIDE STEP (A) THA	8-98251-460-0	20	1	1409-					●
107	BOLT; SIDE STEP SIDE STEP FIXED ON BODY<6TC> (B) M8X25 FLANGE THA	8-98048-998-0	06	1	1109-1109	●	●
107	BOLT; SIDE STEP SIDE STEP FIXED ON BODY<6TC> (B) M8X25 FLANGE THA	8-98048-998-0	06	1	1110-	●	●		●
107	BOLT; SIDE STEP (B) M8X25 FLANGE THA	8-98048-998-0	06	1	1110-					●
288	NUT; STEP SIDE STEP FIXED ON BODY<6TC> (A) M6 FLANGE THA	0-91180-106-0	08	1	1409-	●	●		●
288	NUT; STEP (A) M6 FLANGE THA	0-91180-106-0	08	1	1409-					●
288	NUT; STEP SIDE STEP FIXED ON BODY<6TC> (B) M8 FLANGE THA	0-91180-108-0	20	1	1409-	●	●		●
288	NUT; STEP (B) M8 FLANGE THA	0-91180-108-0	20	1	1409-					●
288	NUT; STEP SIDE STEP FIXED ON BODY<6TC> (C) M8 FLANGE THA	0-91180-208-0	06	1	1109-1109	●	●
288	NUT; STEP SIDE STEP FIXED ON BODY<6TC> (C) M8 FLANGE THA	0-91180-208-0	06	1	1110-	●	●		●
288	NUT; STEP (C) M8 FLANGE THA	0-91180-208-0	06	1	1110-					●
295	CLIP; BODY SIDE STEP EXC. SIDE STEP FIXED ON BODY<6TC> OD=18 THA	8-94269-290-0	06	1	1109-1109	●	●
295	CLIP; BODY SIDE STEP EXC. SIDE STEP FIXED ON BODY<6TC> OD=18 THA	8-94269-290-0	06	1	1110-	●	●		●
295	CLIP; BODY SIDE STEP OD=18 THA	8-94269-290-0	04	1	1110-			●
298	SCREW; SIDE STEP SIDE STEP FIXED ON BODY<6TC> M5X16 IMA	8-98073-081-0	04	1	1409-	●	●		●
298	SCREW; SIDE STEP M5X16 IMA	8-98073-081-0	04	1	1409-					●
341	WASHER; PL,STEP SIDE STEP FIXED ON BODY<6TC> ID=8.4 OD=18 IMA	0-91614-608-0	20	1	1409-	●	●		●
341	WASHER; PL,STEP ID=8.4 OD=18 IMA	0-91614-608-0	20	1	1409-					●
395	BRACKET; SIDE STEP SIDE STEP FIXED ON BODY<6TC> (A) THA	8-98292-978-0	02	1	1409-	●	●
395	BRACKET; SIDE STEP SIDE STEP FIXED ON BODY<6TC> (B) THA	8-98292-980-0	02	1	1409-	●	●
395	BRACKET; SIDE STEP SIDE STEP FIXED ON BODY<6TC> (A) THA	8-98292-978-0	04	1	1409-				●
395	BRACKET; SIDE STEP (A) THA	8-98292-978-0	04	1	1409-					●
418	RUBBER; STEP SIDE STEP FIXED ON BODY<6TC> THA	8-98293-009-0	02	1	1409-	●	●
418	RUBBER; STEP SIDE STEP FIXED ON BODY<6TC> THA	8-98293-008-0	02	1	1409-				●
418	RUBBER; STEP THA	8-98293-008-0	02	1	1409-					●
422	COVER; SIDE STEP SIDE STEP FIXED ON BODY<6TC> (A) FRONT PRIMER THA	8-98293-070-0	01	1	1212-	●	●		●
422	COVER; SIDE STEP (A) FRONT PRIMER THA	8-98293-070-0	01	1	1212-					●
422	COVER; SIDE STEP SIDE STEP FIXED ON BODY<6TC> (A) FRONT PRIMER THA	8-98293-069-0	01	1	1212-	●	●		●
422	COVER; SIDE STEP (A) FRONT PRIMER THA	8-98293-069-0	01	1	1212-					●
422	COVER; SIDE STEP SIDE STEP FIXED ON BODY<6TC> (B) REAR PRIMER THA	8-98293-072-0	01	1	1212-	●	●
422	COVER; SIDE STEP SIDE STEP FIXED ON BODY<6TC> (B) REAR PRIMER THA	8-98293-071-0	01	1	1212-	●	●
422	COVER; SIDE STEP SIDE STEP FIXED ON BODY<6TC> (C) REAR PRIMER THA	8-98293-074-0	01	1	1212-				●
422	COVER; SIDE STEP (C) REAR PRIMER THA	8-98293-074-0	01	1	1212-					●
422	COVER; SIDE STEP SIDE STEP FIXED ON BODY<6TC> (C) REAR PRIMER THA	8-98293-073-0	01	1	1212-				●
422	COVER; SIDE STEP (C) REAR PRIMER THA	8-98293-073-0	01	1	1212-					●
446	FINISHER; STEP SIDE STEP FIXED ON BODY<6TC> PRIMER THA	8-98293-075-0	02	1	1212-	●	●
446	FINISHER; STEP SIDE STEP FIXED ON BODY<6TC> PRIMER THA	8-98293-076-0	02	1	1212-				●	●
494	STUD; BRKT SIDE STEP FIXED ON BODY<6TC> THA	8-98056-035-0	08	1	1409-	●	●		●
494	STUD; BRKT THA	8-98056-035-0	08	1	1409-					●

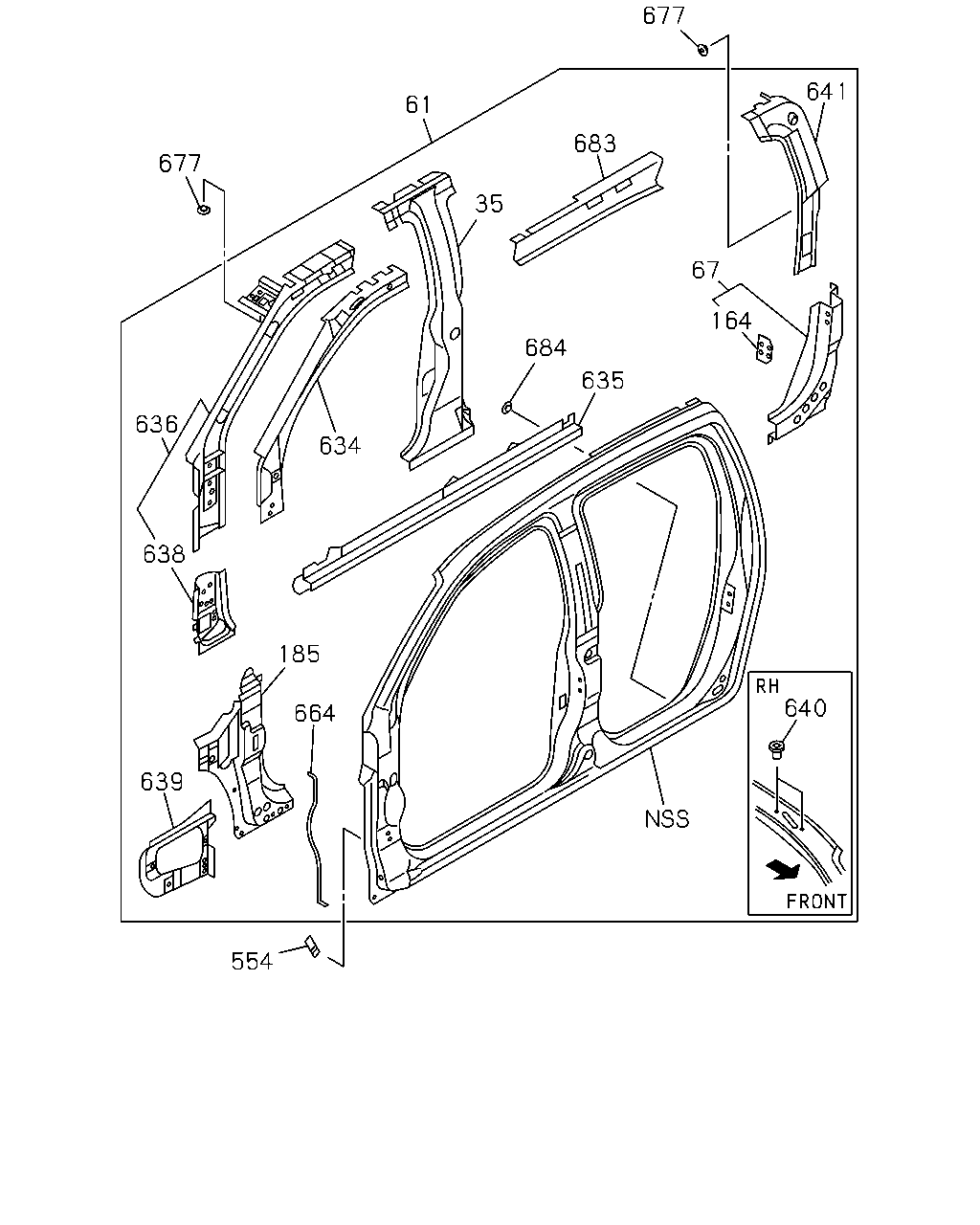

677 61 677 641 67 164 684 35 635 634 636 638 185 664 639 554 640 683

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
35	PANEL; CENTER PILLAR,INNER THA	8-98104-767-8	01	1	1110-				●	●
35	PANEL; CENTER PILLAR,INNER THA	8-98104-766-7	01	1	1110-				●	●
61	PANEL; SIDE OUTER THA	8-98103-246-5	01	1	1109-	●	●
61	PANEL; SIDE OUTER ROOF RADIO ANTENNA<U71> THA	8-98103-240-2	01	1	1109-1211	●	●
61	PANEL; SIDE OUTER ROOF RADIO ANTENNA<U71> THA	8-98103-240-5	01	1	1212-	●	●
61	PANEL; SIDE OUTER RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. ROOF RADIO ANTENNA<U71> THA	8-98103-240-5	01	1	1212-	●	●
61	PANEL; SIDE OUTER EXC. ROOF RADIO ANTENNA<U71> THA	8-98103-243-2	01	1	1109-1211	●	●
61	PANEL; SIDE OUTER RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO DELETE<UL5>,RADIO AM/FM STEREO,CD,MP3,DVD, CLOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. ROOF RADIO ANTENNA<U71> THA	8-98103-243-5	01	1	1212-	●	●
61	PANEL; SIDE OUTER THA	8-98160-817-5	01	1	1110-			●
61	PANEL; SIDE OUTER THA	8-98160-830-5	01	1	1110-			●
61	PANEL; SIDE OUTER INTERIOR DELUXE<RBB> THA	8-98160-819-1	01	1	1110-1211				●
61	PANEL; SIDE OUTER INTERIOR DELUXE<RBB> RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA	8-98160-819-6	01	1	1212-				●
61	PANEL; SIDE OUTER INTERIOR DELUXE<RBB> THA	8-98160-831-6	01	1	1110-				●
61	PANEL; SIDE OUTER INTERIOR CUSTOM<RBD> THA	8-98160-824-6	01	1	1110-				●
61	PANEL; SIDE OUTER THA	8-98160-824-6	01	1	1110-					●
61	PANEL; SIDE OUTER INTERIOR CUSTOM<RBD> THA	8-98160-832-6	01	1	1110-				●
61	PANEL; SIDE OUTER THA	8-98160-832-6	01	1	1110-					●
67	PANEL; INNER,RR PILLAR LWR THA	8-98104-787-6	01	1	1110-				●	●
67	PANEL; INNER,RR PILLAR LWR THA	8-98104-786-6	01	1	1110-				●	●
164	PLATE; SIDE PNL OUTER THA	8-93297-532-1	01	1	1110-				●	●
164	PLATE; SIDE PNL OUTER THA	8-93297-532-1	01	1	1110-				●	●
185	REINFORCEMENT; SIDE INNER LWR THA	8-98104-094-2	01	1	1109-1109	●	●
185	REINFORCEMENT; SIDE INNER LWR THA	8-98104-094-2	01	1	1110-	●	●	●	●	●
185	REINFORCEMENT; SIDE INNER LWR THA	8-98104-095-2	01	1	1109-1109	●	●
185	REINFORCEMENT; SIDE INNER LWR THA	8-98104-095-2	01	1	1110-	●	●	●	●	●
554	SEAL; INNER BODY 115X25 THA	8-98178-886-0	02	1	1109-1109	●	●
554	SEAL; INNER BODY 115X25 THA	8-98178-886-0	02	1	1110-	●	●	●	●	●
634	REINFORCEMENT; BODY SIDE INNER THA	8-98104-071-1	01	1	1109-1109	●	●
634	REINFORCEMENT; BODY SIDE INNER THA	8-98104-071-2	01	1	1110-	●	●	●	●	●
634	REINFORCEMENT; BODY SIDE INNER THA	8-98104-072-1	01	1	1109-1109	●	●
634	REINFORCEMENT; BODY SIDE INNER THA	8-98104-072-2	01	1	1110-	●	●	●	●	●
635	REINFORCEMENT; ROCKER THA	8-98161-098-1	01	1	1109-	●	●
635	REINFORCEMENT; ROCKER THA	8-98161-099-1	01	1	1109-	●	●
635	REINFORCEMENT; ROCKER THA	8-98161-043-1	01	1	1110-			●
635	REINFORCEMENT; ROCKER THA	8-98161-047-1	01	1	1110-			●
635	REINFORCEMENT; ROCKER THA	8-98161-050-2	01	1	1110-				●	●
635	REINFORCEMENT; ROCKER THA	8-98161-051-2	01	1	1110-				●	●
636	PANEL; FRONT PILLAR INNER THA	8-98161-087-4	01	1	1109-1109	●	●
636	PANEL; FRONT PILLAR INNER THA	8-98161-087-7	01	1	1110-	●	●	●	●	●
636	PANEL; FRONT PILLAR INNER THA	8-98161-090-4	01	1	1109-1109	●	●
636	PANEL; FRONT PILLAR INNER THA	8-98161-090-7	01	1	1110-	●	●	●	●	●
638	PANEL; DASH SIDE INNER THA	8-98104-640-3	01	1	1109-1109	●	●
638	PANEL; DASH SIDE INNER THA	8-98104-640-5	01	1	1110-	●	●	●	●	●
638	PANEL; DASH SIDE INNER THA	8-98104-641-3	01	1	1109-1109	●	●
638	PANEL; DASH SIDE INNER THA	8-98104-641-5	01	1	1110-	●	●	●	●	●
639	REINFORCEMENT; COWL SIDE THA	8-98104-055-0	01	1	1109-1109	●	●
639	REINFORCEMENT; COWL SIDE THA	8-98104-055-0	01	1	1110-	●	●	●	●	●
639	REINFORCEMENT; COWL SIDE THA	8-98185-421-0	01	1	1109-1109	●	●
639	REINFORCEMENT; COWL SIDE THA	8-98185-421-0	01	1	1110-	●	●	●	●	●
640	POP NUT EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT THA	8-97249-574-0	02	1	1109-1109	●	●
640	POP NUT EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT THA	8-97249-574-0	02	1	1110-	●	●		●
640	POP NUT M5 POP NUT THA	8-97249-574-0	02	1	1110-			●
641	PANEL; BACK BODY PILLER THA	8-98121-124-6	01	1	1110-				●	●
641	PANEL; BACK BODY PILLER THA	8-98121-123-6	01	1	1110-				●	●
664	SEAL; TAPE THA	8-98193-408-0	01	1	1109-1109	●	●
664	SEAL; TAPE THA	8-98193-408-0	01	1	1109-1109	●	●
664	SEAL; TAPE THA	8-98193-408-0	01	1	1110-	●	●	●	●	●
664	SEAL; TAPE THA	8-98193-408-0	01	1	1110-	●	●	●	●	●
677	RIVET; PANEL THA	8-98057-864-0	16	1	1109-1109	●	●
677	RIVET; PANEL THA	8-98057-864-0	16	1	1110-	●	●	●	●	●
683	PANEL; HEADER THA	8-98161-106-2	01	1	1109-	●	●
683	PANEL; HEADER THA	8-98161-108-2	01	1	1109-	●	●
683	PANEL; HEADER INTERIOR DELUXE<RBB> THA	8-98161-122-1	01	1	1110-1211				●
683	PANEL; HEADER INTERIOR DELUXE<RBB> RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA	8-98161-122-2	01	1	1212-				●
683	PANEL; HEADER INTERIOR DELUXE<RBB> THA	8-98161-126-2	01	1	1110-				●
683	PANEL; HEADER INTERIOR CUSTOM<RBD> THA	8-98161-123-2	01	1	1110-				●
683	PANEL; HEADER THA	8-98161-123-2	01	1	1110-					●
683	PANEL; HEADER INTERIOR CUSTOM<RBD> THA	8-98161-127-2	01	1	1110-				●
683	PANEL; HEADER THA	8-98161-127-2	01	1	1110-					●
684	FASTENER THA	8-98057-864-0	07	1	1110-			●
684	FASTENER THA	8-98057-864-0	07	1	1110-			●
684	FASTENER THA	8-98057-864-0	10	1	1110-				●	●
684	FASTENER THA	8-98057-864-0	10	1	1110-				●	●
684	FASTENER THA	8-98057-864-0	11	1	1109-	●	●
684	FASTENER THA	8-98057-864-0	11	1	1109-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
