◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-10 - ENGINE HOOD AND LOCK ▶
6-10 — ENGINE HOOD AND LOCK (#81741) — 71 parça

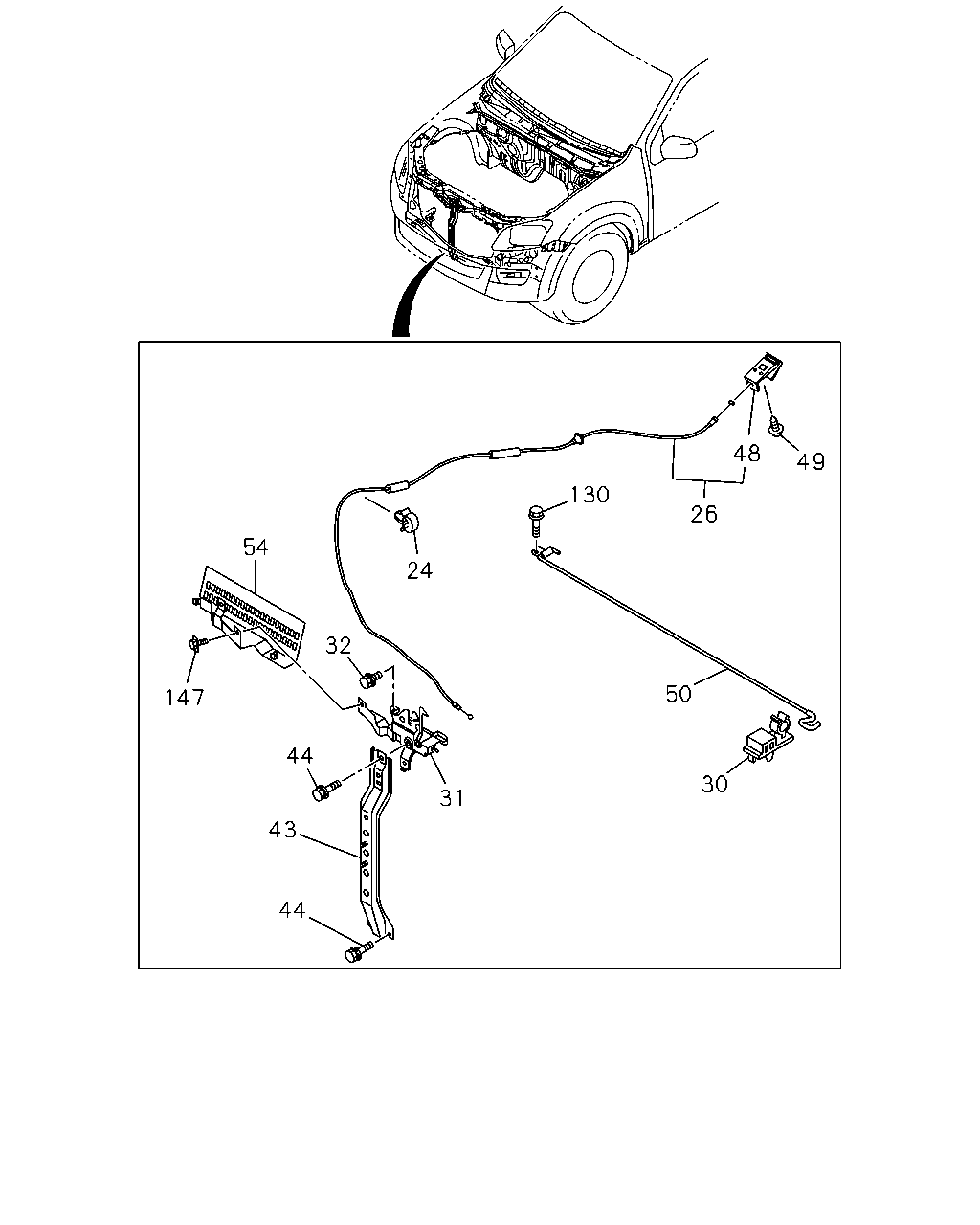

çizim 147197
147 44 43 44 32 54 24 130 26 48 49 50 30 31
BalonParca AdiParca NoAdetTipApplied Date A B C D E
24 CLIP; CONT CABLE
THA 		8-97182-405-0 03 1 1109-1109 ● ●
24 CLIP; CONT CABLE
THA 		8-97182-405-0 03 1 1110- ● ● ● ● ●
26 CABLE; ENG HOOD CONT
THA 		8-98071-759-0 01 1 1109-1109 ● ●
26 CABLE; ENG HOOD CONT
THA 		8-98071-759-1 01 1 1110- ● ● ● ● ●
30 CLIP; SUPPORT ROD,HOOD
THA 		8-97301-356-0 01 1 1109-1109 ● ●
30 CLIP; SUPPORT ROD,HOOD
THA 		8-97301-356-0 01 1 1110- ● ● ● ● ●
31 LOCK; ENG HOOD
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98074-562-4 01 1 1109-1109 ● ●
31 LOCK; ENG HOOD
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98074-562-4 01 1 1110- ● ● ● ●
31 LOCK; ENG HOOD
EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98074-561-4 01 1 1109-1109 ● ●
31 LOCK; ENG HOOD
EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98074-561-4 01 1 1110- ● ● ● ●
31 LOCK; ENG HOOD
THA 		8-98074-561-4 01 1 1110- ●
32 BOLT; HOOD LK
M6X20 W/PL WASHER THA 		8-97370-668-0 02 1 1109-1109 ● ●
32 BOLT; HOOD LK
M6X20 W/PL WASHER THA 		8-97370-668-0 02 1 1110- ● ● ● ● ●
43 STAY; ENG HOOD,FRT END
THA 		8-98165-341-0 01 1 1109-1109 ● ●
43 STAY; ENG HOOD,FRT END
THA 		8-98165-341-0 01 1 1110- ● ● ● ● ●
44 BOLT; STAY,HOOD
M6X20 W/PL WASHER THA 		8-97370-668-0 04 1 1109-1109 ● ●
44 BOLT; STAY,HOOD
M6X20 W/PL WASHER THA 		8-97370-668-0 04 1 1110- ● ● ● ● ●
48 LEVER; ENG HOOD
THA 		8-98204-979-0 01 1 1212- ● ● ● ● ●
49 SCREW; LEVER,ENG HOOD OPENER
M5X16 TAPPING THA 		8-98167-449-0 02 1 1109-1109 ● ●
49 SCREW; LEVER,ENG HOOD OPENER
M5X16 TAPPING THA 		8-98167-449-0 02 1 1110-1211 ● ● ● ● ●
49 SCREW; LEVER,ENG HOOD OPENER
M5X16 TAPPING THA 		8-98167-449-0 02 1 1212- ● ● ● ● ●
50 ROD; SUPPORT,ENG HOOD
THA 		8-98101-948-1 01 1 1109-1109 ● ●
50 ROD; SUPPORT,ENG HOOD
THA 		8-98101-948-1 01 1 1110- ● ● ● ● ●
54 PROTECTOR; ENG HOOD CABLE
THA 		8-98160-811-2 01 1 1109-1109 ● ●
54 PROTECTOR; ENG HOOD CABLE
THA 		8-98160-811-2 01 1 1110- ● ● ● ● ●
130 BOLT; SUPPORT ROD,HOOD
M6X25 FLANGE THA 		0-28650-625-0 01 1 1109-1109 ● ●
130 BOLT; SUPPORT ROD,HOOD
M6X25 FLANGE THA 		0-28650-625-0 01 1 1110- ● ● ● ● ●
147 CLIP; COVER
THA 		8-94221-150-0 02 1 1109-1109 ● ●
147 CLIP; COVER
THA 		8-94221-150-0 02 1 1110-1211 ● ● ● ● ●
147 CLIP; COVER
THA 		8-94221-150-0 02 1 1212- ● ● ● ● ●

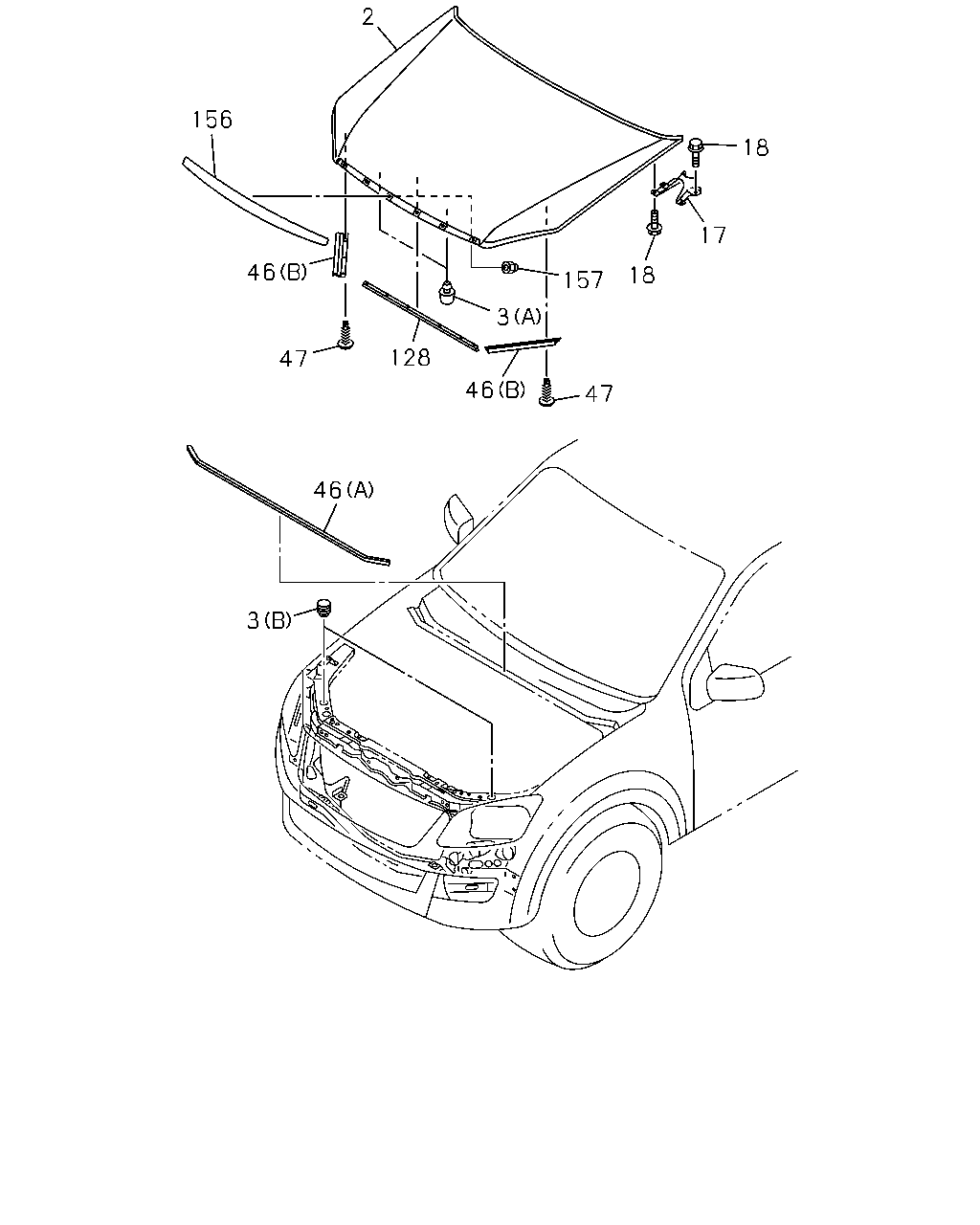

çizim 147198
2 156 46 47 128 3 157 18 17 18 47 46 3 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 PANEL; ENG HOOD
THA 		8-98193-817-0 01 1 1109-1109 ● ●
2 PANEL; ENG HOOD
THA 		8-98193-817-0 01 1 1110- ● ● ● ● ●
3 BUFFER; ENG HOOD,FRT
(B) THA 		8-98195-454-0 02 1 1109-1109 ● ●
3 BUFFER; ENG HOOD,FRT
(B) THA 		8-98195-454-0 02 1 1110-1211 ● ● ● ● ●
3 BUFFER; ENG HOOD,FRT
(B) THA 		8-98195-454-0 02 1 1212- ● ● ● ● ●
3 BUFFER; ENG HOOD,FRT
(A) THA 		8-94358-581-0 02 1 1109-1109 ● ●
3 BUFFER; ENG HOOD,FRT
(A) THA 		8-94358-581-0 02 1 1110-1308 ● ● ● ● ●
3 BUFFER; ENG HOOD,FRT
(A) THA 		8-97948-266-0 02 1 1309- ● ● ● ● ●
17 HINGE; ENG HOOD
THA 		8-98104-099-2 01 1 1109-1109 ● ●
17 HINGE; ENG HOOD
THA 		8-98104-099-2 01 1 1110- ● ● ● ● ●
17 HINGE; ENG HOOD
THA 		8-98104-100-2 01 1 1109-1109 ● ●
17 HINGE; ENG HOOD
THA 		8-98104-100-2 01 1 1110- ● ● ● ● ●
18 BOLT; HINGE
M8X16 THA 		8-98056-122-0 04 1 1109-1109 ● ●
18 BOLT; HINGE
M8X16 THA 		8-98056-122-0 04 1 1109-1109 ● ●
18 BOLT; HINGE
M8X16 THA 		8-98056-122-0 04 1 1110- ● ● ● ● ●
18 BOLT; HINGE
M8X16 THA 		8-98056-122-0 04 1 1110- ● ● ● ● ●
46 SEAL; ENG HOOD
(A) THA 		8-98065-805-1 01 1 1109-1109 ● ●
46 SEAL; ENG HOOD
(A) THA 		8-98065-805-1 01 1 1110- ● ● ● ● ●
46 SEAL; ENG HOOD
(B) THA 		8-98160-815-1 01 1 1109-1109 ● ●
46 SEAL; ENG HOOD
(B) THA 		8-98160-815-1 01 1 1110- ● ● ● ● ●
46 SEAL; ENG HOOD
(B) THA 		8-98165-802-1 01 1 1109-1109 ● ●
46 SEAL; ENG HOOD
(B) THA 		8-98165-802-1 01 1 1110- ● ● ● ● ●
47 CLIP; HOOD SEAL
OD=12 L=14.8 THA 		8-94279-921-0 06 1 1109-1109 ● ●
47 CLIP; HOOD SEAL
OD=12 L=14.8 THA 		8-94279-921-0 06 1 1110- ● ● ● ● ●
128 SEAL; PLATFORM
THA 		8-98102-230-0 01 1 1109-1109 ● ●
128 SEAL; PLATFORM
THA 		8-98102-230-0 01 1 1110- ● ● ● ● ●
156 MOLDING; HOOD
INTERIOR CUSTOM<RBD> BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT RAD GRILLE<V22> PLATED THA 		8-98181-164-3 01 1 1109-1109 ●
156 MOLDING; HOOD
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT RAD GRILLE<V22> PLATED THA 		8-98181-164-3 01 1 1109-1109 ●
156 MOLDING; HOOD
INTERIOR CUSTOM<RBD> BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT RAD GRILLE<V22> PLATED THA 		8-98181-164-3 01 1 1110-1401 ● ●
156 MOLDING; HOOD
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT RAD GRILLE<V22> PLATED THA 		8-98181-164-3 01 1 1110-1401 ●
156 MOLDING; HOOD
PLATED THA 		8-98181-164-3 01 1 1110-1401 ●
156 MOLDING; HOOD
INTERIOR CUSTOM<RBD> BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT RAD GRILLE<V22> PLATED THA 		8-98269-566-0 01 1 1402- ● ●
156 MOLDING; HOOD
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT RAD GRILLE<V22> PLATED THA 		8-98269-566-0 01 1 1402- ●
156 MOLDING; HOOD
PLATED THA 		8-98269-566-0 01 1 1402- ●
156 MOLDING; HOOD
INTERIOR DELUXE<RBB> BODY COLOR KEYED RAD GRILLE<TL1> LIGHT GRAY THA 		8-97423-040-3 01 1 1109-1109 ●
156 MOLDING; HOOD
INTERIOR DELUXE<RBB> BODY COLOR KEYED RAD GRILLE<TL1> LIGHT GRAY THA 		8-97423-040-3 01 1 1110- ● ● ●
156 MOLDING; HOOD
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> EXC. BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT RAD GRILLE<V22> THA 		8-98181-163-3 01 1 1109-1109 ● ●
156 MOLDING; HOOD
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> EXC. BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT RAD GRILLE<V22> THA 		8-98181-163-3 01 1 1110- ● ● ●
156 MOLDING; HOOD
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> EXC. BODY COLOR KEYED RAD GRILLE<TL1> THA 		8-98181-163-3 01 1 1110- ●
157 NUT; MOLDING
M6 CAP NUT THA 		8-98049-850-0 06 1 1109-1109 ● ●
157 NUT; MOLDING
M6 CAP NUT THA 		8-98049-850-0 06 1 1110- ● ● ● ● ●
