6-05 — FRONT PANEL (#81739) — 112 parça

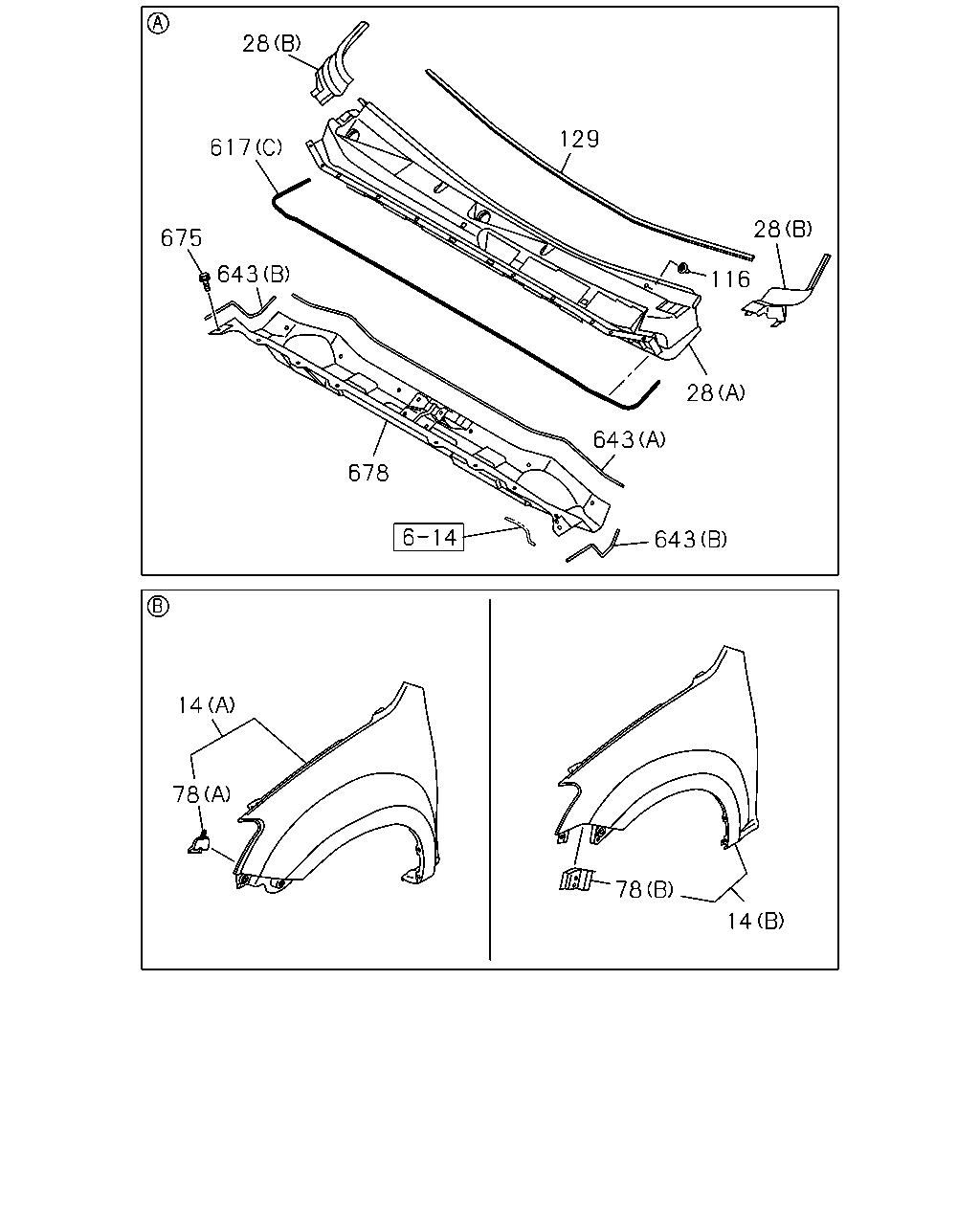

çizim 147203
28 129 28 617 675 678 643 643 28 116 643 14 78 14 78
BalonParca AdiParca NoAdetTipApplied Date A B C D E
14 FENDER; FRT
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98103-207-0 01 1 1109-1109 ●
14 FENDER; FRT
(A) THA 		8-98103-207-0 01 1 1109-1109 ●
14 FENDER; FRT
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98103-207-0 01 1 1110- ● ●
14 FENDER; FRT
(A) THA 		8-98103-207-0 01 1 1110- ● ●
14 FENDER; FRT
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98103-209-0 01 1 1109-1109 ●
14 FENDER; FRT
(A) THA 		8-98103-209-0 01 1 1109-1109 ●
14 FENDER; FRT
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98103-209-0 01 1 1110- ● ●
14 FENDER; FRT
(A) THA 		8-98103-209-0 01 1 1110- ● ●
14 FENDER; FRT
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98103-206-0 01 1 1109-1109 ●
14 FENDER; FRT
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98103-206-0 01 1 1110- ● ●
14 FENDER; FRT
(B) THA 		8-98103-206-0 01 1 1110- ●
14 FENDER; FRT
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98103-208-0 01 1 1109-1109 ●
14 FENDER; FRT
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98103-208-0 01 1 1110- ● ●
14 FENDER; FRT
(B) THA 		8-98103-208-0 01 1 1110- ●
28 COVER; DASH COWL
(B) THA 		8-98133-981-6 01 1 1109-1109 ● ●
28 COVER; DASH COWL
(B) THA 		8-98133-981-6 01 1 1110- ● ● ● ● ●
28 COVER; DASH COWL
(B) THA 		8-98133-982-5 01 1 1109-1109 ● ●
28 COVER; DASH COWL
(B) THA 		8-98133-982-5 01 1 1110- ● ● ● ● ●
28 COVER; DASH COWL
(A) THA 		8-98133-983-0 01 1 1109-1109 ● ●
28 COVER; DASH COWL
(A) THA 		8-98133-983-0 01 1 1110- ● ● ● ● ●
78 BRACKET; FENDER
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-033-1 01 1 1109-1109 ●
78 BRACKET; FENDER
(A) THA 		8-98104-033-1 01 1 1109-1109 ●
78 BRACKET; FENDER
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-033-1 01 1 1110- ● ●
78 BRACKET; FENDER
(A) THA 		8-98104-033-1 01 1 1110- ● ●
78 BRACKET; FENDER
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-034-1 01 1 1109-1109 ●
78 BRACKET; FENDER
(A) THA 		8-98104-034-1 01 1 1109-1109 ●
78 BRACKET; FENDER
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-034-1 01 1 1110- ● ●
78 BRACKET; FENDER
(A) THA 		8-98104-034-1 01 1 1110- ● ●
78 BRACKET; FENDER
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-031-1 01 1 1109-1109 ●
78 BRACKET; FENDER
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-031-1 01 1 1110- ● ●
78 BRACKET; FENDER
(B) THA 		8-98104-031-1 01 1 1110- ●
78 BRACKET; FENDER
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-032-1 01 1 1109-1109 ●
78 BRACKET; FENDER
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-032-1 01 1 1110- ● ●
78 BRACKET; FENDER
(B) THA 		8-98104-032-1 01 1 1110- ●
116 CLIP; COWL COVER
THA 		8-98134-004-0 06 1 1109-1109 ● ●
116 CLIP; COWL COVER
THA 		8-98134-004-1 06 1 1110- ● ● ● ● ●
129 FINISHER; COWL COVER
THA 		8-98133-991-0 01 1 1109-1109 ● ●
129 FINISHER; COWL COVER
THA 		8-98133-991-0 01 1 1110- ● ● ● ● ●
617 SEAL; DASH
(A) OD=25 BLACK THA 		1-76798-019-0 04 1 1109-1109 ● ●
617 SEAL; DASH
(A) OD=25 BLACK THA 		1-76798-019-0 04 1 1110- ● ● ● ● ●
617 SEAL; DASH
(B) 110X10 THA 		8-98192-905-0 02 1 1109-1109 ● ●
617 SEAL; DASH
(B) 110X10 THA 		8-98192-905-0 02 1 1110- ● ● ● ● ●
617 SEAL; DASH
(C) T=5.0 THA 		8-98134-005-0 01 1 1109-1109 ● ●
617 SEAL; DASH
(C) T=5.0 THA 		8-98134-005-0 01 1 1110- ● ● ● ● ●
643 SEAL; COWL
(A) THA 		8-98110-283-1 01 1 1109-1109 ● ●
643 SEAL; COWL
(A) THA 		8-98110-283-1 01 1 1110- ● ● ● ● ●
643 SEAL; COWL
(B) THA 		8-98110-284-1 02 1 1109-1109 ● ●
643 SEAL; COWL
(B) THA 		8-98110-284-1 02 1 1110- ● ● ● ● ●
675 BOLT; PANEL
M6X12 W/PL WASHER THA 		8-98180-459-2 08 1 1109-1109 ● ●
675 BOLT; PANEL
M6X12 W/PL WASHER THA 		8-98180-459-2 08 1 1110- ● ● ● ● ●
678 PANEL; COWL
THA 		8-98065-803-3 01 1 1109-1109 ● ●
678 PANEL; COWL
THA 		8-98065-803-3 01 1 1110- ● ● ● ● ●

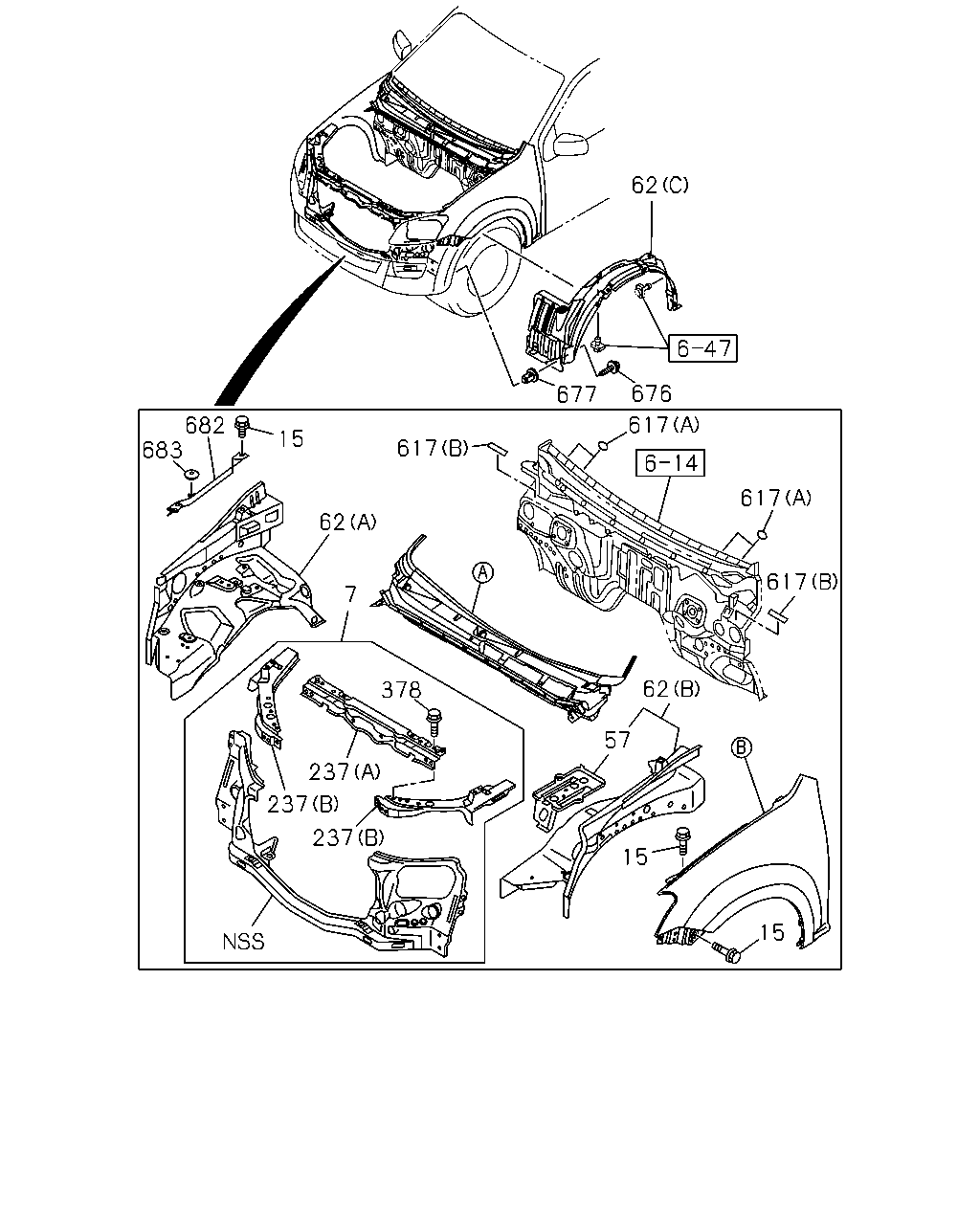

çizim 147205
617 617 62 57 15 15 237 237 378 237 7 62 617 677 676 62 15 682 683 617
BalonParca AdiParca NoAdetTipApplied Date A B C D E
7 PANEL; DEFLECTOR
THA 		8-98103-202-0 01 1 1109-1109 ● ●
7 PANEL; DEFLECTOR
THA 		8-98103-202-0 01 1 1110-1211 ● ● ● ● ●
7 PANEL; DEFLECTOR
THA 		8-98103-202-0 01 1 1212- ● ● ● ● ●
15 BOLT; FENDER
M6X15 W/LK&PL WASHER THA 		8-98167-615-0 12 1 1109-1109 ● ●
15 BOLT; FENDER
M6X15 W/LK&PL WASHER THA 		8-98167-615-0 12 1 1110-1211 ● ● ● ● ●
15 BOLT; FENDER
M6X15 W/LK&PL WASHER THA 		8-98167-615-0 12 1 1212- ● ● ● ● ●
57 TRAY; BATTERY
THA 		8-98104-480-4 01 1 1109-1109 ● ●
57 TRAY; BATTERY
THA 		8-98104-480-5 01 1 1110- ● ● ● ● ●
62 PANEL; WHEEL HOUSE
EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) THA 		8-98256-639-0 01 1 1403-1404 ● ● ● ● ●
62 PANEL; WHEEL HOUSE
EXC. REFRIGERATION KIT<7FH>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) THA 		8-98256-639-2 01 1 1405- ● ● ● ● ●
62 PANEL; WHEEL HOUSE
(A) THA 		8-98103-210-0 01 1 1109-1109 ● ●
62 PANEL; WHEEL HOUSE
(A) THA 		8-98103-210-0 01 1 1110-1208 ● ● ● ● ●
62 PANEL; WHEEL HOUSE
(A) THA 		8-98193-272-0 01 1 1209-1402 ● ● ● ● ●
62 PANEL; WHEEL HOUSE
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) THA 		8-98193-272-0 01 1 1403-1404 ● ● ● ●
62 PANEL; WHEEL HOUSE
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) THA 		8-98193-272-2 01 1 1405- ● ● ● ●
62 PANEL; WHEEL HOUSE
REFRIGERATION KIT<7FH> (A) THA 		8-98193-272-2 01 1 1405- ●
62 PANEL; WHEEL HOUSE
(B) THA 		8-98103-211-1 01 1 1109-1109 ● ●
62 PANEL; WHEEL HOUSE
(B) THA 		8-98103-211-2 01 1 1110- ● ● ● ● ●
62 PANEL; WHEEL HOUSE
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98077-253-6 01 1 1109-1109 ●
62 PANEL; WHEEL HOUSE
(C) THA 		8-98077-253-6 01 1 1109-1109 ●
62 PANEL; WHEEL HOUSE
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98077-253-6 01 1 1110- ● ●
62 PANEL; WHEEL HOUSE
(C) THA 		8-98077-253-6 01 1 1110- ● ●
62 PANEL; WHEEL HOUSE
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98077-256-6 01 1 1109-1109 ●
62 PANEL; WHEEL HOUSE
(C) THA 		8-98077-256-6 01 1 1109-1109 ●
62 PANEL; WHEEL HOUSE
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98077-256-6 01 1 1110- ● ●
62 PANEL; WHEEL HOUSE
(C) THA 		8-98077-256-6 01 1 1110- ● ●
62 PANEL; WHEEL HOUSE
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98077-251-4 01 1 1109-1109 ●
62 PANEL; WHEEL HOUSE
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98077-251-4 01 1 1110- ● ●
62 PANEL; WHEEL HOUSE
(C) THA 		8-98077-251-4 01 1 1110- ●
62 PANEL; WHEEL HOUSE
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98077-255-4 01 1 1109-1109 ●
62 PANEL; WHEEL HOUSE
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98077-255-4 01 1 1110- ● ●
62 PANEL; WHEEL HOUSE
(C) THA 		8-98077-255-4 01 1 1110- ●
237 SUPPORT; DEFLECTOR
(A) THA 		8-98104-224-4 01 1 1109-1109 ● ●
237 SUPPORT; DEFLECTOR
(A) THA 		8-98104-224-4 01 1 1110-1211 ● ● ● ● ●
237 SUPPORT; DEFLECTOR
(A) THA 		8-98104-224-4 01 1 1212- ● ● ● ● ●
237 SUPPORT; DEFLECTOR
(B) THA 		8-98104-244-4 01 1 1109-1109 ● ●
237 SUPPORT; DEFLECTOR
(B) THA 		8-98104-244-4 01 1 1110-1211 ● ● ● ● ●
237 SUPPORT; DEFLECTOR
(B) THA 		8-98104-244-4 01 1 1212- ● ● ● ● ●
237 SUPPORT; DEFLECTOR
(B) THA 		8-98104-253-4 01 1 1109-1109 ● ●
237 SUPPORT; DEFLECTOR
(B) THA 		8-98104-253-4 01 1 1110-1211 ● ● ● ● ●
237 SUPPORT; DEFLECTOR
(B) THA 		8-98104-253-4 01 1 1212- ● ● ● ● ●
378 BOLT; SUPPORT
M6X12 FLANGE THA 		0-28060-612-0 08 1 1109-1109 ● ●
378 BOLT; SUPPORT
M6X12 FLANGE THA 		0-28060-612-0 08 1 1110-1211 ● ● ● ● ●
378 BOLT; SUPPORT
M6X12 FLANGE THA 		0-28060-612-0 08 1 1212- ● ● ● ● ●
617 SEAL; DASH
(A) OD=25 BLACK THA 		1-76798-019-0 04 1 1109-1109 ● ●
617 SEAL; DASH
(A) OD=25 BLACK THA 		1-76798-019-0 04 1 1110- ● ● ● ● ●
617 SEAL; DASH
(B) 110X10 THA 		8-98192-905-0 02 1 1109-1109 ● ●
617 SEAL; DASH
(B) 110X10 THA 		8-98192-905-0 02 1 1110- ● ● ● ● ●
617 SEAL; DASH
(C) T=5.0 THA 		8-98134-005-0 01 1 1109-1109 ● ●
617 SEAL; DASH
(C) T=5.0 THA 		8-98134-005-0 01 1 1110- ● ● ● ● ●
676 BOLT; WHEEL HOUSE
M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 02 1 1109-1109 ● ●
676 BOLT; WHEEL HOUSE
M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 02 1 1110- ● ● ● ● ●
677 NUT; WHEEL HOUSE
D=9.7X9.7 L=8 THA 		8-94222-314-0 02 1 1109-1109 ● ●
677 NUT; WHEEL HOUSE
D=9.7X9.7 L=8 THA 		8-94222-314-0 02 1 1110- ● ● ● ● ●
682 PROTECTOR; HEAT,ENG
THA 		8-98139-849-3 01 1 1109-1109 ● ●
682 PROTECTOR; HEAT,ENG
THA 		8-98139-849-3 01 1 1110-1211 ● ● ● ● ●
682 PROTECTOR; HEAT,ENG
THA 		8-98139-849-3 01 1 1212- ● ● ● ● ●
683 RIVET; PROTECTOR,HEAT
THA 		8-98057-864-0 02 1 1109-1109 ● ●
683 RIVET; PROTECTOR,HEAT
THA 		8-98057-864-0 02 1 1110-1211 ● ● ● ● ●
683 RIVET; PROTECTOR,HEAT
THA 		8-98057-864-0 02 1 1212- ● ● ● ● ●
