◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#81738) — 60 parça

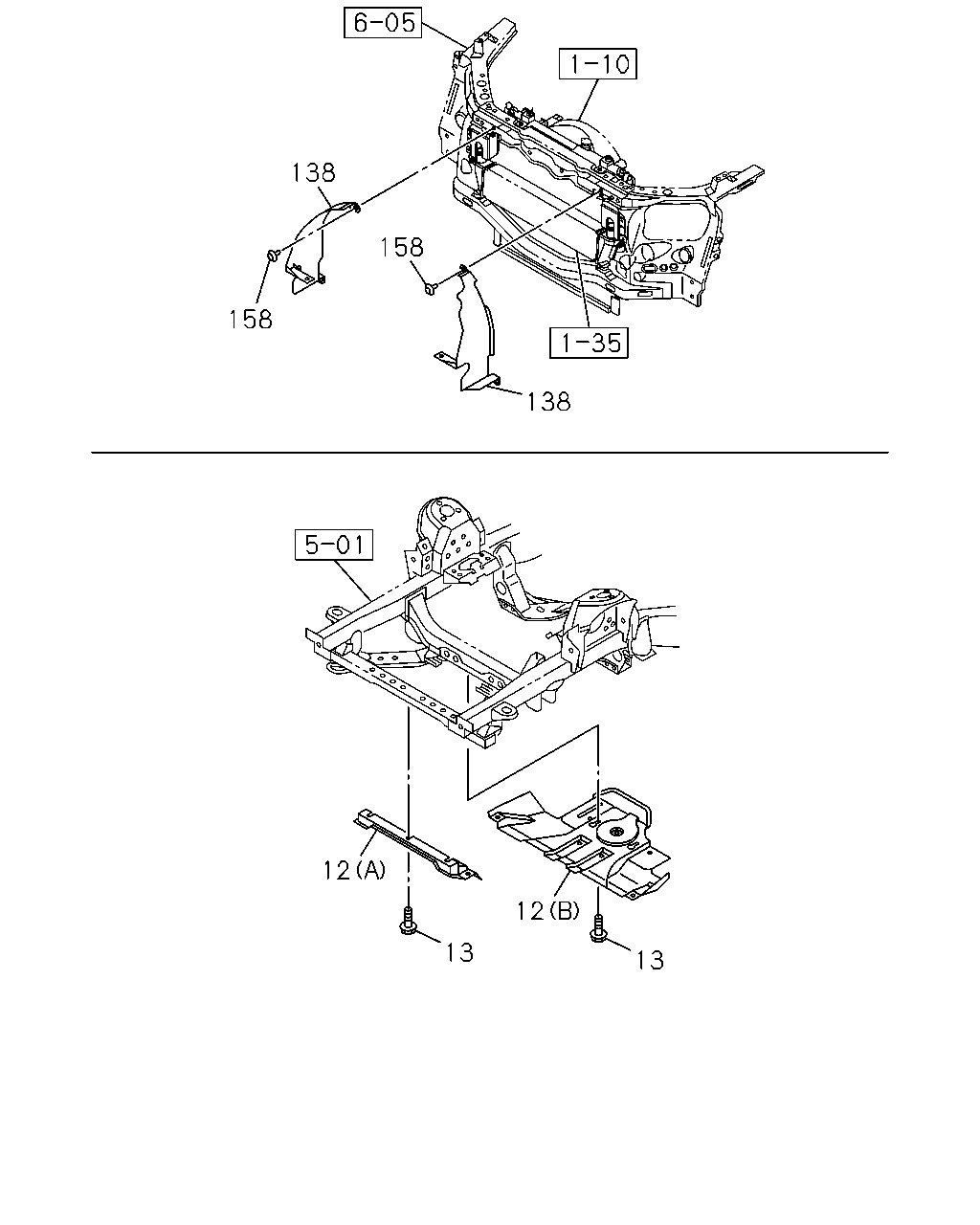

çizim 147192
138 158 138 158 12 13 13 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E
12 PLATE; SKID,RAD
(A) THA 		8-98102-129-1 01 1 1109-1109 ●
12 PLATE; SKID,RAD
(A) THA 		8-98102-129-1 01 1 1110- ● ●
12 PLATE; SKID,RAD
(B) THA 		8-98102-131-2 01 1 1109-1109 ●
12 PLATE; SKID,RAD
(B) THA 		8-98102-131-2 01 1 1110- ● ●
13 BOLT; RAD SKID PLATE
M10X28 W/LK&PL WASHER THA 		8-97945-706-0 09 1 1109-1109 ●
13 BOLT; RAD SKID PLATE
M10X28 W/LK&PL WASHER THA 		8-97945-706-0 09 1 1110- ● ●
138 GUIDE; AIR
THA 		8-98137-586-1 01 1 1109-1109 ● ●
138 GUIDE; AIR
THA 		8-98137-586-1 01 1 1110- ● ● ● ● ●
138 GUIDE; AIR
THA 		8-98137-587-1 01 1 1109-1109 ● ●
138 GUIDE; AIR
THA 		8-98137-587-1 01 1 1110- ● ● ● ● ●
158 CLIP; PROTECTOR
OD=22 L=10.7 THA 		8-94215-211-0 06 1 1109-1109 ● ●
158 CLIP; PROTECTOR
OD=22 L=10.7 THA 		8-94215-211-0 06 1 1110- ● ● ● ● ●

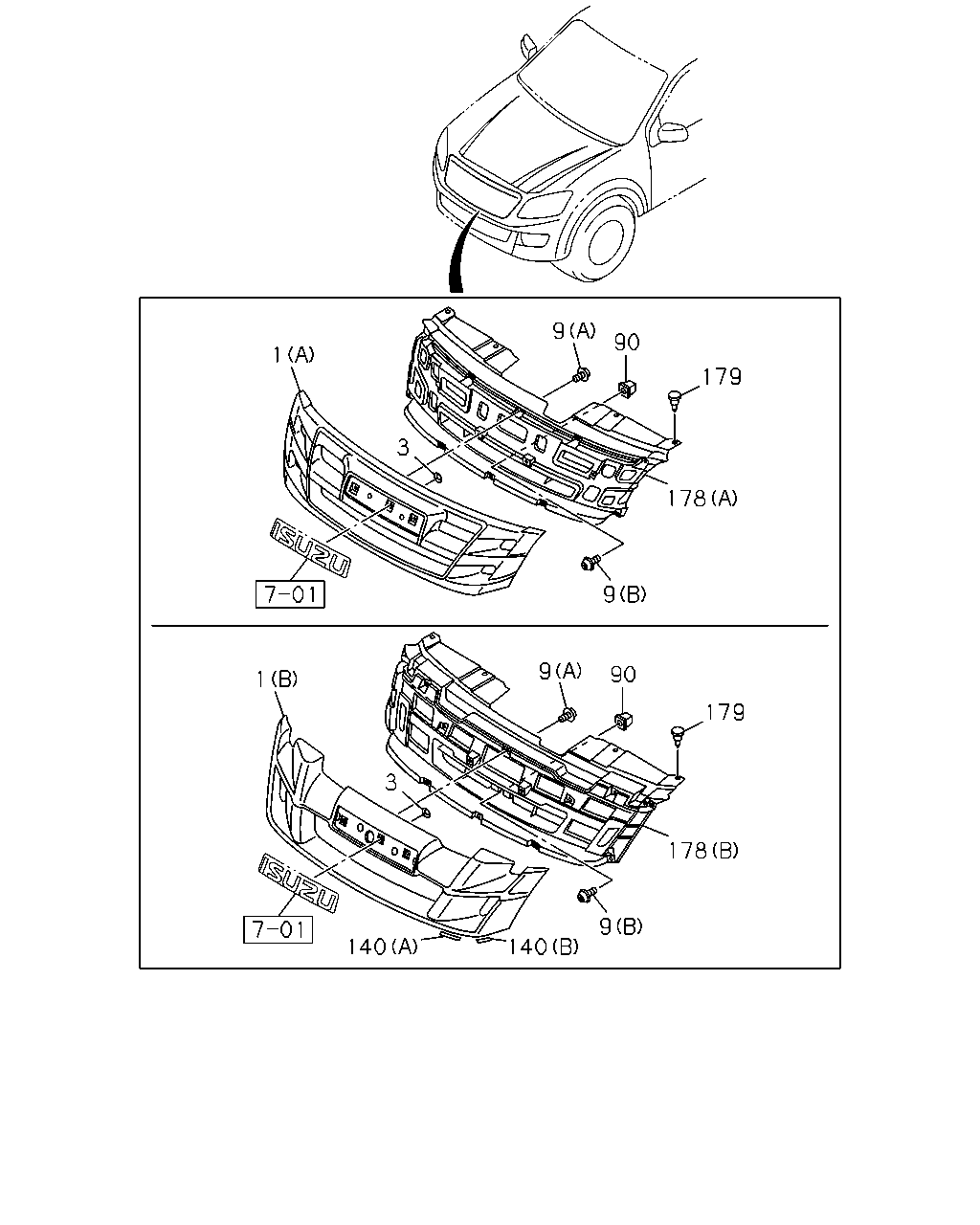

çizim 147209
1 9 90 179 178 9 3 1 3 140 140 9 178 179 90 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT RAD GRILLE<V22>,HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98193-864-0 01 1 1109-1109 ●
1 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT RAD GRILLE<V22>,HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98193-864-0 01 1 1110-1211 ● ●
1 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1> (A) THA 		8-98193-864-0 01 1 1110-1211 ●
1 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT RAD GRILLE<V22>,SALES PACKAGE SPORTY<XK0>,HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98193-864-0 01 1 1212- ● ●
1 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1> (A) THA 		8-98193-864-0 01 1 1212- ●
1 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> (B) PLEASE PAINT TO MATCH BODY COLOR THA 		8-98196-514-1 01 1 1109-1211 ●
1 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> SALES PACKAGE SPORTY<XK0> HIGH RIDE SUSPENSION<7YC> (B) PLEASE PAINT TO MATCH BODY COLOR THA 		8-98196-514-1 01 1 1212- ● ●
1 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> (B) PLEASE PAINT TO MATCH BODY COLOR THA 		8-98196-514-1 01 1 1212- ●
1 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> EXC. HIGH RIDE SUSPENSION<7YC> (A) PLEASE PAINT TO MATCH BODY COLOR THA 		8-98196-513-1 01 1 1109-1109 ●
1 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> EXC. HIGH RIDE SUSPENSION<7YC> (A) PLEASE PAINT TO MATCH BODY COLOR THA 		8-98196-513-1 01 1 1110- ● ●
1 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> (A) PLEASE PAINT TO MATCH BODY COLOR THA 		8-98196-513-1 01 1 1110- ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> HIGH RIDE SUSPENSION<7YC> (B) PLATED THA 		8-98193-869-0 01 1 1109-1109 ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (B) PLATED THA 		8-98193-869-0 01 1 1109-1109 ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> HIGH RIDE SUSPENSION<7YC> (B) PLATED THA 		8-98193-869-0 01 1 1110-1211 ● ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (B) PLATED THA 		8-98193-869-0 01 1 1110-1211 ●
1 GRILLE; RAD
(B) PLATED THA 		8-98193-869-0 01 1 1110-1211 ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> HIGH RIDE SUSPENSION<7YC> EXC. SALES PACKAGE SPORTY<XK0> (B) PLATED THA 		8-98193-869-0 01 1 1212- ● ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (B) PLATED THA 		8-98193-869-0 01 1 1212- ●
1 GRILLE; RAD
(B) PLATED THA 		8-98193-869-0 01 1 1212- ●
1 GRILLE; RAD
HIGH RIDE SUSPENSION<7YC> EXC. BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT RAD GRILLE<V22> (B) THA 		8-98193-867-0 01 1 1109-1109 ●
1 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT RAD GRILLE<V22> (B) THA 		8-98193-867-0 01 1 1109-1109 ●
1 GRILLE; RAD
HIGH RIDE SUSPENSION<7YC> EXC. BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT RAD GRILLE<V22> (B) THA 		8-98193-867-0 01 1 1110-1211 ● ●
1 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT RAD GRILLE<V22> (B) THA 		8-98193-867-0 01 1 1110-1211 ●
1 GRILLE; RAD
HIGH RIDE SUSPENSION<7YC> EXC. BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT RAD GRILLE<V22>,SALES PACKAGE SPORTY<XK0> (B) THA 		8-98193-867-0 01 1 1212- ● ●
1 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT RAD GRILLE<V22> (B) THA 		8-98193-867-0 01 1 1212- ●
3 CLIP; GRILLE
THA 		8-97182-223-0 03 1 1109-1109 ● ●
3 CLIP; GRILLE
THA 		8-97182-223-0 03 1 1110-1112 ● ● ● ● ●
3 CLIP; GRILLE
THA 		8-98211-687-0 03 1 1201- ● ● ● ● ●
9 SCREW; RAD GRILLE
(B) M5X16 THA 		8-98167-352-0 01 1 1109-1109 ● ●
9 SCREW; RAD GRILLE
(B) M5X16 THA 		8-98167-352-0 01 1 1110-1211 ● ● ● ● ●
9 SCREW; RAD GRILLE
(B) M5X16 THA 		8-98167-352-0 01 1 1212- ● ● ● ● ●
9 SCREW; RAD GRILLE
(A) M5X16 TAPPING W/PL WASHER THA 		8-98193-872-0 12 1 1109-1109 ● ●
9 SCREW; RAD GRILLE
(A) M5X16 TAPPING W/PL WASHER THA 		8-98193-872-0 12 1 1110- ● ● ● ● ●
90 NUT; RAD GRILLE
D=7X7 L=7.5 THA 		8-94291-927-0 01 1 1109-1109 ● ●
90 NUT; RAD GRILLE
D=7X7 L=7.5 THA 		8-94291-927-0 01 1 1110-1211 ● ● ● ● ●
90 NUT; RAD GRILLE
D=7X7 L=7.5 THA 		8-94291-927-0 01 1 1212- ● ● ● ● ●
140 SEAL; RAD GRILLE
(A) THA 		8-98193-873-0 02 1 1109-1109 ● ●
140 SEAL; RAD GRILLE
(B) THA 		8-98193-874-0 02 1 1109-1109 ● ●
178 GRILLE; INNER,RAD
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98193-870-0 01 1 1109-1109 ●
178 GRILLE; INNER,RAD
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98193-870-0 01 1 1110- ● ●
178 GRILLE; INNER,RAD
(A) THA 		8-98193-870-0 01 1 1110- ●
178 GRILLE; INNER,RAD
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98193-871-0 01 1 1109-1109 ●
178 GRILLE; INNER,RAD
(B) THA 		8-98193-871-0 01 1 1109-1109 ●
178 GRILLE; INNER,RAD
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98193-871-0 01 1 1110- ● ●
178 GRILLE; INNER,RAD
(B) THA 		8-98193-871-0 01 1 1110- ● ●
179 RETAINER; GRILLE,RAD
THA 		8-97301-188-0 04 1 1109-1109 ● ●
179 RETAINER; GRILLE,RAD
THA 		8-97301-188-0 04 1 1110-1211 ● ● ● ● ●
179 RETAINER; GRILLE,RAD
THA 		8-97301-188-0 04 1 1212- ● ● ● ● ●
