◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 5 - Frame, Cab Mounting ▶ 5-40 - ENGINE ROOM INSULATOR ▶
5-40 — ENGINE ROOM INSULATOR (#81736) — 17 parça

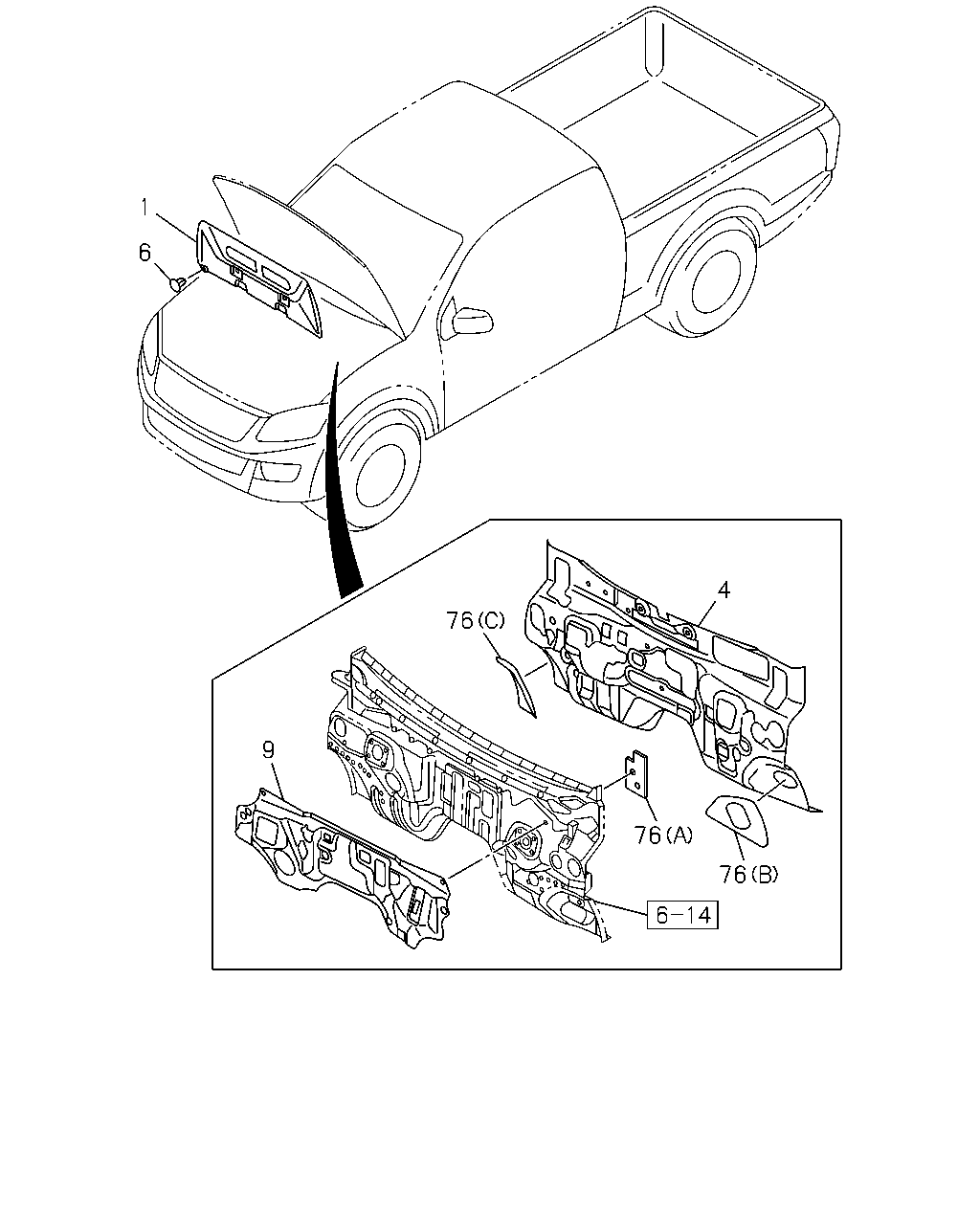

çizim 147188
1 4 76 9 76 76 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 INSULATION; ENG HOOD
REFRIGERATION KIT<7FH> THA 		8-98202-596-0 01 1 1203- ●
1 INSULATION; ENG HOOD
THA 		8-98074-100-1 01 1 1109-1109 ● ●
1 INSULATION; ENG HOOD
THA 		8-98074-100-1 01 1 1110-1202 ● ● ● ● ●
1 INSULATION; ENG HOOD
THA 		8-98074-100-1 01 1 1203- ● ● ● ●
1 INSULATION; ENG HOOD
EXC. REFRIGERATION KIT<7FH> THA 		8-98074-100-1 01 1 1203- ●
4 INSULATION; DASH PNL,INNER
THA 		8-98074-011-1 01 1 1109-1109 ● ●
4 INSULATION; DASH PNL,INNER
THA 		8-98074-011-1 01 1 1110- ● ● ● ● ●
6 CLIP; ENG HOOD INSULATION
ID=6.2 L=11.4 THA 		8-97808-623-0 09 1 1109-1109 ● ●
6 CLIP; ENG HOOD INSULATION
ID=6.2 L=11.4 THA 		8-97808-623-0 09 1 1110- ● ● ● ● ●
9 INSULATION; DASH ENG ROOM
THA 		8-98074-008-0 01 1 1109-1109 ● ●
9 INSULATION; DASH ENG ROOM
THA 		8-98074-008-0 01 1 1110- ● ● ● ● ●
76 DEADENER; DASH ENG ROOM
(A) THA 		8-98104-578-2 01 1 1109-1109 ● ●
76 DEADENER; DASH ENG ROOM
(A) THA 		8-98104-578-2 01 1 1110- ● ● ● ● ●
76 DEADENER; DASH ENG ROOM
(B) THA 		8-98161-052-0 01 1 1109-1109 ● ●
76 DEADENER; DASH ENG ROOM
(B) THA 		8-98161-052-0 01 1 1110- ● ● ● ● ●
76 DEADENER; DASH ENG ROOM
(C) THA 		8-98161-053-0 01 1 1109-1109 ● ●
76 DEADENER; DASH ENG ROOM
(C) THA 		8-98161-053-0 01 1 1110- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
