◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#81732) — 99 parça

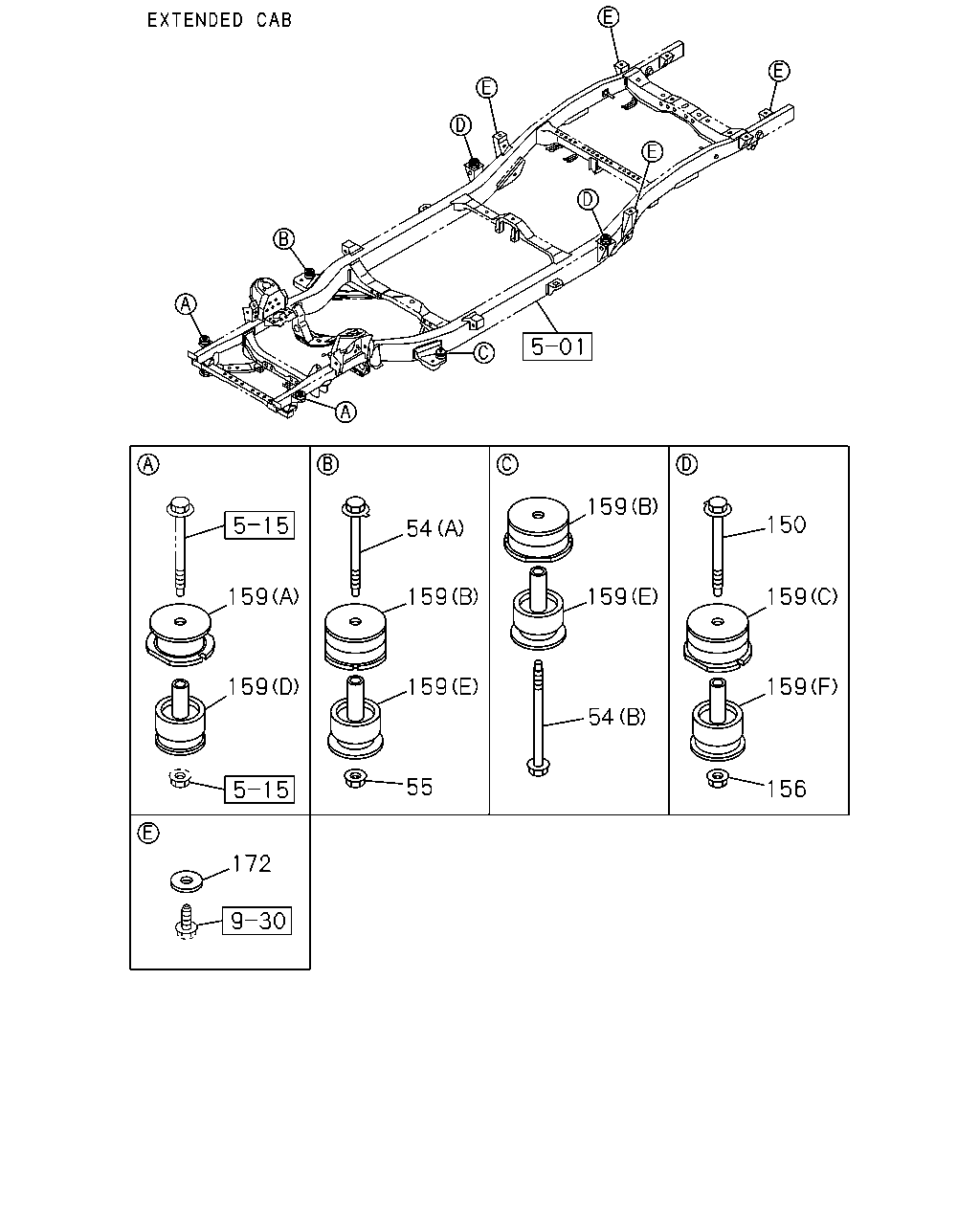

çizim 147195
159 159 172 54 159 159 55 159 159 54 150 159 159 156
BalonParca AdiParca NoAdetTipApplied Date A B C D E
54 BOLT; RUBBER
(A) M10X130 FLANGE THA 		8-98102-202-3 01 1 1109-1109 ● ●
54 BOLT; RUBBER
(A) M10X130 FLANGE THA 		8-98102-202-3 01 1 1110-1211 ● ● ● ● ●
54 BOLT; RUBBER
(A) M10X130 FLANGE THA 		8-98102-202-3 01 1 1212- ● ● ● ● ●
54 BOLT; RUBBER
(B) M10X141 FLANGE THA 		8-98169-670-0 01 1 1109-1109 ● ●
54 BOLT; RUBBER
(B) M10X141 FLANGE THA 		8-98169-670-0 01 1 1110- ● ● ● ● ●
55 NUT; RUBBER
M10 FLANGE THA 		0-91280-210-0 01 1 1109-1109 ● ●
55 NUT; RUBBER
M10 FLANGE THA 		0-91280-210-0 01 1 1110-1211 ● ● ● ● ●
55 NUT; RUBBER
M10 FLANGE THA 		0-91280-210-0 01 1 1212- ● ● ● ● ●
150 BOLT; CAB MTG RR
M10X130 FLANGE THA 		8-98102-202-3 02 1 1109-1109 ● ●
150 BOLT; CAB MTG RR
M10X130 FLANGE THA 		8-98102-202-3 02 1 1110- ● ● ● ● ●
150 BOLT; CAB MTG RR
M10X130 FLANGE THA 		8-98102-202-3 02 1 1110- ● ●
156 NUT; CAB MTG RR
M10 FLANGE THA 		0-91280-210-0 02 1 1109-1109 ● ●
156 NUT; CAB MTG RR
M10 FLANGE THA 		0-91280-210-0 02 1 1110- ● ● ● ● ●
156 NUT; CAB MTG RR
M10 FLANGE THA 		0-91280-210-0 02 1 1110- ● ●
159 RUBBER; CUSHION,CAB MTG
(F) THA 		8-98075-386-1 02 1 1109- ● ●
159 RUBBER; CUSHION,CAB MTG
(C) THA 		8-98174-971-0 02 1 1109- ● ●
159 RUBBER; CUSHION,CAB MTG
(A) THA 		8-97367-285-0 02 1 1109-1109 ● ●
159 RUBBER; CUSHION,CAB MTG
(A) THA 		8-97367-285-0 02 1 1110-1211 ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(A) THA 		8-97367-285-0 02 1 1212- ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(D) THA 		8-98051-326-0 02 1 1109-1109 ● ●
159 RUBBER; CUSHION,CAB MTG
(D) THA 		8-98051-326-0 02 1 1110-1211 ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(D) THA 		8-98051-326-0 02 1 1212- ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(E) THA 		8-98075-385-1 02 1 1109-1109 ● ●
159 RUBBER; CUSHION,CAB MTG
(E) THA 		8-98075-385-1 02 1 1110- ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(E) THA 		8-98075-385-1 02 1 1110- ● ● ●
159 RUBBER; CUSHION,CAB MTG
(E) THA 		8-98075-385-1 02 1 1110- ● ●
159 RUBBER; CUSHION,CAB MTG
(B) THA 		8-98174-970-0 02 1 1109-1109 ● ●
159 RUBBER; CUSHION,CAB MTG
(B) THA 		8-98174-970-0 02 1 1110- ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(B) THA 		8-98174-970-0 02 1 1110- ● ● ●
159 RUBBER; CUSHION,CAB MTG
(G) THA 		8-98075-381-0 02 1 1110- ● ●
172 WASHER; BODY MTG RUBBER
ID=13 OD=40 T=6 THA 		8-98098-458-0 06 1 1109- ● ●
172 WASHER; BODY MTG RUBBER
REAR BODY DBL WALL CTR PULL<E63> ID=13 OD=40 T=6 THA 		8-98098-458-0 08 1 1110- ●
172 WASHER; BODY MTG RUBBER
ID=13 OD=40 T=6 THA 		8-98098-458-0 04 1 1110- ● ●

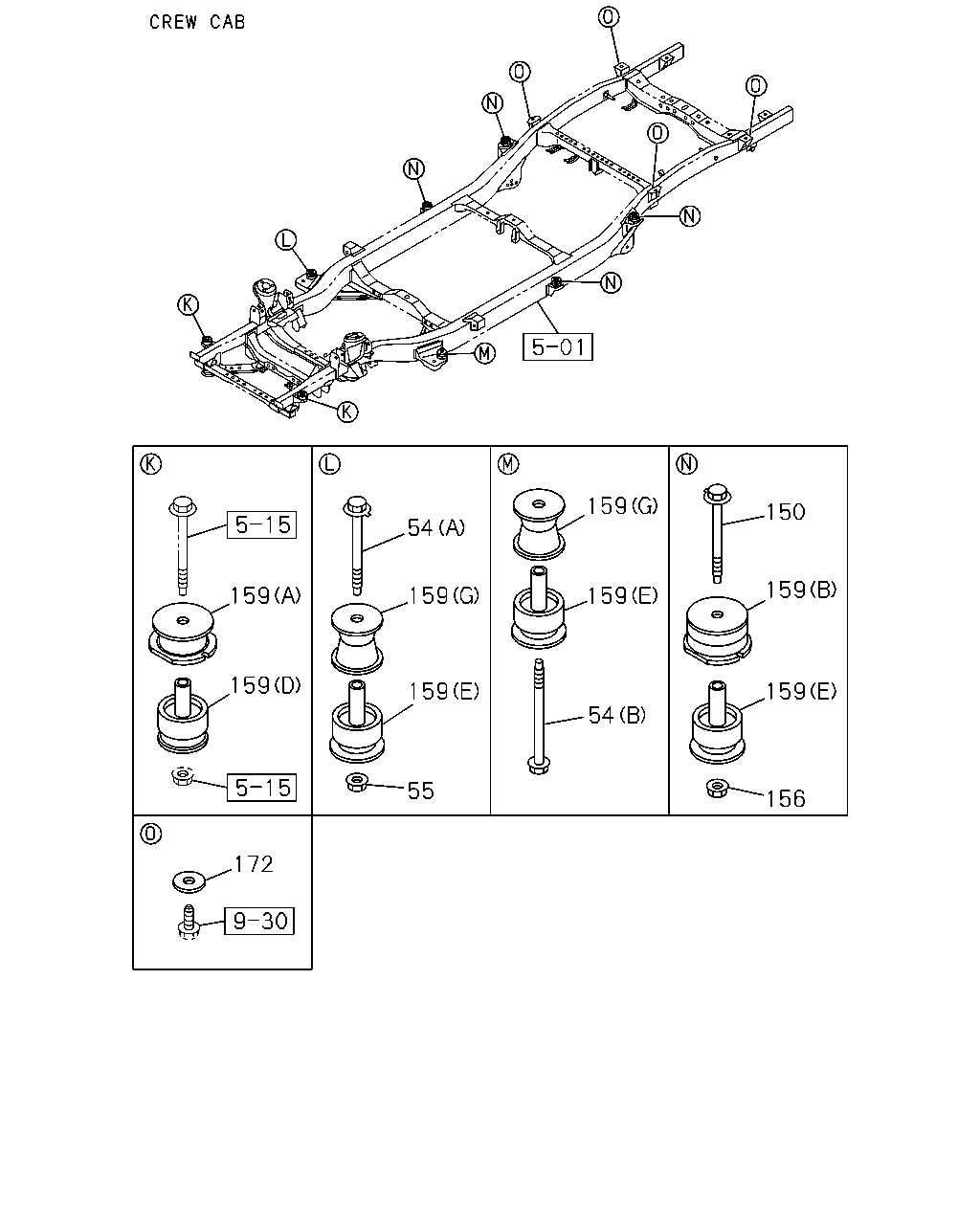

çizim 147200
159 159 54 159 159 55 159 159 54 150 159 159 156 172
BalonParca AdiParca NoAdetTipApplied Date A B C D E
54 BOLT; RUBBER
(A) M10X130 FLANGE THA 		8-98102-202-3 01 1 1109-1109 ● ●
54 BOLT; RUBBER
(A) M10X130 FLANGE THA 		8-98102-202-3 01 1 1110-1211 ● ● ● ● ●
54 BOLT; RUBBER
(A) M10X130 FLANGE THA 		8-98102-202-3 01 1 1212- ● ● ● ● ●
54 BOLT; RUBBER
(B) M10X141 FLANGE THA 		8-98169-670-0 01 1 1109-1109 ● ●
54 BOLT; RUBBER
(B) M10X141 FLANGE THA 		8-98169-670-0 01 1 1110- ● ● ● ● ●
55 NUT; RUBBER
M10 FLANGE THA 		0-91280-210-0 01 1 1109-1109 ● ●
55 NUT; RUBBER
M10 FLANGE THA 		0-91280-210-0 01 1 1110-1211 ● ● ● ● ●
55 NUT; RUBBER
M10 FLANGE THA 		0-91280-210-0 01 1 1212- ● ● ● ● ●
150 BOLT; CAB MTG RR
M10X130 FLANGE THA 		8-98102-202-3 02 1 1109-1109 ● ●
150 BOLT; CAB MTG RR
M10X130 FLANGE THA 		8-98102-202-3 02 1 1110- ● ● ● ● ●
150 BOLT; CAB MTG RR
M10X130 FLANGE THA 		8-98102-202-3 02 1 1110- ● ●
156 NUT; CAB MTG RR
M10 FLANGE THA 		0-91280-210-0 02 1 1109-1109 ● ●
156 NUT; CAB MTG RR
M10 FLANGE THA 		0-91280-210-0 02 1 1110- ● ● ● ● ●
156 NUT; CAB MTG RR
M10 FLANGE THA 		0-91280-210-0 02 1 1110- ● ●
159 RUBBER; CUSHION,CAB MTG
(F) THA 		8-98075-386-1 02 1 1109- ● ●
159 RUBBER; CUSHION,CAB MTG
(C) THA 		8-98174-971-0 02 1 1109- ● ●
159 RUBBER; CUSHION,CAB MTG
(A) THA 		8-97367-285-0 02 1 1109-1109 ● ●
159 RUBBER; CUSHION,CAB MTG
(A) THA 		8-97367-285-0 02 1 1110-1211 ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(A) THA 		8-97367-285-0 02 1 1212- ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(D) THA 		8-98051-326-0 02 1 1109-1109 ● ●
159 RUBBER; CUSHION,CAB MTG
(D) THA 		8-98051-326-0 02 1 1110-1211 ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(D) THA 		8-98051-326-0 02 1 1212- ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(E) THA 		8-98075-385-1 02 1 1109-1109 ● ●
159 RUBBER; CUSHION,CAB MTG
(E) THA 		8-98075-385-1 02 1 1110- ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(E) THA 		8-98075-385-1 02 1 1110- ● ● ●
159 RUBBER; CUSHION,CAB MTG
(E) THA 		8-98075-385-1 02 1 1110- ● ●
159 RUBBER; CUSHION,CAB MTG
(B) THA 		8-98174-970-0 02 1 1109-1109 ● ●
159 RUBBER; CUSHION,CAB MTG
(B) THA 		8-98174-970-0 02 1 1110- ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(B) THA 		8-98174-970-0 02 1 1110- ● ● ●
159 RUBBER; CUSHION,CAB MTG
(G) THA 		8-98075-381-0 02 1 1110- ● ●
172 WASHER; BODY MTG RUBBER
ID=13 OD=40 T=6 THA 		8-98098-458-0 06 1 1109- ● ●
172 WASHER; BODY MTG RUBBER
REAR BODY DBL WALL CTR PULL<E63> ID=13 OD=40 T=6 THA 		8-98098-458-0 08 1 1110- ●
172 WASHER; BODY MTG RUBBER
ID=13 OD=40 T=6 THA 		8-98098-458-0 04 1 1110- ● ●

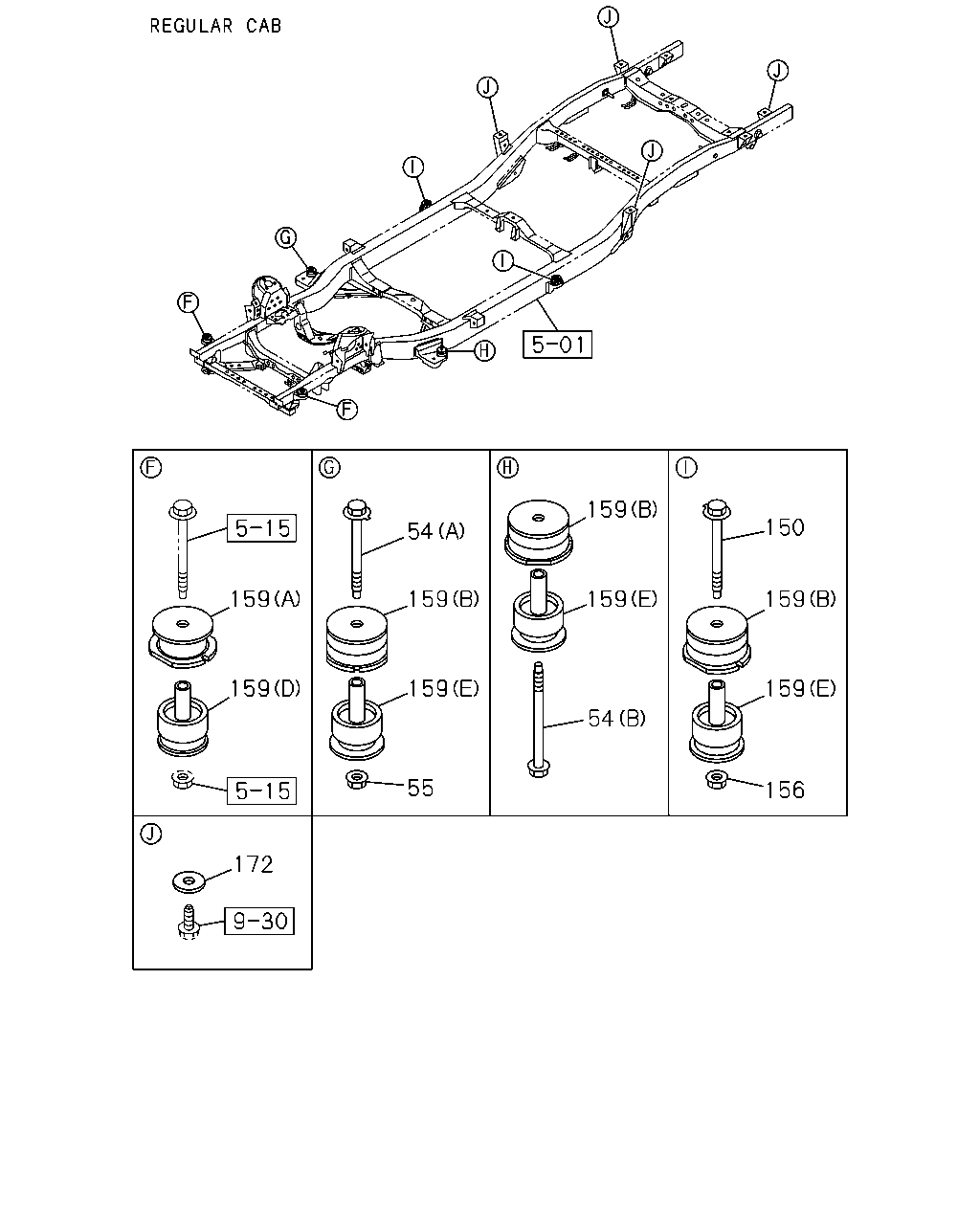

çizim 147206
150 159 159 156 54 159 159 54 159 159 55 172 159 159
BalonParca AdiParca NoAdetTipApplied Date A B C D E
54 BOLT; RUBBER
(A) M10X130 FLANGE THA 		8-98102-202-3 01 1 1109-1109 ● ●
54 BOLT; RUBBER
(A) M10X130 FLANGE THA 		8-98102-202-3 01 1 1110-1211 ● ● ● ● ●
54 BOLT; RUBBER
(A) M10X130 FLANGE THA 		8-98102-202-3 01 1 1212- ● ● ● ● ●
54 BOLT; RUBBER
(B) M10X141 FLANGE THA 		8-98169-670-0 01 1 1109-1109 ● ●
54 BOLT; RUBBER
(B) M10X141 FLANGE THA 		8-98169-670-0 01 1 1110- ● ● ● ● ●
55 NUT; RUBBER
M10 FLANGE THA 		0-91280-210-0 01 1 1109-1109 ● ●
55 NUT; RUBBER
M10 FLANGE THA 		0-91280-210-0 01 1 1110-1211 ● ● ● ● ●
55 NUT; RUBBER
M10 FLANGE THA 		0-91280-210-0 01 1 1212- ● ● ● ● ●
150 BOLT; CAB MTG RR
M10X130 FLANGE THA 		8-98102-202-3 02 1 1109-1109 ● ●
150 BOLT; CAB MTG RR
M10X130 FLANGE THA 		8-98102-202-3 02 1 1110- ● ● ● ● ●
150 BOLT; CAB MTG RR
M10X130 FLANGE THA 		8-98102-202-3 02 1 1110- ● ●
156 NUT; CAB MTG RR
M10 FLANGE THA 		0-91280-210-0 02 1 1109-1109 ● ●
156 NUT; CAB MTG RR
M10 FLANGE THA 		0-91280-210-0 02 1 1110- ● ● ● ● ●
156 NUT; CAB MTG RR
M10 FLANGE THA 		0-91280-210-0 02 1 1110- ● ●
159 RUBBER; CUSHION,CAB MTG
(F) THA 		8-98075-386-1 02 1 1109- ● ●
159 RUBBER; CUSHION,CAB MTG
(C) THA 		8-98174-971-0 02 1 1109- ● ●
159 RUBBER; CUSHION,CAB MTG
(A) THA 		8-97367-285-0 02 1 1109-1109 ● ●
159 RUBBER; CUSHION,CAB MTG
(A) THA 		8-97367-285-0 02 1 1110-1211 ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(A) THA 		8-97367-285-0 02 1 1212- ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(D) THA 		8-98051-326-0 02 1 1109-1109 ● ●
159 RUBBER; CUSHION,CAB MTG
(D) THA 		8-98051-326-0 02 1 1110-1211 ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(D) THA 		8-98051-326-0 02 1 1212- ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(E) THA 		8-98075-385-1 02 1 1109-1109 ● ●
159 RUBBER; CUSHION,CAB MTG
(E) THA 		8-98075-385-1 02 1 1110- ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(E) THA 		8-98075-385-1 02 1 1110- ● ● ●
159 RUBBER; CUSHION,CAB MTG
(E) THA 		8-98075-385-1 02 1 1110- ● ●
159 RUBBER; CUSHION,CAB MTG
(B) THA 		8-98174-970-0 02 1 1109-1109 ● ●
159 RUBBER; CUSHION,CAB MTG
(B) THA 		8-98174-970-0 02 1 1110- ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(B) THA 		8-98174-970-0 02 1 1110- ● ● ●
159 RUBBER; CUSHION,CAB MTG
(G) THA 		8-98075-381-0 02 1 1110- ● ●
172 WASHER; BODY MTG RUBBER
ID=13 OD=40 T=6 THA 		8-98098-458-0 06 1 1109- ● ●
172 WASHER; BODY MTG RUBBER
REAR BODY DBL WALL CTR PULL<E63> ID=13 OD=40 T=6 THA 		8-98098-458-0 08 1 1110- ●
172 WASHER; BODY MTG RUBBER
ID=13 OD=40 T=6 THA 		8-98098-458-0 04 1 1110- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
