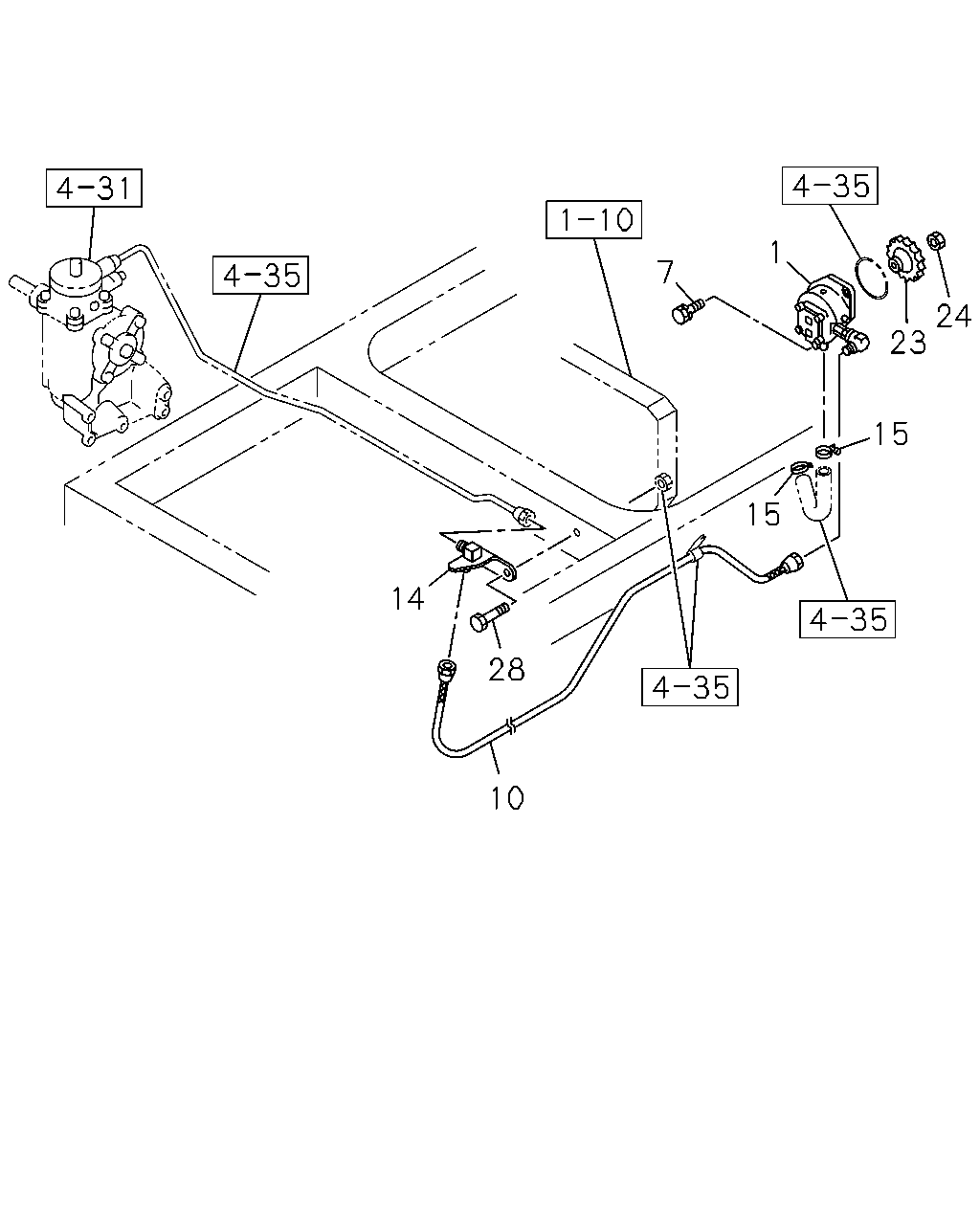

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#8173) — 21 parça

1 7 24 23 15 15 14 28 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-465-0	01	1	0005-0202	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-589-1	01	1	0203-1112	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	8-98202-666-0	01	1	1201-	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-530-0	01	1	0005-0202			●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-595-1	01	1	0203-1112			●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	8-98202-668-0	01	1	1201-			●	●
7	BOLT; OIL PUMP,P/S M10X55 FLANGE	8-94399-863-1	02	1	0005-0805	●	●	●	●
7	BOLT; OIL PUMP,P/S M10X55 FLANGE	8-97365-449-0	02	1	0806-	●	●	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL L=810	1-09364-808-2	01	1	0005-0210	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL	1-09365-180-0	01	1	0211-	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL L=875	1-09364-980-0	01	1	0005-0210			●	●
10	HOSE; FLEX,P/S OIL PUMP,INL L=900	1-09365-251-0	01	1	0211-			●	●
14	UNION; FLEX HOSE,P/S	1-47470-463-1	01	1	0005-0210	●	●	●	●
14	UNION; FLEX HOSE,P/S	1-47470-554-1	01	1	0211-	●	●
14	UNION; FLEX HOSE,P/S	1-47470-663-0	01	1	0211-			●	●
15	CLIP; OIL PIPE SUCTION ID=32	1-09704-085-0	02	1	0005-	●	●	●	●
23	GEAR; OIL PUMP Z=30	8-94396-957-3	01	1	0005-	●	●	●	●
24	NUT; GEAR,P/S PUMP M14 FLANGE	0-91150-114-0	01	1	0005-0712	●	●	●	●
24	NUT; GEAR,P/S PUMP M14 FLANGE	0-91180-114-0	01	1	0801-	●	●	●	●
28	BOLT; BRKT,FLEX HOSE,P/S M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●	●	●	●
28	BOLT; BRKT,FLEX HOSE,P/S M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●	●
