Sayfa 4-65 - Isuzu EPC

4-65 — REAR LEAF SPRING (#81729) — 297 parça

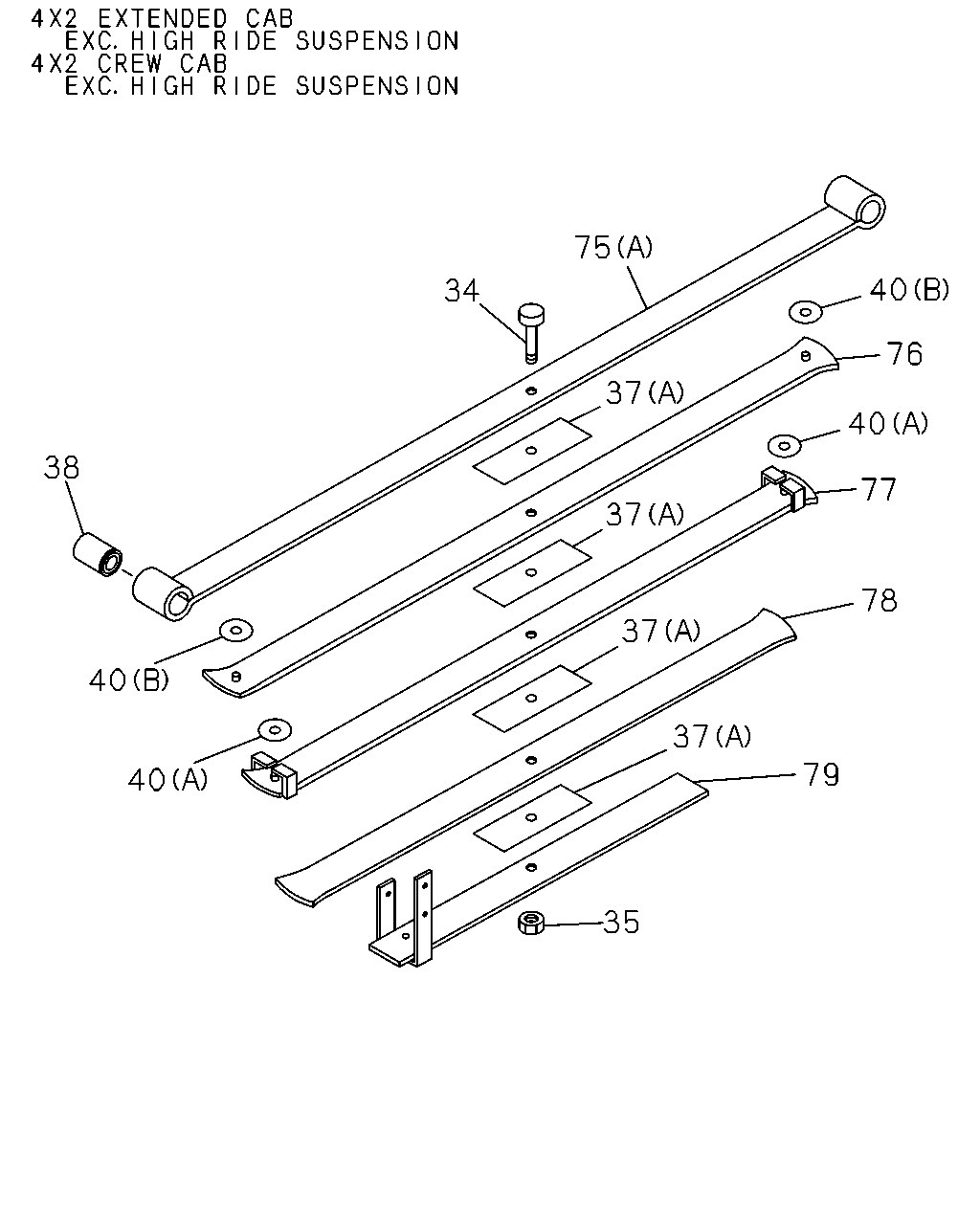

35 79 37 78 37 77 37 37 76 40 40 75 34 40 40 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X75, THA ASM PART: B = 8-97947-009-2, G = 8-98201-544-2, I = 8-98215-677-0	8-97304-264-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X60, THA ASM PART: A = 8-97947-008-2, H = 8-98201-545-2, J = 8-98218-543-0	8-97947-194-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X58, THA ASM PART: C = 8-97947-010-2, K = 8-98218-545-0	8-97947-210-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X62, THA ASM PART: F = 8-98201-543-3	8-97947-234-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M10X64, THA ASM PART: D = 8-97947-012-5, E = 8-98174-020-3, L = 8-98218-549-0, N = 8-98218-556-0, P = 8-98282-595-1	8-98161-928-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M10X66, THA ASM PART: M = 8-98218-552-0, O = 8-98282-594-1	8-98161-929-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M10, THA ASM PART: D = 8-97947-012-5, E = 8-98174-020-3, L = 8-98218-549-0, M = 8-98218-552-0, N = 8-98218-556-0, O = 8-98282-594-1, P = 8-98282-595-1	1-09400-055-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: A = 8-97947-008-2, B = 8-97947-009-2, C = 8-97947-010-2, F = 8-98201-543-3, G = 8-98201-544-2, H = 8-98201-545-2, I = 8-98215-677-0, J = 8-98218-543-0, K = 8-98218-545-0	8-97945-821-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: F = 8-98201-543-3, G = 8-98201-544-2, H = 8-98201-545-2	8-97947-195-0	04	1	-1504
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: A = 8-97947-008-2, B = 8-97947-009-2, C = 8-97947-010-2, I = 8-98215-677-0, J = 8-98218-543-0, K = 8-98218-545-0	8-97947-195-0	04	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: O = 8-98282-594-1, P = 8-98282-595-1	8-98161-302-0	03	1	-1504
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: D = 8-97947-012-5, E = 8-98174-020-3, L = 8-98218-549-0, M = 8-98218-552-0, N = 8-98218-556-0	8-98161-302-0	04	1	-
37	SPACER; CENTER,LEAF SPR,RR (B), THA ASM PART: O = 8-98282-594-1, P = 8-98282-595-1	8-98288-935-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: F = 8-98201-543-3, G = 8-98201-544-2, H = 8-98201-545-2	8-98296-471-0	04	1	1505-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: O = 8-98282-594-1, P = 8-98282-595-1	8-98296-472-0	03	1	1505-
38	BUSHING; LEAF SPR,RR THA ASM PART: A = 8-97947-008-2, B = 8-97947-009-2, C = 8-97947-010-2, D = 8-97947-012-5, E = 8-98174-020-3, F = 8-98201-543-3, G = 8-98201-544-2, H = 8-98201-545-2, I = 8-98215-677-0, J = 8-98218-543-0, K = 8-98218-545-0, L = 8-98218-549-0, M = 8-98218-552-0, N = 8-98218-556-0, O = 8-98282-594-1, P = 8-98282-595-1	8-97947-171-0	01	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: A = 8-97947-008-2, B = 8-97947-009-2, C = 8-97947-010-2, D = 8-97947-012-5, E = 8-98174-020-3, G = 8-98201-544-2, I = 8-98215-677-0	8-97360-246-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: A = 8-97947-008-2, B = 8-97947-009-2, C = 8-97947-010-2, D = 8-97947-012-5, E = 8-98174-020-3, G = 8-98201-544-2, I = 8-98215-677-0	8-97947-218-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: F = 8-98201-543-3, H = 8-98201-545-2, J = 8-98218-543-0, K = 8-98218-545-0, L = 8-98218-549-0, M = 8-98218-552-0, N = 8-98218-556-0, O = 8-98282-594-1, P = 8-98282-595-1	8-98218-583-0	02	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: F = 8-98201-543-3, H = 8-98201-545-2, J = 8-98218-543-0, K = 8-98218-545-0, L = 8-98218-549-0, M = 8-98218-552-0, N = 8-98218-556-0, O = 8-98282-594-1, P = 8-98282-595-1	8-98218-584-0	02	1	-
75	SPRING; LEAF,NO 1,RR (A), THA ASM PART: A = 8-97947-008-2, J = 8-98218-543-0	8-97947-425-0	01	1	-
75	SPRING; LEAF,NO 1,RR (D), THA ASM PART: B = 8-97947-009-2, I = 8-98215-677-0	8-97947-430-0	01	1	-
75	SPRING; LEAF,NO 1,RR (A), THA ASM PART: C = 8-97947-010-2, K = 8-98218-545-0	8-97947-436-0	01	1	-
75	SPRING; LEAF,NO 1,RR (B), THA ASM PART: E = 8-98174-020-3, L = 8-98218-549-0	8-97947-441-1	01	1	-
75	SPRING; LEAF,NO 1,RR (C), THA ASM PART: D = 8-97947-012-5, N = 8-98218-556-0, P = 8-98282-595-1	8-97947-451-1	01	1	-
75	SPRING; LEAF,NO 1,RR (B), THA ASM PART: M = 8-98218-552-0, O = 8-98282-594-1	8-98193-953-1	01	1	-
75	SPRING; LEAF,NO 1,RR (A), THA ASM PART: F = 8-98201-543-3	8-98210-417-0	01	1	-
75	SPRING; LEAF,NO 1,RR (D), THA ASM PART: G = 8-98201-544-2	8-98210-422-0	01	1	-
75	SPRING; LEAF,NO 1,RR (A), THA ASM PART: H = 8-98201-545-2	8-98210-428-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: A = 8-97947-008-2	8-97947-426-2	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: B = 8-97947-009-2, I = 8-98215-677-0	8-97947-431-2	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: C = 8-97947-010-2	8-97947-437-2	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: E = 8-98174-020-3	8-97947-442-1	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: D = 8-97947-012-5	8-97947-452-1	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: F = 8-98201-543-3	8-98210-418-1	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: G = 8-98201-544-2	8-98210-423-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: H = 8-98201-545-2	8-98210-429-1	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: J = 8-98218-543-0	8-98218-563-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: K = 8-98218-545-0	8-98218-567-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: L = 8-98218-549-0	8-98218-571-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: M = 8-98218-552-0, O = 8-98282-594-1	8-98218-574-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: N = 8-98218-556-0, P = 8-98282-595-1	8-98218-578-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: A = 8-97947-008-2	8-97947-427-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: B = 8-97947-009-2, I = 8-98215-677-0	8-97947-432-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: C = 8-97947-010-2	8-97947-438-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: D = 8-97947-012-5	8-97947-453-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: E = 8-98174-020-3	8-98174-369-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: F = 8-98201-543-3	8-98210-419-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: G = 8-98201-544-2	8-98210-424-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: H = 8-98201-545-2	8-98210-430-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: J = 8-98218-543-0	8-98218-566-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: K = 8-98218-545-0	8-98218-568-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: L = 8-98218-549-0	8-98218-572-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: M = 8-98218-552-0, O = 8-98282-594-1	8-98218-577-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: N = 8-98218-556-0, P = 8-98282-595-1	8-98218-579-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: A = 8-97947-008-2, J = 8-98218-543-0	8-97947-428-1	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: B = 8-97947-009-2, I = 8-98215-677-0	8-97947-433-1	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: C = 8-97947-010-2, K = 8-98218-545-0	8-97947-439-1	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: E = 8-98174-020-3, L = 8-98218-549-0	8-97947-444-2	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: D = 8-97947-012-5	8-97947-454-3	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: M = 8-98218-552-0, O = 8-98282-594-1	8-98193-957-1	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: F = 8-98201-543-3	8-98210-420-1	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: G = 8-98201-544-2	8-98210-425-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: H = 8-98201-545-2	8-98210-431-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: N = 8-98218-556-0, P = 8-98282-595-1	8-98215-884-0	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: A = 8-97947-008-2	8-97947-429-1	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: B = 8-97947-009-2, I = 8-98215-677-0	8-97947-434-1	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: C = 8-97947-010-2	8-97947-440-1	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: E = 8-98174-020-3	8-97947-445-2	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: F = 8-98201-543-3	8-98210-421-2	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: G = 8-98201-544-2	8-98210-426-0	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: H = 8-98201-545-2	8-98210-432-1	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: J = 8-98218-543-0	8-98215-878-0	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: K = 8-98218-545-0	8-98215-880-0	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: L = 8-98218-549-0	8-98215-881-0	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: M = 8-98218-552-0, O = 8-98282-594-1	8-98215-882-0	01	1	-

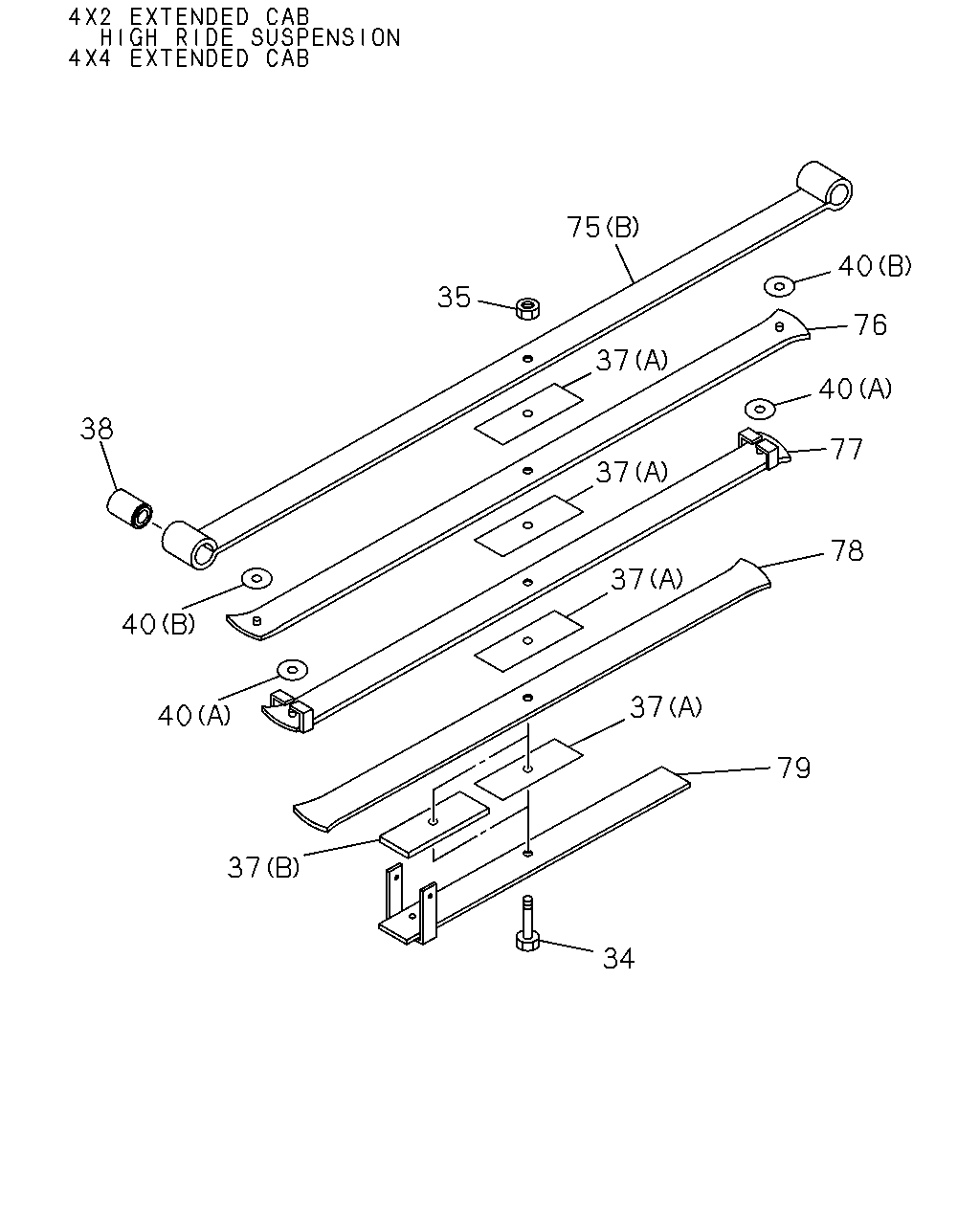

34 79 37 37 37 37 78 77 40 76 40 75 35 37 40 40 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X75, THA ASM PART: B = 8-97947-009-2, G = 8-98201-544-2, I = 8-98215-677-0	8-97304-264-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X60, THA ASM PART: A = 8-97947-008-2, H = 8-98201-545-2, J = 8-98218-543-0	8-97947-194-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X58, THA ASM PART: C = 8-97947-010-2, K = 8-98218-545-0	8-97947-210-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X62, THA ASM PART: F = 8-98201-543-3	8-97947-234-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M10X64, THA ASM PART: D = 8-97947-012-5, E = 8-98174-020-3, L = 8-98218-549-0, N = 8-98218-556-0, P = 8-98282-595-1	8-98161-928-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M10X66, THA ASM PART: M = 8-98218-552-0, O = 8-98282-594-1	8-98161-929-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M10, THA ASM PART: D = 8-97947-012-5, E = 8-98174-020-3, L = 8-98218-549-0, M = 8-98218-552-0, N = 8-98218-556-0, O = 8-98282-594-1, P = 8-98282-595-1	1-09400-055-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: A = 8-97947-008-2, B = 8-97947-009-2, C = 8-97947-010-2, F = 8-98201-543-3, G = 8-98201-544-2, H = 8-98201-545-2, I = 8-98215-677-0, J = 8-98218-543-0, K = 8-98218-545-0	8-97945-821-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: F = 8-98201-543-3, G = 8-98201-544-2, H = 8-98201-545-2	8-97947-195-0	04	1	-1504
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: A = 8-97947-008-2, B = 8-97947-009-2, C = 8-97947-010-2, I = 8-98215-677-0, J = 8-98218-543-0, K = 8-98218-545-0	8-97947-195-0	04	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: O = 8-98282-594-1, P = 8-98282-595-1	8-98161-302-0	03	1	-1504
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: D = 8-97947-012-5, E = 8-98174-020-3, L = 8-98218-549-0, M = 8-98218-552-0, N = 8-98218-556-0	8-98161-302-0	04	1	-
37	SPACER; CENTER,LEAF SPR,RR (B), THA ASM PART: O = 8-98282-594-1, P = 8-98282-595-1	8-98288-935-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: F = 8-98201-543-3, G = 8-98201-544-2, H = 8-98201-545-2	8-98296-471-0	04	1	1505-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: O = 8-98282-594-1, P = 8-98282-595-1	8-98296-472-0	03	1	1505-
38	BUSHING; LEAF SPR,RR THA ASM PART: A = 8-97947-008-2, B = 8-97947-009-2, C = 8-97947-010-2, D = 8-97947-012-5, E = 8-98174-020-3, F = 8-98201-543-3, G = 8-98201-544-2, H = 8-98201-545-2, I = 8-98215-677-0, J = 8-98218-543-0, K = 8-98218-545-0, L = 8-98218-549-0, M = 8-98218-552-0, N = 8-98218-556-0, O = 8-98282-594-1, P = 8-98282-595-1	8-97947-171-0	01	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: A = 8-97947-008-2, B = 8-97947-009-2, C = 8-97947-010-2, D = 8-97947-012-5, E = 8-98174-020-3, G = 8-98201-544-2, I = 8-98215-677-0	8-97360-246-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: A = 8-97947-008-2, B = 8-97947-009-2, C = 8-97947-010-2, D = 8-97947-012-5, E = 8-98174-020-3, G = 8-98201-544-2, I = 8-98215-677-0	8-97947-218-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: F = 8-98201-543-3, H = 8-98201-545-2, J = 8-98218-543-0, K = 8-98218-545-0, L = 8-98218-549-0, M = 8-98218-552-0, N = 8-98218-556-0, O = 8-98282-594-1, P = 8-98282-595-1	8-98218-583-0	02	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: F = 8-98201-543-3, H = 8-98201-545-2, J = 8-98218-543-0, K = 8-98218-545-0, L = 8-98218-549-0, M = 8-98218-552-0, N = 8-98218-556-0, O = 8-98282-594-1, P = 8-98282-595-1	8-98218-584-0	02	1	-
75	SPRING; LEAF,NO 1,RR (A), THA ASM PART: A = 8-97947-008-2, J = 8-98218-543-0	8-97947-425-0	01	1	-
75	SPRING; LEAF,NO 1,RR (D), THA ASM PART: B = 8-97947-009-2, I = 8-98215-677-0	8-97947-430-0	01	1	-
75	SPRING; LEAF,NO 1,RR (A), THA ASM PART: C = 8-97947-010-2, K = 8-98218-545-0	8-97947-436-0	01	1	-
75	SPRING; LEAF,NO 1,RR (B), THA ASM PART: E = 8-98174-020-3, L = 8-98218-549-0	8-97947-441-1	01	1	-
75	SPRING; LEAF,NO 1,RR (C), THA ASM PART: D = 8-97947-012-5, N = 8-98218-556-0, P = 8-98282-595-1	8-97947-451-1	01	1	-
75	SPRING; LEAF,NO 1,RR (B), THA ASM PART: M = 8-98218-552-0, O = 8-98282-594-1	8-98193-953-1	01	1	-
75	SPRING; LEAF,NO 1,RR (A), THA ASM PART: F = 8-98201-543-3	8-98210-417-0	01	1	-
75	SPRING; LEAF,NO 1,RR (D), THA ASM PART: G = 8-98201-544-2	8-98210-422-0	01	1	-
75	SPRING; LEAF,NO 1,RR (A), THA ASM PART: H = 8-98201-545-2	8-98210-428-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: A = 8-97947-008-2	8-97947-426-2	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: B = 8-97947-009-2, I = 8-98215-677-0	8-97947-431-2	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: C = 8-97947-010-2	8-97947-437-2	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: E = 8-98174-020-3	8-97947-442-1	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: D = 8-97947-012-5	8-97947-452-1	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: F = 8-98201-543-3	8-98210-418-1	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: G = 8-98201-544-2	8-98210-423-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: H = 8-98201-545-2	8-98210-429-1	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: J = 8-98218-543-0	8-98218-563-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: K = 8-98218-545-0	8-98218-567-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: L = 8-98218-549-0	8-98218-571-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: M = 8-98218-552-0, O = 8-98282-594-1	8-98218-574-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: N = 8-98218-556-0, P = 8-98282-595-1	8-98218-578-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: A = 8-97947-008-2	8-97947-427-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: B = 8-97947-009-2, I = 8-98215-677-0	8-97947-432-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: C = 8-97947-010-2	8-97947-438-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: D = 8-97947-012-5	8-97947-453-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: E = 8-98174-020-3	8-98174-369-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: F = 8-98201-543-3	8-98210-419-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: G = 8-98201-544-2	8-98210-424-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: H = 8-98201-545-2	8-98210-430-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: J = 8-98218-543-0	8-98218-566-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: K = 8-98218-545-0	8-98218-568-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: L = 8-98218-549-0	8-98218-572-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: M = 8-98218-552-0, O = 8-98282-594-1	8-98218-577-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: N = 8-98218-556-0, P = 8-98282-595-1	8-98218-579-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: A = 8-97947-008-2, J = 8-98218-543-0	8-97947-428-1	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: B = 8-97947-009-2, I = 8-98215-677-0	8-97947-433-1	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: C = 8-97947-010-2, K = 8-98218-545-0	8-97947-439-1	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: E = 8-98174-020-3, L = 8-98218-549-0	8-97947-444-2	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: D = 8-97947-012-5	8-97947-454-3	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: M = 8-98218-552-0, O = 8-98282-594-1	8-98193-957-1	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: F = 8-98201-543-3	8-98210-420-1	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: G = 8-98201-544-2	8-98210-425-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: H = 8-98201-545-2	8-98210-431-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: N = 8-98218-556-0, P = 8-98282-595-1	8-98215-884-0	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: A = 8-97947-008-2	8-97947-429-1	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: B = 8-97947-009-2, I = 8-98215-677-0	8-97947-434-1	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: C = 8-97947-010-2	8-97947-440-1	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: E = 8-98174-020-3	8-97947-445-2	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: F = 8-98201-543-3	8-98210-421-2	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: G = 8-98201-544-2	8-98210-426-0	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: H = 8-98201-545-2	8-98210-432-1	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: J = 8-98218-543-0	8-98215-878-0	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: K = 8-98218-545-0	8-98215-880-0	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: L = 8-98218-549-0	8-98215-881-0	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: M = 8-98218-552-0, O = 8-98282-594-1	8-98215-882-0	01	1	-

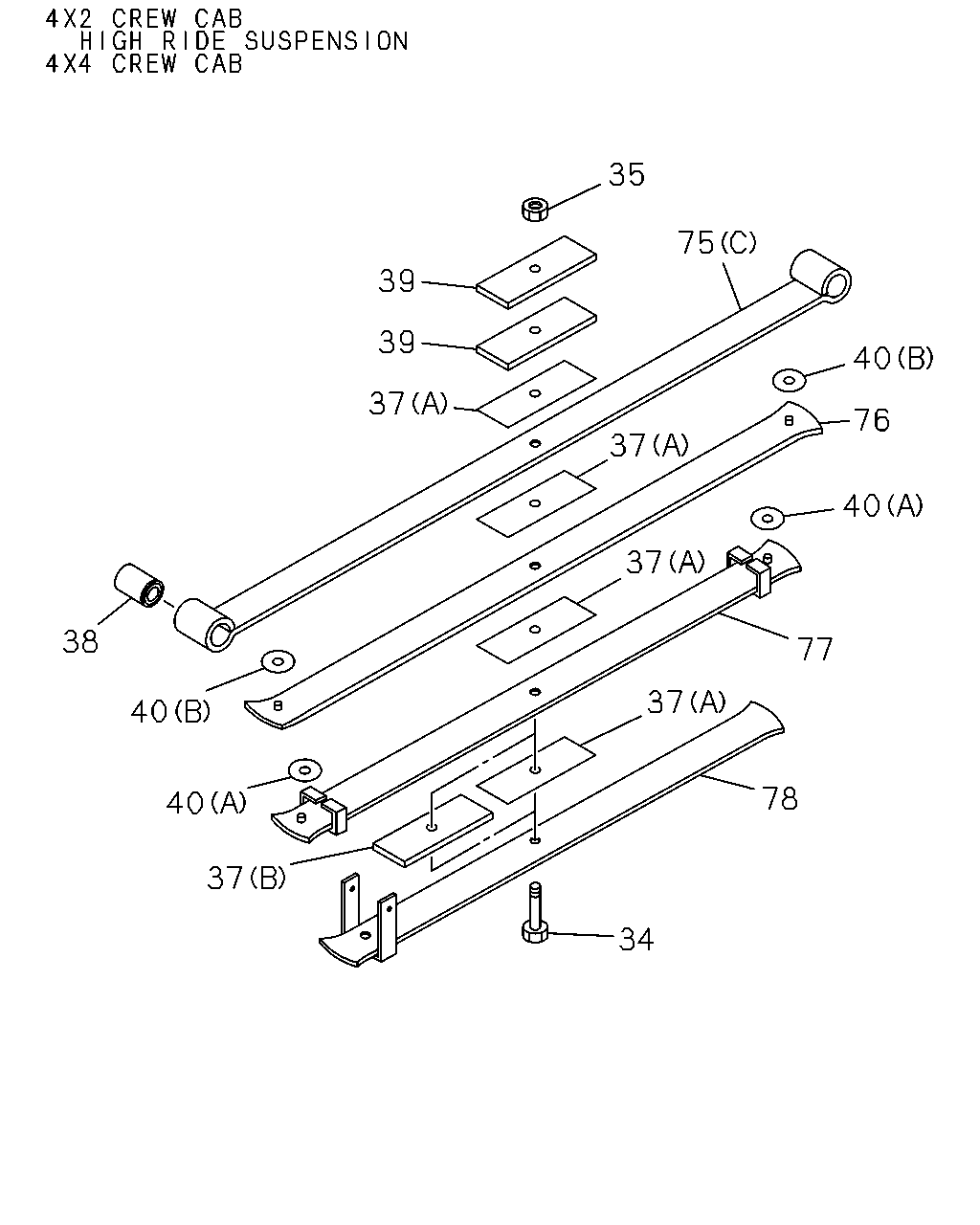

35 80 79 37 78 37 37 37 77 40 76 40 75 34 38 40 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X75, THA ASM PART: B = 8-97947-009-2, G = 8-98201-544-2, I = 8-98215-677-0	8-97304-264-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X60, THA ASM PART: A = 8-97947-008-2, H = 8-98201-545-2, J = 8-98218-543-0	8-97947-194-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X58, THA ASM PART: C = 8-97947-010-2, K = 8-98218-545-0	8-97947-210-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X62, THA ASM PART: F = 8-98201-543-3	8-97947-234-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M10X64, THA ASM PART: D = 8-97947-012-5, E = 8-98174-020-3, L = 8-98218-549-0, N = 8-98218-556-0, P = 8-98282-595-1	8-98161-928-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M10X66, THA ASM PART: M = 8-98218-552-0, O = 8-98282-594-1	8-98161-929-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M10, THA ASM PART: D = 8-97947-012-5, E = 8-98174-020-3, L = 8-98218-549-0, M = 8-98218-552-0, N = 8-98218-556-0, O = 8-98282-594-1, P = 8-98282-595-1	1-09400-055-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: A = 8-97947-008-2, B = 8-97947-009-2, C = 8-97947-010-2, F = 8-98201-543-3, G = 8-98201-544-2, H = 8-98201-545-2, I = 8-98215-677-0, J = 8-98218-543-0, K = 8-98218-545-0	8-97945-821-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: F = 8-98201-543-3, G = 8-98201-544-2, H = 8-98201-545-2	8-97947-195-0	04	1	-1504
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: A = 8-97947-008-2, B = 8-97947-009-2, C = 8-97947-010-2, I = 8-98215-677-0, J = 8-98218-543-0, K = 8-98218-545-0	8-97947-195-0	04	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: O = 8-98282-594-1, P = 8-98282-595-1	8-98161-302-0	03	1	-1504
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: D = 8-97947-012-5, E = 8-98174-020-3, L = 8-98218-549-0, M = 8-98218-552-0, N = 8-98218-556-0	8-98161-302-0	04	1	-
37	SPACER; CENTER,LEAF SPR,RR (B), THA ASM PART: O = 8-98282-594-1, P = 8-98282-595-1	8-98288-935-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: F = 8-98201-543-3, G = 8-98201-544-2, H = 8-98201-545-2	8-98296-471-0	04	1	1505-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: O = 8-98282-594-1, P = 8-98282-595-1	8-98296-472-0	03	1	1505-
38	BUSHING; LEAF SPR,RR THA ASM PART: A = 8-97947-008-2, B = 8-97947-009-2, C = 8-97947-010-2, D = 8-97947-012-5, E = 8-98174-020-3, F = 8-98201-543-3, G = 8-98201-544-2, H = 8-98201-545-2, I = 8-98215-677-0, J = 8-98218-543-0, K = 8-98218-545-0, L = 8-98218-549-0, M = 8-98218-552-0, N = 8-98218-556-0, O = 8-98282-594-1, P = 8-98282-595-1	8-97947-171-0	01	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: A = 8-97947-008-2, B = 8-97947-009-2, C = 8-97947-010-2, D = 8-97947-012-5, E = 8-98174-020-3, G = 8-98201-544-2, I = 8-98215-677-0	8-97360-246-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: A = 8-97947-008-2, B = 8-97947-009-2, C = 8-97947-010-2, D = 8-97947-012-5, E = 8-98174-020-3, G = 8-98201-544-2, I = 8-98215-677-0	8-97947-218-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: F = 8-98201-543-3, H = 8-98201-545-2, J = 8-98218-543-0, K = 8-98218-545-0, L = 8-98218-549-0, M = 8-98218-552-0, N = 8-98218-556-0, O = 8-98282-594-1, P = 8-98282-595-1	8-98218-583-0	02	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: F = 8-98201-543-3, H = 8-98201-545-2, J = 8-98218-543-0, K = 8-98218-545-0, L = 8-98218-549-0, M = 8-98218-552-0, N = 8-98218-556-0, O = 8-98282-594-1, P = 8-98282-595-1	8-98218-584-0	02	1	-
75	SPRING; LEAF,NO 1,RR (A), THA ASM PART: A = 8-97947-008-2, J = 8-98218-543-0	8-97947-425-0	01	1	-
75	SPRING; LEAF,NO 1,RR (D), THA ASM PART: B = 8-97947-009-2, I = 8-98215-677-0	8-97947-430-0	01	1	-
75	SPRING; LEAF,NO 1,RR (A), THA ASM PART: C = 8-97947-010-2, K = 8-98218-545-0	8-97947-436-0	01	1	-
75	SPRING; LEAF,NO 1,RR (B), THA ASM PART: E = 8-98174-020-3, L = 8-98218-549-0	8-97947-441-1	01	1	-
75	SPRING; LEAF,NO 1,RR (C), THA ASM PART: D = 8-97947-012-5, N = 8-98218-556-0, P = 8-98282-595-1	8-97947-451-1	01	1	-
75	SPRING; LEAF,NO 1,RR (B), THA ASM PART: M = 8-98218-552-0, O = 8-98282-594-1	8-98193-953-1	01	1	-
75	SPRING; LEAF,NO 1,RR (A), THA ASM PART: F = 8-98201-543-3	8-98210-417-0	01	1	-
75	SPRING; LEAF,NO 1,RR (D), THA ASM PART: G = 8-98201-544-2	8-98210-422-0	01	1	-
75	SPRING; LEAF,NO 1,RR (A), THA ASM PART: H = 8-98201-545-2	8-98210-428-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: A = 8-97947-008-2	8-97947-426-2	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: B = 8-97947-009-2, I = 8-98215-677-0	8-97947-431-2	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: C = 8-97947-010-2	8-97947-437-2	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: E = 8-98174-020-3	8-97947-442-1	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: D = 8-97947-012-5	8-97947-452-1	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: F = 8-98201-543-3	8-98210-418-1	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: G = 8-98201-544-2	8-98210-423-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: H = 8-98201-545-2	8-98210-429-1	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: J = 8-98218-543-0	8-98218-563-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: K = 8-98218-545-0	8-98218-567-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: L = 8-98218-549-0	8-98218-571-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: M = 8-98218-552-0, O = 8-98282-594-1	8-98218-574-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: N = 8-98218-556-0, P = 8-98282-595-1	8-98218-578-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: A = 8-97947-008-2	8-97947-427-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: B = 8-97947-009-2, I = 8-98215-677-0	8-97947-432-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: C = 8-97947-010-2	8-97947-438-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: D = 8-97947-012-5	8-97947-453-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: E = 8-98174-020-3	8-98174-369-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: F = 8-98201-543-3	8-98210-419-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: G = 8-98201-544-2	8-98210-424-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: H = 8-98201-545-2	8-98210-430-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: J = 8-98218-543-0	8-98218-566-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: K = 8-98218-545-0	8-98218-568-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: L = 8-98218-549-0	8-98218-572-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: M = 8-98218-552-0, O = 8-98282-594-1	8-98218-577-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: N = 8-98218-556-0, P = 8-98282-595-1	8-98218-579-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: A = 8-97947-008-2, J = 8-98218-543-0	8-97947-428-1	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: B = 8-97947-009-2, I = 8-98215-677-0	8-97947-433-1	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: C = 8-97947-010-2, K = 8-98218-545-0	8-97947-439-1	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: E = 8-98174-020-3, L = 8-98218-549-0	8-97947-444-2	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: D = 8-97947-012-5	8-97947-454-3	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: M = 8-98218-552-0, O = 8-98282-594-1	8-98193-957-1	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: F = 8-98201-543-3	8-98210-420-1	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: G = 8-98201-544-2	8-98210-425-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: H = 8-98201-545-2	8-98210-431-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: N = 8-98218-556-0, P = 8-98282-595-1	8-98215-884-0	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: A = 8-97947-008-2	8-97947-429-1	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: B = 8-97947-009-2, I = 8-98215-677-0	8-97947-434-1	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: C = 8-97947-010-2	8-97947-440-1	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: E = 8-98174-020-3	8-97947-445-2	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: F = 8-98201-543-3	8-98210-421-2	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: G = 8-98201-544-2	8-98210-426-0	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: H = 8-98201-545-2	8-98210-432-1	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: J = 8-98218-543-0	8-98215-878-0	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: K = 8-98218-545-0	8-98215-880-0	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: L = 8-98218-549-0	8-98215-881-0	01	1	-
79	SPRING; LEAF,NO 5,RR THA ASM PART: M = 8-98218-552-0, O = 8-98282-594-1	8-98215-882-0	01	1	-
80	SPRING; LEAF,NO 6,RR THA ASM PART: B = 8-97947-009-2	8-97947-435-1	01	1	-
80	SPRING; LEAF,NO 6,RR THA ASM PART: G = 8-98201-544-2	8-98210-427-1	01	1	-
80	SPRING; LEAF,NO 6,RR THA ASM PART: I = 8-98215-677-0	8-98215-879-0	01	1	-

34 78 37 37 37 35 77 40 76 40 75 37 39 39 37 40 40 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X75, THA ASM PART: B = 8-97947-009-2, G = 8-98201-544-2, I = 8-98215-677-0	8-97304-264-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X60, THA ASM PART: A = 8-97947-008-2, H = 8-98201-545-2, J = 8-98218-543-0	8-97947-194-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X58, THA ASM PART: C = 8-97947-010-2, K = 8-98218-545-0	8-97947-210-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X62, THA ASM PART: F = 8-98201-543-3	8-97947-234-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M10X64, THA ASM PART: D = 8-97947-012-5, E = 8-98174-020-3, L = 8-98218-549-0, N = 8-98218-556-0, P = 8-98282-595-1	8-98161-928-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M10X66, THA ASM PART: M = 8-98218-552-0, O = 8-98282-594-1	8-98161-929-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M10, THA ASM PART: D = 8-97947-012-5, E = 8-98174-020-3, L = 8-98218-549-0, M = 8-98218-552-0, N = 8-98218-556-0, O = 8-98282-594-1, P = 8-98282-595-1	1-09400-055-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: A = 8-97947-008-2, B = 8-97947-009-2, C = 8-97947-010-2, F = 8-98201-543-3, G = 8-98201-544-2, H = 8-98201-545-2, I = 8-98215-677-0, J = 8-98218-543-0, K = 8-98218-545-0	8-97945-821-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: F = 8-98201-543-3, G = 8-98201-544-2, H = 8-98201-545-2	8-97947-195-0	04	1	-1504
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: A = 8-97947-008-2, B = 8-97947-009-2, C = 8-97947-010-2, I = 8-98215-677-0, J = 8-98218-543-0, K = 8-98218-545-0	8-97947-195-0	04	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: O = 8-98282-594-1, P = 8-98282-595-1	8-98161-302-0	03	1	-1504
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: D = 8-97947-012-5, E = 8-98174-020-3, L = 8-98218-549-0, M = 8-98218-552-0, N = 8-98218-556-0	8-98161-302-0	04	1	-
37	SPACER; CENTER,LEAF SPR,RR (B), THA ASM PART: O = 8-98282-594-1, P = 8-98282-595-1	8-98288-935-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: F = 8-98201-543-3, G = 8-98201-544-2, H = 8-98201-545-2	8-98296-471-0	04	1	1505-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: O = 8-98282-594-1, P = 8-98282-595-1	8-98296-472-0	03	1	1505-
38	BUSHING; LEAF SPR,RR THA ASM PART: A = 8-97947-008-2, B = 8-97947-009-2, C = 8-97947-010-2, D = 8-97947-012-5, E = 8-98174-020-3, F = 8-98201-543-3, G = 8-98201-544-2, H = 8-98201-545-2, I = 8-98215-677-0, J = 8-98218-543-0, K = 8-98218-545-0, L = 8-98218-549-0, M = 8-98218-552-0, N = 8-98218-556-0, O = 8-98282-594-1, P = 8-98282-595-1	8-97947-171-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN THA ASM PART: D = 8-97947-012-5, N = 8-98218-556-0, P = 8-98282-595-1	8-98161-304-0	02	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: A = 8-97947-008-2, B = 8-97947-009-2, C = 8-97947-010-2, D = 8-97947-012-5, E = 8-98174-020-3, G = 8-98201-544-2, I = 8-98215-677-0	8-97360-246-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: A = 8-97947-008-2, B = 8-97947-009-2, C = 8-97947-010-2, D = 8-97947-012-5, E = 8-98174-020-3, G = 8-98201-544-2, I = 8-98215-677-0	8-97947-218-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: F = 8-98201-543-3, H = 8-98201-545-2, J = 8-98218-543-0, K = 8-98218-545-0, L = 8-98218-549-0, M = 8-98218-552-0, N = 8-98218-556-0, O = 8-98282-594-1, P = 8-98282-595-1	8-98218-583-0	02	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: F = 8-98201-543-3, H = 8-98201-545-2, J = 8-98218-543-0, K = 8-98218-545-0, L = 8-98218-549-0, M = 8-98218-552-0, N = 8-98218-556-0, O = 8-98282-594-1, P = 8-98282-595-1	8-98218-584-0	02	1	-
75	SPRING; LEAF,NO 1,RR (A), THA ASM PART: A = 8-97947-008-2, J = 8-98218-543-0	8-97947-425-0	01	1	-
75	SPRING; LEAF,NO 1,RR (D), THA ASM PART: B = 8-97947-009-2, I = 8-98215-677-0	8-97947-430-0	01	1	-
75	SPRING; LEAF,NO 1,RR (A), THA ASM PART: C = 8-97947-010-2, K = 8-98218-545-0	8-97947-436-0	01	1	-
75	SPRING; LEAF,NO 1,RR (B), THA ASM PART: E = 8-98174-020-3, L = 8-98218-549-0	8-97947-441-1	01	1	-
75	SPRING; LEAF,NO 1,RR (C), THA ASM PART: D = 8-97947-012-5, N = 8-98218-556-0, P = 8-98282-595-1	8-97947-451-1	01	1	-
75	SPRING; LEAF,NO 1,RR (B), THA ASM PART: M = 8-98218-552-0, O = 8-98282-594-1	8-98193-953-1	01	1	-
75	SPRING; LEAF,NO 1,RR (A), THA ASM PART: F = 8-98201-543-3	8-98210-417-0	01	1	-
75	SPRING; LEAF,NO 1,RR (D), THA ASM PART: G = 8-98201-544-2	8-98210-422-0	01	1	-
75	SPRING; LEAF,NO 1,RR (A), THA ASM PART: H = 8-98201-545-2	8-98210-428-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: A = 8-97947-008-2	8-97947-426-2	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: B = 8-97947-009-2, I = 8-98215-677-0	8-97947-431-2	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: C = 8-97947-010-2	8-97947-437-2	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: E = 8-98174-020-3	8-97947-442-1	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: D = 8-97947-012-5	8-97947-452-1	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: F = 8-98201-543-3	8-98210-418-1	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: G = 8-98201-544-2	8-98210-423-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: H = 8-98201-545-2	8-98210-429-1	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: J = 8-98218-543-0	8-98218-563-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: K = 8-98218-545-0	8-98218-567-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: L = 8-98218-549-0	8-98218-571-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: M = 8-98218-552-0, O = 8-98282-594-1	8-98218-574-0	01	1	-
76	SPRING; LEAF,NO 2,RR THA ASM PART: N = 8-98218-556-0, P = 8-98282-595-1	8-98218-578-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: A = 8-97947-008-2	8-97947-427-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: B = 8-97947-009-2, I = 8-98215-677-0	8-97947-432-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: C = 8-97947-010-2	8-97947-438-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: D = 8-97947-012-5	8-97947-453-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: E = 8-98174-020-3	8-98174-369-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: F = 8-98201-543-3	8-98210-419-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: G = 8-98201-544-2	8-98210-424-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: H = 8-98201-545-2	8-98210-430-1	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: J = 8-98218-543-0	8-98218-566-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: K = 8-98218-545-0	8-98218-568-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: L = 8-98218-549-0	8-98218-572-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: M = 8-98218-552-0, O = 8-98282-594-1	8-98218-577-0	01	1	-
77	SPRING; LEAF,NO 3,RR THA ASM PART: N = 8-98218-556-0, P = 8-98282-595-1	8-98218-579-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: A = 8-97947-008-2, J = 8-98218-543-0	8-97947-428-1	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: B = 8-97947-009-2, I = 8-98215-677-0	8-97947-433-1	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: C = 8-97947-010-2, K = 8-98218-545-0	8-97947-439-1	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: E = 8-98174-020-3, L = 8-98218-549-0	8-97947-444-2	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: D = 8-97947-012-5	8-97947-454-3	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: M = 8-98218-552-0, O = 8-98282-594-1	8-98193-957-1	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: F = 8-98201-543-3	8-98210-420-1	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: G = 8-98201-544-2	8-98210-425-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: H = 8-98201-545-2	8-98210-431-0	01	1	-
78	SPRING; LEAF,NO 4,RR THA ASM PART: N = 8-98218-556-0, P = 8-98282-595-1	8-98215-884-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
