◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#81727) — 186 parça

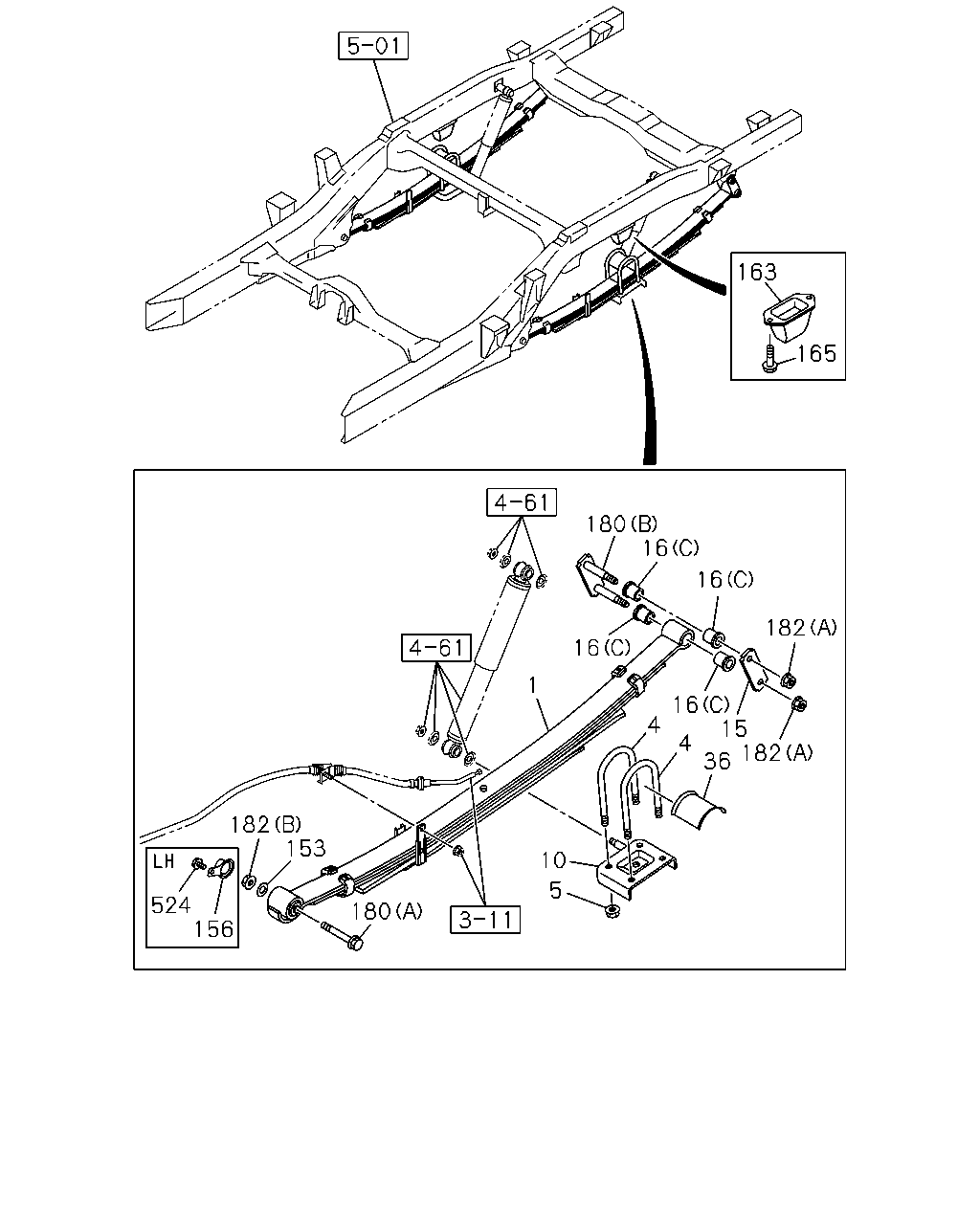

çizim 147172
163 165 180 16 16 182 182 36 15 16 4 4 16 10 5 180 153 182 524 156 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> THA 		8-98174-020-3 02 1 1109-1207 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA 		8-98174-020-3 02 1 1109-1207 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> THA 		8-98218-549-0 02 1 1208-1211 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA 		8-98218-549-0 02 1 1208-1211 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> THA 		8-98218-552-0 02 1 1212-1407 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA 		8-98218-552-0 02 1 1212-1407 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> 5-LEAF THA 		8-98282-594-1 02 1 1408- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF THA 		8-98282-594-1 02 1 1408- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97947-008-2 02 1 1109-1207 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98218-543-0 02 1 1208-1211 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION<7YC> 5-LEAF THA 		8-98201-543-3 02 1 1212- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA 		8-97947-009-2 02 1 1110-1207 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA 		8-98215-677-0 02 1 1208-1211 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 6-LEAF THA 		8-98201-544-2 02 1 1212- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> THA 		8-97947-012-5 02 1 1110-1207 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA 		8-97947-012-5 02 1 1110-1207 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> THA 		8-98218-556-0 02 1 1208-1407 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA 		8-98218-556-0 02 1 1208-1407 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> 4-LEAF THA 		8-98282-595-1 02 1 1408- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 4-LEAF THA 		8-98282-595-1 02 1 1408- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97947-010-2 02 1 1110-1207 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98218-545-0 02 1 1208-1211 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION<7YC> 5-LEAF THA 		8-98201-545-2 02 1 1212- ●
4 U-BOLT; RR SPR
HIGH RIDE SUSPENSION<7YC> L=170 THA 		8-97946-550-0 04 1 1109-1109 ●
4 U-BOLT; RR SPR
L=170 THA 		8-97946-550-0 04 1 1109-1109 ●
4 U-BOLT; RR SPR
HIGH RIDE SUSPENSION<7YC> L=170 THA 		8-97946-550-0 04 1 1110- ● ●
4 U-BOLT; RR SPR
L=170 THA 		8-97946-550-0 04 1 1110- ● ●
4 U-BOLT; RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> L=175 THA 		8-97947-045-0 04 1 1109-1109 ●
4 U-BOLT; RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> L=175 THA 		8-97947-045-0 04 1 1110- ● ●
4 U-BOLT; RR SPR
L=187 THA 		8-97248-621-1 04 1 1110- ●
5 NUT; U-BOLT,RR SPR
M14 FLANGE THA 		8-97245-635-0 08 1 1109-1109 ● ●
5 NUT; U-BOLT,RR SPR
M14 FLANGE THA 		8-97245-635-0 08 1 1110- ● ● ● ● ●
10 CLAMP; LWR,RR SPR
HIGH RIDE SUSPENSION<7YC> THA 		8-98165-850-1 01 1 1109-1109 ●
10 CLAMP; LWR,RR SPR
THA 		8-98165-850-1 01 1 1109-1109 ●
10 CLAMP; LWR,RR SPR
HIGH RIDE SUSPENSION<7YC> THA 		8-98165-850-1 01 1 1110- ● ●
10 CLAMP; LWR,RR SPR
THA 		8-98165-850-1 01 1 1110- ● ●
10 CLAMP; LWR,RR SPR
HIGH RIDE SUSPENSION<7YC> THA 		8-98165-851-1 01 1 1109-1109 ●
10 CLAMP; LWR,RR SPR
THA 		8-98165-851-1 01 1 1109-1109 ●
10 CLAMP; LWR,RR SPR
HIGH RIDE SUSPENSION<7YC> THA 		8-98165-851-1 01 1 1110- ● ●
10 CLAMP; LWR,RR SPR
THA 		8-98165-851-1 01 1 1110- ● ●
10 CLAMP; LWR,RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98160-070-0 01 1 1109-1109 ●
10 CLAMP; LWR,RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98160-070-0 01 1 1110- ● ●
10 CLAMP; LWR,RR SPR
THA 		8-98160-070-0 01 1 1110- ●
10 CLAMP; LWR,RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98160-083-0 01 1 1109-1109 ●
10 CLAMP; LWR,RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98160-083-0 01 1 1110- ● ●
10 CLAMP; LWR,RR SPR
THA 		8-98160-083-0 01 1 1110- ●
15 SHACKLE; RR SPR
HIGH RIDE SUSPENSION<7YC> THA 		8-97946-551-1 02 1 1109-1109 ●
15 SHACKLE; RR SPR
THA 		8-97946-551-1 02 1 1109-1109 ●
15 SHACKLE; RR SPR
HIGH RIDE SUSPENSION<7YC> THA 		8-97946-551-1 02 1 1110- ● ●
15 SHACKLE; RR SPR
THA 		8-97946-551-1 02 1 1110- ● ●
15 SHACKLE; RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98005-815-0 02 1 1109-1109 ●
15 SHACKLE; RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98005-815-0 02 1 1110- ● ●
15 SHACKLE; RR SPR
THA 		8-98005-815-0 02 1 1110- ●
16 BUSHING; SHACKLE,RR SPR
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-97357-492-0 04 1 1109-1109 ●
16 BUSHING; SHACKLE,RR SPR
(A) THA 		8-97357-492-0 04 1 1109-1109 ●
16 BUSHING; SHACKLE,RR SPR
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-97357-492-0 04 1 1110- ● ●
16 BUSHING; SHACKLE,RR SPR
(A) THA 		8-97357-492-0 04 1 1110- ● ●
16 BUSHING; SHACKLE,RR SPR
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-97946-545-0 04 1 1109-1109 ●
16 BUSHING; SHACKLE,RR SPR
(B) THA 		8-97946-545-0 04 1 1109-1109 ●
16 BUSHING; SHACKLE,RR SPR
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-97946-545-0 04 1 1110- ● ●
16 BUSHING; SHACKLE,RR SPR
(B) THA 		8-97946-545-0 04 1 1110- ● ●
16 BUSHING; SHACKLE,RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-97357-492-0 08 1 1109-1109 ●
16 BUSHING; SHACKLE,RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-97357-492-0 08 1 1110- ● ●
16 BUSHING; SHACKLE,RR SPR
(C) THA 		8-97357-492-0 08 1 1110- ●
36 SEAT; HELPER RUBBER,RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98005-878-0 02 1 1109-1109 ●
36 SEAT; HELPER RUBBER,RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98005-878-0 02 1 1110- ● ●
36 SEAT; HELPER RUBBER,RR SPR
THA 		8-98005-878-0 02 1 1110- ●
153 WASHER; PL,SPRING PIN
ID=14.5 OD=30 THA 		8-98005-921-0 02 1 1109-1109 ● ●
153 WASHER; PL,SPRING PIN
ID=14.5 OD=30 THA 		8-98005-921-0 02 1 1110- ● ● ● ● ●
156 PROTECTOR; LEAF SPRING,RR SUSP
THA 		8-97947-363-0 01 1 1109-1109 ● ●
156 PROTECTOR; LEAF SPRING,RR SUSP
THA 		8-97947-363-0 01 1 1110- ● ● ● ● ●
163 RUBBER; HELPER,RR SPR
HIGH RIDE SUSPENSION<7YC> THA 		8-97946-549-3 02 1 1109-1109 ●
163 RUBBER; HELPER,RR SPR
THA 		8-97946-549-3 02 1 1109-1109 ●
163 RUBBER; HELPER,RR SPR
HIGH RIDE SUSPENSION<7YC> THA 		8-97946-549-3 02 1 1110- ● ●
163 RUBBER; HELPER,RR SPR
THA 		8-97946-549-3 02 1 1110- ● ●
163 RUBBER; HELPER,RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97946-803-1 02 1 1109-1109 ●
163 RUBBER; HELPER,RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97946-803-1 02 1 1110- ● ●
163 RUBBER; HELPER,RR SPR
THA 		8-97946-803-1 02 1 1110- ●
165 BOLT; HELPER RUBBER
EXC. HIGH RIDE SUSPENSION<7YC> M10X30 FLANGE THA 		0-28661-030-0 04 1 1109-1109 ●
165 BOLT; HELPER RUBBER
EXC. HIGH RIDE SUSPENSION<7YC> M10X30 FLANGE THA 		0-28661-030-0 04 1 1110- ● ●
165 BOLT; HELPER RUBBER
M10X30 FLANGE THA 		0-28661-030-0 04 1 1110- ●
180 PIN; RR SPR
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-97946-547-1 02 1 1109-1109 ●
180 PIN; RR SPR
(C) THA 		8-97946-547-1 02 1 1109-1109 ●
180 PIN; RR SPR
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-97946-547-1 02 1 1110- ● ●
180 PIN; RR SPR
(C) THA 		8-97946-547-1 02 1 1110- ● ●
180 PIN; RR SPR
(A) THA 		8-97947-078-0 02 1 1109-1109 ● ●
180 PIN; RR SPR
(A) THA 		8-97947-078-0 02 1 1110- ● ● ● ● ●
180 PIN; RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98005-814-0 02 1 1109-1109 ●
180 PIN; RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98005-814-0 02 1 1110- ● ●
180 PIN; RR SPR
(B) THA 		8-98005-814-0 02 1 1110- ●
182 NUT; PIN,RR SPR
(A) M14 FLANGE THA 		0-91180-114-0 04 1 1109-1109 ● ●
182 NUT; PIN,RR SPR
(A) M14 FLANGE THA 		0-91180-114-0 04 1 1110- ● ● ● ● ●
182 NUT; PIN,RR SPR
(B) M14 FLANGE THA 		8-97245-651-0 02 1 1109-1109 ● ●
182 NUT; PIN,RR SPR
(B) M14 FLANGE THA 		8-97245-651-0 02 1 1110- ● ● ● ● ●
524 BOLT; RR SPR
M8X20 FLANGE THA 		0-28650-820-0 01 1 1109-1109 ● ●
524 BOLT; RR SPR
M8X20 FLANGE THA 		0-28650-820-0 01 1 1110- ● ● ● ● ●

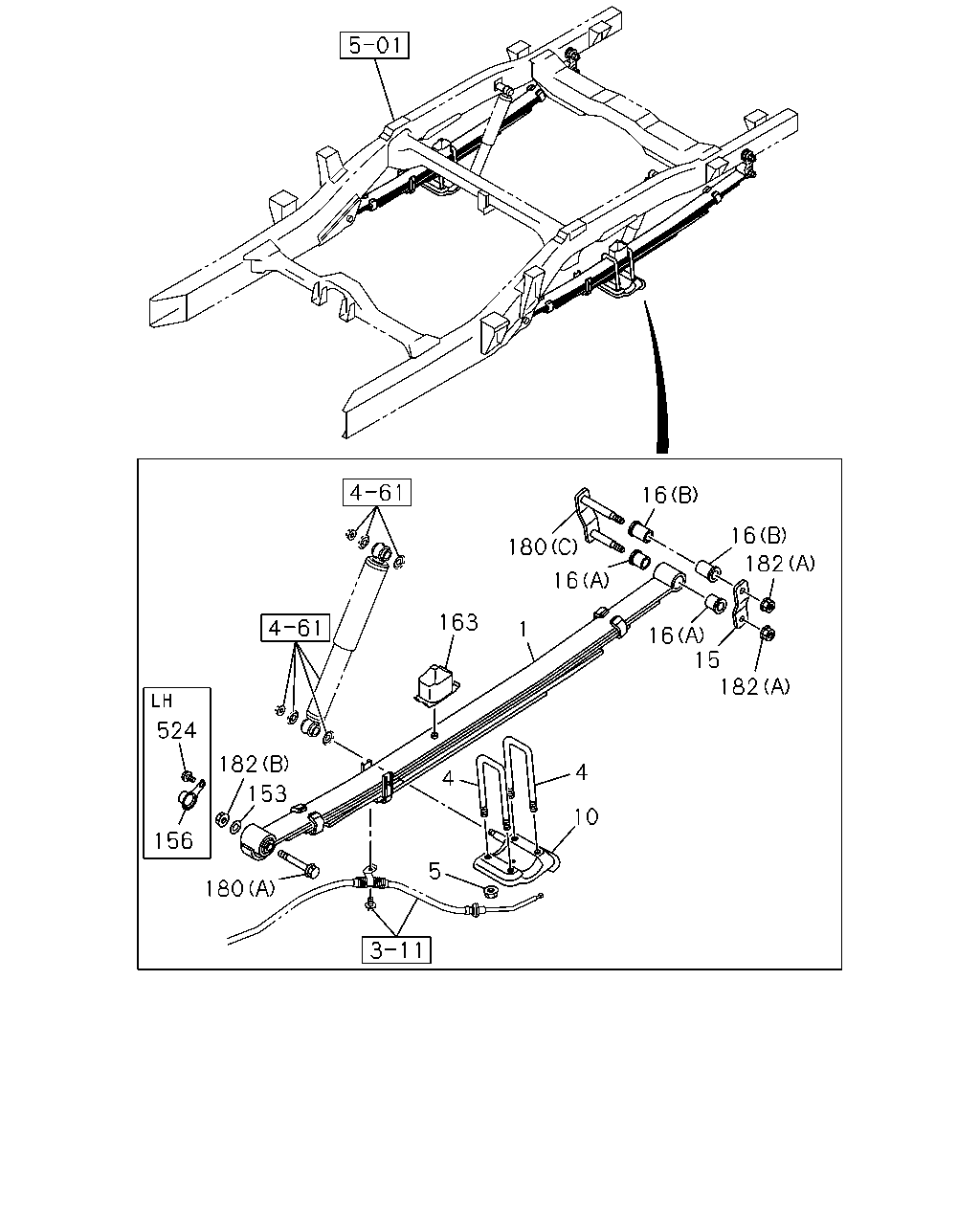

çizim 147182
182 16 16 180 16 16 15 182 163 4 4 10 5 182 153 180 156 524 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> THA 		8-98174-020-3 02 1 1109-1207 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA 		8-98174-020-3 02 1 1109-1207 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> THA 		8-98218-549-0 02 1 1208-1211 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA 		8-98218-549-0 02 1 1208-1211 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> THA 		8-98218-552-0 02 1 1212-1407 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA 		8-98218-552-0 02 1 1212-1407 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> 5-LEAF THA 		8-98282-594-1 02 1 1408- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF THA 		8-98282-594-1 02 1 1408- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97947-008-2 02 1 1109-1207 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98218-543-0 02 1 1208-1211 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION<7YC> 5-LEAF THA 		8-98201-543-3 02 1 1212- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA 		8-97947-009-2 02 1 1110-1207 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA 		8-98215-677-0 02 1 1208-1211 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 6-LEAF THA 		8-98201-544-2 02 1 1212- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> THA 		8-97947-012-5 02 1 1110-1207 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA 		8-97947-012-5 02 1 1110-1207 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> THA 		8-98218-556-0 02 1 1208-1407 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA 		8-98218-556-0 02 1 1208-1407 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> 4-LEAF THA 		8-98282-595-1 02 1 1408- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 4-LEAF THA 		8-98282-595-1 02 1 1408- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97947-010-2 02 1 1110-1207 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98218-545-0 02 1 1208-1211 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION<7YC> 5-LEAF THA 		8-98201-545-2 02 1 1212- ●
4 U-BOLT; RR SPR
HIGH RIDE SUSPENSION<7YC> L=170 THA 		8-97946-550-0 04 1 1109-1109 ●
4 U-BOLT; RR SPR
L=170 THA 		8-97946-550-0 04 1 1109-1109 ●
4 U-BOLT; RR SPR
HIGH RIDE SUSPENSION<7YC> L=170 THA 		8-97946-550-0 04 1 1110- ● ●
4 U-BOLT; RR SPR
L=170 THA 		8-97946-550-0 04 1 1110- ● ●
4 U-BOLT; RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> L=175 THA 		8-97947-045-0 04 1 1109-1109 ●
4 U-BOLT; RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> L=175 THA 		8-97947-045-0 04 1 1110- ● ●
4 U-BOLT; RR SPR
L=187 THA 		8-97248-621-1 04 1 1110- ●
5 NUT; U-BOLT,RR SPR
M14 FLANGE THA 		8-97245-635-0 08 1 1109-1109 ● ●
5 NUT; U-BOLT,RR SPR
M14 FLANGE THA 		8-97245-635-0 08 1 1110- ● ● ● ● ●
10 CLAMP; LWR,RR SPR
HIGH RIDE SUSPENSION<7YC> THA 		8-98165-850-1 01 1 1109-1109 ●
10 CLAMP; LWR,RR SPR
THA 		8-98165-850-1 01 1 1109-1109 ●
10 CLAMP; LWR,RR SPR
HIGH RIDE SUSPENSION<7YC> THA 		8-98165-850-1 01 1 1110- ● ●
10 CLAMP; LWR,RR SPR
THA 		8-98165-850-1 01 1 1110- ● ●
10 CLAMP; LWR,RR SPR
HIGH RIDE SUSPENSION<7YC> THA 		8-98165-851-1 01 1 1109-1109 ●
10 CLAMP; LWR,RR SPR
THA 		8-98165-851-1 01 1 1109-1109 ●
10 CLAMP; LWR,RR SPR
HIGH RIDE SUSPENSION<7YC> THA 		8-98165-851-1 01 1 1110- ● ●
10 CLAMP; LWR,RR SPR
THA 		8-98165-851-1 01 1 1110- ● ●
10 CLAMP; LWR,RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98160-070-0 01 1 1109-1109 ●
10 CLAMP; LWR,RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98160-070-0 01 1 1110- ● ●
10 CLAMP; LWR,RR SPR
THA 		8-98160-070-0 01 1 1110- ●
10 CLAMP; LWR,RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98160-083-0 01 1 1109-1109 ●
10 CLAMP; LWR,RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98160-083-0 01 1 1110- ● ●
10 CLAMP; LWR,RR SPR
THA 		8-98160-083-0 01 1 1110- ●
15 SHACKLE; RR SPR
HIGH RIDE SUSPENSION<7YC> THA 		8-97946-551-1 02 1 1109-1109 ●
15 SHACKLE; RR SPR
THA 		8-97946-551-1 02 1 1109-1109 ●
15 SHACKLE; RR SPR
HIGH RIDE SUSPENSION<7YC> THA 		8-97946-551-1 02 1 1110- ● ●
15 SHACKLE; RR SPR
THA 		8-97946-551-1 02 1 1110- ● ●
15 SHACKLE; RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98005-815-0 02 1 1109-1109 ●
15 SHACKLE; RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98005-815-0 02 1 1110- ● ●
15 SHACKLE; RR SPR
THA 		8-98005-815-0 02 1 1110- ●
16 BUSHING; SHACKLE,RR SPR
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-97357-492-0 04 1 1109-1109 ●
16 BUSHING; SHACKLE,RR SPR
(A) THA 		8-97357-492-0 04 1 1109-1109 ●
16 BUSHING; SHACKLE,RR SPR
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-97357-492-0 04 1 1110- ● ●
16 BUSHING; SHACKLE,RR SPR
(A) THA 		8-97357-492-0 04 1 1110- ● ●
16 BUSHING; SHACKLE,RR SPR
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-97946-545-0 04 1 1109-1109 ●
16 BUSHING; SHACKLE,RR SPR
(B) THA 		8-97946-545-0 04 1 1109-1109 ●
16 BUSHING; SHACKLE,RR SPR
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-97946-545-0 04 1 1110- ● ●
16 BUSHING; SHACKLE,RR SPR
(B) THA 		8-97946-545-0 04 1 1110- ● ●
16 BUSHING; SHACKLE,RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-97357-492-0 08 1 1109-1109 ●
16 BUSHING; SHACKLE,RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-97357-492-0 08 1 1110- ● ●
16 BUSHING; SHACKLE,RR SPR
(C) THA 		8-97357-492-0 08 1 1110- ●
153 WASHER; PL,SPRING PIN
ID=14.5 OD=30 THA 		8-98005-921-0 02 1 1109-1109 ● ●
153 WASHER; PL,SPRING PIN
ID=14.5 OD=30 THA 		8-98005-921-0 02 1 1110- ● ● ● ● ●
156 PROTECTOR; LEAF SPRING,RR SUSP
THA 		8-97947-363-0 01 1 1109-1109 ● ●
156 PROTECTOR; LEAF SPRING,RR SUSP
THA 		8-97947-363-0 01 1 1110- ● ● ● ● ●
163 RUBBER; HELPER,RR SPR
HIGH RIDE SUSPENSION<7YC> THA 		8-97946-549-3 02 1 1109-1109 ●
163 RUBBER; HELPER,RR SPR
THA 		8-97946-549-3 02 1 1109-1109 ●
163 RUBBER; HELPER,RR SPR
HIGH RIDE SUSPENSION<7YC> THA 		8-97946-549-3 02 1 1110- ● ●
163 RUBBER; HELPER,RR SPR
THA 		8-97946-549-3 02 1 1110- ● ●
163 RUBBER; HELPER,RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97946-803-1 02 1 1109-1109 ●
163 RUBBER; HELPER,RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97946-803-1 02 1 1110- ● ●
163 RUBBER; HELPER,RR SPR
THA 		8-97946-803-1 02 1 1110- ●
180 PIN; RR SPR
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-97946-547-1 02 1 1109-1109 ●
180 PIN; RR SPR
(C) THA 		8-97946-547-1 02 1 1109-1109 ●
180 PIN; RR SPR
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-97946-547-1 02 1 1110- ● ●
180 PIN; RR SPR
(C) THA 		8-97946-547-1 02 1 1110- ● ●
180 PIN; RR SPR
(A) THA 		8-97947-078-0 02 1 1109-1109 ● ●
180 PIN; RR SPR
(A) THA 		8-97947-078-0 02 1 1110- ● ● ● ● ●
180 PIN; RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98005-814-0 02 1 1109-1109 ●
180 PIN; RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98005-814-0 02 1 1110- ● ●
180 PIN; RR SPR
(B) THA 		8-98005-814-0 02 1 1110- ●
182 NUT; PIN,RR SPR
(A) M14 FLANGE THA 		0-91180-114-0 04 1 1109-1109 ● ●
182 NUT; PIN,RR SPR
(A) M14 FLANGE THA 		0-91180-114-0 04 1 1110- ● ● ● ● ●
182 NUT; PIN,RR SPR
(B) M14 FLANGE THA 		8-97245-651-0 02 1 1109-1109 ● ●
182 NUT; PIN,RR SPR
(B) M14 FLANGE THA 		8-97245-651-0 02 1 1110- ● ● ● ● ●
524 BOLT; RR SPR
M8X20 FLANGE THA 		0-28650-820-0 01 1 1109-1109 ● ●
524 BOLT; RR SPR
M8X20 FLANGE THA 		0-28650-820-0 01 1 1110- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
