4-31 — STEERING COLUMN AND SHAFT (#81720) — 119 parça

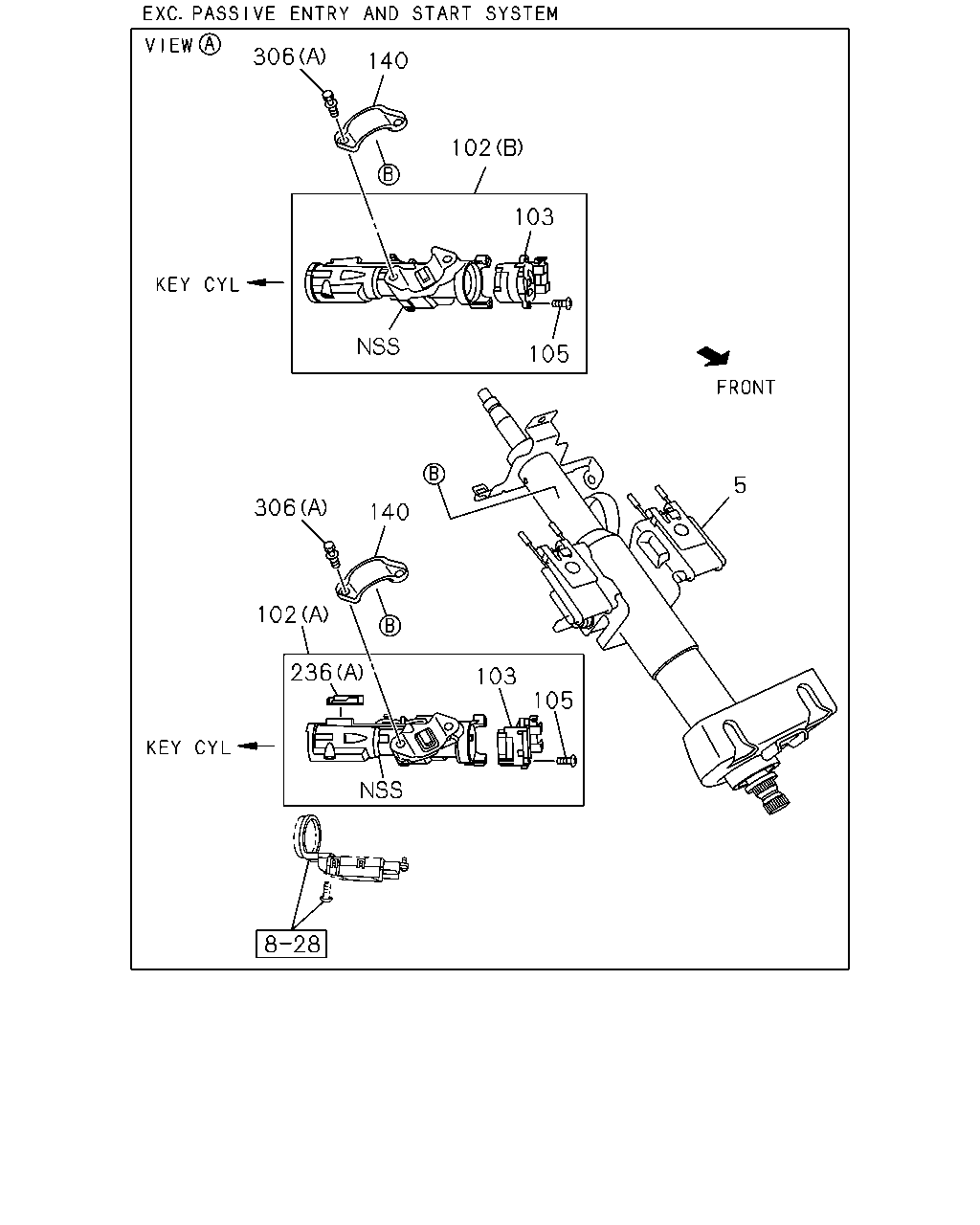

5 103 105 236 102 306 140 105 103 102 140 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
5	COLUMN; STRG THA	8-98273-328-0	01	1	1109-	●	●	●	●	●
102	LOCK ASM; STRG A/T 5 SPEED-AISIN<MA1> PASSIVE ENTRY AND START SYSTEM<AP3> (C) THA	8-98076-121-2	01	1	1212-	●		●
102	LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> PASSIVE ENTRY AND START SYSTEM<AP3> (C) THA	8-98076-118-2	01	1	1212-	●		●
102	LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ> EXC. KEY REMINDER BUZZER<T48> (B) THA	8-98076-116-0	01	1	1110-		●
102	LOCK ASM; STRG A/T 5 SPEED-AISIN<MA1> (A) THA	8-98076-120-0	01	1	1109-1109	●
102	LOCK ASM; STRG A/T 5 SPEED-AISIN<MA1> (A) THA	8-98076-120-0	01	1	1110-1211	●		●		●
102	LOCK ASM; STRG A/T 5 SPEED-AISIN<MA1> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) THA	8-98076-120-0	01	1	1212-	●		●
102	LOCK ASM; STRG A/T 5 SPEED-AISIN<MA1> (A) THA	8-98076-120-0	01	1	1212-					●
102	LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) THA	8-98076-117-0	01	1	1109-1109	●			●
102	LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) THA	8-98076-117-0	01	1	1110-1211	●		●	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ> KEY REMINDER BUZZER<T48> (A) THA	8-98076-117-0	01	1	1110-1211		●
102	LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) THA	8-98076-117-0	01	1	1212-	●		●
102	LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) THA	8-98076-117-0	01	1	1212-				●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ> KEY REMINDER BUZZER<T48> (A) THA	8-98076-117-0	01	1	1212-		●
103	SWITCH; IGNITION THA	8-98132-719-0	01	1	1109-1109	●			●
103	SWITCH; IGNITION THA	8-98132-719-0	01	1	1110-	●	●	●	●	●
105	SCREW; IGN SW THA	8-98192-449-0	02	1	1109-1109	●			●
105	SCREW; IGN SW THA	8-98192-449-0	02	1	1110-	●	●	●	●	●
140	BRACKET; STRG COWL THA	8-98134-652-0	01	1	1109-1109	●			●
140	BRACKET; STRG COWL THA	8-98134-652-0	01	1	1110-	●	●	●	●	●
236	SWITCH; DOOR WARNING,STRG LOCK PASSIVE ENTRY AND START SYSTEM<AP3> (C) THA	8-98225-461-0	01	1	1212-	●		●
236	SWITCH; DOOR WARNING,STRG LOCK PASSIVE ENTRY AND START SYSTEM<AP3> (B) THA	8-98225-462-0	01	1	1212-	●		●
236	SWITCH; DOOR WARNING,STRG LOCK (A) THA	8-98132-720-0	01	1	1109-1109	●			●
236	SWITCH; DOOR WARNING,STRG LOCK (A) THA	8-98132-720-0	01	1	1110-1211	●		●	●	●
236	SWITCH; DOOR WARNING,STRG LOCK KEY REMINDER BUZZER<T48> (A) THA	8-98132-720-0	01	1	1110-1211		●
236	SWITCH; DOOR WARNING,STRG LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) THA	8-98132-720-0	01	1	1212-	●		●
236	SWITCH; DOOR WARNING,STRG LOCK (A) THA	8-98132-720-0	01	1	1212-				●	●
236	SWITCH; DOOR WARNING,STRG LOCK KEY REMINDER BUZZER<T48> (A) THA	8-98132-720-0	01	1	1212-		●
306	BOLT; STRG SHAFT (A) M8X18.5 TWISTED OFF THA	8-97945-749-0	02	1	1109-1109	●			●
306	BOLT; STRG SHAFT (A) M8X18.5 TWISTED OFF THA	8-97945-749-0	02	1	1110-	●	●	●	●	●
306	BOLT; STRG SHAFT (B) M8X35 FLANGE THA	8-97249-320-0	02	1	1109-1109	●			●
306	BOLT; STRG SHAFT (B) M8X35 FLANGE THA	8-97249-320-0	02	1	1110-	●	●	●	●	●

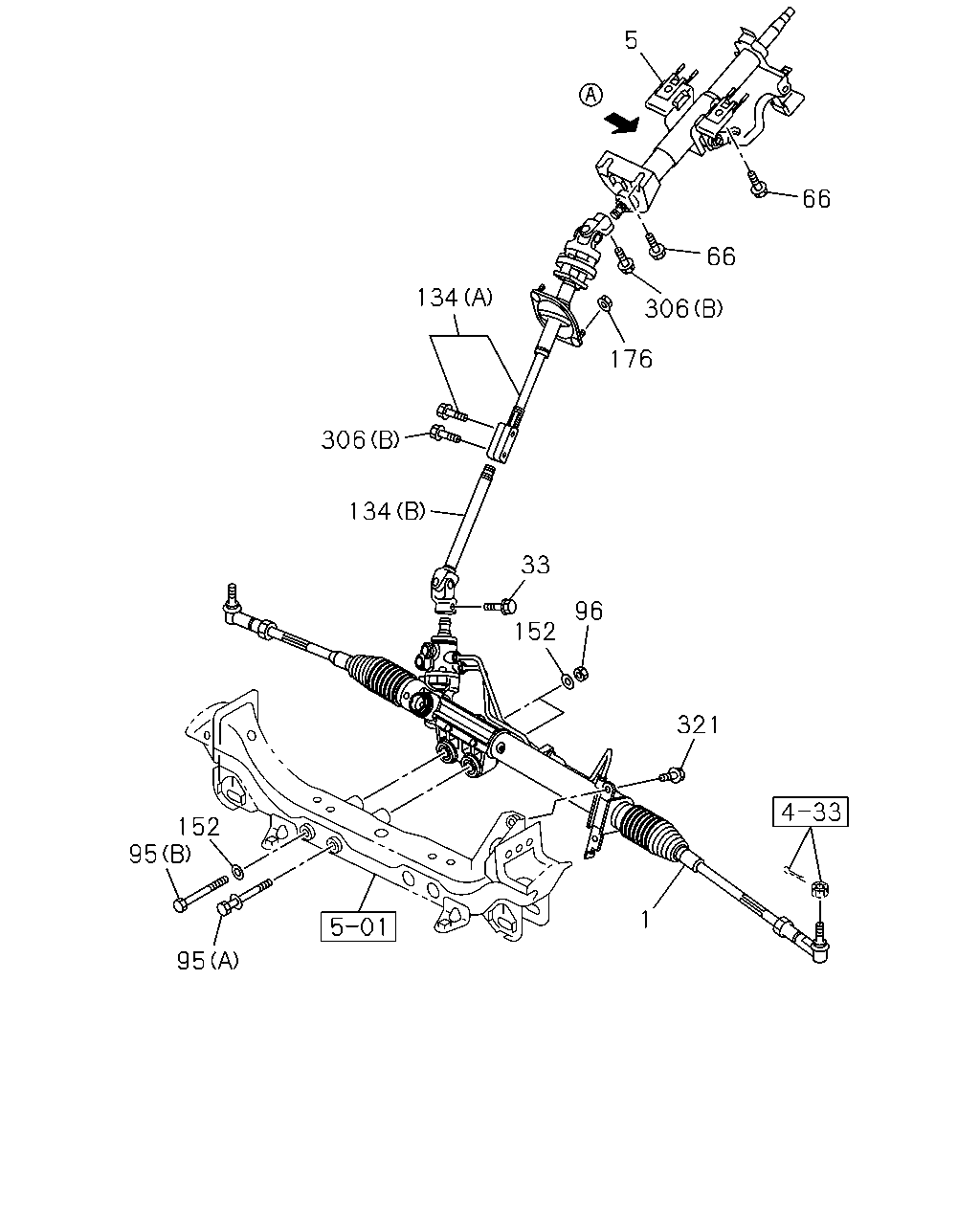

306 134 152 95 95 33 134 96 152 321 1 176 306 66 66 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> THA	8-97946-131-1	01	1	1109-1109	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97946-131-1	01	1	1109-1109				●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> THA	8-97946-131-1	01	1	1110-	●		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97946-131-1	01	1	1110-				●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97946-129-1	01	1	1109-1109	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97946-129-1	01	1	1110-	●		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97946-129-1	01	1	1110-		●
5	COLUMN; STRG THA	8-98273-328-0	01	1	1109-	●	●	●	●	●
33	BOLT; STRG SHAFT TO UNIT M8X35 FLANGE THA	8-97249-320-0	01	1	1109-1109	●			●
33	BOLT; STRG SHAFT TO UNIT M8X35 FLANGE THA	8-97249-320-0	01	1	1110-	●	●	●	●	●
66	BOLT; STRG COLUMN M8X25 FLANGE THA	0-28650-825-0	04	1	1109-1109	●			●
66	BOLT; STRG COLUMN M8X25 FLANGE THA	0-28650-825-0	04	1	1110-	●	●	●	●	●
95	BOLT; STRG UNIT HIGH RIDE SUSPENSION<7YC> (B) M16X186.5 THA	8-97947-503-0	01	1	1109-1109	●
95	BOLT; STRG UNIT (B) M16X186.5 THA	8-97947-503-0	01	1	1109-1109				●
95	BOLT; STRG UNIT HIGH RIDE SUSPENSION<7YC> (B) M16X186.5 THA	8-97947-503-0	01	1	1110-	●		●
95	BOLT; STRG UNIT (B) M16X186.5 THA	8-97947-503-0	01	1	1110-				●	●
95	BOLT; STRG UNIT HIGH RIDE SUSPENSION<7YC> (A) M16X186.5 W/PL WASHER THA	8-98162-884-1	01	1	1109-1109	●
95	BOLT; STRG UNIT (A) M16X186.5 W/PL WASHER THA	8-98162-884-1	01	1	1109-1109				●
95	BOLT; STRG UNIT HIGH RIDE SUSPENSION<7YC> (A) M16X186.5 W/PL WASHER THA	8-98162-884-1	01	1	1110-	●		●
95	BOLT; STRG UNIT (A) M16X186.5 W/PL WASHER THA	8-98162-884-1	01	1	1110-				●	●
95	BOLT; STRG UNIT EXC. HIGH RIDE SUSPENSION<7YC> (A) M16X214 W/PL WASHER THA	8-97947-128-2	01	1	1109-1109	●
95	BOLT; STRG UNIT EXC. HIGH RIDE SUSPENSION<7YC> (A) M16X214 W/PL WASHER THA	8-97947-128-2	01	1	1110-	●		●
95	BOLT; STRG UNIT (A) M16X214 W/PL WASHER THA	8-97947-128-2	01	1	1110-		●
95	BOLT; STRG UNIT EXC. HIGH RIDE SUSPENSION<7YC> (B) M16X214 THA	8-97947-502-0	01	1	1109-1109	●
95	BOLT; STRG UNIT EXC. HIGH RIDE SUSPENSION<7YC> (B) M16X214 THA	8-97947-502-0	01	1	1110-	●		●
95	BOLT; STRG UNIT (B) M16X214 THA	8-97947-502-0	01	1	1110-		●
96	NUT; STRG UNIT M16 THA	0-91110-516-0	02	1	1109-1109	●			●
96	NUT; STRG UNIT M16 THA	0-91110-516-0	02	1	1110-	●	●	●	●	●
134	SHAFT; STRG,2ND HIGH RIDE SUSPENSION<7YC> (A) THA	8-97946-127-1	01	1	1109-1109	●
134	SHAFT; STRG,2ND (A) THA	8-97946-127-1	01	1	1109-1109				●
134	SHAFT; STRG,2ND HIGH RIDE SUSPENSION<7YC> (A) THA	8-97946-127-1	01	1	1110-	●		●
134	SHAFT; STRG,2ND (A) THA	8-97946-127-1	01	1	1110-				●
134	SHAFT; STRG,2ND 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> (A) THA	8-97946-127-1	01	1	1110-					●
134	SHAFT; STRG,2ND HIGH RIDE SUSPENSION<7YC> (B) THA	8-97946-136-0	01	1	1109-1109	●
134	SHAFT; STRG,2ND (B) THA	8-97946-136-0	01	1	1109-1109				●
134	SHAFT; STRG,2ND HIGH RIDE SUSPENSION<7YC> (B) THA	8-97946-136-0	01	1	1110-	●		●
134	SHAFT; STRG,2ND (B) THA	8-97946-136-0	01	1	1110-				●
134	SHAFT; STRG,2ND 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> (B) THA	8-97946-136-0	01	1	1110-					●
134	SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97946-125-1	01	1	1109-1109	●
134	SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97946-125-1	01	1	1110-	●		●
134	SHAFT; STRG,2ND 4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> (A) THA	8-97946-125-1	01	1	1110-		●
134	SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION<7YC> (B) THA	8-97946-135-0	01	1	1109-1109	●
134	SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION<7YC> (B) THA	8-97946-135-0	01	1	1110-	●		●
134	SHAFT; STRG,2ND 4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> (B) THA	8-97946-135-0	01	1	1110-		●
152	WASHER; LK,STRG UNIT ID=17 THA	8-97947-501-0	03	1	1109-1109	●			●
152	WASHER; LK,STRG UNIT ID=17 THA	8-97947-501-0	03	1	1110-1504	●	●	●	●	●
152	WASHER; LK,STRG UNIT ID=17 THA	8-98296-670-0	03	1	1505-	●	●	●	●	●
176	NUT; STRG M6 FLANGE THA	0-91180-106-0	02	1	1109-1109	●			●
176	NUT; STRG M6 FLANGE THA	0-91180-106-0	02	1	1110-	●	●	●	●	●
306	BOLT; STRG SHAFT (A) M8X18.5 TWISTED OFF THA	8-97945-749-0	02	1	1109-1109	●			●
306	BOLT; STRG SHAFT (A) M8X18.5 TWISTED OFF THA	8-97945-749-0	02	1	1110-	●	●	●	●	●
306	BOLT; STRG SHAFT (B) M8X35 FLANGE THA	8-97249-320-0	02	1	1109-1109	●			●
306	BOLT; STRG SHAFT (B) M8X35 FLANGE THA	8-97249-320-0	02	1	1110-	●	●	●	●	●
321	BOLT; BRKT,STRG M12X30 FLANGE THA	0-28661-230-0	02	1	1109-1109	●			●
321	BOLT; BRKT,STRG M12X30 FLANGE THA	0-28661-230-0	02	1	1110-	●	●	●	●	●

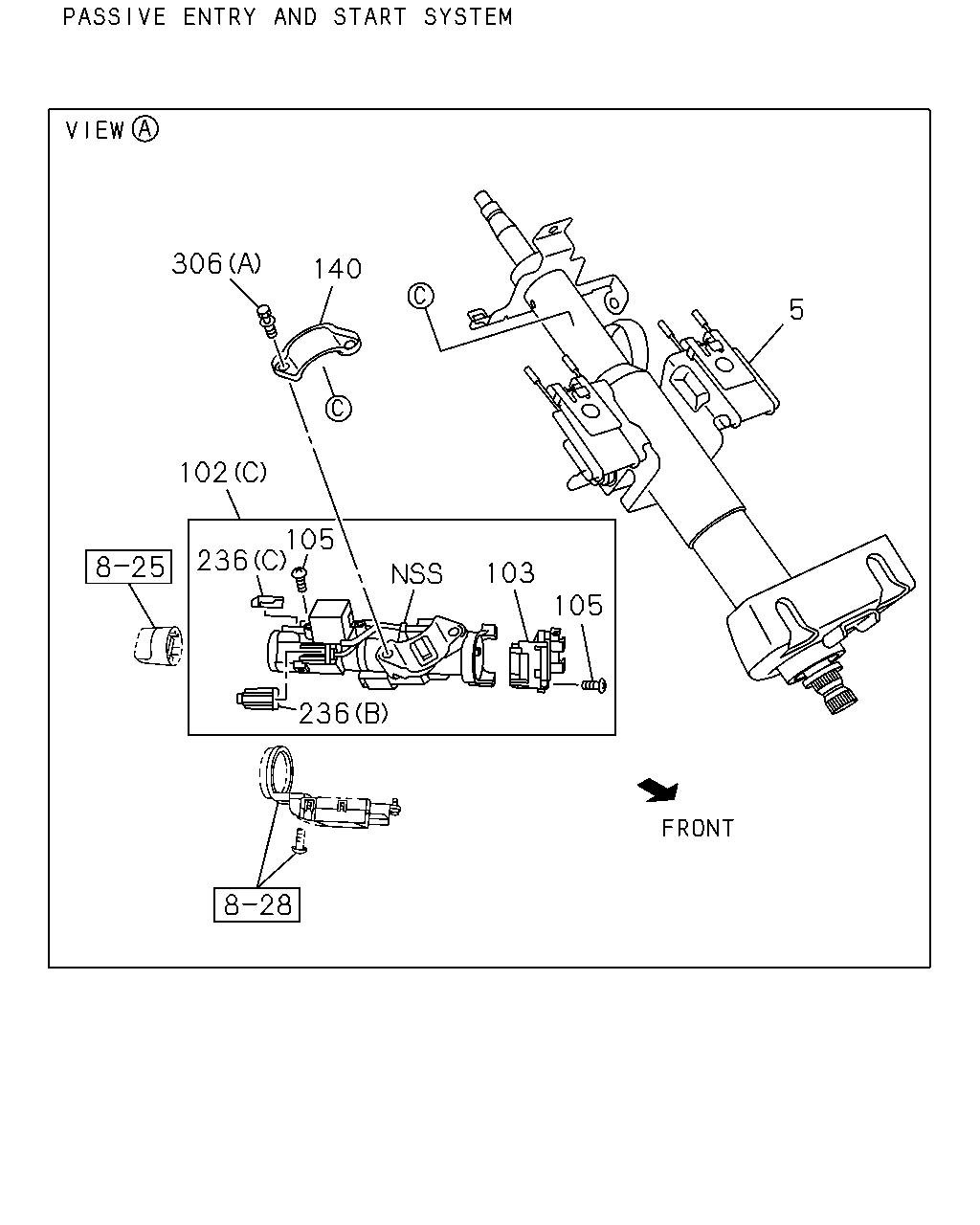

5 140 306 102 236 105 103 236 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
5	COLUMN; STRG THA	8-98273-328-0	01	1	1109-	●	●	●	●	●
102	LOCK ASM; STRG A/T 5 SPEED-AISIN<MA1> PASSIVE ENTRY AND START SYSTEM<AP3> (C) THA	8-98076-121-2	01	1	1212-	●		●
102	LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> PASSIVE ENTRY AND START SYSTEM<AP3> (C) THA	8-98076-118-2	01	1	1212-	●		●
102	LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ> EXC. KEY REMINDER BUZZER<T48> (B) THA	8-98076-116-0	01	1	1110-		●
102	LOCK ASM; STRG A/T 5 SPEED-AISIN<MA1> (A) THA	8-98076-120-0	01	1	1109-1109	●
102	LOCK ASM; STRG A/T 5 SPEED-AISIN<MA1> (A) THA	8-98076-120-0	01	1	1110-1211	●		●		●
102	LOCK ASM; STRG A/T 5 SPEED-AISIN<MA1> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) THA	8-98076-120-0	01	1	1212-	●		●
102	LOCK ASM; STRG A/T 5 SPEED-AISIN<MA1> (A) THA	8-98076-120-0	01	1	1212-					●
102	LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) THA	8-98076-117-0	01	1	1109-1109	●			●
102	LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) THA	8-98076-117-0	01	1	1110-1211	●		●	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ> KEY REMINDER BUZZER<T48> (A) THA	8-98076-117-0	01	1	1110-1211		●
102	LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) THA	8-98076-117-0	01	1	1212-	●		●
102	LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) THA	8-98076-117-0	01	1	1212-				●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ> KEY REMINDER BUZZER<T48> (A) THA	8-98076-117-0	01	1	1212-		●
103	SWITCH; IGNITION THA	8-98132-719-0	01	1	1109-1109	●			●
103	SWITCH; IGNITION THA	8-98132-719-0	01	1	1110-	●	●	●	●	●
105	SCREW; IGN SW THA	8-98192-449-0	02	1	1109-1109	●			●
105	SCREW; IGN SW THA	8-98192-449-0	02	1	1110-	●	●	●	●	●
140	BRACKET; STRG COWL THA	8-98134-652-0	01	1	1109-1109	●			●
140	BRACKET; STRG COWL THA	8-98134-652-0	01	1	1110-	●	●	●	●	●
236	SWITCH; DOOR WARNING,STRG LOCK PASSIVE ENTRY AND START SYSTEM<AP3> (C) THA	8-98225-461-0	01	1	1212-	●		●
236	SWITCH; DOOR WARNING,STRG LOCK PASSIVE ENTRY AND START SYSTEM<AP3> (B) THA	8-98225-462-0	01	1	1212-	●		●
236	SWITCH; DOOR WARNING,STRG LOCK (A) THA	8-98132-720-0	01	1	1109-1109	●			●
236	SWITCH; DOOR WARNING,STRG LOCK (A) THA	8-98132-720-0	01	1	1110-1211	●		●	●	●
236	SWITCH; DOOR WARNING,STRG LOCK KEY REMINDER BUZZER<T48> (A) THA	8-98132-720-0	01	1	1110-1211		●
236	SWITCH; DOOR WARNING,STRG LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) THA	8-98132-720-0	01	1	1212-	●		●
236	SWITCH; DOOR WARNING,STRG LOCK (A) THA	8-98132-720-0	01	1	1212-				●	●
236	SWITCH; DOOR WARNING,STRG LOCK KEY REMINDER BUZZER<T48> (A) THA	8-98132-720-0	01	1	1212-		●
306	BOLT; STRG SHAFT (A) M8X18.5 TWISTED OFF THA	8-97945-749-0	02	1	1109-1109	●			●
306	BOLT; STRG SHAFT (A) M8X18.5 TWISTED OFF THA	8-97945-749-0	02	1	1110-	●	●	●	●	●
306	BOLT; STRG SHAFT (B) M8X35 FLANGE THA	8-97249-320-0	02	1	1109-1109	●			●
306	BOLT; STRG SHAFT (B) M8X35 FLANGE THA	8-97249-320-0	02	1	1110-	●	●	●	●	●
