4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#8172) — 73 parça

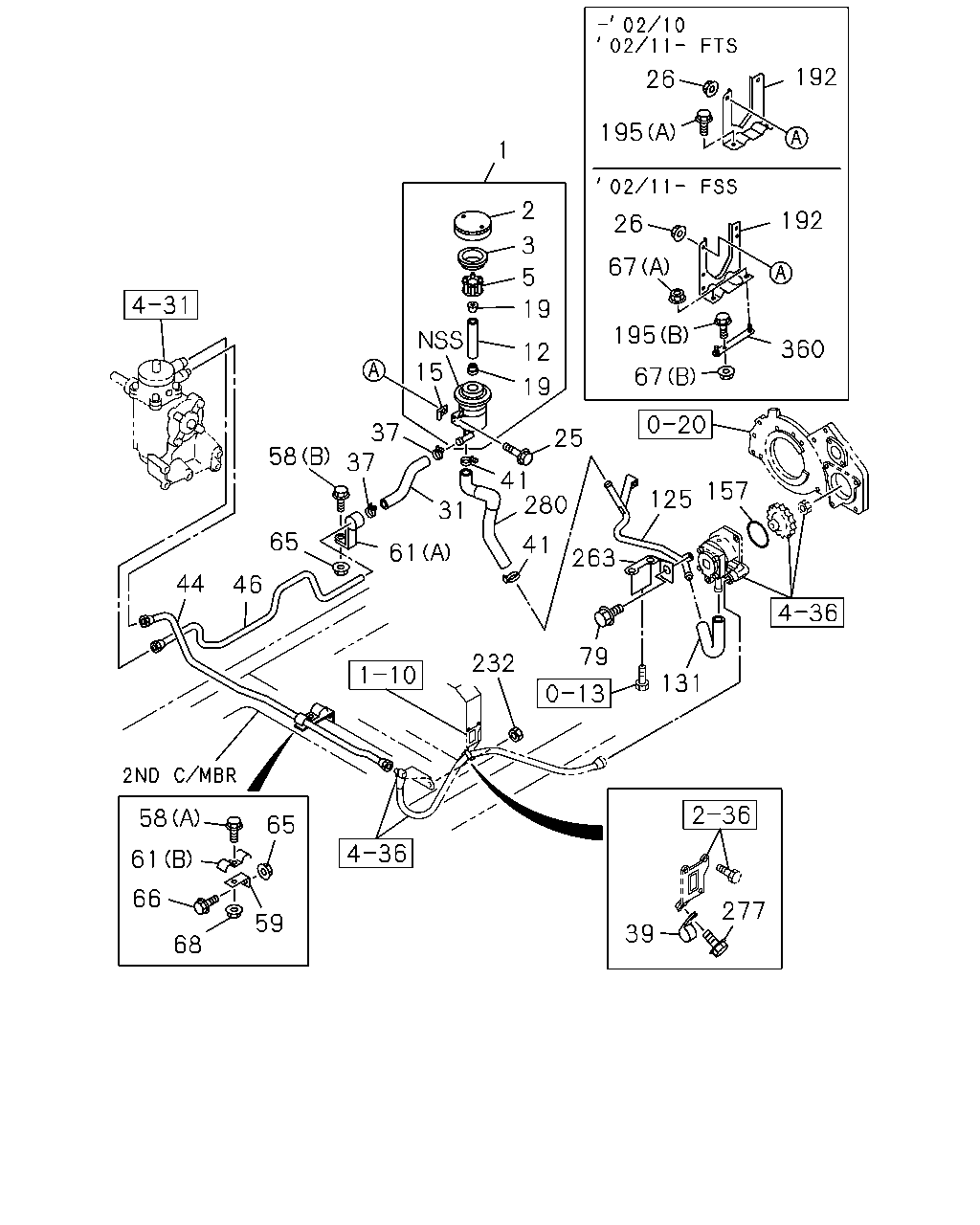

çizim 103165
192 26 195 1 2 192 26 3 67 5 19 195 360 12 15 67 19 37 37 25 58 41 280 157 125 31 65 41 61 263 44 46 79 232 131 58 65 61 59 66 277 39 68
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 TANK ASM; OIL,P/S 1-21210-205-0 01 1 0005-0508 ● ● ● ●
1 TANK ASM; OIL,P/S 1-21210-238-1 01 1 0509-1006 ● ● ● ●
1 TANK ASM; OIL,P/S 8-98166-928-0 01 1 1007- ● ● ● ●
2 CAP; OIL TANK,P/S 1-21241-004-4 01 1 0005-1006 ● ● ● ●
2 CAP; OIL TANK,P/S 8-98166-876-0 01 1 1007- ● ● ● ●
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 0005- ● ● ● ●
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 0005- ● ● ● ●
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 0005- ● ● ● ●
15 PLATE; FILTER,OIL TANK 1-21249-007-1 02 1 0005-0508 ● ● ● ●
15 PLATE; FILTER,OIL TANK 1-21249-016-0 02 1 0509- ● ● ● ●
19 SEAT; OIL TANK 1-21249-004-0 02 1 0005- ● ● ● ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ● ● ● ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ● ●
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ● ● ●
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
31 HOSE; P/S OIL TANK,INL 1-21113-591-1 01 1 0005- ● ●
31 HOSE; P/S OIL TANK,INL 1-21113-590-0 01 1 0005- ● ●
37 CLIP; HOSE,P/S
ID=26 		1-09704-082-0 02 1 0005- ● ● ● ●
39 CLIP; FLEX HOSE
ID=40 		8-94226-553-0 01 1 0005- ● ● ● ●
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 0005- ● ● ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
L=1086 		1-21115-361-0 01 1 0005-0210 ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21116-602-0 01 1 0211- ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21115-890-0 01 1 0005-0210 ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21117-056-0 01 1 0211-0301 ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21117-359-0 01 1 0302- ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21114-768-3 01 1 0005- ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21114-766-0 01 1 0005-0102 ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21116-947-0 01 1 0103-0210 ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21117-300-0 01 1 0211- ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21115-247-0 01 1 0005-0104 ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21117-001-0 01 1 0105-0210 ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21117-299-0 01 1 0211- ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21115-518-0 01 1 0005-0104 ●
58 BOLT; CLIP
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0005-0512 ● ● ● ●
58 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ● ● ●
58 BOLT; CLIP
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0005-0512 ● ● ● ●
58 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ● ●
59 BRACKET; CLIP,OIL PIPE
L=60 		1-47475-455-0 01 1 0005- ● ● ● ●
61 CLIP; OIL PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 0005- ● ● ● ●
61 CLIP; OIL PIPE
(B) ID=16 & 13 L=18 & 17 		1-09700-658-0 01 1 0005- ● ● ● ●
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ● ● ● ●
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ● ● ● ●
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ● ●
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ● ●
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE 		0-28680-820-0 01 1 0005-0512 ● ● ● ●
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ● ● ●
67 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ● ●
67 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
67 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0211-0602 ● ●
67 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ● ● ● ●
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ● ●
79 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 0005-0512 ● ● ● ●
79 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0601- ● ● ● ●
125 CONNECTOR; P/S PUMP 8-97600-113-0 01 1 0005- ● ● ● ●
131 HOSE; RUBBER,P/S 8-94396-331-1 01 1 0005- ● ● ● ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 		1-09623-178-0 01 1 0005- ● ● ● ●
192 BRACKET; P/S OIL TANK 1-21119-129-0 01 1 0005- ● ●
192 BRACKET; P/S OIL TANK 1-21119-142-1 01 1 0005- ● ●
195 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0512 ● ●
195 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
195 BOLT; BRKT
(A) M10X25 FLANGE 		0-28681-025-0 02 1 0005-0210 ● ● ● ●
195 BOLT; BRKT
(A) M10X25 FLANGE 		0-28681-025-0 02 1 0211-0406 ● ●
195 BOLT; BRKT
(A) M10X25 FLANGE 		0-28081-025-0 02 1 0407-0512 ● ●
195 BOLT; BRKT
(A) M10X25 FLANGE 		0-28051-025-0 02 1 0601- ● ●
232 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ● ● ●
232 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
263 BRACKET; P/S PIPE 8-97600-117-0 01 1 0005- ● ● ● ●
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0512 ● ● ● ●
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ●
280 HOSE; P/S OIL PUMP,INL 1-21115-230-1 01 1 0005- ● ● ● ●
360 BRACKET; STUD 1-53497-696-1 01 1 0211- ● ●
