4-12 — FRONT DRIVE SHAFT (#81715) — 153 parça

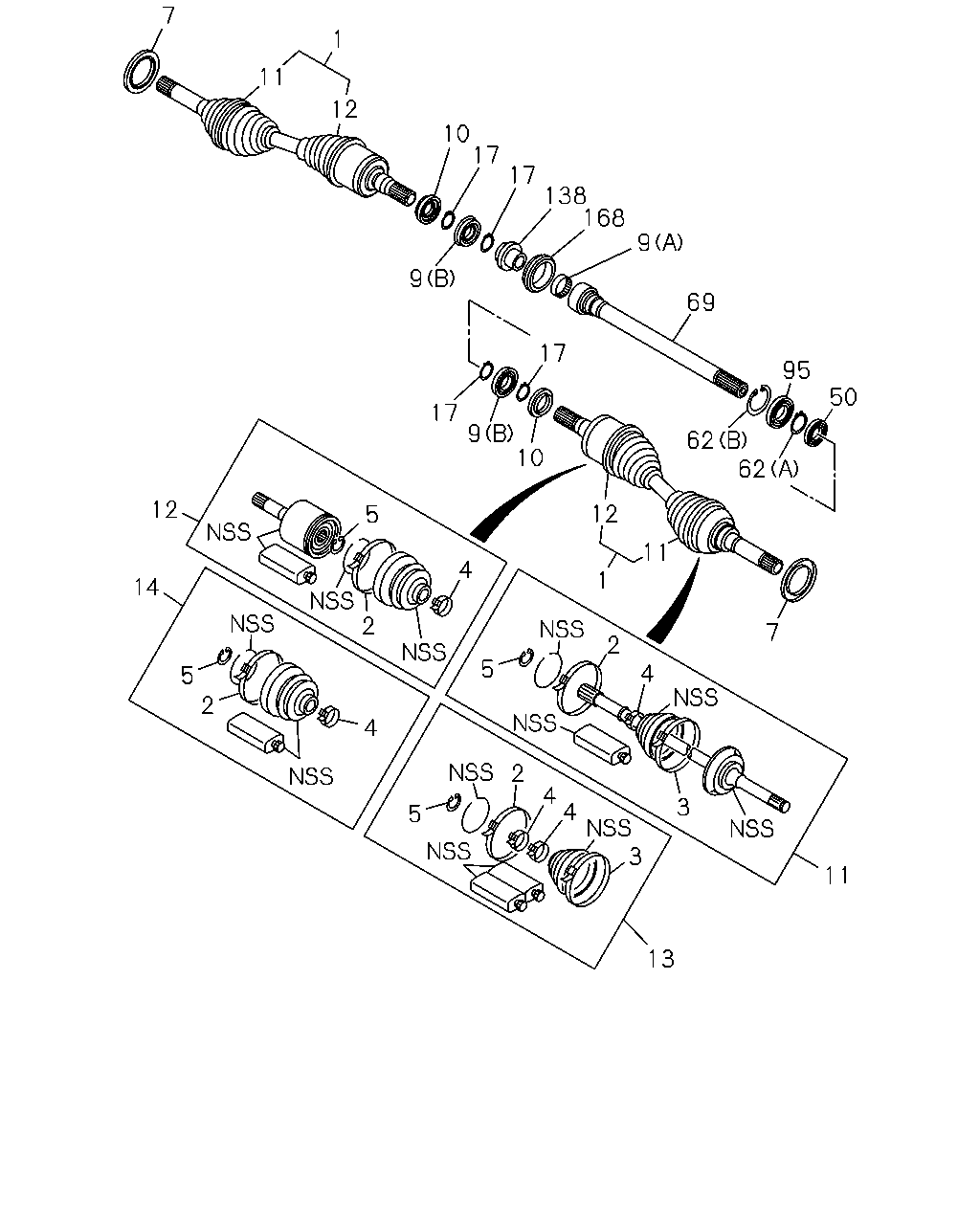

13 11 3 3 4 4 2 5 4 2 5 4 2 5 14 12 5 4 2 7 1 11 12 10 9 17 17 62 62 50 95 69 9 168 138 17 17 9 10 12 1 11 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT ASM; FRT DRIVE THA	8-98147-245-0	02	1	1109-1109	●
1	SHAFT ASM; FRT DRIVE THA	8-98147-245-2	02	1	1110-	●	●
2	BAND; "A",FRT DRIVE SHAFT THA	8-98147-676-0	02	1	1109-1109	●
2	BAND; "A",FRT DRIVE SHAFT THA	8-98147-676-0	02	1	1110-	●	●
3	BAND; "B",FRT DRIVE SHAFT THA	8-97349-959-0	02	1	1109-1109	●
3	BAND; "B",FRT DRIVE SHAFT THA	8-97349-959-1	02	1	1110-	●	●
4	BAND; "C",FRT DRIVE SHAFT THA	8-97222-152-0	04	1	1109-1109	●
4	BAND; "C",FRT DRIVE SHAFT THA	8-97222-152-1	04	1	1110-	●	●
5	RING; RET,FRT DRIVE SHAFT THA	8-97131-402-0	02	1	1109-1109	●
5	RING; RET,FRT DRIVE SHAFT THA	8-97131-402-0	02	1	1110-	●	●
7	SEAL; DUST,DRIVE SHAFT THA	8-98036-560-0	02	1	1109-1109	●
7	SEAL; DUST,DRIVE SHAFT THA	8-98036-560-0	02	1	1110-	●	●
9	BEARING; AXLE SHAFT,INNER (A) IMA	8-97101-878-0	01	1	1109-1109	●
9	BEARING; AXLE SHAFT,INNER (A) IMA	8-97101-878-0	01	1	1110-	●	●
9	BEARING; AXLE SHAFT,INNER (B) IMA	8-94407-724-0	02	1	1109-1109	●
9	BEARING; AXLE SHAFT,INNER (B) IMA	8-94407-724-0	02	1	1110-	●	●
10	SEAL; OIL,AXLE SHAFT,INNER IMA	8-97373-555-0	02	1	1109-1109	●
10	SEAL; OIL,AXLE SHAFT,INNER IMA	8-97373-555-0	02	1	1110-	●	●
11	JOINT ASM; OUTSIDE,FRT DRIVE SHAFT THA	8-98147-681-0	02	1	1109-1109	●
11	JOINT ASM; OUTSIDE,FRT DRIVE SHAFT THA	8-98147-681-1	02	1	1110-	●	●
12	JOINT ASM THA	8-98147-680-0	02	1	1109-1109	●
12	JOINT ASM THA	8-98147-680-2	02	1	1110-	●	●
13	BOOT KIT; OUTSIDE,FRT DRIVE SHAFT THA	8-98147-678-0	02	1	1109-1109	●
13	BOOT KIT; OUTSIDE,FRT DRIVE SHAFT THA	8-98147-678-1	02	1	1110-	●	●
14	BOOT KIT; IN SIDE,FRT DRIVE SHAFT THA	8-98147-677-0	02	1	1109-1109	●
14	BOOT KIT; IN SIDE,FRT DRIVE SHAFT THA	8-98147-677-1	02	1	1110-	●	●
17	RING; SNAP,DRIVE SHAFT TO TRANS AXLE ID=27.9 IMA	9-09180-030-0	04	1	1109-1109	●
17	RING; SNAP,DRIVE SHAFT TO TRANS AXLE ID=27.9 IMA	9-09180-030-0	04	1	1110-	●	●
50	SEAL; OIL,SHAFT,FRT AXLE IMA	8-97084-507-0	01	1	1109-1109	●
50	SEAL; OIL,SHAFT,FRT AXLE IMA	8-97084-507-0	01	1	1110-	●	●
62	RING; SNAP,AXLE SHAFT (A) ID=37.0 IMA	9-09180-040-0	01	1	1109-1109	●
62	RING; SNAP,AXLE SHAFT (A) ID=37.0 IMA	9-09180-040-0	01	1	1110-	●	●
62	RING; SNAP,AXLE SHAFT (B) ID=57.9 IMA	9-09180-162-0	01	1	1109-1109	●
62	RING; SNAP,AXLE SHAFT (B) ID=57.9 IMA	9-09180-162-0	01	1	1110-	●	●
69	SHAFT; AXLE,FRT INNER IMA	8-97188-174-1	01	1	1109-1109	●
69	SHAFT; AXLE,FRT INNER IMA	8-97188-174-1	01	1	1110-	●	●
95	BEARING; AXLE SHAFT,FRT IMA	8-97103-392-0	01	1	1109-1109	●
95	BEARING; AXLE SHAFT,FRT IMA	8-97103-392-0	01	1	1110-	●	●
138	GEAR; CLUTCH Z=17 IMA	8-97134-857-1	01	1	1109-1109	●
138	GEAR; CLUTCH Z=17 IMA	8-97134-857-1	01	1	1110-	●	●
168	SLEEVE; FRT AXLE IMA	8-97130-567-1	01	1	1109-1109	●
168	SLEEVE; FRT AXLE IMA	8-97130-567-1	01	1	1110-	●	●

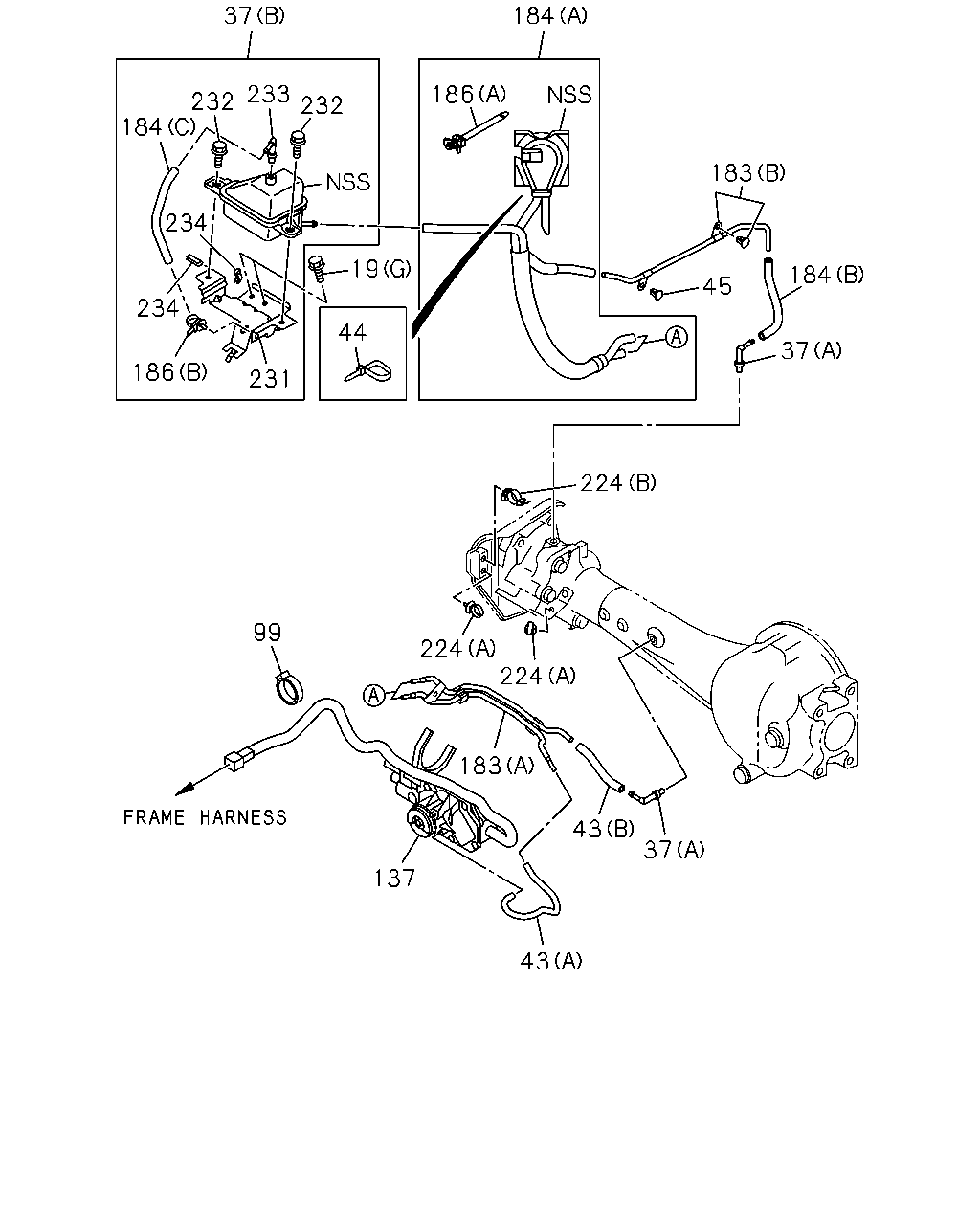

37 43 183 137 43 224 224 99 224 37 184 45 183 184 186 37 233 232 232 184 19 44 231 186 234 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	BOLT; FRT AXLE (C) M12X30 FLANGE IMA	0-28051-230-0	04	1	1109-1109	●
19	BOLT; FRT AXLE (C) M12X30 FLANGE IMA	0-28051-230-0	04	1	1110-	●	●
19	BOLT; FRT AXLE (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1109-1109	●
19	BOLT; FRT AXLE (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1110-	●	●
19	BOLT; FRT AXLE (A) M8X40 FLANGE THA	0-28650-840-0	03	1	1109-1109	●
19	BOLT; FRT AXLE (A) M8X40 FLANGE THA	0-28650-840-0	03	1	1110-	●	●
19	BOLT; FRT AXLE (D) M8X28.5 W/SP WASHER THA	8-97947-579-0	03	1	1109-1109	●
19	BOLT; FRT AXLE (D) M8X28.5 W/SP WASHER THA	8-97947-579-0	03	1	1110-	●	●
19	BOLT; FRT AXLE (E) M8X40 W/SP WASHER THA	8-97947-580-0	05	1	1109-1109	●
19	BOLT; FRT AXLE (E) M8X40 W/SP WASHER THA	8-97947-580-0	05	1	1110-	●	●
19	BOLT; FRT AXLE (F) M8X95 W/SP WASHER THA	8-97947-581-0	02	1	1109-1109	●
19	BOLT; FRT AXLE (F) M8X95 W/SP WASHER THA	8-97947-581-0	02	1	1110-	●	●
19	BOLT; FRT AXLE (G) M6X16 FLANGE THA	0-28650-616-0	02	1	1109-1109	●
19	BOLT; FRT AXLE (G) M6X16 FLANGE THA	0-28650-616-0	02	1	1110-	●	●
37	BREATHER; FRT AXLE CASE (A) IMA	8-94226-943-0	02	1	1109-1109	●
37	BREATHER; FRT AXLE CASE (A) IMA	8-94226-943-0	02	1	1110-	●	●
37	BREATHER; FRT AXLE CASE (B) THA	8-98166-418-4	01	1	1109-1109	●
37	BREATHER; FRT AXLE CASE (B) THA	8-98166-418-4	01	1	1110-	●	●
43	HOSE; RUBBER,AIR BREATHER (A) L=250 SERVICED BY L=3000 IMA	0-04740-300-0	01	1	1109-1109	●
43	HOSE; RUBBER,AIR BREATHER (A) L=250 SERVICED BY L=3000 IMA	0-04740-300-0	01	1	1110-	●	●
43	HOSE; RUBBER,AIR BREATHER (B) L=120 SERVICED BY L=3000 THA	0-04950-300-0	01	1	1109-1109	●
43	HOSE; RUBBER,AIR BREATHER (B) L=120 SERVICED BY L=3000 THA	0-04950-300-0	01	1	1110-	●	●
44	CLIP; AIR BREATHER HOSE L=129.5 THA	8-94368-493-0	01	1	1109-1109	●
44	CLIP; AIR BREATHER HOSE L=129.5 THA	8-94368-493-0	01	1	1110-	●	●
45	CLIP OD=14 HOLE ID=6 THA	8-97031-632-0	01	1	1109-1109	●
45	CLIP OD=14 HOLE ID=6 THA	8-97031-632-0	01	1	1110-	●	●
99	CLIP; RUBBER HOSE ID=34 THA	8-98069-482-0	01	1	1109-1109	●
99	CLIP; RUBBER HOSE ID=34 THA	8-98069-482-0	01	1	1110-	●	●
137	ACTUATOR; AXLE IMA	8-98140-853-1	01	1	1109-1109	●
137	ACTUATOR; AXLE IMA	8-98140-853-1	01	1	1110-	●	●
183	PIPE; BREATHER (A) THA	8-98125-294-1	01	1	1109-1109	●
183	PIPE; BREATHER (A) THA	8-98125-294-1	01	1	1110-	●	●
183	PIPE; BREATHER (B) THA	8-98177-662-1	01	1	1109-1109	●
183	PIPE; BREATHER (B) THA	8-98177-662-1	01	1	1110-	●	●
184	HOSE; BREATHER (C) L=190 SERVICED BY L=3000 IMA	0-04750-300-0	01	1	1212-	●	●
184	HOSE; BREATHER (A) THA	8-98166-421-5	01	1	1109-1109	●
184	HOSE; BREATHER (A) THA	8-98166-421-5	01	1	1110-	●	●
184	HOSE; BREATHER (B) THA	8-98177-663-0	01	1	1109-1109	●
184	HOSE; BREATHER (B) THA	8-98177-663-0	01	1	1110-	●	●
186	CLIP; HOSE,BREATHER (B) L=155 THA	8-97173-307-0	01	1	1212-	●	●
186	CLIP; HOSE,BREATHER (A) L=172 THA	8-94232-620-0	01	1	1109-	●	●
224	CLIP; HARNESS (A) L=150 IMA	8-97811-150-1	02	1	1109-1109	●
224	CLIP; HARNESS (A) L=150 IMA	8-97811-150-1	02	1	1110-	●	●
224	CLIP; HARNESS (B) L=145 THA	8-98116-079-0	01	1	1109-1109	●
224	CLIP; HARNESS (B) L=145 THA	8-98116-079-0	01	1	1110-1307	●	●
224	CLIP; HARNESS (B) L=172 THA	8-94232-620-0	01	1	1308-	●	●
231	BRACKET; CATCH TANK,OIL THA	8-98165-859-2	01	1	1212-	●	●
232	BOLT; TANK TO BRKT M6X16 FLANGE THA	0-28650-616-0	02	1	1212-	●	●
233	BREATHER; AIR,OIL TANK IMA	8-94226-943-0	01	1	1212-	●	●
234	FINISHER; BRKT L=50 IMA	8-94270-377-1	02	1	1212-	●	●

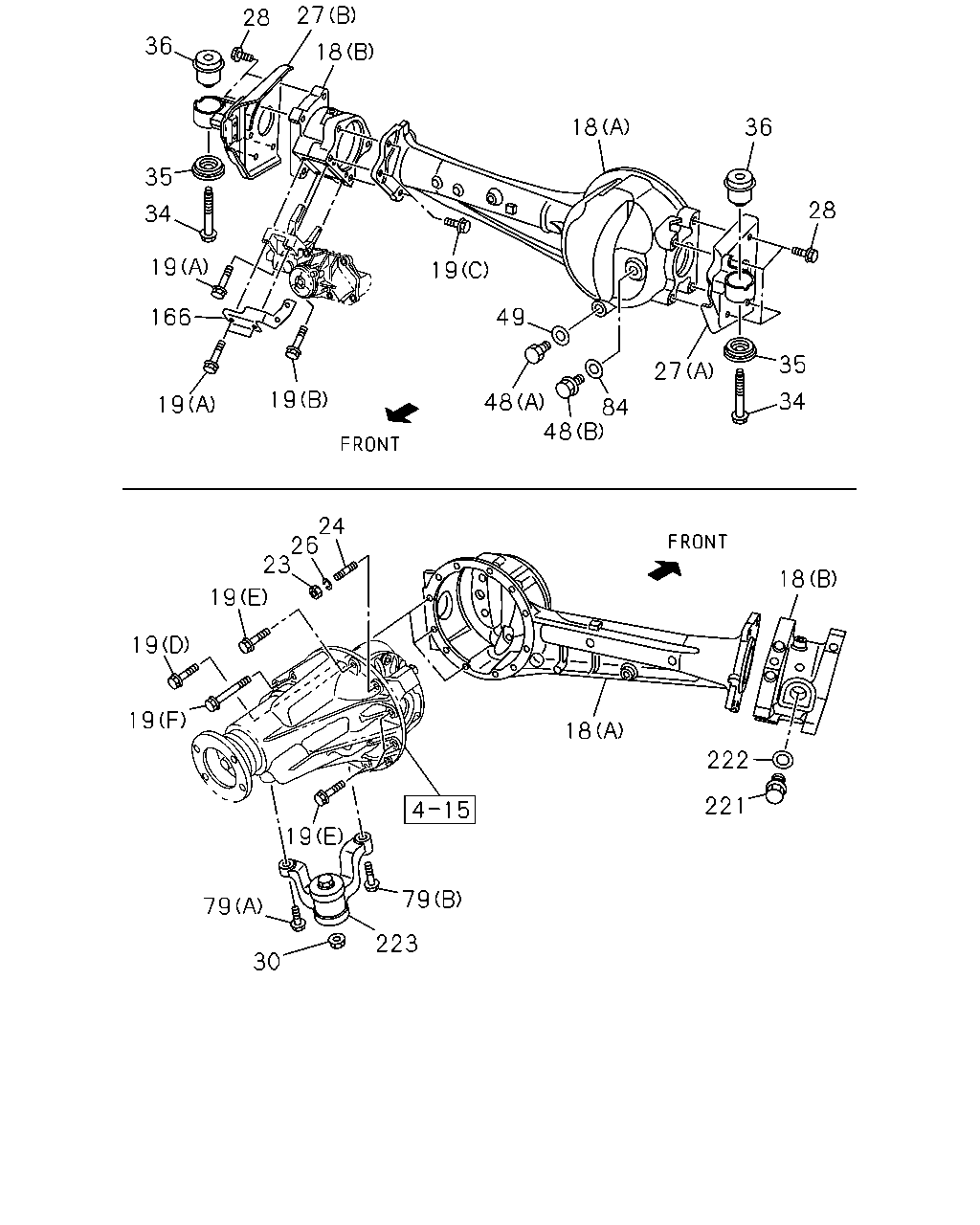

28 27 18 36 35 34 19 166 19 19 19 18 36 28 27 35 34 49 48 48 84 18 222 221 18 24 26 23 19 19 19 19 79 223 79 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	CASE; FRT AXLE (A) THA	8-98084-280-8	01	1	1109-1109	●
18	CASE; FRT AXLE (A) THA	8-98084-280-8	01	1	1110-	●	●
18	CASE; FRT AXLE (B) THA	8-98084-292-3	01	1	1109-1109	●
18	CASE; FRT AXLE (B) THA	8-98084-292-3	01	1	1110-	●	●
19	BOLT; FRT AXLE (C) M12X30 FLANGE IMA	0-28051-230-0	04	1	1109-1109	●
19	BOLT; FRT AXLE (C) M12X30 FLANGE IMA	0-28051-230-0	04	1	1110-	●	●
19	BOLT; FRT AXLE (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1109-1109	●
19	BOLT; FRT AXLE (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1110-	●	●
19	BOLT; FRT AXLE (A) M8X40 FLANGE THA	0-28650-840-0	03	1	1109-1109	●
19	BOLT; FRT AXLE (A) M8X40 FLANGE THA	0-28650-840-0	03	1	1110-	●	●
19	BOLT; FRT AXLE (D) M8X28.5 W/SP WASHER THA	8-97947-579-0	03	1	1109-1109	●
19	BOLT; FRT AXLE (D) M8X28.5 W/SP WASHER THA	8-97947-579-0	03	1	1110-	●	●
19	BOLT; FRT AXLE (E) M8X40 W/SP WASHER THA	8-97947-580-0	05	1	1109-1109	●
19	BOLT; FRT AXLE (E) M8X40 W/SP WASHER THA	8-97947-580-0	05	1	1110-	●	●
19	BOLT; FRT AXLE (F) M8X95 W/SP WASHER THA	8-97947-581-0	02	1	1109-1109	●
19	BOLT; FRT AXLE (F) M8X95 W/SP WASHER THA	8-97947-581-0	02	1	1110-	●	●
19	BOLT; FRT AXLE (G) M6X16 FLANGE THA	0-28650-616-0	02	1	1109-1109	●
19	BOLT; FRT AXLE (G) M6X16 FLANGE THA	0-28650-616-0	02	1	1110-	●	●
23	NUT; FRT AXLE M8 IMA	0-91110-508-0	02	1	1109-1109	●
23	NUT; FRT AXLE M8 IMA	0-91110-508-0	02	1	1110-	●	●
24	STUD; CASE,FRT AXLE M8X25 L=41 THA	0-40210-825-0	02	1	1109-1109	●
24	STUD; CASE,FRT AXLE M8X25 L=41 THA	0-40210-825-0	02	1	1110-	●	●
26	WASHER; LK,CASE,FRT AXLE ID=8.2 THA	0-91510-808-0	02	1	1109-1109	●
26	WASHER; LK,CASE,FRT AXLE ID=8.2 THA	0-91510-808-0	02	1	1110-	●	●
27	BRACKET; AXLE CASE (A) THA	8-98103-425-0	01	1	1109-1109	●
27	BRACKET; AXLE CASE (A) THA	8-98103-425-0	01	1	1110-	●	●
27	BRACKET; AXLE CASE (B) THA	8-98103-434-0	01	1	1109-1109	●
27	BRACKET; AXLE CASE (B) THA	8-98103-434-0	01	1	1110-	●	●
28	BOLT; BRKT TO AXLE CASE M12X25 FLANGE THA	0-28051-225-0	08	1	1109-1109	●
28	BOLT; BRKT TO AXLE CASE M12X25 FLANGE THA	0-28051-225-0	08	1	1110-1312	●	●
28	BOLT; BRKT TO AXLE CASE M12X22 FLANGE THA	8-98270-578-0	08	1	1401-	●	●
30	NUT; FRT AXLE MTG M14 FLANGE THA	0-91180-214-0	01	1	1109-1109	●
30	NUT; FRT AXLE MTG M14 FLANGE THA	0-91180-214-0	01	1	1110-	●	●
34	BOLT; FRT AXLE MTG M14X85 FLANGE THA	8-97259-306-0	02	1	1109-1109	●
34	BOLT; FRT AXLE MTG M14X85 FLANGE THA	8-97259-306-0	02	1	1110-	●	●
35	WASHER; FRT AXLE MTG ID=14.2 OD=50 IMA	8-98008-020-0	02	1	1109-1109	●
35	WASHER; FRT AXLE MTG ID=14.2 OD=50 IMA	8-98008-020-0	02	1	1110-	●	●
36	BUSHING; RUBBER,FRT AXLE MTG IMA	8-97364-319-0	01	1	1109-1109	●
36	BUSHING; RUBBER,FRT AXLE MTG IMA	8-97364-319-0	01	1	1110-	●	●
36	BUSHING; RUBBER,FRT AXLE MTG IMA	8-97364-323-0	01	1	1109-1109	●
36	BUSHING; RUBBER,FRT AXLE MTG IMA	8-97364-323-0	01	1	1110-	●	●
48	PLUG; DRAIN,AXLE CASE (A) M16X12.5 IMA	8-97307-060-0	01	1	1109-1109	●
48	PLUG; DRAIN,AXLE CASE (A) M16X12.5 IMA	8-97307-060-0	01	1	1110-	●	●
48	PLUG; DRAIN,AXLE CASE (B) M20X10.5 IMA	8-98009-333-0	01	1	1109-1109	●
48	PLUG; DRAIN,AXLE CASE (B) M20X10.5 IMA	8-98009-333-0	01	1	1110-	●	●
49	GASKET; DRAIN PLUG ID=16.2 OD=24 THA	9-09571-416-0	01	1	1109-1109	●
49	GASKET; DRAIN PLUG ID=16.2 OD=24 THA	9-09571-416-0	01	1	1110-	●	●
79	BOLT; BRKT (A) M12X30 FLANGE IMA	0-28061-230-0	01	1	1109-1109	●
79	BOLT; BRKT (A) M12X30 FLANGE IMA	0-28061-230-0	01	1	1110-	●	●
79	BOLT; BRKT (B) M12X40 FLANGE THA	0-28061-240-0	01	1	1109-1109	●
79	BOLT; BRKT (B) M12X40 FLANGE THA	0-28061-240-0	01	1	1110-	●	●
84	GASKET; PLUG,OIL FILLER ID=20 OD=30 THA	8-94462-734-0	01	1	1109-1109	●
84	GASKET; PLUG,OIL FILLER ID=20 OD=30 THA	8-94462-734-0	01	1	1110-	●	●
166	BRACKET; CLIP THA	8-98125-310-3	01	1	1109-1109	●
166	BRACKET; CLIP THA	8-98125-310-3	01	1	1110-	●	●
221	PLUG; FILLER M20X10.5 IMA	8-98009-333-0	01	1	1109-1109	●
221	PLUG; FILLER M20X10.5 IMA	8-98009-333-0	01	1	1110-	●	●
222	GASKET; FILLER PLUG ID=20 OD=30 THA	8-94462-734-0	01	1	1109-1109	●
222	GASKET; FILLER PLUG ID=20 OD=30 THA	8-94462-734-0	01	1	1110-	●	●
223	BRACKET; HSG THA	8-98103-437-0	01	1	1109-1109	●
223	BRACKET; HSG THA	8-98103-437-0	01	1	1110-	●	●
