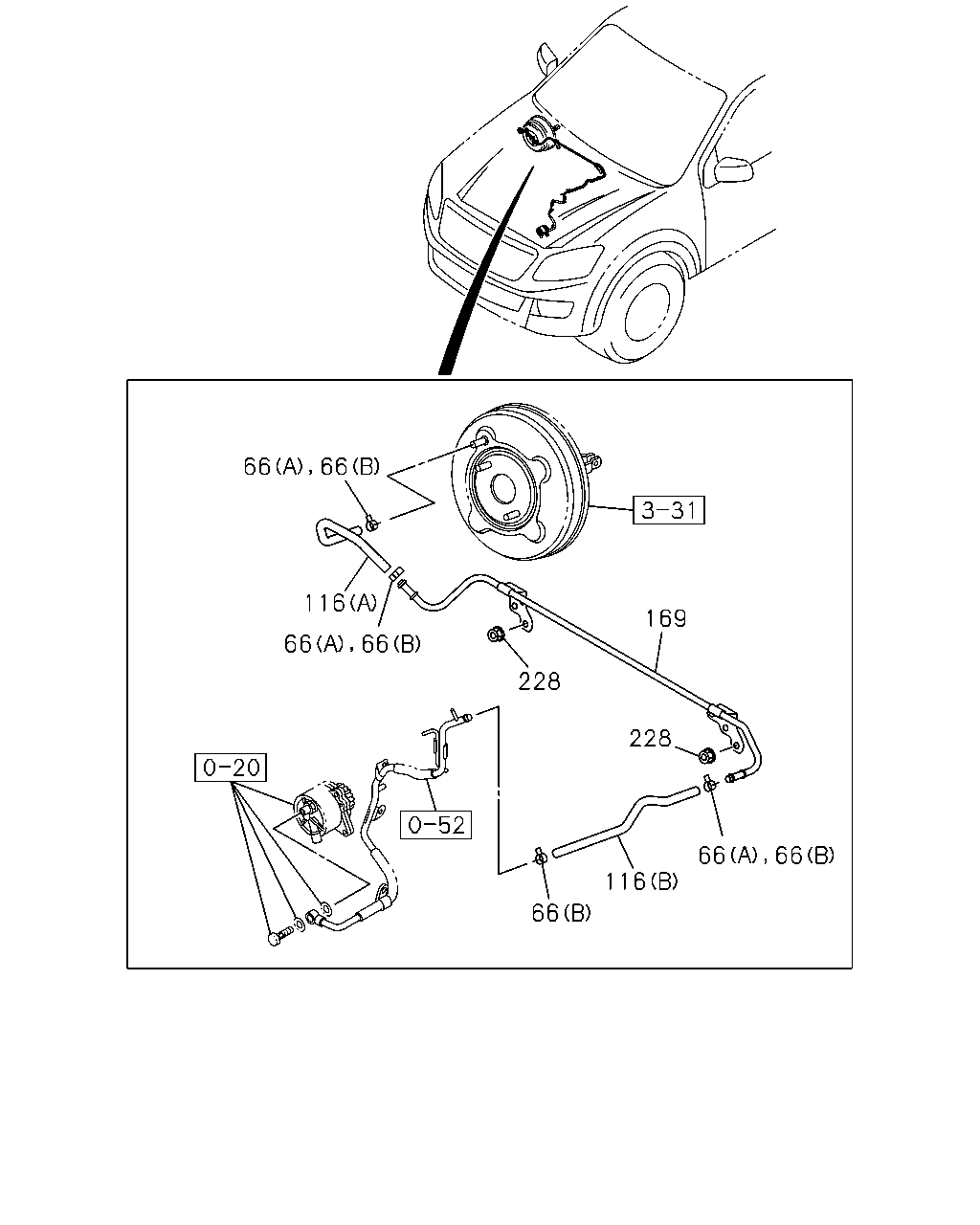

3-60 — BRAKE PIPING; VACUUM
(#81711) — 13 parça
Tümü
A - TFB5CF
B - TFS5CF
C - TFB5SF
D - TFB5WF
E - TFS5WF
66
66
116
66
66
169
228
228
66
66
116
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
66
CLIP; VAC HOSE,M/VAC
(A) ID=15.5 THA
8-98035-872-0
03
1
1109-1109
●
●
66
CLIP; VAC HOSE,M/VAC
(A) ID=15.5 THA
8-98035-872-0
03
1
1110-1403
●
●
●
●
●
66
CLIP; VAC HOSE,M/VAC
(B) ID=16 THA
8-98036-539-0
01
1
1109-1109
●
●
66
CLIP; VAC HOSE,M/VAC
(B) ID=16 THA
8-98036-539-0
01
1
1110-1403
●
●
●
●
●
66
CLIP; VAC HOSE,M/VAC
(B) ID=16 THA
8-98036-539-0
04
1
1404-
●
●
●
●
●
116
HOSE; VAC,M/VAC
(A) THA
8-98100-736-0
01
1
1109-1109
●
●
116
HOSE; VAC,M/VAC
(A) THA
8-98100-736-0
01
1
1110-
●
●
●
●
●
116
HOSE; VAC,M/VAC
(B) THA
8-98100-737-1
01
1
1109-1109
●
●
116
HOSE; VAC,M/VAC
(B) THA
8-98100-737-1
01
1
1110-
●
●
●
●
●
169
PIPE; VAC,BOOSTER SIDE
THA
8-98100-266-0
01
1
1109-1109
●
●
169
PIPE; VAC,BOOSTER SIDE
THA
8-98100-266-1
01
1
1110-
●
●
●
●
●
228
NUT; PIPE
M6 FLANGE THA
0-91180-106-0
02
1
1109-1109
●
●
228
NUT; PIPE
M6 FLANGE THA
0-91180-106-0
02
1
1110-
●
●
●
●
●
