◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#81709) — 238 parça
çizim 147135
119 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E
25 CONNECTOR
(A) THA 		8-98099-784-1 01 1 1109-1109 ● ●
25 CONNECTOR
(A) THA 		8-98099-784-1 01 1 1110-1312 ● ● ●
25 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (A) THA 		8-98099-784-1 01 1 1110-1312 ● ●
25 CONNECTOR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) THA 		8-98099-784-1 01 1 1110-1312 ● ●
25 CONNECTOR
(A) THA 		8-98099-784-1 01 1 1401- ● ● ●
25 CONNECTOR
EXC. ELECTRONIC TRACTION CONTROL<NW9> (A) THA 		8-98099-784-1 01 1 1401- ● ●
25 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) THA 		8-98099-785-1 01 1 1110- ● ●
119 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION<7YC> THA 		8-98099-722-4 01 1 1109-1109 ●
119 PIPE; BRK,2WAY TO RR
THA 		8-98099-722-4 01 1 1109-1109 ●
119 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION<7YC> THA 		8-98099-722-4 01 1 1110-1306 ●
119 PIPE; BRK,2WAY TO RR
THA 		8-98099-722-4 01 1 1110-1306 ●
119 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98099-722-4 01 1 1110-1306 ●
119 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98099-722-4 01 1 1110-1306 ●
119 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98099-722-4 01 1 1110-1306 ●
119 PIPE; BRK,2WAY TO RR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98099-722-4 01 1 1110-1306 ●
119 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION<7YC> THA 		8-98099-722-4 01 1 1307-1312 ●
119 PIPE; BRK,2WAY TO RR
THA 		8-98099-722-4 01 1 1307-1312 ●
119 PIPE; BRK,2WAY TO RR
ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98099-722-4 01 1 1307-1312 ●
119 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98099-722-4 01 1 1307-1312 ●
119 PIPE; BRK,2WAY TO RR
ELECTRONIC TRACTION CONTROL<NW9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98099-722-4 01 1 1307-1312 ●
119 PIPE; BRK,2WAY TO RR
EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98099-722-4 01 1 1307-1312 ●
119 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98099-722-4 01 1 1401- ● ●
119 PIPE; BRK,2WAY TO RR
EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98099-722-4 01 1 1401- ● ●
119 PIPE; BRK,2WAY TO RR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98099-714-4 01 1 1109-1109 ●
119 PIPE; BRK,2WAY TO RR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98099-714-4 01 1 1110-1312 ●
119 PIPE; BRK,2WAY TO RR
THA 		8-98099-714-4 01 1 1110-1312 ●
119 PIPE; BRK,2WAY TO RR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> THA 		8-98099-714-4 01 1 1110-1312 ●
119 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDESUSPENSION<7YC> THA 		8-98099-714-4 01 1 1110-1312 ●
119 PIPE; BRK,2WAY TO RR
EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDESUSPENSION<7YC> THA 		8-98099-714-4 01 1 1401- ● ●
119 PIPE; BRK,2WAY TO RR
THA 		8-98099-714-4 01 1 1401- ●
119 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> THA 		8-98099-740-4 01 1 1110- ●
119 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98099-740-4 01 1 1110- ●
119 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98155-586-2 01 1 1110- ●
çizim 147136
119 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E
25 CONNECTOR
(A) THA 		8-98099-784-1 01 1 1109-1109 ● ●
25 CONNECTOR
(A) THA 		8-98099-784-1 01 1 1110-1312 ● ● ●
25 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (A) THA 		8-98099-784-1 01 1 1110-1312 ● ●
25 CONNECTOR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) THA 		8-98099-784-1 01 1 1110-1312 ● ●
25 CONNECTOR
(A) THA 		8-98099-784-1 01 1 1401- ● ● ●
25 CONNECTOR
EXC. ELECTRONIC TRACTION CONTROL<NW9> (A) THA 		8-98099-784-1 01 1 1401- ● ●
25 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) THA 		8-98099-785-1 01 1 1110- ● ●
119 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION<7YC> THA 		8-98099-722-4 01 1 1109-1109 ●
119 PIPE; BRK,2WAY TO RR
THA 		8-98099-722-4 01 1 1109-1109 ●
119 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION<7YC> THA 		8-98099-722-4 01 1 1110-1306 ●
119 PIPE; BRK,2WAY TO RR
THA 		8-98099-722-4 01 1 1110-1306 ●
119 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98099-722-4 01 1 1110-1306 ●
119 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98099-722-4 01 1 1110-1306 ●
119 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98099-722-4 01 1 1110-1306 ●
119 PIPE; BRK,2WAY TO RR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98099-722-4 01 1 1110-1306 ●
119 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION<7YC> THA 		8-98099-722-4 01 1 1307-1312 ●
119 PIPE; BRK,2WAY TO RR
THA 		8-98099-722-4 01 1 1307-1312 ●
119 PIPE; BRK,2WAY TO RR
ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98099-722-4 01 1 1307-1312 ●
119 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98099-722-4 01 1 1307-1312 ●
119 PIPE; BRK,2WAY TO RR
ELECTRONIC TRACTION CONTROL<NW9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98099-722-4 01 1 1307-1312 ●
119 PIPE; BRK,2WAY TO RR
EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98099-722-4 01 1 1307-1312 ●
119 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98099-722-4 01 1 1401- ● ●
119 PIPE; BRK,2WAY TO RR
EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98099-722-4 01 1 1401- ● ●
119 PIPE; BRK,2WAY TO RR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98099-714-4 01 1 1109-1109 ●
119 PIPE; BRK,2WAY TO RR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98099-714-4 01 1 1110-1312 ●
119 PIPE; BRK,2WAY TO RR
THA 		8-98099-714-4 01 1 1110-1312 ●
119 PIPE; BRK,2WAY TO RR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> THA 		8-98099-714-4 01 1 1110-1312 ●
119 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDESUSPENSION<7YC> THA 		8-98099-714-4 01 1 1110-1312 ●
119 PIPE; BRK,2WAY TO RR
EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDESUSPENSION<7YC> THA 		8-98099-714-4 01 1 1401- ● ●
119 PIPE; BRK,2WAY TO RR
THA 		8-98099-714-4 01 1 1401- ●
119 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> THA 		8-98099-740-4 01 1 1110- ●
119 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98099-740-4 01 1 1110- ●
119 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98155-586-2 01 1 1110- ●

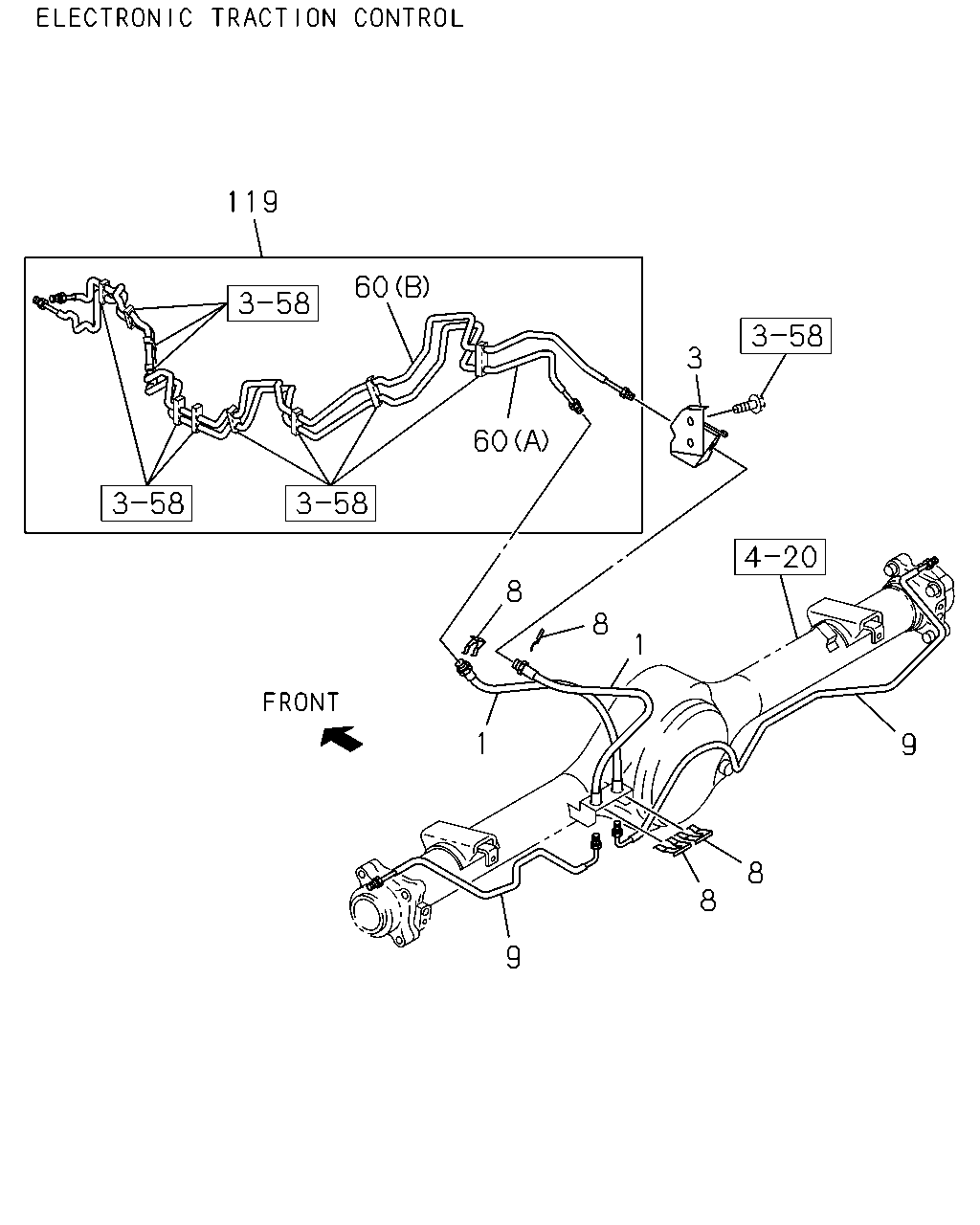

çizim 147148
119 60 60 3 8 8 1 1 9 8 8 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 HOSE; FLEX,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> THA 		8-97947-133-1 01 1 1110- ● ●
1 HOSE; FLEX,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98067-085-1 01 1 1110- ● ●
1 HOSE; FLEX,RR BRK
THA 		8-98067-084-1 01 1 1109-1109 ● ●
1 HOSE; FLEX,RR BRK
THA 		8-98067-084-1 01 1 1110- ● ● ●
1 HOSE; FLEX,RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98067-084-1 01 1 1110- ● ●
3 BRACKET; FLEX HOSE,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98102-358-1 01 1 1110- ● ●
8 CLIP; RR BRK
IMA 		8-97360-054-0 01 1 1109-1109 ● ●
8 CLIP; RR BRK
IMA 		8-97360-054-0 01 1 1110- ● ● ●
8 CLIP; RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> IMA 		8-97360-054-0 01 1 1110- ● ●
8 CLIP; RR BRK
ELECTRONIC TRACTION CONTROL<NW9> IMA 		8-97360-054-0 04 1 1110- ● ●
9 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION<7YC> THA 		8-98103-453-0 01 1 1109-1109 ●
9 PIPE; BRK,RR AXLE
THA 		8-98103-453-0 01 1 1109-1109 ●
9 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98103-453-0 01 1 1110- ● ●
9 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98103-453-0 01 1 1110- ● ●
9 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION<7YC> THA 		8-98103-454-0 01 1 1109-1109 ●
9 PIPE; BRK,RR AXLE
THA 		8-98103-454-0 01 1 1109-1109 ●
9 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98103-454-0 01 1 1110- ● ●
9 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98103-454-0 01 1 1110- ● ●
9 PIPE; BRK,RR AXLE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98103-451-0 01 1 1109-1109 ●
9 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDESUSPENSION<7YC> THA 		8-98103-451-0 01 1 1110- ● ●
9 PIPE; BRK,RR AXLE
THA 		8-98103-451-0 01 1 1110- ●
9 PIPE; BRK,RR AXLE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98103-452-0 01 1 1109-1109 ●
9 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDESUSPENSION<7YC> THA 		8-98103-452-0 01 1 1110- ● ●
9 PIPE; BRK,RR AXLE
THA 		8-98103-452-0 01 1 1110- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> THA 		8-98103-455-1 01 1 1110- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98103-455-1 01 1 1110- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> THA 		8-98103-456-1 01 1 1110- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98103-456-1 01 1 1110- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98151-580-0 01 1 1110- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98151-581-0 01 1 1110- ●
60 PIPE ASM; BRK
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98099-723-4 01 1 1109-1109 ●
60 PIPE ASM; BRK
(C) THA 		8-98099-723-4 01 1 1109-1109 ●
60 PIPE ASM; BRK
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98099-723-4 01 1 1110-1306 ●
60 PIPE ASM; BRK
(C) THA 		8-98099-723-4 01 1 1110-1306 ●
60 PIPE ASM; BRK
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) THA 		8-98099-723-4 01 1 1110-1306 ●
60 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> (C) THA 		8-98099-723-4 01 1 1110-1306 ●
60 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (C) THA 		8-98099-723-4 01 1 1110-1306 ●
60 PIPE ASM; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) THA 		8-98099-723-4 01 1 1110-1306 ●
60 PIPE ASM; BRK
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98099-723-4 01 1 1307-1312 ●
60 PIPE ASM; BRK
(C) THA 		8-98099-723-4 01 1 1307-1312 ●
60 PIPE ASM; BRK
ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) THA 		8-98099-723-4 01 1 1307-1312 ●
60 PIPE ASM; BRK
HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> (C) THA 		8-98099-723-4 01 1 1307-1312 ●
60 PIPE ASM; BRK
ELECTRONIC TRACTION CONTROL<NW9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) THA 		8-98099-723-4 01 1 1307-1312 ●
60 PIPE ASM; BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> (C) THA 		8-98099-723-4 01 1 1307-1312 ●
60 PIPE ASM; BRK
HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> (C) THA 		8-98099-723-4 01 1 1401- ● ●
60 PIPE ASM; BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> (C) THA 		8-98099-723-4 01 1 1401- ● ●
60 PIPE ASM; BRK
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98099-715-4 01 1 1109-1109 ●
60 PIPE ASM; BRK
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98099-715-4 01 1 1110-1312 ●
60 PIPE ASM; BRK
(C) THA 		8-98099-715-4 01 1 1110-1312 ●
60 PIPE ASM; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98099-715-4 01 1 1110-1312 ●
60 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDESUSPENSION<7YC> (C) THA 		8-98099-715-4 01 1 1110-1312 ●
60 PIPE ASM; BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDESUSPENSION<7YC> (C) THA 		8-98099-715-4 01 1 1401- ● ●
60 PIPE ASM; BRK
(C) THA 		8-98099-715-4 01 1 1401- ●
60 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98099-741-4 01 1 1110- ●
60 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) THA 		8-98099-741-4 01 1 1110- ●
60 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98099-742-4 01 1 1110- ●
60 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) THA 		8-98099-742-4 01 1 1110- ●
60 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98155-587-2 01 1 1110- ●
60 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98155-588-2 01 1 1110- ●
119 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION<7YC> THA 		8-98099-722-4 01 1 1109-1109 ●
119 PIPE; BRK,2WAY TO RR
THA 		8-98099-722-4 01 1 1109-1109 ●
119 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION<7YC> THA 		8-98099-722-4 01 1 1110-1306 ●
119 PIPE; BRK,2WAY TO RR
THA 		8-98099-722-4 01 1 1110-1306 ●
119 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98099-722-4 01 1 1110-1306 ●
119 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98099-722-4 01 1 1110-1306 ●
119 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98099-722-4 01 1 1110-1306 ●
119 PIPE; BRK,2WAY TO RR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98099-722-4 01 1 1110-1306 ●
119 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION<7YC> THA 		8-98099-722-4 01 1 1307-1312 ●
119 PIPE; BRK,2WAY TO RR
THA 		8-98099-722-4 01 1 1307-1312 ●
119 PIPE; BRK,2WAY TO RR
ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98099-722-4 01 1 1307-1312 ●
119 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98099-722-4 01 1 1307-1312 ●
119 PIPE; BRK,2WAY TO RR
ELECTRONIC TRACTION CONTROL<NW9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98099-722-4 01 1 1307-1312 ●
119 PIPE; BRK,2WAY TO RR
EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98099-722-4 01 1 1307-1312 ●
119 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98099-722-4 01 1 1401- ● ●
119 PIPE; BRK,2WAY TO RR
EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98099-722-4 01 1 1401- ● ●
119 PIPE; BRK,2WAY TO RR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98099-714-4 01 1 1109-1109 ●
119 PIPE; BRK,2WAY TO RR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98099-714-4 01 1 1110-1312 ●
119 PIPE; BRK,2WAY TO RR
THA 		8-98099-714-4 01 1 1110-1312 ●
119 PIPE; BRK,2WAY TO RR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> THA 		8-98099-714-4 01 1 1110-1312 ●
119 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDESUSPENSION<7YC> THA 		8-98099-714-4 01 1 1110-1312 ●
119 PIPE; BRK,2WAY TO RR
EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDESUSPENSION<7YC> THA 		8-98099-714-4 01 1 1401- ● ●
119 PIPE; BRK,2WAY TO RR
THA 		8-98099-714-4 01 1 1401- ●
119 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> THA 		8-98099-740-4 01 1 1110- ●
119 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98099-740-4 01 1 1110- ●
119 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98155-586-2 01 1 1110- ●
çizim 147154
119 60 8 9 1 12 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 HOSE; FLEX,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> THA 		8-97947-133-1 01 1 1110- ● ●
1 HOSE; FLEX,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98067-085-1 01 1 1110- ● ●
1 HOSE; FLEX,RR BRK
THA 		8-98067-084-1 01 1 1109-1109 ● ●
1 HOSE; FLEX,RR BRK
THA 		8-98067-084-1 01 1 1110- ● ● ●
1 HOSE; FLEX,RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98067-084-1 01 1 1110- ● ●
8 CLIP; RR BRK
IMA 		8-97360-054-0 01 1 1109-1109 ● ●
8 CLIP; RR BRK
IMA 		8-97360-054-0 01 1 1110- ● ● ●
8 CLIP; RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> IMA 		8-97360-054-0 01 1 1110- ● ●
8 CLIP; RR BRK
ELECTRONIC TRACTION CONTROL<NW9> IMA 		8-97360-054-0 04 1 1110- ● ●
9 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION<7YC> THA 		8-98103-453-0 01 1 1109-1109 ●
9 PIPE; BRK,RR AXLE
THA 		8-98103-453-0 01 1 1109-1109 ●
9 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98103-453-0 01 1 1110- ● ●
9 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98103-453-0 01 1 1110- ● ●
9 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION<7YC> THA 		8-98103-454-0 01 1 1109-1109 ●
9 PIPE; BRK,RR AXLE
THA 		8-98103-454-0 01 1 1109-1109 ●
9 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98103-454-0 01 1 1110- ● ●
9 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98103-454-0 01 1 1110- ● ●
9 PIPE; BRK,RR AXLE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98103-451-0 01 1 1109-1109 ●
9 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDESUSPENSION<7YC> THA 		8-98103-451-0 01 1 1110- ● ●
9 PIPE; BRK,RR AXLE
THA 		8-98103-451-0 01 1 1110- ●
9 PIPE; BRK,RR AXLE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98103-452-0 01 1 1109-1109 ●
9 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDESUSPENSION<7YC> THA 		8-98103-452-0 01 1 1110- ● ●
9 PIPE; BRK,RR AXLE
THA 		8-98103-452-0 01 1 1110- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> THA 		8-98103-455-1 01 1 1110- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98103-455-1 01 1 1110- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> THA 		8-98103-456-1 01 1 1110- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98103-456-1 01 1 1110- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98151-580-0 01 1 1110- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98151-581-0 01 1 1110- ●
12 BOLT; FLEX HOSE TO RR AXLE
M8X30 FLANGE THA 		0-28650-830-0 01 1 1109-1109 ● ●
12 BOLT; FLEX HOSE TO RR AXLE
M8X30 FLANGE THA 		0-28650-830-0 01 1 1110- ● ● ●
12 BOLT; FLEX HOSE TO RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> M8X30 FLANGE THA 		0-28650-830-0 01 1 1110- ● ●
60 PIPE ASM; BRK
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98099-723-4 01 1 1109-1109 ●
60 PIPE ASM; BRK
(C) THA 		8-98099-723-4 01 1 1109-1109 ●
60 PIPE ASM; BRK
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98099-723-4 01 1 1110-1306 ●
60 PIPE ASM; BRK
(C) THA 		8-98099-723-4 01 1 1110-1306 ●
60 PIPE ASM; BRK
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) THA 		8-98099-723-4 01 1 1110-1306 ●
60 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> (C) THA 		8-98099-723-4 01 1 1110-1306 ●
60 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (C) THA 		8-98099-723-4 01 1 1110-1306 ●
60 PIPE ASM; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) THA 		8-98099-723-4 01 1 1110-1306 ●
60 PIPE ASM; BRK
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98099-723-4 01 1 1307-1312 ●
60 PIPE ASM; BRK
(C) THA 		8-98099-723-4 01 1 1307-1312 ●
60 PIPE ASM; BRK
ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) THA 		8-98099-723-4 01 1 1307-1312 ●
60 PIPE ASM; BRK
HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> (C) THA 		8-98099-723-4 01 1 1307-1312 ●
60 PIPE ASM; BRK
ELECTRONIC TRACTION CONTROL<NW9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) THA 		8-98099-723-4 01 1 1307-1312 ●
60 PIPE ASM; BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> (C) THA 		8-98099-723-4 01 1 1307-1312 ●
60 PIPE ASM; BRK
HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> (C) THA 		8-98099-723-4 01 1 1401- ● ●
60 PIPE ASM; BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> (C) THA 		8-98099-723-4 01 1 1401- ● ●
60 PIPE ASM; BRK
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98099-715-4 01 1 1109-1109 ●
60 PIPE ASM; BRK
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98099-715-4 01 1 1110-1312 ●
60 PIPE ASM; BRK
(C) THA 		8-98099-715-4 01 1 1110-1312 ●
60 PIPE ASM; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98099-715-4 01 1 1110-1312 ●
60 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDESUSPENSION<7YC> (C) THA 		8-98099-715-4 01 1 1110-1312 ●
60 PIPE ASM; BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDESUSPENSION<7YC> (C) THA 		8-98099-715-4 01 1 1401- ● ●
60 PIPE ASM; BRK
(C) THA 		8-98099-715-4 01 1 1401- ●
60 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98099-741-4 01 1 1110- ●
60 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) THA 		8-98099-741-4 01 1 1110- ●
60 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98099-742-4 01 1 1110- ●
60 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) THA 		8-98099-742-4 01 1 1110- ●
60 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98155-587-2 01 1 1110- ●
60 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98155-588-2 01 1 1110- ●
119 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION<7YC> THA 		8-98099-722-4 01 1 1109-1109 ●
119 PIPE; BRK,2WAY TO RR
THA 		8-98099-722-4 01 1 1109-1109 ●
119 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION<7YC> THA 		8-98099-722-4 01 1 1110-1306 ●
119 PIPE; BRK,2WAY TO RR
THA 		8-98099-722-4 01 1 1110-1306 ●
119 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98099-722-4 01 1 1110-1306 ●
119 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98099-722-4 01 1 1110-1306 ●
119 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98099-722-4 01 1 1110-1306 ●
119 PIPE; BRK,2WAY TO RR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98099-722-4 01 1 1110-1306 ●
119 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION<7YC> THA 		8-98099-722-4 01 1 1307-1312 ●
119 PIPE; BRK,2WAY TO RR
THA 		8-98099-722-4 01 1 1307-1312 ●
119 PIPE; BRK,2WAY TO RR
ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98099-722-4 01 1 1307-1312 ●
119 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98099-722-4 01 1 1307-1312 ●
119 PIPE; BRK,2WAY TO RR
ELECTRONIC TRACTION CONTROL<NW9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98099-722-4 01 1 1307-1312 ●
119 PIPE; BRK,2WAY TO RR
EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98099-722-4 01 1 1307-1312 ●
119 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98099-722-4 01 1 1401- ● ●
119 PIPE; BRK,2WAY TO RR
EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98099-722-4 01 1 1401- ● ●
119 PIPE; BRK,2WAY TO RR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98099-714-4 01 1 1109-1109 ●
119 PIPE; BRK,2WAY TO RR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98099-714-4 01 1 1110-1312 ●
119 PIPE; BRK,2WAY TO RR
THA 		8-98099-714-4 01 1 1110-1312 ●
119 PIPE; BRK,2WAY TO RR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> THA 		8-98099-714-4 01 1 1110-1312 ●
119 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDESUSPENSION<7YC> THA 		8-98099-714-4 01 1 1110-1312 ●
119 PIPE; BRK,2WAY TO RR
EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDESUSPENSION<7YC> THA 		8-98099-714-4 01 1 1401- ● ●
119 PIPE; BRK,2WAY TO RR
THA 		8-98099-714-4 01 1 1401- ●
119 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> THA 		8-98099-740-4 01 1 1110- ●
119 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98099-740-4 01 1 1110- ●
119 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98155-586-2 01 1 1110- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
