Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#81707) — 266 parça

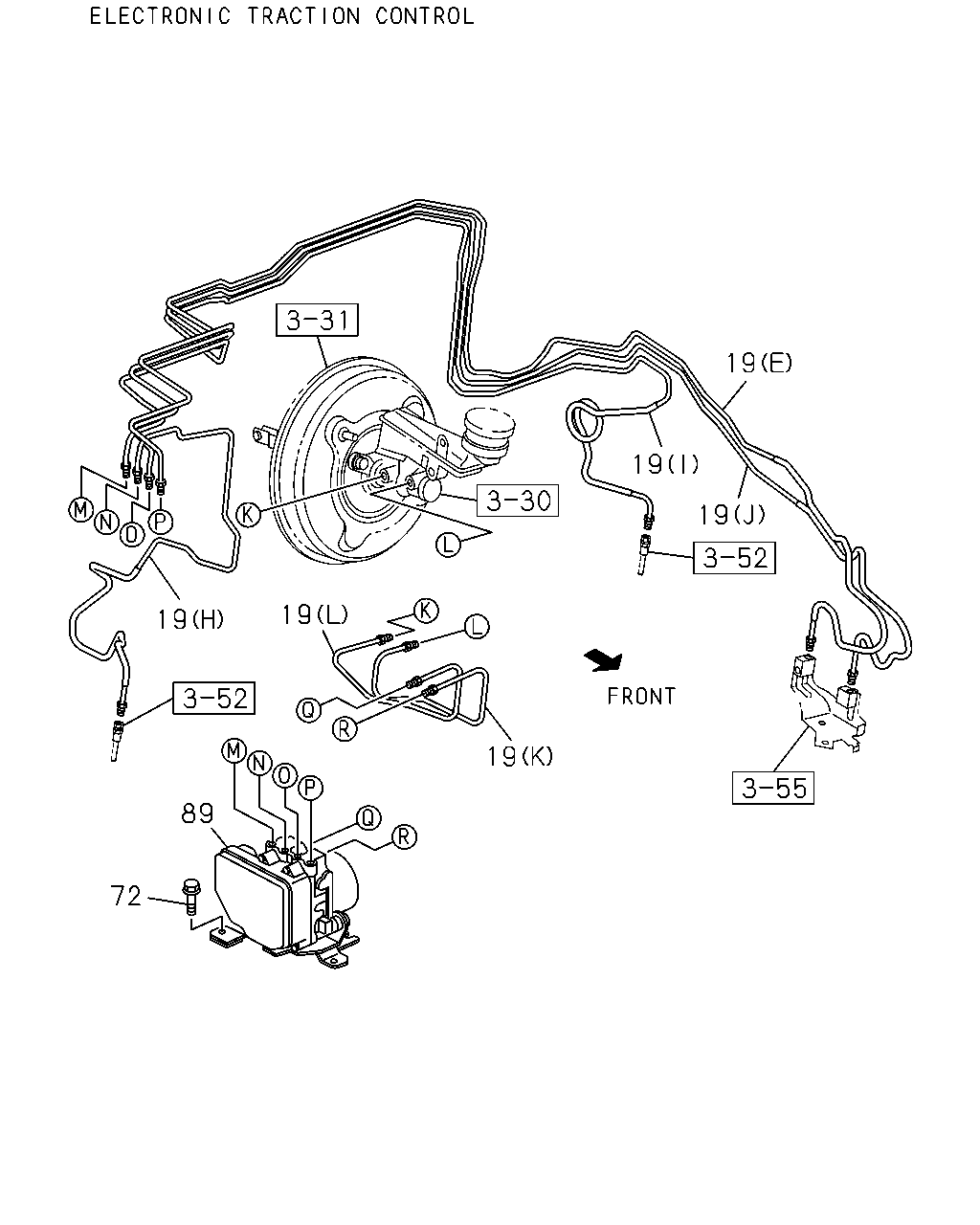

19 19 19 72 89 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (E) THA	8-98099-730-0	01	1	1109-1109	●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (E) THA	8-98099-730-0	01	1	1110-	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (F) THA	8-98099-731-0	01	1	1109-1109	●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) THA	8-98099-731-0	01	1	1110-	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (G) THA	8-98099-732-0	01	1	1109-1109	●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (G) THA	8-98099-732-0	01	1	1110-	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (H) THA	8-98099-744-2	01	1	1109-1109	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (H) THA	8-98099-744-2	01	1	1109-1109		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (H) THA	8-98099-744-2	01	1	1110-	●		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (H) THA	8-98099-744-2	01	1	1110-		●		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (I) THA	8-98159-938-1	01	1	1109-1109	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (I) THA	8-98159-938-1	01	1	1109-1109		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (I) THA	8-98159-938-1	01	1	1110-	●		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (I) THA	8-98159-938-1	01	1	1110-		●		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (H) THA	8-98099-734-3	01	1	1109-1109	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (H) THA	8-98099-734-3	01	1	1110-	●		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (I) THA	8-98159-942-1	01	1	1109-1109	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (I) THA	8-98159-942-1	01	1	1110-	●		●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-98099-725-4	01	1	1109-1109	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-98099-725-4	01	1	1109-1109		●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-98099-725-4	01	1	1110-1312	●		●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-98099-725-4	01	1	1110-1312		●		●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (D) THA	8-98099-725-4	01	1	1401-	●		●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (D) THA	8-98099-725-4	01	1	1401-		●		●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) THA	8-98099-727-1	01	1	1109-1109	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) THA	8-98099-727-1	01	1	1109-1109		●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) THA	8-98099-727-1	01	1	1110-1312	●		●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) THA	8-98099-727-1	01	1	1110-1312		●		●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (C) THA	8-98099-727-1	01	1	1401-	●		●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (C) THA	8-98099-727-1	01	1	1401-		●		●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) THA	8-98099-718-4	01	1	1109-1109	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) THA	8-98099-718-4	01	1	1110-1312	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION (A) THA	8-98099-718-4	01	1	1110-1312					●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (A) THA	8-98099-718-4	01	1	1401-	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION (A) THA	8-98099-718-4	01	1	1401-					●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) THA	8-98099-721-0	01	1	1109-1109	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) THA	8-98099-721-0	01	1	1110-1312	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION (B) THA	8-98099-721-0	01	1	1110-1312					●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (B) THA	8-98099-721-0	01	1	1401-	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION (B) THA	8-98099-721-0	01	1	1401-					●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> (C) THA	8-98099-713-2	01	1	1109-1109	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> (C) THA	8-98099-713-2	01	1	1110-1312	●		●
19	PIPE; BRK,M/CYL TO UNION (C) THA	8-98099-713-2	01	1	1110-1312					●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> (C) THA	8-98099-713-2	01	1	1401-	●		●
19	PIPE; BRK,M/CYL TO UNION (C) THA	8-98099-713-2	01	1	1401-					●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> (D) THA	8-98099-717-4	01	1	1109-1109	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> (D) THA	8-98099-717-4	01	1	1110-1312	●		●
19	PIPE; BRK,M/CYL TO UNION (D) THA	8-98099-717-4	01	1	1110-1312					●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> (D) THA	8-98099-717-4	01	1	1401-	●		●
19	PIPE; BRK,M/CYL TO UNION (D) THA	8-98099-717-4	01	1	1401-					●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (J) THA	8-98099-736-2	01	1	1110-			●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (K) THA	8-98099-738-0	01	1	1110-			●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (L) THA	8-98099-739-0	01	1	1110-			●	●
72	BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> M6X16 FLANGE THA	0-28650-616-0	03	1	1109-1109	●	●
72	BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> M6X16 FLANGE THA	0-28650-616-0	03	1	1110-	●	●	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98209-294-0	01	1	1212-1301	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDESUSPENSION<7YC> THA	8-98209-294-0	01	1	1212-1301			●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98232-465-0	01	1	1302-1508	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDESUSPENSION<7YC> THA	8-98232-465-0	01	1	1302-1508			●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98285-164-0	01	1	1509-	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDESUSPENSION<7YC> THA	8-98285-164-0	01	1	1509-			●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98130-296-1	01	1	1109-1109	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98130-296-1	01	1	1110-1211	●		●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA	8-98130-296-1	01	1	1212-1301	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98130-296-1	01	1	1212-1301			●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA	8-98232-464-0	01	1	1302-1508	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-464-0	01	1	1302-1508			●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA	8-98285-163-0	01	1	1509-	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98285-163-0	01	1	1509-			●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98130-297-1	01	1	1109-1109		●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98130-297-1	01	1	1110-1301		●		●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-466-0	01	1	1302-1508		●		●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98285-165-0	01	1	1509-		●		●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98130-298-1	01	1	1110-1211			●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98194-497-0	01	1	1212-1301			●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-478-0	01	1	1302-			●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98130-299-1	01	1	1110-1211				●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98194-498-0	01	1	1212-1301				●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-479-0	01	1	1302-				●

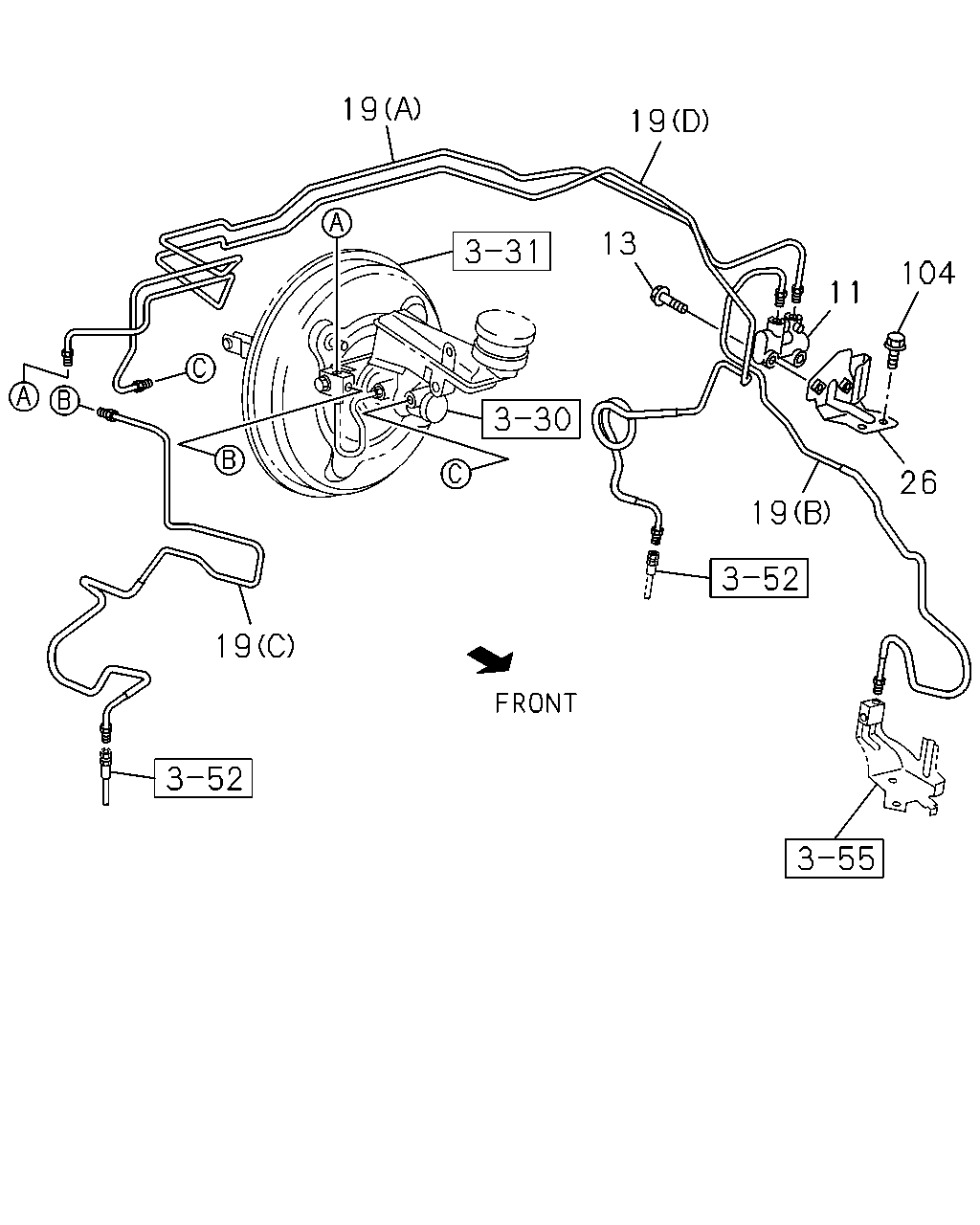

19 19 13 11 104 26 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
11	VALVE; BRK CONT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-97333-079-0	01	1	1109-1109	●	●
11	VALVE; BRK CONT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-97333-079-0	01	1	1110-	●	●	●	●
11	VALVE; BRK CONT THA	8-97333-079-0	01	1	1110-					●
13	BOLT; VLV TO BRKT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X45 FLANGE THA	0-29260-845-0	02	1	1109-1109	●	●
13	BOLT; VLV TO BRKT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X45 FLANGE THA	0-29260-845-0	02	1	1110-	●	●	●	●
13	BOLT; VLV TO BRKT M8X45 FLANGE THA	0-29260-845-0	02	1	1110-					●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (E) THA	8-98099-730-0	01	1	1109-1109	●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (E) THA	8-98099-730-0	01	1	1110-	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (F) THA	8-98099-731-0	01	1	1109-1109	●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) THA	8-98099-731-0	01	1	1110-	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (G) THA	8-98099-732-0	01	1	1109-1109	●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (G) THA	8-98099-732-0	01	1	1110-	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (H) THA	8-98099-744-2	01	1	1109-1109	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (H) THA	8-98099-744-2	01	1	1109-1109		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (H) THA	8-98099-744-2	01	1	1110-	●		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (H) THA	8-98099-744-2	01	1	1110-		●		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (I) THA	8-98159-938-1	01	1	1109-1109	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (I) THA	8-98159-938-1	01	1	1109-1109		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (I) THA	8-98159-938-1	01	1	1110-	●		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (I) THA	8-98159-938-1	01	1	1110-		●		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (H) THA	8-98099-734-3	01	1	1109-1109	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (H) THA	8-98099-734-3	01	1	1110-	●		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (I) THA	8-98159-942-1	01	1	1109-1109	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (I) THA	8-98159-942-1	01	1	1110-	●		●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-98099-725-4	01	1	1109-1109	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-98099-725-4	01	1	1109-1109		●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-98099-725-4	01	1	1110-1312	●		●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-98099-725-4	01	1	1110-1312		●		●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (D) THA	8-98099-725-4	01	1	1401-	●		●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (D) THA	8-98099-725-4	01	1	1401-		●		●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) THA	8-98099-727-1	01	1	1109-1109	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) THA	8-98099-727-1	01	1	1109-1109		●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) THA	8-98099-727-1	01	1	1110-1312	●		●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) THA	8-98099-727-1	01	1	1110-1312		●		●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (C) THA	8-98099-727-1	01	1	1401-	●		●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (C) THA	8-98099-727-1	01	1	1401-		●		●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) THA	8-98099-718-4	01	1	1109-1109	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) THA	8-98099-718-4	01	1	1110-1312	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION (A) THA	8-98099-718-4	01	1	1110-1312					●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (A) THA	8-98099-718-4	01	1	1401-	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION (A) THA	8-98099-718-4	01	1	1401-					●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) THA	8-98099-721-0	01	1	1109-1109	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) THA	8-98099-721-0	01	1	1110-1312	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION (B) THA	8-98099-721-0	01	1	1110-1312					●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (B) THA	8-98099-721-0	01	1	1401-	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION (B) THA	8-98099-721-0	01	1	1401-					●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> (C) THA	8-98099-713-2	01	1	1109-1109	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> (C) THA	8-98099-713-2	01	1	1110-1312	●		●
19	PIPE; BRK,M/CYL TO UNION (C) THA	8-98099-713-2	01	1	1110-1312					●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> (C) THA	8-98099-713-2	01	1	1401-	●		●
19	PIPE; BRK,M/CYL TO UNION (C) THA	8-98099-713-2	01	1	1401-					●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> (D) THA	8-98099-717-4	01	1	1109-1109	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> (D) THA	8-98099-717-4	01	1	1110-1312	●		●
19	PIPE; BRK,M/CYL TO UNION (D) THA	8-98099-717-4	01	1	1110-1312					●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> (D) THA	8-98099-717-4	01	1	1401-	●		●
19	PIPE; BRK,M/CYL TO UNION (D) THA	8-98099-717-4	01	1	1401-					●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (J) THA	8-98099-736-2	01	1	1110-			●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (K) THA	8-98099-738-0	01	1	1110-			●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (L) THA	8-98099-739-0	01	1	1110-			●	●
26	BRACKET; PROPORTIONING VLV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98101-970-1	01	1	1109-1109	●	●
26	BRACKET; PROPORTIONING VLV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98101-970-1	01	1	1110-	●	●	●	●
26	BRACKET; PROPORTIONING VLV THA	8-98101-970-1	01	1	1110-					●
104	BOLT; BRKT TO BODY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M6X16 FLANGE THA	0-28650-616-0	02	1	1109-1109	●	●
104	BOLT; BRKT TO BODY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M6X16 FLANGE THA	0-28650-616-0	02	1	1110-1211	●	●	●	●
104	BOLT; BRKT TO BODY M6X16 FLANGE THA	0-28650-616-0	02	1	1110-1211					●
104	BOLT; BRKT TO BODY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M6X16 FLANGE THA	0-28650-616-0	02	1	1212-	●	●	●	●
104	BOLT; BRKT TO BODY M6X16 FLANGE THA	0-28650-616-0	02	1	1212-					●

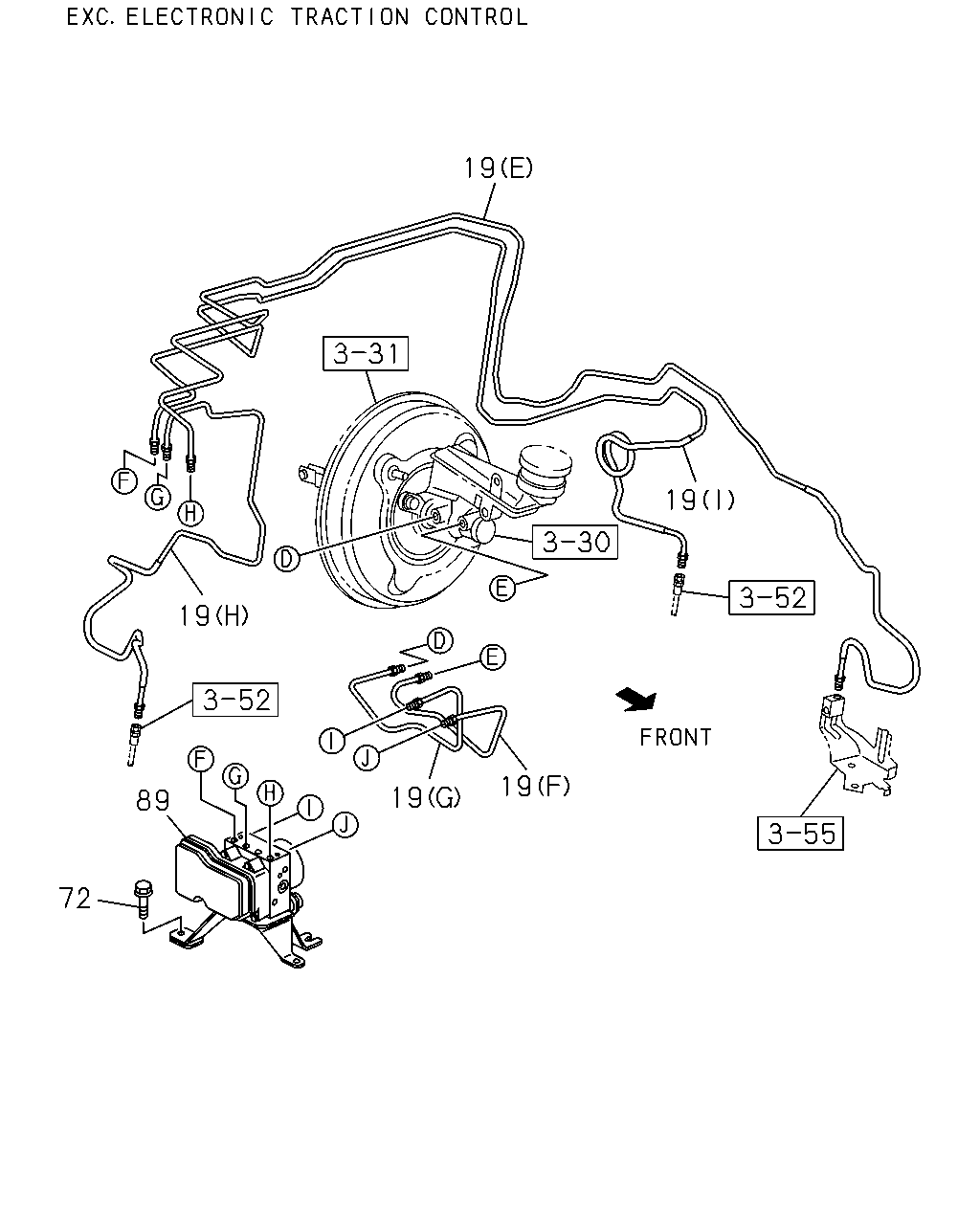

19 19 19 19 89 72 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (E) THA	8-98099-730-0	01	1	1109-1109	●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (E) THA	8-98099-730-0	01	1	1110-	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (F) THA	8-98099-731-0	01	1	1109-1109	●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) THA	8-98099-731-0	01	1	1110-	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (G) THA	8-98099-732-0	01	1	1109-1109	●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (G) THA	8-98099-732-0	01	1	1110-	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (H) THA	8-98099-744-2	01	1	1109-1109	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (H) THA	8-98099-744-2	01	1	1109-1109		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (H) THA	8-98099-744-2	01	1	1110-	●		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (H) THA	8-98099-744-2	01	1	1110-		●		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (I) THA	8-98159-938-1	01	1	1109-1109	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (I) THA	8-98159-938-1	01	1	1109-1109		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (I) THA	8-98159-938-1	01	1	1110-	●		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (I) THA	8-98159-938-1	01	1	1110-		●		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (H) THA	8-98099-734-3	01	1	1109-1109	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (H) THA	8-98099-734-3	01	1	1110-	●		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (I) THA	8-98159-942-1	01	1	1109-1109	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (I) THA	8-98159-942-1	01	1	1110-	●		●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-98099-725-4	01	1	1109-1109	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-98099-725-4	01	1	1109-1109		●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-98099-725-4	01	1	1110-1312	●		●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-98099-725-4	01	1	1110-1312		●		●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (D) THA	8-98099-725-4	01	1	1401-	●		●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (D) THA	8-98099-725-4	01	1	1401-		●		●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) THA	8-98099-727-1	01	1	1109-1109	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) THA	8-98099-727-1	01	1	1109-1109		●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) THA	8-98099-727-1	01	1	1110-1312	●		●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) THA	8-98099-727-1	01	1	1110-1312		●		●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (C) THA	8-98099-727-1	01	1	1401-	●		●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (C) THA	8-98099-727-1	01	1	1401-		●		●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) THA	8-98099-718-4	01	1	1109-1109	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) THA	8-98099-718-4	01	1	1110-1312	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION (A) THA	8-98099-718-4	01	1	1110-1312					●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (A) THA	8-98099-718-4	01	1	1401-	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION (A) THA	8-98099-718-4	01	1	1401-					●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) THA	8-98099-721-0	01	1	1109-1109	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) THA	8-98099-721-0	01	1	1110-1312	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION (B) THA	8-98099-721-0	01	1	1110-1312					●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (B) THA	8-98099-721-0	01	1	1401-	●	●	●	●
19	PIPE; BRK,M/CYL TO UNION (B) THA	8-98099-721-0	01	1	1401-					●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> (C) THA	8-98099-713-2	01	1	1109-1109	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> (C) THA	8-98099-713-2	01	1	1110-1312	●		●
19	PIPE; BRK,M/CYL TO UNION (C) THA	8-98099-713-2	01	1	1110-1312					●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> (C) THA	8-98099-713-2	01	1	1401-	●		●
19	PIPE; BRK,M/CYL TO UNION (C) THA	8-98099-713-2	01	1	1401-					●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> (D) THA	8-98099-717-4	01	1	1109-1109	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> (D) THA	8-98099-717-4	01	1	1110-1312	●		●
19	PIPE; BRK,M/CYL TO UNION (D) THA	8-98099-717-4	01	1	1110-1312					●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> (D) THA	8-98099-717-4	01	1	1401-	●		●
19	PIPE; BRK,M/CYL TO UNION (D) THA	8-98099-717-4	01	1	1401-					●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (J) THA	8-98099-736-2	01	1	1110-			●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (K) THA	8-98099-738-0	01	1	1110-			●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (L) THA	8-98099-739-0	01	1	1110-			●	●
72	BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> M6X16 FLANGE THA	0-28650-616-0	03	1	1109-1109	●	●
72	BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> M6X16 FLANGE THA	0-28650-616-0	03	1	1110-	●	●	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98209-294-0	01	1	1212-1301	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDESUSPENSION<7YC> THA	8-98209-294-0	01	1	1212-1301			●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98232-465-0	01	1	1302-1508	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDESUSPENSION<7YC> THA	8-98232-465-0	01	1	1302-1508			●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98285-164-0	01	1	1509-	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDESUSPENSION<7YC> THA	8-98285-164-0	01	1	1509-			●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98130-296-1	01	1	1109-1109	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98130-296-1	01	1	1110-1211	●		●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA	8-98130-296-1	01	1	1212-1301	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98130-296-1	01	1	1212-1301			●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA	8-98232-464-0	01	1	1302-1508	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-464-0	01	1	1302-1508			●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA	8-98285-163-0	01	1	1509-	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98285-163-0	01	1	1509-			●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98130-297-1	01	1	1109-1109		●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98130-297-1	01	1	1110-1301		●		●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-466-0	01	1	1302-1508		●		●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98285-165-0	01	1	1509-		●		●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98130-298-1	01	1	1110-1211			●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98194-497-0	01	1	1212-1301			●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-478-0	01	1	1302-			●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98130-299-1	01	1	1110-1211				●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98194-498-0	01	1	1212-1301				●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-479-0	01	1	1302-				●

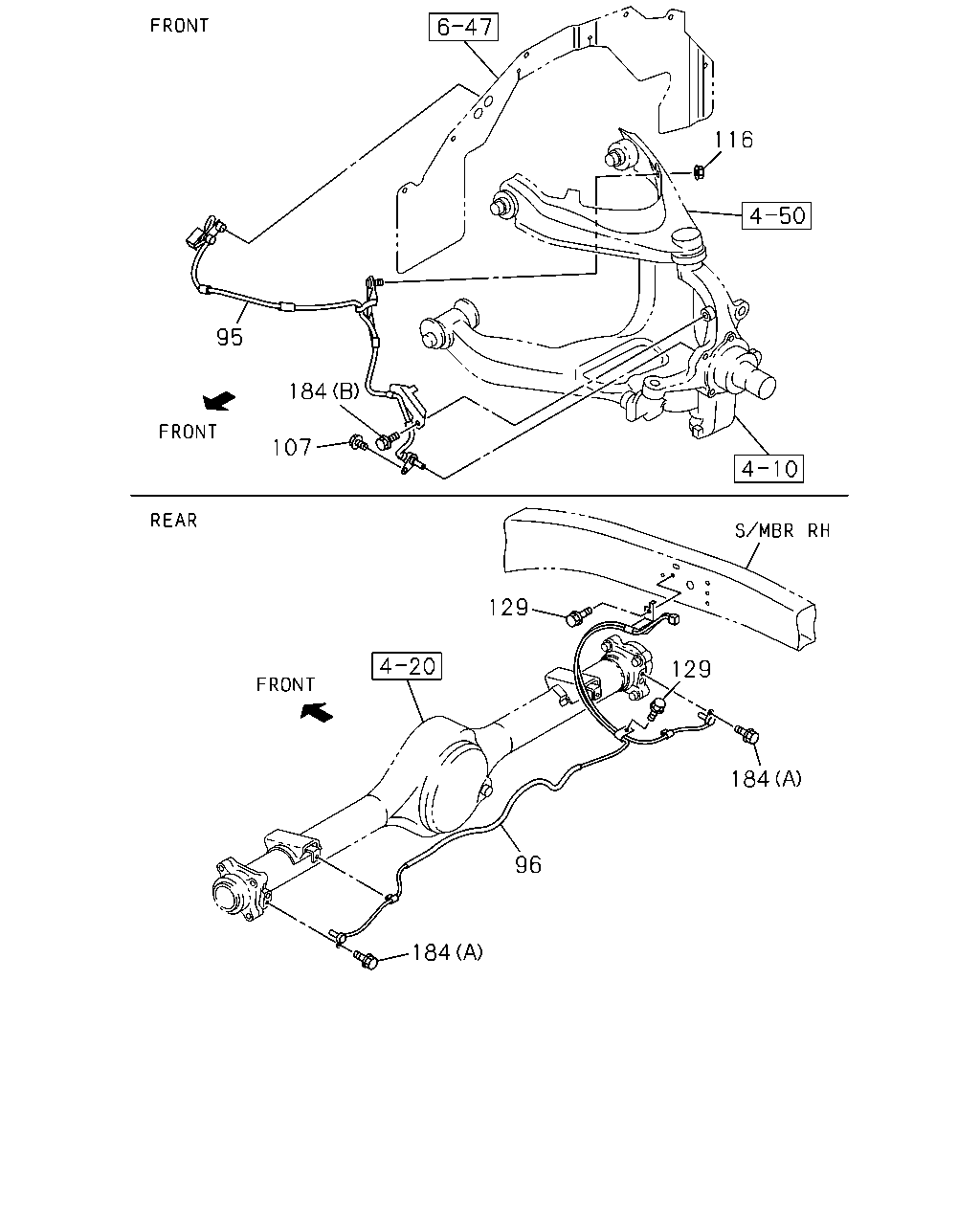

95 184 107 116 129 129 96 184 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA	8-98052-119-1	01	1	1109-1109	●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98052-119-1	01	1	1109-1109		●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA	8-98052-119-1	01	1	1110-1509	●		●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98052-119-1	01	1	1110-1509		●		●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA	8-98292-432-0	01	1	1510-	●		●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98292-432-0	01	1	1510-		●		●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA	8-98052-120-1	01	1	1109-1109	●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98052-120-1	01	1	1109-1109		●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA	8-98052-120-1	01	1	1110-1509	●		●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98052-120-1	01	1	1110-1509		●		●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA	8-98292-433-0	01	1	1510-	●		●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98292-433-0	01	1	1510-		●		●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98052-117-1	01	1	1109-1109	●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98052-117-1	01	1	1110-1509	●		●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98292-430-0	01	1	1510-	●		●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98052-118-1	01	1	1109-1109	●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98052-118-1	01	1	1110-1509	●		●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98292-431-0	01	1	1510-	●		●
96	SENSOR; SPD,RR WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA	8-98052-122-1	01	1	1109-1109	●
96	SENSOR; SPD,RR WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98052-122-1	01	1	1109-1109		●
96	SENSOR; SPD,RR WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA	8-98052-122-1	01	1	1110-1211	●		●
96	SENSOR; SPD,RR WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98052-122-1	01	1	1110-1211		●
96	SENSOR; SPD,RR WHEEL 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98052-122-1	01	1	1110-1211				●
96	SENSOR; SPD,RR WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA	8-98052-122-1	01	1	1212-	●		●
96	SENSOR; SPD,RR WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98052-122-1	01	1	1212-		●		●
96	SENSOR; SPD,RR WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98052-121-1	01	1	1109-1109	●
96	SENSOR; SPD,RR WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98052-121-1	01	1	1110-	●		●
107	BOLT; WHEEL SPD SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> M6X10 FLANGE THA	0-28050-610-0	02	1	1109-1109	●	●
107	BOLT; WHEEL SPD SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> M6X10 FLANGE THA	0-28050-610-0	02	1	1110-1509	●	●	●	●
107	BOLT; WHEEL SPD SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> M6X12 FLANGE THA	0-28050-612-0	02	1	1510-	●	●	●	●
116	NUT 4 WHEEL ANTI LOCK BRAKE<JE5> M8 FLANGE THA	0-91180-108-0	02	1	1109-1109	●	●
116	NUT 4 WHEEL ANTI LOCK BRAKE<JE5> M8 FLANGE THA	0-91180-108-0	02	1	1110-	●	●	●	●
129	BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> M6X16 FLANGE THA	0-28650-616-0	02	1	1109-1109	●	●
129	BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> M6X16 FLANGE THA	0-28650-616-0	02	1	1110-	●	●	●	●
184	BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> (B) M6X10 FLANGE THA	0-28050-610-0	02	1	1109-1109	●	●
184	BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> (B) M6X10 FLANGE THA	0-28050-610-0	02	1	1110-1509	●	●	●	●
184	BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> (B) M6X12 FLANGE THA	0-28050-612-0	02	1	1510-	●	●	●	●
184	BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M6X16 FLANGE THA	0-28650-616-0	02	1	1109-1109	●	●
184	BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M6X16 FLANGE THA	0-28650-616-0	02	1	1110-	●	●	●	●

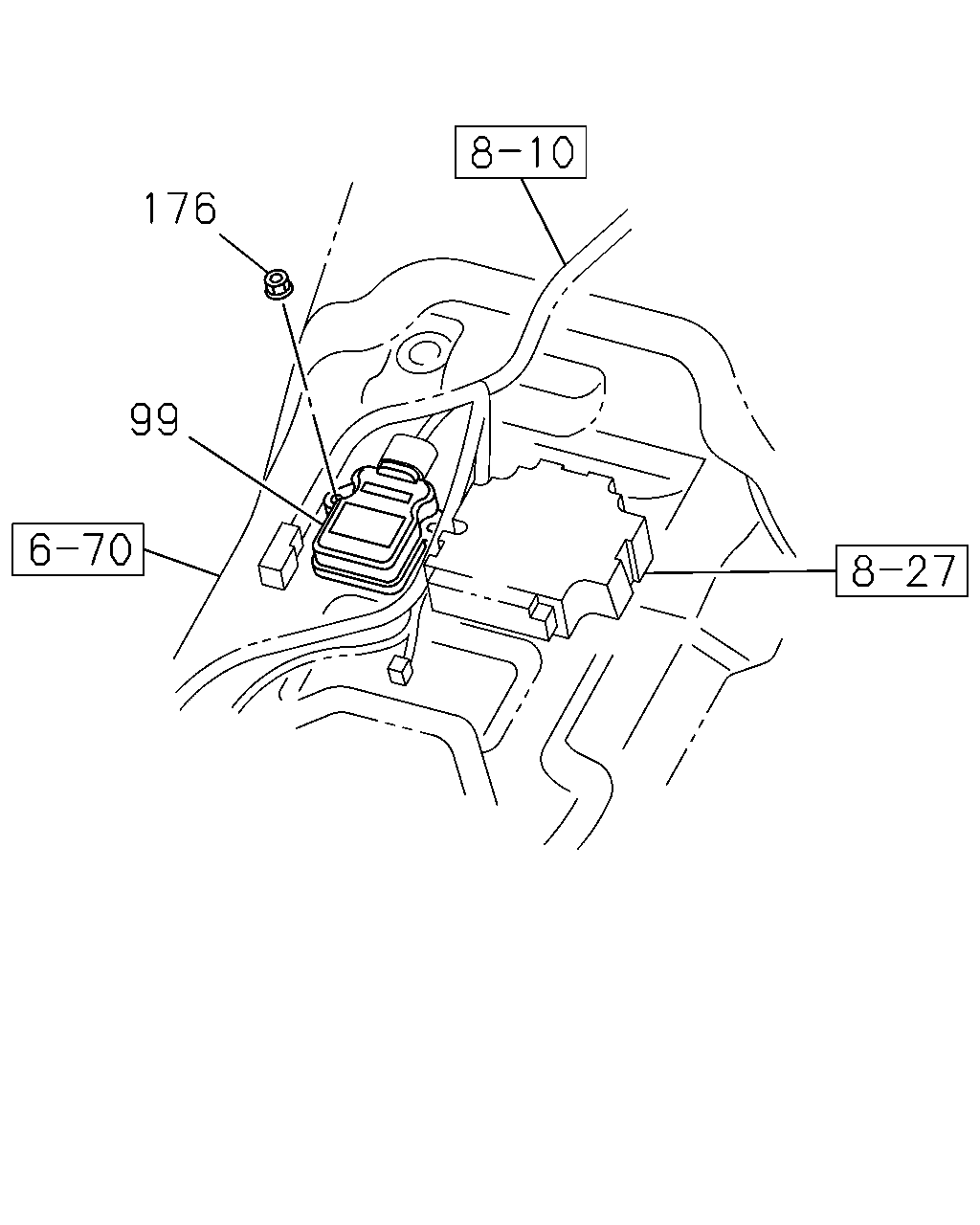

99 176

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
	99	SENSOR; DECELERATION 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98052-116-1	01	1	1110-			●	●
	176	NUT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> M6 FLANGE THA	0-91180-106-0	02	1	1110-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
