◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 3 - Brakes, Brake System ▶ 3-31 - BRAKE MASTER VAC AND BRAKE BOOSTER ▶
3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#81706) — 15 parça

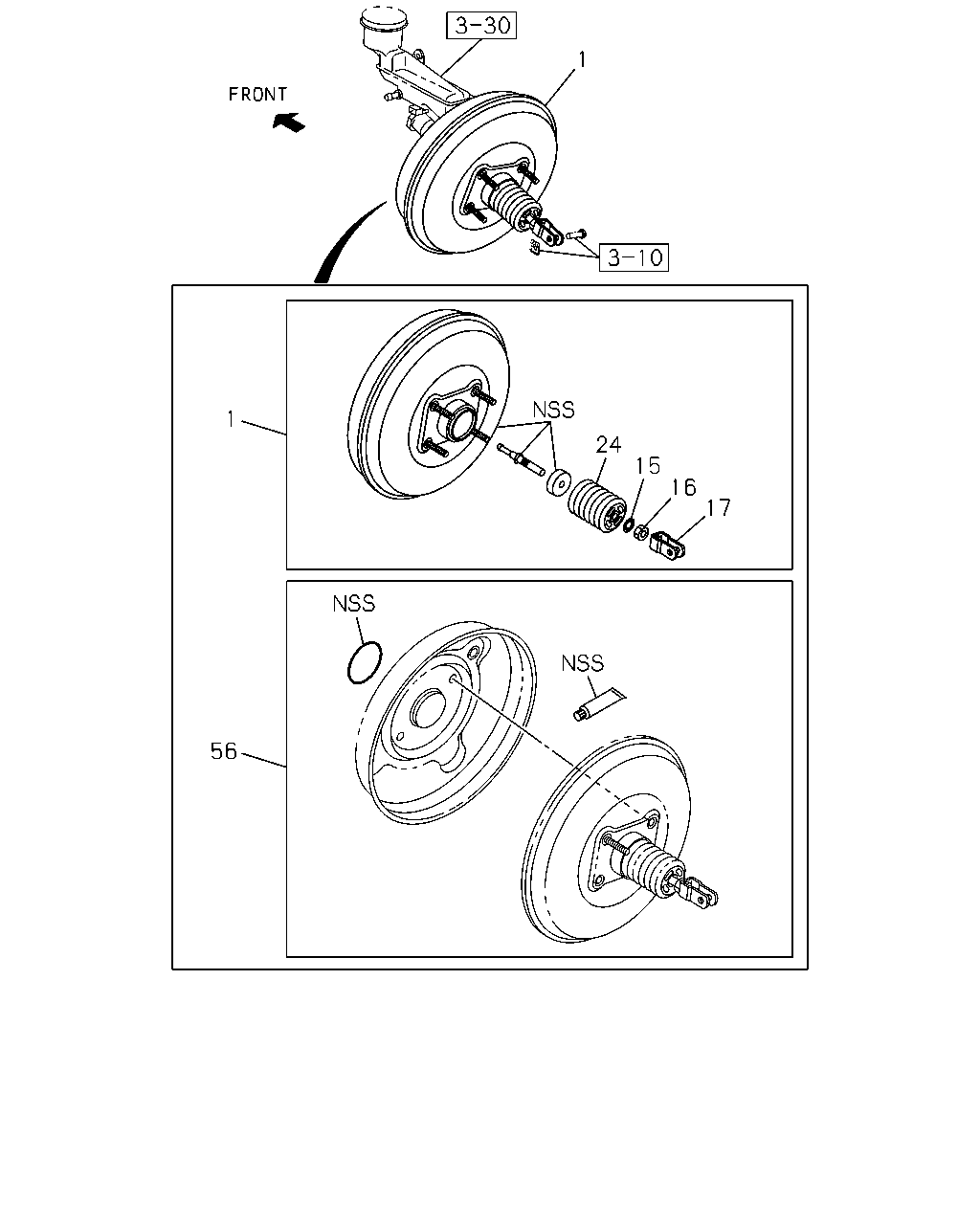

çizim 147125
17 16 15 24 1 56 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 MASTER VAC ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98163-232-0 01 1 1109-1109 ● ●
1 MASTER VAC ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98163-232-1 01 1 1110- ● ● ● ●
1 MASTER VAC ASM; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98163-231-0 01 1 1109-1109 ● ●
1 MASTER VAC ASM; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98163-231-1 01 1 1110- ● ● ● ●
1 MASTER VAC ASM; BRK
THA 		8-98163-231-1 01 1 1110- ●
15 RETAINER; GUARD,M/VAC
THA 		8-98048-040-0 01 1 1109-1109 ● ●
15 RETAINER; GUARD,M/VAC
THA 		8-98048-040-0 01 1 1110- ● ● ● ● ●
16 NUT; VLV ROD,M/VAC
THA 		8-98048-038-0 01 1 1109-1109 ● ●
16 NUT; VLV ROD,M/VAC
THA 		8-98048-038-0 01 1 1110- ● ● ● ● ●
17 CLEVIS; YOKE,M/VAC
THA 		8-98048-039-0 01 1 1109-1109 ● ●
17 CLEVIS; YOKE,M/VAC
THA 		8-98048-039-0 01 1 1110- ● ● ● ● ●
24 GUARD; VLV BODY,M/VAC
THA 		8-98185-212-0 01 1 1109-1109 ● ●
24 GUARD; VLV BODY,M/VAC
THA 		8-98185-212-0 01 1 1110- ● ● ● ● ●
56 GASKET KIT; M/CYL TO SERVO UNIT
THA 		8-98185-211-0 01 1 1109-1109 ● ●
56 GASKET KIT; M/CYL TO SERVO UNIT
THA 		8-98185-211-0 01 1 1110- ● ● ● ● ●
