◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶
3-30 — BRAKE MASTER CYLINDER (#81705) — 15 parça

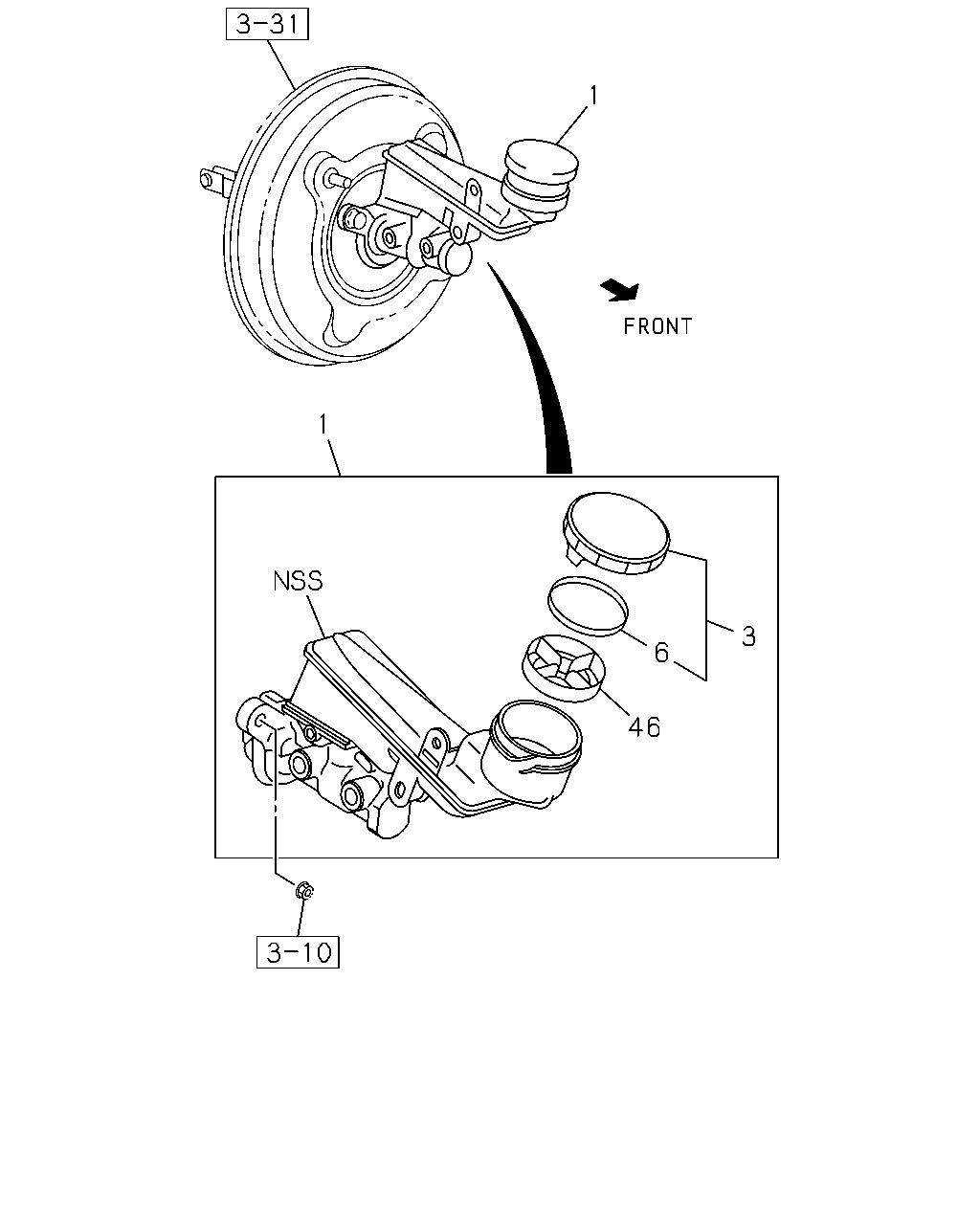

çizim 147119
3 6 46 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CYLINDER ASM; BRK MASTER
A/T 5 SPEED-AISIN<MA1> THA 		8-98163-228-0 01 1 1109-1109 ●
1 CYLINDER ASM; BRK MASTER
A/T 5 SPEED-AISIN<MA1> THA 		8-98163-228-0 01 1 1110- ●
1 CYLINDER ASM; BRK MASTER
A/T 5 SPEED-AISIN<MA1> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98163-228-0 01 1 1110- ● ●
1 CYLINDER ASM; BRK MASTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98163-227-0 01 1 1109-1109 ● ●
1 CYLINDER ASM; BRK MASTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98163-227-0 01 1 1110- ● ●
1 CYLINDER ASM; BRK MASTER
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98163-227-0 01 1 1110- ●
1 CYLINDER ASM; BRK MASTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98163-227-0 01 1 1110- ● ●
1 CYLINDER ASM; BRK MASTER
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98163-230-0 01 1 1110- ● ●
1 CYLINDER ASM; BRK MASTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98163-229-0 01 1 1110- ● ●
3 CAP; OIL TANK
THA 		8-98047-704-0 01 1 1109-1109 ● ●
3 CAP; OIL TANK
THA 		8-98047-704-0 01 1 1110- ● ● ● ● ●
6 DIAPHRAGM; BRK M/CYL
THA 		8-98047-706-0 01 1 1109-1109 ● ●
6 DIAPHRAGM; BRK M/CYL
THA 		8-98047-706-0 01 1 1110- ● ● ● ● ●
46 FILTER; OIL TANK,M/CYL
THA 		8-98047-702-0 01 1 1109-1109 ● ●
46 FILTER; OIL TANK,M/CYL
THA 		8-98047-702-0 01 1 1110- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
