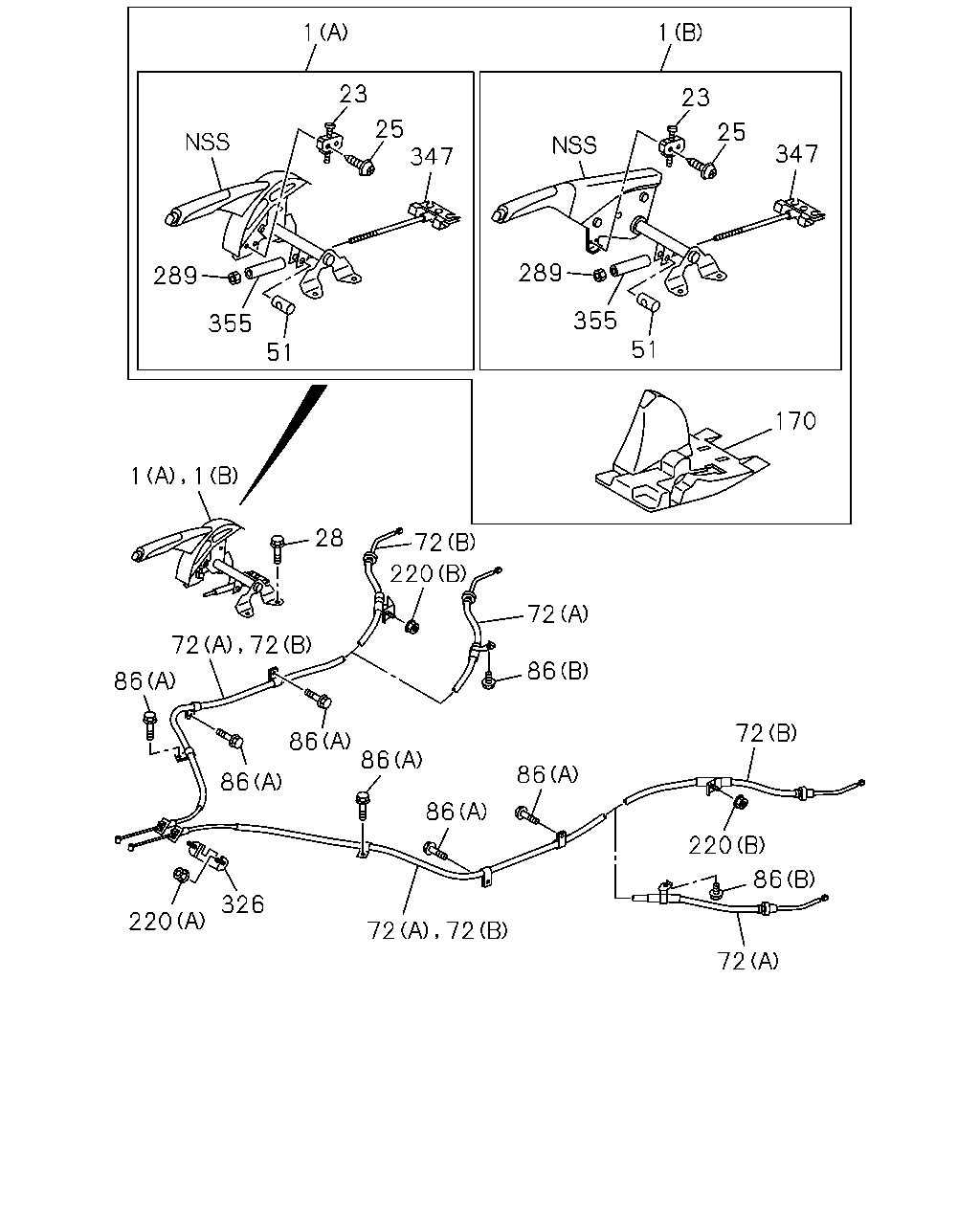

3-11 — PARKING BRAKE CONTROL (#81704) — 49 parça

1 1 23 25 347 289 355 51 289 355 23 25 347 51 1 1 170 28 72 220 72 72 86 72 86 86 86 86 86 72 220 86 86 220 326 72 72 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	STEM ASM; PARKING BRK (A) THA	8-98061-827-0	01	1	1109-1109	●	●
1	STEM ASM; PARKING BRK (A) THA	8-98061-827-0	01	1	1110-	●	●	●	●
1	STEM ASM; PARKING BRK (B) THA	8-98160-175-1	01	1	1110-					●
23	SWITCH; PARKING BRK THA	8-97947-494-0	01	1	1109-1109	●	●
23	SWITCH; PARKING BRK THA	8-97947-494-0	01	1	1110-	●	●	●	●	●
25	SCREW; SW,PARKING BRK THA	8-97103-556-0	01	1	1109-1109	●	●
25	SCREW; SW,PARKING BRK THA	8-97103-556-0	01	1	1110-	●	●	●	●	●
28	BOLT; HAND BRK LEVER M8X20 FLANGE THA	0-28650-820-0	04	1	1109-1109	●	●
28	BOLT; HAND BRK LEVER M8X20 FLANGE THA	0-28650-820-0	04	1	1110-	●	●	●	●	●
51	PIN; JOINT,RELAY LEVER THA	8-97947-496-0	01	1	1109-1109	●	●
51	PIN; JOINT,RELAY LEVER THA	8-97947-496-0	01	1	1110-	●	●	●	●	●
72	CABLE; PARKING BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-98067-048-1	01	1	1109-	●
72	CABLE; PARKING BRK (A) THA	8-98067-048-1	01	1	1109-		●
72	CABLE; PARKING BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-98067-049-1	01	1	1109-	●
72	CABLE; PARKING BRK (A) THA	8-98067-049-1	01	1	1109-		●
72	CABLE; PARKING BRK EXC. HIGH RIDE SUSPENSION<7YC> (B) THA	8-98067-046-1	01	1	1109-1109	●
72	CABLE; PARKING BRK EXC. HIGH RIDE SUSPENSION<7YC> (B) THA	8-98067-046-1	01	1	1110-	●		●
72	CABLE; PARKING BRK (B) THA	8-98067-046-1	01	1	1110-					●
72	CABLE; PARKING BRK EXC. HIGH RIDE SUSPENSION<7YC> (B) THA	8-98067-047-1	01	1	1109-1109	●
72	CABLE; PARKING BRK EXC. HIGH RIDE SUSPENSION<7YC> (B) THA	8-98067-047-1	01	1	1110-	●		●
72	CABLE; PARKING BRK (B) THA	8-98067-047-1	01	1	1110-					●
72	CABLE; PARKING BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-98102-148-1	01	1	1110-			●
72	CABLE; PARKING BRK (A) THA	8-98102-148-1	01	1	1110-				●
72	CABLE; PARKING BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-98102-149-1	01	1	1110-			●
72	CABLE; PARKING BRK (A) THA	8-98102-149-1	01	1	1110-				●
86	BOLT HIGH RIDE SUSPENSION<7YC> (B) M8X12 FLANGE THA	0-28050-812-0	02	1	1109-1109	●
86	BOLT (B) M8X12 FLANGE THA	0-28050-812-0	02	1	1109-1109		●
86	BOLT HIGH RIDE SUSPENSION<7YC> (B) M8X12 FLANGE THA	0-28050-812-0	02	1	1110-1110	●		●
86	BOLT (B) M8X12 FLANGE THA	0-28050-812-0	02	1	1110-1110		●		●
86	BOLT HIGH RIDE SUSPENSION<7YC> (B) M8X12 FLANGE THA	0-28050-812-0	02	1	1111-	●		●
86	BOLT (B) M8X12 FLANGE THA	0-28050-812-0	02	1	1111-		●
86	BOLT 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> (B) M8X12 FLANGE THA	0-28050-812-0	02	1	1111-				●
86	BOLT (A) M6X20 FLANGE THA	0-28650-620-0	06	1	1109-1109	●	●
86	BOLT (A) M6X20 FLANGE THA	0-28650-620-0	06	1	1110-	●	●	●	●	●
170	COVER; PARKING BRK LEVER THA	8-98102-152-4	01	1	1110-1311					●
170	COVER; PARKING BRK LEVER THA	8-97948-802-0	01	1	1312-					●
220	NUT; CLIP,PARKING CONT CABLE (A) M8 FLANGE THA	0-91180-108-0	02	1	1109-1109	●	●
220	NUT; CLIP,PARKING CONT CABLE (A) M8 FLANGE THA	0-91180-108-0	02	1	1110-	●	●	●	●	●
220	NUT; CLIP,PARKING CONT CABLE EXC. HIGH RIDE SUSPENSION<7YC> (B) M6 FLANGE THA	0-91180-106-0	02	1	1109-1109	●
220	NUT; CLIP,PARKING CONT CABLE EXC. HIGH RIDE SUSPENSION<7YC> (B) M6 FLANGE THA	0-91180-106-0	02	1	1110-	●		●
220	NUT; CLIP,PARKING CONT CABLE (B) M6 FLANGE THA	0-91180-106-0	02	1	1110-					●
289	NUT; PARKING BRK THA	8-98017-654-0	01	1	1109-1109	●	●
289	NUT; PARKING BRK THA	8-98017-654-0	01	1	1110-	●	●	●	●	●
326	RETAINER; PARK CABLE THA	8-98134-214-1	01	1	1109-1109	●	●
326	RETAINER; PARK CABLE THA	8-98134-214-1	01	1	1110-	●	●	●	●	●
347	EQUALIZER; HAND BRK THA	8-97947-495-0	01	1	1109-1109	●	●
347	EQUALIZER; HAND BRK THA	8-97947-495-0	01	1	1110-	●	●	●	●	●
355	SPACER; HAND BRK LEVER THA	8-97947-497-0	01	1	1109-1109	●	●
355	SPACER; HAND BRK LEVER THA	8-97947-497-0	01	1	1110-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
