2-66 — MANUAL TRANSFER GEAR; OUTPUT (#81700) — 47 parça

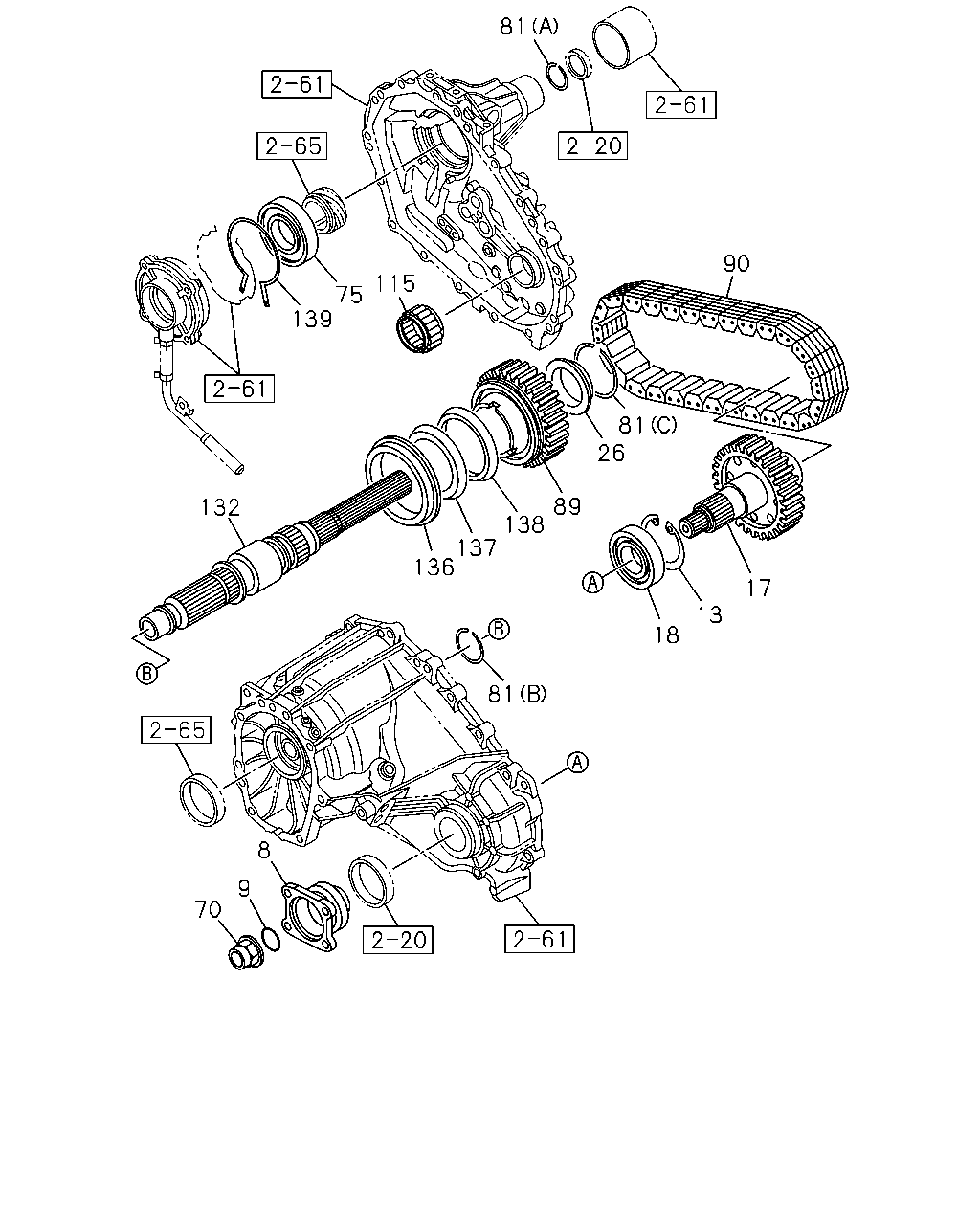

çizim 147128
17 13 18 81 26 89 138 137 136 81 8 9 70 132 139 75 115 81 90
BalonParca AdiParca NoAdetTipApplied Date A B
8 FLANGE; OUTPUT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA 		8-97319-825-2 01 1 1109-1109 ●
8 FLANGE; OUTPUT
IMA 		8-97319-825-2 01 1 1110- ● ●
9 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ID=29.7 OD=36.1 IMA 		8-94483-035-0 01 1 1109-1109 ●
9 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=29.7 OD=36.1 IMA 		8-94483-035-0 01 1 1110- ● ●
13 RING; SNAP,OUTPUT,FRT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ID=67 IMA 		8-97305-402-0 01 1 1109-1109 ●
13 RING; SNAP,OUTPUT,FRT
ID=67 IMA 		8-97305-402-0 01 1 1110- ● ●
17 SHAFT; OUTPUT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA 		8-97231-853-0 01 1 1109-1109 ●
17 SHAFT; OUTPUT
IMA 		8-97231-853-0 01 1 1110- ● ●
18 BEARING; BALL,OUTPUT,FRT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> NSK IMA 		8-94422-172-1 01 1 1109-1109 ●
18 BEARING; BALL,OUTPUT,FRT
NSK IMA 		8-94422-172-1 01 1 1110- ● ●
26 WASHER; THRUST
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA 		8-97239-774-0 01 1 1109-1109 ●
26 WASHER; THRUST
IMA 		8-97239-774-0 01 1 1110- ● ●
70 NUT; RR OUTPUT SHAFT,TRANSFER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M36 FLANGE IMA 		8-97358-603-0 01 1 1109-1109 ●
70 NUT; RR OUTPUT SHAFT,TRANSFER
M36 FLANGE IMA 		8-97358-603-0 01 1 1110- ● ●
75 BEARING; BALL,RR OUTPUT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA 		8-97234-737-0 01 1 1109-1109 ●
75 BEARING; BALL,RR OUTPUT
IMA 		8-97234-737-0 01 1 1110- ● ●
81 RING; SNAP
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) T=1.9 IMA 		8-97305-404-1 01 1 1109-1109 ●
81 RING; SNAP
(A) T=1.9 IMA 		8-97305-404-1 01 1 1110- ● ●
81 RING; SNAP
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (B) T=1.4 IMA 		8-97305-405-0 01 1 1109-1109 ●
81 RING; SNAP
(B) T=1.4 IMA 		8-97305-405-0 01 1 1110- ● ●
81 RING; SNAP
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (C) T=2.15 RED IMA 		8-97305-407-0 01 1 1109-1109 ●
81 RING; SNAP
(C) T=2.15 RED IMA 		8-97305-407-0 01 1 1110- ● ●
81 RING; SNAP
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (C) T=2.10 NON COLOR IMA 		8-97305-408-0 01 1 1109-1109 ●
81 RING; SNAP
(C) T=2.10 NON COLOR IMA 		8-97305-408-0 01 1 1110- ● ●
81 RING; SNAP
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (C) T=2.05 BLUE IMA 		8-97305-409-0 01 1 1109-1109 ●
81 RING; SNAP
(C) T=2.05 BLUE IMA 		8-97305-409-0 01 1 1110- ● ●
81 RING; SNAP
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (C) T=2.00 WHITE IMA 		8-97305-410-0 01 1 1109-1109 ●
81 RING; SNAP
(C) T=2.00 WHITE IMA 		8-97305-410-0 01 1 1110- ● ●
89 SPROCKET; DRIVE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> Z=48 IMA 		8-98013-525-0 01 1 1109-1109 ●
89 SPROCKET; DRIVE
Z=48 IMA 		8-98013-525-0 01 1 1110- ● ●
90 CHAIN; DRIVE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-97323-177-0 01 1 1109-1109 ●
90 CHAIN; DRIVE
THA 		8-97323-177-0 01 1 1110-1404 ● ●
90 CHAIN; DRIVE
IMA 		8-98275-645-0 01 1 1405- ● ●
115 BEARING; NEEDLE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA 		8-97234-747-0 01 1 1109-1109 ●
115 BEARING; NEEDLE
IMA 		8-97234-747-0 01 1 1110- ● ●
132 SHAFT; MAIN,TRANSFER
A/T 5 SPEED-AISIN<MA1> Z=34-36-26-27 IMA 		8-98316-370-0 01 1 1509- ●
132 SHAFT; MAIN,TRANSFER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> Z=34-36-26-27 IMA 		8-98013-925-1 01 1 1109-1109 ●
132 SHAFT; MAIN,TRANSFER
Z=34-36-26-27 IMA 		8-98013-925-1 01 1 1110-1508 ● ●
132 SHAFT; MAIN,TRANSFER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> Z=34-36-26-27 IMA 		8-98013-925-1 01 1 1509- ● ●
136 BLOCK RING; 2-4
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> Z=48 IMA 		8-94363-054-1 01 1 1109-1109 ●
136 BLOCK RING; 2-4
Z=48 IMA 		8-94363-054-1 01 1 1110- ● ●
137 RING; OUTSIDE,2-4
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> OD=90.0 IMA 		8-94363-055-1 01 1 1109-1109 ●
137 RING; OUTSIDE,2-4
OD=90.0 IMA 		8-94363-055-1 01 1 1110- ● ●
138 RING; INSIDE,2-4
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> OD=95.8 IMA 		8-94363-056-0 01 1 1109-1109 ●
138 RING; INSIDE,2-4
OD=95.8 IMA 		8-94363-056-0 01 1 1110- ● ●
139 RING; RETAINING,RR OUTPUT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ID=76 IMA 		8-97305-012-0 01 1 1109-1109 ●
139 RING; RETAINING,RR OUTPUT
ID=76 IMA 		8-97305-012-0 01 1 1110- ● ●
