2-62 — TRANSFER SIDE CASE AND SHIFT LEVER (#81698) — 52 parça

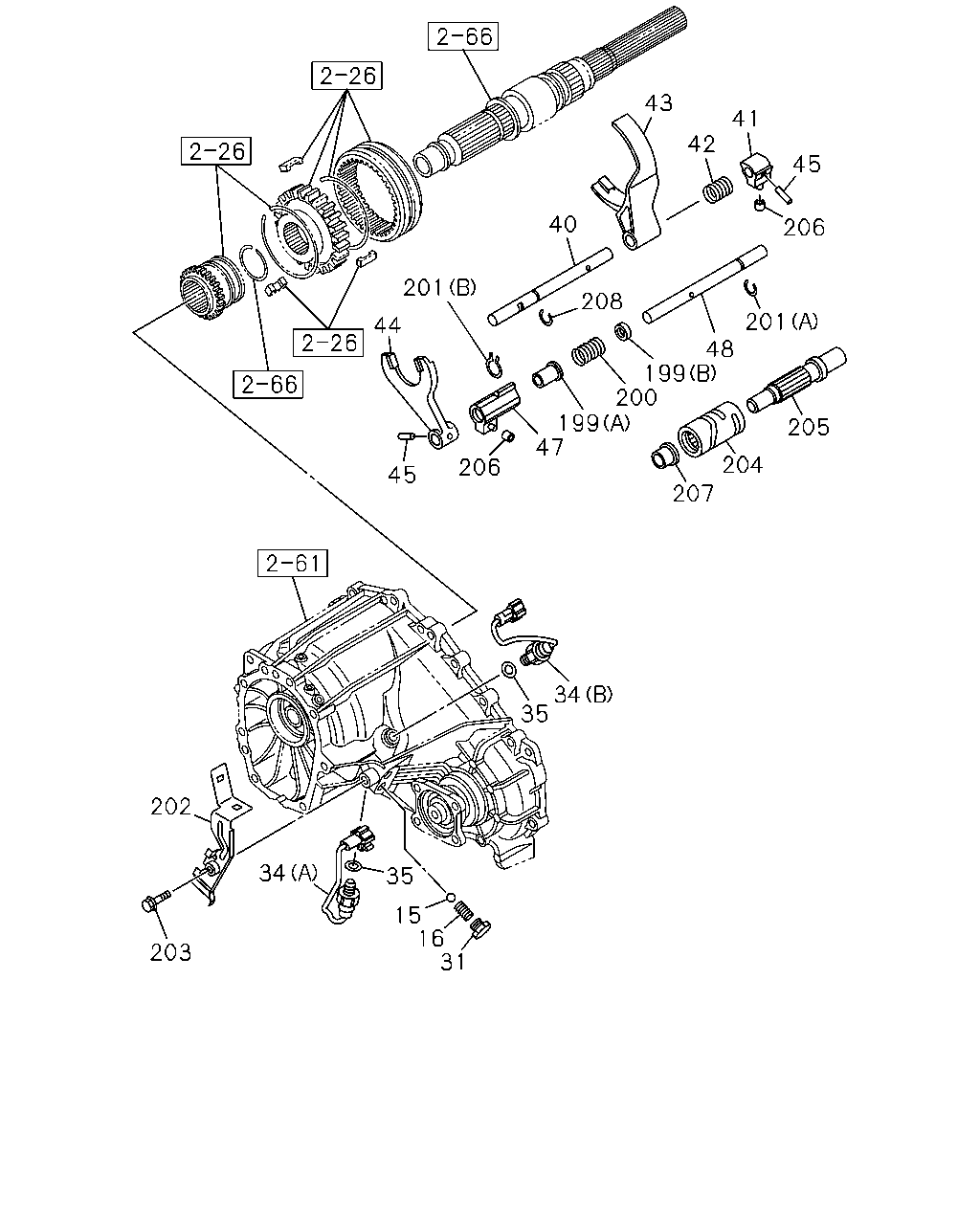

çizim 147132
207 204 205 201 206 45 41 42 43 40 48 199 200 208 201 44 45 206 47 199 34 35 31 16 15 35 34 203 202
BalonParca AdiParca NoAdetTipApplied Date A B
15 BALL; DETENT,SHIFT ROD,TRANSFER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA 		8-94435-335-0 02 1 1109-1109 ●
15 BALL; DETENT,SHIFT ROD,TRANSFER
IMA 		8-94435-335-0 02 1 1110- ● ●
16 SPRING; DETENT,SHIFT ROD,TRANSFER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> L=23.4 IMA 		8-97145-374-0 02 1 1109-1109 ●
16 SPRING; DETENT,SHIFT ROD,TRANSFER
L=23.4 IMA 		8-97145-374-0 02 1 1110- ● ●
31 PLUG; DETENT BALL,TRANSFER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M12X9 IMA 		0-92002-412-0 02 1 1109-1109 ●
31 PLUG; DETENT BALL,TRANSFER
M12X9 IMA 		0-92002-412-0 02 1 1110- ● ●
34 SWITCH; TRANSFER INDICATOR
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) IMA 		8-98181-233-0 01 1 1109-1109 ●
34 SWITCH; TRANSFER INDICATOR
(A) IMA 		8-98181-233-0 01 1 1110- ● ●
34 SWITCH; TRANSFER INDICATOR
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (B) IMA 		8-98181-234-0 01 1 1109-1109 ●
34 SWITCH; TRANSFER INDICATOR
(B) IMA 		8-98181-234-0 01 1 1110- ● ●
35 GASKET; INDICATOR SWITCH,TRANSFER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ID=14.2 OD=20.0 THA 		9-09571-414-0 02 1 1109-1109 ●
35 GASKET; INDICATOR SWITCH,TRANSFER
ID=14.2 OD=20.0 THA 		9-09571-414-0 02 1 1110- ● ●
40 ROD; SHIFT,4X2-4X4,TRANSFER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA 		8-97234-229-0 01 1 1109-1109 ●
40 ROD; SHIFT,4X2-4X4,TRANSFER
IMA 		8-97234-229-0 01 1 1110- ● ●
41 BLOCK; SHIFT,4X2-4X4,TRANSFER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA 		8-97234-233-1 01 1 1109-1109 ●
41 BLOCK; SHIFT,4X2-4X4,TRANSFER
IMA 		8-97234-233-1 01 1 1110- ● ●
42 SPRING; GEAR LOCK RELEASE,TRANSFER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA 		8-97239-010-1 01 1 1109-1109 ●
42 SPRING; GEAR LOCK RELEASE,TRANSFER
IMA 		8-97239-010-1 01 1 1110- ● ●
43 ARM; SHIFT,4X2-4X4,TRANSFER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA 		8-97234-231-0 01 1 1109-1109 ●
43 ARM; SHIFT,4X2-4X4,TRANSFER
IMA 		8-97234-231-0 01 1 1110- ● ●
44 ARM; SHIFT,HIGH-LOW,TRANSFER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA 		8-97300-106-1 01 1 1109-1109 ●
44 ARM; SHIFT,HIGH-LOW,TRANSFER
IMA 		8-97300-106-1 01 1 1110- ● ●
45 PIN; SPR,SHIFT ARM TO ROD
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> D=4.2 L=25 IMA 		8-94171-541-0 02 1 1109-1109 ●
45 PIN; SPR,SHIFT ARM TO ROD
D=4.2 L=25 IMA 		8-94171-541-0 02 1 1110- ● ●
47 BLOCK; SHIFT,LOW-HIGH,TRANSFER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA 		8-98161-034-0 01 1 1109-1109 ●
47 BLOCK; SHIFT,LOW-HIGH,TRANSFER
IMA 		8-98161-034-0 01 1 1110- ● ●
48 ROD; SHIFT,HIGH-LOW,TRANSFER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA 		8-97234-230-0 01 1 1109-1109 ●
48 ROD; SHIFT,HIGH-LOW,TRANSFER
IMA 		8-97234-230-0 01 1 1110- ● ●
199 COLLAR; TRANSFER CONTROL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) IMA 		8-97234-662-1 01 1 1109-1109 ●
199 COLLAR; TRANSFER CONTROL
(A) IMA 		8-97234-662-1 01 1 1110- ● ●
199 COLLAR; TRANSFER CONTROL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (B) IMA 		8-97234-663-1 01 1 1109-1109 ●
199 COLLAR; TRANSFER CONTROL
(B) IMA 		8-97234-663-1 01 1 1110- ● ●
200 SPRING; SHIFT HIGH-LOW
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA 		8-97239-011-0 01 1 1109-1109 ●
200 SPRING; SHIFT HIGH-LOW
IMA 		8-97239-011-0 01 1 1110- ● ●
201 RING; SNAP,SHIFT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) ID=12 IMA 		8-94460-357-0 01 1 1109-1109 ●
201 RING; SNAP,SHIFT
(A) ID=12 IMA 		8-94460-357-0 01 1 1110- ● ●
201 RING; SNAP,SHIFT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (B) ID=23 IMA 		8-97305-011-1 01 1 1109-1109 ●
201 RING; SNAP,SHIFT
(B) ID=23 IMA 		8-97305-011-1 01 1 1110- ● ●
202 BRACKET; SWITCH
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA 		8-98118-922-1 01 1 1109-1109 ●
202 BRACKET; SWITCH
IMA 		8-98118-922-1 01 1 1110- ● ●
203 BOLT; BRACKET,SWITCH
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M8X25 FLANGE THA 		0-28650-825-0 01 1 1109-1109 ●
203 BOLT; BRACKET,SWITCH
M8X25 FLANGE THA 		0-28650-825-0 01 1 1110- ● ●
204 DRUM; SHIFT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA 		8-98158-123-0 01 1 1109-1109 ●
204 DRUM; SHIFT
IMA 		8-98158-123-0 01 1 1110- ● ●
205 SHAFT; SHIFT DRUM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA 		8-98063-364-1 01 1 1109-1109 ●
205 SHAFT; SHIFT DRUM
IMA 		8-98063-364-1 01 1 1110- ● ●
206 ROLLER; GUIDE,SHIFT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA 		8-97234-499-0 02 1 1109-1109 ●
206 ROLLER; GUIDE,SHIFT
IMA 		8-97234-499-0 02 1 1110- ● ●
207 BUSH; CONTROL SHAFT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA 		8-98158-124-0 01 1 1109-1109 ●
207 BUSH; CONTROL SHAFT
IMA 		8-98158-124-0 01 1 1110- ● ●
208 RING; SNAP,SHIFT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ID=12 IMA 		8-94460-357-0 01 1 1109-1109 ●
208 RING; SNAP,SHIFT
ID=12 IMA 		8-94460-357-0 01 1 1110- ● ●
