2-61 — TRANSFER CASE AND GEAR SHIFTER (#81697) — 42 parça

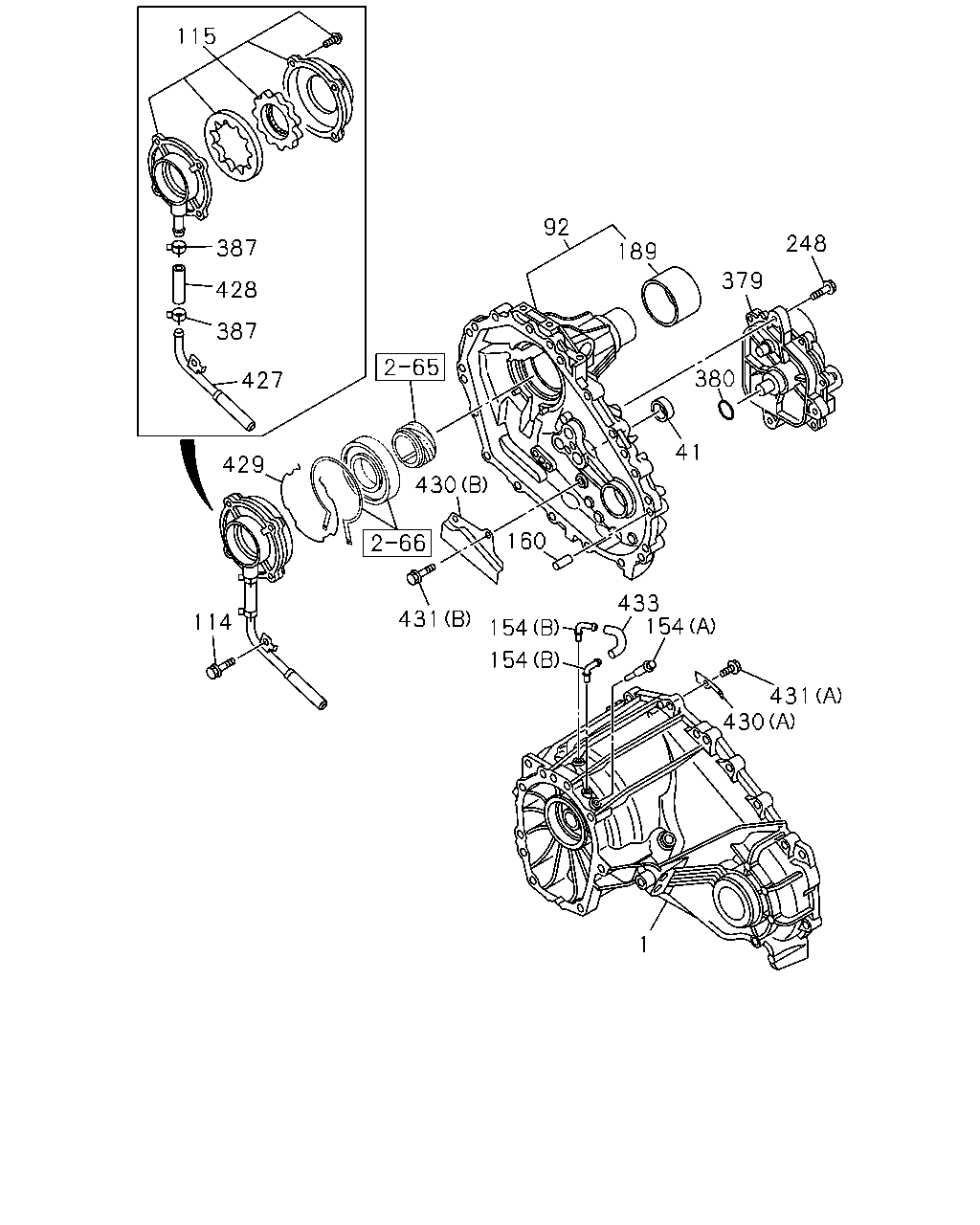

çizim 147120
431 430 1 154 433 154 154 431 160 41 380 379 248 189 92 430 429 427 387 428 387 115 114
BalonParca AdiParca NoAdetTipApplied Date A B
1 CASE; TRANSFER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA 		8-98177-505-0 01 1 1109-1109 ●
1 CASE; TRANSFER
IMA 		8-98177-505-0 01 1 1110- ● ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA 		8-97238-998-0 01 1 1109-1109 ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). IMA 		8-97238-998-0 01 1 1110- ● ●
92 COVER; RR,TRANSFER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA 		8-98118-921-0 01 1 1109-1109 ●
92 COVER; RR,TRANSFER
IMA 		8-98118-921-0 01 1 1110- ● ●
114 BOLT; OIL PUMP,TRANSFER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M8X20 FLANGE THA 		0-28650-820-0 01 1 1109-1109 ●
114 BOLT; OIL PUMP,TRANSFER
M8X20 FLANGE THA 		0-28650-820-0 01 1 1110- ● ●
115 PUMP ASM; OIL,TRANSFER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA 		8-98029-157-0 01 1 1109-1109 ●
115 PUMP ASM; OIL,TRANSFER
IMA 		8-98029-157-0 01 1 1110- ● ●
154 PIPE; BREATHER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (B) IMA 		8-97358-318-0 02 1 1109-1109 ●
154 PIPE; BREATHER
(B) IMA 		8-97358-318-0 02 1 1110- ● ●
154 PIPE; BREATHER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) IMA 		8-97358-319-0 01 1 1109-1109 ●
154 PIPE; BREATHER
(A) IMA 		8-97358-319-0 01 1 1110- ● ●
160 PIN; KNOCK,SHIFT CASE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> OD=10 L=20 IMA 		8-97135-423-0 02 1 1109-1109 ●
160 PIN; KNOCK,SHIFT CASE
OD=10 L=20 IMA 		8-97135-423-0 02 1 1110- ● ●
189 COVER; DUST,OIL SEAL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA 		8-98173-748-0 01 1 1109-1109 ●
189 COVER; DUST,OIL SEAL
IMA 		8-98173-748-0 01 1 1110- ● ●
248 BOLT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M8X30 FLANGE THA 		0-28650-830-0 03 1 1109-1109 ●
248 BOLT
M8X30 FLANGE THA 		0-28650-830-0 03 1 1110- ● ●
379 ACTUATOR; TRANSFER,2-4 SHIFT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA 		8-98196-415-0 01 1 1109-1109 ●
379 ACTUATOR; TRANSFER,2-4 SHIFT
IMA 		8-98196-415-0 01 1 1110- ● ●
380 GASKET; ACTUATOR
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ID=29.7 OD=36.7 IMA 		8-97318-475-0 01 1 1109-1109 ●
380 GASKET; ACTUATOR
ID=29.7 OD=36.7 IMA 		8-97318-475-0 01 1 1110- ● ●
387 CLAMP; HOSE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ID=16 THA 		8-97329-628-0 02 1 1109-1109 ●
387 CLAMP; HOSE
ID=16 THA 		8-97329-628-0 02 1 1110- ● ●
427 SCREEN; OIL PUMP
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA 		8-98063-358-0 01 1 1109-1109 ●
427 SCREEN; OIL PUMP
IMA 		8-98063-358-0 01 1 1110- ● ●
428 HOSE; OIL PUMP
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> L=50 IMA 		8-98064-220-0 01 1 1109-1109 ●
428 HOSE; OIL PUMP
L=50 IMA 		8-98064-220-0 01 1 1110- ● ●
429 RING; SNAP,OIL PUMP
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA 		8-97240-666-0 01 1 1109-1109 ●
429 RING; SNAP,OIL PUMP
IMA 		8-97240-666-0 01 1 1110- ● ●
430 PLATE; BAFFLE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) IMA 		8-97239-130-0 01 1 1109-1109 ●
430 PLATE; BAFFLE
(A) IMA 		8-97239-130-0 01 1 1110- ● ●
430 PLATE; BAFFLE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (B) IMA 		8-98063-360-0 01 1 1109-1109 ●
430 PLATE; BAFFLE
(B) IMA 		8-98063-360-0 01 1 1110- ● ●
431 BOLT; BAFFLE PLATE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) M6X16 FLANGE THA 		0-28650-616-0 01 1 1109-1109 ●
431 BOLT; BAFFLE PLATE
(A) M6X16 FLANGE THA 		0-28650-616-0 01 1 1110- ● ●
431 BOLT; BAFFLE PLATE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (B) M8X20 FLANGE THA 		0-28650-820-0 02 1 1109-1109 ●
431 BOLT; BAFFLE PLATE
(B) M8X20 FLANGE THA 		0-28650-820-0 02 1 1110- ● ●
433 HOSE; AIR,TRANSFER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA 		8-97236-080-0 01 1 1109-1109 ●
433 HOSE; AIR,TRANSFER
IMA 		8-97236-080-0 01 1 1110- ● ●
