Isuzu WW
▶
PICKUP
▶
TFR
▶
51373 - TFR/TFS(THAILAND)
▶
2 - Clutch, Transmission, Trans Axle
▶

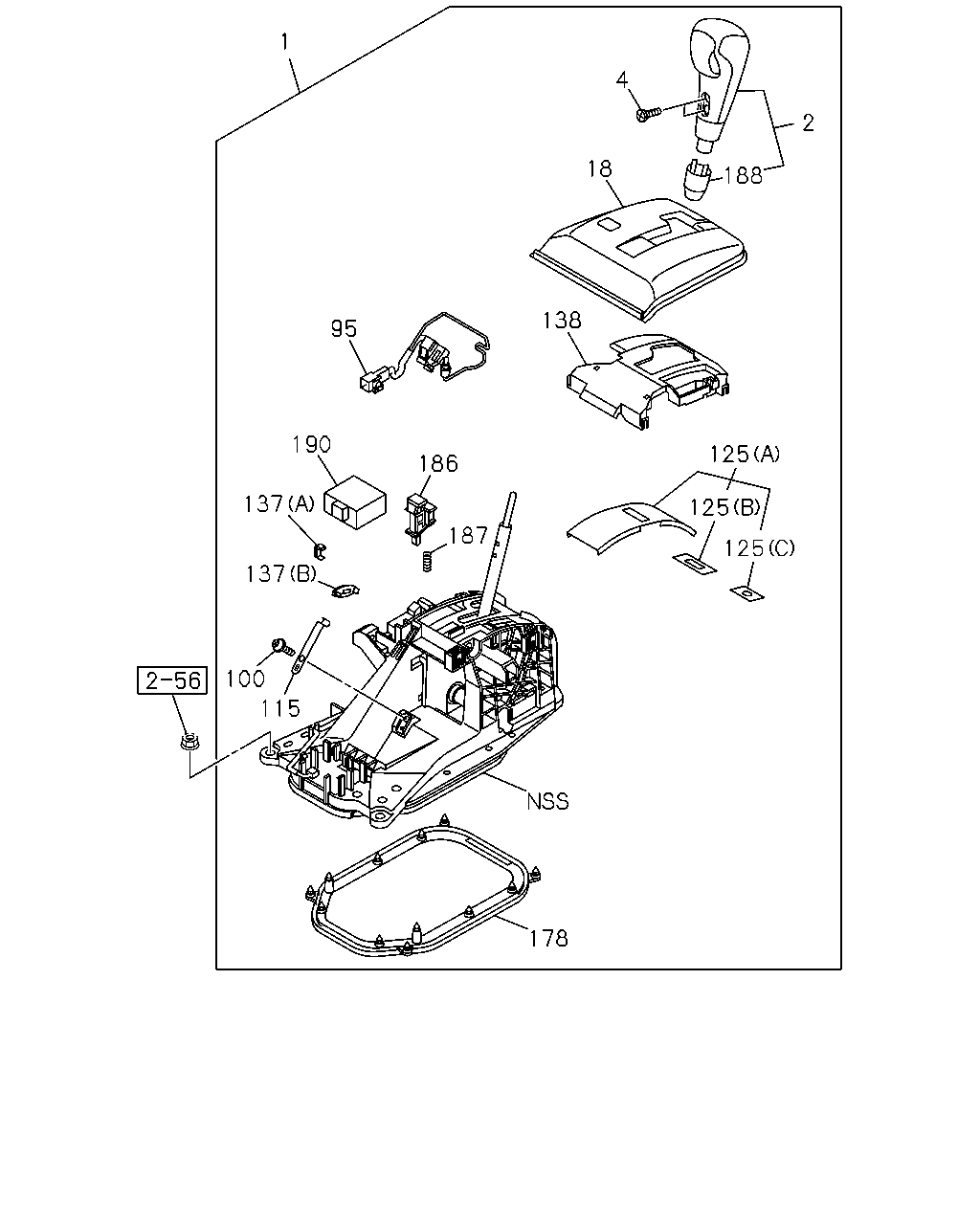

2-55 - AUTO TRANS SHIFT CONTROL LEVER
▶
2-55 — AUTO TRANS SHIFT CONTROL LEVER
(#81694) — 18 parça
1
18
138
95
190
186
137
137
100
115
187
125
125
188
2
4
125
178
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LEVER; SHIFT,A/T
SILVER THA
8-97416-793-5
01
1
1109-
2
KNOB ASM; AUTO CONT LEVER
SILVER THA
8-97421-017-0
01
1
1109-
4
SCREW; KNOB TO LEVER
THA
8-98163-219-0
02
1
1109-
18
COVER; INDICATOR,UPR
BLACK THA
8-97421-015-1
01
1
1109-
95
LAMP; INDICATOR
THA
8-98163-211-0
01
1
1109-
100
SCREW
THA
8-98163-221-0
01
1
1109-
115
PLATE; SPR,LEVER
THA
8-98163-220-0
01
1
1109-
125
COVER; SHIFT LEVER
(A) THA
8-98163-185-0
01
1
1109-
125
COVER; SHIFT LEVER
(C) THA
8-98163-186-0
01
1
1109-
125
COVER; SHIFT LEVER
(B) THA
8-98163-187-0
01
1
1109-
137
CUSHION
(A) THA
8-98163-222-0
01
1
1109-
137
CUSHION
(B) THA
8-98163-223-0
01
1
1109-
138
BOX; LAMP
THA
8-98173-049-1
01
1
1109-
178
SHEET; SHIFT LEVER
THA
8-98163-225-0
01
1
1109-
186
BUTTON; SHIFT LOCK
BLACK THA
8-97421-016-0
01
1
1109-
187
SPRING; RETURN,SHIFT
THA
8-98163-182-0
01
1
1109-
188
COVER; KNOB
THA
8-98163-209-0
01
1
1109-
190
CONTROLLER; INTERLOCK
THA
8-98163-217-0
01
1
1109-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
