2-47 — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#81690) — 73 parça

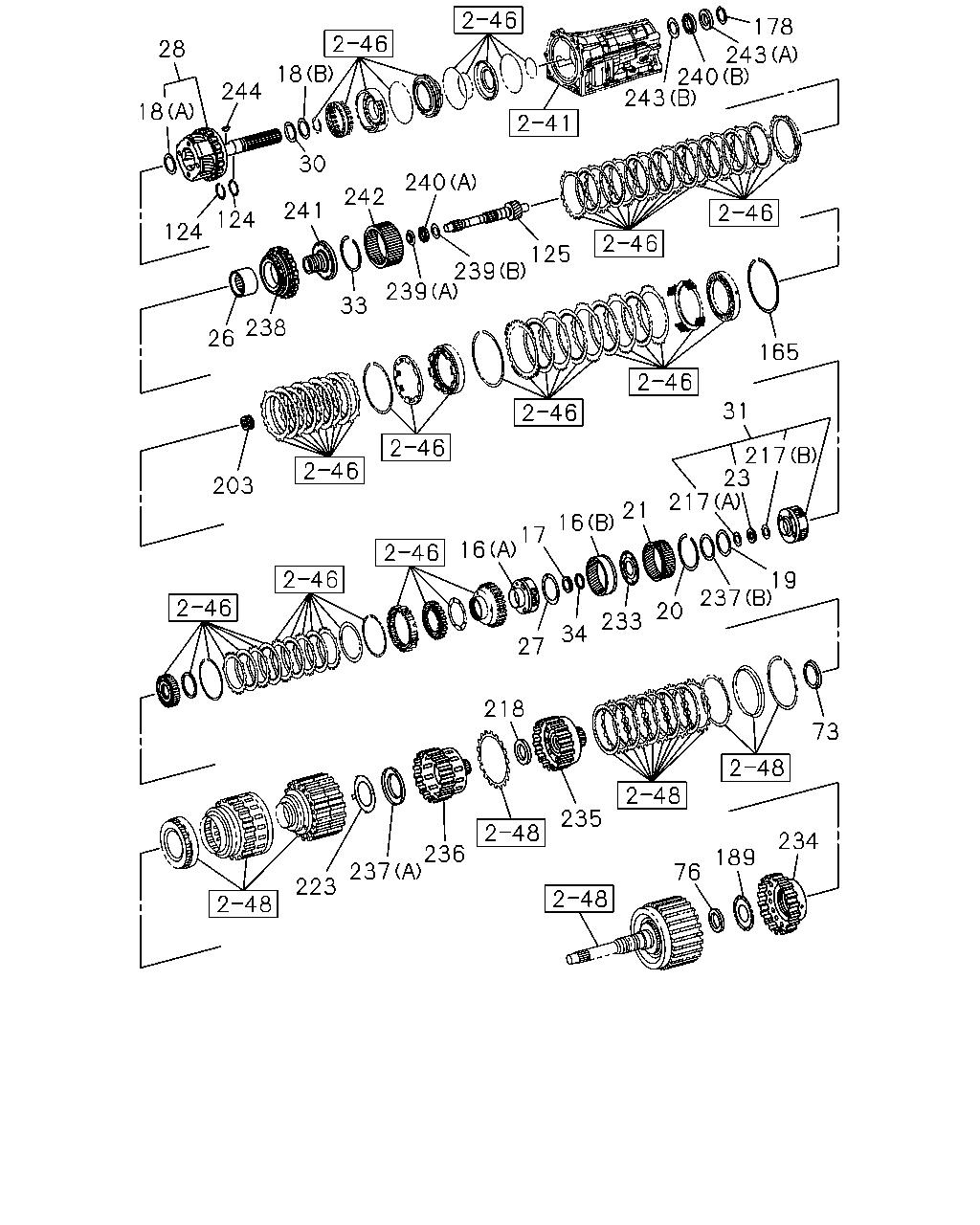

çizim 147138
28 18 244 18 30 124 124 241 242 240 243 240 243 178 125 239 239 33 238 26 203 165 31 217 23 217 21 16 17 16 27 19 237 20 233 34 218 223 236 237 235 73 76 234 189
BalonParca AdiParca NoAdetTipApplied Date
16 GEAR ASM; FRT PLANETARY,A/T
(A) THA 		8-98189-682-0 01 1 1109-
16 GEAR ASM; FRT PLANETARY,A/T
(B) THA 		8-98189-686-0 01 1 1109-
17 RACE; THRUST BRG,PLANETARY SHAFT,A/T
ID=38 THA 		8-98189-684-0 01 1 1109-
18 BEARING; THRUST,RR PLANETARY GEAR,A/T
(A) THA 		8-98189-708-0 01 1 1109-
18 BEARING; THRUST,RR PLANETARY GEAR,A/T
(B) THA 		8-98189-712-0 01 1 1109-
19 RACE; THRUST BRG,PLANETARY SHAFT,A/T
THA 		8-98189-692-0 01 1 1109-
20 RING; RET,PLANETARY GEAR,A/T
T=1.4 THA 		8-98189-691-0 01 1 1109-
21 GEAR; PLANETARY,INTERNAL FRT,A/T
THA 		8-98189-688-0 01 1 1109-
23 BEARING; THRUST,PLANETARY SHAFT,A/T
THA 		8-98189-695-0 01 1 1109-
26 RACE; ONEWAY CLU,A/T
THA 		8-98189-701-0 01 1 1109-
27 WASHER; THRUST,FRT PLANETARY,A/T
ID=64 THA 		8-98189-683-0 01 1 1109-
28 GEAR ASM; RR PLANETARY,A/T
4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98189-707-0 01 1 1109-
28 GEAR ASM; RR PLANETARY,A/T
4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98189-774-0 01 1 1109-
28 GEAR ASM; RR PLANETARY,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> THA 		8-98189-784-0 01 1 1110-1212
28 GEAR ASM; RR PLANETARY,A/T
4X4<TFS***> 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> THA 		8-98189-784-0 01 1 1301-
30 RACE; THRUST BRG,RR PLANETARY FLANGE
THA 		8-98189-711-0 01 1 1109-
31 GEAR ASM; INTERNAL,PLANETARY,A/T
THA 		8-98189-694-0 01 1 1109-
33 RING; RET,PLANETARY GEAR,A/T
T=1.4 THA 		8-98189-710-0 01 1 1109-
34 BEARING; THRUST,FRT PLANETARY SHAFT,A/
THA 		8-98189-685-0 01 1 1109-
73 WASHER; THRUST,CARRIER
ID=74 THA 		8-98189-679-0 01 1 1109-
76 BEARING; THRUST,CARRIER
THA 		8-98189-673-0 01 1 1109-
124 RING; SLEEVE,OIL SEAL,RR PLANETARY GEA
4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=33 THA 		8-98189-775-0 02 1 1109-
125 SHAFT ASM; INTERMEDIATE,PLANETARY GEAR
THA 		8-98189-698-0 01 1 1109-
165 RING; RET
ID=151 THA 		8-98189-702-0 01 1 1109-
178 RING; RET
ID=34 THA 		8-98189-730-0 01 1 1109-1109
178 RING; RET
4X2<TFB***> 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> ID=34 THA 		8-98189-730-0 01 1 1110-
189 RACE; INNER,LOW CLU
ID=23 THA 		8-98189-670-0 01 1 1109-
203 GEAR; SUN
Z=31 THA 		8-98189-699-0 01 1 1109-
217 RACE; THRUST BRG,INTERNAL GEAR
(A) THA 		8-98189-696-0 01 1 1109-
217 RACE; THRUST BRG,INTERNAL GEAR
(B) THA 		8-98189-697-0 01 1 1109-
218 BEARING; THRUST,INTERNAL GEAR
THA 		8-98189-680-0 01 1 1109-
223 RACE; BRG,CARRIER
THA 		8-98189-675-0 01 1 1109-
233 FLANGE; FR PLANETARY
THA 		8-98189-687-0 01 1 1109-
234 HUB; FORWARD CLUTCH
THA 		8-98189-674-0 01 1 1109-
235 HUB; REVERSE CLUTCH
THA 		8-98189-681-0 01 1 1109-
236 HUB; CLUTCH
THA 		8-98189-678-0 01 1 1109-
237 BEARING; THRUST
(A) THA 		8-98189-676-0 01 1 1109-
237 BEARING; THRUST
(B) THA 		8-98189-693-0 01 1 1109-
238 CLUTCH ASM; 1WAY
THA 		8-98189-700-0 01 1 1109-
239 RACE; INTERMEDIATE SHAFT
(A) THA 		8-98189-703-0 01 1 1109-
239 RACE; INTERMEDIATE SHAFT
(B) THA 		8-98189-704-0 01 1 1109-
240 BEARING; THRUST NEEDLE ROLLER
(A) THA 		8-98189-705-0 01 1 1109-
240 BEARING; THRUST NEEDLE ROLLER
(B) THA 		8-98189-729-0 01 1 1109-1109
240 BEARING; THRUST NEEDLE ROLLER
4X2<TFB***> 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> (B) THA 		8-98189-729-0 01 1 1110-
241 FLANGE; RR PLANETARY
THA 		8-98189-706-0 01 1 1109-
242 GEAR; RR PLANETARY
THA 		8-98189-709-0 01 1 1109-
243 RACE; THRUST BEARING
(A) T=3.8 THA 		8-98189-716-0 AR 1 1109-1109
243 RACE; THRUST BEARING
4X2<TFB***> 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> (A) T=3.8 THA 		8-98189-716-0 AR 1 1110-
243 RACE; THRUST BEARING
(A) T=3.9 THA 		8-98189-717-0 AR 1 1109-1109
243 RACE; THRUST BEARING
4X2<TFB***> 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> (A) T=3.9 THA 		8-98189-717-0 AR 1 1110-
243 RACE; THRUST BEARING
(A) T=4.0 THA 		8-98189-718-0 AR 1 1109-1109
243 RACE; THRUST BEARING
4X2<TFB***> 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> (A) T=4.0 THA 		8-98189-718-0 AR 1 1110-
243 RACE; THRUST BEARING
(A) T=4.1 THA 		8-98189-719-0 AR 1 1109-1109
243 RACE; THRUST BEARING
4X2<TFB***> 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> (A) T=4.1 THA 		8-98189-719-0 AR 1 1110-
243 RACE; THRUST BEARING
(A) T=4.2 THA 		8-98189-720-0 AR 1 1109-1109
243 RACE; THRUST BEARING
4X2<TFB***> 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> (A) T=4.2 THA 		8-98189-720-0 AR 1 1110-
243 RACE; THRUST BEARING
(A) T=3.85 THA 		8-98189-721-0 AR 1 1109-1109
243 RACE; THRUST BEARING
4X2<TFB***> 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> (A) T=3.85 THA 		8-98189-721-0 AR 1 1110-
243 RACE; THRUST BEARING
(A) T=3.95 THA 		8-98189-722-0 AR 1 1109-1109
243 RACE; THRUST BEARING
4X2<TFB***> 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> (A) T=3.95 THA 		8-98189-722-0 AR 1 1110-
243 RACE; THRUST BEARING
(A) T=4.05 THA 		8-98189-723-0 AR 1 1109-1109
243 RACE; THRUST BEARING
4X2<TFB***> 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> (A) T=4.05 THA 		8-98189-723-0 AR 1 1110-
243 RACE; THRUST BEARING
(A) T=4.15 THA 		8-98189-724-0 AR 1 1109-1109
243 RACE; THRUST BEARING
4X2<TFB***> 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> (A) T=4.15 THA 		8-98189-724-0 AR 1 1110-
243 RACE; THRUST BEARING
(A) T=4.25 THA 		8-98189-725-0 AR 1 1109-1109
243 RACE; THRUST BEARING
4X2<TFB***> 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> (A) T=4.25 THA 		8-98189-725-0 AR 1 1110-
243 RACE; THRUST BEARING
(A) T=4.30 THA 		8-98189-726-0 AR 1 1109-1109
243 RACE; THRUST BEARING
4X2<TFB***> 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> (A) T=4.30 THA 		8-98189-726-0 AR 1 1110-
243 RACE; THRUST BEARING
(A) T=4.35 THA 		8-98189-727-0 AR 1 1109-1109
243 RACE; THRUST BEARING
4X2<TFB***> 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> (A) T=4.35 THA 		8-98189-727-0 AR 1 1110-
243 RACE; THRUST BEARING
(B) T=2.0 THA 		8-98189-728-0 01 1 1109-1109
243 RACE; THRUST BEARING
4X2<TFB***> 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> (B) T=2.0 THA 		8-98189-728-0 01 1 1110-
244 KEY; WOODRUF,PLANETARY GEAR
4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-94479-904-0 01 1 1109-
