Sayfa 2-40 - Isuzu EPC

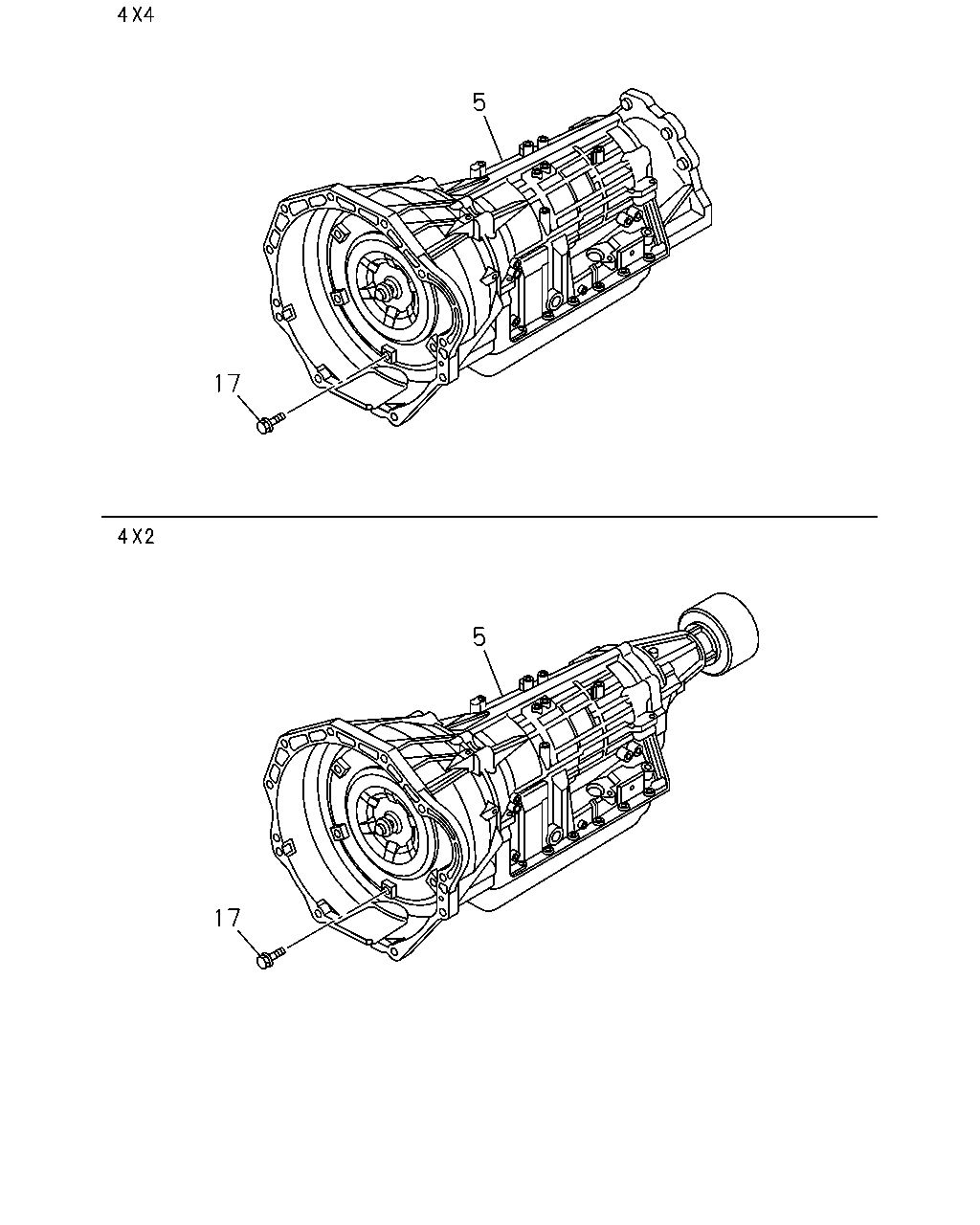

2-40 — AUTO TRANS ASM AND REPAIR KIT (#81685) — 6 parça

5 17 5 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	TRANSMISSION ASM; AUTO 4X4<TFS***> 4JK1-TCX ENG<LR0> THA	8-98181-914-0	01	1	1301-
5	TRANSMISSION ASM; AUTO 4X2<TFB***> 4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA	8-98132-132-0	01	1	1109-
5	TRANSMISSION ASM; AUTO 4X2<TFB***> 4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98132-134-0	01	1	1109-
5	TRANSMISSION ASM; AUTO 4X2<TFB***> 4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA	8-98132-130-0	01	1	1109-
5	TRANSMISSION ASM; AUTO 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-98181-913-0	01	1	1110-
17	BOLT; PLATE TO CONV THA	8-98100-577-0	06	1	1109-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
