Sayfa 2-26 - Isuzu EPC

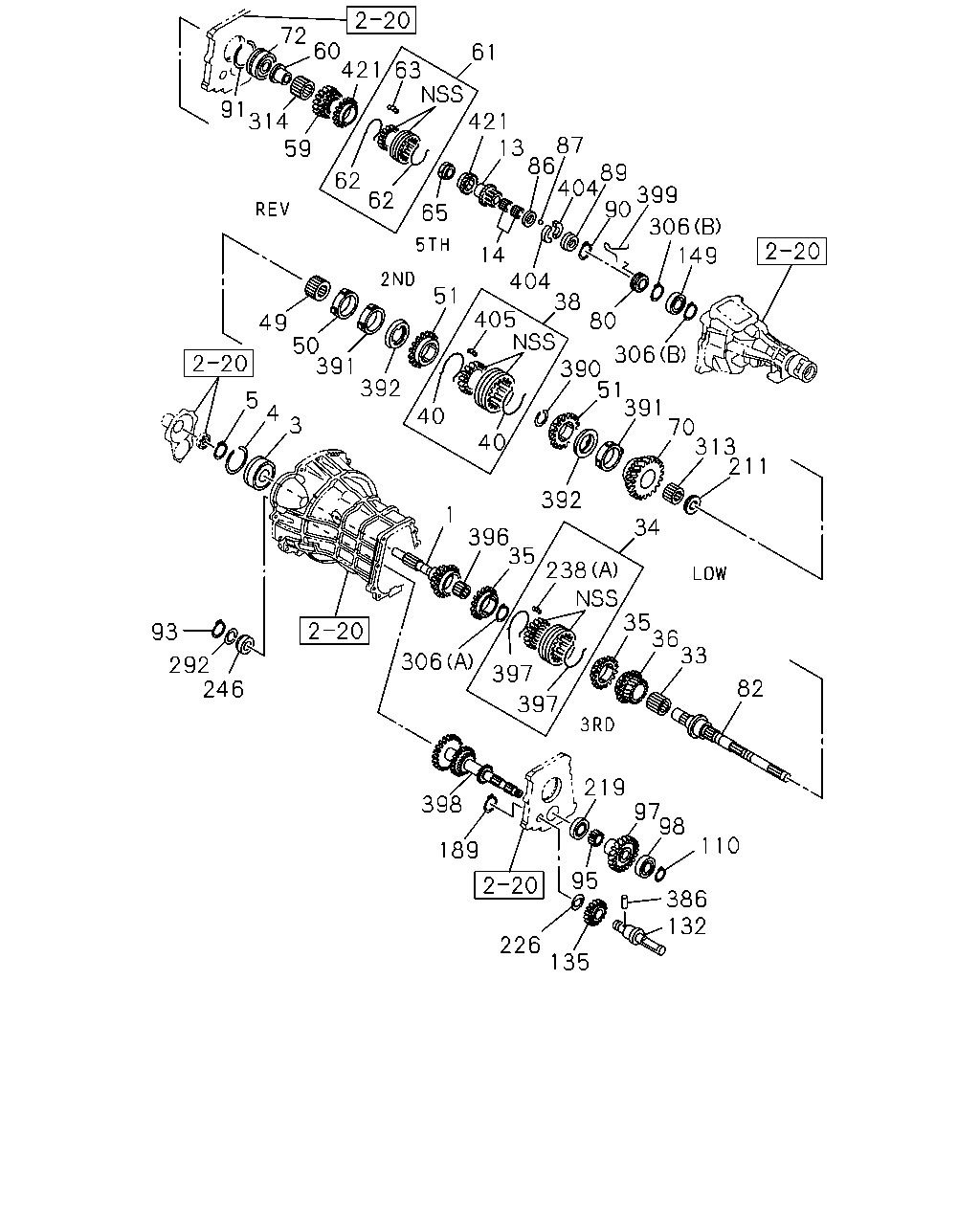

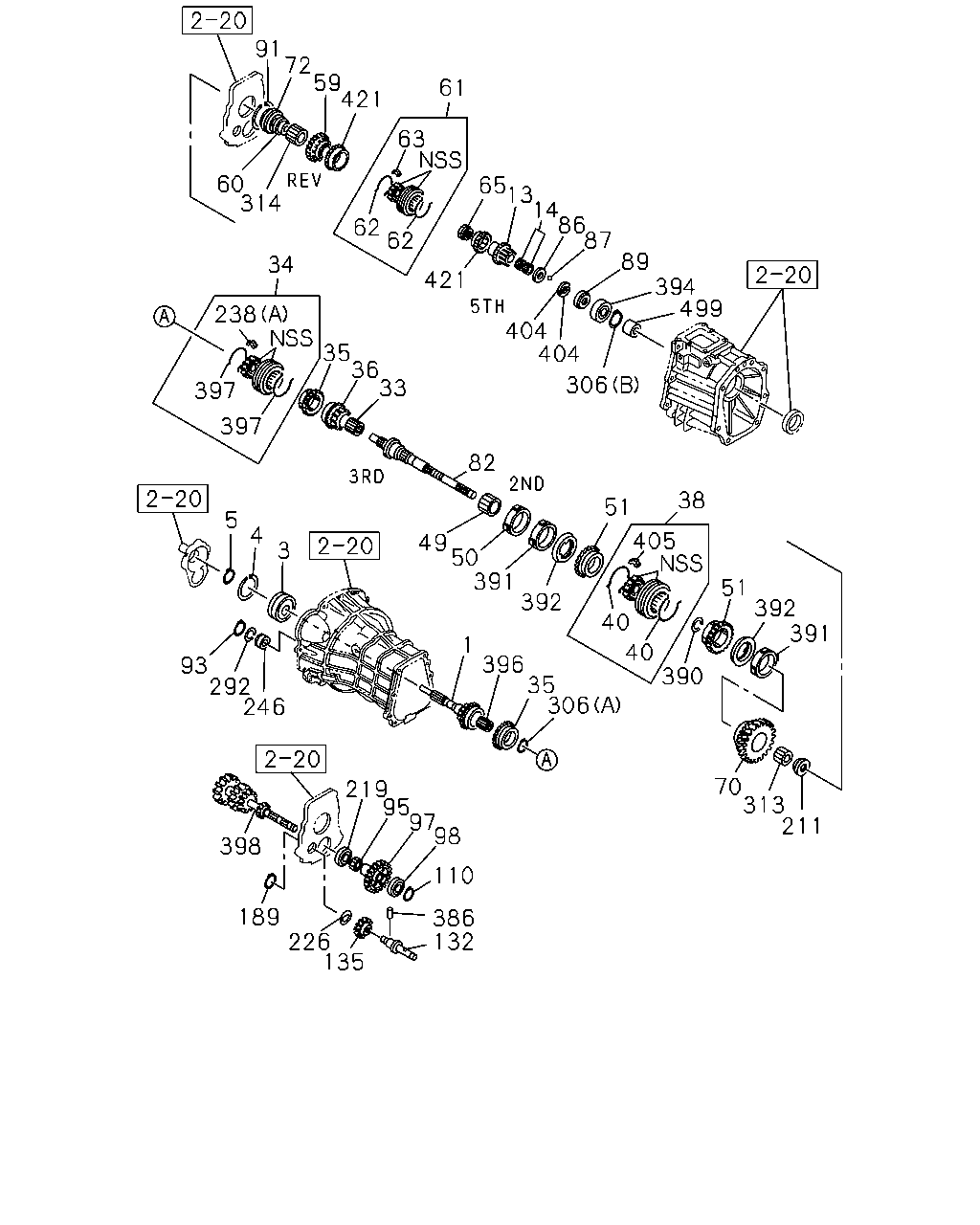

2-26 — MANUAL TRANSMISSION GEAR (#81682) — 326 parça

135 226 132 386 95 110 98 97 219 397 82 33 36 35 238 35 396 306 246 292 93 211 313 34 392 40 40 392 391 50 49 3 4 5 306 70 391 51 390 405 80 38 404 149 306 399 90 89 87 404 86 13 421 61 63 421 60 72 91 314 59 62 62 65 14 51 1 398 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS 4JK1-TCS ENG<LKZ> Z=26 THA	8-97300-948-1	01	1	1109-1204	●
1	SHAFT; TOP GEAR,TRANS 4JK1-TCS ENG<LKZ> Z=26 IMA	8-98210-225-0	01	1	1205-1307	●
1	SHAFT; TOP GEAR,TRANS 4JK1-TCS ENG<LKZ> Z=26 IMA	8-98210-225-0	01	1	1308-	●
1	SHAFT; TOP GEAR,TRANS 4JK1-TCX ENG<LR0> Z=26 THA	8-98172-357-0	01	1	1109-1204	●
1	SHAFT; TOP GEAR,TRANS 4JK1-TCX ENG<LR0> Z=26 THA	8-98210-248-0	01	1	1205-1307	●
1	SHAFT; TOP GEAR,TRANS 4JK1-TCX ENG<LR0> Z=26 THA	8-98233-594-0	01	1	1308-	●
3	BEARING; TOP GEAR SHAFT NSK THA	8-97943-879-0	01	1	1109-	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT NSK IMA	8-94422-083-0	01	1	1109-	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.4 IMA	8-97254-316-0	01	1	1109-	●
13	GEAR; 5TH,MAINSHAFT Z=22 THA	8-97104-023-3	01	1	1109-1204	●
13	GEAR; 5TH,MAINSHAFT Z=22 IMA	8-98210-227-0	01	1	1205-1302	●
13	GEAR; 5TH,MAINSHAFT Z=22 IMA	8-98210-227-0	01	1	1303-	●
14	BEARING; NEEDLE,5TH NTN IMA	8-98172-356-0	01	1	1109-	●
14	BEARING; NEEDLE,5TH NSK IMA	8-97362-728-0	01	1	1109-		●
33	BEARING; NEEDLE,3RD GEAR NSK IMA	1-09811-028-1	01	1	1109-	●	●
34	SYNCHRONIZER; 4TH & 3RD THA	8-97104-027-0	01	1	1109-1401	●
34	SYNCHRONIZER; 4TH & 3RD IMA	8-97977-991-0	01	1	1402-	●
34	SYNCHRONIZER; 4TH & 3RD THA	8-97362-474-3	01	1	1109-		●
35	RING; BLOCK,4TH & 3RD Z=45 IMA	8-94151-510-3	02	1	1109-	●
36	GEAR; 3RD,MAINSHAFT Z=27 THA	8-97301-180-1	01	1	1109-1204	●
36	GEAR; 3RD,MAINSHAFT Z=27 THA	8-98210-230-0	01	1	1205-1302	●
36	GEAR; 3RD,MAINSHAFT Z=27 THA	8-98233-597-0	01	1	1303-	●
38	SYNCHRONIZER; LOW & 2ND THA	8-94363-059-1	01	1	1109-1401	●
38	SYNCHRONIZER; LOW & 2ND IMA	8-97977-989-0	01	1	1402-	●
38	SYNCHRONIZER; LOW & 2ND THA	8-97362-503-1	01	1	1109-		●
40	SPRING; INSERT,LOW & 2ND IMA	8-94448-045-0	02	1	1109-	●	●
49	BEARING; NEEDLE,2ND GEAR JTEKT IMA	9-00096-625-0	01	1	1109-	●
50	GEAR; 2ND,MAINSHAFT Z=34 THA	8-97301-183-1	01	1	1109-	●
51	RING; BLOCK,LOW & 2ND Z=36 IMA	8-98115-804-0	02	1	1109-	●	●
59	GEAR; REV MAINSHAFT Z=41 THA	8-97104-025-2	01	1	1109-1205	●
59	GEAR; REV MAINSHAFT Z=41 IMA	8-98210-228-0	01	1	1206-1302	●
59	GEAR; REV MAINSHAFT Z=41 IMA	8-98210-228-0	01	1	1303-	●
60	COLLAR; REV MAIN IMA	8-97031-079-0	01	1	1109-	●
61	SYNCHRONIZER; REV & 5TH IMA	8-97030-106-1	01	1	1109-	●
62	SPRING; INSERT,REV & 5TH IMA	5-33264-012-0	02	1	1109-	●
63	INSERT; SYN,REV & 5TH IMA	5-33263-001-0	03	1	1109-	●
65	NUT; MAINSHAFT M34 IMA	8-94422-071-1	01	1	1109-	●
70	GEAR; 1ST,MAINSHAFT Z=45 THA	8-97301-182-1	01	1	1109-	●
72	BEARING; BALL,MAINSHAFT NSK THA	8-94380-017-1	01	1	1109-	●
80	GEAR; SPD DRIVE 4X2<TFB***> Z=6 IMA	8-94472-608-1	01	1	1109-	●
80	GEAR; SPD DRIVE 4X2<TFB***> 4JJ1-TCX ENG<LS0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=7 IMA	8-98123-463-0	01	1	1109-		●
82	SHAFT; MAIN,TRANS 4X2<TFB***> Z=28-34-26-27 IMA	8-97300-981-0	01	1	1109-	●
82	SHAFT; MAIN,TRANS 4X4<TFS***> Z=28-34-26-27 IMA	8-97300-980-0	01	1	1109-	●
86	WASHER; THRUST,5TH T=7.90 WHITE IMA	8-94422-110-2	01	1	1109-	●
86	WASHER; THRUST,5TH T=8.00 YELLOW IMA	8-94422-111-2	01	1	1109-	●
86	WASHER; THRUST,5TH T=8.10 GREEN IMA	8-94422-112-2	01	1	1109-	●
86	WASHER; THRUST,5TH T=8.20 BLUE IMA	8-94422-113-2	01	1	1109-	●
87	BALL; THRUST WASHER IMA	8-94201-356-0	01	1	1109-	●
89	RING; RET,THRUST RING ID=31.8 IMA	8-94422-395-0	01	1	1109-	●
90	RING; SNAP,THRUST RING 4X2<TFB***> ID=29.6 IMA	9-09180-032-0	01	1	1109-	●
91	RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2 IMA	8-94322-411-0	01	1	1109-	●
93	RING; SNAP,COUNTER FRT BRG ID=23.2 IMA	9-09180-025-0	01	1	1109-	●
95	GEAR; REV,COUNTER Z=19 IMA	8-94377-433-0	01	1	1109-1302	●
95	GEAR; REV,COUNTER Z=19 IMA	8-94377-433-0	01	1	1303-	●
95	GEAR; REV,COUNTER Z=41 THA	8-97362-499-0	01	1	1109-1204		●
95	GEAR; REV,COUNTER Z=41 THA	8-98210-237-0	01	1	1205-		●
97	GEAR; 5TH,COUNTER Z=50 IMA	8-94377-434-0	01	1	1109-	●
97	GEAR; 5TH,COUNTER Z=27 THA	8-98040-114-0	01	1	1109-		●
98	BEARING; BALL,COUNTER END NSK IMA	8-97018-535-1	01	1	1109-	●
110	RING; SNAP,COUNTER BRG T=1.10 WHITE IMA	8-94422-103-0	01	1	1109-	●
110	RING; SNAP,COUNTER BRG T=1.20 YELLOW IMA	8-94422-104-0	01	1	1109-	●
110	RING; SNAP,COUNTER BRG T=1.30 BLUE IMA	8-94422-105-0	01	1	1109-	●
110	RING; SNAP,COUNTER BRG T=1.40 PINK IMA	8-94422-106-0	01	1	1109-	●
110	RING; SNAP,COUNTER BRG T=1.50 GREEN IMA	8-94422-107-0	01	1	1109-	●
110	RING; SNAP,COUNTER BRG T=1.60 BROWN IMA	8-94422-108-0	01	1	1109-	●
132	SHAFT; REV THA	8-97019-155-1	01	1	1109-1308	●
132	SHAFT; REV IMA	8-98245-493-0	01	1	1309-	●
132	SHAFT; REV THA	8-98023-113-0	01	1	1109-		●
135	GEAR; REV IDLER Z=33 THA	8-98146-727-1	01	1	1109-1302	●
135	GEAR; REV IDLER Z=33 THA	8-98233-606-0	01	1	1303-	●
135	GEAR; REV IDLER Z=32 THA	8-97362-513-1	01	1	1109-1302		●
135	GEAR; REV IDLER Z=32 THA	8-98233-615-0	01	1	1303-		●
149	BEARING; NEEDLE,MAINSHAFT,RR 4X2<TFB***> NSK THA	8-94173-863-0	01	1	1109-	●
189	RING; SNAP,REV,GEAR T=1.20 WHITE IMA	8-94422-100-0	01	1	1109-	●
189	RING; SNAP,REV,GEAR T=1.30 YELLOW IMA	8-94422-101-0	01	1	1109-	●
189	RING; SNAP,REV,GEAR T=1.40 BLUE IMA	8-94422-102-0	01	1	1109-	●
211	BEARING; THRUST NEEDLE,1ST GEAR NSK IMA	8-94148-935-0	01	1	1109-	●
219	BEARING; BALL,CLUSTER,RR NSK IMA	8-94436-929-0	01	1	1109-	●
226	WASHER; THRUST,REV GEAR,COUNTER ID=30.0 IMA	8-94223-069-1	01	1	1109-	●
238	INSERT (A) IMA	8-94448-202-2	03	1	1109-	●
238	INSERT (B) IMA	8-94249-576-2	03	1	1109-		●
238	INSERT (C) IMA	8-98004-522-0	06	1	1109-		●
246	BEARING; ROLLER,COUNTER SHAFT FRT NSK IMA	8-97029-600-4	01	1	1109-	●
292	RING; SNAP,BRG OUTER NSK IMA	8-94422-081-0	01	1	1109-	●
306	RING; SNAP,MAINSHAFT 4X2<TFB***> (B) ID=27.9 IMA	9-09180-030-0	02	1	1109-	●
306	RING; SNAP,MAINSHAFT (A) T=1.90 BLUE IMA	8-97129-615-0	01	1	1109-	●
306	RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW IMA	8-97129-616-0	01	1	1109-	●
306	RING; SNAP,MAINSHAFT (A) T=1.80 WHITE IMA	8-97129-617-0	01	1	1109-	●
306	RING; SNAP,MAINSHAFT 4X4<TFS***> (B) ID=27.9 IMA	9-09180-030-0	01	1	1109-	●
313	BEARING; NEEDLE,LOW GEAR NSK IMA	1-09811-028-1	01	1	1109-	●
314	BEARING; NEEDLE,REV GEAR NSK IMA	8-94422-064-0	01	1	1109-	●
314	BEARING; NEEDLE,REV GEAR JTEKT IMA	8-94422-065-1	01	1	1109-	●
314	BEARING; NEEDLE,REV GEAR NSK IMA	8-97362-719-0	01	1	1109-		●
386	PIN; REV SHAFT OD=6 L=40 IMA	9-08150-640-0	01	1	1109-	●
386	PIN; REV SHAFT OD=4 L=8 THA	9-08160-408-0	01	1	1109-		●
390	RING; SNAP,CLU HUB T=1.80 WHITE IMA	8-94422-088-2	01	1	1109-	●
390	RING; SNAP,CLU HUB T=1.85 YELLOW IMA	8-94422-089-1	01	1	1109-	●
390	RING; SNAP,CLU HUB T=1.90 BLUE IMA	8-94422-090-2	01	1	1109-	●
391	RING; INSIDE,SYN OD=95.8 IMA	8-94363-056-0	02	1	1109-	●
392	RING; OUTSIDE,SYN OD=90.0 IMA	8-98115-793-0	02	1	1109-	●
396	BEARING; NEEDLE,MAINSHAFT NSK IMA	8-98172-355-0	01	1	1109-	●
397	SPRING; INSERT,4TH & 3RD IMA	8-94422-075-0	02	1	1109-	●
398	GEAR; COUNTER Z=44-32-25-19 THA	8-97301-186-2	01	1	1109-	●
398	GEAR; COUNTER Z=23 IMA	8-98106-584-0	01	1	1109-		●
399	CLIP; SPEEDOMETER DRIVE GEAR 4X2<TFB***> IMA	8-94310-229-0	01	1	1109-	●
399	CLIP; SPEEDOMETER DRIVE GEAR 4X2<TFB***> 4JJ1-TCX ENG<LS0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-94310-229-0	01	1	1109-		●
404	PLATE; THRUST IMA	8-94421-892-0	02	1	1109-	●
405	INSERT; SYN,LOW & 2ND IMA	8-94363-062-1	03	1	1109-	●	●
421	RING; BLOCK,REV & 5TH Z=36 IMA	8-97071-688-0	02	1	1109-	●

91 60 72 314 59 61 421 65 421 13 404 14 404 86 306 87 394 89 499 34 35 397 397 36 82 33 49 392 50 391 396 35 1 70 313 211 391 392 51 38 405 40 40 51 62 62 63 219 95 97 98 110 386 132 135 226 189 398 246 292 93 5 4 3 390 238 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS 4JK1-TCS ENG<LKZ> Z=26 THA	8-97300-948-1	01	1	1109-1204	●
1	SHAFT; TOP GEAR,TRANS 4JK1-TCS ENG<LKZ> Z=26 IMA	8-98210-225-0	01	1	1205-1307	●
1	SHAFT; TOP GEAR,TRANS 4JK1-TCS ENG<LKZ> Z=26 IMA	8-98210-225-0	01	1	1308-	●
1	SHAFT; TOP GEAR,TRANS 4JK1-TCX ENG<LR0> Z=26 THA	8-98172-357-0	01	1	1109-1204	●
1	SHAFT; TOP GEAR,TRANS 4JK1-TCX ENG<LR0> Z=26 THA	8-98210-248-0	01	1	1205-1307	●
1	SHAFT; TOP GEAR,TRANS 4JK1-TCX ENG<LR0> Z=26 THA	8-98233-594-0	01	1	1308-	●
3	BEARING; TOP GEAR SHAFT NSK THA	8-97943-879-0	01	1	1109-	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT NSK IMA	8-94422-083-0	01	1	1109-	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.4 IMA	8-97254-316-0	01	1	1109-	●
13	GEAR; 5TH,MAINSHAFT Z=22 THA	8-97104-023-3	01	1	1109-1204	●
13	GEAR; 5TH,MAINSHAFT Z=22 IMA	8-98210-227-0	01	1	1205-1302	●
13	GEAR; 5TH,MAINSHAFT Z=22 IMA	8-98210-227-0	01	1	1303-	●
14	BEARING; NEEDLE,5TH NTN IMA	8-98172-356-0	01	1	1109-	●
14	BEARING; NEEDLE,5TH NSK IMA	8-97362-728-0	01	1	1109-		●
33	BEARING; NEEDLE,3RD GEAR NSK IMA	1-09811-028-1	01	1	1109-	●	●
34	SYNCHRONIZER; 4TH & 3RD THA	8-97104-027-0	01	1	1109-1401	●
34	SYNCHRONIZER; 4TH & 3RD IMA	8-97977-991-0	01	1	1402-	●
34	SYNCHRONIZER; 4TH & 3RD THA	8-97362-474-3	01	1	1109-		●
35	RING; BLOCK,4TH & 3RD Z=45 IMA	8-94151-510-3	02	1	1109-	●
36	GEAR; 3RD,MAINSHAFT Z=27 THA	8-97301-180-1	01	1	1109-1204	●
36	GEAR; 3RD,MAINSHAFT Z=27 THA	8-98210-230-0	01	1	1205-1302	●
36	GEAR; 3RD,MAINSHAFT Z=27 THA	8-98233-597-0	01	1	1303-	●
38	SYNCHRONIZER; LOW & 2ND THA	8-94363-059-1	01	1	1109-1401	●
38	SYNCHRONIZER; LOW & 2ND IMA	8-97977-989-0	01	1	1402-	●
38	SYNCHRONIZER; LOW & 2ND THA	8-97362-503-1	01	1	1109-		●
40	SPRING; INSERT,LOW & 2ND IMA	8-94448-045-0	02	1	1109-	●	●
49	BEARING; NEEDLE,2ND GEAR JTEKT IMA	9-00096-625-0	01	1	1109-	●
50	GEAR; 2ND,MAINSHAFT Z=34 THA	8-97301-183-1	01	1	1109-	●
51	RING; BLOCK,LOW & 2ND Z=36 IMA	8-98115-804-0	02	1	1109-	●	●
59	GEAR; REV MAINSHAFT Z=41 THA	8-97104-025-2	01	1	1109-1205	●
59	GEAR; REV MAINSHAFT Z=41 IMA	8-98210-228-0	01	1	1206-1302	●
59	GEAR; REV MAINSHAFT Z=41 IMA	8-98210-228-0	01	1	1303-	●
60	COLLAR; REV MAIN IMA	8-97031-079-0	01	1	1109-	●
61	SYNCHRONIZER; REV & 5TH IMA	8-97030-106-1	01	1	1109-	●
62	SPRING; INSERT,REV & 5TH IMA	5-33264-012-0	02	1	1109-	●
63	INSERT; SYN,REV & 5TH IMA	5-33263-001-0	03	1	1109-	●
65	NUT; MAINSHAFT M34 IMA	8-94422-071-1	01	1	1109-	●
70	GEAR; 1ST,MAINSHAFT Z=45 THA	8-97301-182-1	01	1	1109-	●
72	BEARING; BALL,MAINSHAFT NSK THA	8-94380-017-1	01	1	1109-	●
82	SHAFT; MAIN,TRANS 4X2<TFB***> Z=28-34-26-27 IMA	8-97300-981-0	01	1	1109-	●
82	SHAFT; MAIN,TRANS 4X4<TFS***> Z=28-34-26-27 IMA	8-97300-980-0	01	1	1109-	●
86	WASHER; THRUST,5TH T=7.90 WHITE IMA	8-94422-110-2	01	1	1109-	●
86	WASHER; THRUST,5TH T=8.00 YELLOW IMA	8-94422-111-2	01	1	1109-	●
86	WASHER; THRUST,5TH T=8.10 GREEN IMA	8-94422-112-2	01	1	1109-	●
86	WASHER; THRUST,5TH T=8.20 BLUE IMA	8-94422-113-2	01	1	1109-	●
87	BALL; THRUST WASHER IMA	8-94201-356-0	01	1	1109-	●
89	RING; RET,THRUST RING ID=31.8 IMA	8-94422-395-0	01	1	1109-	●
91	RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2 IMA	8-94322-411-0	01	1	1109-	●
93	RING; SNAP,COUNTER FRT BRG ID=23.2 IMA	9-09180-025-0	01	1	1109-	●
95	GEAR; REV,COUNTER Z=19 IMA	8-94377-433-0	01	1	1109-1302	●
95	GEAR; REV,COUNTER Z=19 IMA	8-94377-433-0	01	1	1303-	●
95	GEAR; REV,COUNTER Z=41 THA	8-97362-499-0	01	1	1109-1204		●
95	GEAR; REV,COUNTER Z=41 THA	8-98210-237-0	01	1	1205-		●
97	GEAR; 5TH,COUNTER Z=50 IMA	8-94377-434-0	01	1	1109-	●
97	GEAR; 5TH,COUNTER Z=27 THA	8-98040-114-0	01	1	1109-		●
98	BEARING; BALL,COUNTER END NSK IMA	8-97018-535-1	01	1	1109-	●
110	RING; SNAP,COUNTER BRG T=1.10 WHITE IMA	8-94422-103-0	01	1	1109-	●
110	RING; SNAP,COUNTER BRG T=1.20 YELLOW IMA	8-94422-104-0	01	1	1109-	●
110	RING; SNAP,COUNTER BRG T=1.30 BLUE IMA	8-94422-105-0	01	1	1109-	●
110	RING; SNAP,COUNTER BRG T=1.40 PINK IMA	8-94422-106-0	01	1	1109-	●
110	RING; SNAP,COUNTER BRG T=1.50 GREEN IMA	8-94422-107-0	01	1	1109-	●
110	RING; SNAP,COUNTER BRG T=1.60 BROWN IMA	8-94422-108-0	01	1	1109-	●
132	SHAFT; REV THA	8-97019-155-1	01	1	1109-1308	●
132	SHAFT; REV IMA	8-98245-493-0	01	1	1309-	●
132	SHAFT; REV THA	8-98023-113-0	01	1	1109-		●
135	GEAR; REV IDLER Z=33 THA	8-98146-727-1	01	1	1109-1302	●
135	GEAR; REV IDLER Z=33 THA	8-98233-606-0	01	1	1303-	●
135	GEAR; REV IDLER Z=32 THA	8-97362-513-1	01	1	1109-1302		●
135	GEAR; REV IDLER Z=32 THA	8-98233-615-0	01	1	1303-		●
189	RING; SNAP,REV,GEAR T=1.20 WHITE IMA	8-94422-100-0	01	1	1109-	●
189	RING; SNAP,REV,GEAR T=1.30 YELLOW IMA	8-94422-101-0	01	1	1109-	●
189	RING; SNAP,REV,GEAR T=1.40 BLUE IMA	8-94422-102-0	01	1	1109-	●
211	BEARING; THRUST NEEDLE,1ST GEAR NSK IMA	8-94148-935-0	01	1	1109-	●
219	BEARING; BALL,CLUSTER,RR NSK IMA	8-94436-929-0	01	1	1109-	●
226	WASHER; THRUST,REV GEAR,COUNTER ID=30.0 IMA	8-94223-069-1	01	1	1109-	●
238	INSERT (A) IMA	8-94448-202-2	03	1	1109-	●
238	INSERT (B) IMA	8-94249-576-2	03	1	1109-		●
238	INSERT (C) IMA	8-98004-522-0	06	1	1109-		●
246	BEARING; ROLLER,COUNTER SHAFT FRT NSK IMA	8-97029-600-4	01	1	1109-	●
292	RING; SNAP,BRG OUTER NSK IMA	8-94422-081-0	01	1	1109-	●
306	RING; SNAP,MAINSHAFT 4X2<TFB***> (B) ID=27.9 IMA	9-09180-030-0	02	1	1109-	●
306	RING; SNAP,MAINSHAFT (A) T=1.90 BLUE IMA	8-97129-615-0	01	1	1109-	●
306	RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW IMA	8-97129-616-0	01	1	1109-	●
306	RING; SNAP,MAINSHAFT (A) T=1.80 WHITE IMA	8-97129-617-0	01	1	1109-	●
306	RING; SNAP,MAINSHAFT 4X4<TFS***> (B) ID=27.9 IMA	9-09180-030-0	01	1	1109-	●
313	BEARING; NEEDLE,LOW GEAR NSK IMA	1-09811-028-1	01	1	1109-	●
314	BEARING; NEEDLE,REV GEAR NSK IMA	8-94422-064-0	01	1	1109-	●
314	BEARING; NEEDLE,REV GEAR JTEKT IMA	8-94422-065-1	01	1	1109-	●
314	BEARING; NEEDLE,REV GEAR NSK IMA	8-97362-719-0	01	1	1109-		●
386	PIN; REV SHAFT OD=6 L=40 IMA	9-08150-640-0	01	1	1109-	●
386	PIN; REV SHAFT OD=4 L=8 THA	9-08160-408-0	01	1	1109-		●
390	RING; SNAP,CLU HUB T=1.80 WHITE IMA	8-94422-088-2	01	1	1109-	●
390	RING; SNAP,CLU HUB T=1.85 YELLOW IMA	8-94422-089-1	01	1	1109-	●
390	RING; SNAP,CLU HUB T=1.90 BLUE IMA	8-94422-090-2	01	1	1109-	●
391	RING; INSIDE,SYN OD=95.8 IMA	8-94363-056-0	02	1	1109-	●
392	RING; OUTSIDE,SYN OD=90.0 IMA	8-98115-793-0	02	1	1109-	●
394	BEARING; BALL,MAINSHAFT RR 4X4<TFS***> NSK IMA	8-97018-921-1	01	1	1109-	●
396	BEARING; NEEDLE,MAINSHAFT NSK IMA	8-98172-355-0	01	1	1109-	●
397	SPRING; INSERT,4TH & 3RD IMA	8-94422-075-0	02	1	1109-	●
398	GEAR; COUNTER Z=44-32-25-19 THA	8-97301-186-2	01	1	1109-	●
398	GEAR; COUNTER Z=23 IMA	8-98106-584-0	01	1	1109-		●
404	PLATE; THRUST IMA	8-94421-892-0	02	1	1109-	●
405	INSERT; SYN,LOW & 2ND IMA	8-94363-062-1	03	1	1109-	●	●
421	RING; BLOCK,REV & 5TH Z=36 IMA	8-97071-688-0	02	1	1109-	●
499	COLLAR; OIL SEAL 4X4<TFS***> IMA	8-97300-954-0	01	1	1109-	●

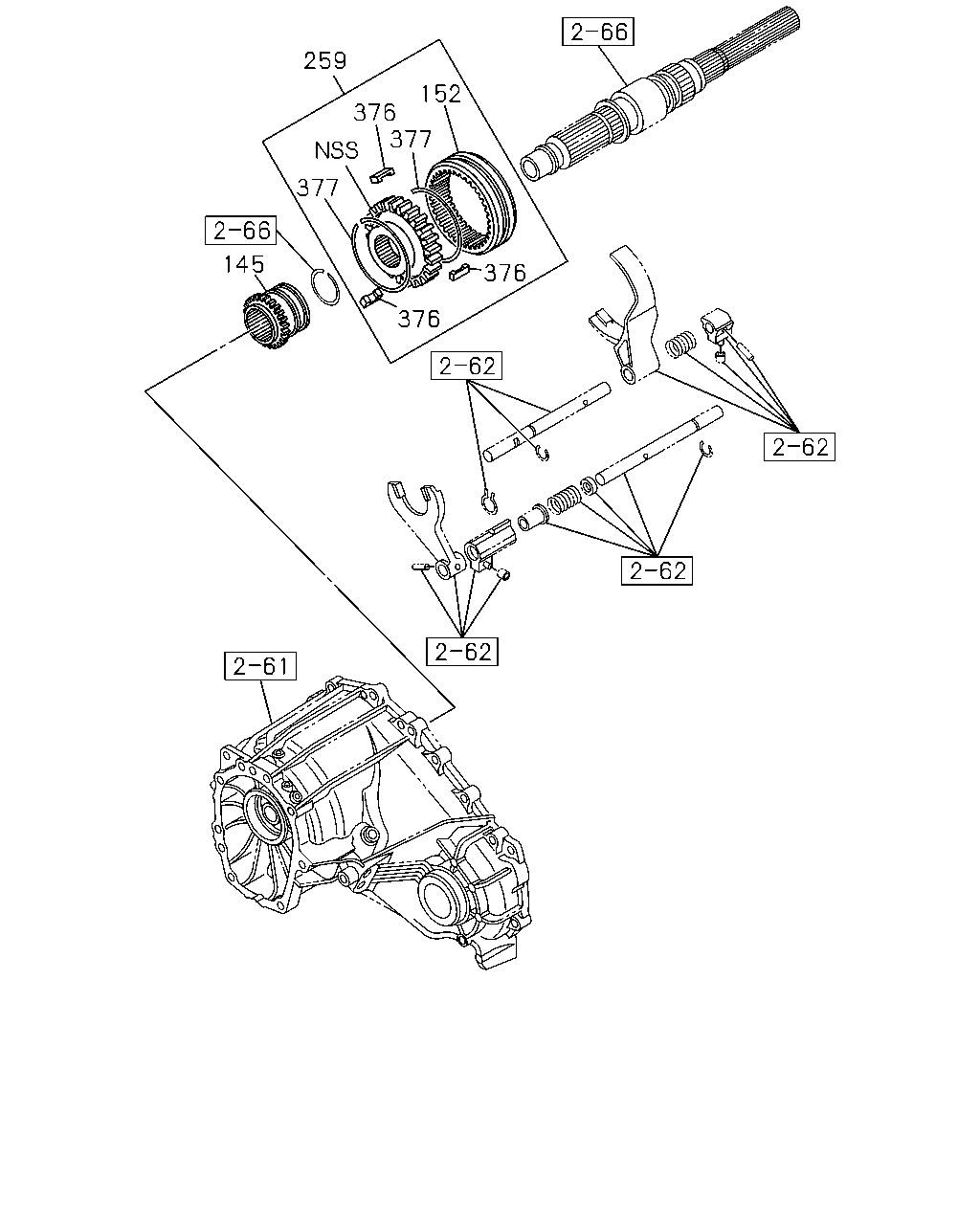

259 377 377 376 152 376 376 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
145	SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4<TFS***> IMA	8-98063-369-1	01	1	1109-1109	●	●
145	SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4<TFS***> IMA	8-98063-369-1	01	1	1110-	●	●	●
152	SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4<TFS***> IMA	8-94363-060-0	01	1	1109-1109	●	●
152	SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4<TFS***> IMA	8-94363-060-0	01	1	1110-	●	●	●
259	SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4<TFS***> IMA	8-97234-225-0	01	1	1109-1109	●	●
259	SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4<TFS***> IMA	8-97234-225-0	01	1	1110-	●	●	●
376	INSERT; 4X2-4X4 SYN,TRANSFER 4X4<TFS***> IMA	8-97238-590-0	03	1	1109-1109	●	●
376	INSERT; 4X2-4X4 SYN,TRANSFER 4X4<TFS***> IMA	8-97238-590-0	03	1	1110-	●	●	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER 4X4<TFS***> IMA	8-94448-045-0	02	1	1109-1109	●	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER 4X4<TFS***> IMA	8-94448-045-0	02	1	1110-	●	●	●

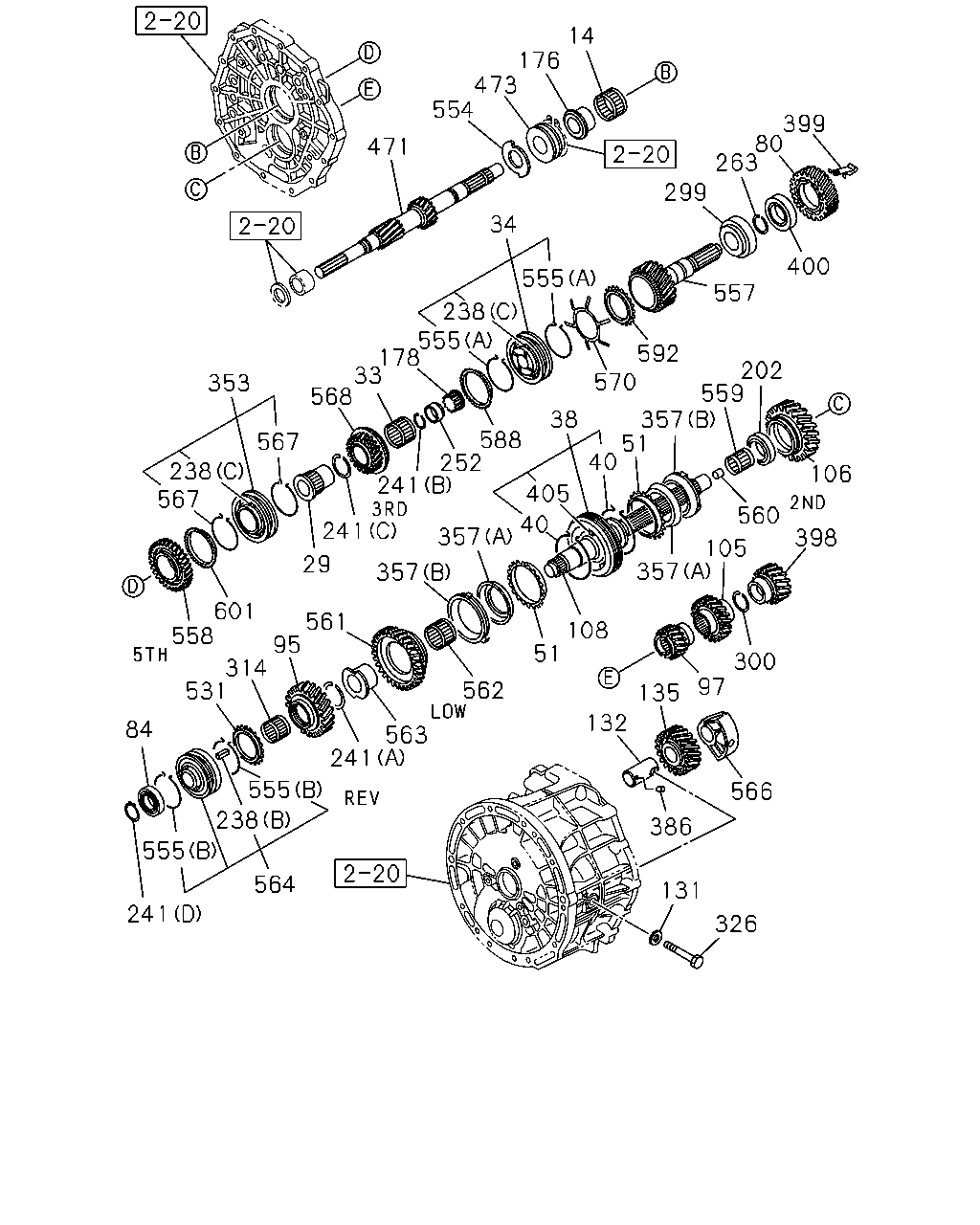

471 554 473 176 14 299 263 80 399 34 353 567 567 568 33 178 400 557 592 570 38 588 252 29 601 558 84 314 531 561 95 40 405 40 51 559 202 106 105 108 51 562 563 564 131 326 386 566 132 300 135 398 97 560 357 357 241 241 357 357 241 555 238 555 241 238 555 238 555

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	BEARING; NEEDLE,5TH NTN IMA	8-98172-356-0	01	1	1109-	●
14	BEARING; NEEDLE,5TH NSK IMA	8-97362-728-0	01	1	1109-		●
29	COLLAR; 3RD GEAR IMA	8-97362-568-1	01	1	1109-		●
33	BEARING; NEEDLE,3RD GEAR NSK IMA	1-09811-028-1	01	1	1109-	●	●
34	SYNCHRONIZER; 4TH & 3RD THA	8-97104-027-0	01	1	1109-1401	●
34	SYNCHRONIZER; 4TH & 3RD IMA	8-97977-991-0	01	1	1402-	●
34	SYNCHRONIZER; 4TH & 3RD THA	8-97362-474-3	01	1	1109-		●
38	SYNCHRONIZER; LOW & 2ND THA	8-94363-059-1	01	1	1109-1401	●
38	SYNCHRONIZER; LOW & 2ND IMA	8-97977-989-0	01	1	1402-	●
38	SYNCHRONIZER; LOW & 2ND THA	8-97362-503-1	01	1	1109-		●
40	SPRING; INSERT,LOW & 2ND IMA	8-94448-045-0	02	1	1109-	●	●
51	RING; BLOCK,LOW & 2ND Z=36 IMA	8-98115-804-0	02	1	1109-	●	●
80	GEAR; SPD DRIVE 4X2<TFB***> Z=6 IMA	8-94472-608-1	01	1	1109-	●
80	GEAR; SPD DRIVE 4X2<TFB***> 4JJ1-TCX ENG<LS0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=7 IMA	8-98123-463-0	01	1	1109-		●
84	BEARING; COUNTER SHAFT,FRT IMA	8-97362-724-0	01	1	1109-		●
95	GEAR; REV,COUNTER Z=19 IMA	8-94377-433-0	01	1	1109-1302	●
95	GEAR; REV,COUNTER Z=19 IMA	8-94377-433-0	01	1	1303-	●
95	GEAR; REV,COUNTER Z=41 THA	8-97362-499-0	01	1	1109-1204		●
95	GEAR; REV,COUNTER Z=41 THA	8-98210-237-0	01	1	1205-		●
97	GEAR; 5TH,COUNTER Z=50 IMA	8-94377-434-0	01	1	1109-	●
97	GEAR; 5TH,COUNTER Z=27 THA	8-98040-114-0	01	1	1109-		●
105	GEAR; 3RD,COUNTER Z=31 THA	8-98023-109-0	01	1	1109-1302		●
105	GEAR; 3RD,COUNTER Z=31 THA	8-98233-612-0	01	1	1303-		●
106	GEAR; 2ND,COUNTER Z=38 THA	8-97362-505-0	01	1	1109-1204		●
106	GEAR; 2ND,COUNTER Z=38 THA	8-98210-236-0	01	1	1205-		●
108	SHAFT; COUNTER Z=26-34-26-26 THA	8-98023-108-1	01	1	1109-		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=12.2 IMA	9-09571-412-0	01	1	1109-		●
132	SHAFT; REV THA	8-97019-155-1	01	1	1109-1308	●
132	SHAFT; REV IMA	8-98245-493-0	01	1	1309-	●
132	SHAFT; REV THA	8-98023-113-0	01	1	1109-		●
135	GEAR; REV IDLER Z=33 THA	8-98146-727-1	01	1	1109-1302	●
135	GEAR; REV IDLER Z=33 THA	8-98233-606-0	01	1	1303-	●
135	GEAR; REV IDLER Z=32 THA	8-97362-513-1	01	1	1109-1302		●
135	GEAR; REV IDLER Z=32 THA	8-98233-615-0	01	1	1303-		●
176	COLLAR; 5TH GEAR THA	8-97362-567-0	01	1	1109-		●
178	BEARING; NEEDLE,MAINSHAFT IMA	8-97362-869-0	01	1	1109-		●
202	BEARING; COUNTER GEAR IMA	8-97362-725-0	01	1	1109-		●
238	INSERT (A) IMA	8-94448-202-2	03	1	1109-	●
238	INSERT (B) IMA	8-94249-576-2	03	1	1109-		●
238	INSERT (C) IMA	8-98004-522-0	06	1	1109-		●
241	RING; SNAP (A) ID=34.4 T=1.9 IMA	8-97254-735-0	01	1	1109-		●
241	RING; SNAP (B) ID=27.1 T=1.9 IMA	8-97362-871-0	01	1	1109-		●
241	RING; SNAP (B) ID=27.1 T=2.1 IMA	8-97362-872-0	01	1	1109-		●
241	RING; SNAP (B) ID=27.1 T=2.3 IMA	8-97362-873-0	01	1	1109-		●
241	RING; SNAP (C) ID=37 T=1.95 IMA	8-98004-523-1	01	1	1109-		●
241	RING; SNAP (C) ID=37 T=2.1 IMA	8-98004-524-1	01	1	1109-		●
241	RING; SNAP (D) ID=27.9 IMA	9-09180-030-0	01	1	1109-		●
252	SPACER IMA	8-98024-456-0	01	1	1109-		●
263	RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.1 IMA	8-98004-525-0	01	1	1109-		●
263	RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.2 IMA	8-98004-526-0	01	1	1109-		●
263	RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.3 IMA	8-98004-527-0	01	1	1109-		●
263	RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.4 IMA	8-98004-528-0	01	1	1109-		●
263	RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.5 IMA	8-98004-529-0	01	1	1109-		●
263	RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.6 IMA	8-98004-530-0	01	1	1109-		●
299	BEARING; OUTPUT SHAFT FRT IMA	8-97362-722-0	01	1	1109-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=29 T=2.3 IMA	8-98024-222-1	01	1	1109-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=29 T=2.5 IMA	8-98024-223-1	01	1	1109-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=29 T=2.7 IMA	8-98024-224-1	01	1	1109-		●
314	BEARING; NEEDLE,REV GEAR NSK IMA	8-94422-064-0	01	1	1109-	●
314	BEARING; NEEDLE,REV GEAR JTEKT IMA	8-94422-065-1	01	1	1109-	●
314	BEARING; NEEDLE,REV GEAR NSK IMA	8-97362-719-0	01	1	1109-		●
326	BOLT; REV SHAFT M12X70 IMA	9-92621-270-0	01	1	1109-		●
353	SYNCHRONIZER; 5TH THA	8-98004-511-1	01	1	1109-		●
357	RING (B) OD=95.8 IMA	8-94363-056-0	02	1	1109-		●
357	RING (A) OD=90.0 IMA	8-98115-793-0	02	1	1109-		●
386	PIN; REV SHAFT OD=6 L=40 IMA	9-08150-640-0	01	1	1109-	●
386	PIN; REV SHAFT OD=4 L=8 THA	9-08160-408-0	01	1	1109-		●
398	GEAR; COUNTER Z=44-32-25-19 THA	8-97301-186-2	01	1	1109-	●
398	GEAR; COUNTER Z=23 IMA	8-98106-584-0	01	1	1109-		●
399	CLIP; SPEEDOMETER DRIVE GEAR 4X2<TFB***> IMA	8-94310-229-0	01	1	1109-	●
399	CLIP; SPEEDOMETER DRIVE GEAR 4X2<TFB***> 4JJ1-TCX ENG<LS0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-94310-229-0	01	1	1109-		●
400	BEARING; OUTPUT SHAFT RR IMA	8-97362-723-0	01	1	1109-		●
405	INSERT; SYN,LOW & 2ND IMA	8-94363-062-1	03	1	1109-	●	●
471	SHAFT; INPUT Z=24-14-20-27 IMA	8-98106-034-0	01	1	1109-		●
473	BEARING; INPUT SHAFT IMA	8-97362-721-1	01	1	1109-		●
531	RING; BLOCK,REV OD=74 IMA	8-98037-846-0	01	1	1109-		●
554	IMPELLER; OIL IMA	8-97362-730-0	01	1	1109-		●
555	SPRING; INSERT (A) IMA	5-33264-012-0	02	1	1109-		●
555	SPRING; INSERT (B) IMA	8-97109-690-0	02	1	1109-		●
557	GEAR; OUTPUT 4X2<TFB***> Z=31-27 THA	8-98106-582-2	01	1	1109-1204		●
557	GEAR; OUTPUT 4X2<TFB***> Z=31-27 IMA	8-98210-238-0	01	1	1205-		●
557	GEAR; OUTPUT 4X4<TFS***> Z=31-27 THA	8-98106-583-2	01	1	1109-1204		●
557	GEAR; OUTPUT 4X4<TFS***> Z=31-27 IMA	8-98210-239-0	01	1	1205-		●
558	GEAR; 5TH,INPUT SHAFT Z=46 THA	8-98040-112-0	01	1	1109-1205		●
558	GEAR; 5TH,INPUT SHAFT Z=46 THA	8-98210-234-0	01	1	1206-1302		●
558	GEAR; 5TH,INPUT SHAFT Z=46 THA	8-98233-610-0	01	1	1303-		●
559	BEARING; NEEDLE,LOW & 2ND IMA	8-97362-727-0	01	1	1109-		●
560	RING; DUM IMA	8-97078-729-1	01	1	1109-		●
561	GEAR; LOW,COUNTER Z=45 THA	8-97362-501-0	01	1	1109-1204		●
561	GEAR; LOW,COUNTER Z=45 THA	8-98210-235-0	01	1	1205-		●
562	BEARING; NEEDLE,LOW & 2ND IMA	8-97362-727-0	01	1	1109-		●
563	COLLAR; 1ST GEAR THA	8-97362-569-1	01	1	1109-		●
564	SYNCHRONIZER; REV THA	8-97362-496-1	01	1	1109-		●
566	BRACKET; REV IDLER THA	8-97362-516-0	01	1	1109-		●
567	SPRING; INSERT,5TH IMA	5-33264-012-0	02	1	1109-		●
568	GEAR; 3RD,INPUT SHAFT Z=28 THA	8-97362-480-0	01	1	1109-1205		●
568	GEAR; 3RD,INPUT SHAFT Z=28 THA	8-98210-233-0	01	1	1206-1302		●
568	GEAR; 3RD,INPUT SHAFT Z=28 THA	8-98233-608-0	01	1	1303-		●
570	SPRING; PLATE IMA	8-98072-467-2	01	1	1109-		●
588	RING; BLOCK,3RD Z=36 IMA	8-98052-559-0	01	1	1109-		●
592	RING; BLOCK,4TH IMA	8-98197-460-0	01	1	1109-		●
601	RING; BLOCK,5TH IMA	8-98283-241-0	01	1	1109-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
