2-25 — SPEEDOMETER DRIVEN GEAR (#81681) — 101 parça

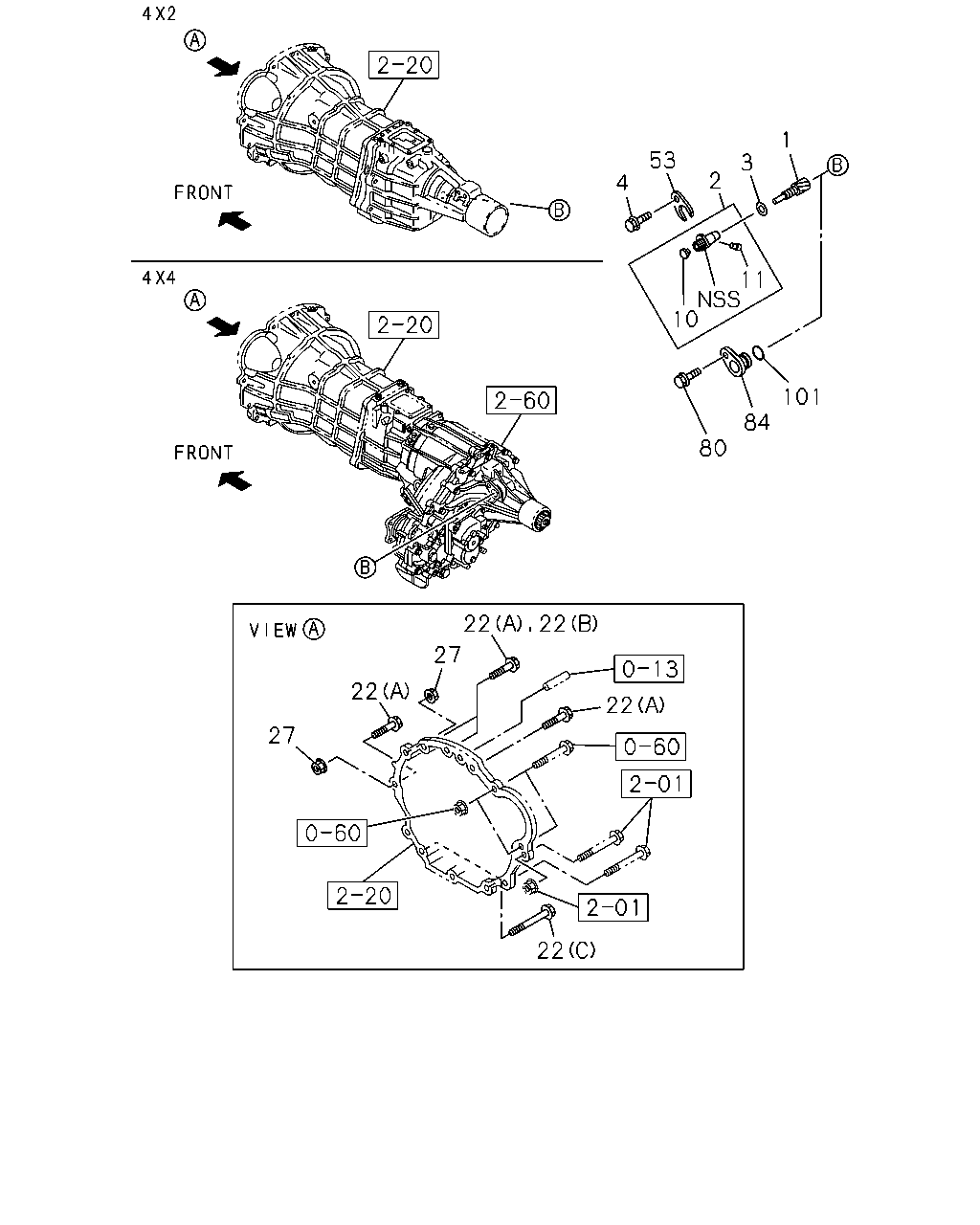

84 101 80 10 53 4 2 3 1 27 27 22 22 22 22 22 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GEAR; DRIVEN,SPD 4X2<TFB***> 4JJ1-TCX ENG<LS0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=18 IMA	8-98123-464-0	01	1	1109-1211	●
1	GEAR; DRIVEN,SPD 4X2 EXTENDED CAB<TFB5CF> 4X2 CREW CAB<TFB5WF> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=18 IMA	8-98123-464-0	01	1	1212-	●
1	GEAR; DRIVEN,SPD 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17 IMA	8-97012-085-2	01	1	1109-		●
1	GEAR; DRIVEN,SPD 4X4<TFS***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17 IMA	8-97238-583-0	01	1	1109-1109	●	●
1	GEAR; DRIVEN,SPD 4X4<TFS***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17 IMA	8-97238-583-0	01	1	1110-	●	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-97021-133-4	01	1	1109-	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4<TFS***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-97305-454-1	01	1	1109-1109	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4<TFS***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-97305-454-1	01	1	1110-	●	●	●
3	GASKET; BUSHING EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	1109-1109	●	●
3	GASKET; BUSHING EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	1110-	●	●
3	GASKET; BUSHING 4X4<TFS***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	1110-			●
4	BOLT; RET,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28050-820-0	01	1	1109-	●	●
4	BOLT; RET,DRIVEN GEAR 4X4<TFS***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28050-820-0	01	1	1109-			●
10	SEAL; OIL,DRIVE GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK IMA	8-97131-328-1	01	1	1109-1109	●	●
10	SEAL; OIL,DRIVE GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK IMA	8-97131-328-1	01	1	1110-	●	●
10	SEAL; OIL,DRIVE GEAR 4X4<TFS***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK IMA	8-97131-328-1	01	1	1110-			●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-94446-571-1	01	1	1109-1109	●	●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-94446-571-1	01	1	1110-	●	●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA 4X4<TFS***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-94446-571-1	01	1	1110-			●
22	BOLT; TRANS CASE TO ENG (A) M10X40 FLANGE THA	0-28051-040-0	04	1	1109-		●
22	BOLT; TRANS CASE TO ENG (C) M10X60 FLANGE THA	0-28051-060-0	02	1	1109-		●
22	BOLT; TRANS CASE TO ENG (B) M12X40 FLANGE THA	0-28051-240-0	01	1	1109-		●
22	BOLT; TRANS CASE TO ENG (D) M12X50 FLANGE THA	0-28051-250-0	08	1	1109-	●		●
27	NUT; CLU HSG TO TRANS M10 FLANGE THA	0-91180-110-0	02	1	1109-		●
27	NUT; CLU HSG TO TRANS M12 FLANGE THA	0-91180-112-0	02	1	1109-	●		●
53	PLATE; LOCK,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-98035-572-0	01	1	1109-	●	●
53	PLATE; LOCK,DRIVEN GEAR 4X4<TFS***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-98035-572-0	01	1	1109-			●
80	BOLT; SPD SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28050-820-0	01	1	1109-		●
80	BOLT; SPD SENSOR 4X4<TFS***> 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28050-820-0	01	1	1109-	●		●
84	CAP; BUSH,SPEEDOMETER GEAR 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98103-318-0	01	1	1109-		●
84	CAP; BUSH,SPEEDOMETER GEAR 4X4<TFS***> 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98103-318-0	01	1	1109-	●		●
101	GASKET; CAP 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	1109-		●
101	GASKET; CAP 4X4<TFS***> 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	1109-	●		●

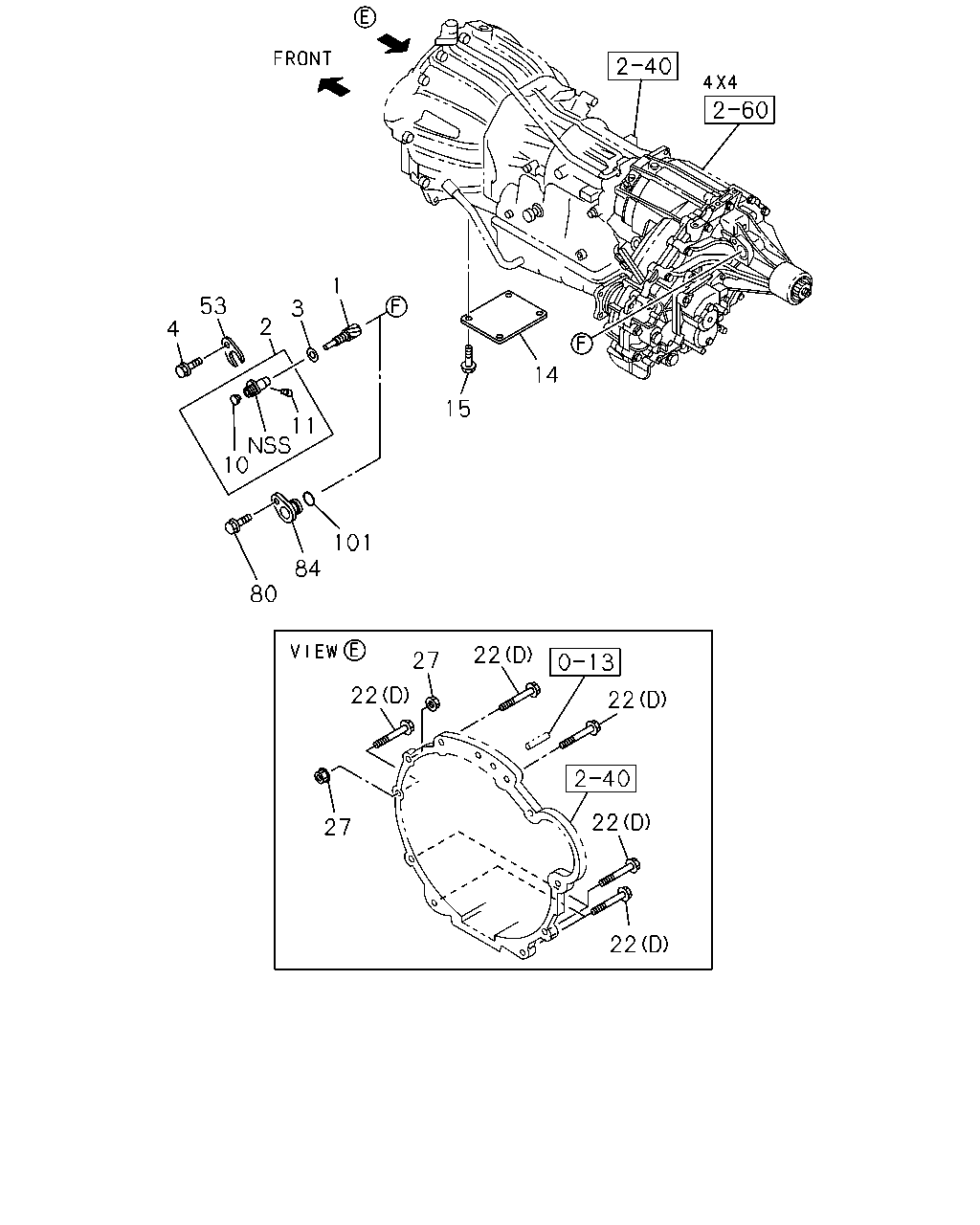

1 3 2 53 4 10 11 4 53 2 10 11 3 1 101 84 80 27 22 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GEAR; DRIVEN,SPD 4X2<TFB***> 4JJ1-TCX ENG<LS0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=18 IMA	8-98123-464-0	01	1	1109-1211	●
1	GEAR; DRIVEN,SPD 4X2 EXTENDED CAB<TFB5CF> 4X2 CREW CAB<TFB5WF> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=18 IMA	8-98123-464-0	01	1	1212-	●
1	GEAR; DRIVEN,SPD 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17 IMA	8-97012-085-2	01	1	1109-		●
1	GEAR; DRIVEN,SPD 4X4<TFS***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17 IMA	8-97238-583-0	01	1	1109-1109	●	●
1	GEAR; DRIVEN,SPD 4X4<TFS***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17 IMA	8-97238-583-0	01	1	1110-	●	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-97021-133-4	01	1	1109-	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4<TFS***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-97305-454-1	01	1	1109-1109	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4<TFS***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-97305-454-1	01	1	1110-	●	●	●
3	GASKET; BUSHING EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	1109-1109	●	●
3	GASKET; BUSHING EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	1110-	●	●
3	GASKET; BUSHING 4X4<TFS***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	1110-			●
4	BOLT; RET,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28050-820-0	01	1	1109-	●	●
4	BOLT; RET,DRIVEN GEAR 4X4<TFS***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28050-820-0	01	1	1109-			●
10	SEAL; OIL,DRIVE GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK IMA	8-97131-328-1	01	1	1109-1109	●	●
10	SEAL; OIL,DRIVE GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK IMA	8-97131-328-1	01	1	1110-	●	●
10	SEAL; OIL,DRIVE GEAR 4X4<TFS***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK IMA	8-97131-328-1	01	1	1110-			●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-94446-571-1	01	1	1109-1109	●	●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-94446-571-1	01	1	1110-	●	●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA 4X4<TFS***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-94446-571-1	01	1	1110-			●
22	BOLT; TRANS CASE TO ENG (A) M10X40 FLANGE THA	0-28051-040-0	04	1	1109-		●
22	BOLT; TRANS CASE TO ENG (C) M10X60 FLANGE THA	0-28051-060-0	02	1	1109-		●
22	BOLT; TRANS CASE TO ENG (B) M12X40 FLANGE THA	0-28051-240-0	01	1	1109-		●
22	BOLT; TRANS CASE TO ENG (D) M12X50 FLANGE THA	0-28051-250-0	08	1	1109-	●		●
27	NUT; CLU HSG TO TRANS M10 FLANGE THA	0-91180-110-0	02	1	1109-		●
27	NUT; CLU HSG TO TRANS M12 FLANGE THA	0-91180-112-0	02	1	1109-	●		●
53	PLATE; LOCK,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-98035-572-0	01	1	1109-	●	●
53	PLATE; LOCK,DRIVEN GEAR 4X4<TFS***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-98035-572-0	01	1	1109-			●
80	BOLT; SPD SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28050-820-0	01	1	1109-		●
80	BOLT; SPD SENSOR 4X4<TFS***> 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28050-820-0	01	1	1109-	●		●
84	CAP; BUSH,SPEEDOMETER GEAR 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98103-318-0	01	1	1109-		●
84	CAP; BUSH,SPEEDOMETER GEAR 4X4<TFS***> 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98103-318-0	01	1	1109-	●		●
101	GASKET; CAP 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	1109-		●
101	GASKET; CAP 4X4<TFS***> 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	1109-	●		●

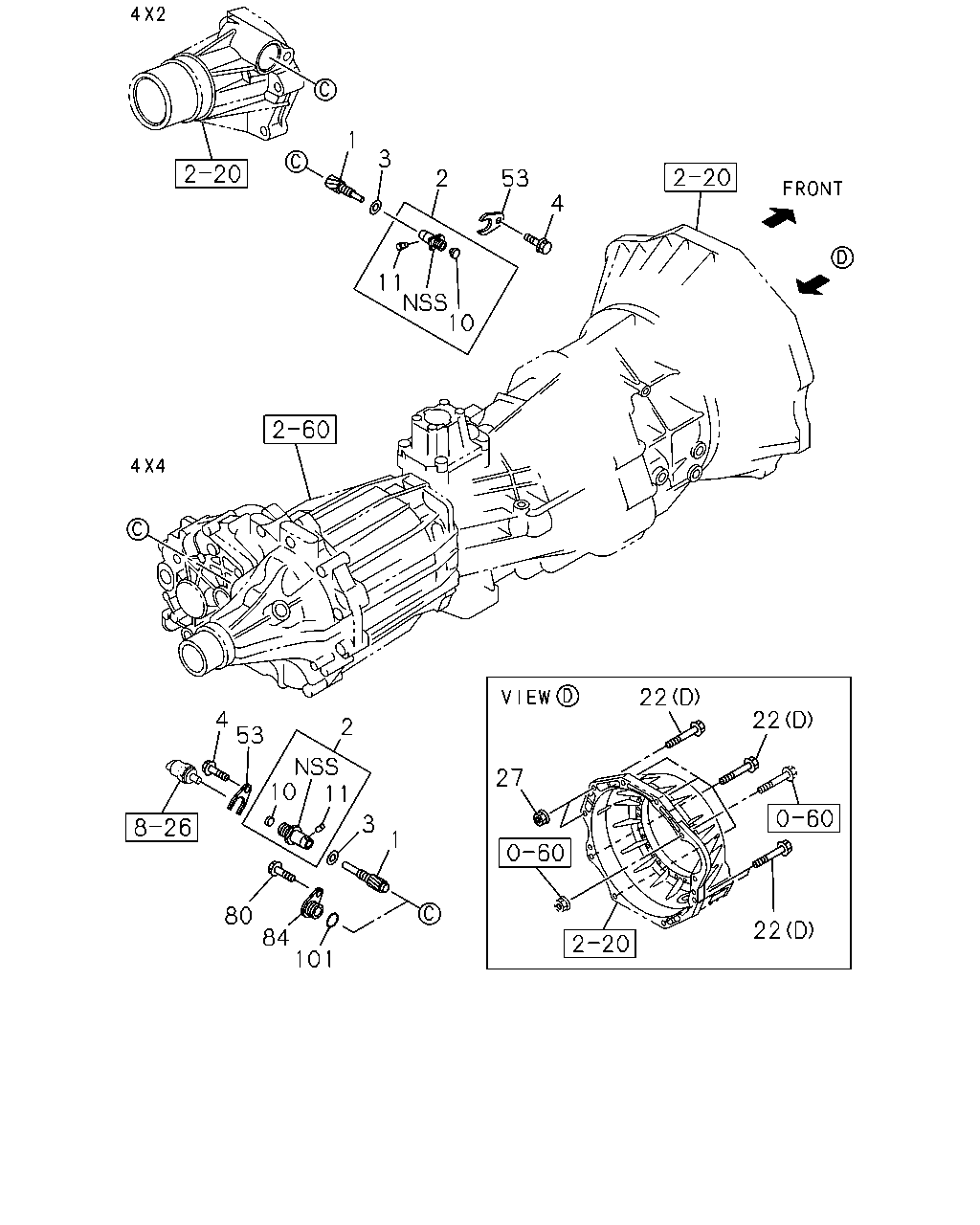

14 15 1 3 2 53 4 11 10 101 84 80 22 27 27 22 22 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GEAR; DRIVEN,SPD 4X2<TFB***> 4JJ1-TCX ENG<LS0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=18 IMA	8-98123-464-0	01	1	1109-1211	●
1	GEAR; DRIVEN,SPD 4X2 EXTENDED CAB<TFB5CF> 4X2 CREW CAB<TFB5WF> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=18 IMA	8-98123-464-0	01	1	1212-	●
1	GEAR; DRIVEN,SPD 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17 IMA	8-97012-085-2	01	1	1109-		●
1	GEAR; DRIVEN,SPD 4X4<TFS***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17 IMA	8-97238-583-0	01	1	1109-1109	●	●
1	GEAR; DRIVEN,SPD 4X4<TFS***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17 IMA	8-97238-583-0	01	1	1110-	●	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-97021-133-4	01	1	1109-	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4<TFS***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-97305-454-1	01	1	1109-1109	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4<TFS***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-97305-454-1	01	1	1110-	●	●	●
3	GASKET; BUSHING EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	1109-1109	●	●
3	GASKET; BUSHING EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	1110-	●	●
3	GASKET; BUSHING 4X4<TFS***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	1110-			●
4	BOLT; RET,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28050-820-0	01	1	1109-	●	●
4	BOLT; RET,DRIVEN GEAR 4X4<TFS***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28050-820-0	01	1	1109-			●
10	SEAL; OIL,DRIVE GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK IMA	8-97131-328-1	01	1	1109-1109	●	●
10	SEAL; OIL,DRIVE GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK IMA	8-97131-328-1	01	1	1110-	●	●
10	SEAL; OIL,DRIVE GEAR 4X4<TFS***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK IMA	8-97131-328-1	01	1	1110-			●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-94446-571-1	01	1	1109-1109	●	●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-94446-571-1	01	1	1110-	●	●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA 4X4<TFS***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-94446-571-1	01	1	1110-			●
14	COVER; UNDER,TRANS THA	8-98049-857-0	01	1	1109-			●
15	BOLT; UNDER COVER TO TRANS M6X16 FLANGE THA	0-28650-616-0	04	1	1109-			●
22	BOLT; TRANS CASE TO ENG (A) M10X40 FLANGE THA	0-28051-040-0	04	1	1109-		●
22	BOLT; TRANS CASE TO ENG (C) M10X60 FLANGE THA	0-28051-060-0	02	1	1109-		●
22	BOLT; TRANS CASE TO ENG (B) M12X40 FLANGE THA	0-28051-240-0	01	1	1109-		●
22	BOLT; TRANS CASE TO ENG (D) M12X50 FLANGE THA	0-28051-250-0	08	1	1109-	●		●
27	NUT; CLU HSG TO TRANS M10 FLANGE THA	0-91180-110-0	02	1	1109-		●
27	NUT; CLU HSG TO TRANS M12 FLANGE THA	0-91180-112-0	02	1	1109-	●		●
53	PLATE; LOCK,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-98035-572-0	01	1	1109-	●	●
53	PLATE; LOCK,DRIVEN GEAR 4X4<TFS***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-98035-572-0	01	1	1109-			●
80	BOLT; SPD SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28050-820-0	01	1	1109-		●
80	BOLT; SPD SENSOR 4X4<TFS***> 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28050-820-0	01	1	1109-	●		●
84	CAP; BUSH,SPEEDOMETER GEAR 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98103-318-0	01	1	1109-		●
84	CAP; BUSH,SPEEDOMETER GEAR 4X4<TFS***> 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98103-318-0	01	1	1109-	●		●
101	GASKET; CAP 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	1109-		●
101	GASKET; CAP 4X4<TFS***> 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	1109-	●		●
