2-20 — MANUAL TRANSMISSION ASM AND CASE (#81680) — 345 parça

114 608 679 608 675 675 678 603 676 677 675 675 510 682 316 315 86 90 86 421 50 419 1 430 680 45 417 674 608 679 679 608 435 28 434 315 13 34 29 680 33 326 680 114 421

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> 4JK1-TCS ENG<LKZ> THA	8-98150-180-0	01	1	1109-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JK1-TCS ENG<LKZ> THA	8-98150-178-0	01	1	1109-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JK1-TCX ENG<LR0> THA	8-98172-462-0	01	1	1109-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98087-608-0	01	1	1109-		●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> 4JK1-TCX ENG<LR0> THA	8-98172-959-0	01	1	1109-	●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> THA	8-98102-382-0	01	1	1109-		●
13	SUPPORT; SHIFT FORK L=47.5 IMA	8-97072-827-0	01	1	1109-	●	●
28	COVER; FRT,TRANS CASE THA	8-97381-406-0	01	1	1109-	●
28	COVER; FRT,TRANS CASE THA	8-98094-800-0	01	1	1109-		●
29	BOLT; FRT COVER M8X20 FLANGE THA	0-28650-820-0	03	1	1109-		●
29	BOLT; FRT COVER M8X22 FLANGE IMA	8-97365-376-0	06	1	1109-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97046-699-3	01	1	1109-1208	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97947-839-0	01	1	1209-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK THA	8-97046-698-0	01	1	1109-1208	●
34	COVER; DUST,SHIFT FORK THA	8-98097-470-0	01	1	1109-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1109-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1109-1109	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> ID=17 IMA	8-97115-712-0	01	1	1109-1109		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1110-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> ID=17 IMA	8-97115-712-0	01	1	1110-		●	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	01	1	1109-	●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	07	1	1109-	●
86	BOLT; RR COVER (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1109-		●
86	BOLT; RR COVER (E) M8X35 FLANGE THA	0-28650-835-0	03	1	1109-		●
86	BOLT; RR COVER 4X4<TFS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1109-1109	●	●
86	BOLT; RR COVER 4X4<TFS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1110-	●	●	●
90	SEAL; OIL,RR COVER (B) NOK ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97046-705-3	01	1	1109-1109	●	●
90	SEAL; OIL,RR COVER . IMA	8-97046-705-3	01	1	1110-1208	●	●
90	SEAL; OIL,RR COVER 4X4<TFS***> (B) NOK ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97046-705-3	01	1	1110-1208			●
90	SEAL; OIL,RR COVER 4X4<TFS***> (B) NOK ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97046-705-3	01	1	1209-	●	●	●
90	SEAL; OIL,RR COVER 4X4<TFS***> (A) TKK THA	8-97046-700-0	01	1	1109-1208	●
90	SEAL; OIL,RR COVER 4X4<TFS***> (A) NOK ALSO INCLUDED IN GASKET SET(M/T). THA	8-97947-841-0	01	1	1209-	●
90	SEAL; OIL,RR COVER 4X4<TFS***> (A) NOK ALSO INCLUDED IN GASKET SET(M/T). THA	8-97046-701-2	01	1	1109-1208	●
90	SEAL; OIL,RR COVER 4X2<TFB***> (B) NOK ALSO INCLUDED IN GASKET SET(M/T). THA	8-97947-840-0	01	1	1209-	●	●
90	SEAL; OIL,RR COVER 4X4<TFS***> (C) JTEKT ALSO INCLUDED IN GASKET SET(M/T). IMA	8-98004-531-0	01	1	1109-		●
114	RING; SNAP,BALL BRG (A) OD=77 IMA	8-98024-221-0	01	1	1109-		●
114	RING; SNAP,BALL BRG (B) OD=60.2 IMA	9-09180-156-0	01	1	1109-		●
315	BOLT; CASE M8X60 FLANGE THA	0-28050-860-0	14	1	1109-		●
315	BOLT; CASE M8X35 FLANGE IMA	8-98046-876-0	11	1	1109-		●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	1109-	●	●
326	NOZZLE; OIL,OUTLET IMA	8-98023-517-0	01	1	1109-		●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	01	1	1109-1109	●	●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> IMA	8-97365-373-0	01	1	1109-1109		●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	01	1	1110-	●	●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> IMA	8-97365-373-0	01	1	1110-		●	●
419	PLUG; RR COVER M12X9 IMA	8-98047-054-0	01	1	1109-		●
421	COVER; RR,TRANS 4X2<TFB***> (A) THA	8-98014-386-0	01	1	1109-1202	●
421	COVER; RR,TRANS 4X2<TFB***> (A) THA	8-98191-921-0	01	1	1203-1405	●
421	COVER; RR,TRANS 4X2<TFB***> (A) THA	8-97978-059-0	01	1	1406-	●
421	COVER; RR,TRANS 4X2<TFB***> (C) THA	8-98108-318-0	01	1	1109-		●
421	COVER; RR,TRANS 4X2<TFB***> 4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-98108-411-0	01	1	1109-		●
421	COVER; RR,TRANS 4X2<TFB***> 4JJ1-TCX ENG<LS0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-97382-905-2	01	1	1109-		●
421	COVER; RR,TRANS 4X4<TFS***> (B) THA	8-98121-716-0	01	1	1109-1208	●
421	COVER; RR,TRANS 4X4<TFS***> (B) THA	8-98214-238-0	01	1	1209-1409	●
421	COVER; RR,TRANS 4X4<TFS***> (B) THA	8-97978-061-0	01	1	1410-	●
421	COVER; RR,TRANS 4X4<TFS***> (E) THA	8-97362-423-1	01	1	1109-		●
421	COVER; RR,TRANS 4X4<TFS***> (F) THA	8-98108-319-0	01	1	1109-		●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	1109-1109	●	●
430	PLUG; OIL DRAIN 4X4<TFS***> IMA	8-97365-374-0	01	1	1109-1109		●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	1110-	●	●
430	PLUG; OIL DRAIN 4X4<TFS***> IMA	8-97365-374-0	01	1	1110-		●	●
434	HOUSING; CLU THA	8-98108-316-0	01	1	1109-		●
435	CASE; TRANS IMA	8-98047-230-0	01	1	1109-	●
435	CASE; TRANS THA	8-98108-317-1	01	1	1109-		●
510	BEARING THA	8-97362-853-0	01	1	1109-		●
603	RING; SNAP IMA	8-98039-270-0	01	1	1109-		●
608	GUTTER; OIL (A) IMA	8-97362-391-0	01	1	1109-		●
608	GUTTER; OIL (B) IMA	8-97362-564-1	01	1	1109-		●
608	GUTTER; OIL (D) IMA	8-98004-505-0	01	1	1109-		●
608	GUTTER; OIL (C) IMA	8-98142-574-0	01	1	1109-		●
674	PLATE; INTERMEDIATE THA	8-98042-863-0	01	1	1109-		●
675	DOWEL OD=11 L=8 IMA	9-11229-058-1	04	1	1109-		●
676	INHIBITOR IMA	8-98037-604-1	01	1	1109-		●
677	SPRING; INHIBITOR IMA	8-97362-852-0	01	1	1109-		●
678	PIN IMA	9-08160-436-0	01	1	1109-		●
679	BOLT; GUTTER M6X12 FLANGE THA	0-28050-612-0	04	1	1109-		●
680	BEARING (A) IMA	8-97362-720-1	01	1	1109-		●
680	BEARING (C) THA	8-97362-853-0	01	1	1109-		●
680	BEARING (B) IMA	8-98024-431-0	01	1	1109-		●
682	BOLT; INHIBITOR M10X50 IMA	8-98042-618-0	01	1	1109-		●

429 429 1 435 430 86 50 455 86 90 421 417 45 102 42 41 40 43 39 41 41 16 42 16 33 24 113 14 29 13 28 429 316

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> 4JK1-TCS ENG<LKZ> THA	8-98150-180-0	01	1	1109-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JK1-TCS ENG<LKZ> THA	8-98150-178-0	01	1	1109-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JK1-TCX ENG<LR0> THA	8-98172-462-0	01	1	1109-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98087-608-0	01	1	1109-		●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> 4JK1-TCX ENG<LR0> THA	8-98172-959-0	01	1	1109-	●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> THA	8-98102-382-0	01	1	1109-		●
13	SUPPORT; SHIFT FORK L=47.5 IMA	8-97072-827-0	01	1	1109-	●	●
14	WASHER; LK,SUPPORT ID=12.2 IMA	0-91510-512-0	01	1	1109-	●
16	PLUG; SHIFT ROD OD=14 IMA	8-97358-601-0	02	1	1109-	●
24	COVER; CHECK HOLE,DUST IMA	8-94156-700-0	01	1	1109-	●
28	COVER; FRT,TRANS CASE THA	8-97381-406-0	01	1	1109-	●
28	COVER; FRT,TRANS CASE THA	8-98094-800-0	01	1	1109-		●
29	BOLT; FRT COVER M8X20 FLANGE THA	0-28650-820-0	03	1	1109-		●
29	BOLT; FRT COVER M8X22 FLANGE IMA	8-97365-376-0	06	1	1109-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97046-699-3	01	1	1109-1208	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97947-839-0	01	1	1209-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK THA	8-97046-698-0	01	1	1109-1208	●
39	PLATE; DETENT SPR IMA	8-98035-571-0	01	1	1109-	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97083-600-1	01	1	1109-	●
41	SPRING; DETENT BALL (B) L=27.6 IMA	8-97214-402-0	01	1	1112-	●
41	SPRING; DETENT BALL (C) L=26.6 IMA	8-97214-403-0	01	1	1112-	●
41	SPRING; DETENT BALL (A) L=26.8 IMA	8-94320-193-0	03	1	1109-1111	●
41	SPRING; DETENT BALL (A) L=26.8 IMA	8-94320-193-0	02	1	1112-	●
42	BALL; DETENT,GEAR SHIFT IMA	8-94435-335-0	03	1	1109-	●
43	BOLT; PLATE TO PLATE M8X22 FLANGE IMA	8-97365-376-0	02	1	1109-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1109-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1109-1109	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> ID=17 IMA	8-97115-712-0	01	1	1109-1109		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1110-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> ID=17 IMA	8-97115-712-0	01	1	1110-		●	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	01	1	1109-	●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	07	1	1109-	●
86	BOLT; RR COVER (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1109-		●
86	BOLT; RR COVER (E) M8X35 FLANGE THA	0-28650-835-0	03	1	1109-		●
86	BOLT; RR COVER 4X4<TFS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1109-1109	●	●
86	BOLT; RR COVER 4X4<TFS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1110-	●	●	●
90	SEAL; OIL,RR COVER (B) NOK ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97046-705-3	01	1	1109-1109	●	●
90	SEAL; OIL,RR COVER . IMA	8-97046-705-3	01	1	1110-1208	●	●
90	SEAL; OIL,RR COVER 4X4<TFS***> (B) NOK ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97046-705-3	01	1	1110-1208			●
90	SEAL; OIL,RR COVER 4X4<TFS***> (B) NOK ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97046-705-3	01	1	1209-	●	●	●
90	SEAL; OIL,RR COVER 4X4<TFS***> (A) TKK THA	8-97046-700-0	01	1	1109-1208	●
90	SEAL; OIL,RR COVER 4X4<TFS***> (A) NOK ALSO INCLUDED IN GASKET SET(M/T). THA	8-97947-841-0	01	1	1209-	●
90	SEAL; OIL,RR COVER 4X4<TFS***> (A) NOK ALSO INCLUDED IN GASKET SET(M/T). THA	8-97046-701-2	01	1	1109-1208	●
90	SEAL; OIL,RR COVER 4X2<TFB***> (B) NOK ALSO INCLUDED IN GASKET SET(M/T). THA	8-97947-840-0	01	1	1209-	●	●
90	SEAL; OIL,RR COVER 4X4<TFS***> (C) JTEKT ALSO INCLUDED IN GASKET SET(M/T). IMA	8-98004-531-0	01	1	1109-		●
102	RETAINER; BRG UPR,MAINSHAFT IMA	8-97138-673-0	01	1	1109-	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97083-589-0	01	1	1109-	●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	1109-	●	●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	01	1	1109-1109	●	●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> IMA	8-97365-373-0	01	1	1109-1109		●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	01	1	1110-	●	●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> IMA	8-97365-373-0	01	1	1110-		●	●
421	COVER; RR,TRANS 4X2<TFB***> (A) THA	8-98014-386-0	01	1	1109-1202	●
421	COVER; RR,TRANS 4X2<TFB***> (A) THA	8-98191-921-0	01	1	1203-1405	●
421	COVER; RR,TRANS 4X2<TFB***> (A) THA	8-97978-059-0	01	1	1406-	●
421	COVER; RR,TRANS 4X2<TFB***> (C) THA	8-98108-318-0	01	1	1109-		●
421	COVER; RR,TRANS 4X2<TFB***> 4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-98108-411-0	01	1	1109-		●
421	COVER; RR,TRANS 4X2<TFB***> 4JJ1-TCX ENG<LS0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-97382-905-2	01	1	1109-		●
421	COVER; RR,TRANS 4X4<TFS***> (B) THA	8-98121-716-0	01	1	1109-1208	●
421	COVER; RR,TRANS 4X4<TFS***> (B) THA	8-98214-238-0	01	1	1209-1409	●
421	COVER; RR,TRANS 4X4<TFS***> (B) THA	8-97978-061-0	01	1	1410-	●
421	COVER; RR,TRANS 4X4<TFS***> (E) THA	8-97362-423-1	01	1	1109-		●
421	COVER; RR,TRANS 4X4<TFS***> (F) THA	8-98108-319-0	01	1	1109-		●
429	PIN; STRAIGHT (A) OD=10 L=40 IMA	5-09740-018-1	02	1	1109-	●
429	PIN; STRAIGHT 4X4<TFS***> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	1109-1109	●	●
429	PIN; STRAIGHT 4X4<TFS***> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	1110-	●	●	●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	1109-1109	●	●
430	PLUG; OIL DRAIN 4X4<TFS***> IMA	8-97365-374-0	01	1	1109-1109		●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	1110-	●	●
430	PLUG; OIL DRAIN 4X4<TFS***> IMA	8-97365-374-0	01	1	1110-		●	●
435	CASE; TRANS IMA	8-98047-230-0	01	1	1109-	●
435	CASE; TRANS THA	8-98108-317-1	01	1	1109-		●
455	SCREW; BRG RET M8X22 IMA	8-98035-654-0	04	1	1109-	●

430 414 90 421 45 417 41 42 40 43 39 41 42 41 102 455 86 86 435 316 429 24 33 16 16 113 28 29 14 13 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> 4JK1-TCS ENG<LKZ> THA	8-98150-180-0	01	1	1109-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JK1-TCS ENG<LKZ> THA	8-98150-178-0	01	1	1109-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JK1-TCX ENG<LR0> THA	8-98172-462-0	01	1	1109-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98087-608-0	01	1	1109-		●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> 4JK1-TCX ENG<LR0> THA	8-98172-959-0	01	1	1109-	●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> THA	8-98102-382-0	01	1	1109-		●
13	SUPPORT; SHIFT FORK L=47.5 IMA	8-97072-827-0	01	1	1109-	●	●
14	WASHER; LK,SUPPORT ID=12.2 IMA	0-91510-512-0	01	1	1109-	●
16	PLUG; SHIFT ROD OD=14 IMA	8-97358-601-0	02	1	1109-	●
24	COVER; CHECK HOLE,DUST IMA	8-94156-700-0	01	1	1109-	●
28	COVER; FRT,TRANS CASE THA	8-97381-406-0	01	1	1109-	●
28	COVER; FRT,TRANS CASE THA	8-98094-800-0	01	1	1109-		●
29	BOLT; FRT COVER M8X20 FLANGE THA	0-28650-820-0	03	1	1109-		●
29	BOLT; FRT COVER M8X22 FLANGE IMA	8-97365-376-0	06	1	1109-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97046-699-3	01	1	1109-1208	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97947-839-0	01	1	1209-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK THA	8-97046-698-0	01	1	1109-1208	●
39	PLATE; DETENT SPR IMA	8-98035-571-0	01	1	1109-	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97083-600-1	01	1	1109-	●
41	SPRING; DETENT BALL (B) L=27.6 IMA	8-97214-402-0	01	1	1112-	●
41	SPRING; DETENT BALL (C) L=26.6 IMA	8-97214-403-0	01	1	1112-	●
41	SPRING; DETENT BALL (A) L=26.8 IMA	8-94320-193-0	03	1	1109-1111	●
41	SPRING; DETENT BALL (A) L=26.8 IMA	8-94320-193-0	02	1	1112-	●
42	BALL; DETENT,GEAR SHIFT IMA	8-94435-335-0	03	1	1109-	●
43	BOLT; PLATE TO PLATE M8X22 FLANGE IMA	8-97365-376-0	02	1	1109-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1109-	●	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	01	1	1109-	●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	07	1	1109-	●
86	BOLT; RR COVER (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1109-		●
86	BOLT; RR COVER (E) M8X35 FLANGE THA	0-28650-835-0	03	1	1109-		●
86	BOLT; RR COVER 4X4<TFS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1109-1109	●	●
86	BOLT; RR COVER 4X4<TFS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1110-	●	●	●
90	SEAL; OIL,RR COVER (B) NOK ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97046-705-3	01	1	1109-1109	●	●
90	SEAL; OIL,RR COVER . IMA	8-97046-705-3	01	1	1110-1208	●	●
90	SEAL; OIL,RR COVER 4X4<TFS***> (B) NOK ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97046-705-3	01	1	1110-1208			●
90	SEAL; OIL,RR COVER 4X4<TFS***> (B) NOK ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97046-705-3	01	1	1209-	●	●	●
90	SEAL; OIL,RR COVER 4X4<TFS***> (A) TKK THA	8-97046-700-0	01	1	1109-1208	●
90	SEAL; OIL,RR COVER 4X4<TFS***> (A) NOK ALSO INCLUDED IN GASKET SET(M/T). THA	8-97947-841-0	01	1	1209-	●
90	SEAL; OIL,RR COVER 4X4<TFS***> (A) NOK ALSO INCLUDED IN GASKET SET(M/T). THA	8-97046-701-2	01	1	1109-1208	●
90	SEAL; OIL,RR COVER 4X2<TFB***> (B) NOK ALSO INCLUDED IN GASKET SET(M/T). THA	8-97947-840-0	01	1	1209-	●	●
90	SEAL; OIL,RR COVER 4X4<TFS***> (C) JTEKT ALSO INCLUDED IN GASKET SET(M/T). IMA	8-98004-531-0	01	1	1109-		●
102	RETAINER; BRG UPR,MAINSHAFT IMA	8-97138-673-0	01	1	1109-	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97083-589-0	01	1	1109-	●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	1109-	●	●
414	COVER; DUST,RR COVER 4X2<TFB***> IMA	8-98027-802-0	01	1	1109-	●	●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	01	1	1109-1109	●	●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> IMA	8-97365-373-0	01	1	1109-1109		●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	01	1	1110-	●	●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> IMA	8-97365-373-0	01	1	1110-		●	●
421	COVER; RR,TRANS 4X2<TFB***> (A) THA	8-98014-386-0	01	1	1109-1202	●
421	COVER; RR,TRANS 4X2<TFB***> (A) THA	8-98191-921-0	01	1	1203-1405	●
421	COVER; RR,TRANS 4X2<TFB***> (A) THA	8-97978-059-0	01	1	1406-	●
421	COVER; RR,TRANS 4X2<TFB***> (C) THA	8-98108-318-0	01	1	1109-		●
421	COVER; RR,TRANS 4X2<TFB***> 4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-98108-411-0	01	1	1109-		●
421	COVER; RR,TRANS 4X2<TFB***> 4JJ1-TCX ENG<LS0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-97382-905-2	01	1	1109-		●
421	COVER; RR,TRANS 4X4<TFS***> (B) THA	8-98121-716-0	01	1	1109-1208	●
421	COVER; RR,TRANS 4X4<TFS***> (B) THA	8-98214-238-0	01	1	1209-1409	●
421	COVER; RR,TRANS 4X4<TFS***> (B) THA	8-97978-061-0	01	1	1410-	●
421	COVER; RR,TRANS 4X4<TFS***> (E) THA	8-97362-423-1	01	1	1109-		●
421	COVER; RR,TRANS 4X4<TFS***> (F) THA	8-98108-319-0	01	1	1109-		●
429	PIN; STRAIGHT (A) OD=10 L=40 IMA	5-09740-018-1	02	1	1109-	●
429	PIN; STRAIGHT 4X4<TFS***> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	1109-1109	●	●
429	PIN; STRAIGHT 4X4<TFS***> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	1110-	●	●	●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	1109-1109	●	●
430	PLUG; OIL DRAIN 4X4<TFS***> IMA	8-97365-374-0	01	1	1109-1109		●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	1110-	●	●
430	PLUG; OIL DRAIN 4X4<TFS***> IMA	8-97365-374-0	01	1	1110-		●	●
435	CASE; TRANS IMA	8-98047-230-0	01	1	1109-	●
435	CASE; TRANS THA	8-98108-317-1	01	1	1109-		●
455	SCREW; BRG RET M8X22 IMA	8-98035-654-0	04	1	1109-	●

1 430 419 50 25 421 114 326 45 29 34 417 315 86 421 90 414 679 668 316 435 28 434 315 13 33 675 675 114 608 678 603 676 677 675 675 510 682 674 608 679 679 608 680 680 680 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> 4JK1-TCS ENG<LKZ> THA	8-98150-180-0	01	1	1109-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JK1-TCS ENG<LKZ> THA	8-98150-178-0	01	1	1109-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JK1-TCX ENG<LR0> THA	8-98172-462-0	01	1	1109-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98087-608-0	01	1	1109-		●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> 4JK1-TCX ENG<LR0> THA	8-98172-959-0	01	1	1109-	●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> THA	8-98102-382-0	01	1	1109-		●
13	SUPPORT; SHIFT FORK L=47.5 IMA	8-97072-827-0	01	1	1109-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2<TFB***> IMA	8-98004-774-0	01	1	1109-		●
28	COVER; FRT,TRANS CASE THA	8-97381-406-0	01	1	1109-	●
28	COVER; FRT,TRANS CASE THA	8-98094-800-0	01	1	1109-		●
29	BOLT; FRT COVER M8X20 FLANGE THA	0-28650-820-0	03	1	1109-		●
29	BOLT; FRT COVER M8X22 FLANGE IMA	8-97365-376-0	06	1	1109-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97046-699-3	01	1	1109-1208	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97947-839-0	01	1	1209-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK THA	8-97046-698-0	01	1	1109-1208	●
34	COVER; DUST,SHIFT FORK THA	8-98097-470-0	01	1	1109-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1109-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1109-1109	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> ID=17 IMA	8-97115-712-0	01	1	1109-1109		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1110-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> ID=17 IMA	8-97115-712-0	01	1	1110-		●	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	01	1	1109-	●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	07	1	1109-	●
86	BOLT; RR COVER (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1109-		●
86	BOLT; RR COVER (E) M8X35 FLANGE THA	0-28650-835-0	03	1	1109-		●
86	BOLT; RR COVER 4X4<TFS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1109-1109	●	●
86	BOLT; RR COVER 4X4<TFS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1110-	●	●	●
90	SEAL; OIL,RR COVER (B) NOK ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97046-705-3	01	1	1109-1109	●	●
90	SEAL; OIL,RR COVER . IMA	8-97046-705-3	01	1	1110-1208	●	●
90	SEAL; OIL,RR COVER 4X4<TFS***> (B) NOK ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97046-705-3	01	1	1110-1208			●
90	SEAL; OIL,RR COVER 4X4<TFS***> (B) NOK ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97046-705-3	01	1	1209-	●	●	●
90	SEAL; OIL,RR COVER 4X4<TFS***> (A) TKK THA	8-97046-700-0	01	1	1109-1208	●
90	SEAL; OIL,RR COVER 4X4<TFS***> (A) NOK ALSO INCLUDED IN GASKET SET(M/T). THA	8-97947-841-0	01	1	1209-	●
90	SEAL; OIL,RR COVER 4X4<TFS***> (A) NOK ALSO INCLUDED IN GASKET SET(M/T). THA	8-97046-701-2	01	1	1109-1208	●
90	SEAL; OIL,RR COVER 4X2<TFB***> (B) NOK ALSO INCLUDED IN GASKET SET(M/T). THA	8-97947-840-0	01	1	1209-	●	●
90	SEAL; OIL,RR COVER 4X4<TFS***> (C) JTEKT ALSO INCLUDED IN GASKET SET(M/T). IMA	8-98004-531-0	01	1	1109-		●
114	RING; SNAP,BALL BRG (A) OD=77 IMA	8-98024-221-0	01	1	1109-		●
114	RING; SNAP,BALL BRG (B) OD=60.2 IMA	9-09180-156-0	01	1	1109-		●
315	BOLT; CASE M8X60 FLANGE THA	0-28050-860-0	14	1	1109-		●
315	BOLT; CASE M8X35 FLANGE IMA	8-98046-876-0	11	1	1109-		●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	1109-	●	●
326	NOZZLE; OIL,OUTLET IMA	8-98023-517-0	01	1	1109-		●
414	COVER; DUST,RR COVER 4X2<TFB***> IMA	8-98027-802-0	01	1	1109-	●	●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	01	1	1109-1109	●	●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> IMA	8-97365-373-0	01	1	1109-1109		●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	01	1	1110-	●	●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> IMA	8-97365-373-0	01	1	1110-		●	●
419	PLUG; RR COVER M12X9 IMA	8-98047-054-0	01	1	1109-		●
421	COVER; RR,TRANS 4X2<TFB***> (A) THA	8-98014-386-0	01	1	1109-1202	●
421	COVER; RR,TRANS 4X2<TFB***> (A) THA	8-98191-921-0	01	1	1203-1405	●
421	COVER; RR,TRANS 4X2<TFB***> (A) THA	8-97978-059-0	01	1	1406-	●
421	COVER; RR,TRANS 4X2<TFB***> (C) THA	8-98108-318-0	01	1	1109-		●
421	COVER; RR,TRANS 4X2<TFB***> 4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-98108-411-0	01	1	1109-		●
421	COVER; RR,TRANS 4X2<TFB***> 4JJ1-TCX ENG<LS0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-97382-905-2	01	1	1109-		●
421	COVER; RR,TRANS 4X4<TFS***> (B) THA	8-98121-716-0	01	1	1109-1208	●
421	COVER; RR,TRANS 4X4<TFS***> (B) THA	8-98214-238-0	01	1	1209-1409	●
421	COVER; RR,TRANS 4X4<TFS***> (B) THA	8-97978-061-0	01	1	1410-	●
421	COVER; RR,TRANS 4X4<TFS***> (E) THA	8-97362-423-1	01	1	1109-		●
421	COVER; RR,TRANS 4X4<TFS***> (F) THA	8-98108-319-0	01	1	1109-		●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	1109-1109	●	●
430	PLUG; OIL DRAIN 4X4<TFS***> IMA	8-97365-374-0	01	1	1109-1109		●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	1110-	●	●
430	PLUG; OIL DRAIN 4X4<TFS***> IMA	8-97365-374-0	01	1	1110-		●	●
434	HOUSING; CLU THA	8-98108-316-0	01	1	1109-		●
435	CASE; TRANS IMA	8-98047-230-0	01	1	1109-	●
435	CASE; TRANS THA	8-98108-317-1	01	1	1109-		●
510	BEARING THA	8-97362-853-0	01	1	1109-		●
603	RING; SNAP IMA	8-98039-270-0	01	1	1109-		●
608	GUTTER; OIL (A) IMA	8-97362-391-0	01	1	1109-		●
608	GUTTER; OIL (B) IMA	8-97362-564-1	01	1	1109-		●
608	GUTTER; OIL (D) IMA	8-98004-505-0	01	1	1109-		●
608	GUTTER; OIL (C) IMA	8-98142-574-0	01	1	1109-		●
674	PLATE; INTERMEDIATE THA	8-98042-863-0	01	1	1109-		●
675	DOWEL OD=11 L=8 IMA	9-11229-058-1	04	1	1109-		●
676	INHIBITOR IMA	8-98037-604-1	01	1	1109-		●
677	SPRING; INHIBITOR IMA	8-97362-852-0	01	1	1109-		●
678	PIN IMA	9-08160-436-0	01	1	1109-		●
679	BOLT; GUTTER M6X12 FLANGE THA	0-28050-612-0	04	1	1109-		●
680	BEARING (A) IMA	8-97362-720-1	01	1	1109-		●
680	BEARING (C) THA	8-97362-853-0	01	1	1109-		●
680	BEARING (B) IMA	8-98024-431-0	01	1	1109-		●
682	BOLT; INHIBITOR M10X50 IMA	8-98042-618-0	01	1	1109-		●

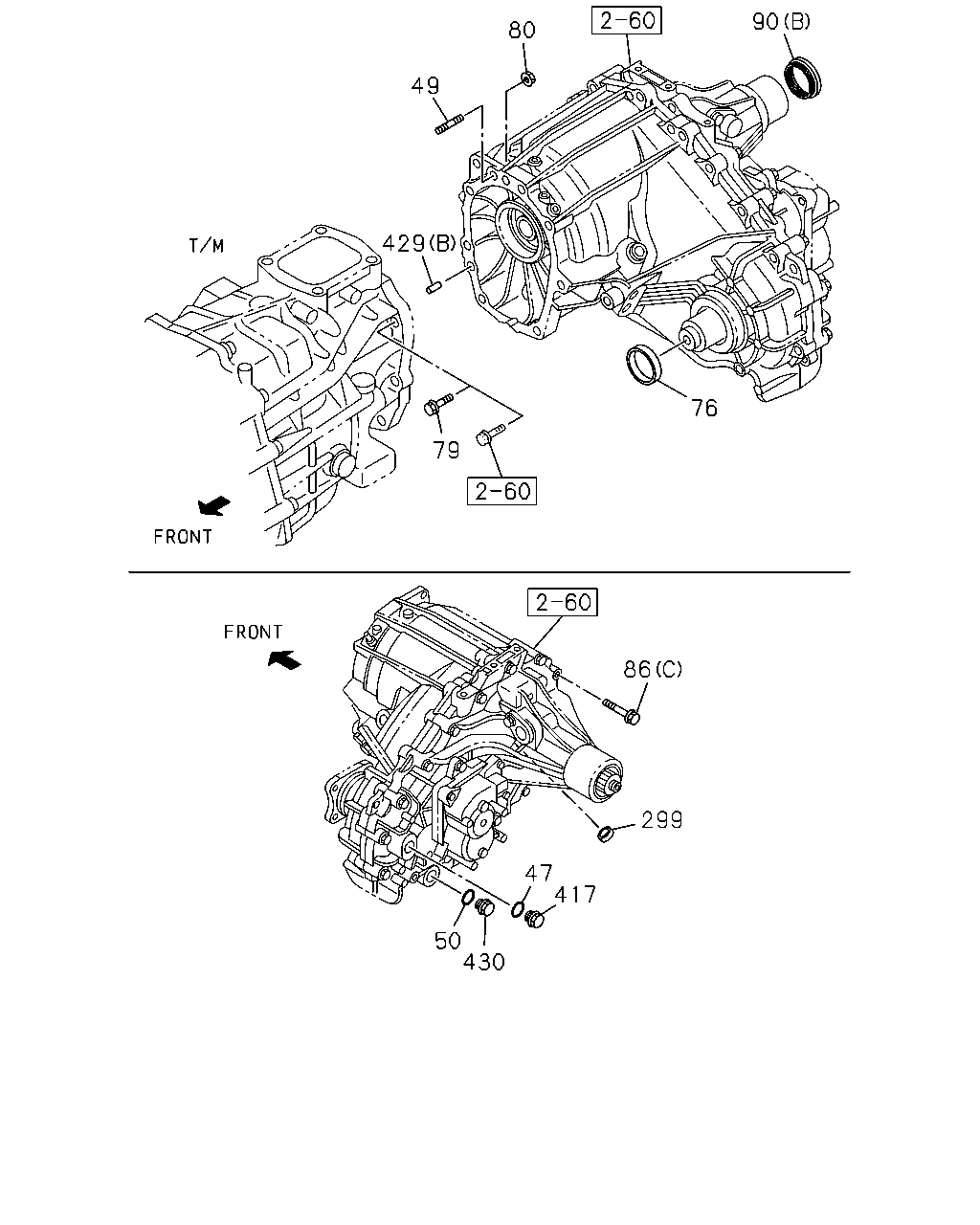

429 79 49 80 90 76 86 299 417 47 50 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> ID=17 IMA	8-97115-712-0	01	1	1109-1109	●	●
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> ID=17 IMA	8-97115-712-0	01	1	1110-	●	●	●
49	STUD; TRANSFER CASE 4X4<TFS***> M10X30 L=45 IMA	8-98035-675-0	01	1	1109-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1109-1109	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> ID=17 IMA	8-97115-712-0	01	1	1109-1109		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1110-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> ID=17 IMA	8-97115-712-0	01	1	1110-		●	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> NOK IMA	8-97238-999-0	01	1	1109-1109	●	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> NOK IMA	8-97238-999-0	01	1	1110-	●	●	●
79	BOLT; TRANSFER CASE 4X4 CREW CAB<TFSW> M10X45 FLANGE THA	0-28051-045-0	07	1	1212-			●
79	BOLT; TRANSFER CASE 4X4<TFS***> M10X35 FLANGE THA	0-28051-035-0	06	1	1109-	●	●
80	NUT; TRANSFER CASE 4X4<TFS***> M10 FLANGE THA	0-91180-110-0	01	1	1109-	●	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	01	1	1109-	●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	07	1	1109-	●
86	BOLT; RR COVER (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1109-		●
86	BOLT; RR COVER (E) M8X35 FLANGE THA	0-28650-835-0	03	1	1109-		●
86	BOLT; RR COVER 4X4<TFS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1109-1109	●	●
86	BOLT; RR COVER 4X4<TFS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1110-	●	●	●
90	SEAL; OIL,RR COVER (B) NOK ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97046-705-3	01	1	1109-1109	●	●
90	SEAL; OIL,RR COVER . IMA	8-97046-705-3	01	1	1110-1208	●	●
90	SEAL; OIL,RR COVER 4X4<TFS***> (B) NOK ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97046-705-3	01	1	1110-1208			●
90	SEAL; OIL,RR COVER 4X4<TFS***> (B) NOK ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97046-705-3	01	1	1209-	●	●	●
90	SEAL; OIL,RR COVER 4X4<TFS***> (A) TKK THA	8-97046-700-0	01	1	1109-1208	●
90	SEAL; OIL,RR COVER 4X4<TFS***> (A) NOK ALSO INCLUDED IN GASKET SET(M/T). THA	8-97947-841-0	01	1	1209-	●
90	SEAL; OIL,RR COVER 4X4<TFS***> (A) NOK ALSO INCLUDED IN GASKET SET(M/T). THA	8-97046-701-2	01	1	1109-1208	●
90	SEAL; OIL,RR COVER 4X2<TFB***> (B) NOK ALSO INCLUDED IN GASKET SET(M/T). THA	8-97947-840-0	01	1	1209-	●	●
90	SEAL; OIL,RR COVER 4X4<TFS***> (C) JTEKT ALSO INCLUDED IN GASKET SET(M/T). IMA	8-98004-531-0	01	1	1109-		●
299	PLUG; SHIFTER ROD 4X4<TFS***> OD=15.6 IMA	8-94173-641-0	02	1	1109-1109	●	●
299	PLUG; SHIFTER ROD 4X4<TFS***> OD=15.6 IMA	8-94173-641-0	02	1	1110-	●	●	●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	01	1	1109-1109	●	●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> IMA	8-97365-373-0	01	1	1109-1109		●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	01	1	1110-	●	●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> IMA	8-97365-373-0	01	1	1110-		●	●
429	PIN; STRAIGHT (A) OD=10 L=40 IMA	5-09740-018-1	02	1	1109-	●
429	PIN; STRAIGHT 4X4<TFS***> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	1109-1109	●	●
429	PIN; STRAIGHT 4X4<TFS***> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	1110-	●	●	●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	1109-1109	●	●
430	PLUG; OIL DRAIN 4X4<TFS***> IMA	8-97365-374-0	01	1	1109-1109		●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	1110-	●	●
430	PLUG; OIL DRAIN 4X4<TFS***> IMA	8-97365-374-0	01	1	1110-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
