◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#81676) — 25 parça
çizim 147395
208 20 18 178 178 2 5 2 178 178 2 20 178 178 80 5 178 2 178
BalonParca AdiParca NoAdetTipApplied Date A B C
2 BOLT; EYE,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M10X22 THA 		8-97359-818-0 02 1 1109- ● ● ●
5 HOSE; FLEX,CLU PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-98098-317-1 01 1 1109- ● ●
5 HOSE; FLEX,CLU PIPE
M/T MUX 5 SPEED 5S<MZJ> (C) THA 		8-98098-315-1 01 1 1109- ●
5 HOSE; FLEX,CLU PIPE
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98098-316-1 01 1 1109- ● ●
18 DAMPER ASM; CLU OIL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) THA 		8-97946-616-1 01 1 1109- ● ● ●
18 DAMPER ASM; CLU OIL
M/T MUX 5 SPEED 5S<MZJ> (B) THA 		8-97946-623-1 01 1 1109- ●
20 NUT; CLU OIL DAMPER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M6 FLANGE THA 		0-91180-106-0 02 1 1109- ● ● ●
80 CLIP; HOSE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ID=12 WO/PVC COATING THA 		8-94123-526-1 02 1 1109-1203 ● ● ●
80 CLIP; HOSE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ID=12 WO/PVC COATING THA 		8-97947-824-0 02 1 1204- ● ● ●
178 GASKET; FLEX HOSE TO M/CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ID=10.2 OD=16.0 THA 		9-09571-410-0 04 1 1109- ● ● ●
208 PIPE; OIL,M/CYL TO DAMPER CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98100-268-1 01 1 1109- ● ● ●

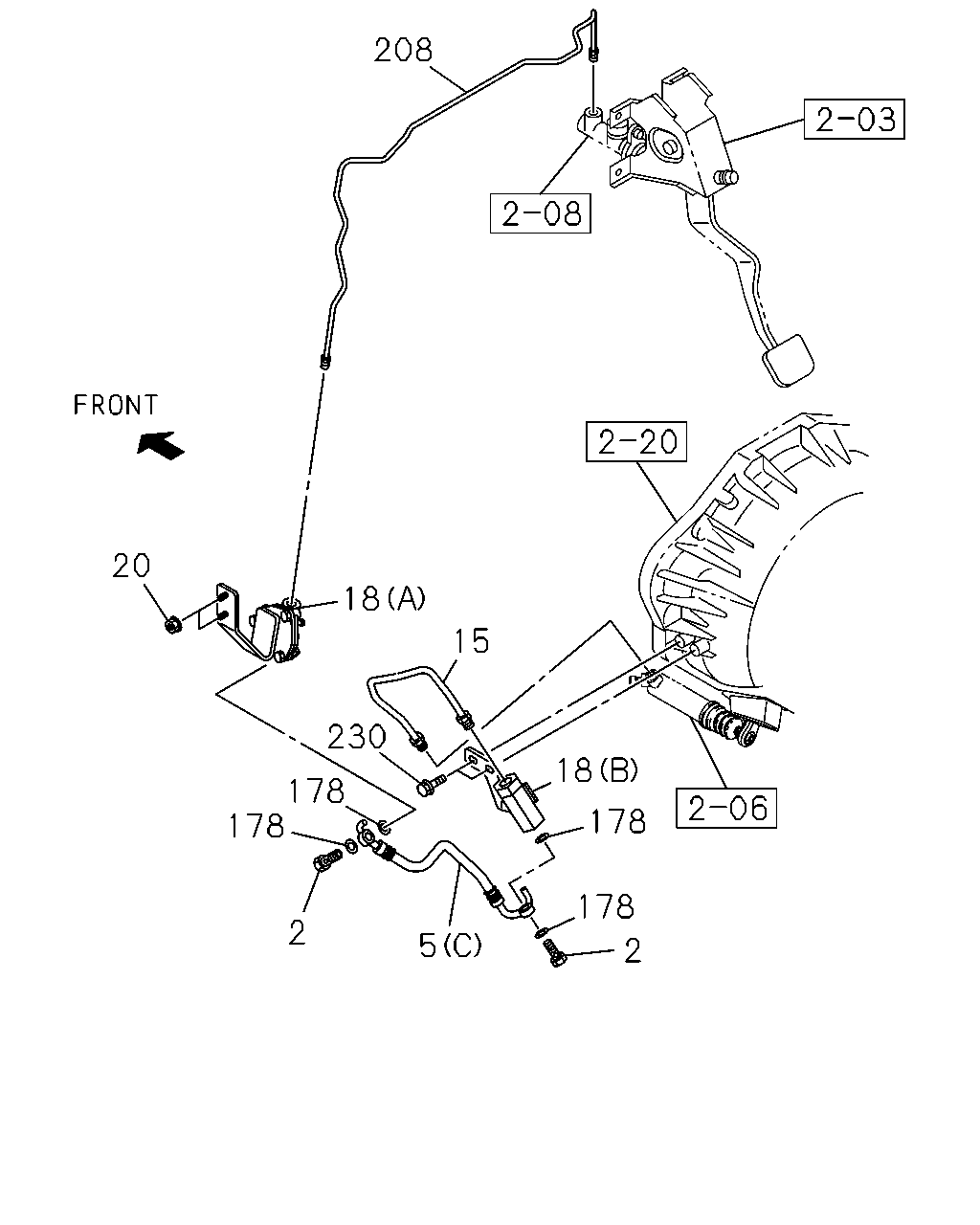

çizim 147399
208 20 18 15 230 178 178 5 2 2 178 178 18
BalonParca AdiParca NoAdetTipApplied Date A B C
2 BOLT; EYE,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M10X22 THA 		8-97359-818-0 02 1 1109- ● ● ●
5 HOSE; FLEX,CLU PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-98098-317-1 01 1 1109- ● ●
5 HOSE; FLEX,CLU PIPE
M/T MUX 5 SPEED 5S<MZJ> (C) THA 		8-98098-315-1 01 1 1109- ●
5 HOSE; FLEX,CLU PIPE
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98098-316-1 01 1 1109- ● ●
15 PIPE; CLU,FLEX HOSE
M/T MUX 5 SPEED 5S<MZJ> THA 		8-98097-509-0 01 1 1109- ●
18 DAMPER ASM; CLU OIL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) THA 		8-97946-616-1 01 1 1109- ● ● ●
18 DAMPER ASM; CLU OIL
M/T MUX 5 SPEED 5S<MZJ> (B) THA 		8-97946-623-1 01 1 1109- ●
20 NUT; CLU OIL DAMPER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M6 FLANGE THA 		0-91180-106-0 02 1 1109- ● ● ●
178 GASKET; FLEX HOSE TO M/CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ID=10.2 OD=16.0 THA 		9-09571-410-0 04 1 1109- ● ● ●
208 PIPE; OIL,M/CYL TO DAMPER CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98100-268-1 01 1 1109- ● ● ●
230 BOLT; ACTUATOR
M/T MUX 5 SPEED 5S<MZJ> M6X16 FLANGE THA 		0-28650-616-0 02 1 1109- ●

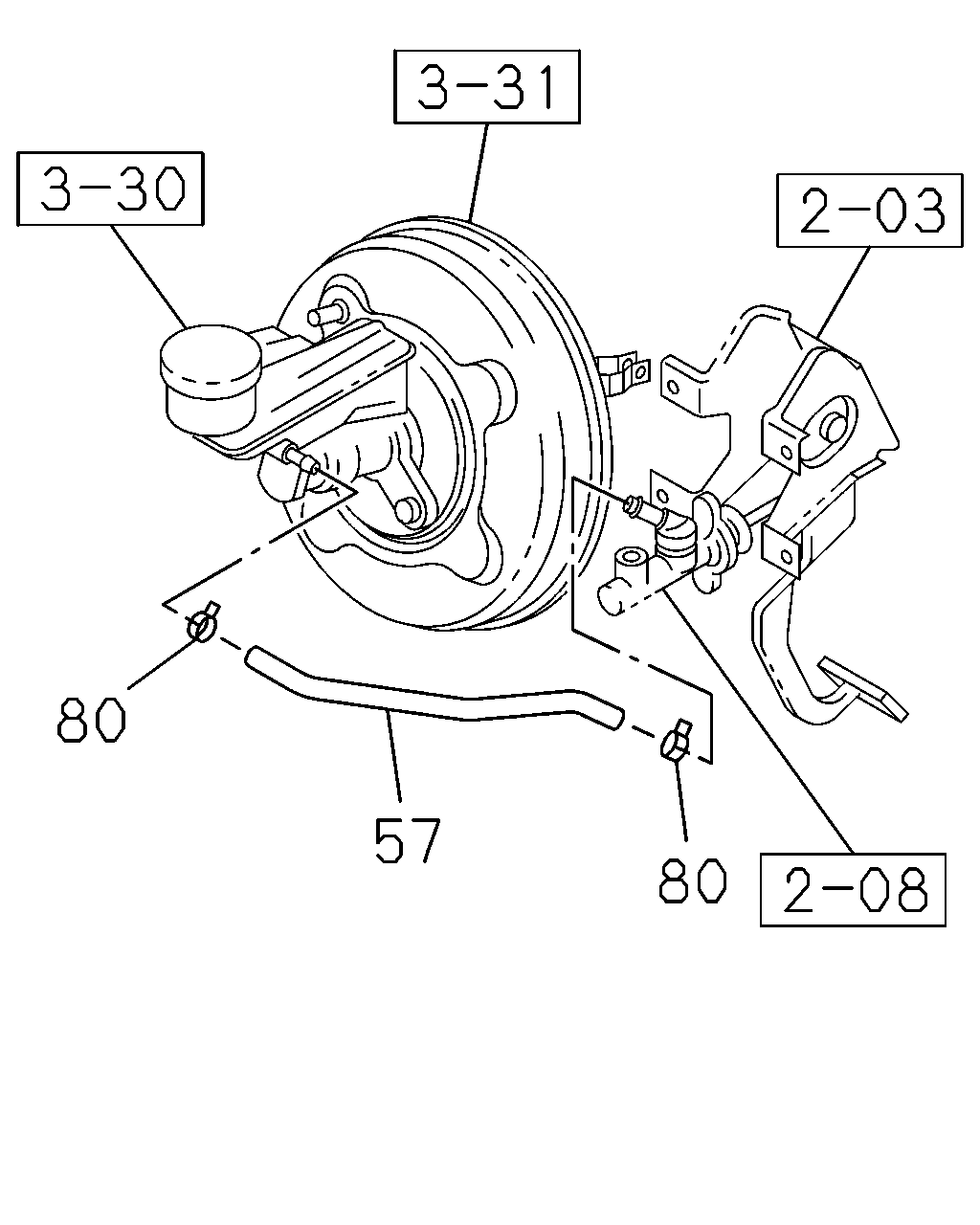

çizim 147400
80 57 80
BalonParca AdiParca NoAdetTipApplied Date A B C
57 HOSE; CLU M/CYL TO OIL TANK
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98097-543-1 01 1 1109- ● ● ●
80 CLIP; HOSE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ID=12 WO/PVC COATING THA 		8-94123-526-1 02 1 1109-1203 ● ● ●
80 CLIP; HOSE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ID=12 WO/PVC COATING THA 		8-97947-824-0 02 1 1204- ● ● ●
