1-41 — FUEL PIPING; CHASSIS (#81672) — 49 parça

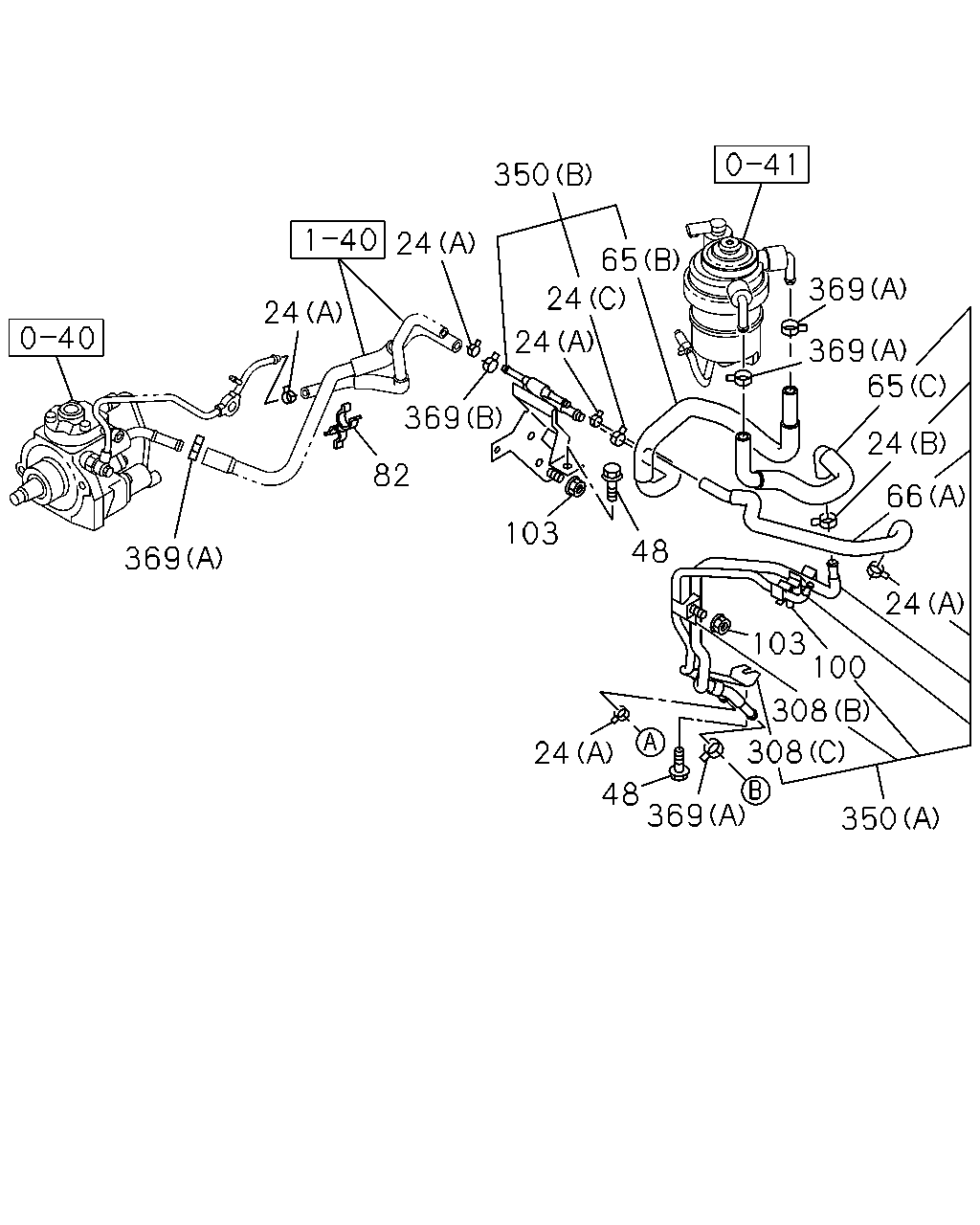

çizim 147391
369 82 103 24 48 369 350 308 100 103 48 24 66 24 65 369 369 65 24 24 350 24 369 24 308
BalonParca AdiParca NoAdetTipApplied Date A B C
24 CLIP; FUEL HOSE
(D) THA 		8-98233-886-0 02 1 1109- ● ● ●
24 CLIP; FUEL HOSE
(E) THA 		8-98233-887-0 01 1 1109- ● ● ●
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 01 1 1109- ● ● ●
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 01 1 1109- ● ● ●
24 CLIP; FUEL HOSE
(B) ID=17.2 THA 		8-98052-395-0 01 1 1109- ● ● ●
24 CLIP; FUEL HOSE
(B) ID=17.2 THA 		8-98052-395-0 01 1 1109- ● ● ●
24 CLIP; FUEL HOSE
(C) ID=16 THA 		8-98030-682-0 01 1 1109- ● ● ●
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 06 1 1109- ● ● ●
48 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 02 1 1109- ● ● ●
65 HOSE; FUEL,DELIVERY PIPE
(B) DELIVERY THA 		8-98100-729-4 01 1 1109- ● ● ●
65 HOSE; FUEL,DELIVERY PIPE
(C) DELIVERY THA 		8-98100-731-2 01 1 1109- ● ● ●
65 HOSE; FUEL,DELIVERY PIPE
(A) DELIVERY THA 		8-98113-322-2 01 1 1109- ● ● ●
66 HOSE; FUEL,RETURN PIPE
(A) RETURN THA 		8-98100-720-2 01 1 1109- ● ● ●
66 HOSE; FUEL,RETURN PIPE
(B) RETURN THA 		8-98113-330-2 01 1 1109- ● ● ●
82 CLIP; FUEL HOSE
ID=13 & 16.5 THA 		8-98192-457-0 01 1 1109- ● ● ●
100 CLIP; FUEL PIPE
THA 		8-98113-581-0 01 1 1109- ● ● ●
103 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 02 1 1109- ● ● ●
308 BRACKET; FUEL PIPE
(B) THA 		8-98233-889-0 01 1 1109- ● ● ●
308 BRACKET; FUEL PIPE
(C) THA 		8-98233-890-0 01 1 1109- ● ● ●
308 BRACKET; FUEL PIPE
(A) THA 		8-98128-259-0 01 1 1109- ● ● ●
350 PIPE; FUEL,DEL & RET
(A) THA 		8-98100-202-5 01 1 1109- ● ● ●
350 PIPE; FUEL,DEL & RET
(B) THA 		8-98113-293-6 01 1 1109- ● ● ●
350 PIPE; FUEL,DEL & RET
(C) THA 		8-98128-229-5 01 1 1109- ● ● ●
369 CLAMP; HOSE,FUEL
(A) ID=17.2 THA 		8-98052-395-0 06 1 1109- ● ● ●
369 CLAMP; HOSE,FUEL
(B) ID=15.2 THA 		8-98186-048-0 01 1 1109- ● ● ●

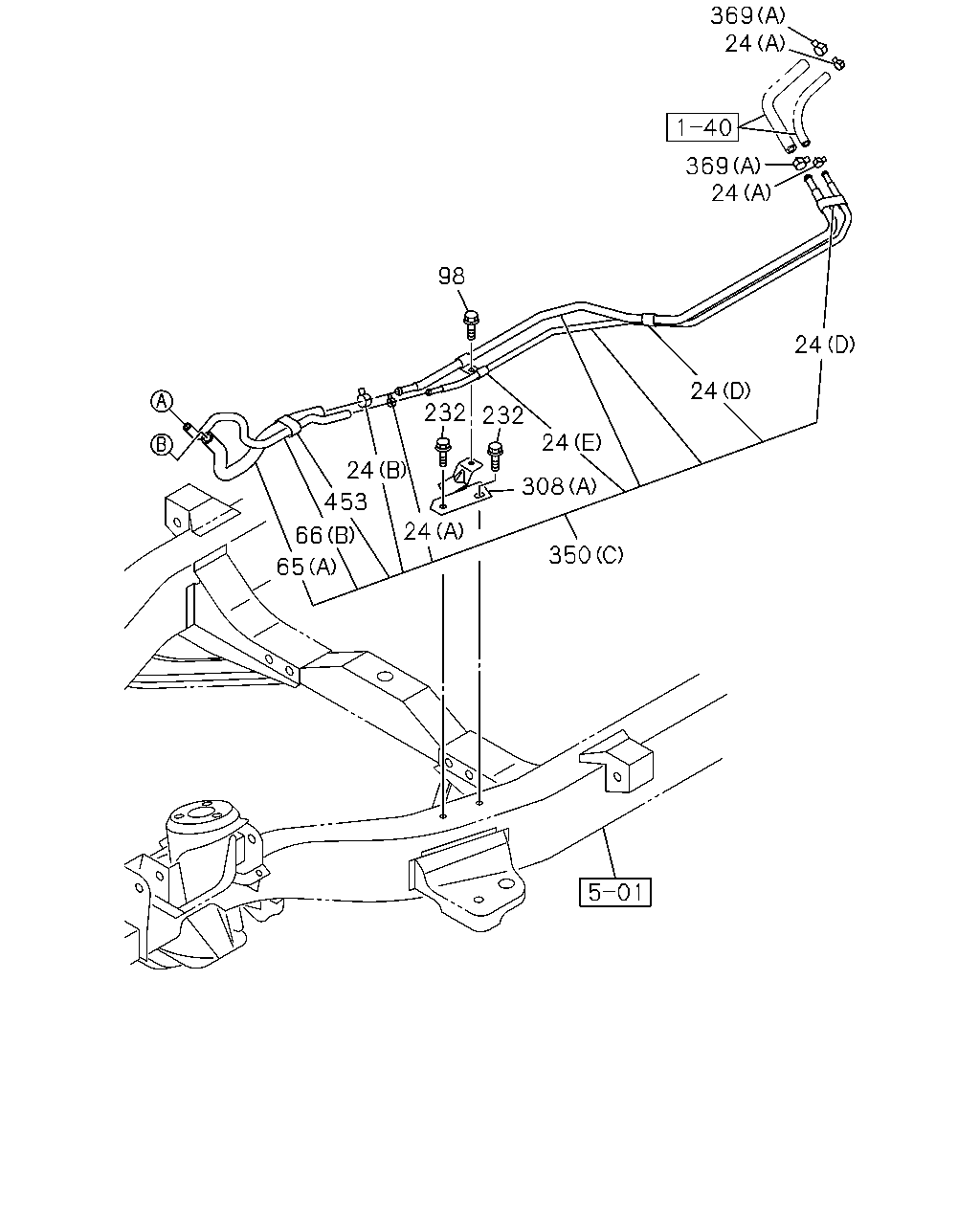

çizim 147392
369 369 24 24 308 24 98 232 24 453 24 66 65 232 350 24 24
BalonParca AdiParca NoAdetTipApplied Date A B C
24 CLIP; FUEL HOSE
(D) THA 		8-98233-886-0 02 1 1109- ● ● ●
24 CLIP; FUEL HOSE
(E) THA 		8-98233-887-0 01 1 1109- ● ● ●
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 01 1 1109- ● ● ●
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 01 1 1109- ● ● ●
24 CLIP; FUEL HOSE
(B) ID=17.2 THA 		8-98052-395-0 01 1 1109- ● ● ●
24 CLIP; FUEL HOSE
(B) ID=17.2 THA 		8-98052-395-0 01 1 1109- ● ● ●
24 CLIP; FUEL HOSE
(C) ID=16 THA 		8-98030-682-0 01 1 1109- ● ● ●
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 06 1 1109- ● ● ●
65 HOSE; FUEL,DELIVERY PIPE
(B) DELIVERY THA 		8-98100-729-4 01 1 1109- ● ● ●
65 HOSE; FUEL,DELIVERY PIPE
(C) DELIVERY THA 		8-98100-731-2 01 1 1109- ● ● ●
65 HOSE; FUEL,DELIVERY PIPE
(A) DELIVERY THA 		8-98113-322-2 01 1 1109- ● ● ●
66 HOSE; FUEL,RETURN PIPE
(A) RETURN THA 		8-98100-720-2 01 1 1109- ● ● ●
66 HOSE; FUEL,RETURN PIPE
(B) RETURN THA 		8-98113-330-2 01 1 1109- ● ● ●
98 BOLT; BRKT,FUEL PIPE
M6X16 FLANGE THA 		0-28650-616-0 01 1 1109- ● ● ●
232 BOLT; CLIP,PIPE
M10X25 FLANGE THA 		0-28061-025-0 02 1 1109- ● ● ●
308 BRACKET; FUEL PIPE
(B) THA 		8-98233-889-0 01 1 1109- ● ● ●
308 BRACKET; FUEL PIPE
(C) THA 		8-98233-890-0 01 1 1109- ● ● ●
308 BRACKET; FUEL PIPE
(A) THA 		8-98128-259-0 01 1 1109- ● ● ●
350 PIPE; FUEL,DEL & RET
(A) THA 		8-98100-202-5 01 1 1109- ● ● ●
350 PIPE; FUEL,DEL & RET
(B) THA 		8-98113-293-6 01 1 1109- ● ● ●
350 PIPE; FUEL,DEL & RET
(C) THA 		8-98128-229-5 01 1 1109- ● ● ●
369 CLAMP; HOSE,FUEL
(A) ID=17.2 THA 		8-98052-395-0 06 1 1109- ● ● ●
369 CLAMP; HOSE,FUEL
(B) ID=15.2 THA 		8-98186-048-0 01 1 1109- ● ● ●
453 BAND; FLEX HOSE
THA 		8-98233-888-0 01 1 1301- ● ● ●
