1-40 — FUEL TANK (#81671) — 56 parça

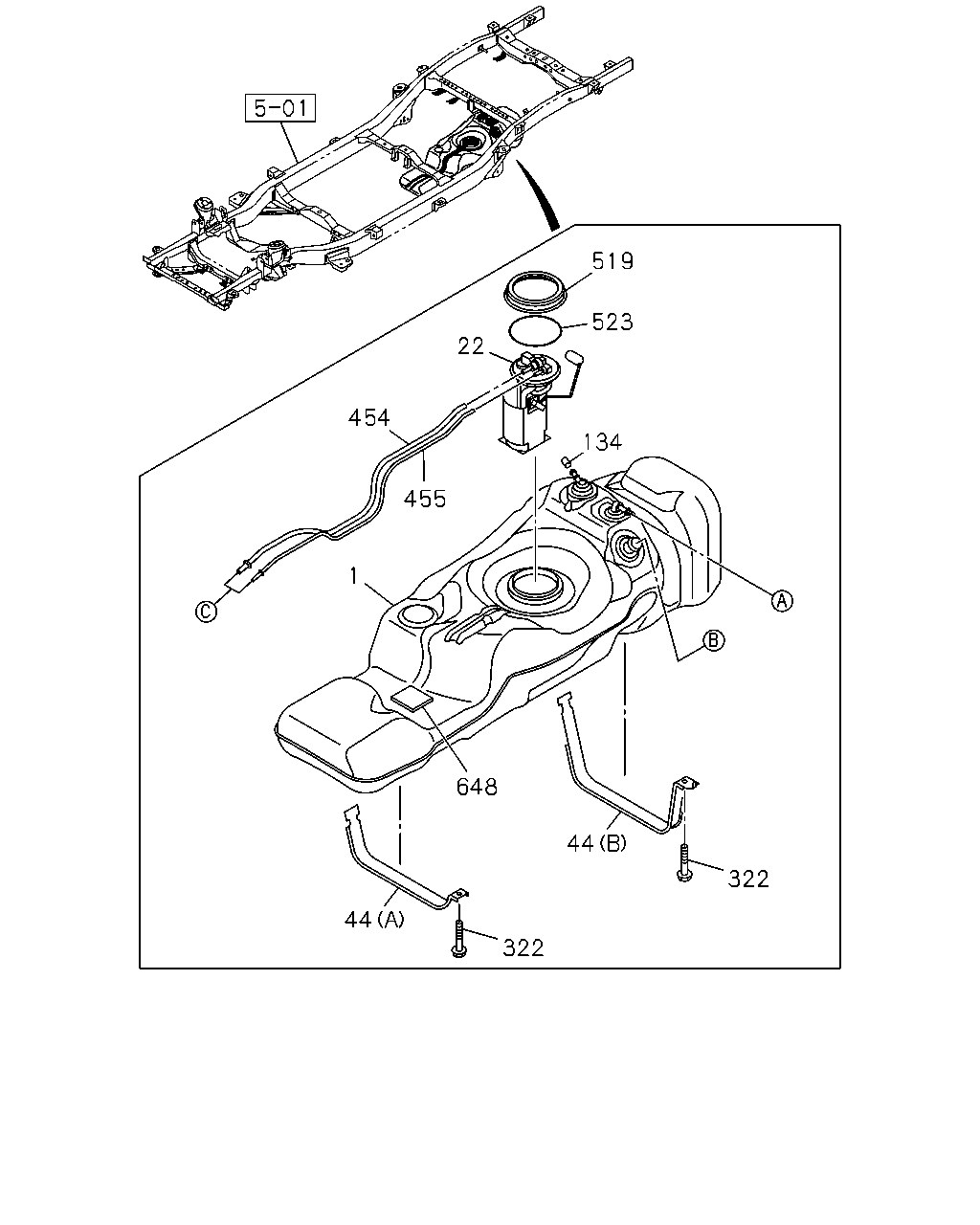

519 523 22 454 455 134 648 44 322 322 44 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; FUEL 76L THA	8-97947-077-3	01	1	1109-	●	●	●
22	UNIT; FUEL TANK THA	8-97947-151-3	01	1	1109-	●	●	●
44	BAND; FUEL TANK (A) THA	8-97947-085-4	01	1	1109-	●	●	●
44	BAND; FUEL TANK (B) THA	8-97947-086-2	01	1	1109-	●	●	●
134	CAP; VALVE,FUEL TANK THA	8-97947-156-0	01	1	1109-1209	●	●	●
134	CAP; VALVE,FUEL TANK THA	8-98223-574-0	01	1	1210-	●	●	●
322	BOLT; BRKT FIX M10X50 FLANGE THA	8-97301-165-0	02	1	1109-	●	●	●
322	BOLT; BRKT FIX REGULAR CAB<TF*S> REAR BODY DELETE<8HH> M12X40 FLANGE THA	0-28051-240-0	01	1	1110-	●	●	●
454	PIPE; FUEL,DELIVERY THA	8-97947-152-0	01	1	1109-	●	●	●
455	PIPE; FUEL,RETURN THA	8-97947-153-0	01	1	1109-	●	●	●
519	RETAINER; FUEL PUMP THA	8-97947-157-0	01	1	1109-	●	●	●
523	SEAL; FUEL SENSOR ID=125 OD=135 THA	8-97947-154-0	01	1	1109-	●	●	●
648	RUBBER THA	8-98191-468-0	01	1	1109-	●	●	●

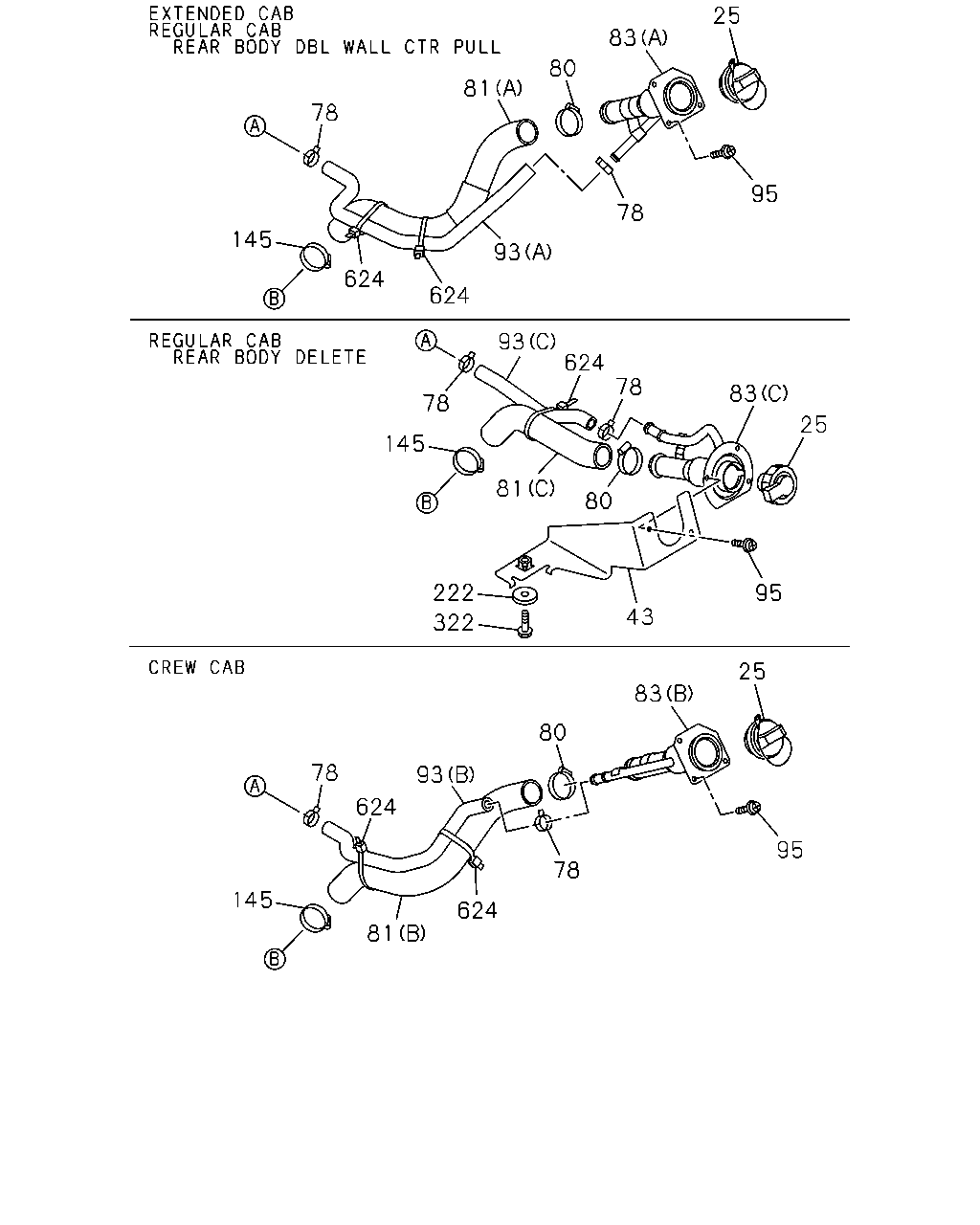

81 80 83 25 95 78 93 624 624 145 78 93 78 83 95 43 222 322 81 80 624 78 145 83 25 95 78 80 93 78 145 81 624 624

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
25	CAP; FILLER,FUEL TANK IMA	8-98088-024-0	01	1	1109-1109	●	●	●
25	CAP; FILLER,FUEL TANK REAR BODY DBL WALL CTR PULL<E63> IMA	8-98088-024-0	01	1	1110-1510	●	●	●
25	CAP; FILLER,FUEL TANK REAR BODY DBL WALL CTR PULL<E63> EXC. FUEL TANK CAP W/LOCK<N05> IMA	8-98327-664-0	01	1	1511-	●	●	●
43	BRACKET; FUEL TANK REGULAR CAB<TF*S> REAR BODY DELETE<8HH> THA	8-97947-120-0	01	1	1110-	●	●	●
78	CLIP; BREATHER HOSE ID=20.8 THA	8-97944-127-0	01	1	1109-	●	●	●
78	CLIP; BREATHER HOSE ID=20.8 THA	8-97944-127-0	01	1	1109-	●	●	●
80	CLIP; FILLER HOSE ID=30-45 THA	8-98115-807-0	01	1	1109-	●	●	●
81	HOSE; FUEL FILLER (A) THA	8-97947-177-2	01	1	1109-1109	●	●	●
81	HOSE; FUEL FILLER EXTENDED CAB<TF*C> (A) THA	8-97947-177-2	01	1	1110-	●	●	●
81	HOSE; FUEL FILLER REGULAR CAB<TF*S> REAR BODY DBL WALL CTR PULL<E63> (A) THA	8-97947-177-2	01	1	1110-	●	●
81	HOSE; FUEL FILLER REGULAR CAB<TF*S> REAR BODY DELETE<8HH> (C) THA	8-97947-481-0	01	1	1110-1211	●	●
81	HOSE; FUEL FILLER REAR BODY DELETE<8HH> (C) THA	8-97947-481-0	01	1	1212-	●	●	●
81	HOSE; FUEL FILLER CREW CAB<TF*W> (B) THA	8-97947-192-0	01	1	1110-	●	●	●
83	NECK; FUEL FILLER (A) THA	8-97947-175-1	01	1	1109-1109	●	●	●
83	NECK; FUEL FILLER EXTENDED CAB<TF*C> (A) THA	8-97947-175-1	01	1	1110-	●	●	●
83	NECK; FUEL FILLER REGULAR CAB<TF*S> REAR BODY DBL WALL CTR PULL<E63> (A) THA	8-97947-175-1	01	1	1110-	●	●
83	NECK; FUEL FILLER REGULAR CAB<TF*S> REAR BODY DELETE<8HH> (C) THA	8-97947-479-2	01	1	1110-1211	●	●
83	NECK; FUEL FILLER REAR BODY DELETE<8HH> (C) THA	8-97947-479-2	01	1	1212-	●	●	●
83	NECK; FUEL FILLER CREW CAB<TF*W> (B) THA	8-97947-181-0	01	1	1110-	●	●	●
93	HOSE; BREATHER,FUEL TANK (A) THA	8-97947-176-2	01	1	1109-1109	●	●	●
93	HOSE; BREATHER,FUEL TANK EXTENDED CAB<TF*C> (A) THA	8-97947-176-2	01	1	1110-	●	●	●
93	HOSE; BREATHER,FUEL TANK REGULAR CAB<TF*S> REAR BODY DBL WALL CTR PULL<E63> (A) THA	8-97947-176-2	01	1	1110-	●	●
93	HOSE; BREATHER,FUEL TANK REGULAR CAB<TF*S> REAR BODY DELETE<8HH> (C) THA	8-97947-480-1	01	1	1110-1211	●	●
93	HOSE; BREATHER,FUEL TANK REAR BODY DELETE<8HH> (C) THA	8-97947-480-1	01	1	1212-	●	●	●
93	HOSE; BREATHER,FUEL TANK CREW CAB<TF*W> (B) THA	8-97947-193-0	01	1	1110-	●	●	●
95	SCREW; FILLER NECK IMA	8-98139-595-0	03	1	1109-1109	●	●	●
95	SCREW; FILLER NECK REAR BODY DBL WALL CTR PULL<E63> IMA	8-98139-595-0	03	1	1110-	●	●	●
95	SCREW; FILLER NECK REAR BODY DELETE<8HH> IMA	8-98139-595-0	02	1	1110-	●	●	●
145	CLIP; HOSE,FILLER NECK ID=30-45 THA	8-97947-244-0	01	1	1109-	●	●	●
222	WASHER; BRKT,FUEL TANK REGULAR CAB<TF*S> REAR BODY DELETE<8HH> ID=13 OD=40 T=6 THA	8-98098-458-0	01	1	1110-	●	●	●
322	BOLT; BRKT FIX M10X50 FLANGE THA	8-97301-165-0	02	1	1109-	●	●	●
322	BOLT; BRKT FIX REGULAR CAB<TF*S> REAR BODY DELETE<8HH> M12X40 FLANGE THA	0-28051-240-0	01	1	1110-	●	●	●
624	CLIP; BAND L=330 IMA	5-09709-118-0	02	1	1109-1109	●	●	●
624	CLIP; BAND REAR BODY DBL WALL CTR PULL<E63> L=330 IMA	5-09709-118-0	02	1	1110-	●	●	●
624	CLIP; BAND REGULAR CAB<TF*S> REAR BODY DELETE<8HH> L=330 IMA	5-09709-118-0	01	1	1110-1211	●	●
624	CLIP; BAND REAR BODY DELETE<8HH> L=330 IMA	5-09709-118-0	01	1	1212-	●	●	●

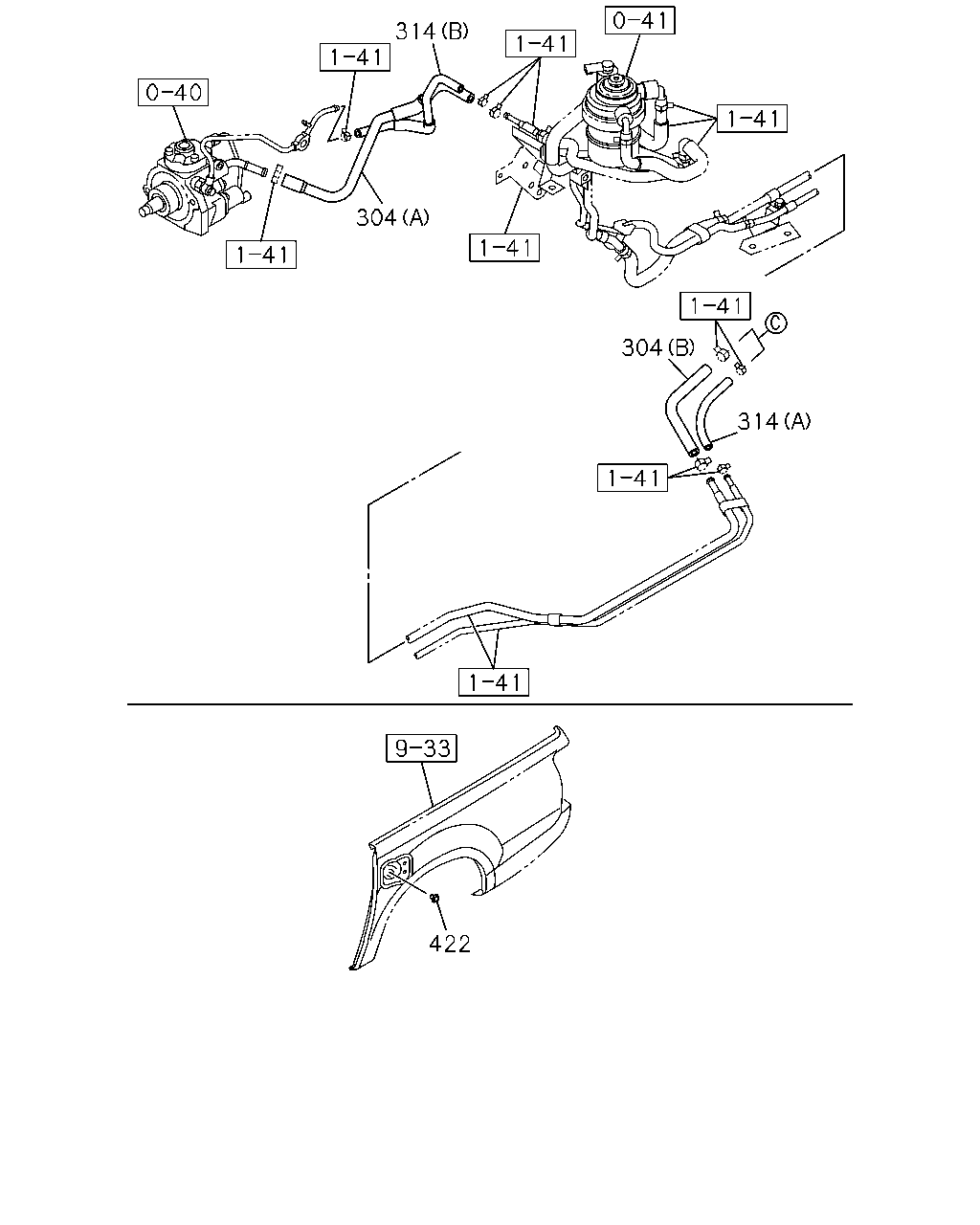

422 314 304 304 314

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP (A) THA	8-98100-728-6	01	1	1109-	●	●	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP (B) THA	8-98164-019-0	01	1	1109-	●	●	●
314	HOSE; RUBBER,FUEL RETURN (A) THA	8-98113-323-1	01	1	1109-1404	●	●	●
314	HOSE; RUBBER,FUEL RETURN (A) THA	8-98258-246-0	01	1	1405-	●	●	●
314	HOSE; RUBBER,FUEL RETURN (B) THA	8-98113-329-4	01	1	1109-	●	●	●
422	PLUG; FUEL TANK THA	8-98154-084-0	01	1	1109-1109	●	●	●
422	PLUG; FUEL TANK REAR BODY DBL WALL CTR PULL<E63> THA	8-98154-084-0	01	1	1110-	●	●	●
