◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10831 - FSS/FTS(AUSTRALIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#8167) — 105 parça

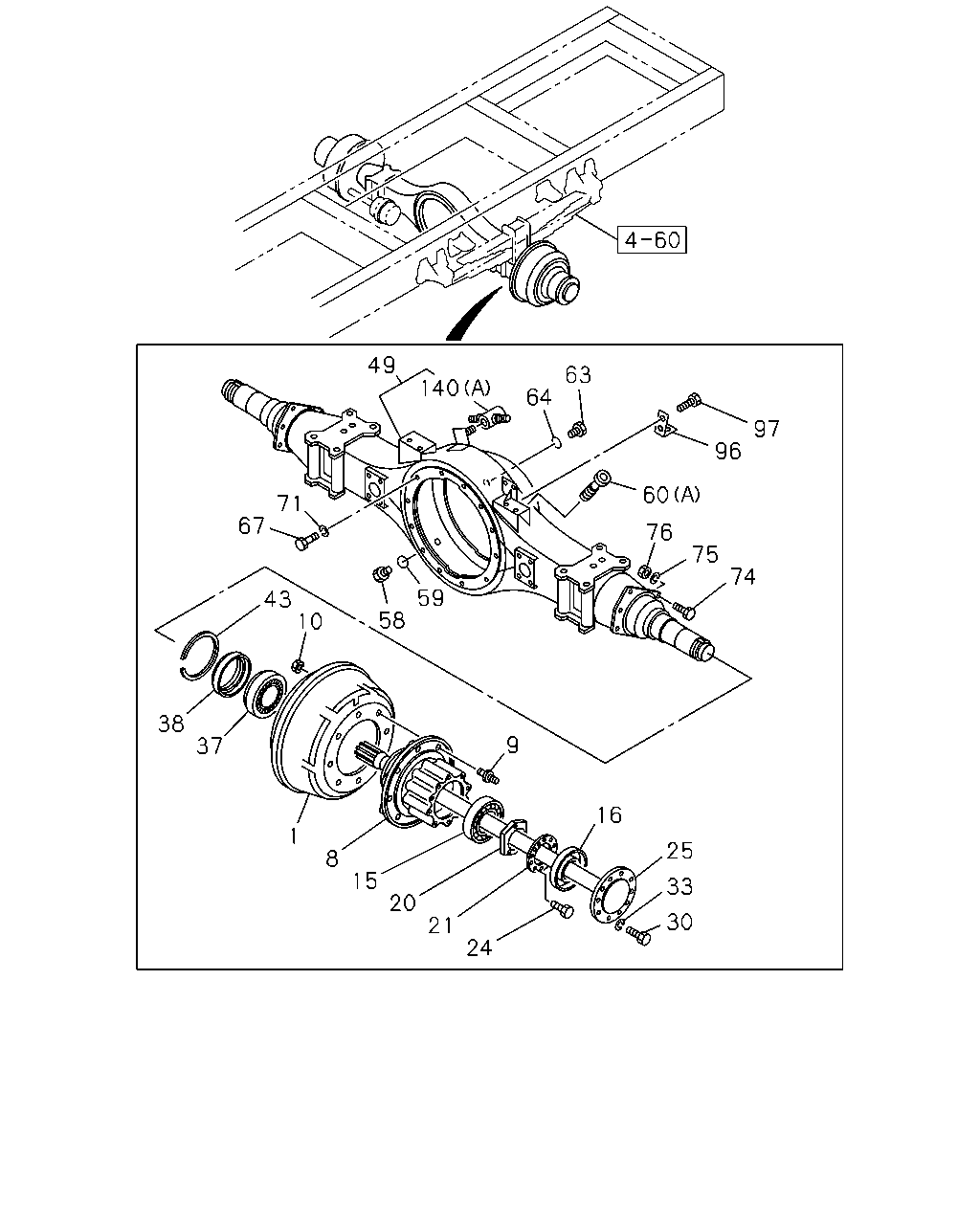

çizim 77702
49 63 140 64 97 96 60 71 67 76 75 74 59 43 10 58 38 9 37 16 1 25 8 15 33 20 30 21 24
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRUM; BRK,RR 1-42315-362-1 02 1 0005- ● ●
1 DRUM; BRK,RR
H=195 		1-42315-208-2 02 1 0005- ● ●
8 HUB; RR AXLE 1-42311-021-1 02 1 0005- ● ●
8 HUB; RR AXLE 1-42311-092-0 02 1 0005- ● ●
9 PIN; WHEEL,RR AXLE
M20X34.5 LH THREAD,M22X51.5 RH THREAD 		1-42332-110-2 08 1 0005- ● ● ● ●
9 PIN; WHEEL,RR AXLE
M20X34.5,M22X51.5 RH THREAD 		1-42331-110-2 08 1 0005- ● ● ● ●
10 NUT; WHEEL PIN,RR AXLE
M22 FLANGE 		1-09440-065-0 16 1 0005- ● ● ● ●
15 BEARING; HUB OUTER,RR AXLE
KOYO 		1-09812-049-0 02 1 0005-1002 ● ●
15 BEARING; HUB OUTER,RR AXLE
KOYO 		8-98156-814-0 02 1 1003- ● ●
15 BEARING; HUB OUTER,RR AXLE
NSK 		9-00093-159-0 02 1 0005- ● ●
15 BEARING; HUB OUTER,RR AXLE
NSK 		1-09812-153-0 02 1 0005- ● ●
15 BEARING; HUB OUTER,RR AXLE
KOYO 		1-09812-154-0 02 1 0005- ● ●
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-331-1 02 1 0005- ● ●
16 SEAL; OIL,RR HUB,OUTER
NOK 		9-09924-468-0 02 1 0005- ● ●
16 SEAL; OIL,RR HUB,OUTER
TKK 		9-09924-470-0 02 1 0005-0509 ● ●
16 SEAL; OIL,RR HUB,OUTER
KOYO 		9-09924-499-0 02 1 0005-0509 ● ●
20 NUT; BRG,RR HUB
M64 		9-09843-721-2 02 1 0005- ● ●
20 NUT; BRG,RR HUB
M74.6 		9-09843-064-2 02 1 0005- ● ●
21 WASHER; LK,BRG NUT
ID=64 		9-09854-122-0 02 1 0005- ● ●
21 WASHER; LK,BRG NUT
ID=74.6 		1-09533-008-0 02 1 0005- ● ●
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 06 1 0005-0512 ● ● ● ●
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 0601- ● ● ● ●
25 SHAFT; AXLE,RR
L=921.5 		1-42171-484-0 02 1 0005- ● ●
25 SHAFT; AXLE,RR
L=986 		1-42171-499-0 02 1 0005- ● ●
30 BOLT; HUB TO AXLE SHAFT
M12X45 		9-09804-239-1 20 1 0005- ● ●
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 0005- ● ●
33 WASHER; AXLE SHAFT
ID=12.2 		9-09150-812-0 20 1 0005-0603 ● ●
33 WASHER; AXLE SHAFT
ID=12.2 		0-91510-812-0 20 1 0604- ● ●
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 0005-0603 ● ●
33 WASHER; AXLE SHAFT
ID=14.2 		0-91510-814-0 20 1 0604- ● ●
37 BEARING; HUB INNER,RR AXLE
KOYO 		1-09812-044-0 02 1 0005-1002 ● ●
37 BEARING; HUB INNER,RR AXLE
KOYO 		1-09812-154-0 02 1 1003- ● ●
37 BEARING; HUB INNER,RR AXLE
NACHI 		1-09812-053-0 02 1 0005-1002 ● ●
37 BEARING; HUB INNER,RR AXLE
NSK 		9-00093-161-0 02 1 0005-1002 ● ●
37 BEARING; HUB INNER,RR AXLE
NSK 		1-09812-153-0 02 1 1003- ● ●
37 BEARING; HUB INNER,RR AXLE
NSK 		1-09812-150-0 02 1 0005- ● ●
37 BEARING; HUB INNER,RR AXLE
NACHI 		1-09812-151-0 02 1 0005- ● ●
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-569-0 02 1 0005- ● ●
38 SEAL; OIL,RR HUB,INNER
TKK 		9-09924-415-0 02 1 0005- ● ●
38 SEAL; OIL,RR HUB,INNER
NOK 		9-09924-416-0 02 1 0005-0111 ● ●
38 SEAL; OIL,RR HUB,INNER
KOYO 		9-09924-417-0 02 1 0005-0111 ● ●
43 RING; SNAP,HUB SEAL,RR AXLE 9-09950-201-0 02 1 0005- ● ●
43 RING; SNAP,HUB SEAL,RR AXLE
OD=150 		9-09950-147-0 02 1 0005- ● ●
49 CASE; RR AXLE
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-42150-961-0 01 1 0005-0210 ● ●
49 CASE; RR AXLE
EXC. LOAD SENSING PROPORTIONING VALVE(JR7) 		1-42160-150-0 01 1 0005-0210 ● ●
49 CASE; RR AXLE 1-42160-150-1 01 1 0211- ● ●
49 CASE; RR AXLE
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-42160-152-0 01 1 0005-0210 ● ●
49 CASE; RR AXLE
EXC. LOAD SENSING PROPORTIONING VALVE(JR7) 		1-42160-151-1 01 1 0005-0210 ● ●
49 CASE; RR AXLE 1-42160-151-1 01 1 0211-0211 ● ●
49 CASE; RR AXLE 1-42160-152-0 01 1 0211- ● ●
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0005- ● ● ● ●
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 0005- ● ● ● ●
60 BREATHER; RR AXLE CASE
(A) 		9-36122-015-1 01 1 0005- ● ●
60 BREATHER; RR AXLE CASE
AIR BREATHER W/FLEX HOSE<C4M> (B) 		1-09893-009-0 01 1 0005-0210 ● ●
60 BREATHER; RR AXLE CASE
(B) 		1-09893-009-0 01 1 0211- ● ●
60 BREATHER; RR AXLE CASE
EXC. AIR BREATHER W/FLEX HOSE<C4M> (A) 		1-09893-007-0 01 1 0005-0210 ● ●
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 0005- ● ● ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 0005- ● ● ● ●
67 BOLT; FINAL DRIVE SETTING
M12X55 		9-91066-255-0 04 1 0005- ● ●
67 BOLT; FINAL DRIVE SETTING
M12X35 		9-92061-235-0 08 1 0005-0512 ● ●
67 BOLT; FINAL DRIVE SETTING
M12X35 		0-20951-235-0 08 1 0601- ● ●
67 BOLT; FINAL DRIVE SETTING
M14X65 		9-91066-465-0 04 1 0005-0108 ● ●
67 BOLT; FINAL DRIVE SETTING
M14X65 		9-92061-465-0 04 1 0109- ● ●
67 BOLT; FINAL DRIVE SETTING
M14X40 		9-92061-440-0 08 1 0005-0512 ● ●
67 BOLT; FINAL DRIVE SETTING
M14X40 		0-20951-440-0 08 1 0601- ● ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=12.2 		9-09150-812-0 12 1 0005-0603 ● ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=12.2 		0-91510-812-0 12 1 0604- ● ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=14.2 		9-09150-814-0 12 1 0005-0603 ● ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=14.2 		0-91510-814-0 12 1 0604- ● ●
74 BOLT; RR BRK ASM SETTING
M14X50 		9-92061-450-0 12 1 0005-0512 ● ●
74 BOLT; RR BRK ASM SETTING
M14X50 		0-20951-450-0 12 1 0601- ● ●
74 BOLT; RR BRK ASM SETTING
M14X52 		1-09000-310-0 12 1 0005- ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 16 1 0005-0210 ● ● ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 16 1 0211-0603 ● ● ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 16 1 0604- ● ● ● ●
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 10 1 0005-0210 ● ● ● ●
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 10 1 0211-0512 ● ● ● ●
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 10 1 0601- ● ● ● ●
96 BRACKET; LSPV,AXLE CASE
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47475-073-0 01 1 0005-0210 ● ●
97 BOLT; BRKT,LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) M8X16 FLANGE 		0-28080-816-0 02 1 0005-0210 ● ●
140 CONNECTOR; AXLE CASE
(A) 		1-09656-239-3 01 1 0005- ● ●
140 CONNECTOR; AXLE CASE
AIR BREATHER W/FLEX HOSE<C4M> (B) 		1-09669-080-1 01 1 0005-0210 ● ●
140 CONNECTOR; AXLE CASE
(B) 		1-09669-080-2 01 1 0211- ● ●

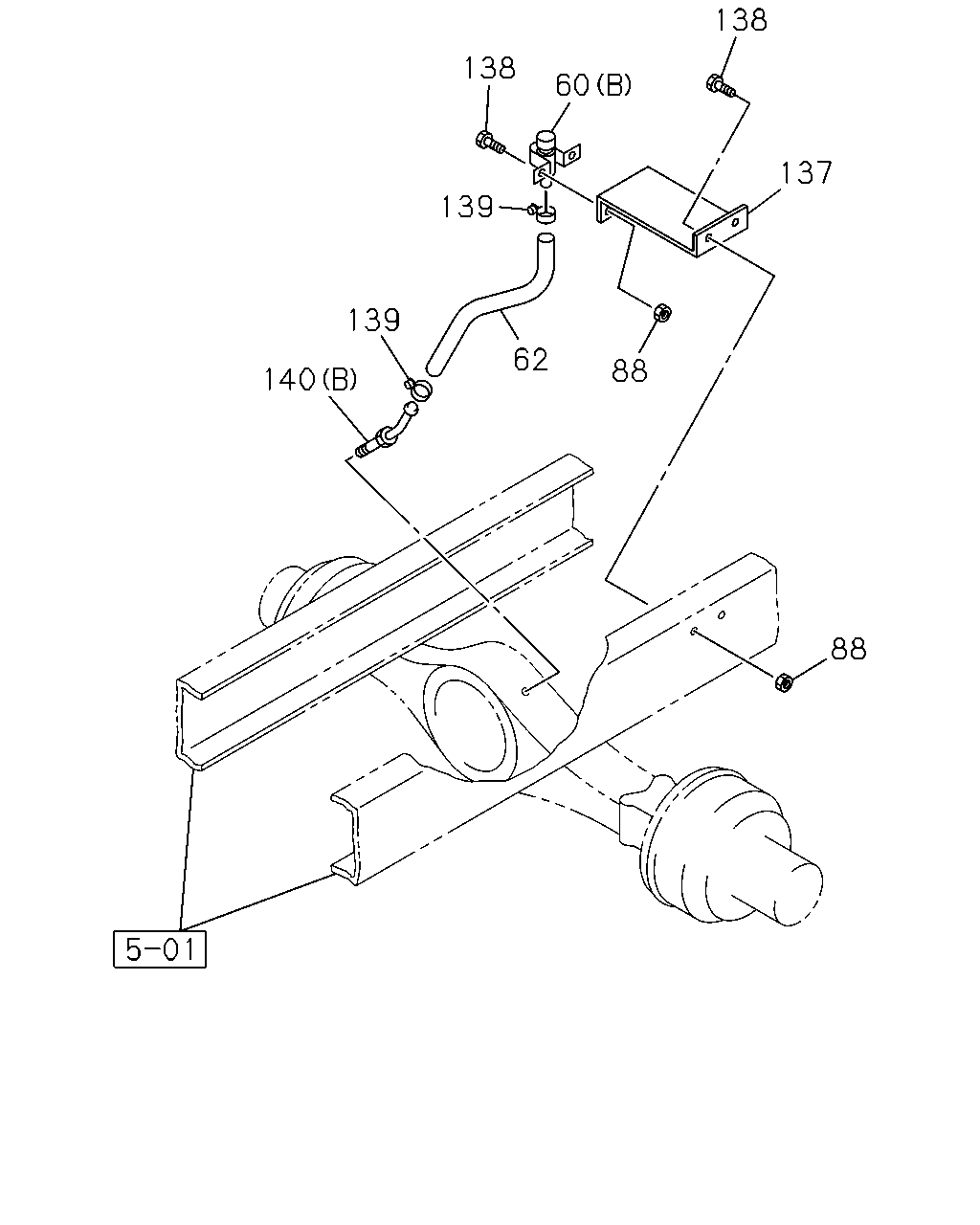

çizim 103106
138 138 60 137 139 139 62 88 140 88
BalonParca AdiParca NoAdetTipApplied Date A B C D
60 BREATHER; RR AXLE CASE
(A) 		9-36122-015-1 01 1 0005- ● ●
60 BREATHER; RR AXLE CASE
AIR BREATHER W/FLEX HOSE<C4M> (B) 		1-09893-009-0 01 1 0005-0210 ● ●
60 BREATHER; RR AXLE CASE
(B) 		1-09893-009-0 01 1 0211- ● ●
60 BREATHER; RR AXLE CASE
EXC. AIR BREATHER W/FLEX HOSE<C4M> (A) 		1-09893-007-0 01 1 0005-0210 ● ●
62 HOSE; RUBBER,BREATHER,RR AXLE
AIR BREATHER W/FLEX HOSE<C4M> 		0-02811-500-0 01 1 0005-0210 ● ●
62 HOSE; RUBBER,BREATHER,RR AXLE 0-02811-500-0 01 1 0211-0908 ● ●
62 HOSE; RUBBER,BREATHER,RR AXLE 0-02811-400-0 01 1 0909- ● ●
88 NUT; BRKT
AIR BREATHER W/FLEX HOSE<C4M> M8 FLANGE 		0-91150-108-0 04 1 0005-0210 ● ●
88 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0211-0602 ● ●
88 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
137 BRACKET; BREATHER,RR AXLE
AIR BREATHER W/FLEX HOSE<C4M> 		1-42129-122-0 01 1 0005-0210 ● ●
137 BRACKET; BREATHER,RR AXLE 1-42129-122-0 01 1 0211- ● ●
138 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 02 1 0909- ● ●
138 BOLT; BRKT
AIR BREATHER W/FLEX HOSE<C4M> M8X25 FLANGE 		0-28680-825-0 04 1 0005-0210 ● ●
138 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0211-0512 ● ●
138 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0601-0908 ● ●
138 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0909- ● ●
139 CLIP; WIRE
AIR BREATHER W/FLEX HOSE<C4M> ID=18 		1-09707-011-1 02 1 0005-0210 ● ●
139 CLIP; WIRE
ID=18 		1-09707-011-1 02 1 0211- ● ●
140 CONNECTOR; AXLE CASE
(A) 		1-09656-239-3 01 1 0005- ● ●
140 CONNECTOR; AXLE CASE
AIR BREATHER W/FLEX HOSE<C4M> (B) 		1-09669-080-1 01 1 0005-0210 ● ●
140 CONNECTOR; AXLE CASE
(B) 		1-09669-080-2 01 1 0211- ● ●
