Isuzu WW
▶
PICKUP
▶
TFR
▶
51373 - TFR/TFS(THAILAND)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#81669) — 60 parça
Tümü
A - 4JK1-TCS ENG
B - 4JK1-TCX ENG
C - 4JJ1-TCX ENG
◀

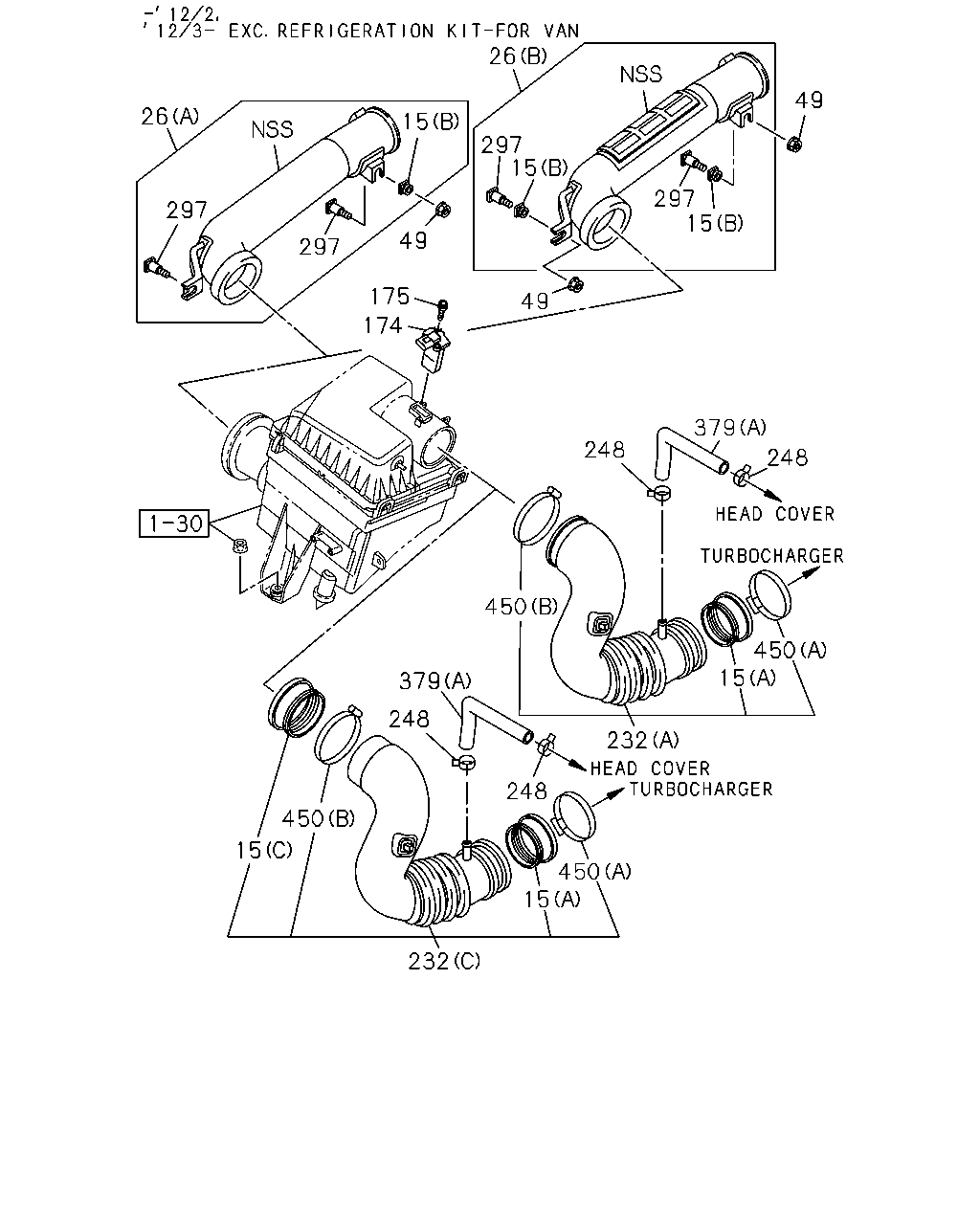

[131A] NO.1 (32 parça)

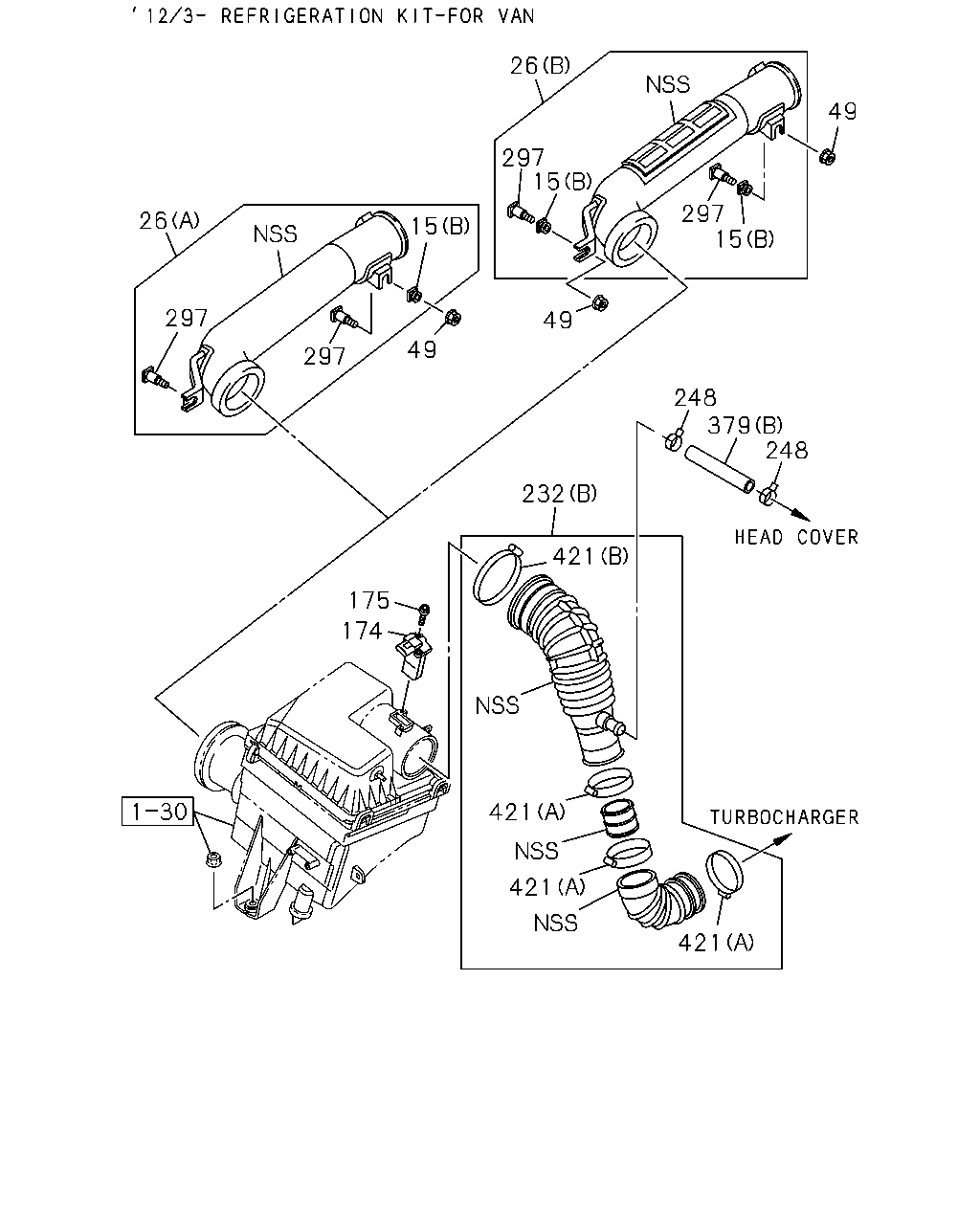

[131A] NO.2 (28 parça)
▶
26
297
297
15
26
297
297
15
15
175
174
248
379
450
248
450
15
232
379
248
248
450
15
15
450
232
49
49
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
15
INSULATOR
EXC. REFRIGERATION KIT<7FH> (C) THA
8-98214-036-0
01
1
1205-
●
15
INSULATOR
(C) THA
8-98214-036-0
01
1
1205-
●
●
15
INSULATOR
(B) THA
8-97977-977-0
02
1
1109-1109
●
●
●
15
INSULATOR
(B) THA
8-98203-901-0
02
1
1110-
●
●
●
15
INSULATOR
(A) THA
8-98137-141-0
01
1
1109-1202
●
15
INSULATOR
EXC. REFRIGERATION KIT<7FH> (A) THA
8-98137-141-0
01
1
1203-
●
15
INSULATOR
(A) THA
8-98137-140-0
01
1
1109-
●
●
26
DUCT; AIR INT
(A) THA
8-98065-550-1
01
1
1109-
●
26
DUCT; AIR INT
(B) THA
8-98104-472-1
01
1
1109-
●
●
49
NUT; AIR DUCT
M6 FLANGE THA
0-91180-106-0
02
1
1109-
●
●
●
174
SENSOR; AIR FLOW CONT
IMA
8-97601-967-0
01
1
1109-
●
●
●
175
BOLT; AIR FLOW CONT SENSOR
SCREW M4X10 W/LK&PL WASHER THA
0-36230-410-0
02
1
1109-
●
●
●
232
HOSE; CONN
REFRIGERATION KIT<7FH> (B) THA
8-98201-837-0
01
1
1203-
●
232
HOSE; CONN
(A) THA
8-98065-552-1
01
1
1109-1202
●
232
HOSE; CONN
EXC. REFRIGERATION KIT<7FH> (A) THA
8-98065-552-1
01
1
1203-1204
●
232
HOSE; CONN
EXC. REFRIGERATION KIT<7FH> (C) THA
8-98212-085-0
01
1
1205-
●
232
HOSE; CONN
(A) THA
8-98065-551-3
01
1
1109-1204
●
●
232
HOSE; CONN
(A) THA
8-98212-086-0
01
1
1205-
●
●
248
CLIP; RUBBER HOSE
ID=20.4 IMA
8-94121-113-0
02
1
1109-
●
●
●
297
BOLT; DUCT
THA
8-97977-976-0
01
1
1109-1109
●
●
●
297
BOLT; DUCT
THA
8-98203-900-0
01
1
1110-1209
●
●
●
297
BOLT; DUCT
THA
8-98203-900-0
02
1
1210-
●
●
●
379
HOSE; RUBBER
REFRIGERATION KIT<7FH> (B) THA
8-98205-976-0
01
1
1203-
●
379
HOSE; RUBBER
(A) THA
8-98065-694-1
01
1
1109-1202
●
●
●
379
HOSE; RUBBER
EXC. REFRIGERATION KIT<7FH> (A) THA
8-98065-694-1
01
1
1203-
●
379
HOSE; RUBBER
(A) THA
8-98065-694-1
01
1
1203-
●
●
450
CLAMP; HOSE
(A) THA
8-98136-625-0
01
1
1109-1202
●
450
CLAMP; HOSE
EXC. REFRIGERATION KIT<7FH> (A) THA
8-98136-625-0
01
1
1203-
●
450
CLAMP; HOSE
(A) THA
8-98136-624-0
01
1
1109-
●
●
450
CLAMP; HOSE
(B) THA
8-98136-623-0
01
1
1109-1202
●
●
●
450
CLAMP; HOSE
EXC. REFRIGERATION KIT<7FH> (B) THA
8-98136-623-0
01
1
1203-
●
450
CLAMP; HOSE
(B) THA
8-98136-623-0
01
1
1203-
●
●
26
297
49
248
248
379
15
297
49
15
15
297
49
297
26
232
421
175
174
421
421
421
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
15
INSULATOR
EXC. REFRIGERATION KIT<7FH> (C) THA
8-98214-036-0
01
1
1205-
●
15
INSULATOR
(C) THA
8-98214-036-0
01
1
1205-
●
●
15
INSULATOR
(B) THA
8-97977-977-0
02
1
1109-1109
●
●
●
15
INSULATOR
(B) THA
8-98203-901-0
02
1
1110-
●
●
●
15
INSULATOR
(A) THA
8-98137-141-0
01
1
1109-1202
●
15
INSULATOR
EXC. REFRIGERATION KIT<7FH> (A) THA
8-98137-141-0
01
1
1203-
●
15
INSULATOR
(A) THA
8-98137-140-0
01
1
1109-
●
●
26
DUCT; AIR INT
(A) THA
8-98065-550-1
01
1
1109-
●
26
DUCT; AIR INT
(B) THA
8-98104-472-1
01
1
1109-
●
●
49
NUT; AIR DUCT
M6 FLANGE THA
0-91180-106-0
02
1
1109-
●
●
●
174
SENSOR; AIR FLOW CONT
IMA
8-97601-967-0
01
1
1109-
●
●
●
175
BOLT; AIR FLOW CONT SENSOR
SCREW M4X10 W/LK&PL WASHER THA
0-36230-410-0
02
1
1109-
●
●
●
232
HOSE; CONN
REFRIGERATION KIT<7FH> (B) THA
8-98201-837-0
01
1
1203-
●
232
HOSE; CONN
(A) THA
8-98065-552-1
01
1
1109-1202
●
232
HOSE; CONN
EXC. REFRIGERATION KIT<7FH> (A) THA
8-98065-552-1
01
1
1203-1204
●
232
HOSE; CONN
EXC. REFRIGERATION KIT<7FH> (C) THA
8-98212-085-0
01
1
1205-
●
232
HOSE; CONN
(A) THA
8-98065-551-3
01
1
1109-1204
●
●
232
HOSE; CONN
(A) THA
8-98212-086-0
01
1
1205-
●
●
248
CLIP; RUBBER HOSE
ID=20.4 IMA
8-94121-113-0
02
1
1109-
●
●
●
297
BOLT; DUCT
THA
8-97977-976-0
01
1
1109-1109
●
●
●
297
BOLT; DUCT
THA
8-98203-900-0
01
1
1110-1209
●
●
●
297
BOLT; DUCT
THA
8-98203-900-0
02
1
1210-
●
●
●
379
HOSE; RUBBER
REFRIGERATION KIT<7FH> (B) THA
8-98205-976-0
01
1
1203-
●
379
HOSE; RUBBER
(A) THA
8-98065-694-1
01
1
1109-1202
●
●
●
379
HOSE; RUBBER
EXC. REFRIGERATION KIT<7FH> (A) THA
8-98065-694-1
01
1
1203-
●
379
HOSE; RUBBER
(A) THA
8-98065-694-1
01
1
1203-
●
●
421
CLAMP; AIR DUCT
REFRIGERATION KIT<7FH> (A) THA
8-98329-436-0
03
1
1507-
●
421
CLAMP; AIR DUCT
REFRIGERATION KIT<7FH> (B) THA
8-98329-437-0
01
1
1507-
●
