0-66 — GENERATOR (#81664) — 20 parça

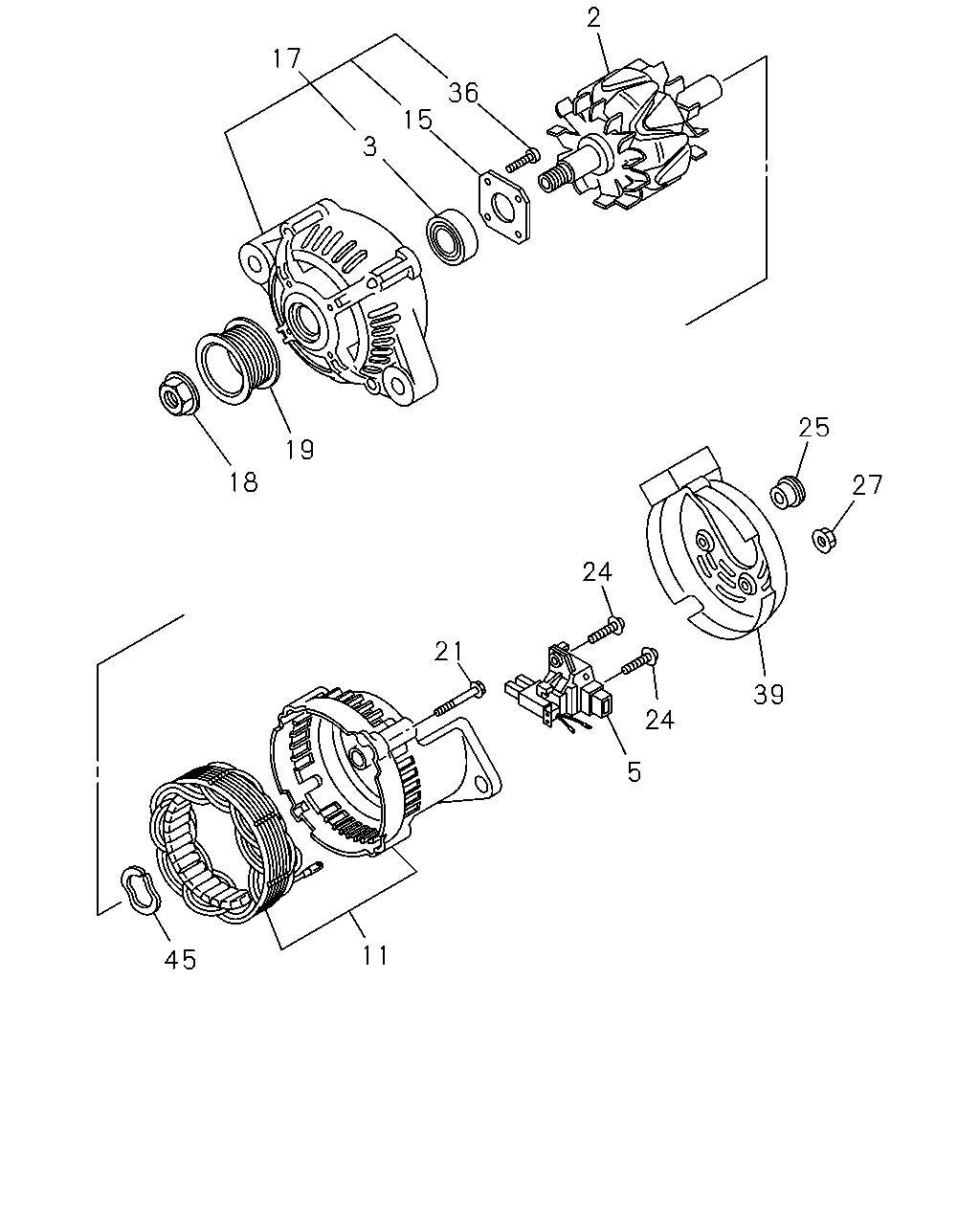

çizim 147381
11 5 24 24 39 27 25 21 19 18 36 15 3 17 2 45
BalonParca AdiParca NoAdetTipApplied Date
2 ROTOR; GEN
THA ASM PART: A = 8-98196-585-0, B = 8-98229-071-1 		8-97378-924-0 01 1 -
3 BEARING; ROTOR,GEN
THA ASM PART: A = 8-98196-585-0 		8-98159-188-0 01 1 -
3 BEARING; ROTOR,GEN
THA ASM PART: B = 8-98229-071-1 		8-98228-965-0 01 1 -
5 HOLDER; BRUSH,GEN
THA ASM PART: A = 8-98196-585-0, B = 8-98229-071-1 		8-97378-926-0 01 1 -
11 COVER; RR,GEN
THA ASM PART: B = 8-98229-071-1 		8-98159-086-0 01 1 -1403
11 COVER; RR,GEN
THA ASM PART: A = 8-98196-585-0 		8-98159-086-0 01 1 -
11 COVER; RR,GEN
THA ASM PART: B = 8-98229-071-1 		8-98242-367-0 01 1 1404-
15 RETAINER; ROTOR,GEN
IMA ASM PART: A = 8-98196-585-0, B = 8-98229-071-1 		8-94406-982-0 01 1 -
17 COVER ASM; FRT,GEN
THA ASM PART: A = 8-98196-585-0 		8-98159-085-0 01 1 -
17 COVER ASM; FRT,GEN
THA ASM PART: B = 8-98229-071-1 		8-98229-789-0 01 1 -
18 NUT; PULLEY,GEN
IMA ASM PART: A = 8-98196-585-0, B = 8-98229-071-1 		8-94123-043-0 01 1 -
19 PULLEY; GEN
THA ASM PART: A = 8-98196-585-0, B = 8-98229-071-1 		8-98000-022-0 01 1 -
21 BOLT; THROUGH,GEN
IMA ASM PART: A = 8-98196-585-0, B = 8-98229-071-1 		8-97319-752-0 04 1 -
24 SCREW; RECTIFIER,GEN
IMA ASM PART: A = 8-98196-585-0, B = 8-98229-071-1 		8-97032-313-0 03 1 -
25 BUSHING; INSULATION TERMINAL
THA ASM PART: A = 8-98196-585-0, B = 8-98229-071-1 		8-98196-584-0 01 1 -
27 NUT; RECTIFIER,GEN
THA ASM PART: A = 8-98196-585-0, B = 8-98229-071-1 		8-97319-772-0 03 1 -
36 SCREW; FRT COVER
IMA ASM PART: A = 8-98196-585-0, B = 8-98229-071-1 		8-97142-562-0 04 1 -
39 COVER; END,RR COVER,GEN
THA ASM PART: A = 8-98196-585-0, B = 8-98229-071-1 		8-97378-928-0 01 1 -
45 WASHER; INSULATE,RR COVER,GEN
THA ASM PART: A = 8-98196-585-0 		8-97142-570-0 01 1 -
45 WASHER; INSULATE,RR COVER,GEN
THA ASM PART: B = 8-98229-071-1 		8-97142-570-0 01 1 -1403
