◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#81661) — 103 parça

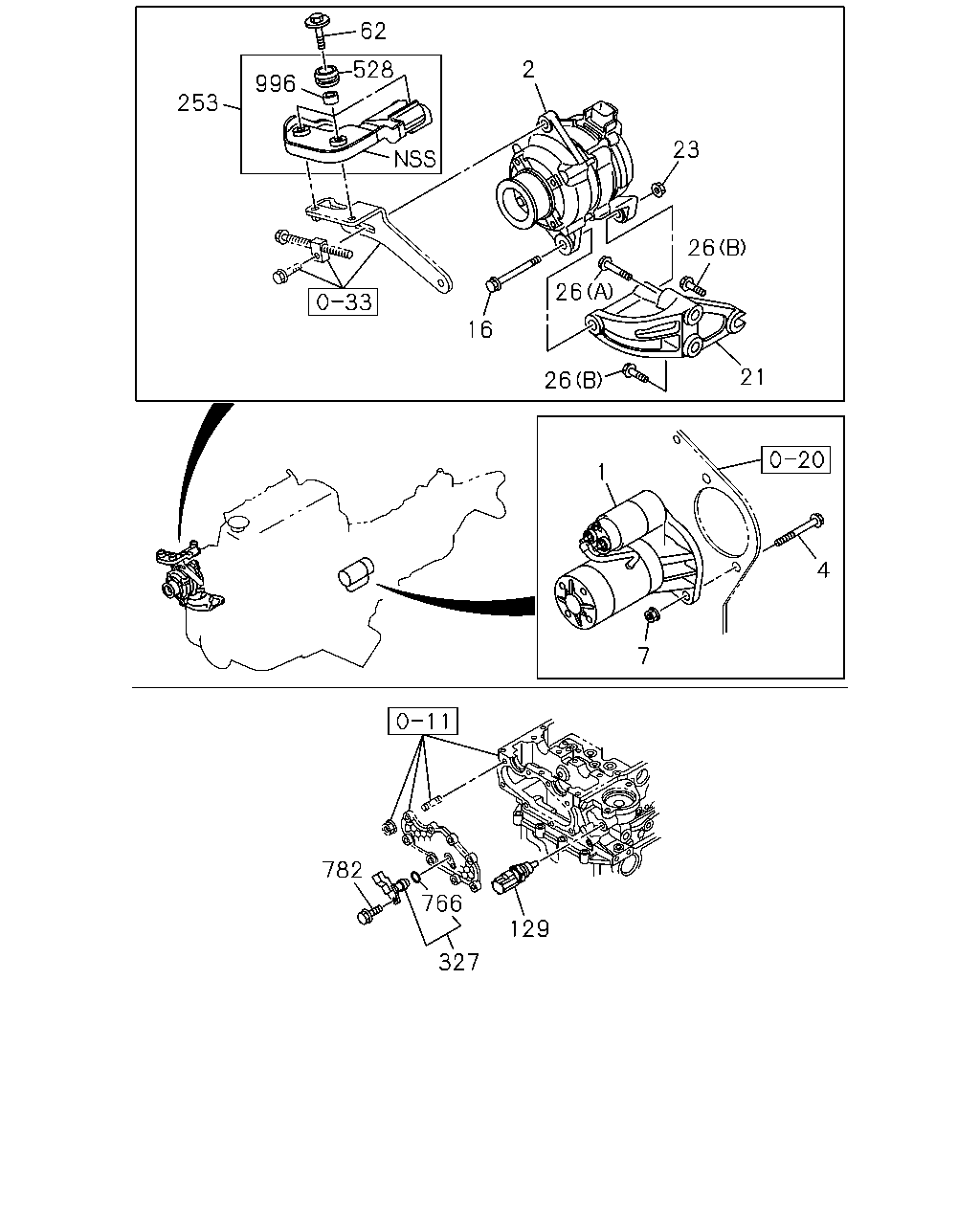

çizim 147373
21 26 23 2 62 253 996 528 16 26 26 7 1 4 782 766 129 327
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW THA 		8-98028-199-0 01 1 1109- ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA 		8-98196-585-0 01 1 1109-1211 ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA 		8-98229-071-1 01 1 1212- ● ● ●
4 BOLT; STARTER
M12X60 THA 		8-97161-846-1 02 1 1109- ● ● ●
7 NUT; STARTER
M12 FLANGE THA 		0-91180-112-0 02 1 1109- ● ● ●
16 BOLT; GEN
M10X125 FLANGE THA 		8-97226-470-1 01 1 1109- ● ● ●
21 BRACKET; GEN
THA 		8-98169-084-0 01 1 1109- ● ● ●
23 NUT; GEN
M10 FLANGE THA 		0-91180-210-0 01 1 1109- ● ● ●
26 BOLT; GEN BRKT
(A) M10X60 FLANGE THA 		0-28051-060-0 01 1 1109- ● ● ●
26 BOLT; GEN BRKT
(B) M10X40 FLANGE THA 		0-28651-040-0 02 1 1109- ● ● ●
62 BOLT; PROTECTOR
THA 		8-97383-407-0 03 1 1109-1203 ● ● ●
62 BOLT; PROTECTOR
EXC. REFRIGERATION KIT<7FH> THA 		8-97383-407-0 03 1 1204-1211 ●
62 BOLT; PROTECTOR
THA 		8-97383-407-0 03 1 1204-1211 ● ●
62 BOLT; PROTECTOR
THA 		8-97383-407-0 03 1 1212- ● ● ●
129 SENSOR; GLOW PLUG,THERMO
MITSUBISHI IMA 		8-98023-883-0 01 1 1109-1412 ● ● ●
129 SENSOR; GLOW PLUG,THERMO
NISHIDA IMA 		8-98260-257-0 01 1 1501- ● ● ●
253 PROTECTOR; HEAT,GEN
THA 		8-98157-835-2 01 1 1109-1203 ● ● ●
253 PROTECTOR; HEAT,GEN
EXC. REFRIGERATION KIT<7FH> THA 		8-98157-835-2 01 1 1204-1211 ●
253 PROTECTOR; HEAT,GEN
THA 		8-98157-835-2 01 1 1204-1211 ● ●
253 PROTECTOR; HEAT,GEN
THA 		8-98157-835-2 01 1 1212- ● ● ●
327 SENSOR; CAMSHAFT POSITION
IMA 		8-97312-108-1 01 1 1109- ● ● ●
528 BUSHING
THA 		8-98158-298-0 03 1 1109-1203 ● ● ●
528 BUSHING
EXC. REFRIGERATION KIT<7FH> THA 		8-98158-298-0 03 1 1204-1211 ●
528 BUSHING
THA 		8-98158-298-0 03 1 1204-1211 ● ●
528 BUSHING
THA 		8-98158-298-0 03 1 1212- ● ● ●
766 GASKET; SENSOR
ID=14.2 OD=18.8 IMA 		8-97369-404-0 01 1 1109- ● ● ●
782 BOLT; SENSOR
M6X16 FLANGE THA 		0-28050-616-0 01 1 1109- ● ● ●
996 MOUNT; PROTECTOR
THA 		8-98158-299-0 03 1 1109-1203 ● ● ●
996 MOUNT; PROTECTOR
EXC. REFRIGERATION KIT<7FH> THA 		8-98158-299-0 03 1 1204-1211 ●
996 MOUNT; PROTECTOR
THA 		8-98158-299-0 03 1 1204-1211 ● ●
996 MOUNT; PROTECTOR
THA 		8-98158-299-0 03 1 1212- ● ● ●

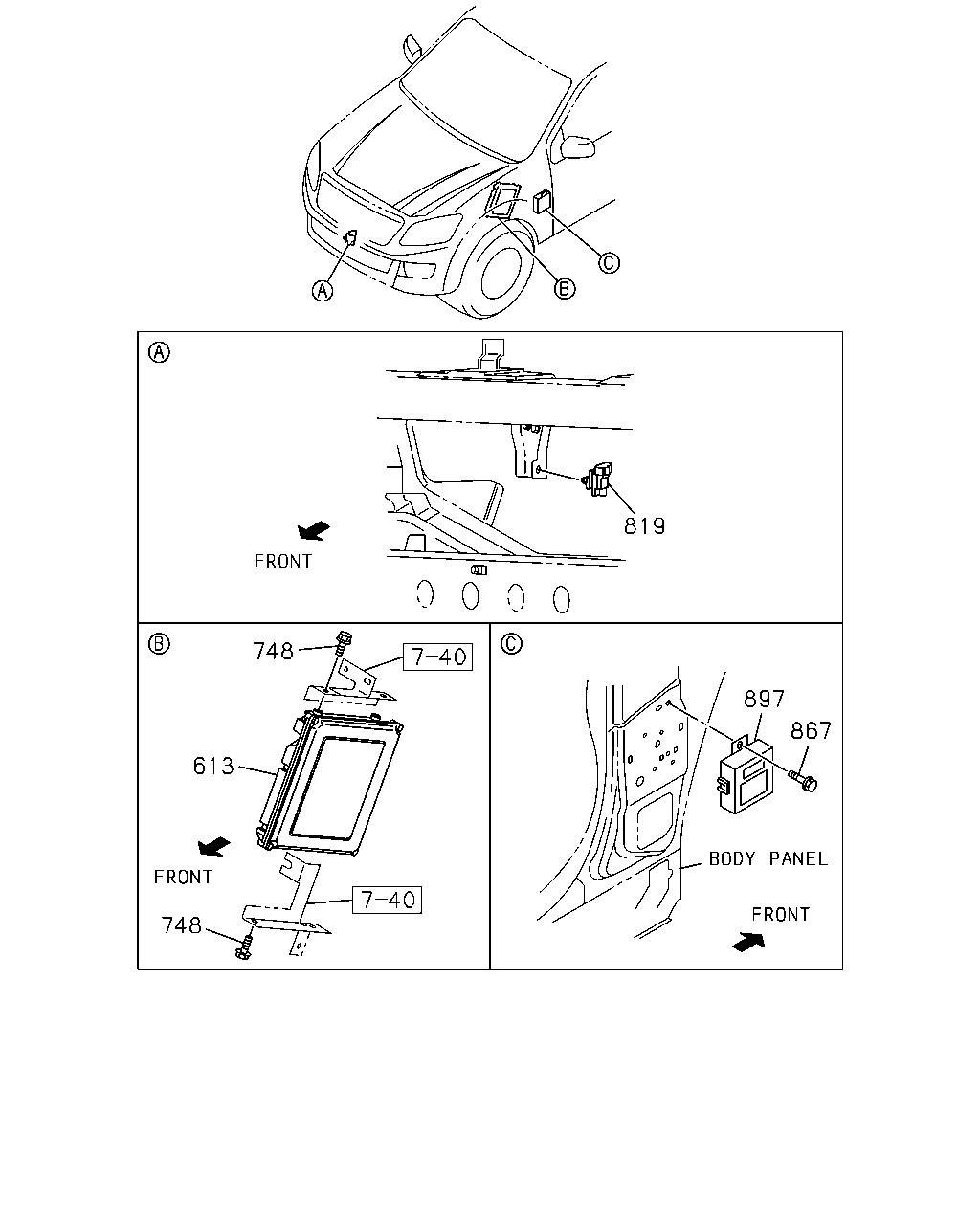

çizim 147375
748 613 748 897 867 819
BalonParca AdiParca NoAdetTipApplied Date A B C
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> THAILAND EQUIPMENT<B03> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION<7YC> EXC. BUS PREPARATORY PACK<7VX> THA 		8-98170-894-3 01 1 1212- ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION<7YC> THA 		8-98170-894-3 01 1 1109-1205 ●
613 CONTROL UNIT; ENG
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> THA 		8-98170-894-3 01 1 1109-1205 ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> THAILAND EQUIPMENT<B03> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION<7YC> EXC. BUS PREPARATORY PACK<7VX> THA 		8-98170-894-3 01 1 1206-1211 ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98170-896-3 01 1 1109-1211 ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> THAILAND EQUIPMENT<B03> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. BUS PREPARATORY PACK<7VX>,HIGH RIDE SUSPENSION<7YC> THA 		8-98170-896-3 01 1 1212- ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> HIGH RIDE SUSPENSION<7YC> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98170-897-3 01 1 1109- ●
613 CONTROL UNIT; ENG
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98170-897-3 01 1 1109- ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC>,HIGH RIDE SUSPENSION<7YC> THA 		8-98170-899-3 01 1 1109-1109 ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC>,BUS PREPARATORY PACK<7VX>,HIGH RIDE SUSPENSION<7YC> THA 		8-98170-899-3 01 1 1110-1211 ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> THAILAND EQUIPMENT<B03> EURO3 SPECIFICATION<NT3> EXC. IMMOBILIZER SYSTEM<7KC>,BUS PREPARATORY PACK<7VX>,HIGH RIDE SUSPENSION<7YC> THA 		8-98170-899-3 01 1 1212- ●
613 CONTROL UNIT; ENG
4X2<TFB***> A/T 5 SPEED-AISIN<MA1> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION<7YC> THA 		8-98170-890-3 01 1 1109-1205 ●
613 CONTROL UNIT; ENG
4X2<TFB***> A/T 5 SPEED-AISIN<MA1> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION<7YC> EXC. BUS PREPARATORY PACK<7VX> THA 		8-98170-890-3 01 1 1206-1211 ●
613 CONTROL UNIT; ENG
4X4<TFS***> A/T 5 SPEED-AISIN<MA1> IMMOBILIZER SYSTEM<7KC> EXC. BUS PREPARATORY PACK<7VX> THA 		8-98170-890-3 01 1 1206-1211 ●
613 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN<MA1> THAILAND EQUIPMENT<B03> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. BUS PREPARATORY PACK<7VX> THA 		8-98170-890-3 01 1 1212-1212 ●
613 CONTROL UNIT; ENG
4X2<TFB***> A/T 5 SPEED-AISIN<MA1> THAILAND EQUIPMENT<B03> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION<7YC> THA 		8-98170-890-3 01 1 1212-1408 ●
613 CONTROL UNIT; ENG
4X4<TFS***> A/T 5 SPEED-AISIN<MA1> THAILAND EQUIPMENT<B03> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> THA 		8-98170-890-3 01 1 1212-1408 ●
613 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN<MA1> THAILAND EQUIPMENT<B03> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. BUS PREPARATORY PACK<7VX> THA 		8-98170-890-3 01 1 1409- ●
613 CONTROL UNIT; ENG
4X2<TFB***> A/T 5 SPEED-AISIN<MA1> IMMOBILIZER SYSTEM<7KC> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98170-891-4 01 1 1109-1211 ●
613 CONTROL UNIT; ENG
4X2<TFB***> A/T 5 SPEED-AISIN<MA1> THAILAND EQUIPMENT<B03> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98170-891-4 01 1 1212- ●
613 CONTROL UNIT; ENG
4X2<TFB***> A/T 5 SPEED-AISIN<MA1> HIGH RIDE SUSPENSION<7YC> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98170-892-3 01 1 1109-1211 ●
613 CONTROL UNIT; ENG
4X2<TFB***> A/T 5 SPEED-AISIN<MA1> THAILAND EQUIPMENT<B03> EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION<7YC> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98170-892-3 01 1 1212-1408 ●
613 CONTROL UNIT; ENG
4X4<TFS***> A/T 5 SPEED-AISIN<MA1> THAILAND EQUIPMENT<B03> EURO3 SPECIFICATION<NT3> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98170-892-3 01 1 1212-1408 ●
613 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN<MA1> EXC. IMMOBILIZER SYSTEM<7KC>,BUS PREPARATORY PACK<7VX> THA 		8-98170-892-3 01 1 1409- ●
613 CONTROL UNIT; ENG
4X2<TFB***> A/T 5 SPEED-AISIN<MA1> EXC. IMMOBILIZER SYSTEM<7KC>,HIGH RIDE SUSPENSION<7YC> THA 		8-98170-893-4 01 1 1109- ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION<7YC> THA 		8-98170-884-3 01 1 1109-1211 ●
613 CONTROL UNIT; ENG
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> THA 		8-98170-884-3 01 1 1109-1211 ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> THAILAND EQUIPMENT<B03> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION<7YC> THA 		8-98170-884-3 01 1 1212- ●
613 CONTROL UNIT; ENG
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ> THAILAND EQUIPMENT<B03> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> THA 		8-98170-884-3 01 1 1212- ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98170-886-4 01 1 1109-1211 ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> THAILAND EQUIPMENT<B03> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98170-886-4 01 1 1212- ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> HIGH RIDE SUSPENSION<7YC> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98170-887-3 01 1 1109-1211 ●
613 CONTROL UNIT; ENG
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98170-887-3 01 1 1109-1211 ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> THAILAND EQUIPMENT<B03> EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION<7YC> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98170-887-3 01 1 1212- ●
613 CONTROL UNIT; ENG
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ> THAILAND EQUIPMENT<B03> EURO3 SPECIFICATION<NT3> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98170-887-3 01 1 1212- ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC>,HIGH RIDE SUSPENSION<7YC> THA 		8-98170-889-4 01 1 1109-1211 ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> THAILAND EQUIPMENT<B03> EURO3 SPECIFICATION<NT3> EXC. IMMOBILIZER SYSTEM<7KC>,HIGH RIDE SUSPENSION<7YC> THA 		8-98170-889-4 01 1 1212- ●
613 CONTROL UNIT; ENG
4X2<TFB***> A/T 5 SPEED-AISIN<MA1> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION<7YC> THA 		8-98170-847-4 01 1 1109-1109 ●
613 CONTROL UNIT; ENG
4X2<TFB***> A/T 5 SPEED-AISIN<MA1> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION<7YC> THA 		8-98170-847-4 01 1 1110-1211 ●
613 CONTROL UNIT; ENG
4X4<TFS***> A/T 5 SPEED-AISIN<MA1> IMMOBILIZER SYSTEM<7KC> THA 		8-98170-847-4 01 1 1110-1211 ●
613 CONTROL UNIT; ENG
4X2<TFB***> A/T 5 SPEED-AISIN<MA1> THAILAND EQUIPMENT<B03> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION<7YC> THA 		8-98170-847-4 01 1 1212-1402 ●
613 CONTROL UNIT; ENG
4X4<TFS***> A/T 5 SPEED-AISIN<MA1> THAILAND EQUIPMENT<B03> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> THA 		8-98170-847-4 01 1 1212-1402 ●
613 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN<MA1> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> THA 		8-98170-847-4 01 1 1403- ●
613 CONTROL UNIT; ENG
4X2<TFB***> A/T 5 SPEED-AISIN<MA1> HIGH RIDE SUSPENSION<7YC> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98170-849-3 01 1 1109-1109 ●
613 CONTROL UNIT; ENG
4X2<TFB***> A/T 5 SPEED-AISIN<MA1> HIGH RIDE SUSPENSION<7YC> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98170-849-3 01 1 1110-1211 ●
613 CONTROL UNIT; ENG
4X4<TFS***> A/T 5 SPEED-AISIN<MA1> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98170-849-3 01 1 1110-1211 ●
613 CONTROL UNIT; ENG
4X2<TFB***> A/T 5 SPEED-AISIN<MA1> THAILAND EQUIPMENT<B03> EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION<7YC> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98170-849-3 01 1 1212-1402 ●
613 CONTROL UNIT; ENG
4X4<TFS***> A/T 5 SPEED-AISIN<MA1> THAILAND EQUIPMENT<B03> EURO3 SPECIFICATION<NT3> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98170-849-3 01 1 1212-1402 ●
613 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN<MA1> EURO3 SPECIFICATION<NT3> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98170-849-3 01 1 1403- ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUX 5 SPEED 5S<MZJ> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION<7YC> THA 		8-98170-841-4 01 1 1109-1211 ●
613 CONTROL UNIT; ENG
4X4<TFS***> M/T MUX 5 SPEED 5S<MZJ> IMMOBILIZER SYSTEM<7KC> THA 		8-98170-841-4 01 1 1109-1211 ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUX 5 SPEED 5S<MZJ> THAILAND EQUIPMENT<B03> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION<7YC> THA 		8-98170-841-4 01 1 1212- ●
613 CONTROL UNIT; ENG
4X4<TFS***> M/T MUX 5 SPEED 5S<MZJ> THAILAND EQUIPMENT<B03> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> THA 		8-98170-841-4 01 1 1212- ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUX 5 SPEED 5S<MZJ> IMMOBILIZER SYSTEM<7KC> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98170-843-3 01 1 1109-1205 ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUX 5 SPEED 5S<MZJ> HIGH RIDE SUSPENSION<7YC> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98170-844-3 01 1 1109-1211 ●
613 CONTROL UNIT; ENG
4X4<TFS***> M/T MUX 5 SPEED 5S<MZJ> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98170-844-3 01 1 1109-1211 ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUX 5 SPEED 5S<MZJ> THAILAND EQUIPMENT<B03> EURO3 SPECIFICATION<NT3> HIGH RIDE SUSPENSION<7YC> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98170-844-3 01 1 1212- ●
613 CONTROL UNIT; ENG
4X4<TFS***> M/T MUX 5 SPEED 5S<MZJ> THAILAND EQUIPMENT<B03> EURO3 SPECIFICATION<NT3> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98170-844-3 01 1 1212- ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUX 5 SPEED 5S<MZJ> EXC. IMMOBILIZER SYSTEM<7KC>,HIGH RIDE SUSPENSION<7YC> THA 		8-98170-846-3 01 1 1109- ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> BUS PREPARATORY PACK<7VX> THA 		8-98170-906-3 01 1 1110-1211 ●
748 BOLT; CONT UNIT
M6X16 FLANGE THA 		0-28650-616-0 04 1 1109- ● ● ●
819 SENSOR; MASS AIR FLOW (MAF)
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> IMA 		8-98008-687-0 01 1 1109- ● ● ●
867 BOLT
M6X16 FLANGE THA 		0-28650-616-0 01 1 1109- ● ● ●
897 DRM
THA 		8-98126-826-4 01 1 1109-1211 ● ● ●
897 DRM
THA 		8-98221-054-4 01 1 1212- ● ● ●

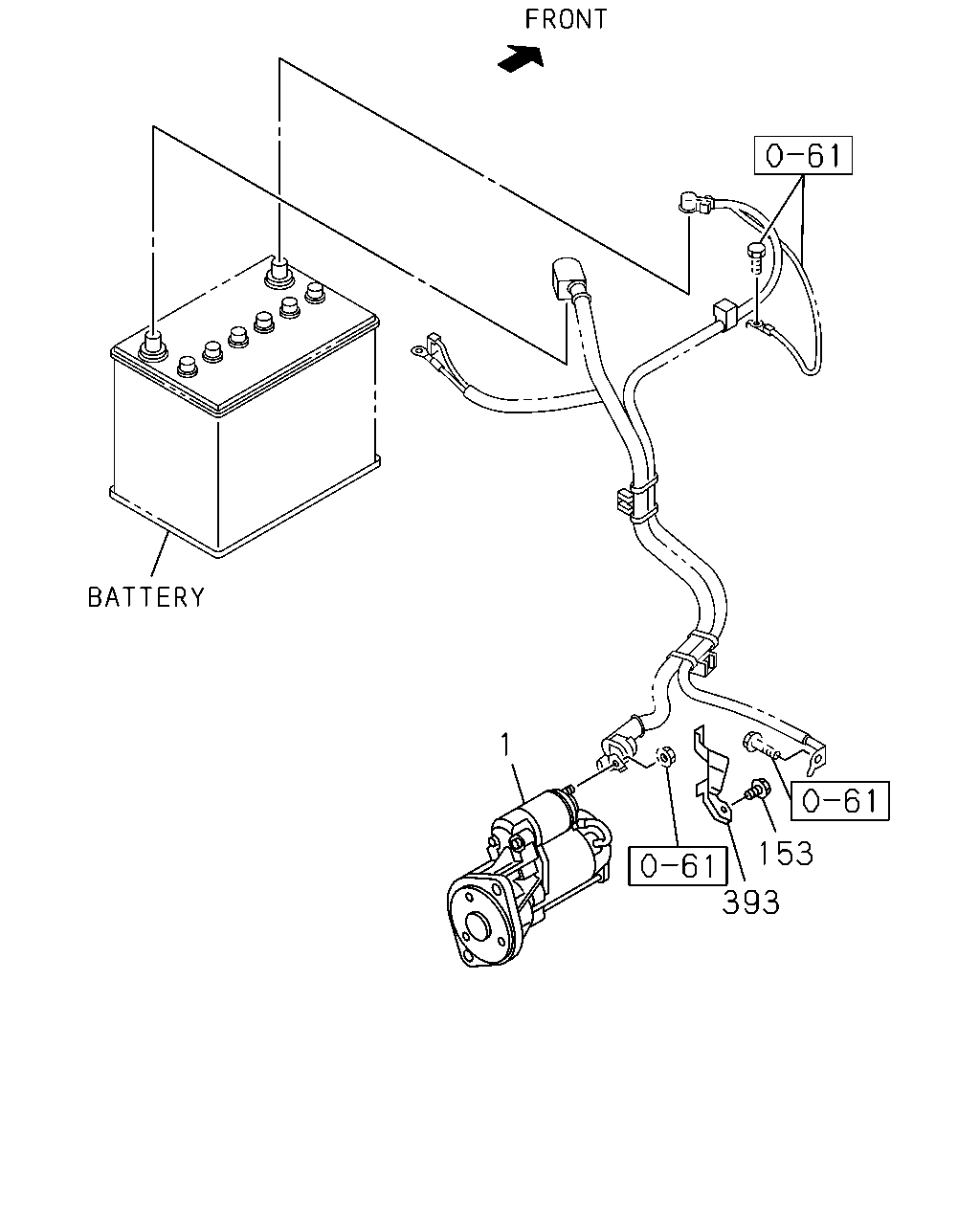

çizim 147377
153 393 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW THA 		8-98028-199-0 01 1 1109- ● ● ●
153 BOLT; BRKT FIX
M6X10 FLANGE THA 		8-98043-527-0 01 1 1212- ● ● ●
393 BRACKET; HARNESS TO BODY
THA 		8-98102-992-4 01 1 1109- ● ● ●

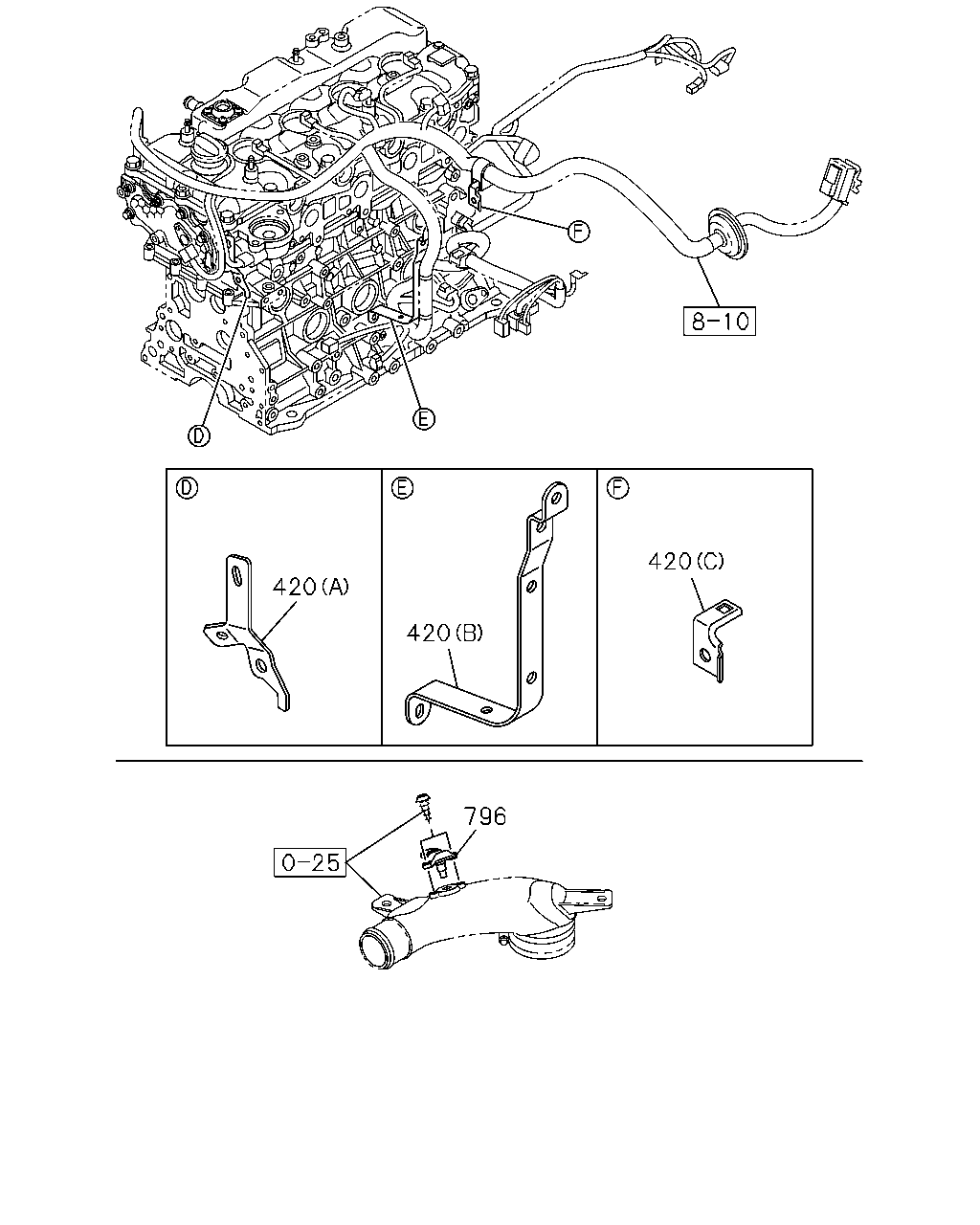

çizim 147378
420 420 420 796
BalonParca AdiParca NoAdetTipApplied Date A B C
420 BRACKET; HARNESS
(A) THA 		8-98132-062-1 01 1 1109- ● ● ●
420 BRACKET; HARNESS
(B) THA 		8-98165-075-0 01 1 1109- ● ● ●
420 BRACKET; HARNESS
(C) THA 		8-98179-101-0 01 1 1109- ● ● ●
796 SENSOR; MAP
IMA 		8-98009-418-0 01 1 1109- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
